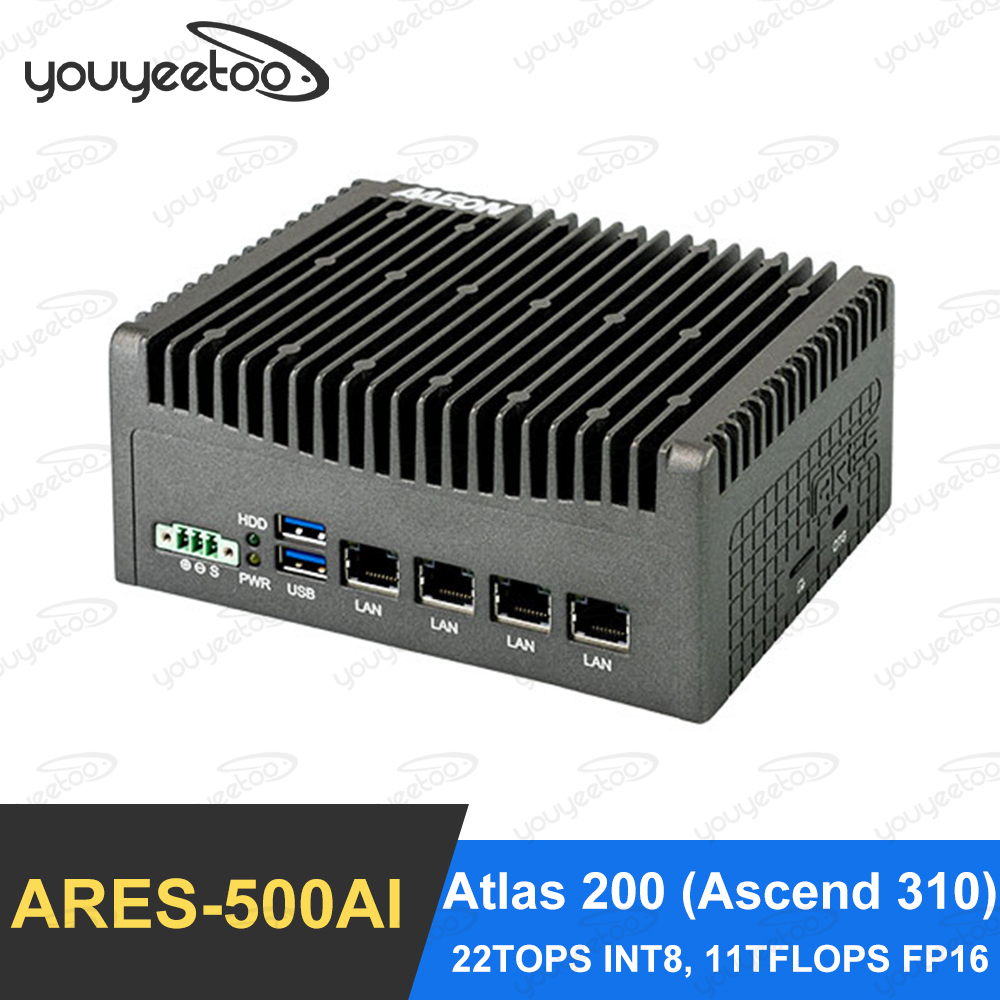

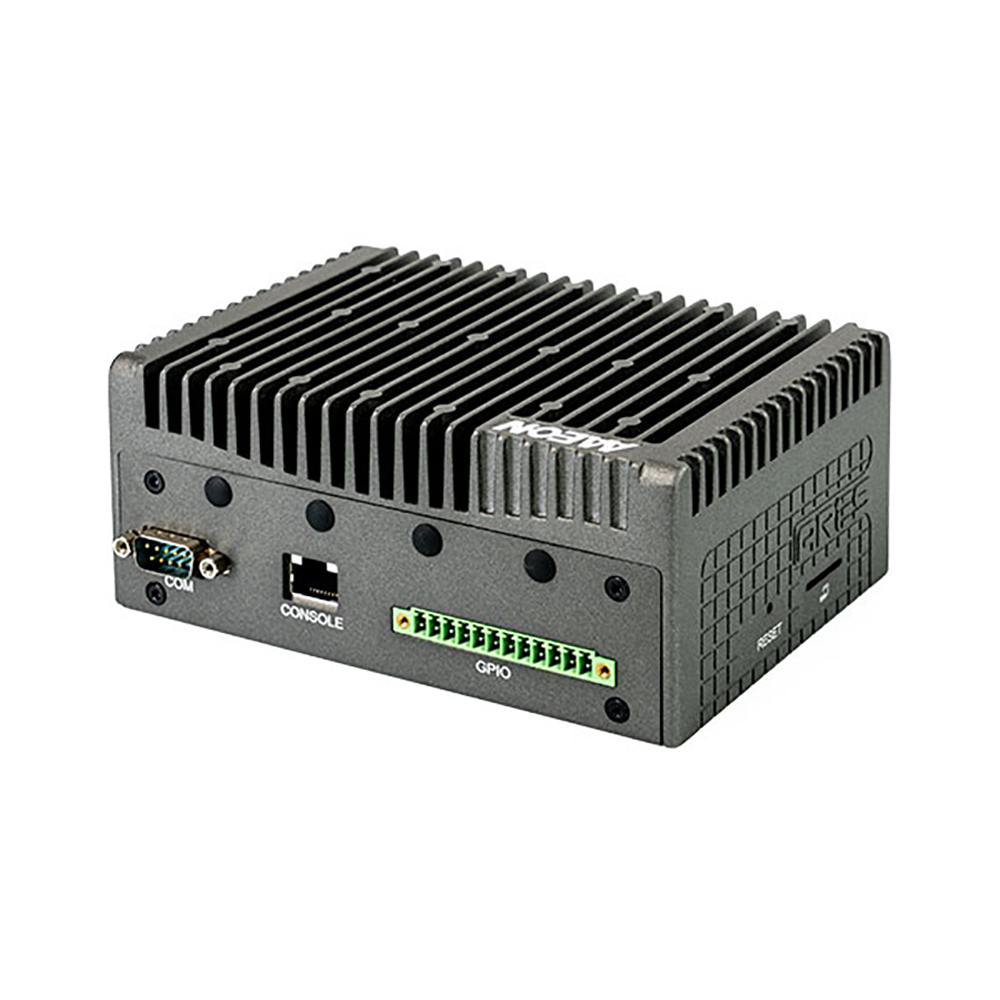

ARES-500AI AI Edge Box - Built-in Huawei Atlas200( Ascend 310) - Provide 22/16/8 TOPS INT8, 11/8/4 TFLOPS FP16 - Euler OS

To download the Tools, Driver, and Firmware use the following link:

​https://youyeetoo.com/blog/ares-500ai-192​

Specifications

AI performance

AI module Huawei Atlas 200 (Ascend 310)

AI computing power 22/16/8 TOPS INT8, 11/8/4 TFLOPS FP16

Memory specification LPDDR4X 8 GB or 4GB, total bandwidth 51.2 GB/s

Codec capability

Support H.264 hardware decoding

- 16 channels 1080P 30 FPS (2 channels 3840*2160 60 FPS)

Support H.265 hardware decoding

- 16 channels 1080P 30 FPS (2 channels 3840*2160 60 FPS)

Support H.264 hardware encoding, 1 channel 1080P 30 FPS

Support H.265 hardware encoding, 1 channel 1080P 30 FPS

JPEG decoding capability 1080P 256 FPS, encoding capability 1080P

64 FPS, maximum resolution: 8192*4320

PNG decoding capability 1080P 24 FPS, maximum resolution

Rate: 4096*2160

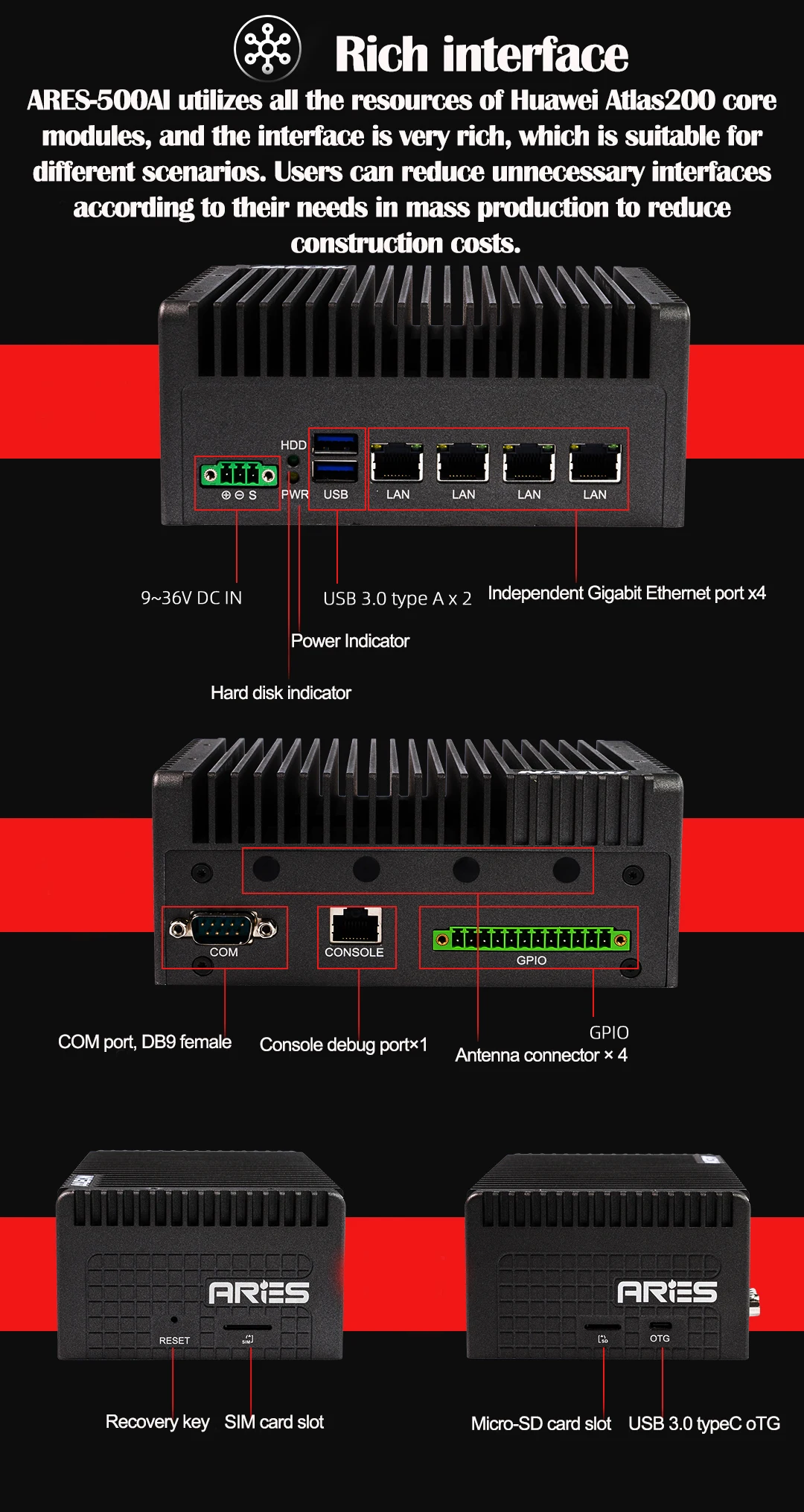

Interface Specifications

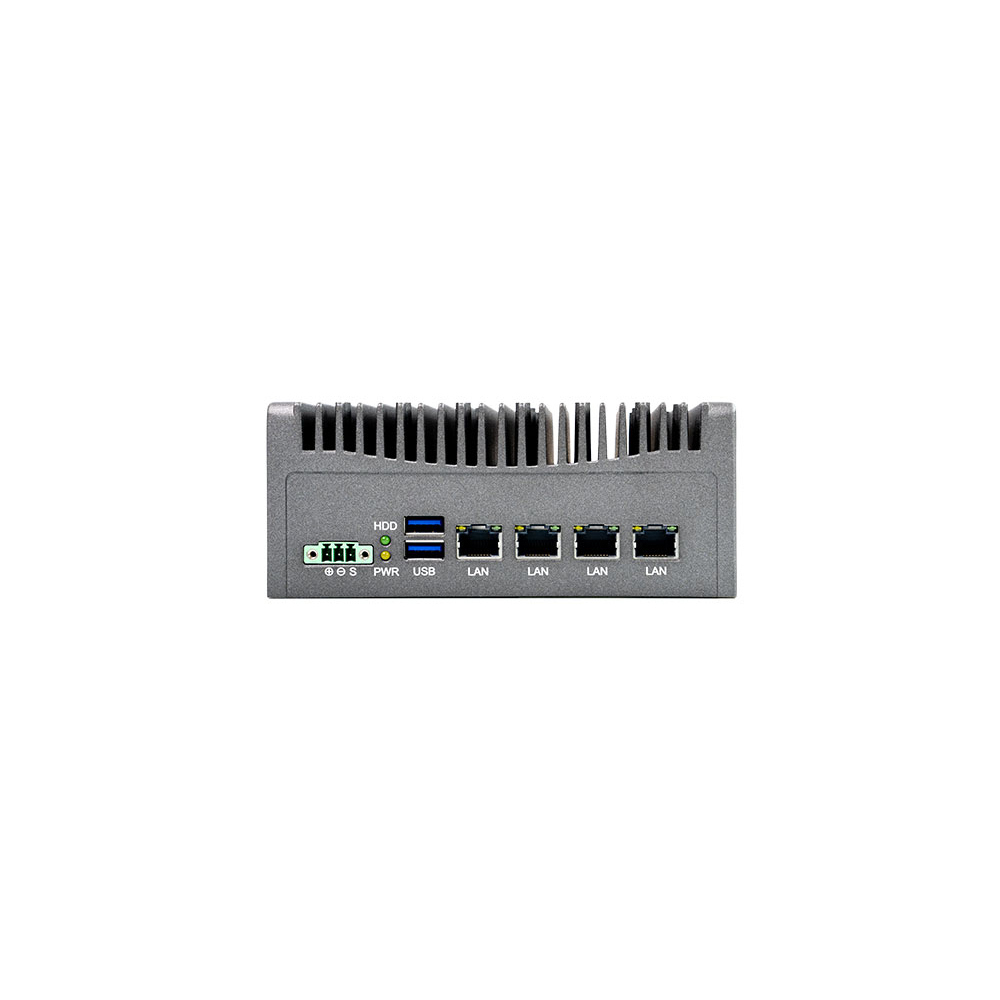

LAN 4 x GbE RJ45

USB 2 x USB3.0 TypeA

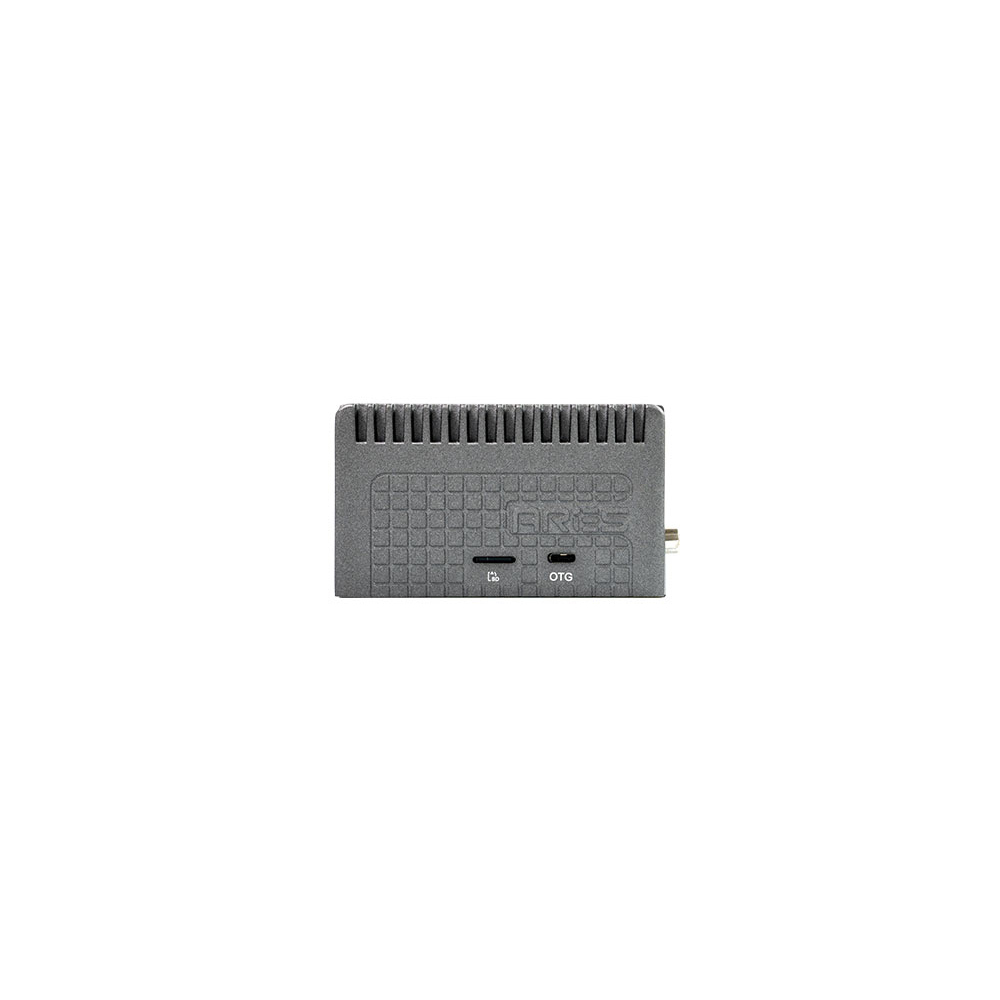

Micro USB 1 x USB 3.0 typeC OTG for burning firmware.

Storage SSD solid state drive or tf card

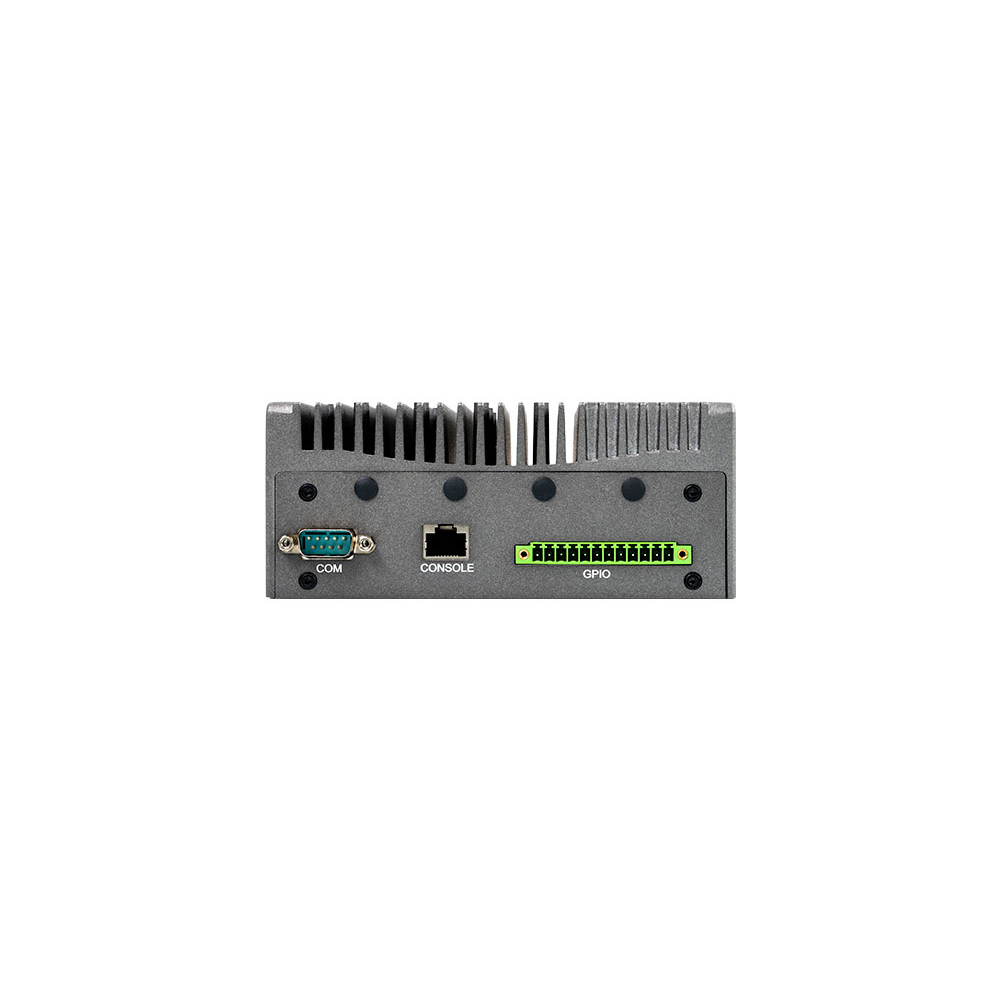

Console 1 x Console port

Serial 1 x RS232/422/485

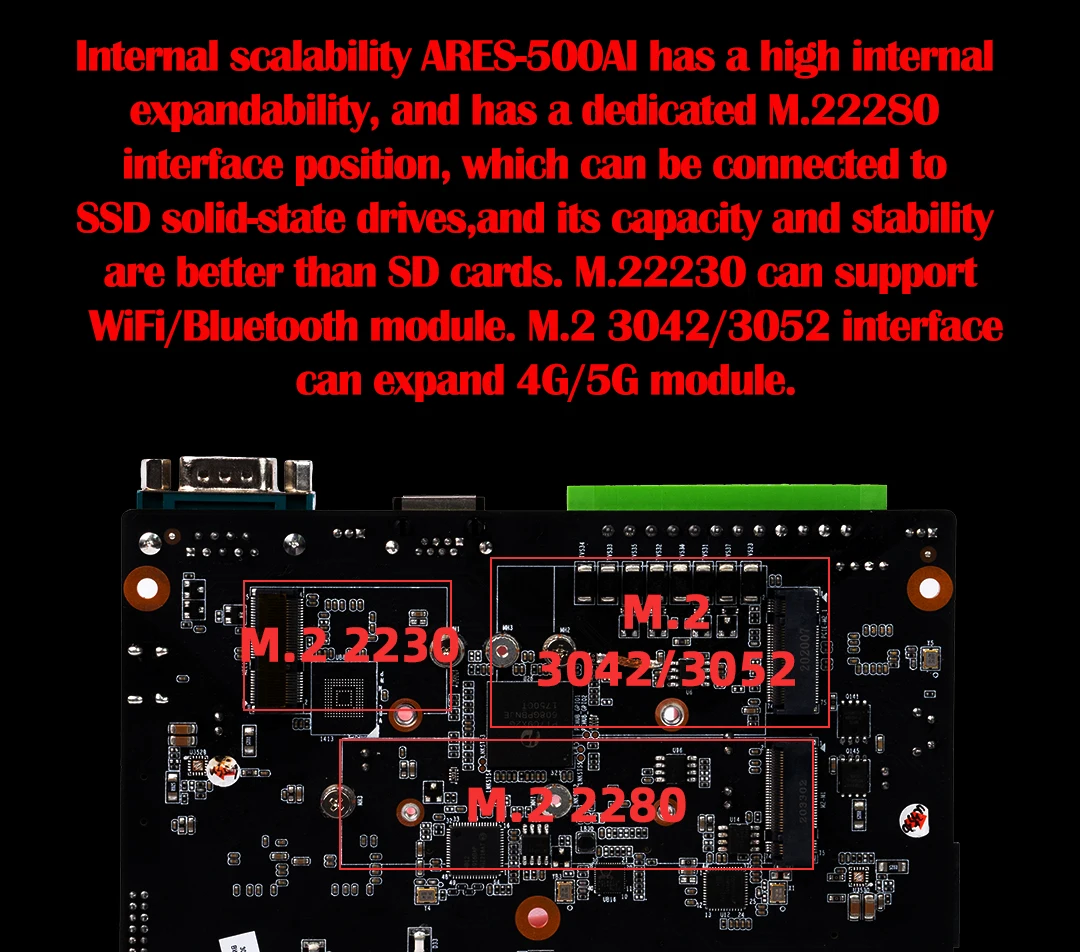

Expand

1 x M.2 2280 / 2242, support SSD

1 x M.2 3042/3052, SIM card slot, 4G/5G

1 x M.2 2230, support WIFI/BT

4 x DO, 4 x DI

Basic Specifications

Power supply DC-IN/9-36V, 3.81 phoenix terminal 3PIN with screw

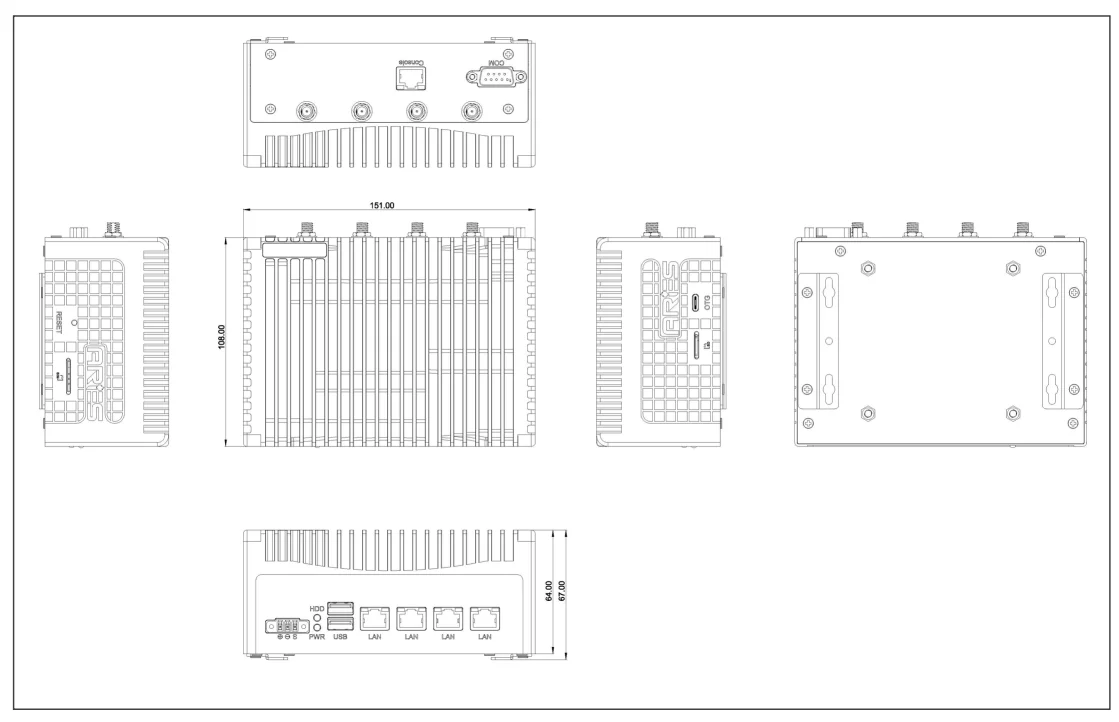

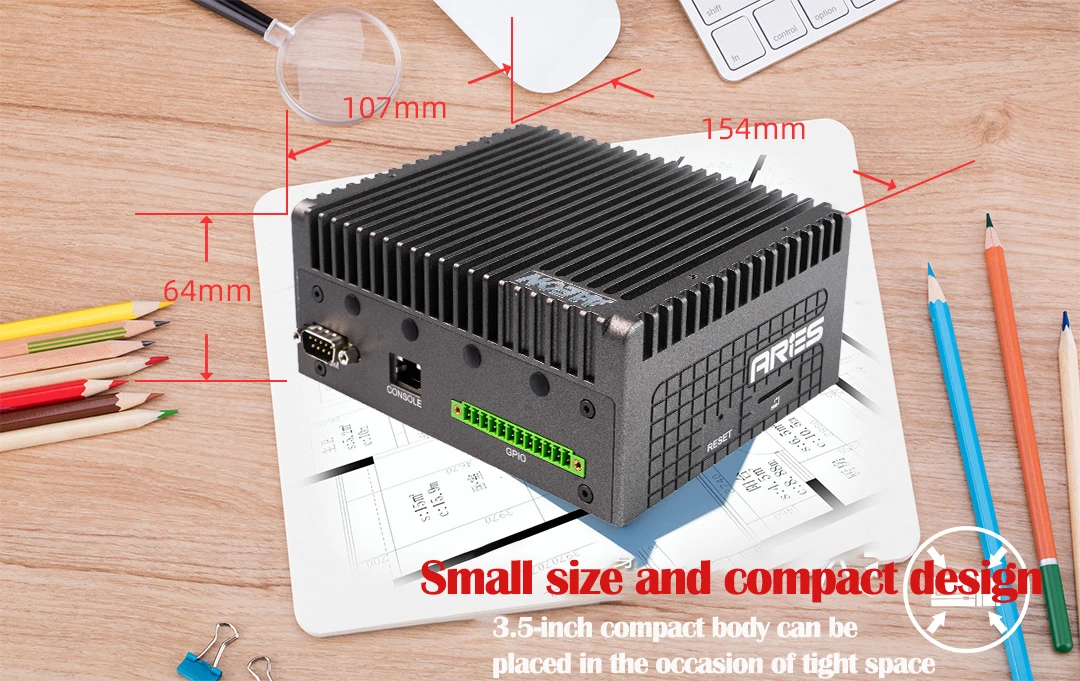

Dimensions (W x D x H) 151mm x 108mm x 64mm

System

kernel Euler OS
