This MINIPC redefines “small but mighty”. At only 5 in³ this mini gaming pc squeezes an Intel 12th Gen i7 CPU and NVIDIA RTX 4060 GPU, delivering desktop-class frames for esports, while the 21 TOPS tensor cores accelerate local AI inference. Four video outputs create immersive surround-sim or productive multi-monitor workstations; Wi-Fi 6 and 2.5 G-ready Ethernet keep latency low for cloud gaming and PLC feedback loops alike. Fan-less cooling means zero dust, zero noise and 24/7 reliability on the factory floor, in a kiosk or on your desk. Slide off the top, drop in an NVMe drive and up to 32 GB RAM—upgrade done in under two minutes. Whether you frag, render, code or control, this minipc ships fully licensed and ready to play, stream or automate.
[Performance] 12th Gen Intel i7-12650H 10-core boosts up to 4.7 GHz, paired with NVIDIA RTX 4060 8 GB GDDR6 for 21 TOPS AI and smooth 1080p/1440p gaming; mini gaming pc power in 1.3 kg.
[Graphics] 4K-ready dual HDMI + dual DP plus optional USB-C drive, four simultaneous displays; ideal for surround sim-rigs, multi-task home office, or digital signage.
[Connectivity] Wi-Fi 6, Bluetooth 5.1 and Gigabit LAN handle low-latency game-stream, cloud sync and industrial IoT gateways without extra dongles.
[Expansion] Tool-free 2280 M.2 PCIe 3.0 x4 NVMe/SATA slot supports up to 2 TB; single 32 GB DDR4 SO-DIMM for quick field upgrades—no soldered RAM.
[Tough & Quiet] Aluminum heatsink enables true fan-less 0–50 °C operation; 128 × 128 × 97 mm chassis mounts VESA or DIN-rail, rated 24/7 for edge AI and control cabinets.
[OS Ready] Windows 11 Pro, Windows 10 and Ubuntu 20.04+ tested.
1× mini gaming pc
1×120 W power adapter (IEC/UL cord region-matched)
Plug-and-play mini gaming pc that slides from living-room 1440p battles, to developer AI inference, to 24/7 industrial IoT control—all silent, all in one palm-sized box.
CPU: Intel Core i7-12650H, 10C (6P+4E) 16T, 24 MB L3, up to 4.7 GHz
GPU: NVIDIA RTX 4060, 8 GB GDDR6, 2×HDMI 2.1, 2×DP 1.4a
Memory: 1×DDR4 SO-DIMM max 32 GB 3200 MT/s
Storage: 1×M.2 2280 PCIe 3.0 x4 NVMe/SATA
Network: Intel I219-LM GbE, Intel AX201 Wi-Fi 6, BT 5.1
USB: 4×USB 3.2 Gen 2 Type-A, 2×USB-C (Alt-DP)
Power: 19 V⎓6.32 A, 120 W adapter, 5.5×2.5 mm
Dimensions: 128 × 128 × 97 mm, 1.3 kg
Environment: Operating 0–50 °C, storage -20–55 °C, fan-less
| CPU Module | Intel® NUC 8/11/12 Compute Element |
| 12th Gen | Intel® i7-1255U/16GB LPDDR5(32GB/vPro Option) 10 Processor Cores (2P+8E), 12 threads,12MB L3 Cache (P-Cores: Up to 4.7GHz Turbo; E-Cores: Up to 3.5GHz Turbo) |
| Intel® i5-1235U/8GB LPDDR5(16GB/vPro Option) 10 Processor Cores (2P+8E), 12 threads, 12MB L3 Cache (P-Cores: Up to 4.4GHz Turbo; E-Cores: Up to 3.3GHz Turbo) |
|
| Intel® i3-1215U/8GB LPDDR5(16GB Option) 6 Processor Cores (2P+4E), 8 threads, 10MB L3 Cache (P-Cores: Up to 4.4GHz Turbo; E-Cores: Up to 3.3GHz Turbo) |
|
| Intel® Celeron® 7305/4GB LPDDR5(8GB Option) 5 Processor Cores (1P+4E), 5 threads, 8MB L3 Cache |
|
| 11th Gen | Intel® i7-1165G7/16GB LPDDR4(vPro Option) 4Cores,8Threads,12MB L3 Cache,2.80GHz~4.70GHz |
| Intel® i5-1135G7/8GB LPDDR4(vPro Option) 4Cores,8 Threads,8MB L3 Cache,2.40GHz~4.20GHz |
|
| Intel® i3-1115G4/8GB LPDDR4 2Cores,4Threads,6MB L3 Cache,3.00GHz~4.10GHz |
|
| Intel® Celeron®6305U/4GB LPDDR4 2Cores,2Threads,4MB L3 Cache,1.80GHz |
|
| 8th Gen | Intel® i7-8565U/8GB LPDDR3(vPro Option) 4Cores,8Threads,8MB Cache,1.80GHz~4.60GHz |
| Intel® i5-8265U/8GB LPDDR3(vPro Option) 4Cores,8Threads,6MB Cache,1.60GHz~3.90GHz |
|
| Intel® i3-8145U/4GB LPDDR3 2Cores,4Threads,4MB Cache,2.1GHz~3.90GHz |
|
| Intel® Celeron®4305U/4GB LPDDR3/64GB eMMC 2Cores,2Threads,2MB Cache,2.20GHz |
| CPU Module | Intel® NUC 8/11/12 Compute Element | |
| Display | Integrated Graphics | Intel® Iris® Xe Graphics (11th/12th Gen) /Intel® UHD Graphics (8th Gen) |
| Discrete Graphics | NVIDIA GTX1650 (GDDR5 4GB,896 CUDA® Cores) |
|
| HDMI OUT | 4 ports (Resolution up to 3840×2160@60Hz) | |
| DP | 2 ports (Resolution up to 3840×2160@60Hz) | |
| Storage | M.2 Solt | 1×22×80 key M slot（PCIe x4 NVME/SATA） |
| Network | Ethernet | 1×10/100/1000 Mbps RJ45 Ethernet（i219） |
| WIFI | Intel® Wi-Fi 6E AX211(For 12th Gen) Intel® Wi-Fi 6 AX201(For 11th Gen) Intel® Wireless-AC 9560(For 8th Gen) |
|
| BT | Bluetooth* 5.2(For 12th Gen) Bluetooth* 5.1(For 11th Gen) Bluetooth* 5.0(For 8th Gen) |
|

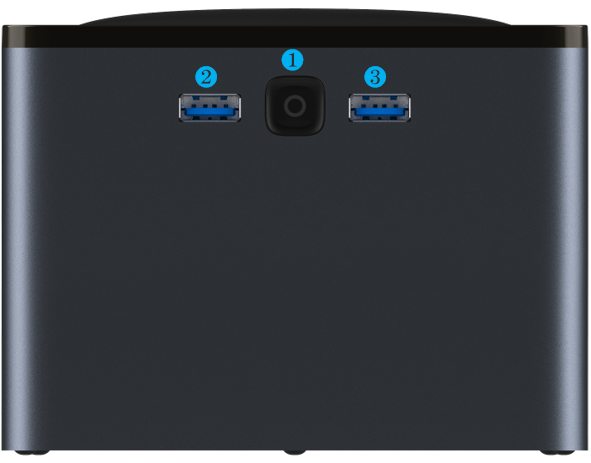

| Front IO | USB3 | 2×USB3.1(Gen 11) Type-A |
| Power Button | 1（with Led） | |

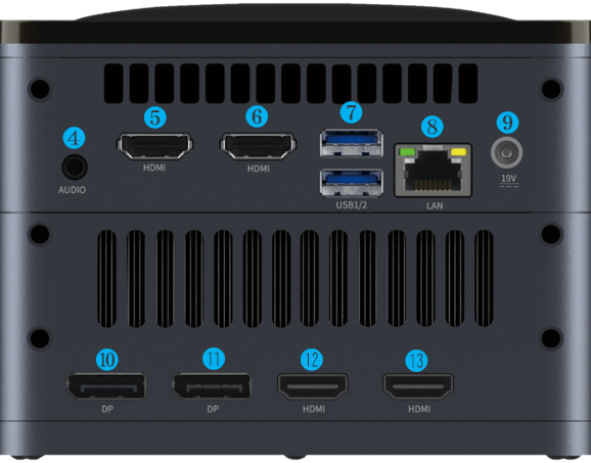

| Rear IO （L1-CPU Layer） |
HDMI | 2 |
| USB3 | 2×USB3.1 (Gen 22) Type A | |
| LAN1 | 1×RJ45 (Wake on LAN Supported) | |
| Audio | 1×3.5mm Audio Combo Jack | |
| Rear IO （L2-Extend Layer） |
HDMI | 2 ports |
| DP | 2 ports | |
| OS | Windows | Windows 10 64bit |
| Linux | Ubuntu 20.04 LTS and later | |
| Power | Supply | 19V Adaptor |
| Mechanical | Dimension | 128mm*128mm*97mm |
| Weight | 1.3KG | |
| Environment | Operating Temp. | 0°C to +50°C |
| Storage Temp. | -20°C to +55°C | |
1 USB 3.1 (Gen 1) Share with USB 3.1 (Gen 1) HUB;
2 USB 3.1 (Gen 2) is supported for 8th Gen,USB 3.2 (Gen 2×1) for 11th/12th Gen
