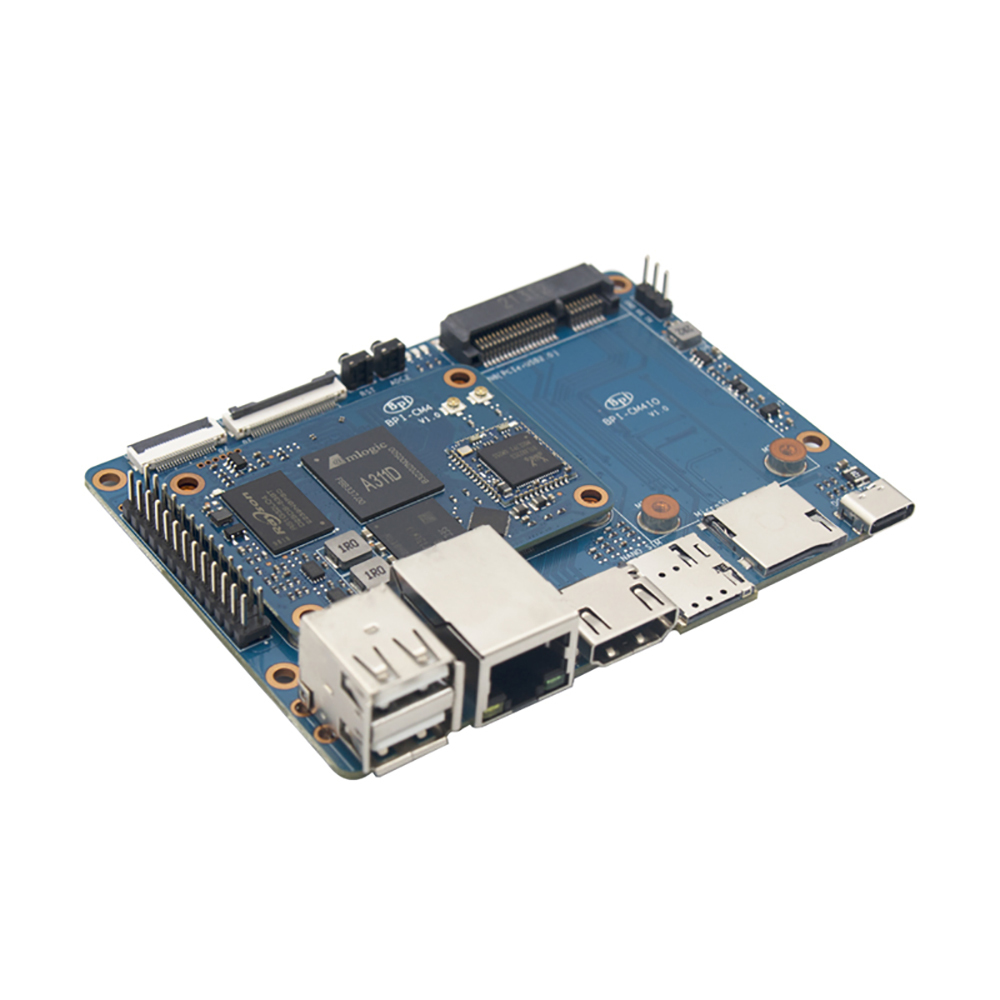

BPI-CM4 Introduction
BananaPi BPI-CM4 new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU, ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash.
for A311D chip PIN limited . just support 1 HDMI ,1 CSI and 1 DSI , Raspberry Pi support 2 HDMI ,2 CSI and 2 DSI , Other is Pin2Pin . you can use Raspberry Pi CM4 baseboard.
Key Features
Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
4GB LPDDR4 RAM
16GB eMMC flash (Max 128G)
support MIPI DSI Camera interface
support MIPI CSI Screen interface
Minipcie
HDMI output
26 PIN GPIO
support Android and Linux systems.
Hardware

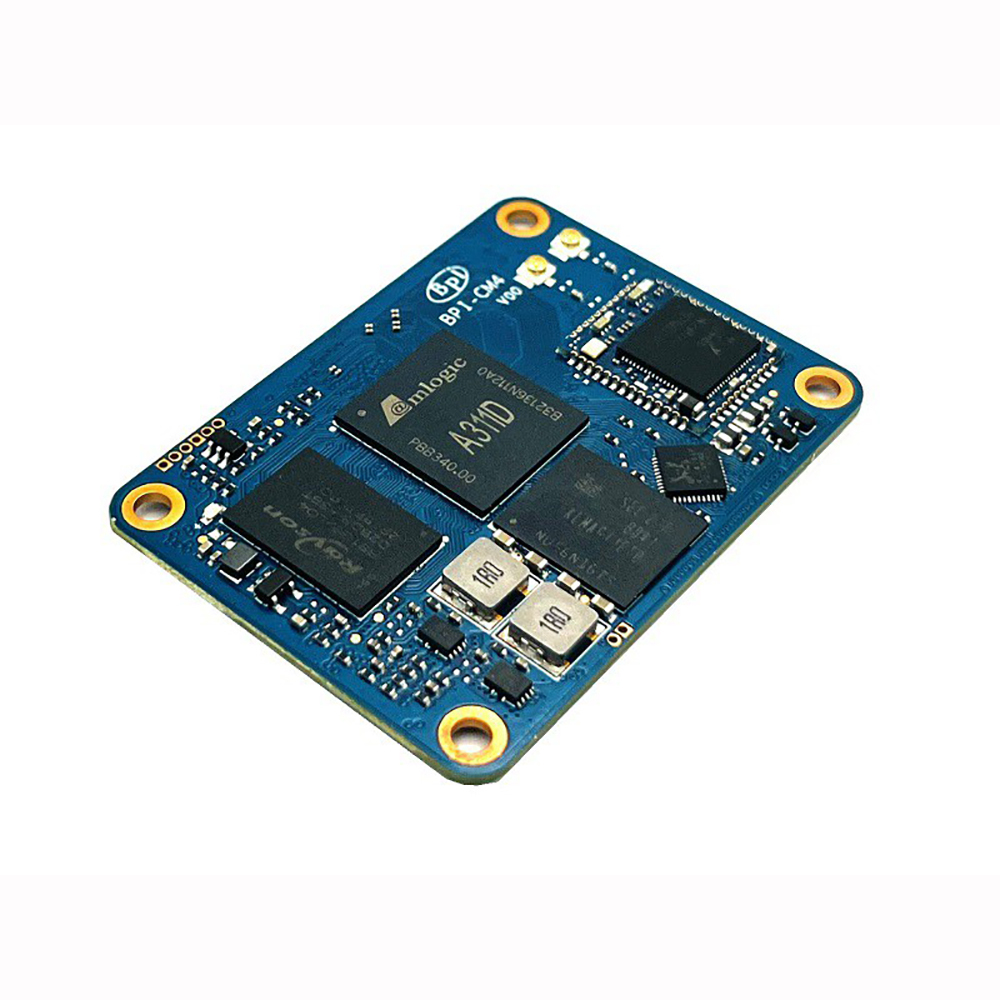

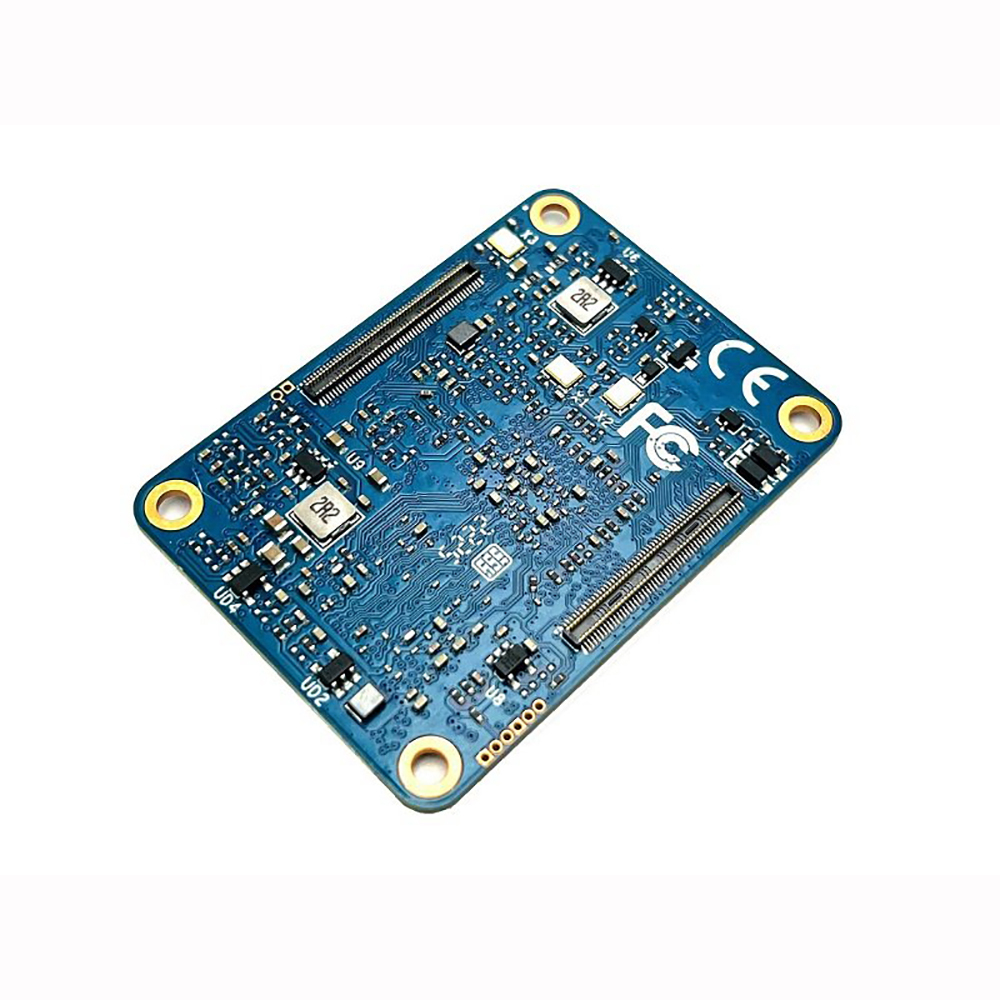

BPI-CM4 Module Hardware interface

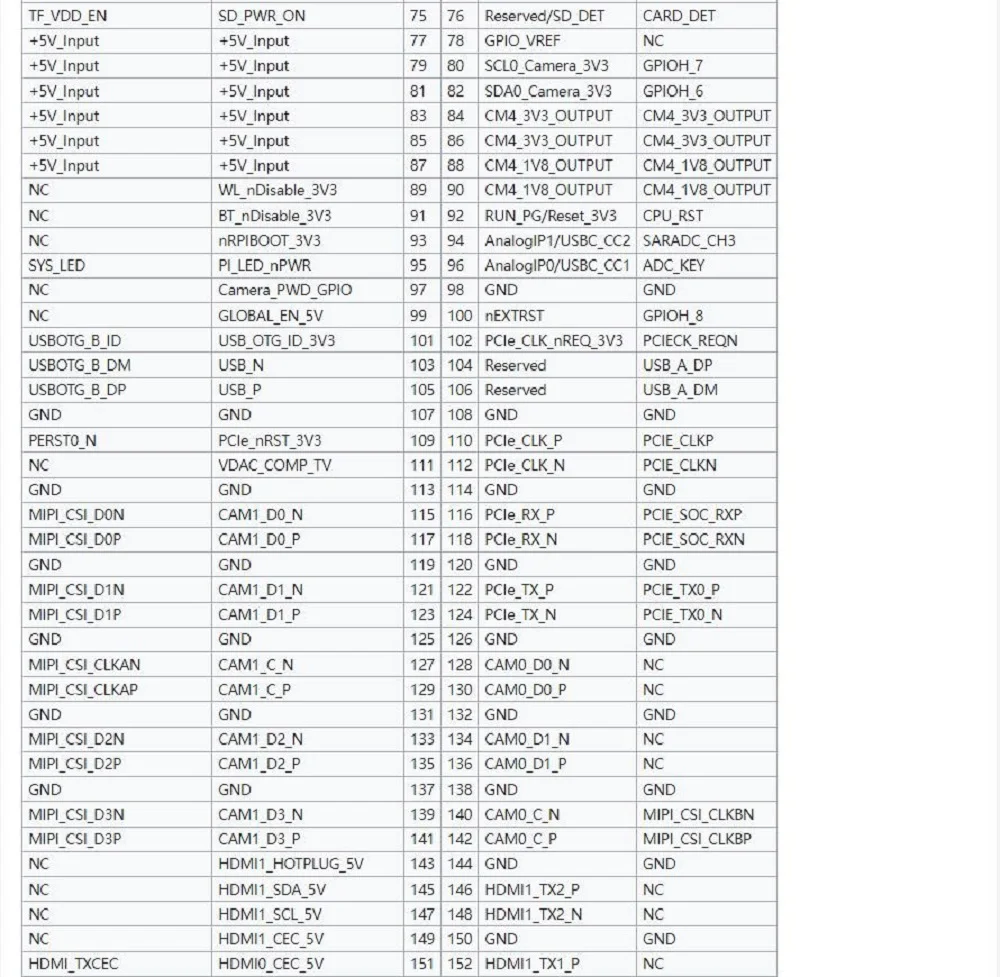

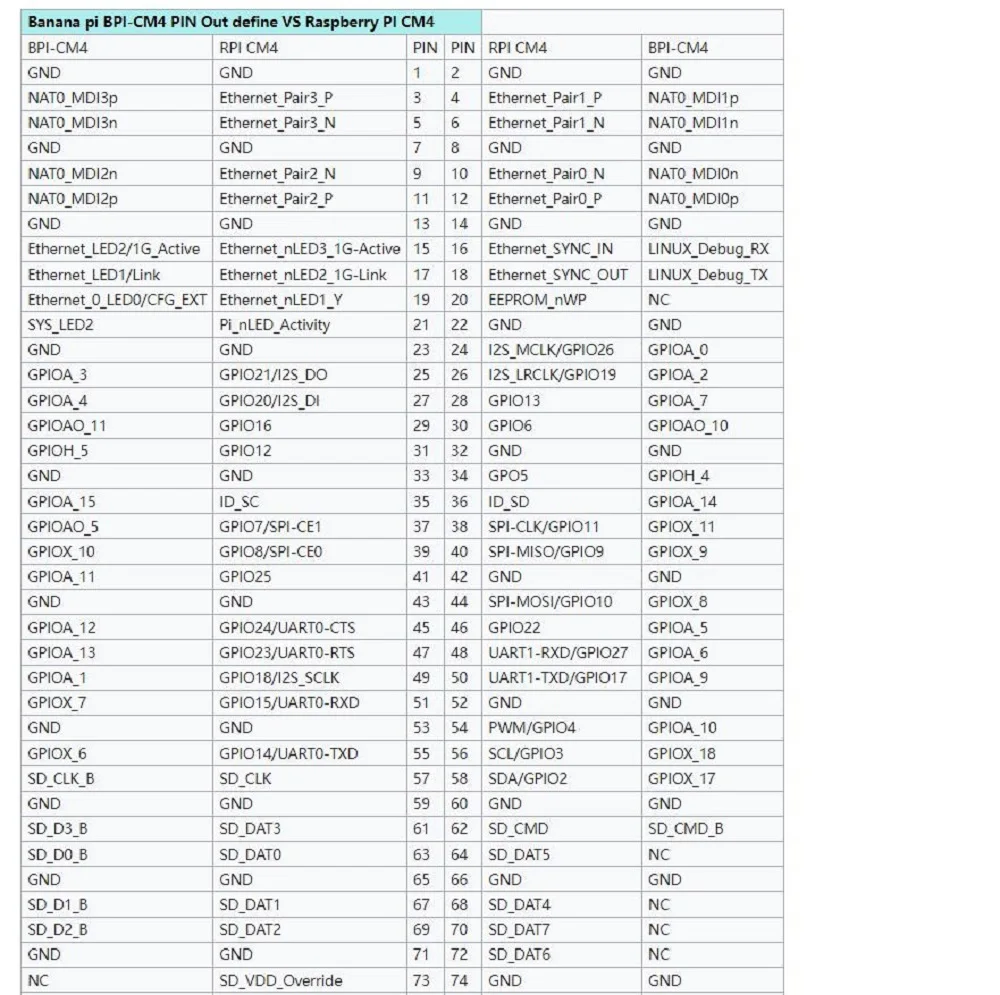

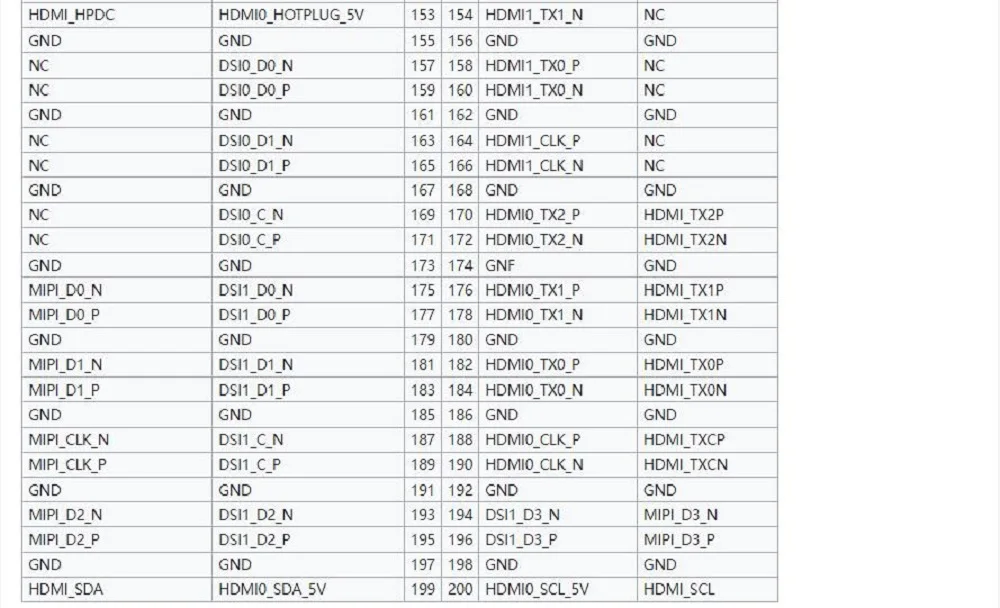

BPI-CM4 Module PIN Out define

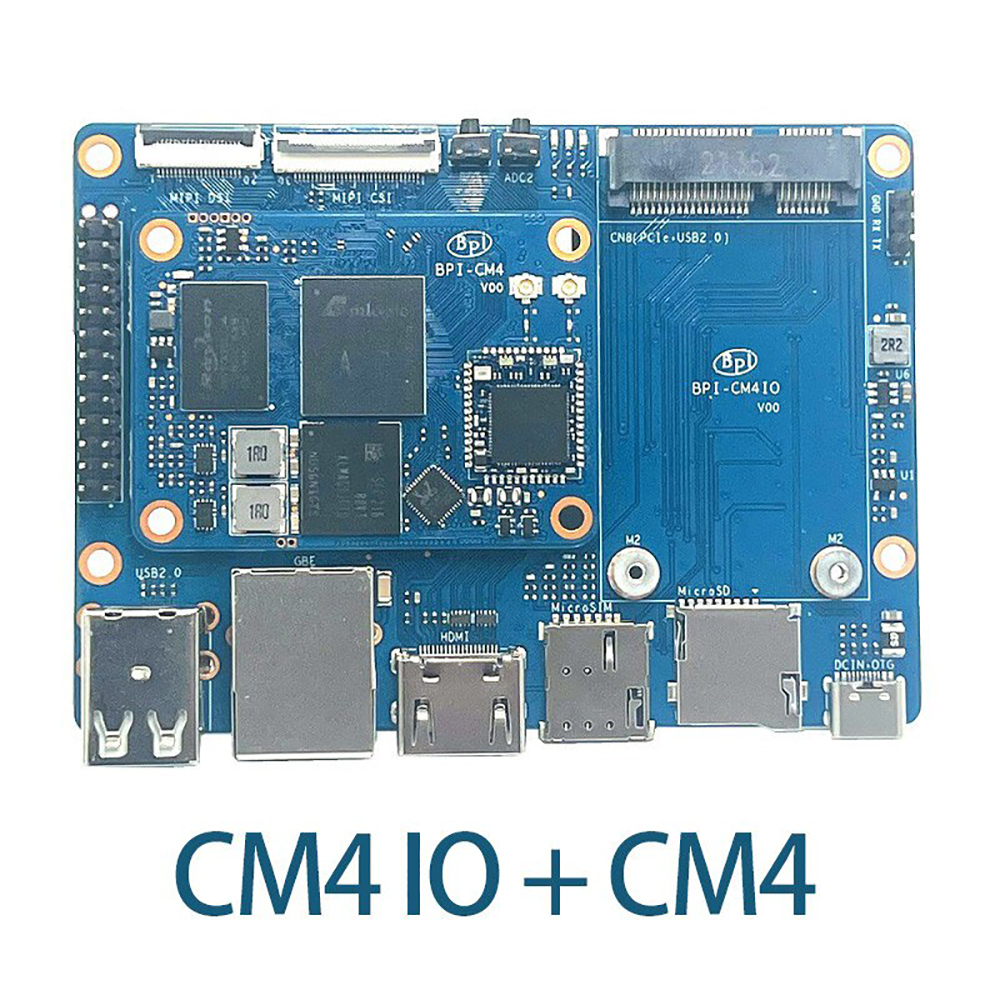

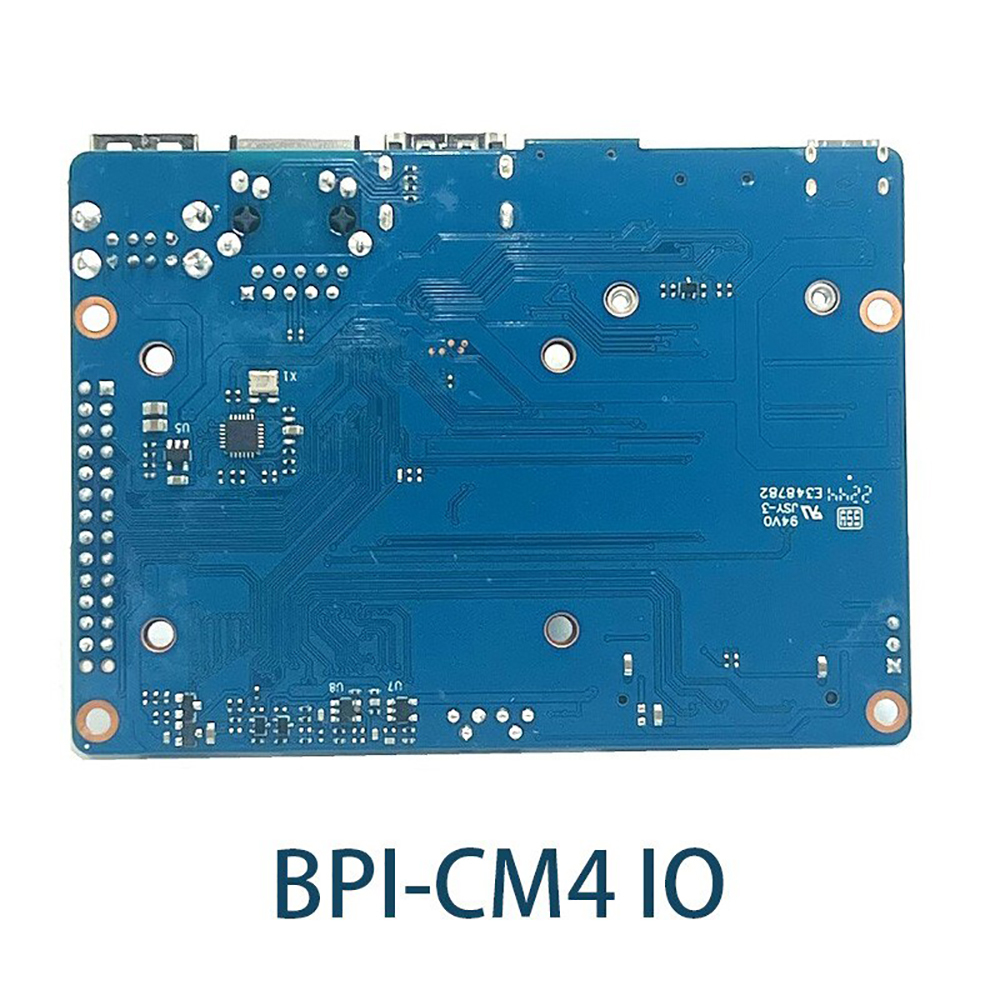

BPI-CM4 moudule base board interface
Banana Pi BPI-CM4 SBC specifications
SoC – Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU
System Memory – 4GB LPDDR4
Storage – 16GB eMMC flash (option up to 128GB), MicroSD card slot
Video interfaces HDMI 2.1 output up to 4Kp60MIPI DSI connector for displayMIPI CSI connector for camera
Networking – 1x Gigabit Ethernet ports one via RTL8211F GbE transceiver
USB – 2x USB 2.0 Type-A port, 1x USB Type-C port
Expansion – 26-pin GPIO header
Debugging – 3-pin header for serial console
Misc – 2x buttons.
Power Supply – Via USB-C port or pin header
Same sixe as RPI CM4
The BPI-CM4 computer module is exactly the same size as the raspberry PI CM4, and adopts the same interface,You can use the universal raspberry PI CM4 module expansion board
