Banana Pi BPI-CM5 Pro: High-Performance Computing Module for AI Project Development, Raspberry Pi CM4 Replacement

• Quick Start: GettingStarted_BPI-CM5_Pro
• WIKI: BananaPi_BPI-CM5_Pro
• Tips

Introduction

The Banana Pi BPI-CM5 Pro is a high-performance computing module designed to meet modern computing demands. Powered by the Rockchip RK3576 processor, it offers up to 16GB of memory and 128GB of eMMC storage, making it excellent for complex tasks. Supporting 4K@120fps video decoding and 4K@60fps video encoding, it ensures smooth visual experiences. The BPI-CM5 Pro comes with 2x 100-pin interfaces, compatible with Raspberry Pi CM4 pins, and offers additional PCIe/SATA/USB 3.0 interfaces for industrial applications and embedded systems. It supports multiple operating systems such as Debian, Android, and Ubuntu, providing a flexible development environment. Whether you're developing AI projects, embedded systems, or industrial control systems, the BPI-CM5 Pro is the perfect choice.

Features

1. High-Performance Computing Module：Equipped with Rockchip RK3576 processor, 8nm process, featuring four-core Cortex-A72 @ 2.2GHz and four-core Cortex-A53 @ 1.8GHz, and 6 TOPS NPU for AI and edge computing.

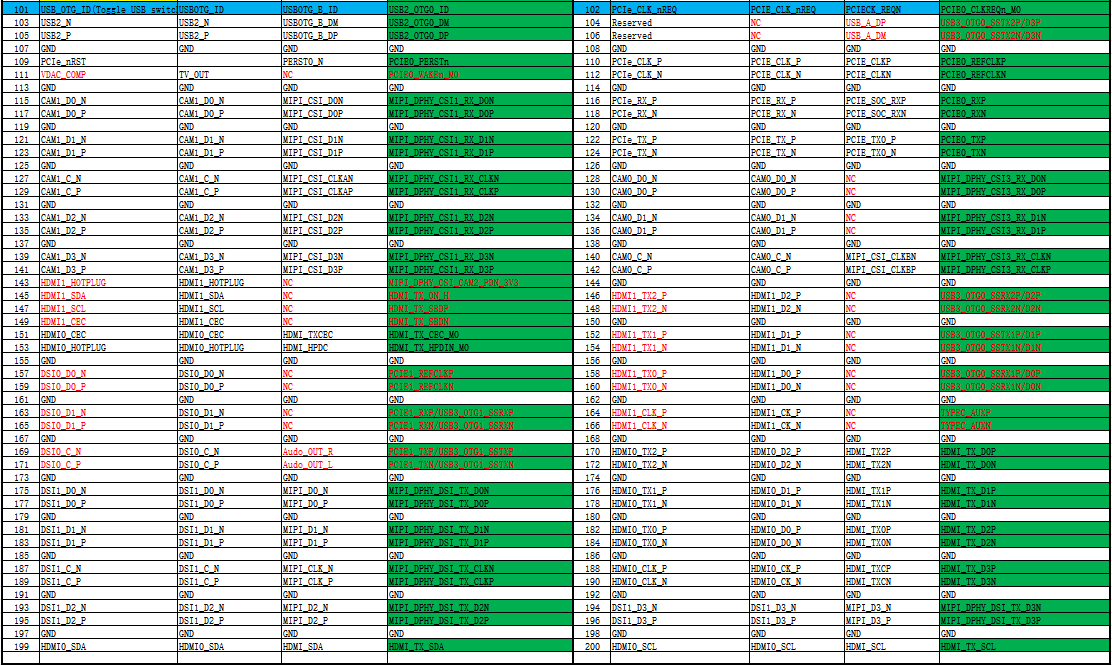

2. Rich Interfaces and Expandability：2x 100-pin interfaces, compatible with Raspberry Pi CM4 pins, offering additional PCIe/SATA/USB 3.0 interfaces for industrial applications and embedded systems.
3. High-Resolution Video Support： Supports 4K@120fps video decoding and 4K@60fps video encoding for smooth visual experiences.
4. Large Memory and Storage Capacity： Supports 16GB memory and 128GB eMMC storage for complex applications.
5. Wireless Connectivity： Supports WiFi 6 and Bluetooth 5.3 for IoT applications.
6. Industrial-Grade Design: Operates in the temperature range of 0°C to 80°C, suitable for harsh environments.
7. Multi-System Support： Supports multiple operating systems such as Debian, Android, and Ubuntu for flexible development environments.

Shipping List

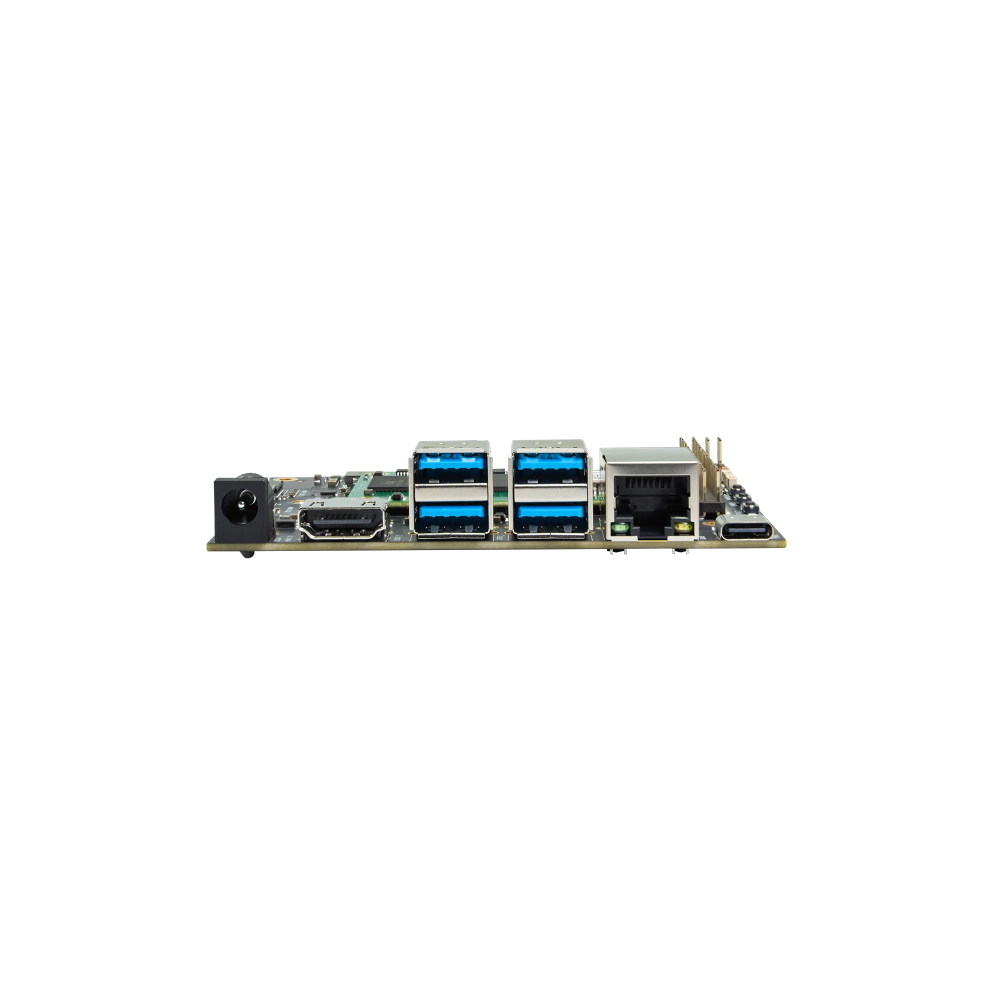

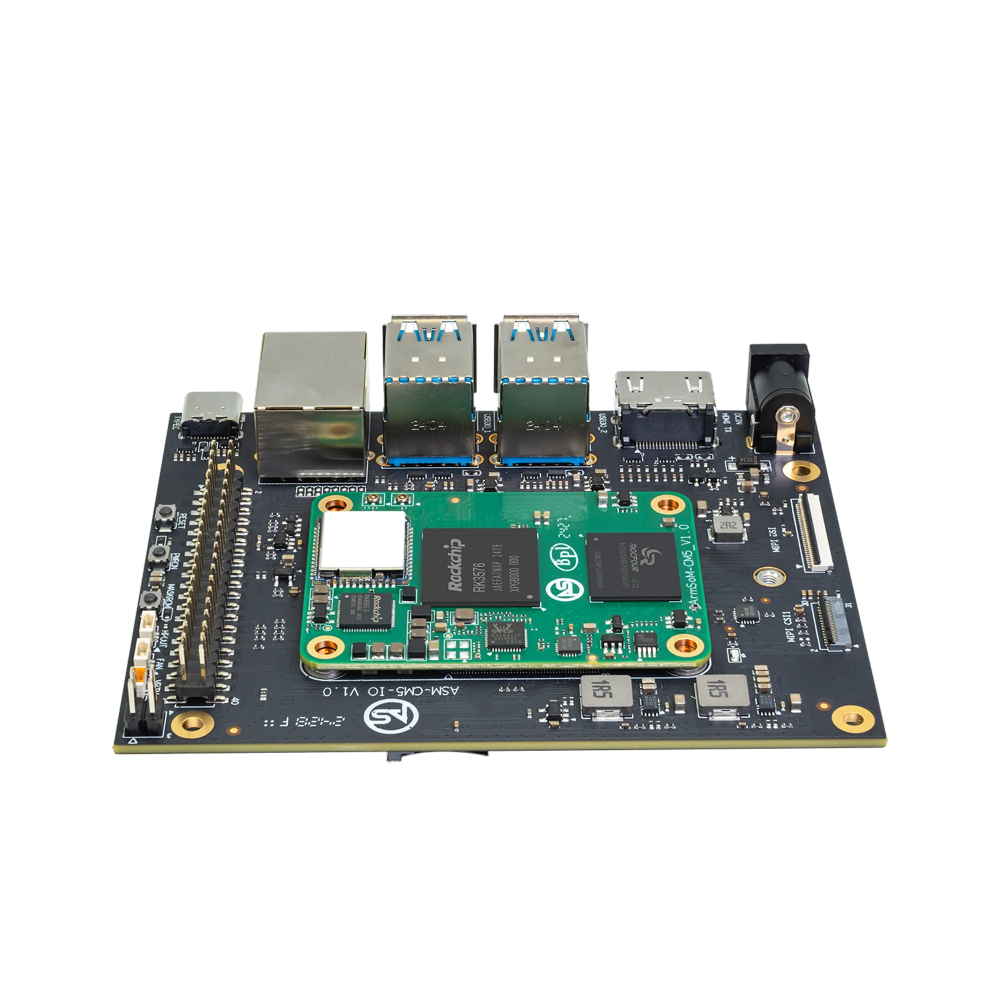

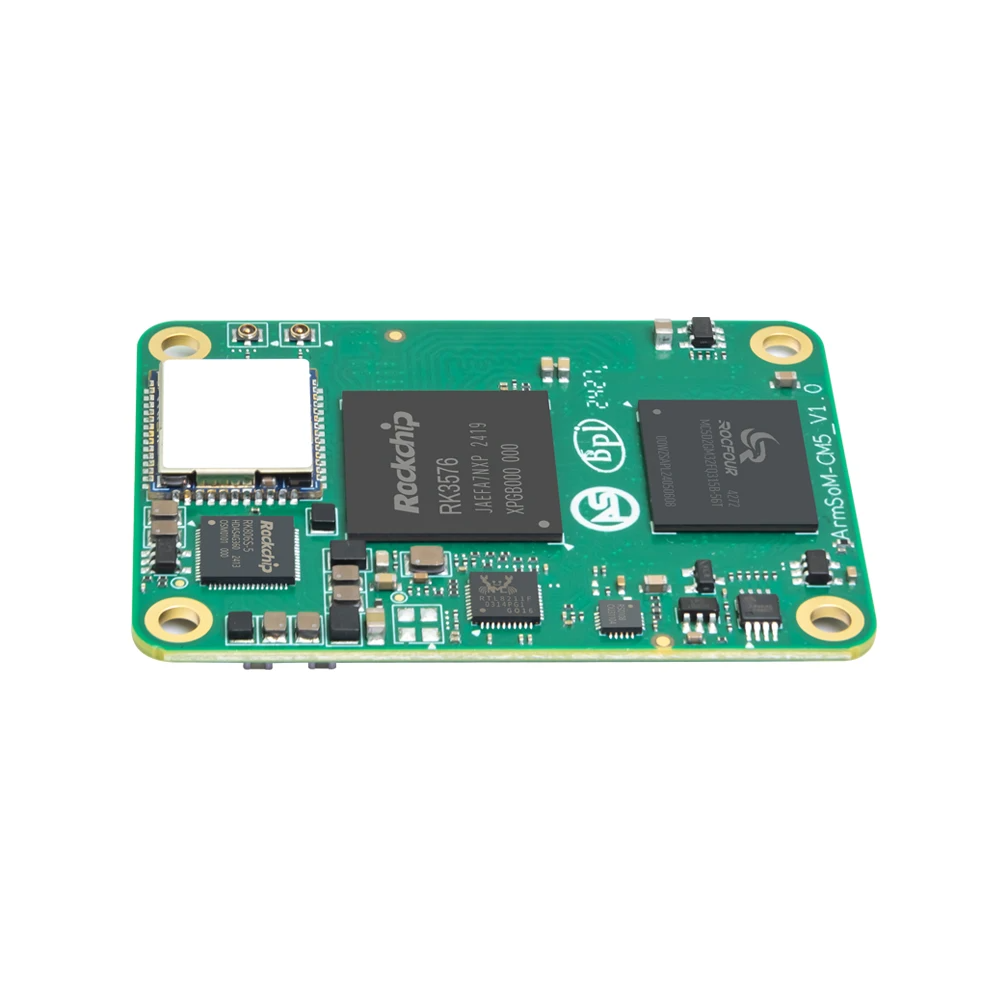

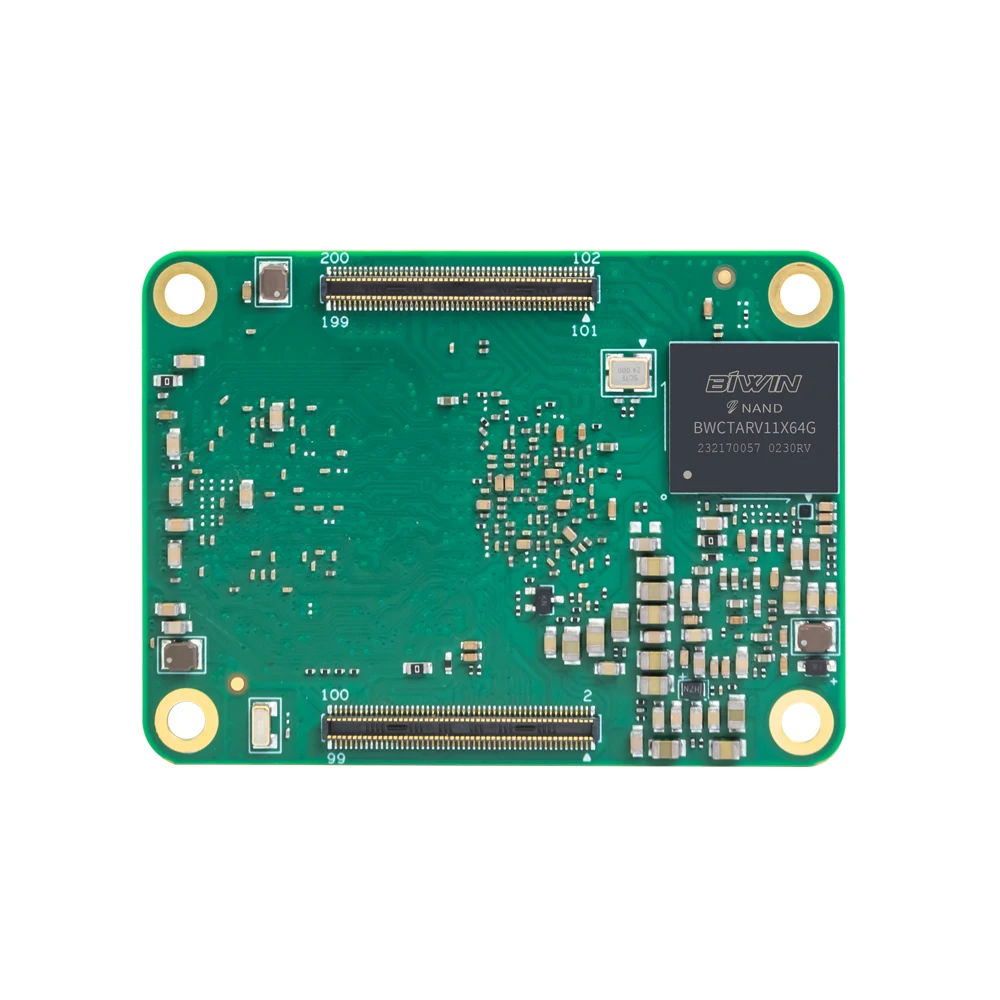

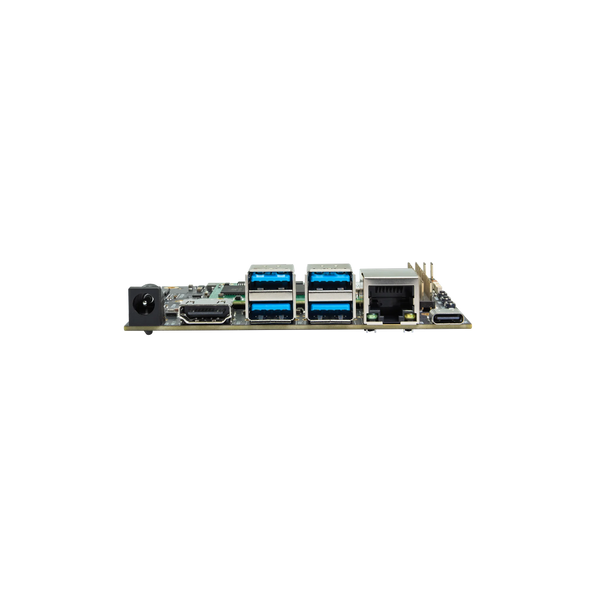

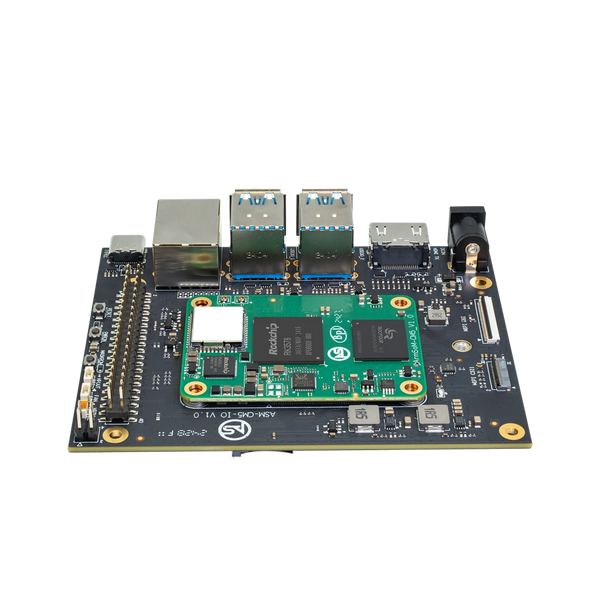

Reference Photos

Applications

Whether you're developing AI projects, embedded systems, or industrial control systems, the BPI-CM5 Pro is the perfect choice.

Specification

• Processor: Rockchip RK3576
  • CPU: Four-core Cortex-A72 @ 2.2GHz and four-core Cortex-A53 @ 1.8GHz
  • GPU: ARM Mali-G52 MC3, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1
  • NPU: 6 TOPS
• Memory: 4GB 8GB or 16GB LPDDR5
• Storage: 32GB, 64GB, or 128GB eMMC
• Display Interfaces: 1x HDMI 2.1, 1x DisplayPort
• Video Decoding: H.264, H.265, VP9, AV1, AVS2, up to 8K@30fps or 4K@120fps
• Video Encoding: H.264, H.265, (M)JPEG, up to 4K@60fps
• Network Interface: 1x Gigabit Ethernet
• USB Interfaces: 1x USB 3.0, 1x USB 2.0
• Expansion Interfaces: 2x PCIe/SATA/USB 3.0 multi-functional interfaces
• Camera Interfaces: 1x 4-lane MIPI CSI, 1x 2-lane MIPI CSI
• Display Interface: 1x 4-lane MIPI DSI
• GPIO Interface: 40-PIN GPIO
• Wireless Connectivity: Supports WiFi 6 and Bluetooth 5.3
• Power: 5V DC power supply

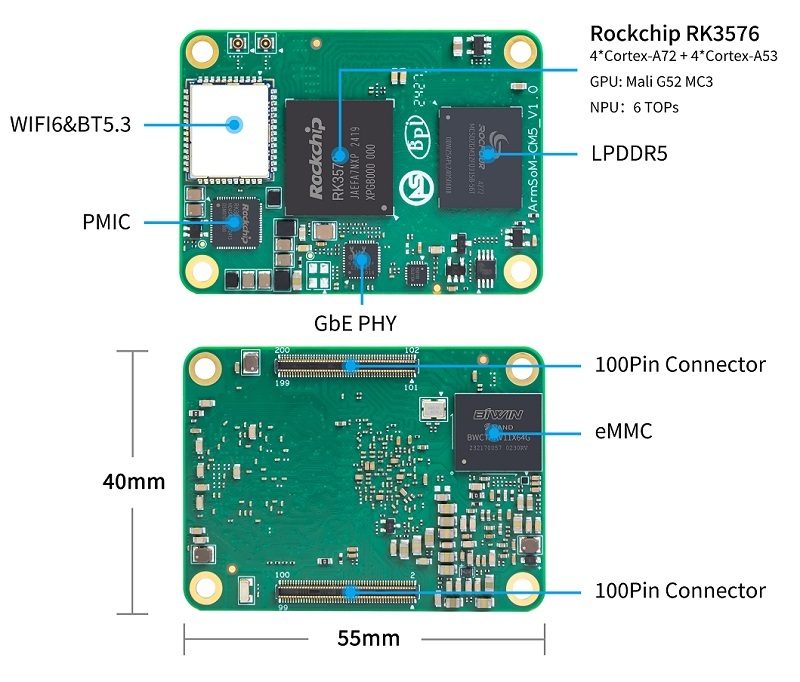

• Dimensions: 55mm x 40mm
• Operating Temperature: 0°C to 80°C

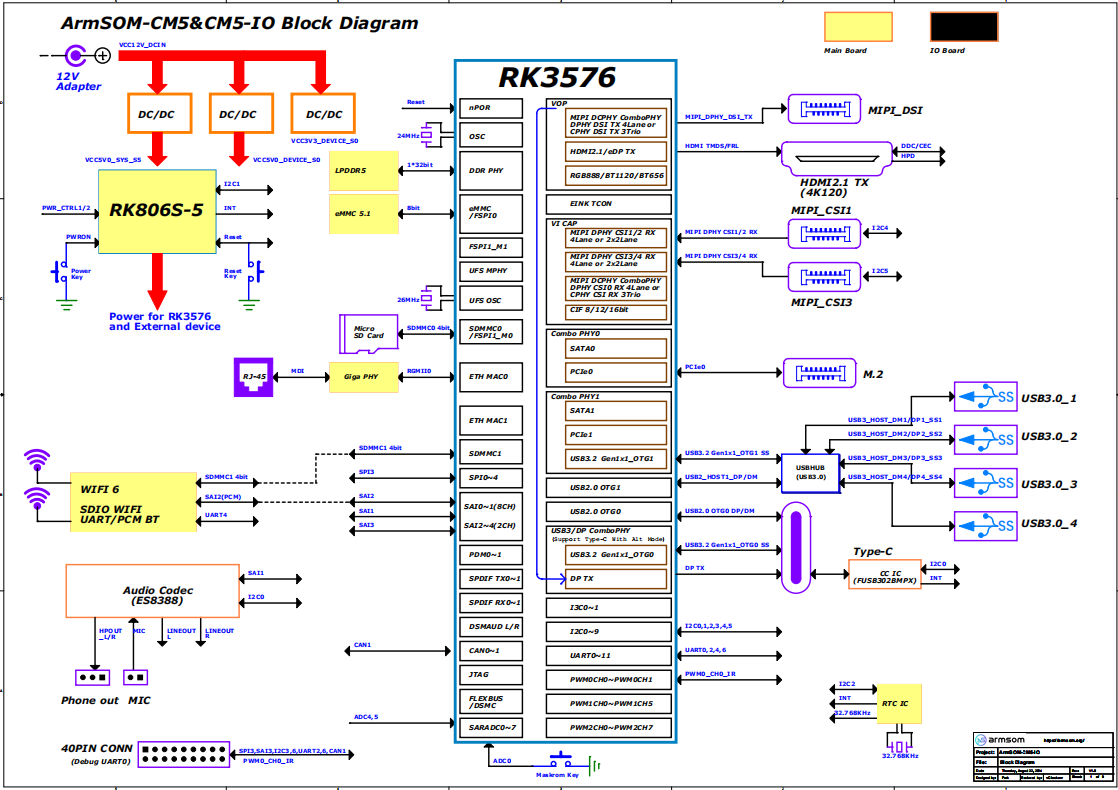

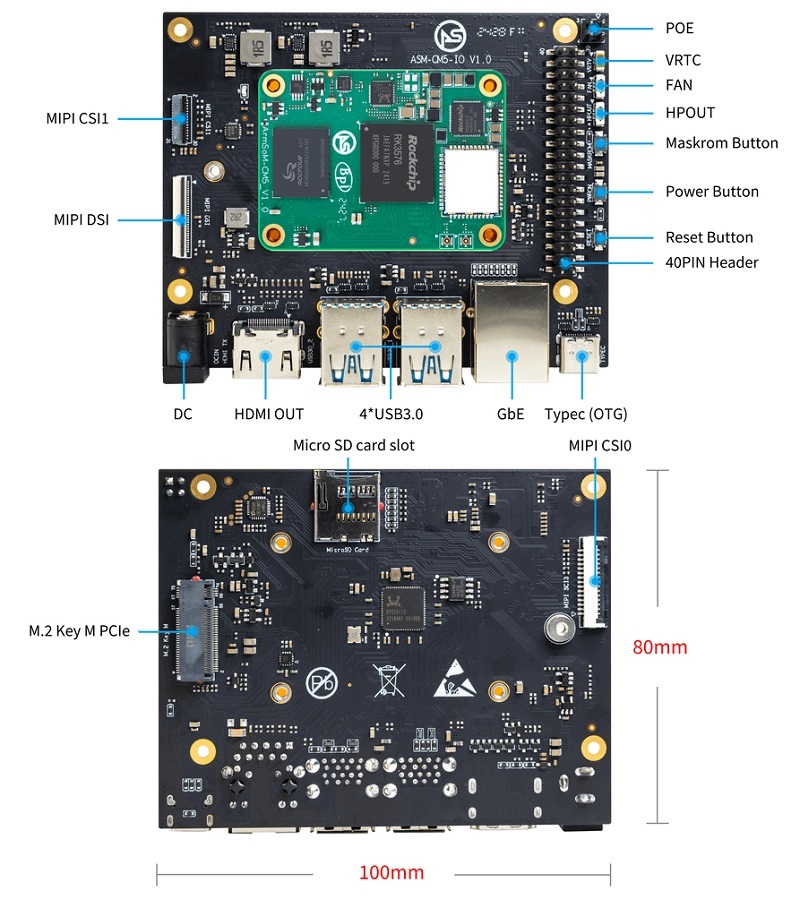

Detailed Descriptions
