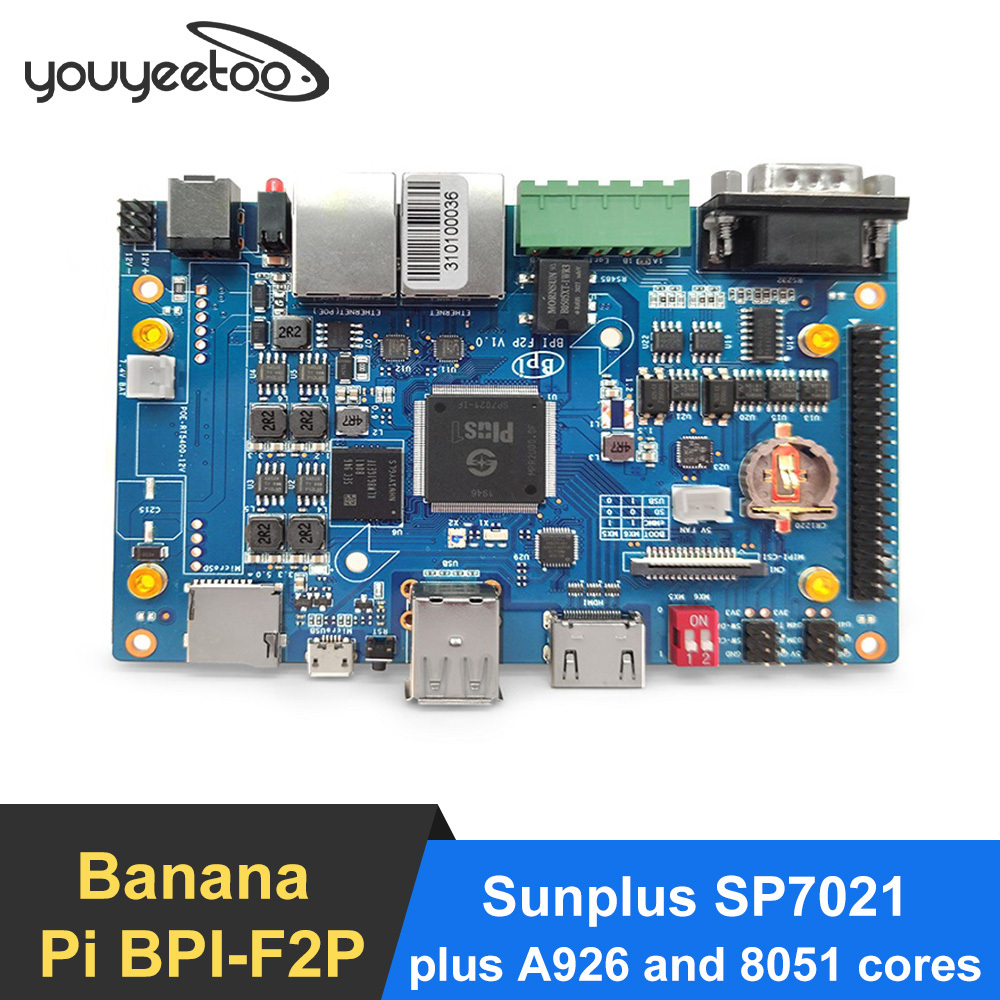

Banana Pi BPI-F2P uses Sunplus chip design, an industrial control board. use Plus1(sp7021) design same ase Banana Pi BPI-F2S, it support PoE function with PoE module,and support RS232 and RS485 . so you can use it do an Industrial control gateway.
SunPlus sp7021 is a revolutionary SoC that has the power of a Linux-grade chip and the integration simplicity of a microcontroller. it with ARM Cortex-A7 Quad core,ARM926 real-time core,8051 low-power core
Conceived by Sunplus Technology in collaboration with Tibbo Technology, PLUS1 takes all the sophisticated elements typically found in modern industrial-grade embedded Linux chips, adds a plethora of features targeting IoT and industrial control applications, and delivers the resulting design in a simple microcontroller-like package that needs few external components, simplifies the schematic diagram, and reduces the PCB complexity.

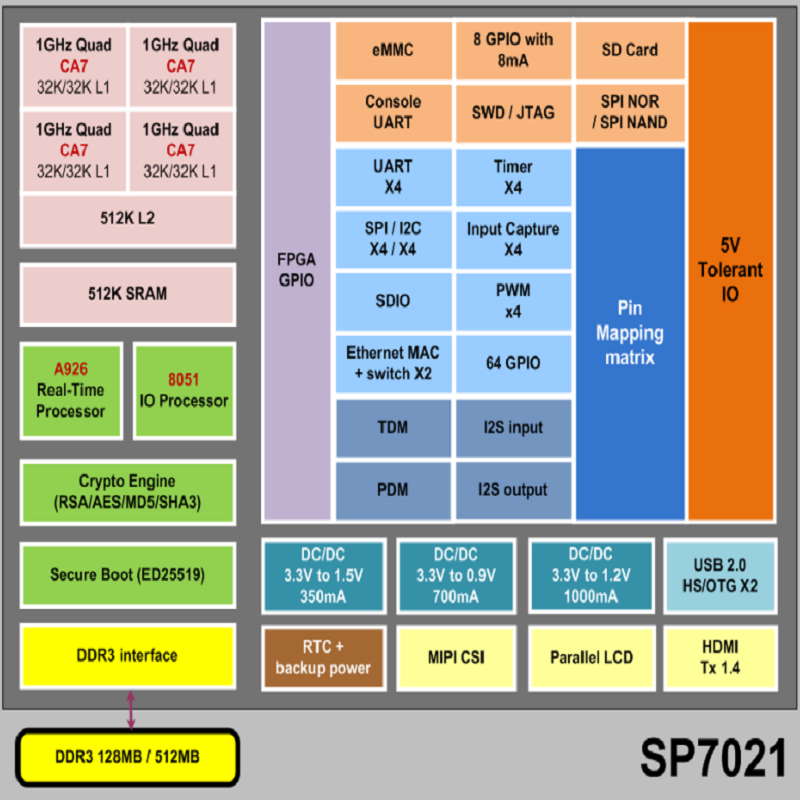

SP7021 is a SoC solution for industrial control. It meets customers' demand on function but at low cost so which will improve customers’ competitiveness in the market. SP7021 provides rich GPIOs, storage, and a USB interface. And it provides an MIPI CSI interface for video input and an HDMI interface for video output. It also provides an FPGA interface for function extension. SP7021 also has 4 Ethernet ports providing customers with a high competitive solution.
Easy-to-use LQFP package.
Quad-core 1GHz Cortex-A7 CPU, plus A926 and 8051 cores.
Single 3.3V power*.
Integrated 128MB or 512MB DDR3 DRAM.
Eight 8-bit 5V-tolerant IO ports, plus one high-current port.
Flexible Peripheral Multiplexing (PinMux).
Dual PinMuxable Ethernet MACs.
Four PinMuxable Enhanced UARTs, plus one console UART.
Industrial operating temperature range: -40C ~ +85C.
Low EMI simplifies certification.
Modern, Yocto-based Linux distribution.
10-year supply guarantee.
Robust ready-to-run modern Linux distribution available
And much more...

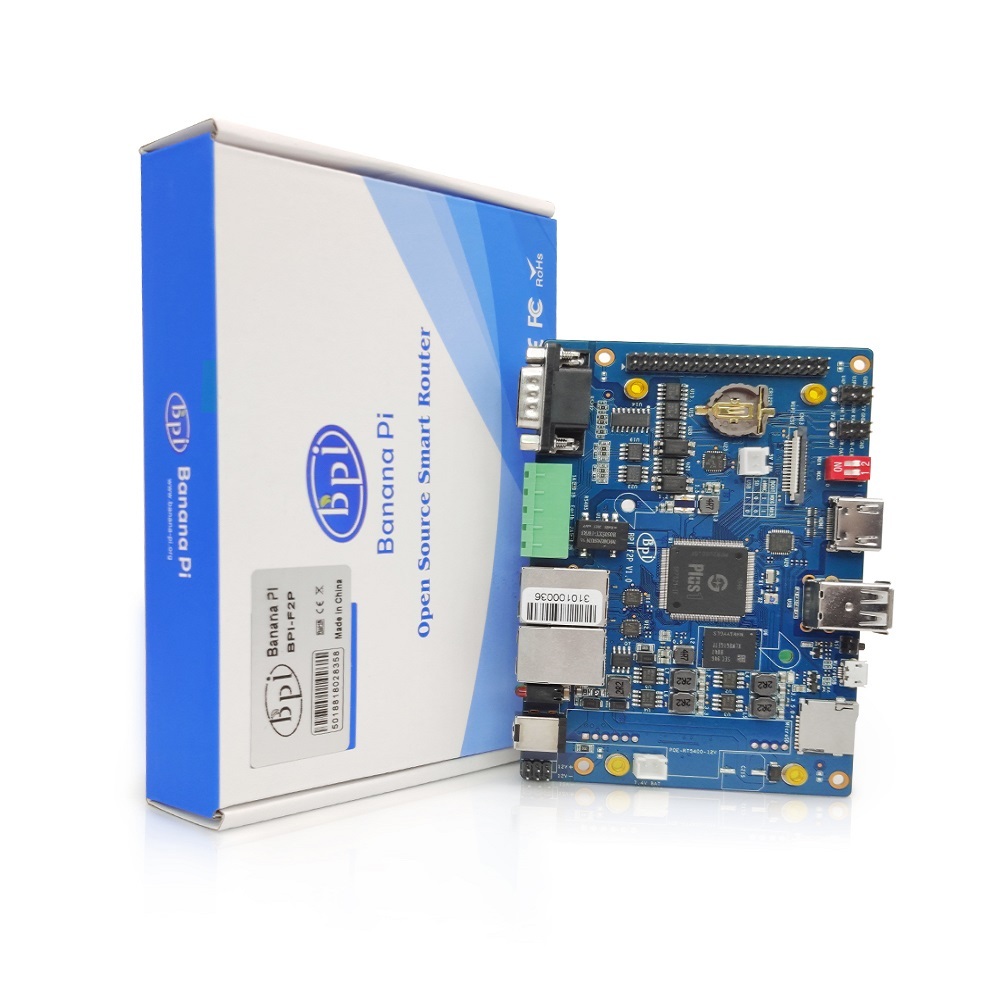

Bundle 1： BPI-F2P Board
Bundle 2： BPI-F2P Board + WIFI/BT module
Bundle 3： WIFI/BT module
IoT/Industrial Internet control
Smart Audio
Smart Payment system
Vehicular networking technology and applications

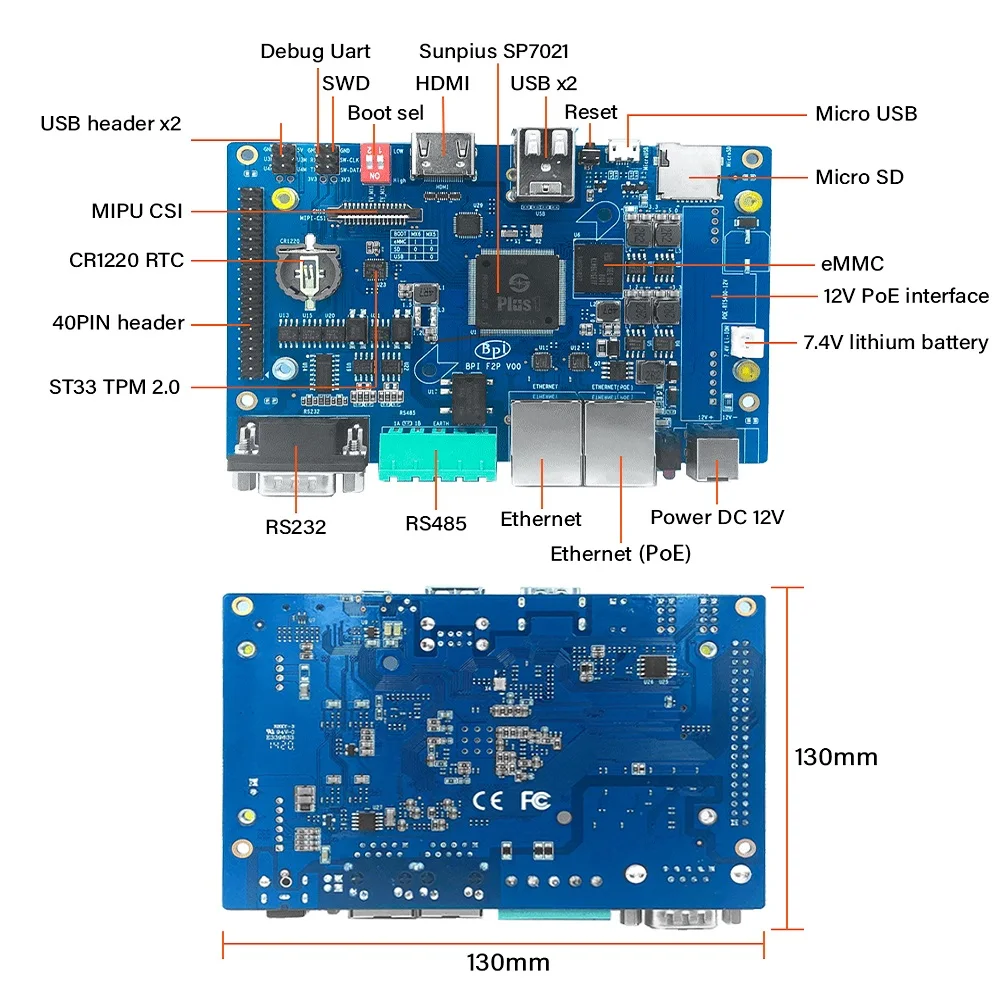

SoC – Sunplus SP7021 “Plus1” with a quad-core Cortex-A7 processor @ 1.0 GHz, one Arm A926 microprocessor, an 8051 core to handle I/Os, and 128MB or 512MB DDR3 DRAM.
Storage – 8GB eMMC flash, microSD card slot
Video Output – HDMI 1.4 output
Camera I/F – MIPI CSI connector
Connectivity – 2x 10/100M Ethernet
USB – 2x USB 2.0 host ports, 1x micro USB port
Expansion
2 USB header interface40-pin GPIO header compatible7.4V Lithium battery power supply interfaceRTC battery interfacePoE function support
Debugging – 3-pin header for UART console, SWD ICE port
Security – TPM 2.0 via ST33TPH2EI2C secure ele ment
Misc – Power switch, reset button, boot selection dip switch
Power Supply – 12VDC via power barrel jack
Dimensions – 130x85mm
Temperature Range – -40C ~ +85°C
WiFi&BT board, 802.11 a/b/g/n/ac 2T2R WiFi and Bluectooch 5.0, support BPI-M5 and BPI-F2P
?
