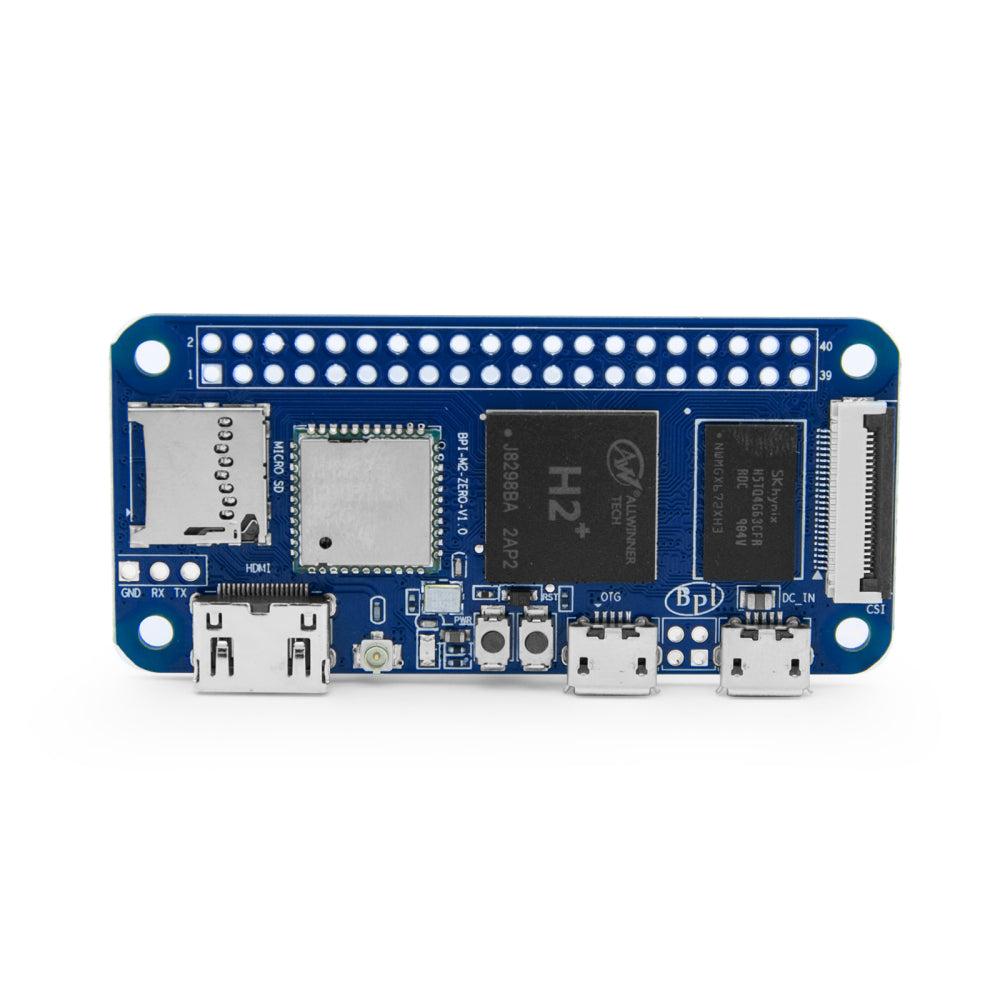

Banana BPI-M2 Zero, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth

SKU: BP0025
Key Features
CPU: Allwinner H3/H2+, Quad-core Cortex-A7.
512MB DDR 3 SDRAM.
WiFi (AP6212) & Bluetooth onboard.
Mini HDMI.
40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc.
Support Android , Armbian, Raspbian, Ubuntu , etc.
0.0 (0 Reviews)
$32.00 $20.50
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Spec:
    Standard
    Heat Sink Kit
    Metal Case Kit
    Please select the information you wantX
Quantity
-
+
  • Banana Pi BPI-M2 ZERO, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth
  • Banana Pi BPI-M2 ZERO, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth
  • Banana Pi BPI-M2 ZERO, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth
  • Banana Pi BPI-M2 ZERO, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth
  • Banana Pi BPI-M2 ZERO, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth
  • Banana Pi BPI-M2 ZERO, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth
  • Banana Pi BPI-M2 ZERO, Raspberry Pi Zero W Alternative, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

Noted: For Allwinner H2+ chip is EOL, so BPI-M2 Zero will use H3 chip defaults. but the image for H2+ also supports H3, so all images are the same. support H2+ and H3 chip.


The Banana Pi M2 Zero is an ultra-compact single-board computer that measures only 65mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3/H2+processor, with 512MB RAM. It's ideal for lightweight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.

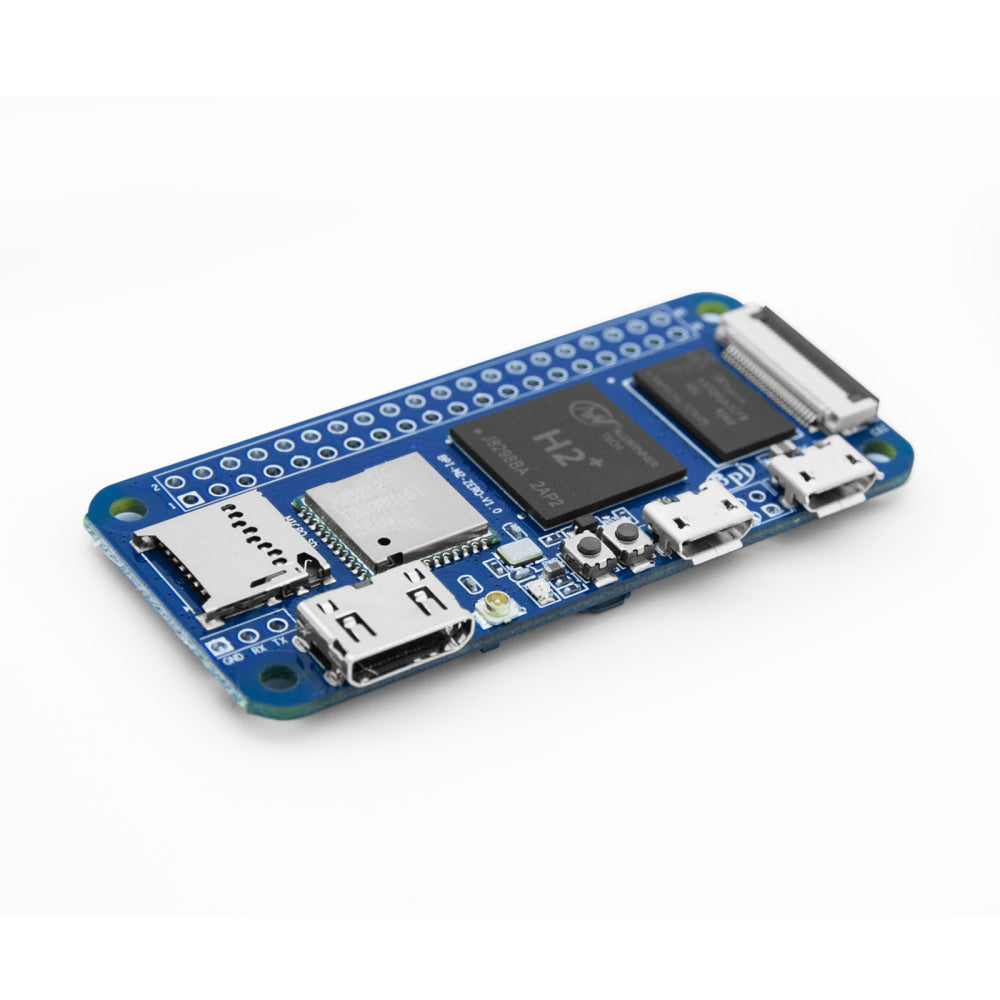

Banana Pi BPI-M2 Zero.jpg
File:BPI-M2 zero 5.JPG

Hardware interface

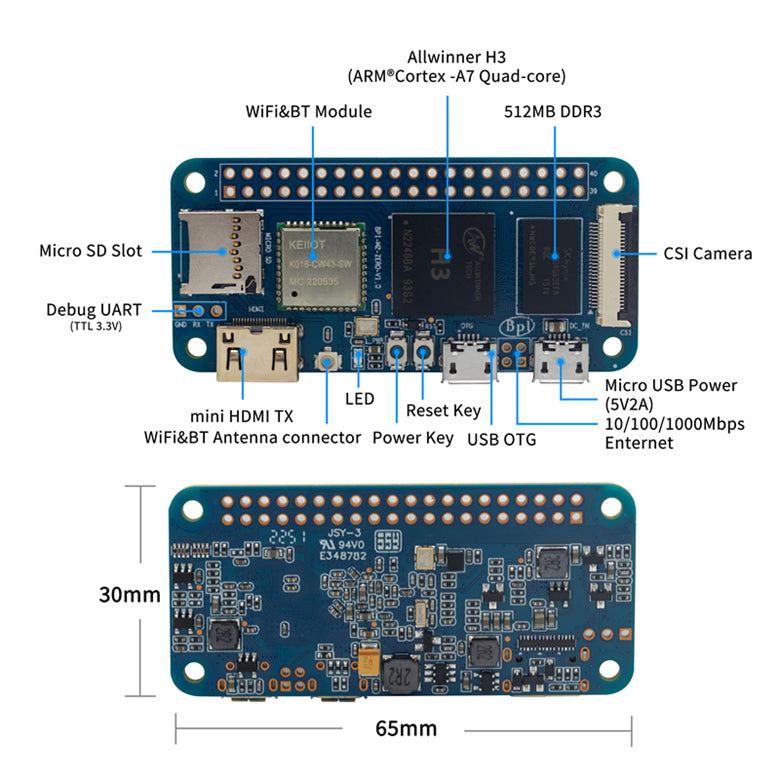

BPI-M2 zero interface.jpg


Hardware spec

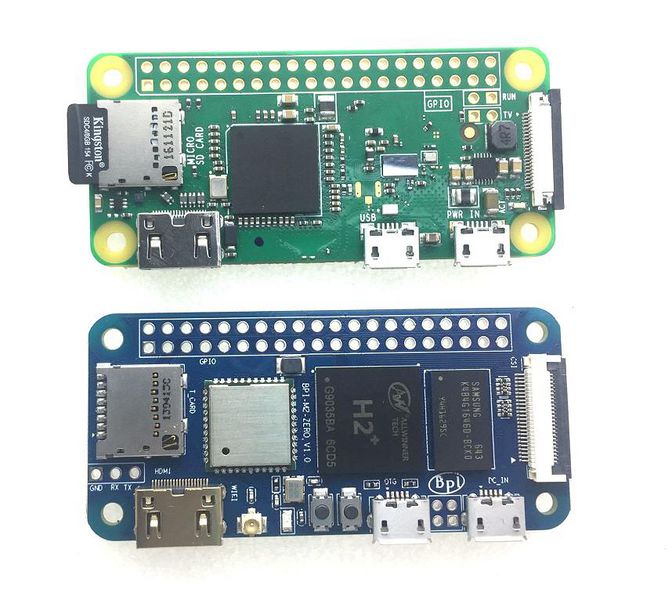

Hardware Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W
Module Banana Pi BPI-P2 Zero Banana Pi BPI-M2 Zero Raspberry Pi Zero W
CPU Allwinner H3/H2+ Quad-core Cortex-A7 H265/HEVC 1080P Allwinner H3/H2+ Quad-core Cortex-A7 H265/HEVC 1080P Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core
GPU Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 VideoCore IV
Memory \(SDRAM\) 512M DDR3(shared with GPU) 512M DDR3(shared with GPU) 512 MB DDR2
Onboard Storage TF card \(Max. 64GB\) TF card \(Max. 64GB\) TF card \(Max. 64GB\)
Onboard Network 100M LAN NOPE (but can extension with PIN define) NOPE
PoE power PoE function support NOPE NOPE
Onboard flash 8G eMMC NOPE NOPE
Onboard WIFI SDIO AP6212(option AP6181、AP6335) SDIO AP6212(option AP6181、AP6335) 802.11n wireless, Bluetooth 4.1
Video decoding 1080p@60fps, H.264 Video encoding 1080p@30fps,H.264 1080p@60fps, H.264 Video encoding 1080p@30fps,H.264 1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder
Video input A CSI input connector Camera A CSI input connector Camera CSI camera connector
Video Outputs mini HDMI 1.4,1080P@30fps, DHCP mini HDMI 1.4,1080P@30fps, DHCP Mini HDMI and USB On-The-Go ports
Audio Output Mini HDMI Mini HDMI Mini HDMI
Power Source Micro USB with 5V/2A or PoE power Micro USB with 5V/2A 5V/2A
USB 2.0 Ports one USB 2.0 OTG one USB 2.0 OTG one USB 2.0 OTG
Buttons Power Button, Reset Button Power Button, Reset Button Composite video and reset headers
Low-level peripherals 40 Pins Header,compatible with Raspberry Pi 3 40 Pins Header,compatible with Raspberry Pi 3 40 PIN
uart GPIO\(1x3\) pin UART, ground UART, ground UART
LED Power led & Status led Power led & Status led Power Status LED
IR N/A N/A N/A
Supported OS android Linux android Linux Linux
Product size 65mm X 52.5mm 65mm × 30mm 65mm x 30mm
Weight 30g 15g 9g


GPIO PIN define

Banana Pi BPI-M2 zero has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:

40 PIN GPIO of Banana pi BPI-M2 zero
GPIO Pin Name Default Function Function2:GPIO Function3
CON2-P01 VCC-3V3
CON2-P02 VCC-5V
CON2-P03 TWI0-SDA PA12-EINT12
CON2-P04 VCC-5V
CON2-P05 TWI0-SCK PA11-EINT11
CON2-P06 GND
CON2-P07 PWM1 PA6-EINT6
CON2-P08 UART3-TX PA13-EINT13 SPI1-CS
CON2-P09 GND
CON2-P10 UART3-RX PA14-EINT14 SPI1-CLK
CON2-P11 UART2-RX PA1-EINT1
CON2-P12 UART3-CTS PA16-EINT16 SPI1-MISO
CON2-P13 UART2-TX PA0-EINT0
CON2-P14 GND
CON2-P15 UART2-CTS PA3-EINT3
CON2-P16 UART3-RTS PA15-EINT15 SPI1-MOSI
CON2-P17 VCC-3V3
CON2-P18 PC4 PC4
CON2-P19 SPI0-MOSI PC0
CON2-P20 GND
CON2-P21 SPI0-MISO PC1
CON2-P22 UART2-RTS PA2-EINT2
CON2-P23 SPI0-CLK PC2
CON2-P24 SPI0-CS PC3
CON2-P25 GND
CON2-P26 PC7 PC7
CON2-P27 TWI1-SDA PA19-EINT19
CON2-P28 TWI1-SCK PA18-EINT18
CON2-P29 PA7-EINT7 PA7-EINT7
CON2-P30 GND
CON2-P31 PA8-EINT8 PA8-EINT8
CON2-P32 PL2-S-EINT2 PL2-S-EINT2
CON2-P33 PA9-EINT9 PA9-EINT9
CON2-P34 GND
CON2-P35 PA10-EINT10 PA10-EINT10
CON2-P36 PL4-S-EINT4 PL4-S-EINT4
CON2-P37 PA17-EINT17 PA17-EINT17 SPDIF-OUT
CON2-P38 PA21-EINT21 PA21-EINT21
CON2-P39 GND
CON2-P40 PA20-EINT20 PA20-EINT20
code on github: https://github.com/TuryRx/Banana-pi-m2-zero-GPIO
code on github:https://github.com/bontango/BPI-WiringPi2


CSI Camera Connector specification:

The CSI Camera Connector is a 24-pin FPC connector which can connect external camera module with proper signal pin mappings. The pin definitions of the CSI interface are shown as below. This is marked on the Banana Pi board as “CSI″.

24 PIN CSI Camera connector of Banana pi BPI-M2 Zero
CSI Pin Name Default Function Function2:GPIO
CN3-P01 NC
CN3-P02 GND
CN3-P03 CSI0-SDA PE13
CN3-P04 CSI0-AVDD
CN3-P05 CSI0-SCK PE12
CN3-P06 CSI0-Reset PE14
CN3-P07 CSI0-VSYNC PE3
CN3-P08 CSI0-PWDN PE15
CN3-P09 CSI0-HSYNC PE2
CN3-P10 CSI0-DVDD
CN3-P11 CSI0-DOVDD
CN3-P12 CSI0-D7 PE11
CN3-P13 CSI0-MCLK PE1
CN3-P14 CSI0-D6 PE10
CN3-P15 GND
CN3-P16 CSI0-D5 PE9
CN3-P17 CSI0-PCLK PE0
CN3-P18 CSI0-D4 PE8
CN3-P19 CSI0-D0 PE4
CN3-P20 CSI0-D3 PE7
CN3-P21 CSI0-D1 PE5
CN3-P22 CSI0-D2 PE6
CN3-P23 GND
CN3-P24 CSI0-DOVDD

UART specification:

The jumper CON3 is the UART interface. For developers of Banana Pi, this is an easy way to get the UART console output to check the system status and log message.

jumper CON3 of Banana pi BPI-M2 Zero
CON3 Pin Name Default Function GPIO
CON3 P03 UART0-TXD PA4
CON3 P02 UART0-RXD PA5
CON3 P01 GND

Development

Basic Development

how to use zero 10/100 Ethernet

BPI-M2 zero not RJ45 interface ,but it support 100M network with PIN define.

RJ45 PIN.jpg

PIN define:


schematic diagram:


test

Zero eth test.jpg

Zero power with GPIO 5V input

BPI-M2 Zero 40 PIN GPIO have support 5V input , so you can use 5V input PIN to power zero board .

Zero gpio 5V.jpg




Heat Sink Kit

Metal Case Kit
