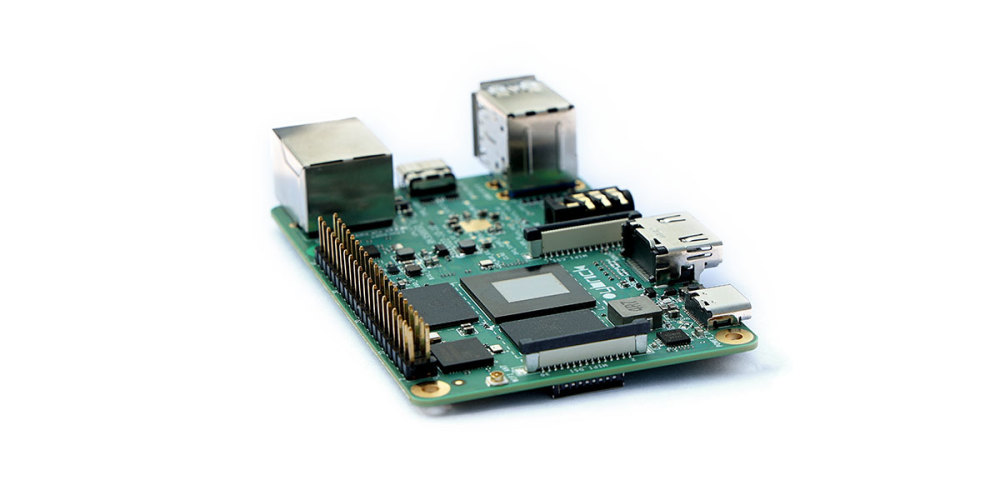

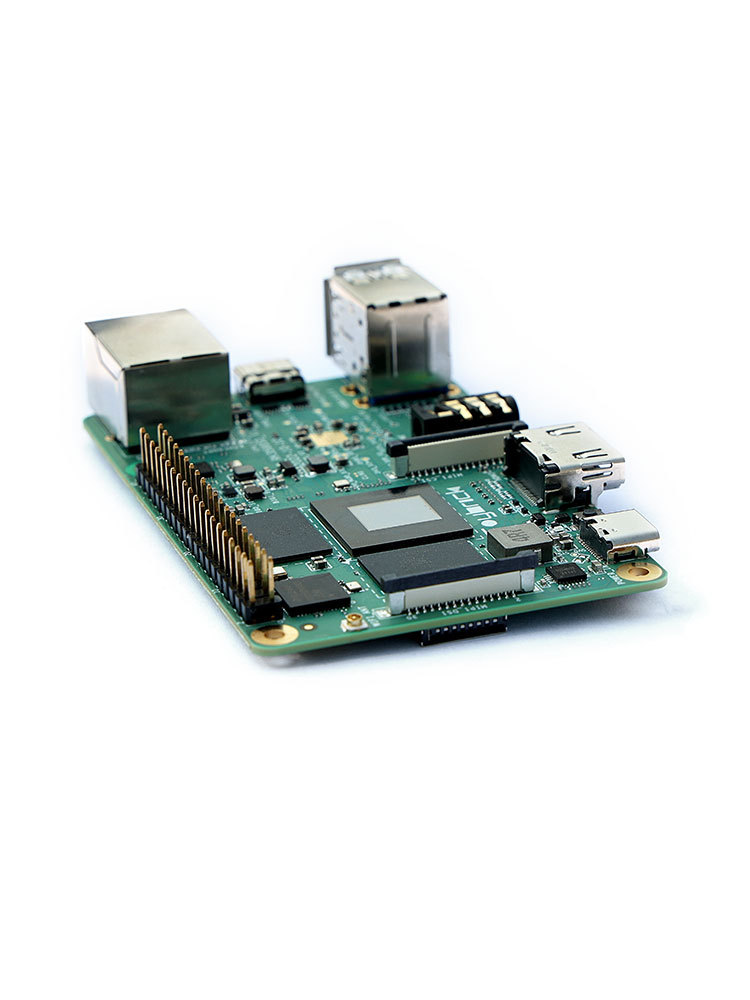

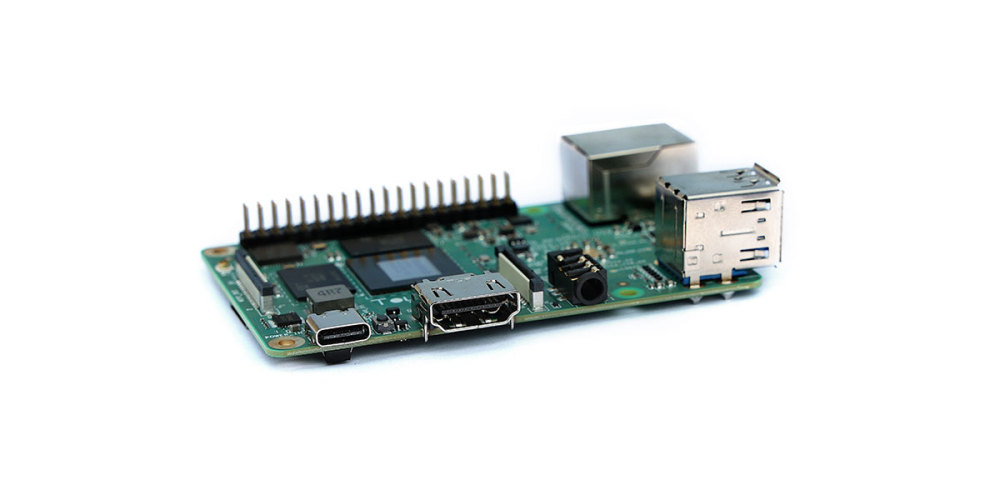

Toybrick TB-RK3588SD SBC - 8K, 6 TOPS, 4/8GB RAM, Size and Hole Compatibility with Raspberry Pi - Rockchip Official RK3588s EVB Kit

Name: Toybrick TB-RK3588SD SBC - 8K, 6 TOPS, 4/8GB RAM, Size and Hole Compatibility with Raspberry Pi - Rockchip Official RK3588s EVB Kit
Brand: youyeetoo geeker shop
Price: 115.13 USD
Availability: InStock

Toybrick, Rockchip's AI development platform, integrates software and hardware development into one platform.
Toybrick TB-RK3588SD, Size and Hole Compatibility with Raspberry Pi - Rockchip Official RK3588 EVB Kit

0.0 (0 Reviews)

$115.13

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity

Add to Favorites (0)

Description
Reviews

Toybrick TB-RK3588SD

Compatibility with Raspberry Pi - Rockchip ?Official RK3588s EVB Kit

Quick Start[CN]:https://t.rock-chips.com/wiki/CN/tb-rk3588sd/index.html
Tips
- Requires additional purchase of TF card to boot. The Development Kit is recommended.

Introduction

TB-RK3588SD SBC is a hardware development board integrating reference design, chip debugging and testing, and chip verification for the ROCKCHIP RK3588S chip.

TB-RK3588SD has a compact layout and rich interfaces, supporting Gigabit LAN port, HDMI, MIPI-DSI, onboard WIFI, USB3.0, and other interfaces, equipped with 4GB/8GB LPDDR4X memory. The motherboard size is only 89mm x 57mm, and 40Pin GPIO is perfectly compatible with Raspberry Pi. It can be widely used in artificial intelligence, cloud computing, edge computing, virtual/augmented reality, game interaction, webcasting, conference screencasting, and other intelligent upgraded related industry applications.

Features

Rockchip ?Official RK3588 EVB Kit
Size and Hole Compatibility with Raspberry Pi

Shipping List

Basic: Toybrick TB-RK3588SD x1
20W PD PSU Kit: Toybrick TB-RK3588SD x1, 20W PD Power x1
Development Kit: ?Toybrick TB-RK3588SD x1, 20W PD Power x1, 32GB TF Card x1 , TF Card Reader x1

Applications

Specification

SOC	Rockchip RK3588S
CPU?	quad-core Cortex-A76 and quad-core Cortex-A55，8nm，up to 2.4GHz
GPU	Mali-G610 GPU Support OpenGL ES3.2, OpenCL 2.2, Vulkan 1.1 Embedded high-performance 2D, 3D acceleration hardware
VPU?	Decode ? H.265/VP9, 8K@60fps ? H.264, 8K@30fps ? AV1 4K@60fps Encode ? H.265/H.264, 8K@30fps
NPU?	Support 6.0 Tops，?support INT4, INT8, INT16, FP16 operations； Support network model transformation based on TensorFlow / MXNet / PyTorch / Caffe and other series of frameworks.
RAM	4GB/8GB LPDDR4X
Flash	SPI NOR Flash 128Mbit + SD Card (Optional)
Ethernet	1×GMAC(10/100/1000M) ( Realtek RTL8111H )
Wireless?	Onboard WIFI： Support 2.4G/5G WiFi， Support 802.11a/b/g/n协议 Bluetooth5.0（Support? BLE）
USB	1x USB2.0 Host (Type-A) 1x USB3.0 Host (Type-A) 1x TypeC （4lanes DP port）
Audio	1×HDMI 1×Earphone 1×DP（Type-C）
Display	1×MIPI-DSI, Support 4K@60fps 1×HDMI, Support 8K@60fps 1×DP(Type-C), Support8K@30fps
Camera	1×MIPI-CSI（Support? 4K(MAX)）
Debug	1xDebug (via 40pin GPIO's pin37, pin40)
Extension	40Pin GPIO, Support UART, SPI,? I2C, PWM
TF card	1x TF card slot, Support SD3.0
Button	1x Recovery
Power	Type C, only Power (Support PD2.0/3.0)
OS	Linux / Android
Size	89mm×57mm×17mm

Detailed Descriptions

Debug_Port

Debug_Port

_images/TB-RK3588SD-Power-running-img.png
?
