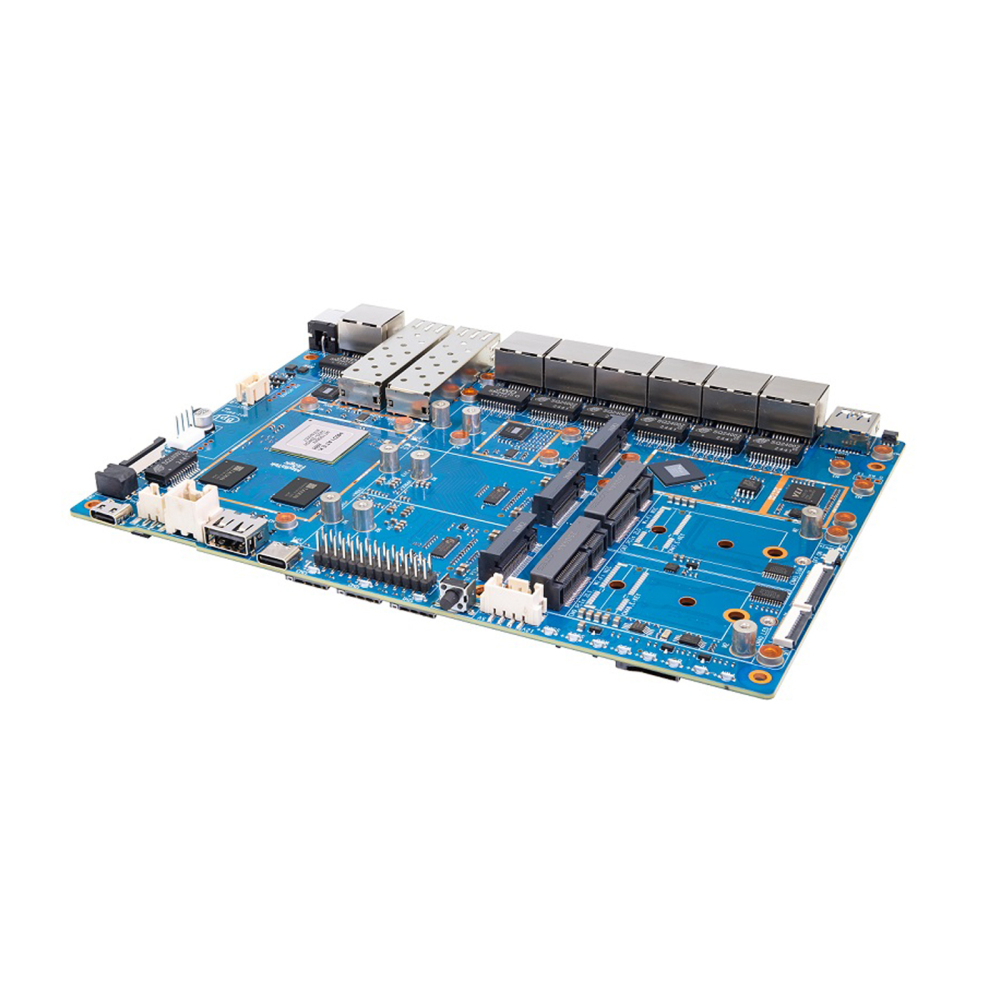

BPI-R4 Pro Router board - Support WIFI 7 Model

• Quick Start: https://docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro
• Tips
• If using WIFI 7, 4G, or 5G modules, it is recommended to use a 12V 5A DC power supply.

• If you'd like to purchase other related accessories, you can do so via the link below:
  • https://www.youyeetoo.com/products/bananapi-compatible-with-bpi-r4-pro

Introduction

Banana Pi BPI-R4Pro Router board with MediaTek MT7988A(Filogic 880) Quad-core ARM Corex-A73 design ,4GB/8GB DDR4 RAM,8GB eMMC,256MB SPI-NAND flash onboard.It supports 4 x 2.5G network ports and 2 x 10G SFP+/RJ45 ports, support 4G/5G expansion. it is a update version for BPI-R4.

MediaTek MT7988(Filogic 880)

• • The MediaTek Filogic 880 platform provides a 36 Gbps Wi-Fi 7 access point/router/gateway solution that delivers the fastest and most reliable connectivity experience.

The MediaTek MT7988A is a world-class network processor designed for high-performance and reliable networking in both wired and wireless applications. It offers a comprehensive set of connectivity interfaces, including four Gigabit Ethernet ports, two USXGMII interfaces, four PCIe interfaces, and two USB 3.2 Gen 1 ports.

The MT7988A further enables seamless tri-band Wi-Fi 7 connectivity across the 2.4 GHz, 5 GHz, and 6 GHz bands, with its Wi-Fi 7 companion chip featuring 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC

To meet the needs of rapidly evolving tunneling applications, the MT7988A comes equipped with the MediaTek Tunnel Offload Processor System (TOPS), which facilitates the processing of a wide range of tunneling protocols. The MT7988A optimizes networking performance with a finely tuned ISA of MediaTek TOPS, delivering premium-level offloading capabilities.

NOTE:Some functions require continuous software updates and improvements.

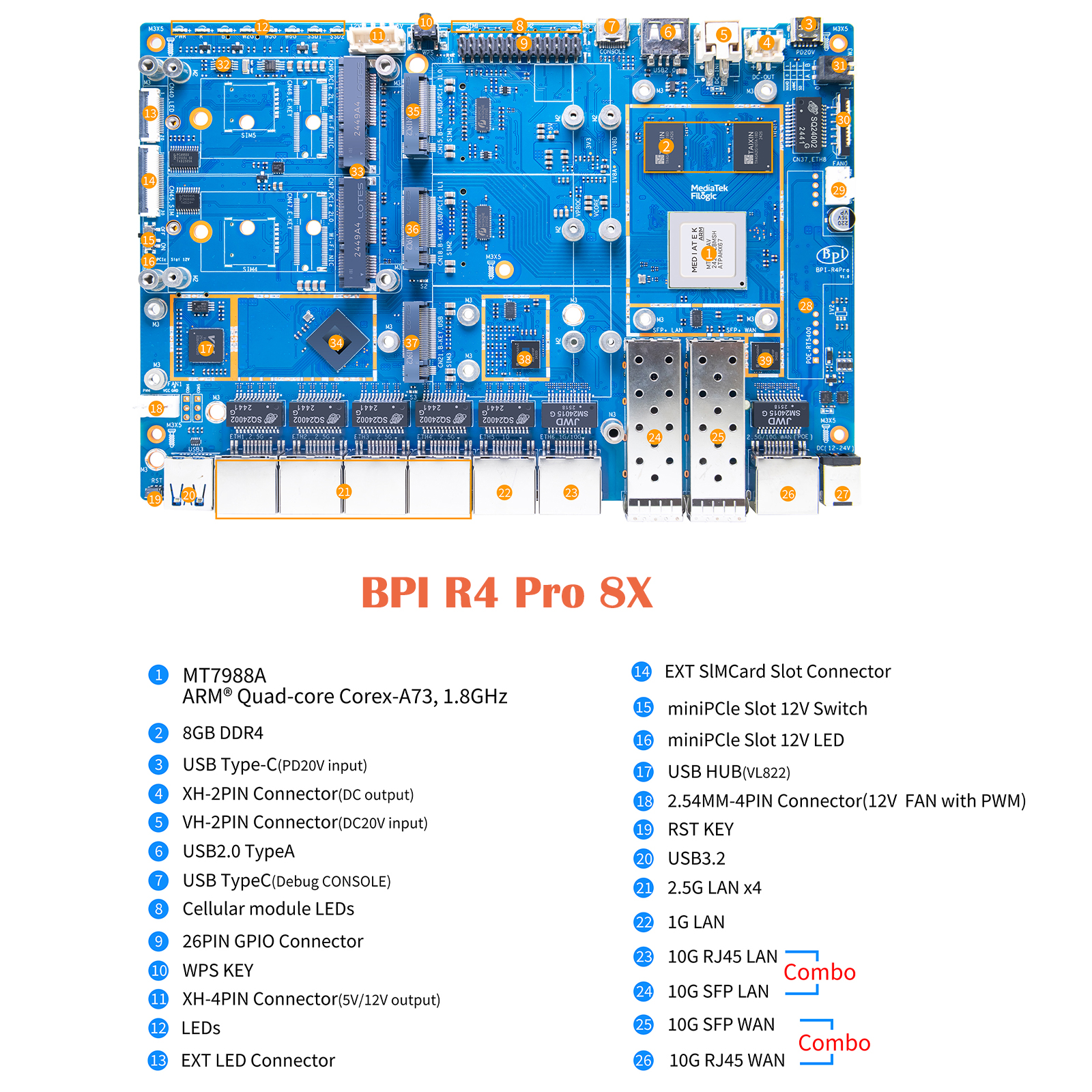

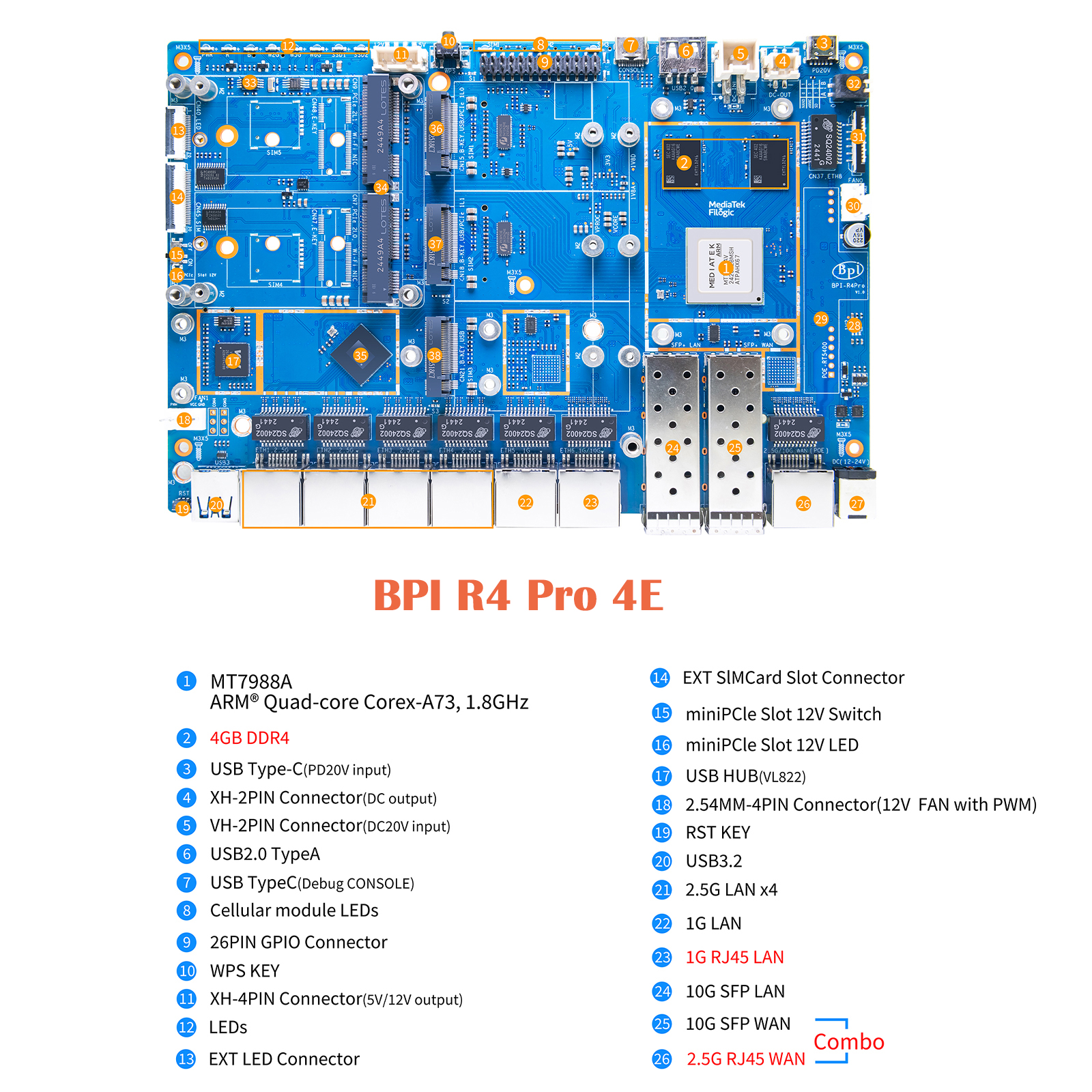

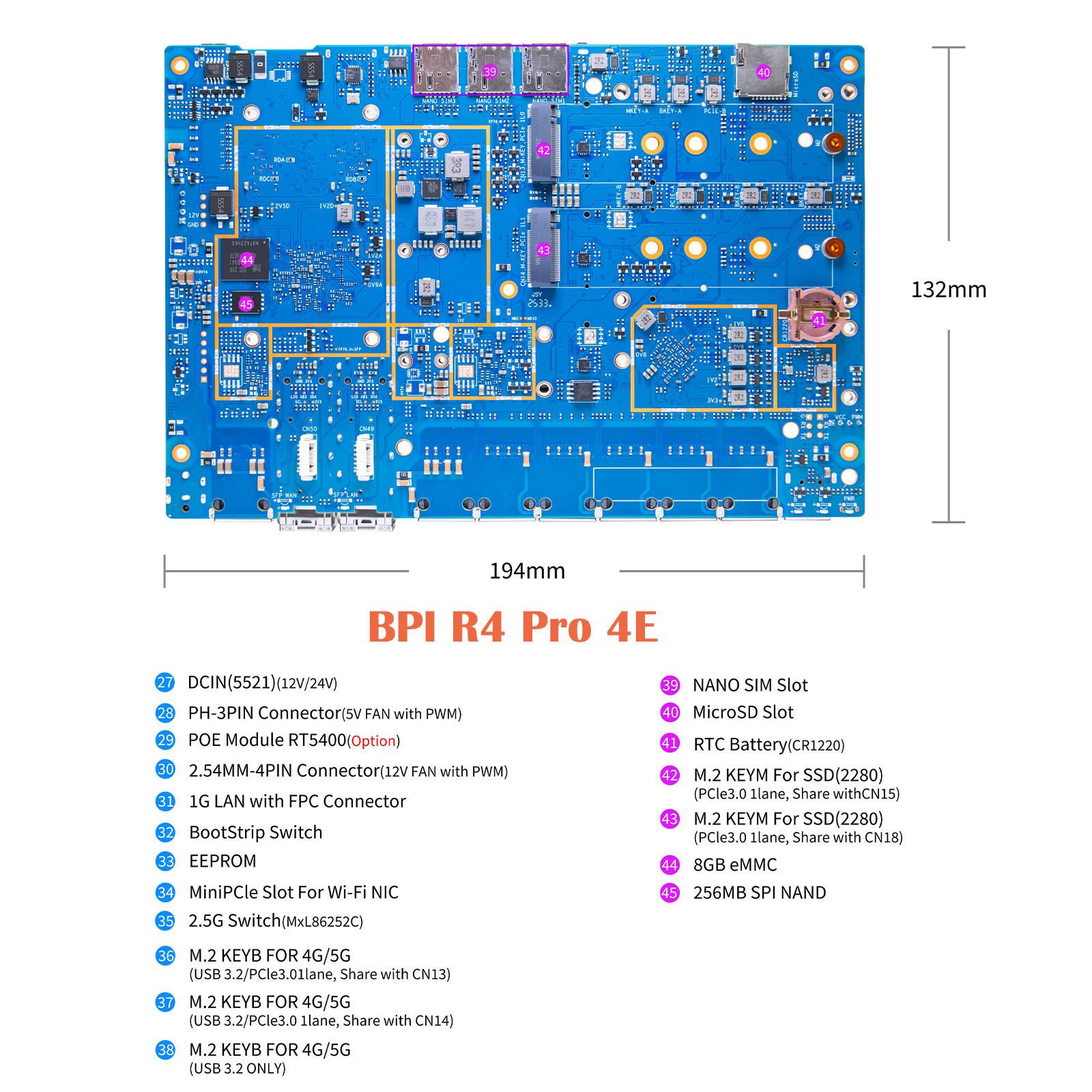

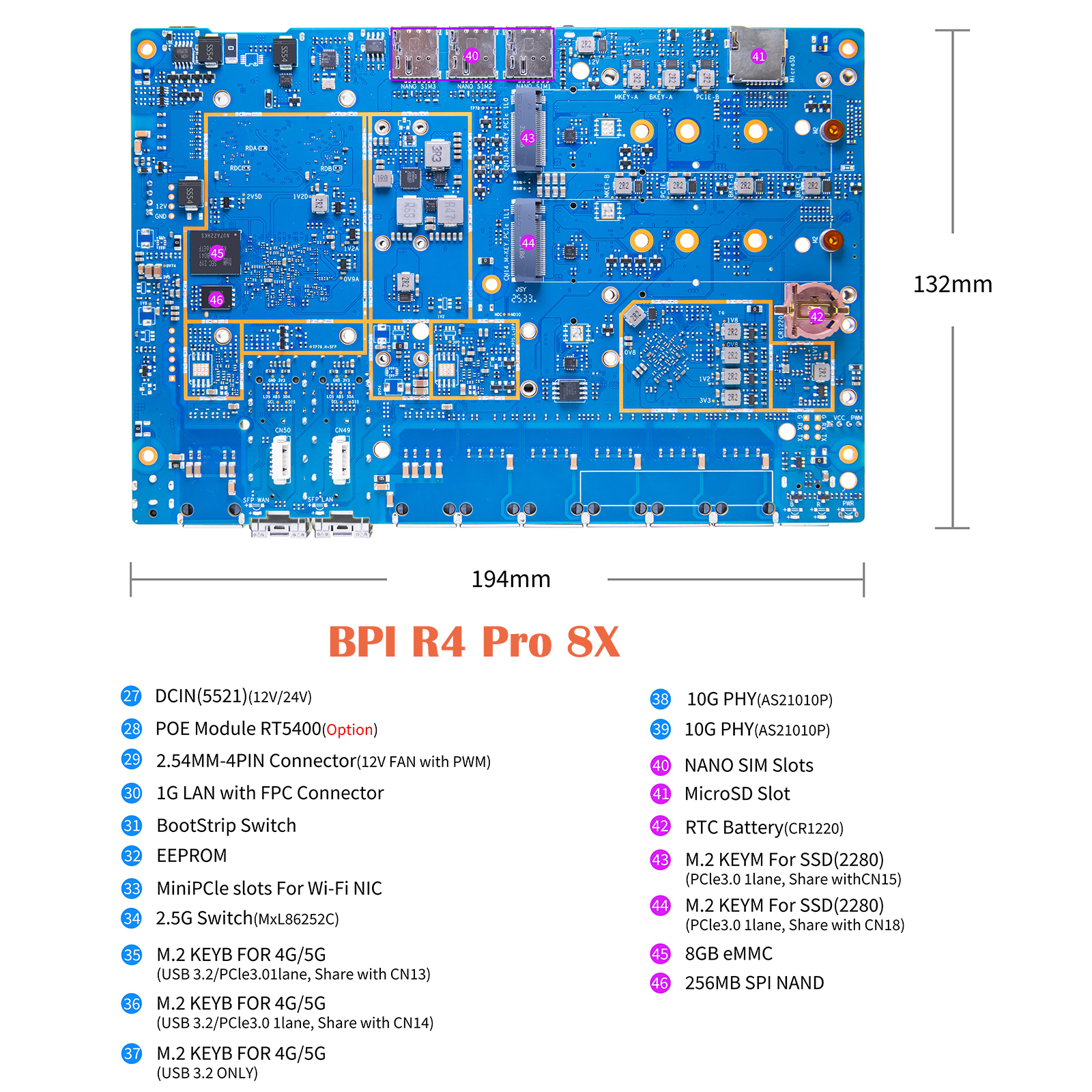

Features

• MediaTek MT7988A Quad-core Arm Cortex-A73,1.8GHz processor

• 8GB DDR4

• 8GB eMMC flash

• 256MB SPI-NAND Flash

• 1x 10G SFP+ WAN and 1x 10G RJ45 WAN(combo with 10G SFP+ WAN)

• 1x 10G SFP+ LAN and 1x 10G RJ45 LAN(combo with 10G SFP+ LAN)

• 4x 2.5G RJ45 LAN

• 1x 1G RJ45 LAN and 1x 1G LAN(FPC Connector)

• 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC

• 2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD

• 3x M.2 B-KEY slots with USB3.2 for 4G/5G Cellular Module

• 1x USB3.2 slot and 1x USB2.0 slot

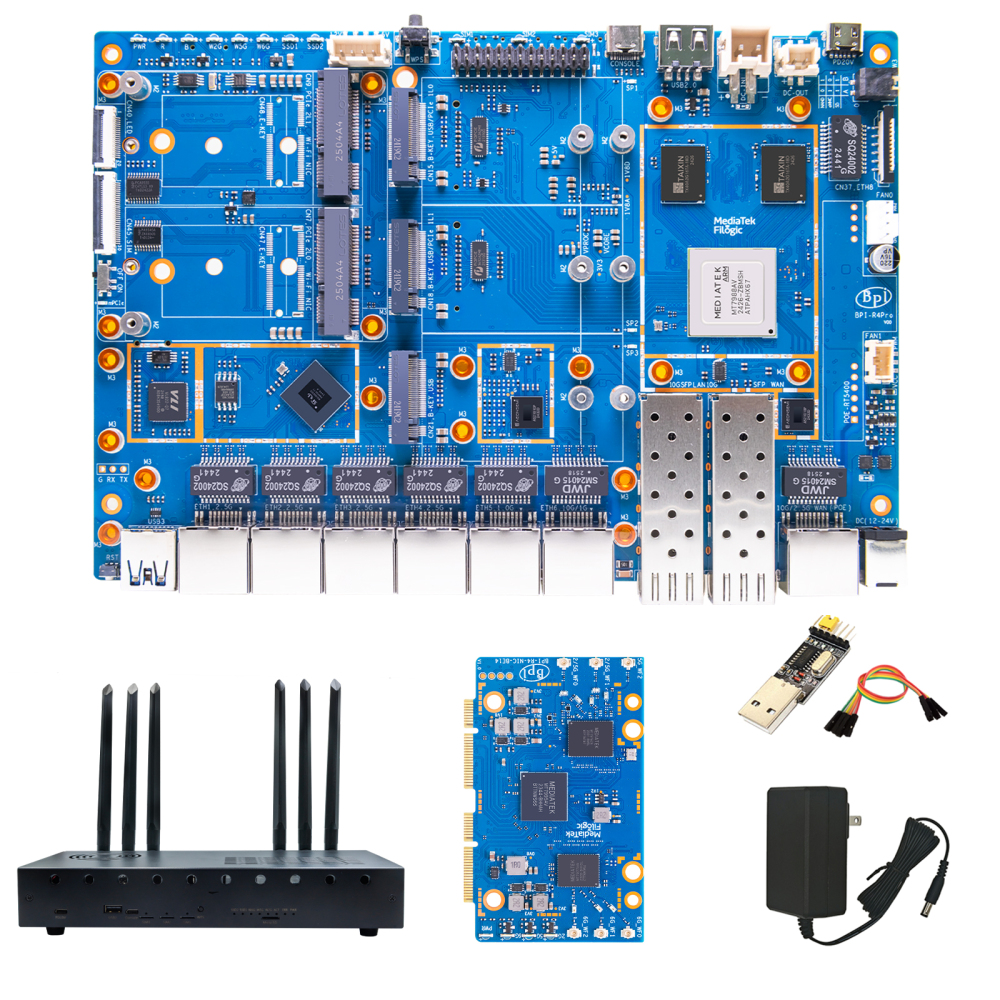

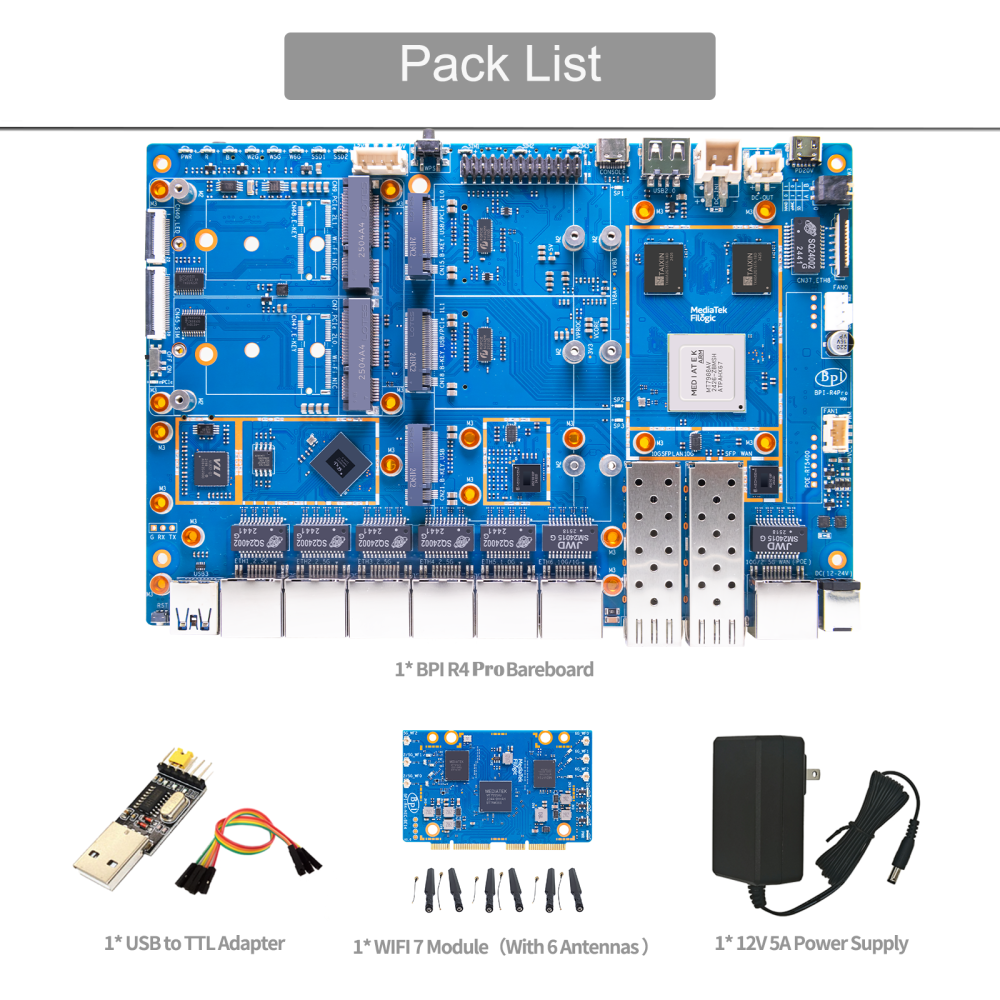

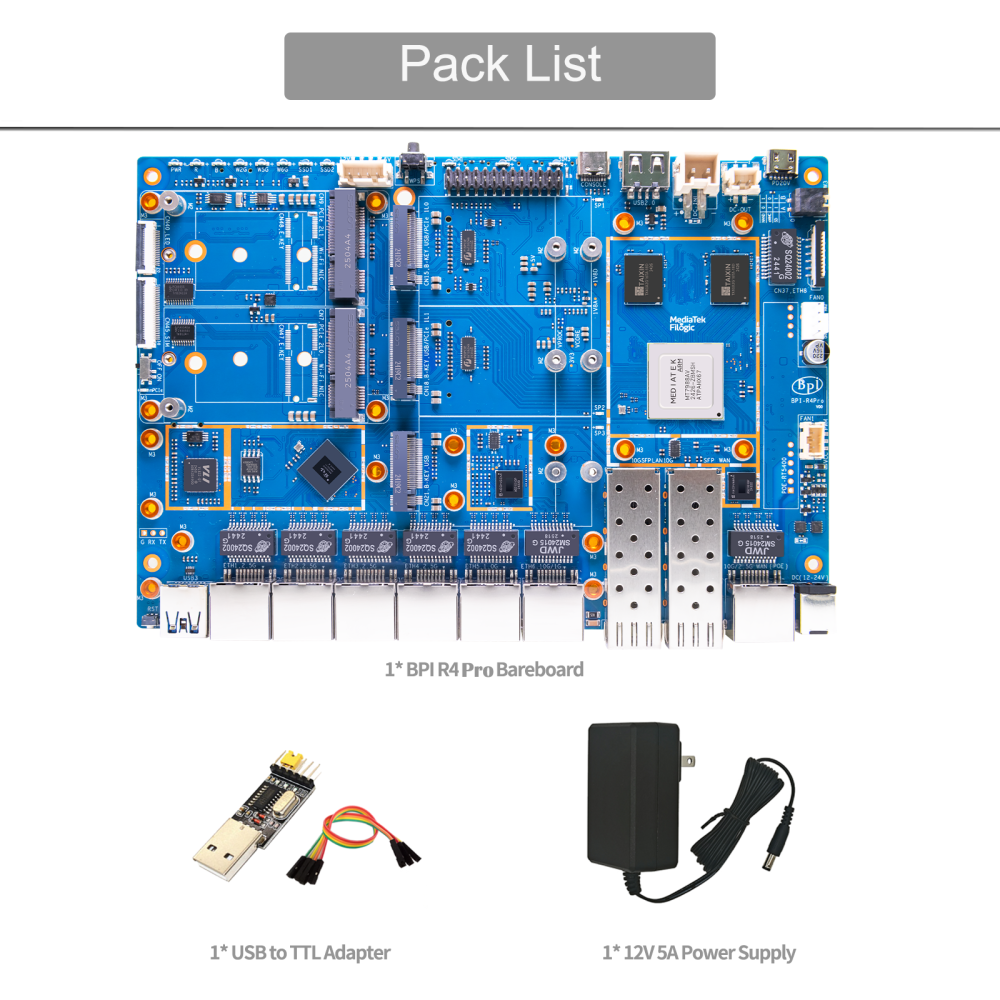

Shipping List

Applications

Specification
