Introduction

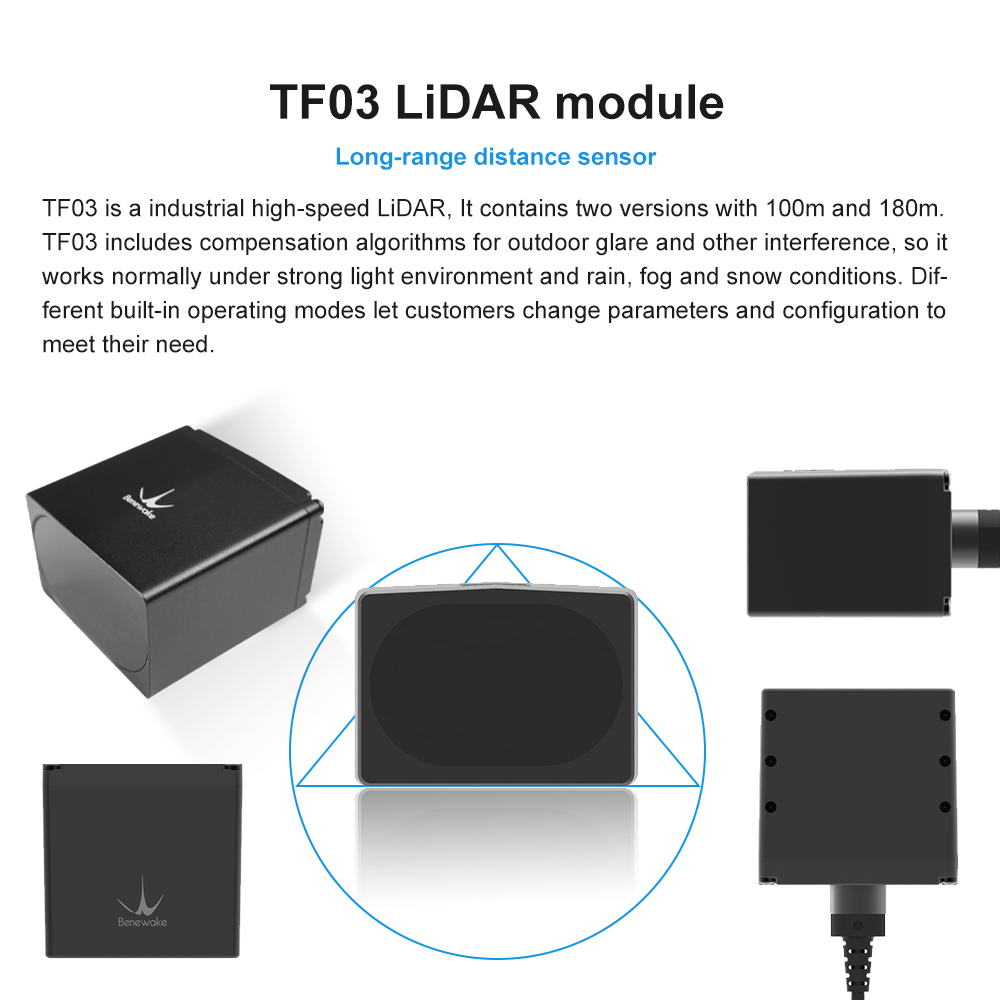

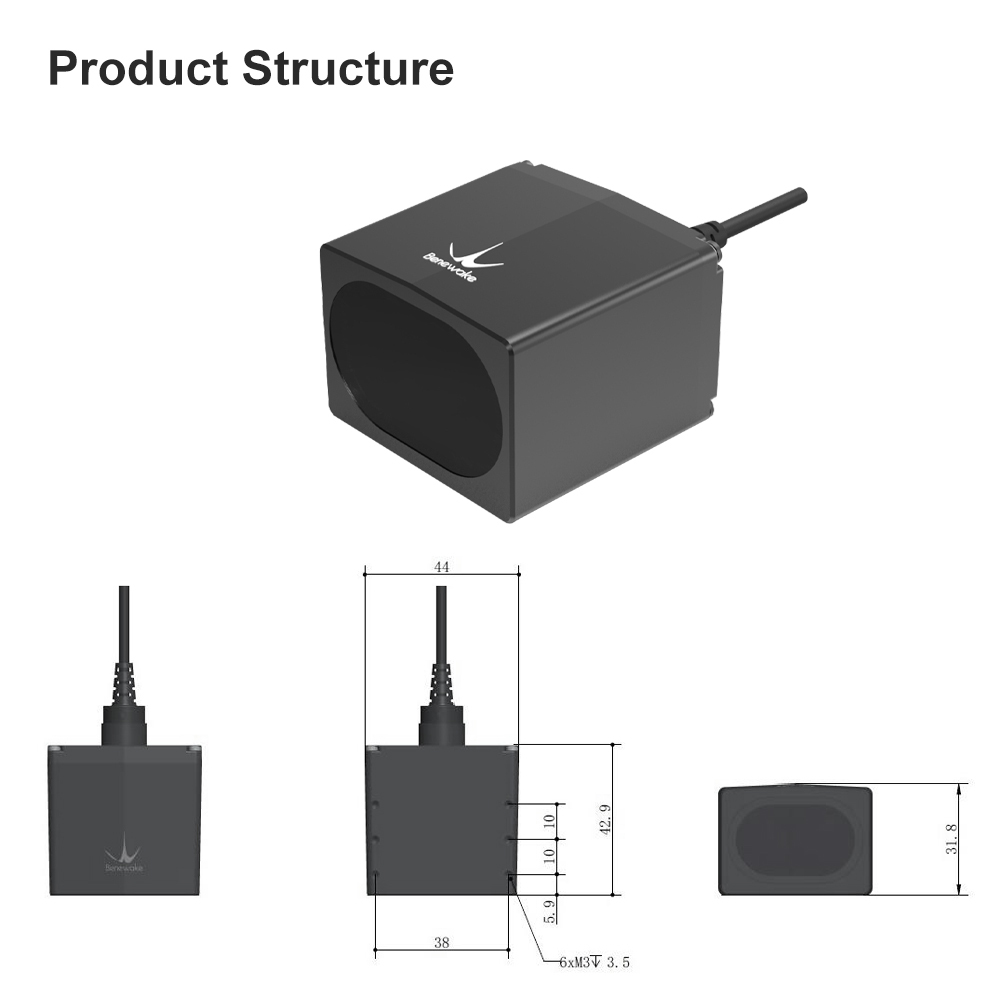

As the third generation product of TF series, TF03 inherits the cost-effective and compact-integration advantages from the previous two generations. Meanwhile, TF03 upgrades more than ten key parameters and offers multiple expansion functions to meet the various demands in different application scenarios. We have two detection ranges for you to choose: 100m and 180m. With a small size of 44×42.9×31.8mm, it can be covered by just a palm of one hand. The product is applicable to the terrain following of drones, the collision avoidance of cars, intelligent transportation and industrial safety warning.

Features

• IP67
• Operating Range: 180m?
• Features multi-interface compatibility
• Offers high speed measuring up to 1KHz (can be customized to up to 10kHz)
• Able to be used outdoors

Shipping List

TF03-100 100M Lidar Sensor x1

Applications

• Industrial Automation: Precision material handling, inventory control, and assembly positioning in production lines.
• Security Monitoring: Real-time monitoring and alerts for intrusions in guarded zones.
• UAV & Robotics: Enhancing obstacle avoidance, altitude control, SLAM in drones and robots.
• Logistics/Warehouse Mgmt: High-accuracy inventory and sorting in automated warehouses.
• Intelligent Transportation: Distance sensing, stacking, and safety monitoring in autonomous vehicles and ports.
• Construction: Precise measurements for structures, elevators, inspections.
• Geological Surveying: Outdoor terrain mapping, mineral exploration.
• Agriculture & Forestry: Crop monitoring, drone height control, resource surveys.

Specification

Performance parameters

• Operating Range: 100m (max 180m)
• Non-detection zone: 10cm
• Distance resolution: 1cm
• Accuracy: ±10cm (less than 10m), 1% (more than 10m)
• Refresh rate: 1Hz-1,000Hz (default 100Hz)
• Ambient light immunity: 100Klux

Optical parameters

• Wavelength of Light Source: 905nm
• FOV: 0.5°

Ambient data

• Operation Temperature: -25~60

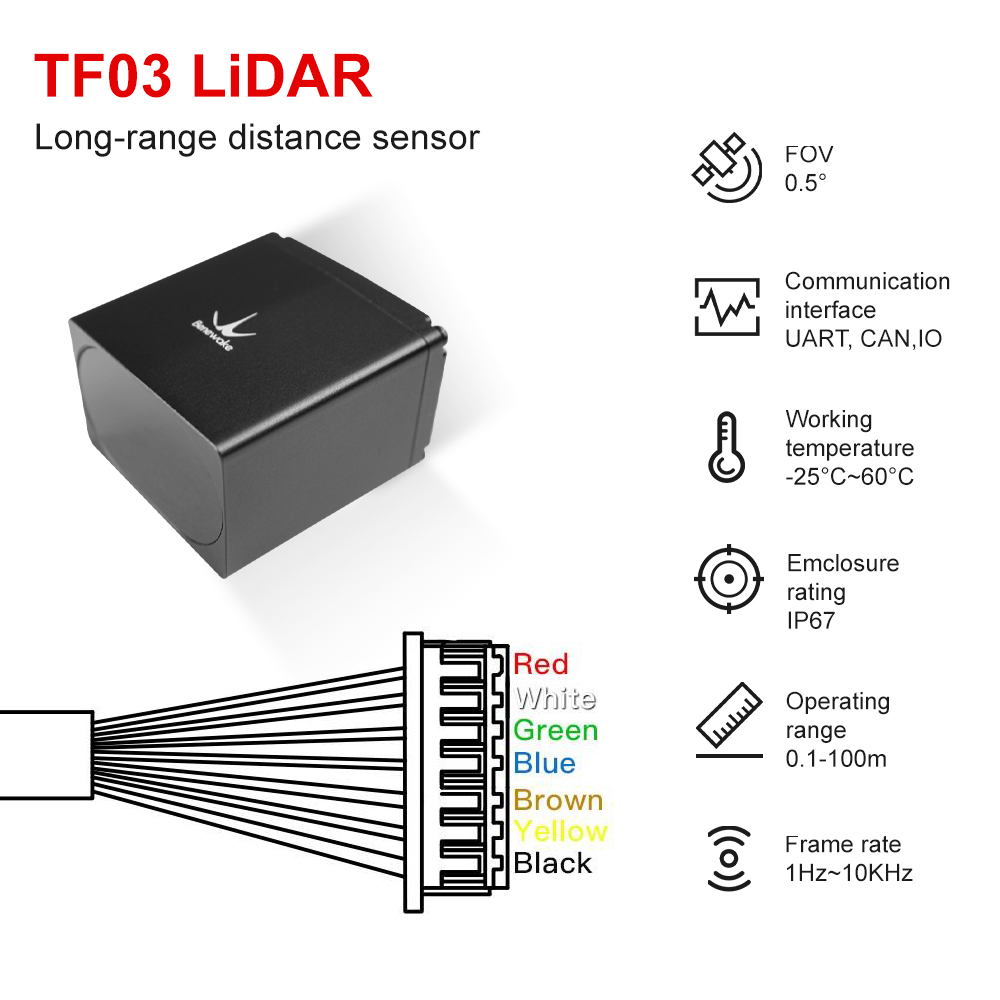

Communication and Interface

• Form of Output Data: Hexadecimal distance value; Character string;
• Communication Interface: UART; CAN
• Mechanical/Electrical parameters
• Supply Voltage: DC 5V (=200mA)
• Power Consumption: 0.9W
• Weight: 77g
