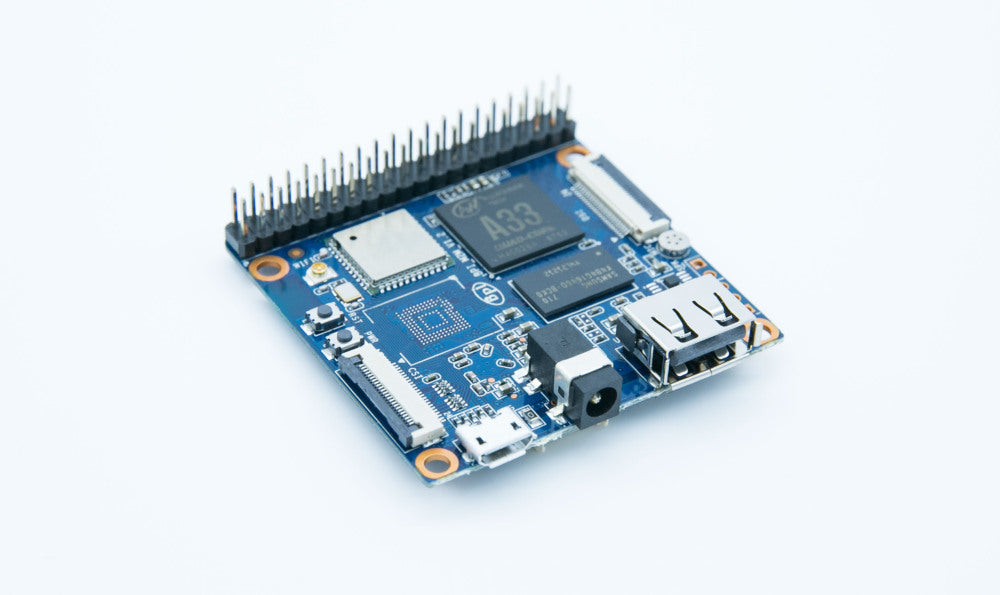

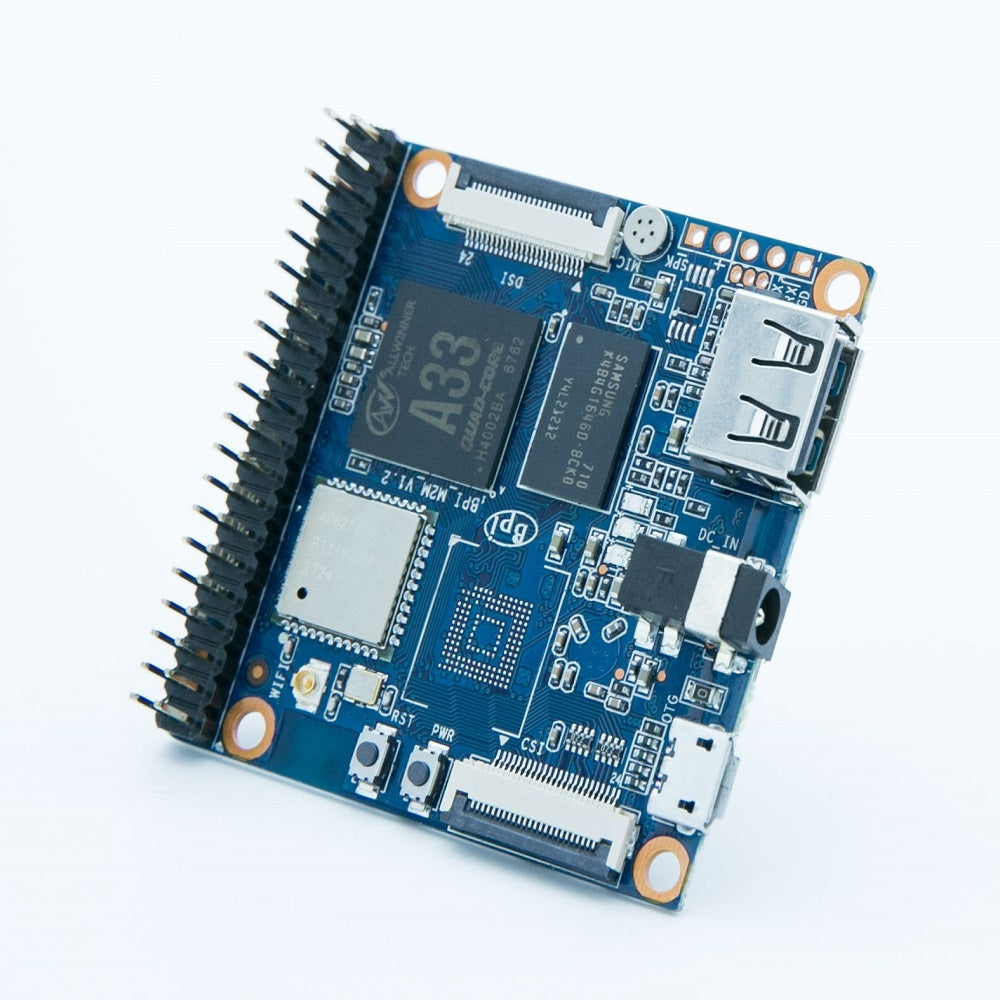

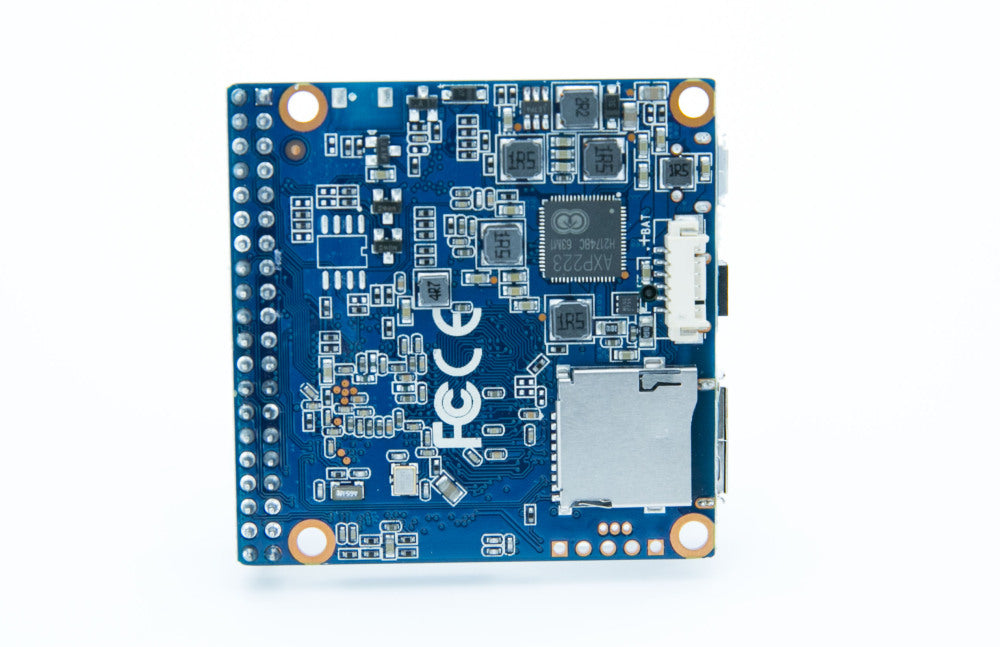

BPI-M2 Magic integrate four ARM Cortex-A7 CPU cores and Mali400MP2 graphics architecture, It also includes a variety of peripherals, BPI-M2 Magic with 512M DDR3，including 4 lane-MIPI DSI, LVDS, USB2.0 OTG/HOST,802.11 b/g/n wifi & BT4.0 onboard.
Note: 1,BPI-M2 Magic not HDMI interface. 2,Not support RJ45 interface
BPI-M2 Magic can run with Android smoothly, it also can run Debian, Ubuntu linux, Raspberry Pi image and others OS. It can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi B+ and can run the ROM Image
allwinner R16 chip and A33 chip is PIN to PIN compatibility, so BPI-M2 Magic just replace R16 ,A33 chip onboard, easy to DIY new product.
Hardware interface:
Hardware spec:
| Banana Pi M2 Magic | |
|---|---|
| CPU | Allwinner R16 ARM Cortex-A7 Quad-Core |
| GPU | PowerVR SGX544MP1 Comply with OpenGL ES 2.0 OpenCL 1x, DX9_3 |
| Memory | 512MB LPDDR3 (shared with GPU) |
| Storage | On Board 8GB eMMC Flash, Micro SD-Card slot. |
| Network | Wi-Fi 802.11 b/g/n (AP6212) + Bluetooth BT4.0 |
| Video Input(s) | A CSI input connector allows for the connection of a designed camera module |
| Video Output(s) | MIPI Display Serial Interface (DSI) for raw LCD Panel |
| Audio Input(s) | On board microphone |
| Audio Output(s) | 3.5mm jack |
| USB ports | USB 2.0 PORT (x1), USB OTG (x1) |
| Remote | Not IR Receiver |
| GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM |
| Switches | Reset, Power and U-boot |
| LED | Power Status and 8P8C |
| Power Source | 5 volt @2A via DC Power and/or Micro USB (OTG) |
| Size & Weight | 51x51mm, 48g |
| OS | Android and Linux |
