Banana Pi BPI-W3 SBC
Rockchip RK3588 SoM, M.2 NVMe socket, 2.5GbE, up to 8K@60 HDMI output and input


  • Quick Start
  • Tips


Introduction

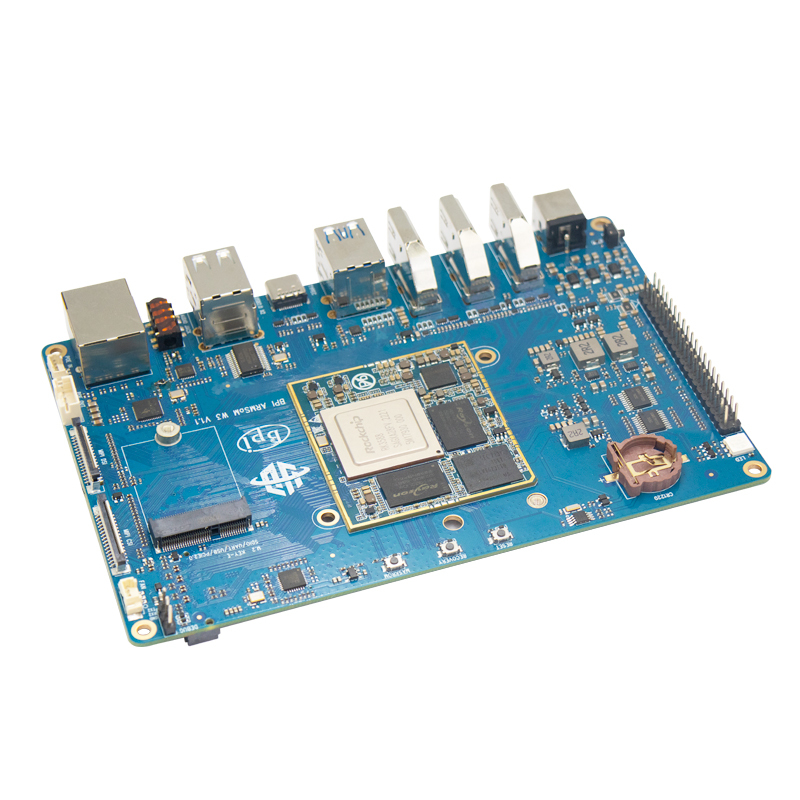

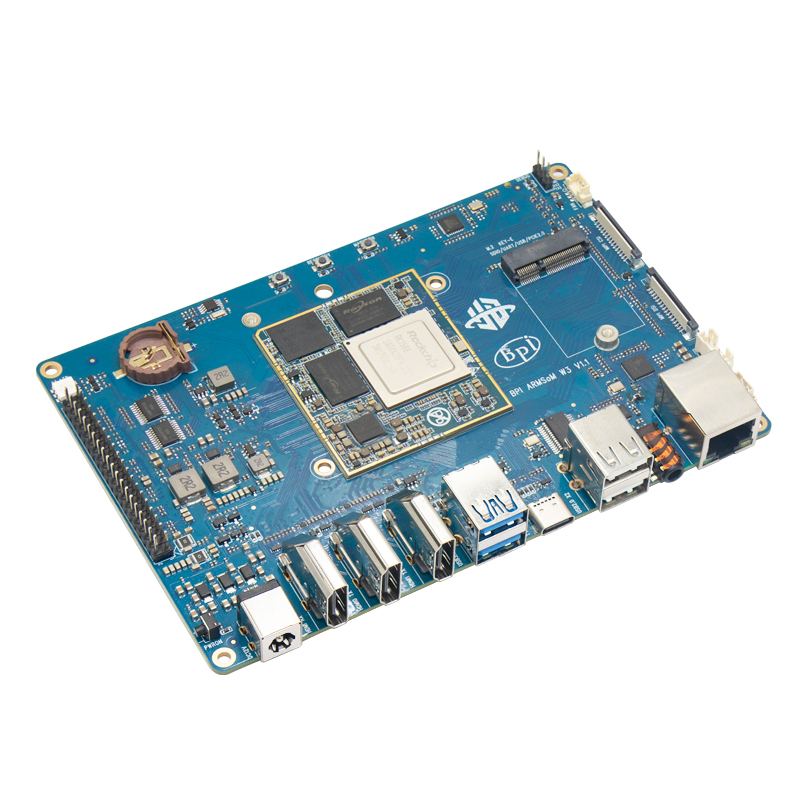

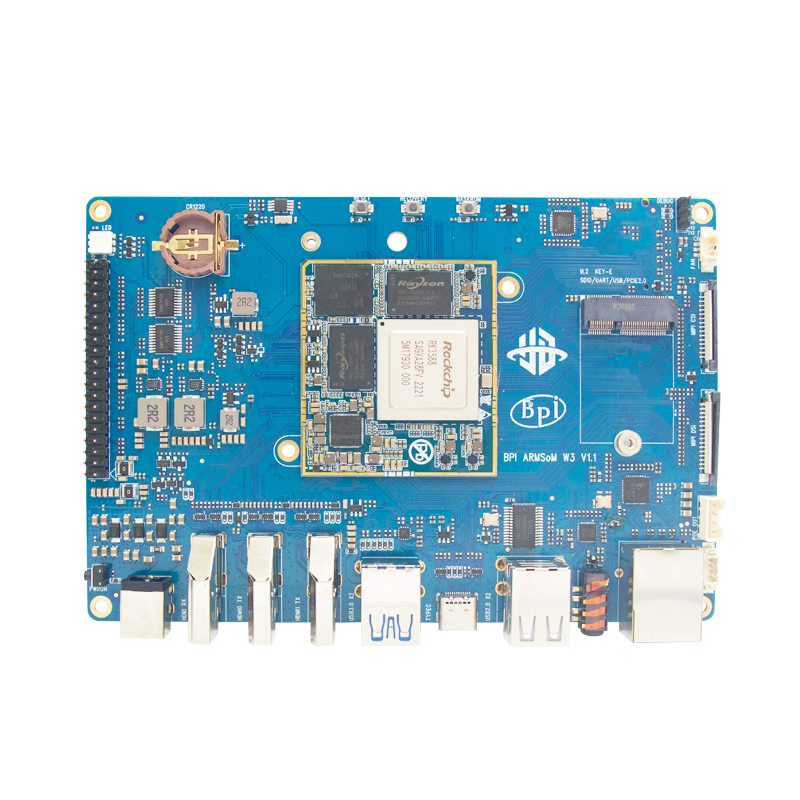

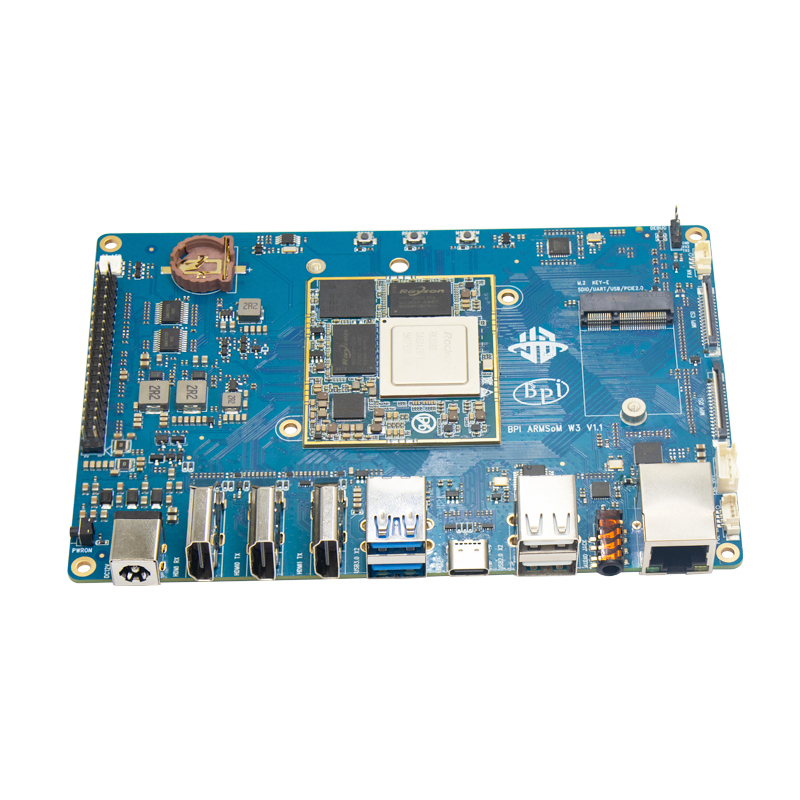

The Banana Pi BPI-W3 single board computer is designed and developed by the banana pi team for professional and enterprise users, powered by Rockchip RK3588 SoC quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor with dynamic frequency scaling up to 2.4GHz. Embedded high-performance 3D and 2D image acceleration module, AI accelerator NPU with a built-in 6 TOPS computing power.

BPI-W3 up to 32GB 64bit LPDDR4X ram, up to 8K@60 HDMI OUT, HDMI IN, MIPI DSI, MIPI CSI, 3.5mm jack with mic, USB Port, 2.5GbE LAN, PCIe 3.0 x4, PCIe 2.0x2, 40-pin expansion header, RTC, POE, SD card, DC power, typec.


Features


  • Rockchip RK3588 quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
  • ARM Mali-G610 MP4,
  • NPU for AI: 6Tops@INT8
  • 8G RAM and 32G eMMC flash onboard
  • 2.5Gbps Ethernet
  • support HDMI in and HDMI out * 2


Shipping List


1x BPI-W3


Specification


BPI-W3 Hardware spec

SOC RockChip RK3588
CPU Quad Core A76+ Quad Core A55 ,use 8nm , 2.4GHz
GPU ARM Mali-G610 MP4 GPU,Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU 6 TOPS, Support INT4/INT8/INT16 mixed operation, Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Encode&Decode encode:8K@60fps H.265/VP9/AVS2、8K@30fps H.264 AVC/MVC、4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8 ,decode:8K@30fps H.265 / H.264
Ram 4GB/8GB/16GB(up to 32GB)64bit LPDDR4/LPDDR4x/LPDDR5,Default LPDDR4 8GB
Flash 16GB/32GB/64GB/128GB/256GB eMMC, Support MicroSD card slot, Default:32GB
M2 Key M The interface supports extension SSD
network 2.5G network port(RLT8125BS)
video output 2 x HDMI2.1(just one support 8K@60fps or 4K@120fps,other support 4K@60fps),1 x MIPI-DSI(4K@60fps),1 x DP1.4(8K@30fps),
video input 1 x 4Lanes MIPI CSI / 2 x 2lanes MIPI CSI,1 x HDMI RX2.0
Voice 2 x HDMI voice output ,1 x DP1.4 voice output,1 x headphone (es8316)
Wireless M2 E key interface support sdio、pcie、usb BT&wifi(AP6256,Intel AX210)
USB 2 x USB3.1,2 x USB2.0,1x USB-C(DP1.4(8K@30fps)/OTG/PD fast charging)
Others Fan、RTC、LED、debug
Button Power Button、Reset Button、 Recovery Button、Root Button
GPIO 40 x GPIO(UART、SPI、I2C、I2S、PWM、ADC、 GPIO、 5V power 、3.3V power)
Power DC 12V/2.5A bore diameter 2.5mm, Support USB Type-C PD 2.0,9V/2A, 12V/2A, 15V/2A, Support 12V POE power supply
System Android 12.0、Ubuntu、Debian11、Buildroot、Kylin Linux
Size 148 mm × 100.5mm
operating temperature -10℃ ~ 70℃
storage temperature -20℃ ~ 70℃
