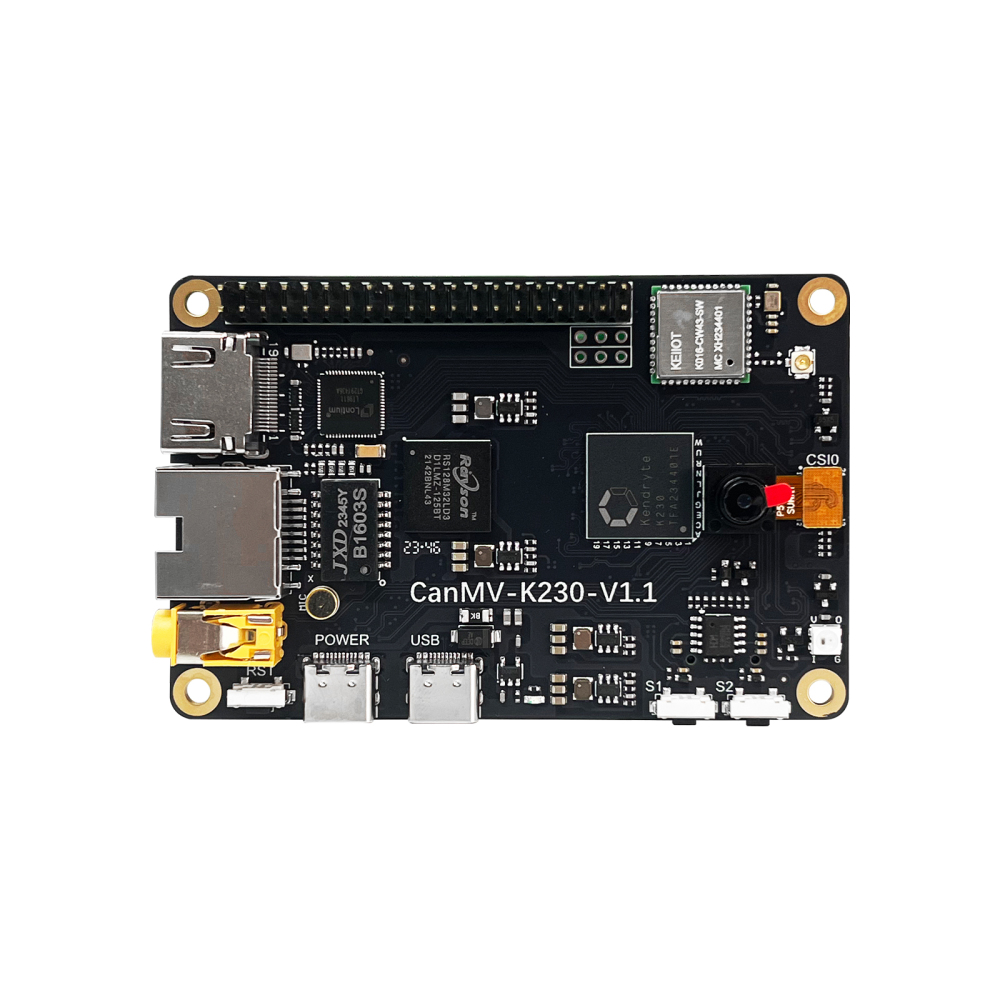

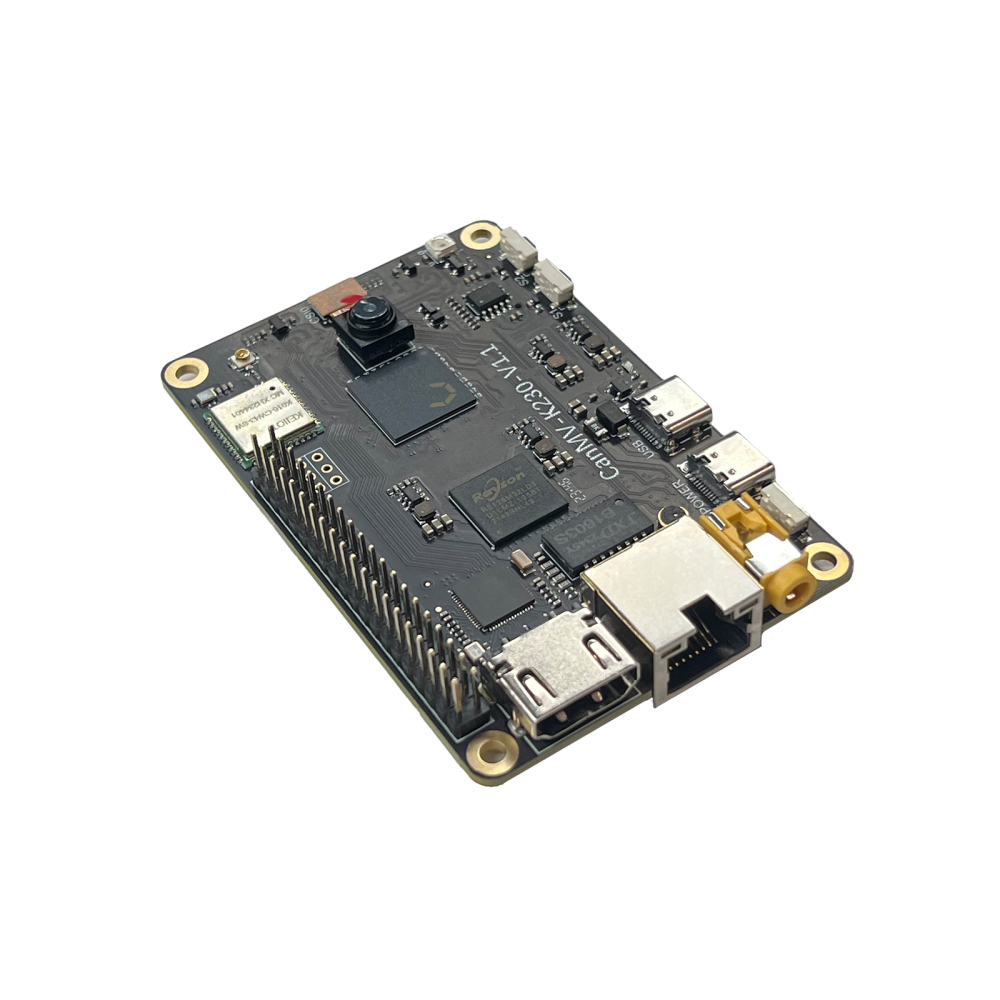

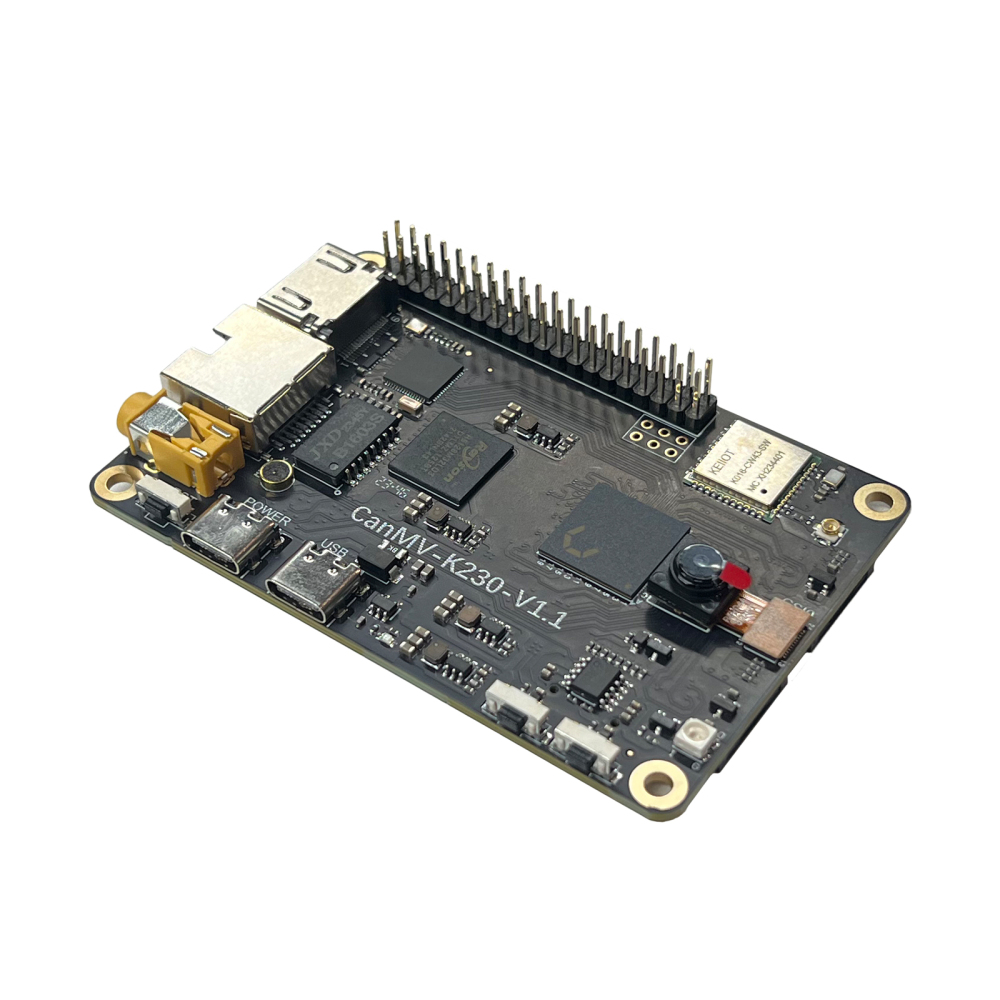

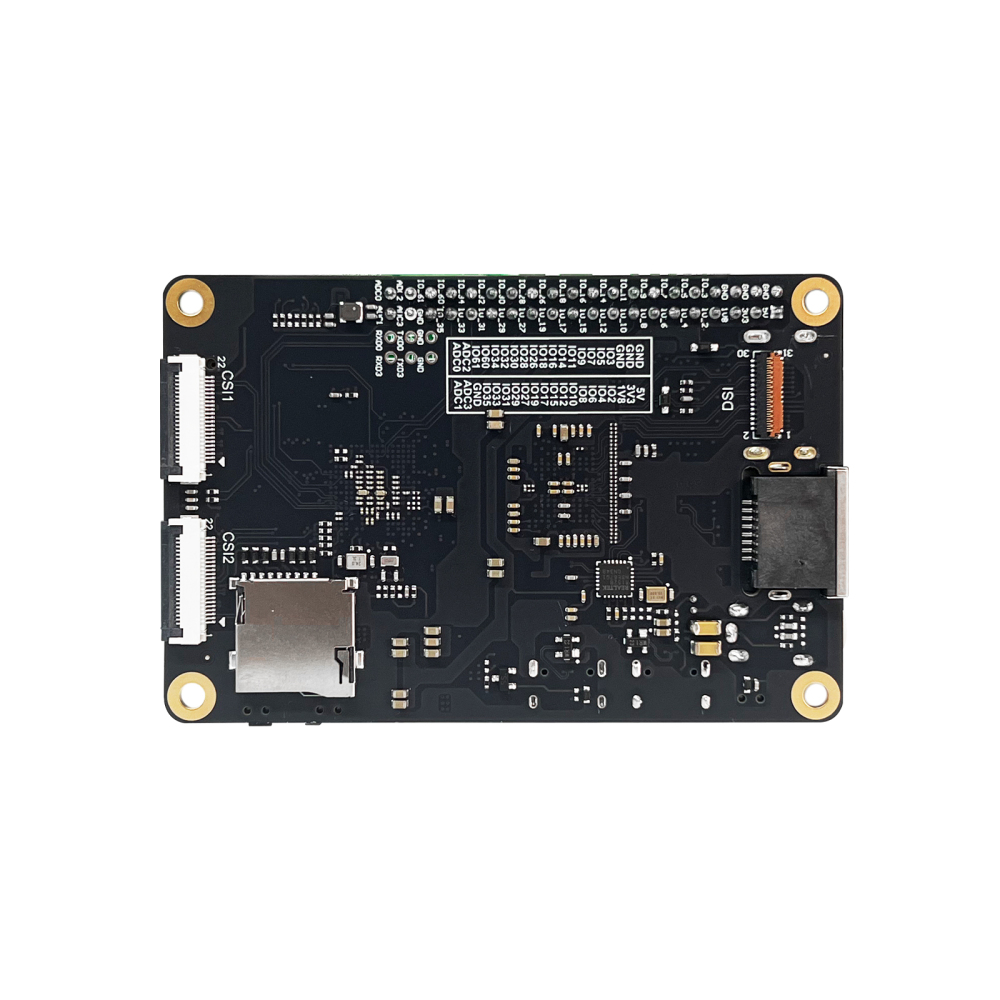

CanMV-K230

CanMV-K230 is a credit card-sized development board for AI and computer vision applications based on the Kendryte K230 dual-core C908 64-bit RISC-V processor with built-in KPU (Knowledge Process Unit) and various interfaces such as MIPI CSI inputs and Ethernet.

WIKI : https://wiki.youyeetoo.com/en/CanMV-K230
Tips: The CanMV 230 starts up with a TF card. The recommended option is the Development Bundle.

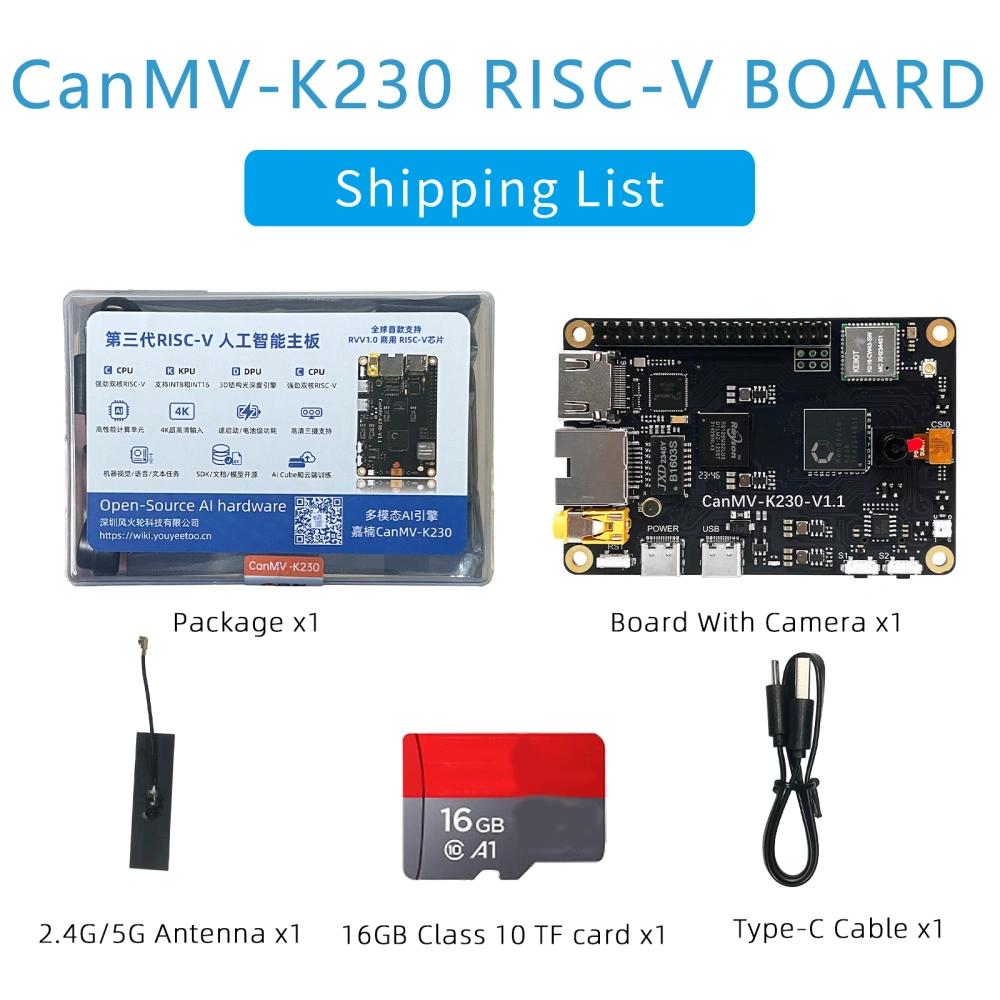

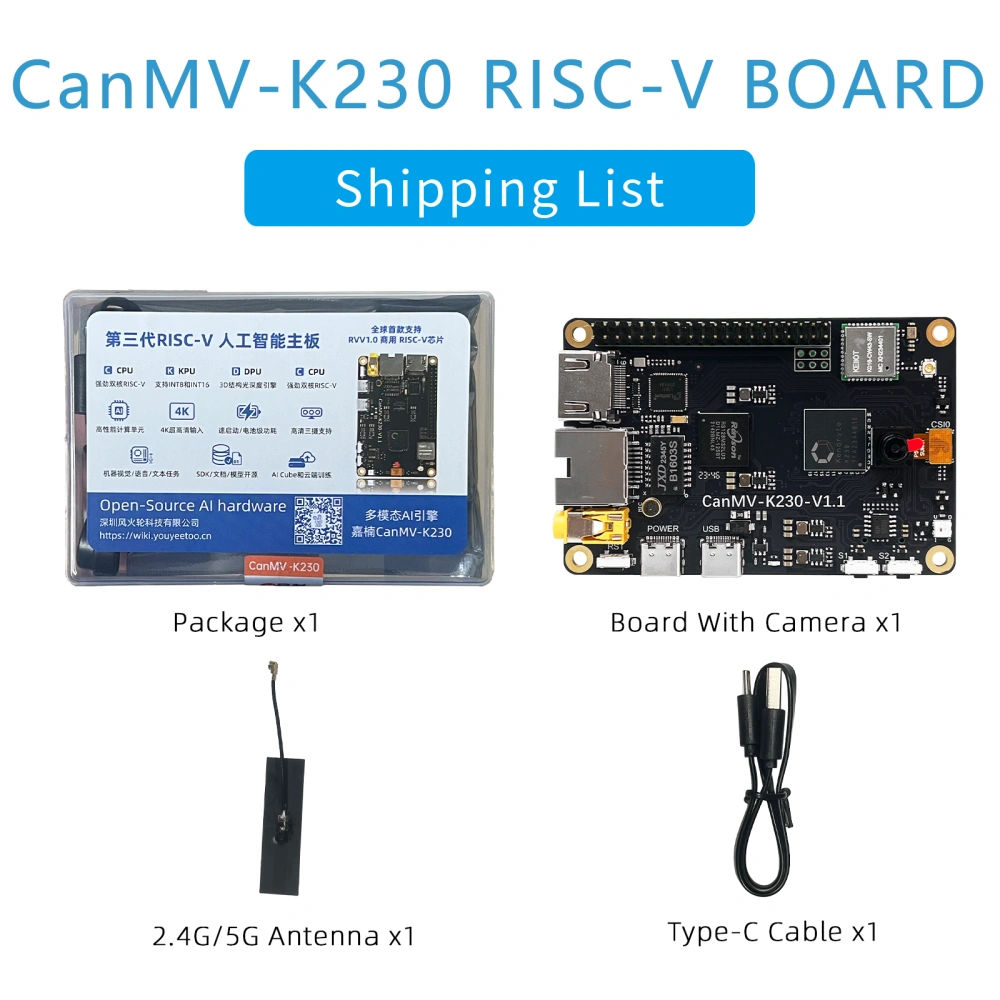

Shipping List

CanMV-K230 specifications:

• SoC – Kendryte K230
  • CPU
    • 64-bit RISC-V processor @ 1.6GHz with RISC-V Vector Extension 1.0, FPU
    • 64-bit RISC-V processor @ 800MHz with support for RV64GCB instruction set;
  • AI accelerator
    • KPU with support for INT8 and INT16
    • Compatible with TVM, TensorFlow, Pytorch, ONNX
    • Typical network performance: Resnet 50 ≥ 85fps @ INT8; Mobilenet_v2 ≥ 670fps @ INT8; YoloV5S ≥ 38fps @INT8;
  • “DPU” using 3D structured light depth calculation up to 1280×800 @ 30fps
  • VPU – Video encoding/decoding for H.264/H.265/JPEG/MJPEG up to 4Kp40/4Kp20
• System Memory: 512MB LPDDR3
• Storage – QSPI flash, microSD card slot
• Display – HDMI port, MIPI DSI connector up to 1080p60
• Audio – 3.5mm audio jack
• Camera – Up to 5MP camera, up to 3-ch MIPI CSI inputs
• Networking
  • 10/100Mbps Ethernet RJ45 port
  • WiFi 4 and Bluetooth 4.0 via AP6212 wireless module
• USB – 1x USB 2.0 OTG Type-C port port
• Expansion – 40-pin GPIO header with up to 29x GPIOs, 5x PWM, 4x I2C, 2x UART
• Misc – Buttons, RGB LED
• Power Supply – 5V via USB-C port
• Dimension – 85 x 56 mm
