CC-A80 Mini PC Cubieboard4 inside Development Board/Cubieboard A80 Cortex A15x4 up to 2.0GHz, A7x4 /2GB DDR 8G EMMC

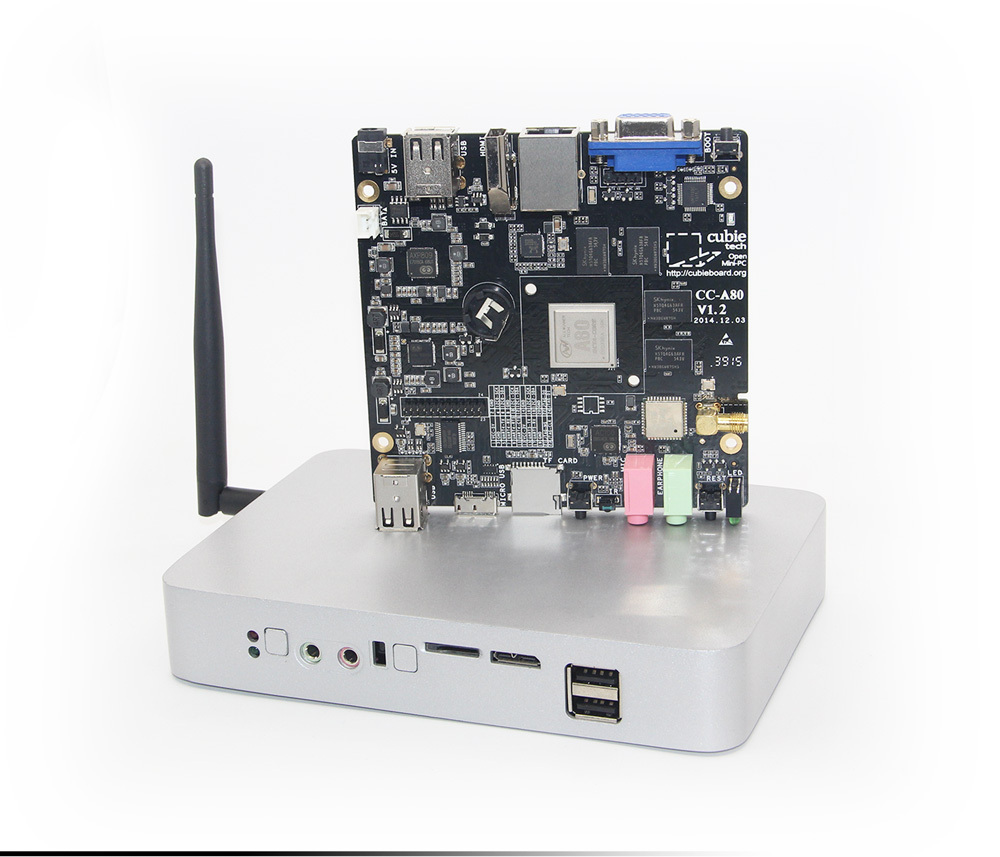

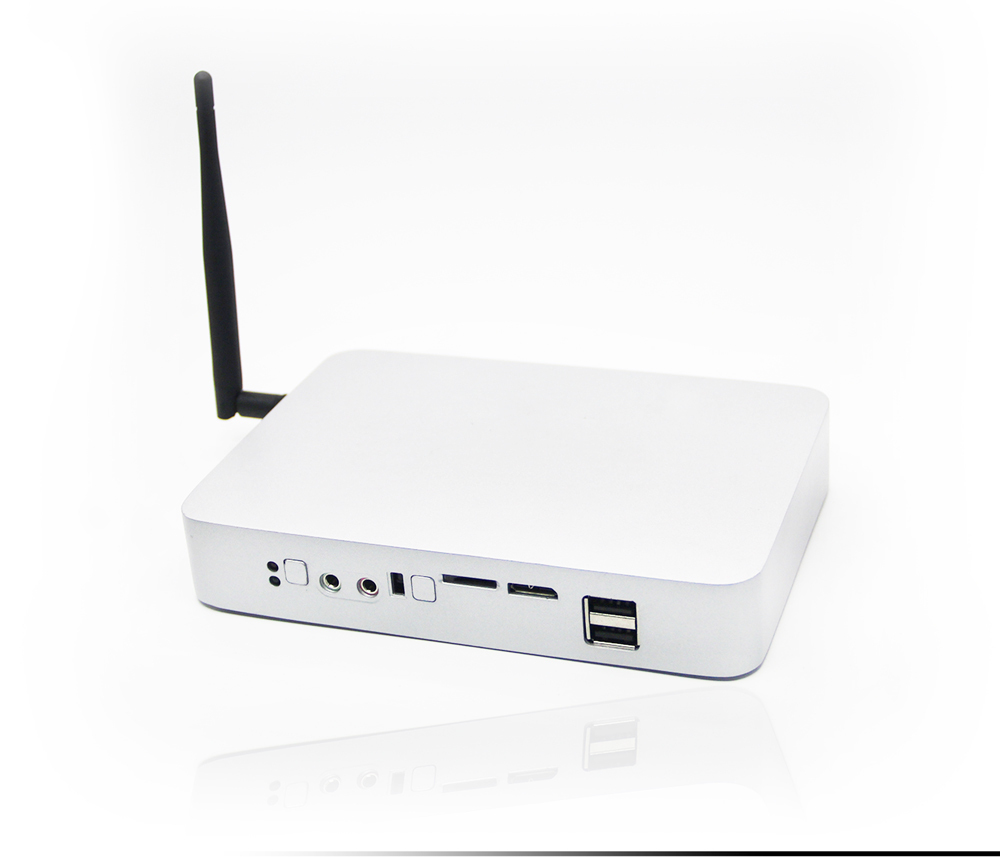

This item is CubieBoard4 + metal shell

if you need the Cubieboard4 only,click here

Cubieboard4 also named CC-A80, is a open source Mini PC or single board computer which has ultra-powerful performance. The main chipset Allwinner A80 is a 28nm Octa-Core A15/A7 big.LITTLE architecture application processor with a CPU dominant frequency of 2GHz. It also has the amazing GPU 64-core GPU graphics core PowerVR G6230 which supports openGL ES, openGL, even openCL. CC-A80 has the standard interfaces like desktop computer, such as HDMI&VGA, 100M/1000M RJ45, 4 USB2.0 host ports,1 USB3.0 OTG port, Audio output, Microphone input, dual-band wifi and bluetooth 4.0, micro SD card. It has 2GB DDR3 on-board memory and support Li-Po battery UPS powerinput, so that we can say it's a good mobie development platform.

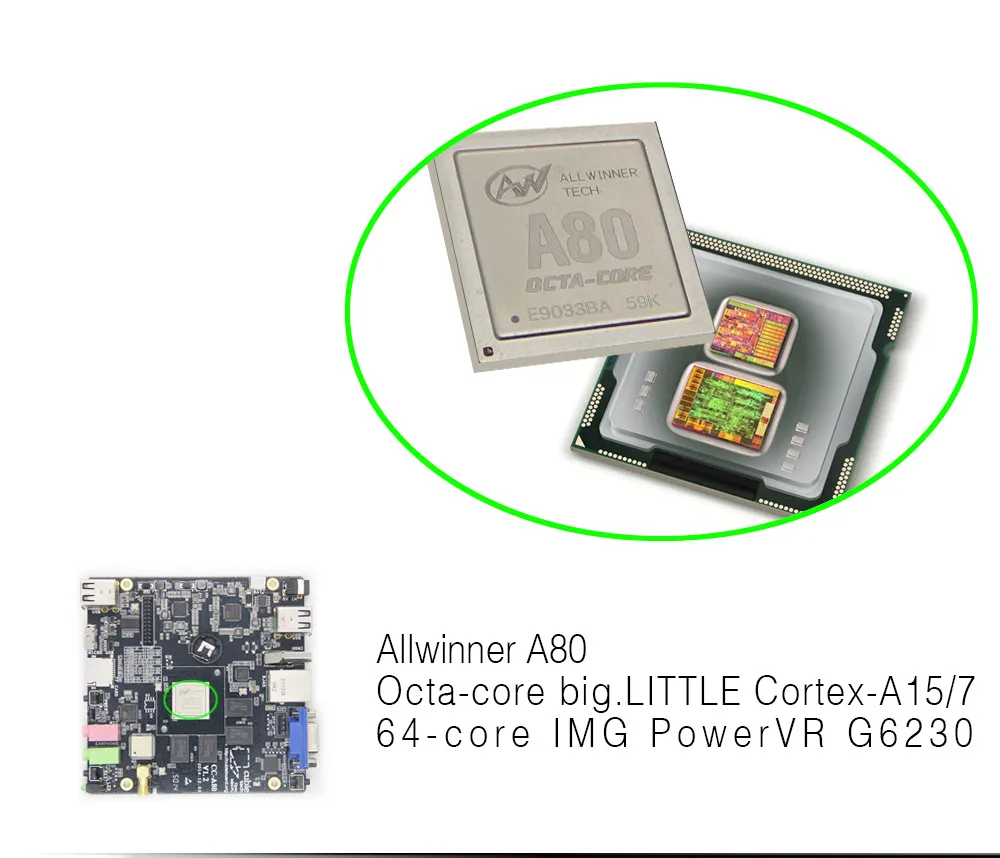

1. SOC: AllWinner A80,ARM® big.LITTLE Octa-Core Cortex™-A15 Qual-Core,2.0GHz, Cortex™-A7 Qual-Core, upto 1.3 GHz,Imagination PowerVR® G6230 64-core, Complies with OpenGL ES 2.0/3.0, OpenGL, OpenGL
2. Memory: 2GB DDR3@800MHz (1600MTPS)

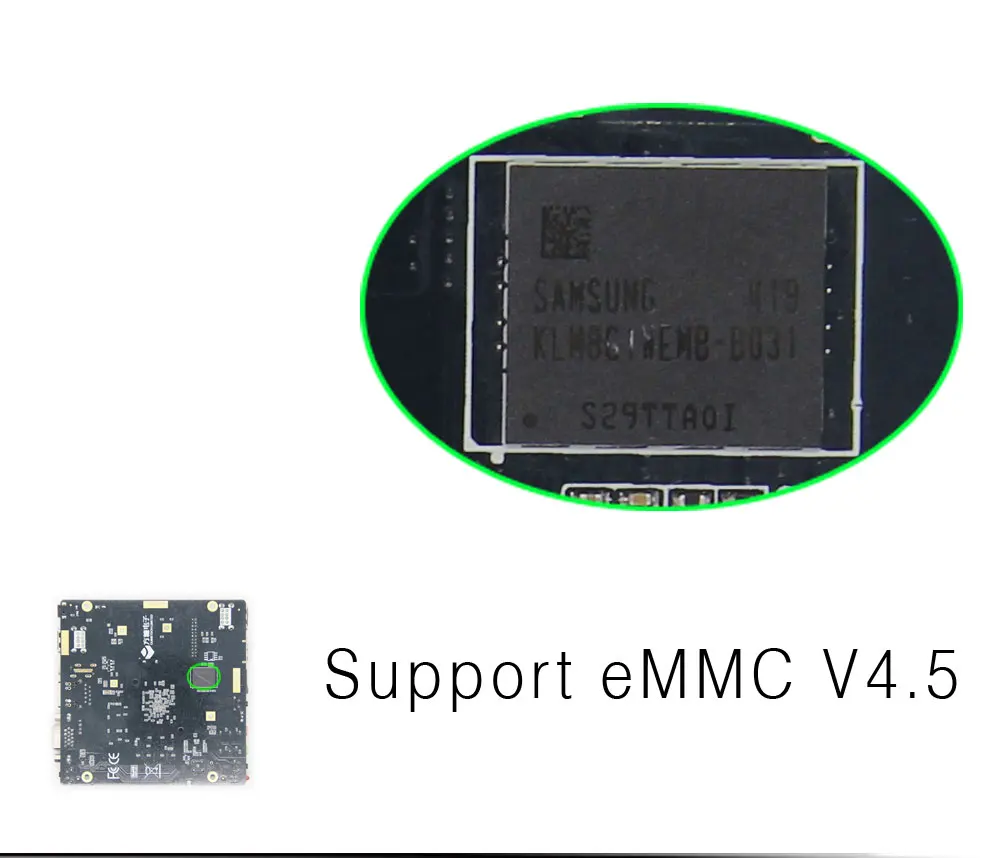

3. Storage: EMMC, up to 64GB, default 8GB, write/read speed 25MB/s
4. TF Card: Micro SD card slot
5. Display: HDMI Port A, HDMI V1.4a 4K@30Hz, VGA, support 1080P@60Hz resolution output
6. Ethernet: 100M/1000M RJ45
7. Wireless: Wifi: 2.4G/5G, Dual Band, 300Mbps with external antenna. BT4.0+EDR
8. IR: Infrared remote receiver Philip standard
9. RTC: Support 1220 size rechargeable button cell
10. Audio: Support 3.5 headphone jack for Audio output, Support 3.5 jack for Microphone
11. Power: DCIN 5V@4A power, Support USB 3.0 jack power input, Support 3.7V Li-Po battery
12. Keys: Power key, Reset key, uboot key for reflashing the image
13. LEDs: Power Led x 1, User Led x 2

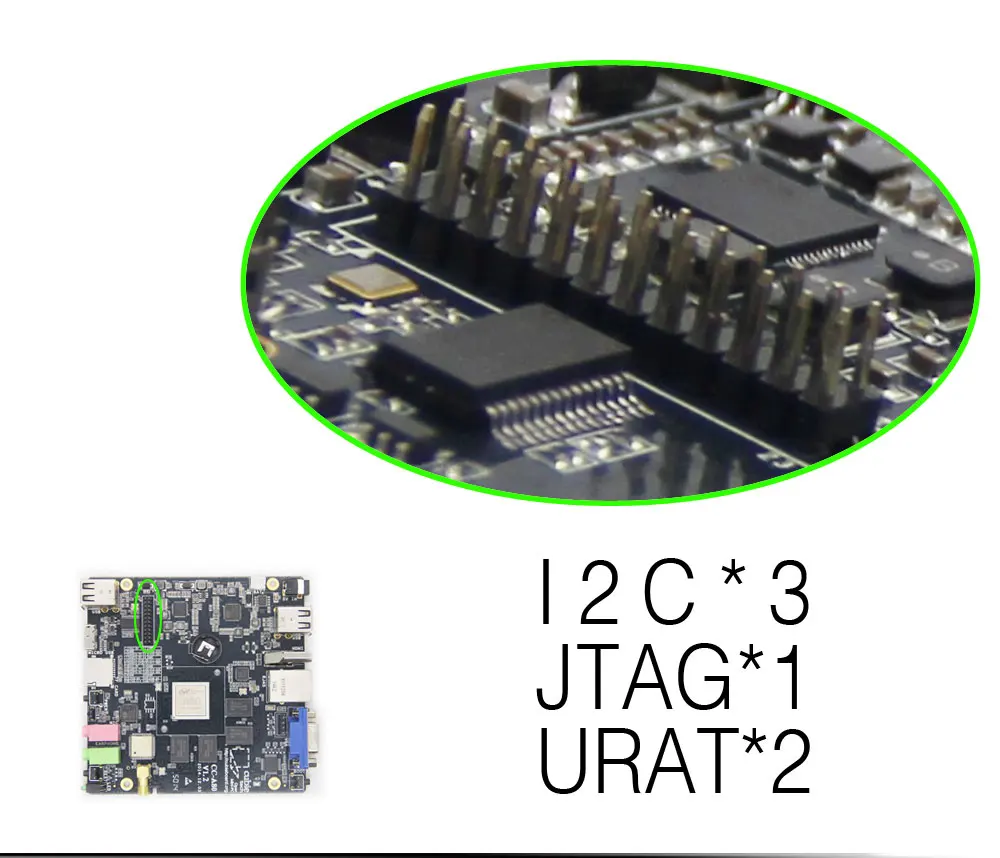

14. Others: 2x UART0, 2x I2C, JTAG and 5V, 3.3V power



Linux

Android


Download: http://dl.cubieboard.org/model/CubieBoard4/

OS:

1,android4.4

2,lubuntu

3,debian

Android source code:

bitbucket
https://bitbucket.org/cubietech/cc-a80-android4.4_android.git
https://bitbucket.org/cubietech/cc-a80-android4.4_lichee.git
git hub code:
git clone https://bitbucket.org/cubietech/cc-a80-android4.4_android.git
git clone https://bitbucket.org/cubietech/cc-a80-android4.4_lichee.git



Guide Doc:
http://dl.cubieboard.org/model/CubieBoard4/Doc/android/

Linux source code:
CC-A80-linux-sdk
================

$ mkdir CC-A80-linux-sdk
$ cd cc-a80-linux-sdk

$git clone https://github.com/cubieboard/CC-A80-kernel-source
$git clone https://github.com/cubieboard/CC-A80-products
$git clone https://github.com/cubieboard/CC-A80-tools
$git clone https://github.com/cubieboard/CC-A80-binaries
$git clone https://github.com/cubieboard/CC-A80-rootfs.git

Sdk guide:http://dl.cubieboard.org/model/CubieBoard4/Doc/ubuntu-linaro/
Downloads (SDK Source, Tools, Firmware, Documentation) :
https://mega.nz/#F!ZtwxCCJC!AIYHcTqz-ucjuzKnE9qD7A

Other Specifications

Operating Temperature: -20℃~70℃

Environment Friendly: RoHS

Radio Standard: Fcc & CE compatible

Device Size: 168mm*117mm*30mm

Packing Weight: 750g

Packing Size: 228mm*152mm*90mm
