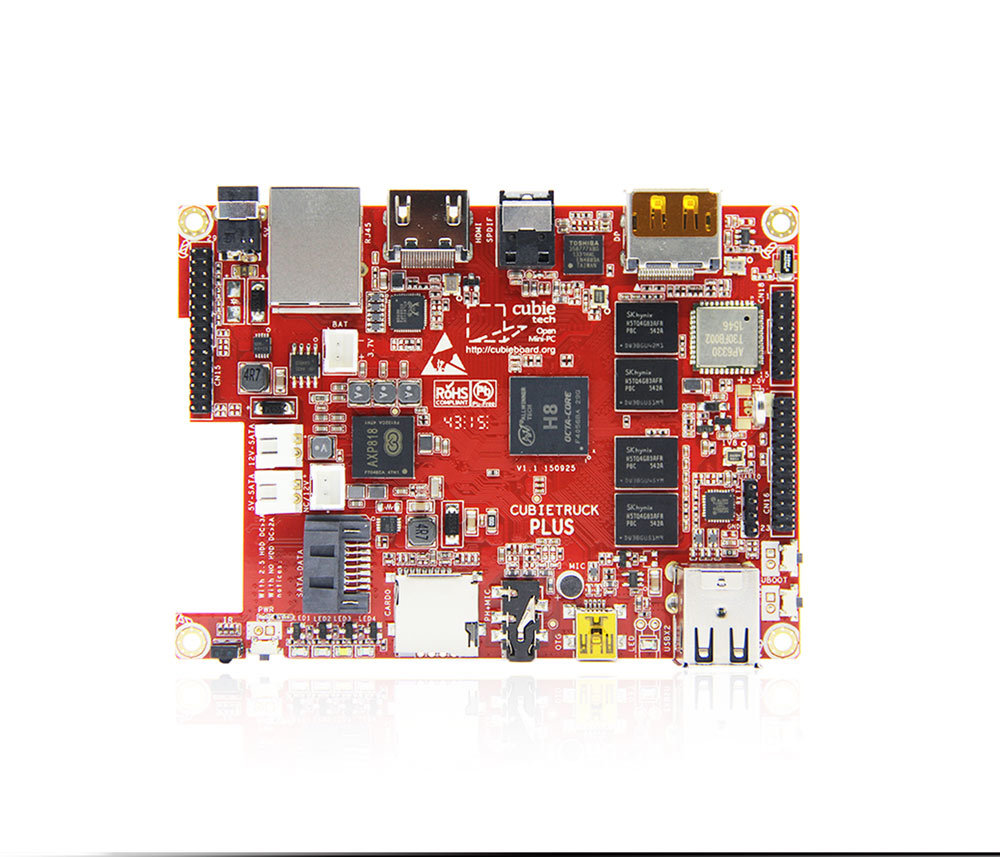

ARM Development Board: CubieTruck plus(cb5)

2G DDR3 RAM + 8GB eMMC FLASH

Name: Cubieboard5, CB5 for short, Also named CubieTruck plus as MiniPc

Property: Software open source, Hardware open, Production materials closed

Owner: CubieTech Limited

Chipset: Allwinner technology H8, Arm architecture Cortex-A7 octa core

System: Android, Ubuntu and many other open source distribution...

Target: Developer, Geek, Maker, Scholar, Student

Product Introduction

Cubieboard5 is the 5rd generation product of Cubieboard series from Cubietech Limited. CubieBoard is open source hardware which targets Developer, Geek, Maker...It's a new PCB model adopted with Allwinner H8 main chip.And it is enhanced with some features, such as 2GB DDR3 memory, DP display port on-board, 100M/1000M RJ45, WIFI+BT on-board, support Li-battery and RTC battery, SPDIF audio interface.

It's not only for development, but also can used in various areas like other MiniPc products. Thanks to its rich interfaces,low costs, and good open source support ambient, more and more developers can be based on it and would like to do lots of promotion work for it.

1, AllWinner SOC H8,ARM® Cortex™-A7 Octa-Core,PowerVR SGX544 GPU @ up to 700MHz Supports OpenGL ES 2.0/1.1, OpenCL 1.1, DX 9_3

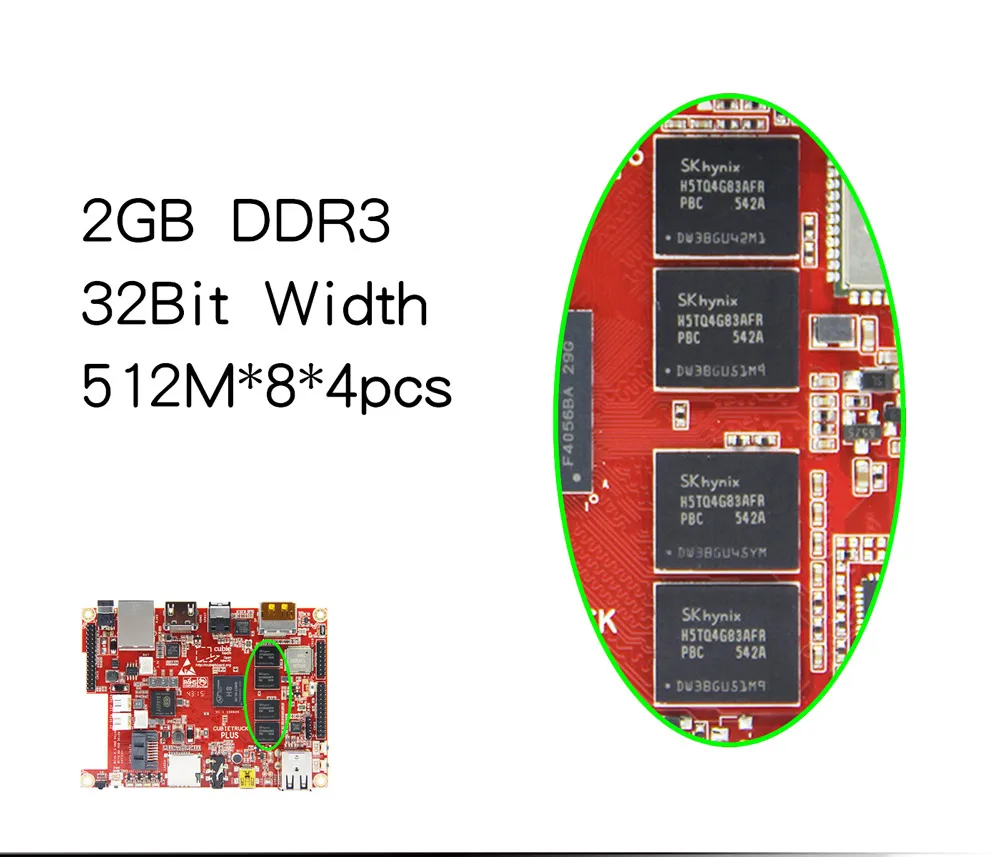

2, 1GB/2GB DDR3@480MHz (960MTPS), 2GB Default

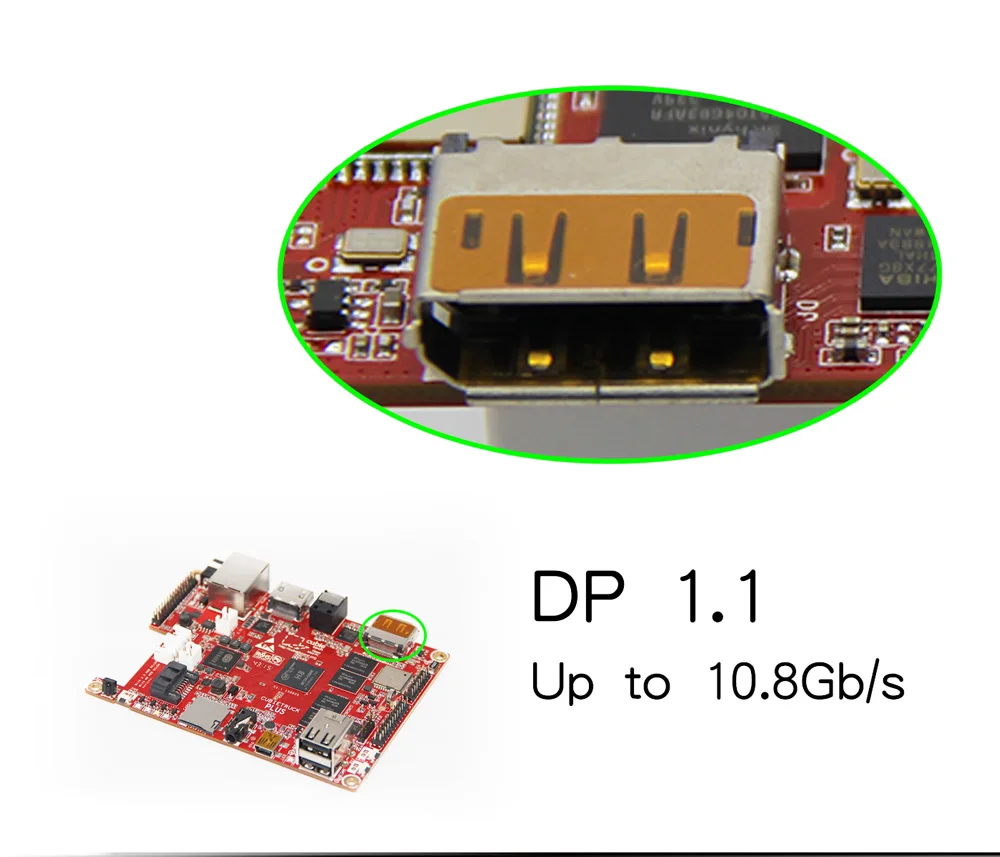

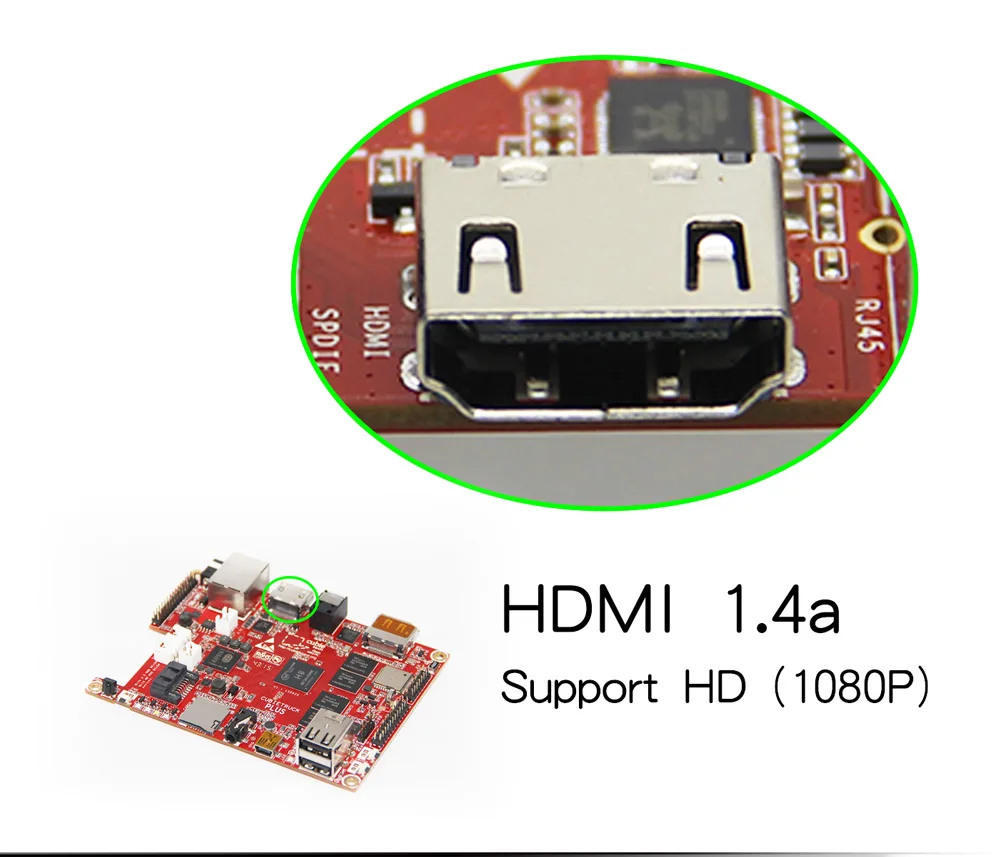

3, HDMI&DP 1080P@60Hz display output

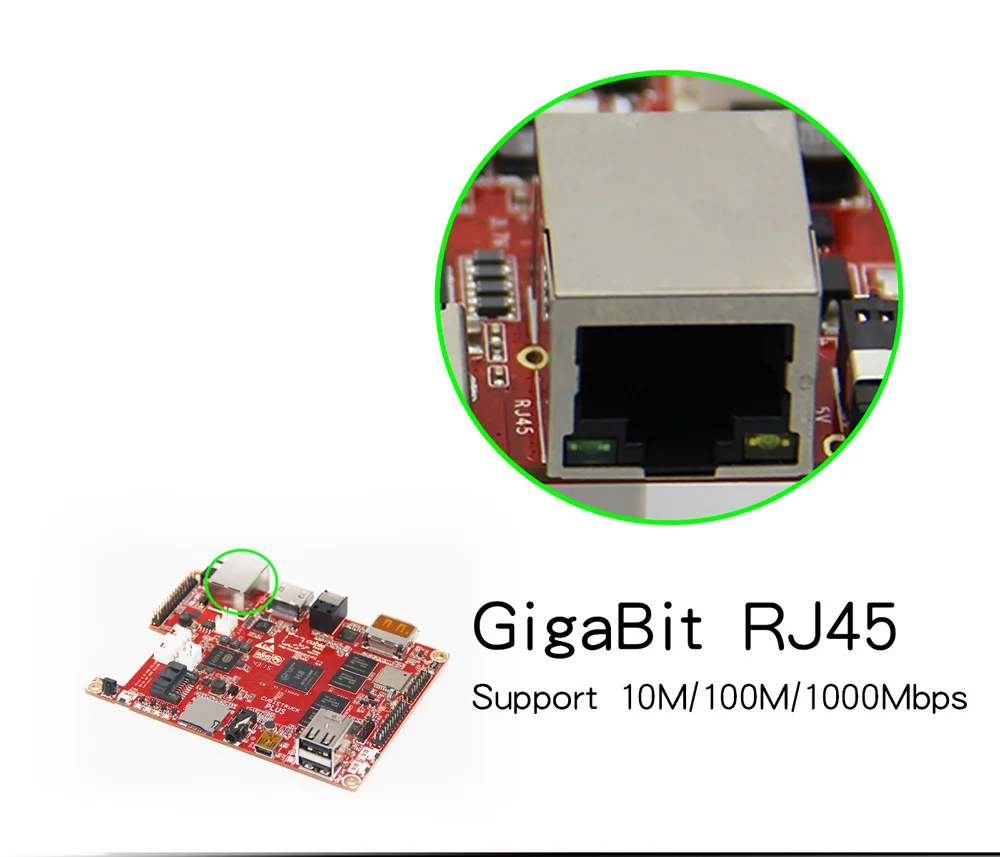

4, 100M/1000M Ethernet RJ45

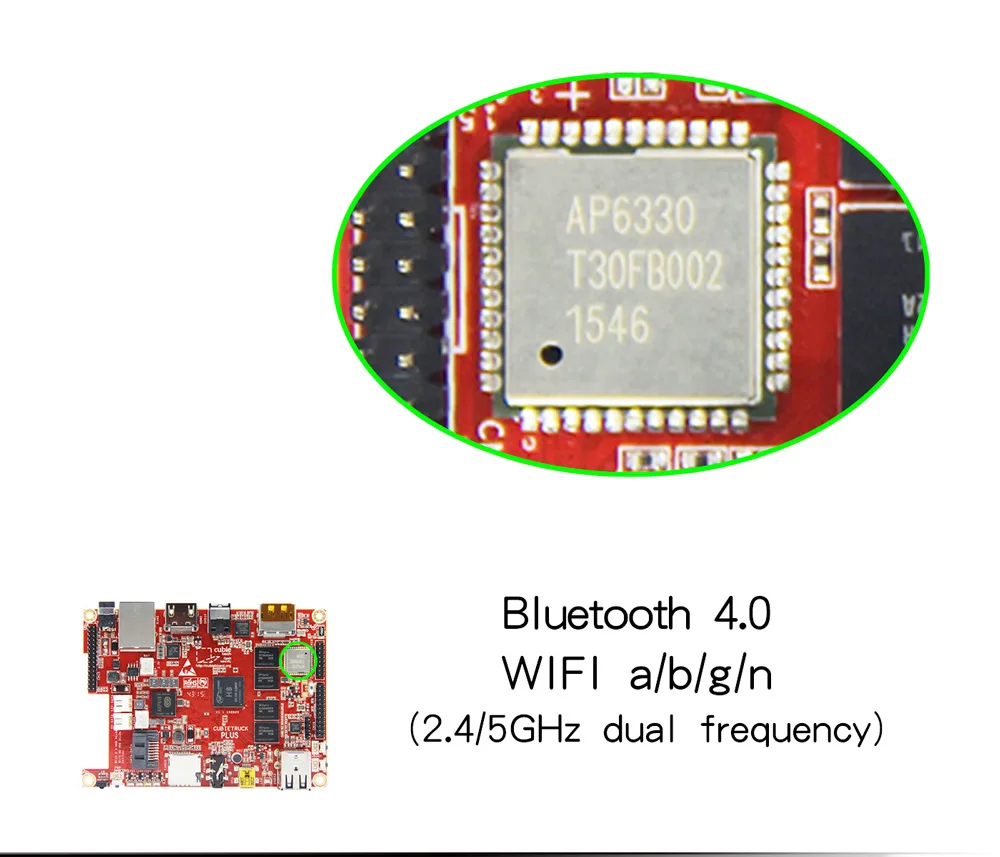

5, Wifi+BT4.0 wireless connection with antenna on-board

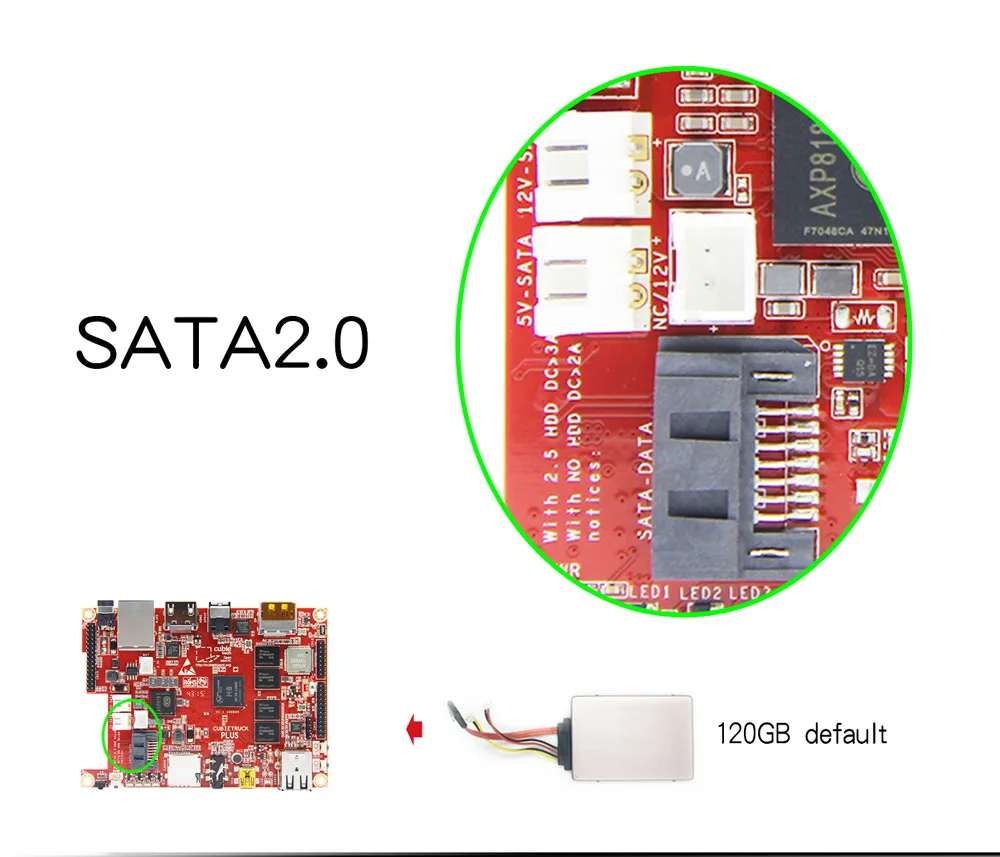

6, SATA 2.0 interface support 2.5' HDD,(for 3.5' HDD, need another 12V power input)

7, Storage solution:NAND Flash +MicroSD card slot / TSD + MicroSD card slot / 2*MicroSD card slot

8, 2 x USB HOST,1 x OTG,1 x Toslink (SPDIF Optical),1 x IR,4 x LEDs,1 Headphone,3 x Keys

9, Power:DC5V @ 2.5A with HDD,support Li-battery & Real Time Clock battery

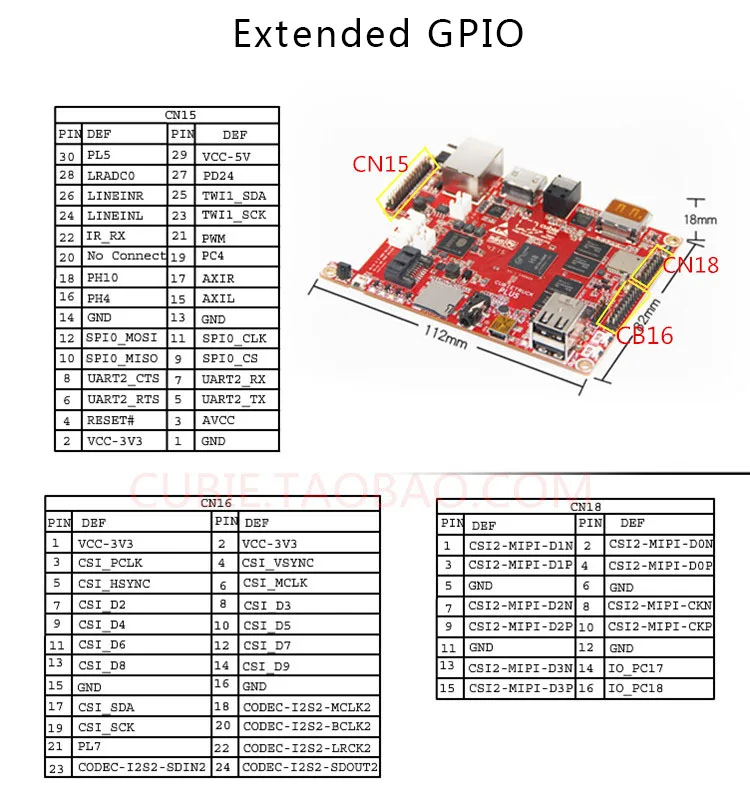

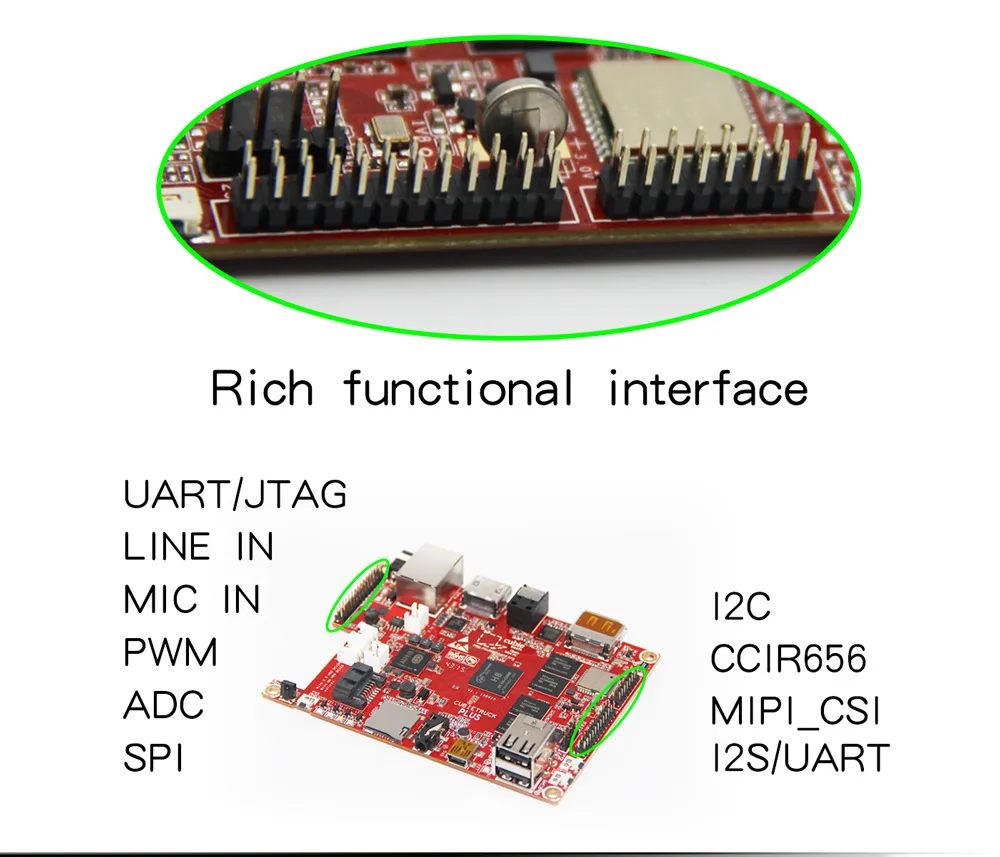

10,Extended pins including I2S, I2C, SPI, CVBS output, Low Resolution ADC x2,UART, PS2, PWMx2,TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN analog video signal input x4 with 2.0mm pitch header pins

11,It's suitable for installing a 2.5' HDD/SSD within the cases

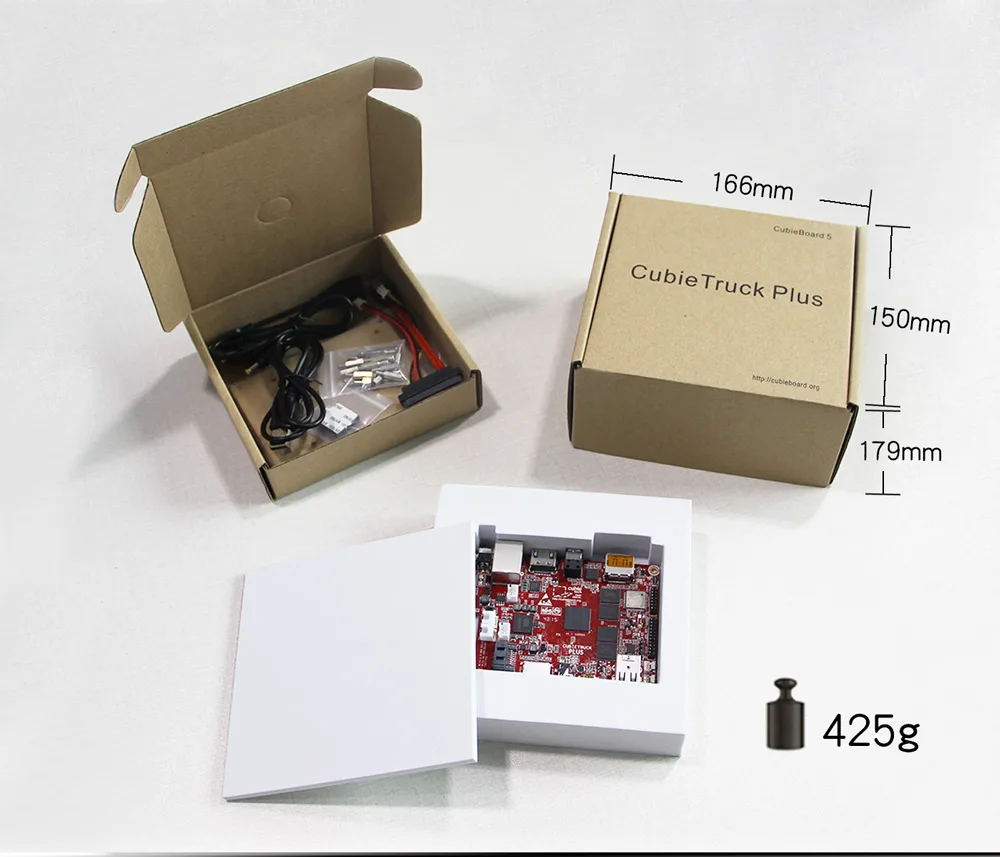

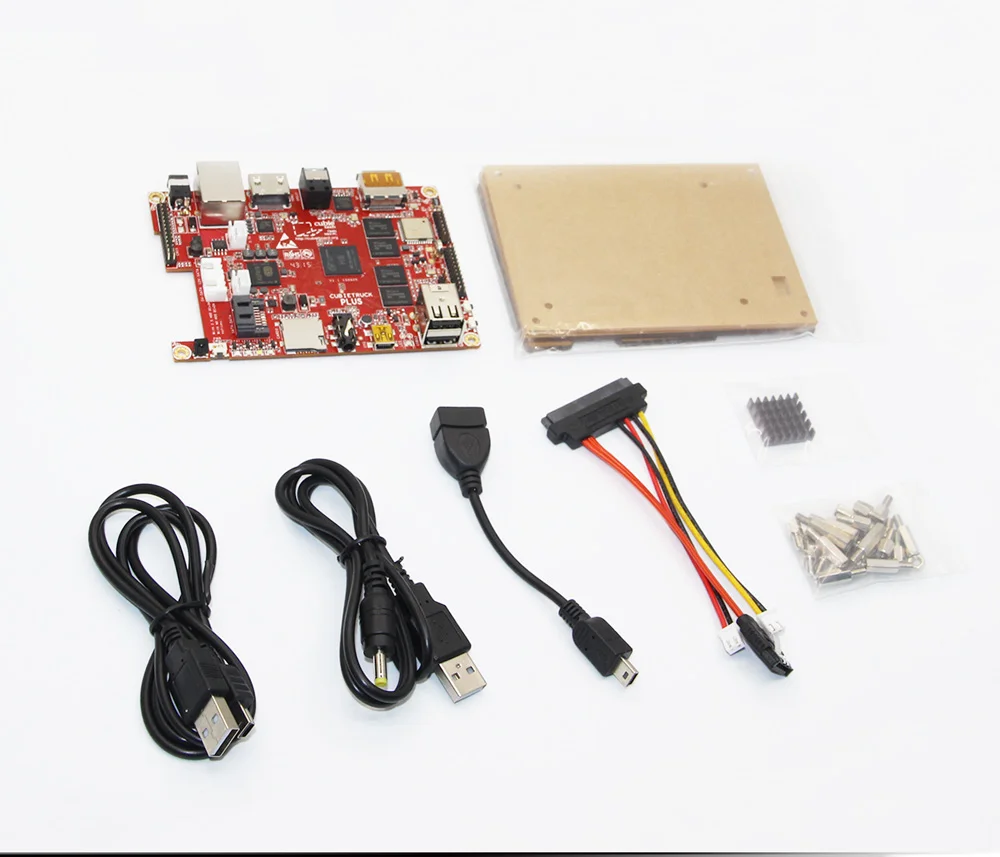

Pack list

Recommend purchase the power adapter(3A Current output ensure the cubieboard5 work more stable )

Documents



Linux home page:
http://linux-sunxi.org/Main_Page
Forum:
http://www.cubieforums.com/
Downloads (SDK Source, Tools, Firmware, Documentation) :
https://mega.nz/#F!ZtwxCCJC!AIYHcTqz-ucjuzKnE9qD7A
(Baidu)https://pan.baidu.com/s/1mghykEc#list/path=%2FModel%2FCubieBoard5

Expert Support: firefly@ smartfire.cn Skype: smartfire_cn

Product Customization: firefly@ smartfire.cn

Operating Temperature: -20℃~70℃

Environment Friendly: RoHS

Radio Standard: Fcc & CE compatible

Board Size: 112mm*82mm*18mm

Packing Weight: 425g

Packing Size: 170mm*125mm*100mm

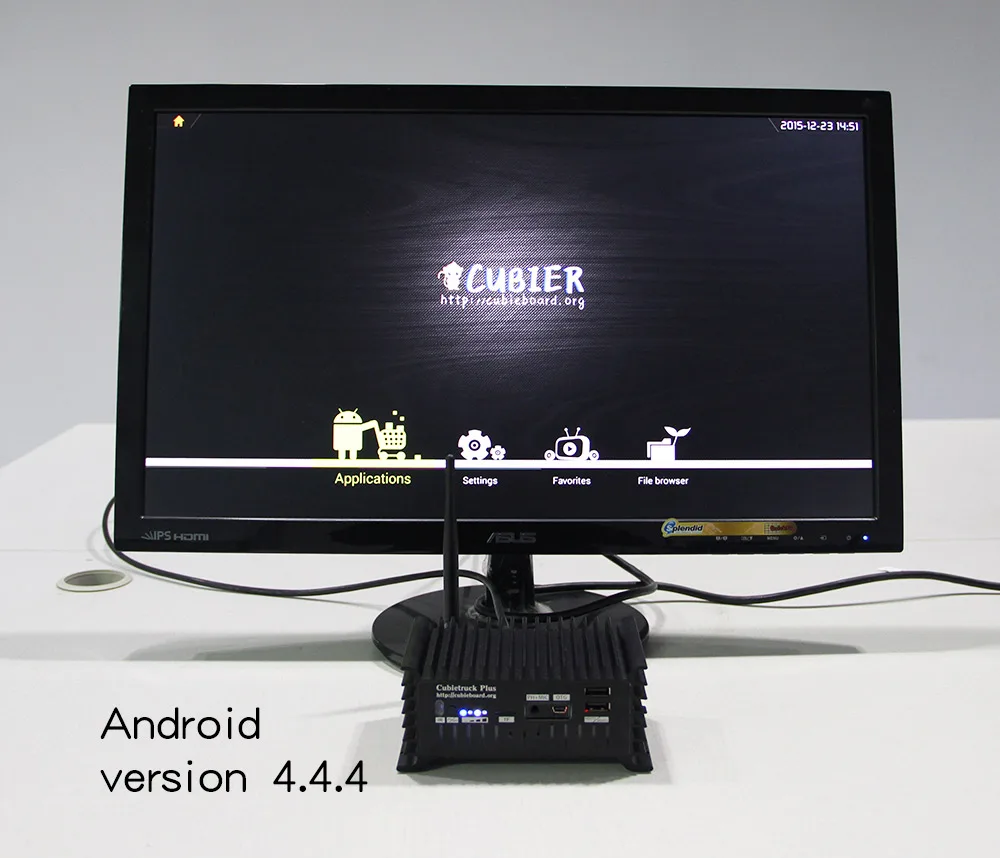

Run the Android

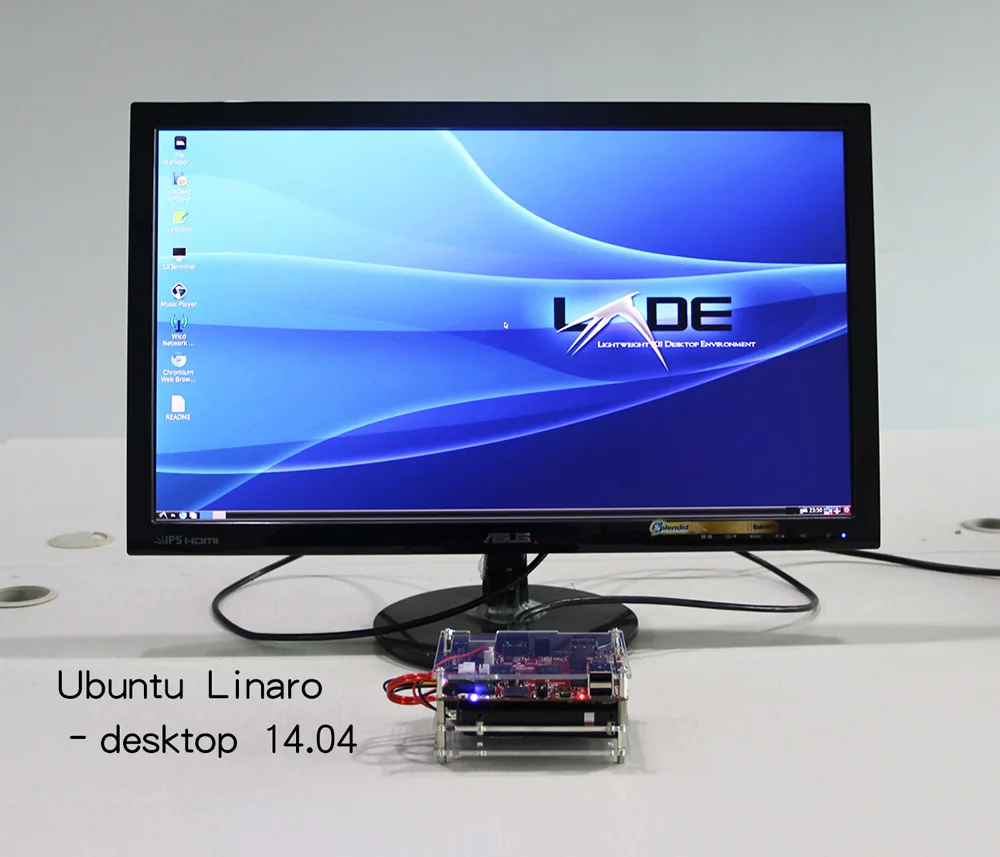

Run the Linux

if you need, you can buy the

CubieTruck Plus Metal
