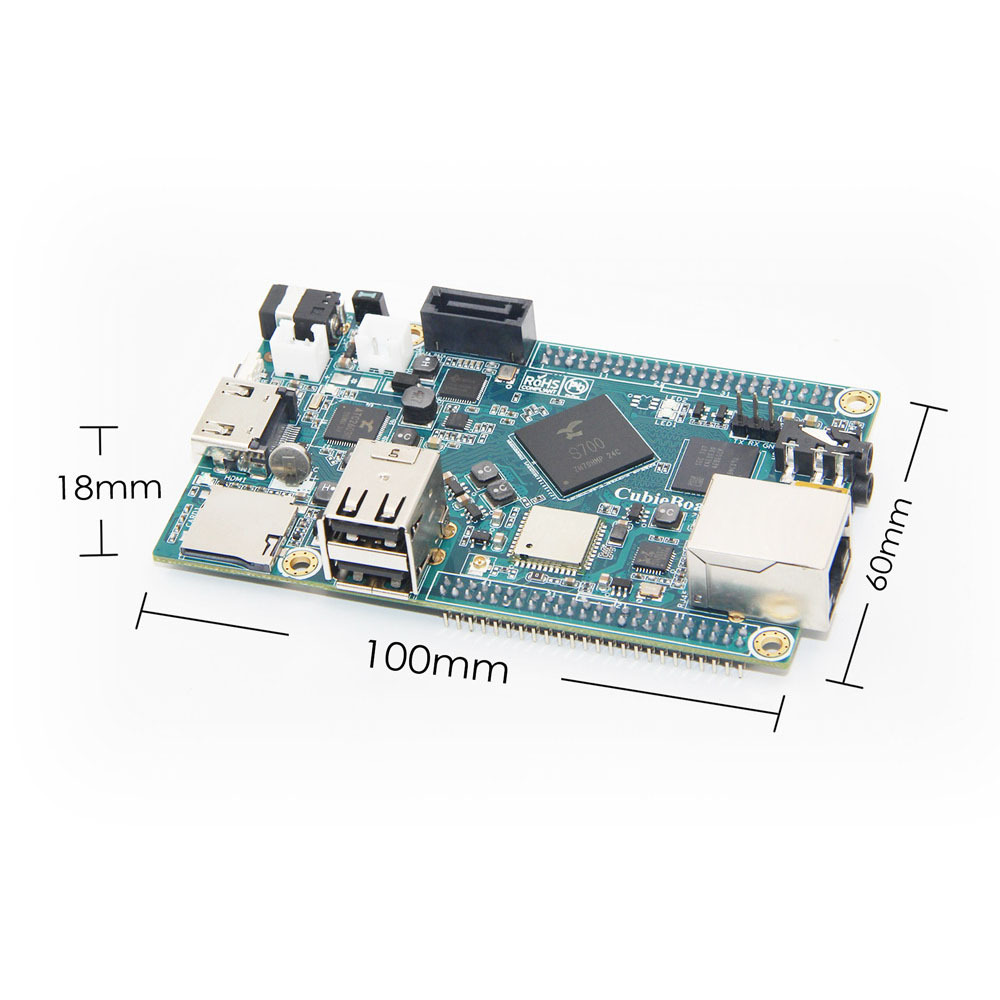

Cubieboard7 Actions SOC S700 ARM Cortex-A53

CubieBoard7 is a very tiny, low cost, and richly functional open source hardware, some people call it embedded single board computer as well.

In CubieBoard7 we adopt S700 main chip from Actions Technology Co. Ltd, which is a very cost-effective 64 bit Quad-Core application processor and anounced will have 10 years supply cycle. What's the most important thing is that Actions is willing to support open source world without considering the early cost.

This year (2017), Quad-Core processor is becoming the main requirement of various embedded devices. The S700 processor which integrated Cortex-A53 Quad-Core CPU and Mali450 MP4 GPU is a very good solution choice. Functionally, we make it support 2GB LPDDR3 that has the big capacity but with smaller size. We make it to support Wifi & Bluetooth in the same board size with CubieBoard2, it's a rare product in open source hardware industry. In order to meet more and more mobile applications, CubieBoard7 also supports 3.7V Li-Po battery power supply, which make it doubly less competitors.

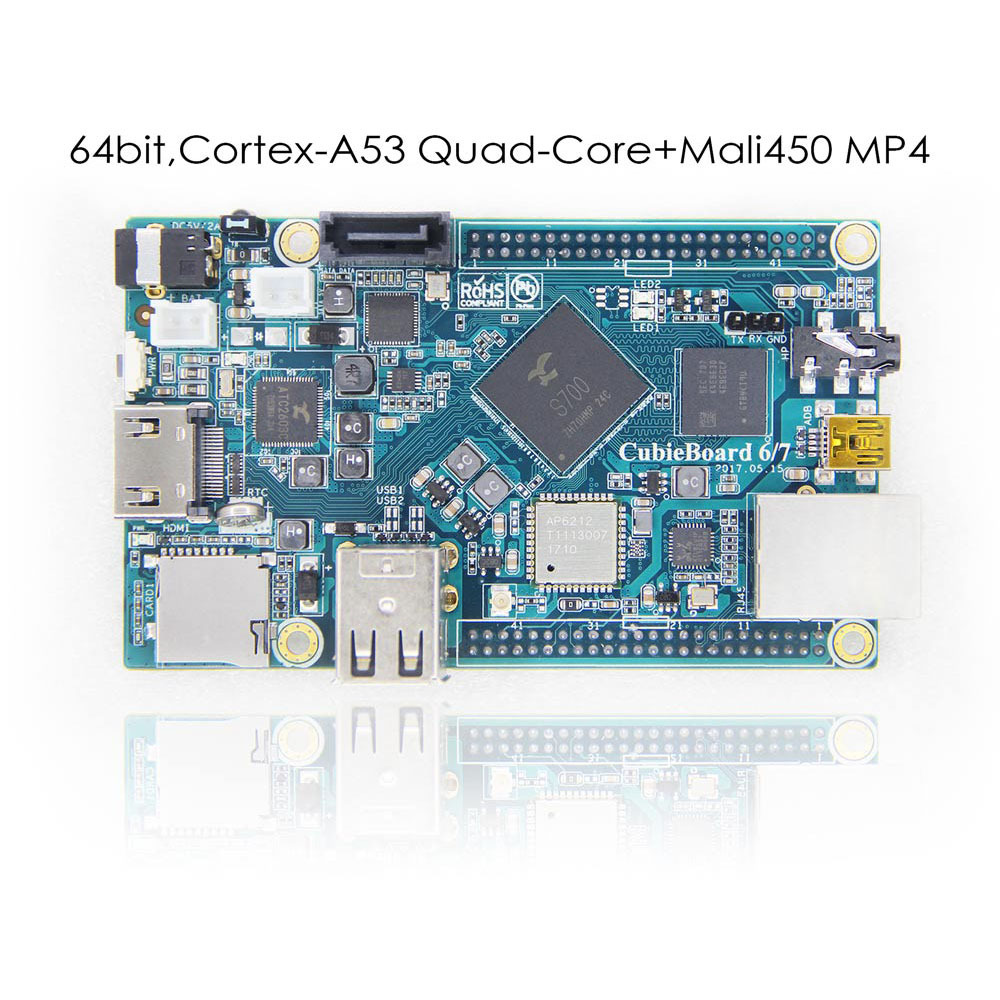

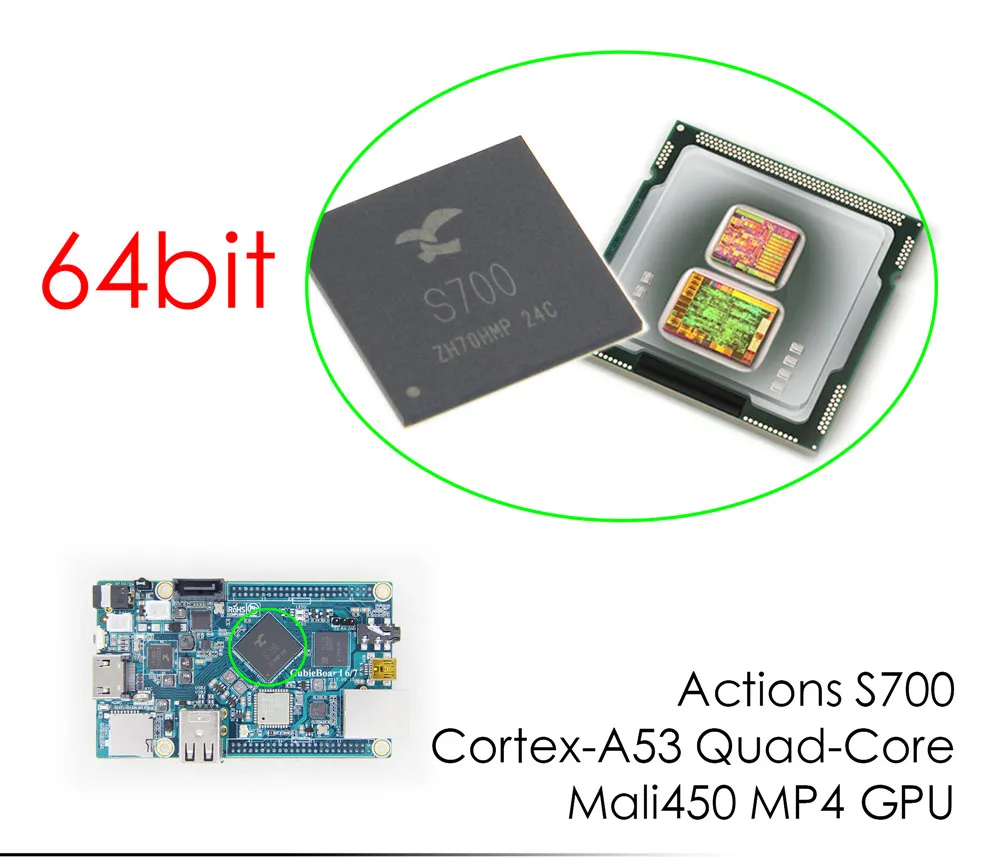

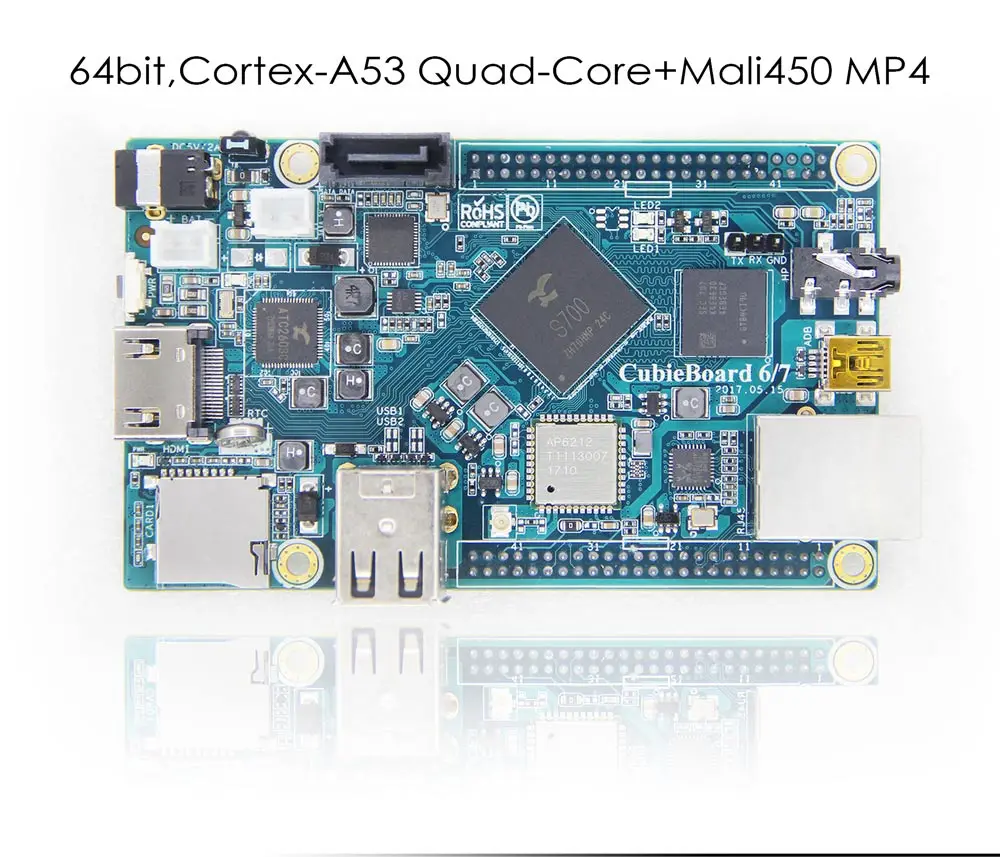

1. SOC: Actions SOC S700,ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU

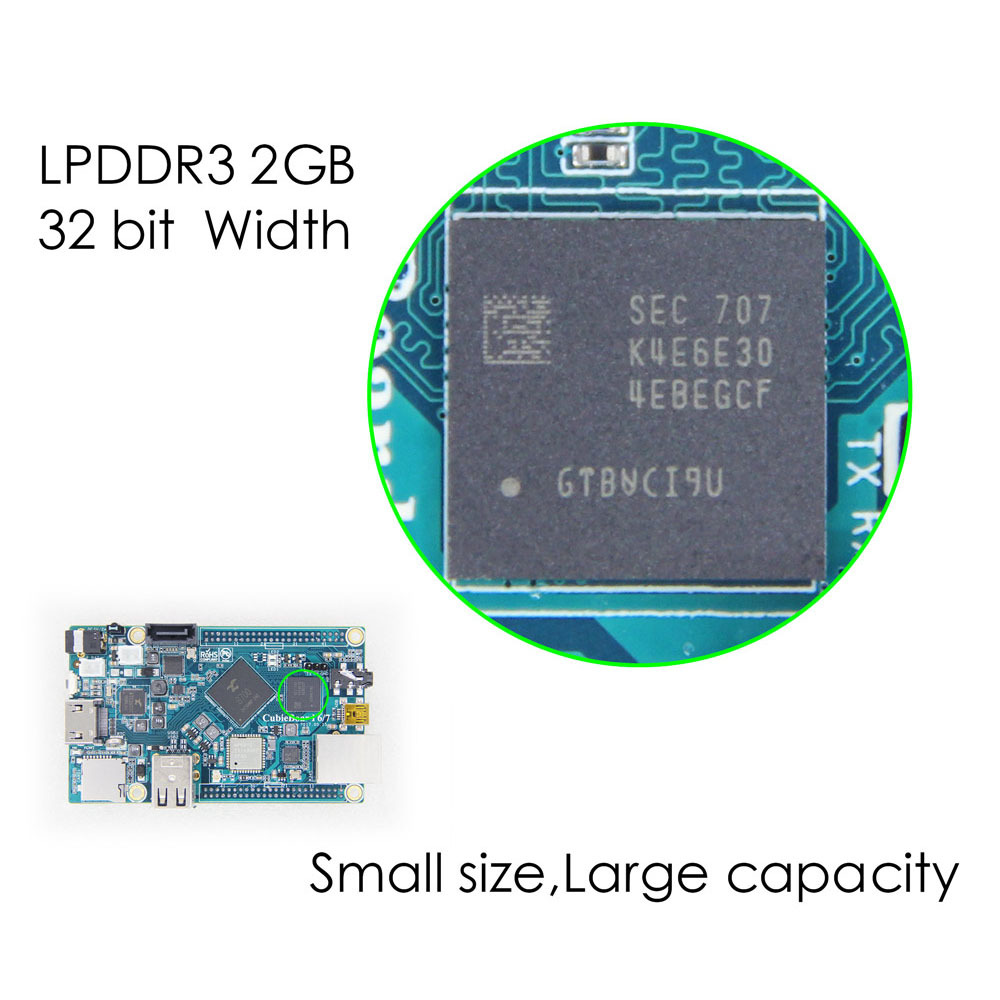

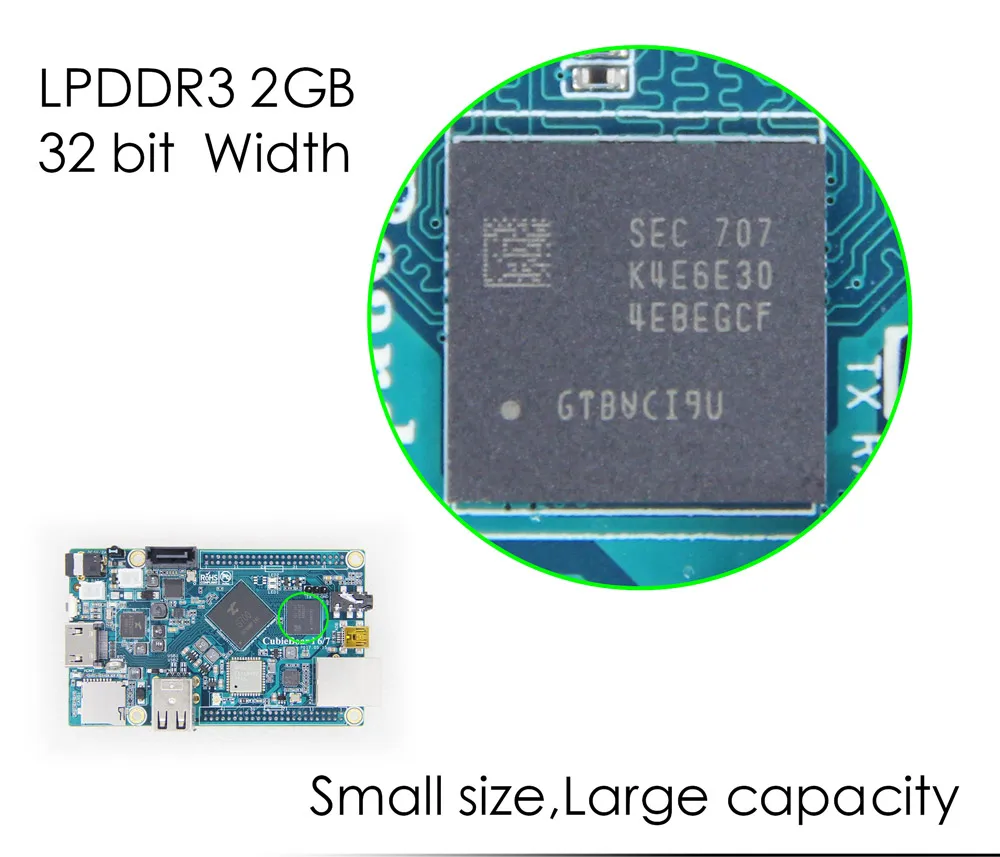

2. Memory: 2GB LPDDR3

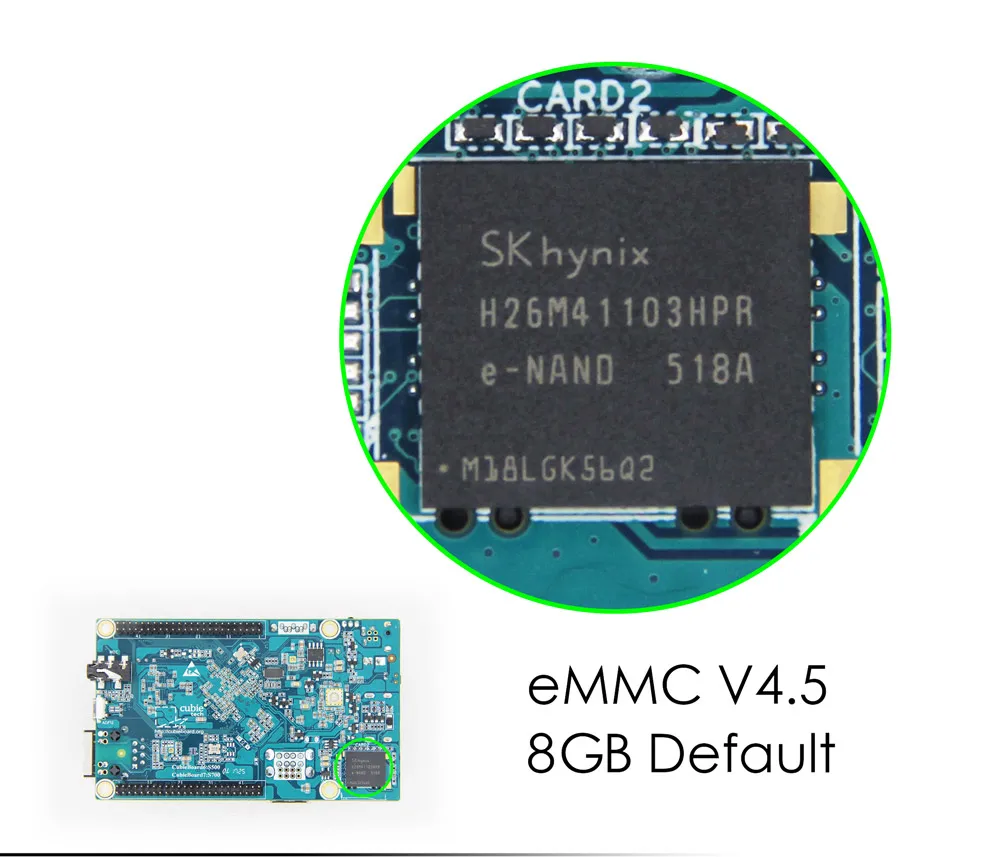

3. Storage: 8GB eMMC
4. Card: Micro SD card slot, up to 32GB
5. SATA: Support 2.5 inch HDD/SSD up to 4TB
6. USB: USB HOST Port x2, and USB Device port x1

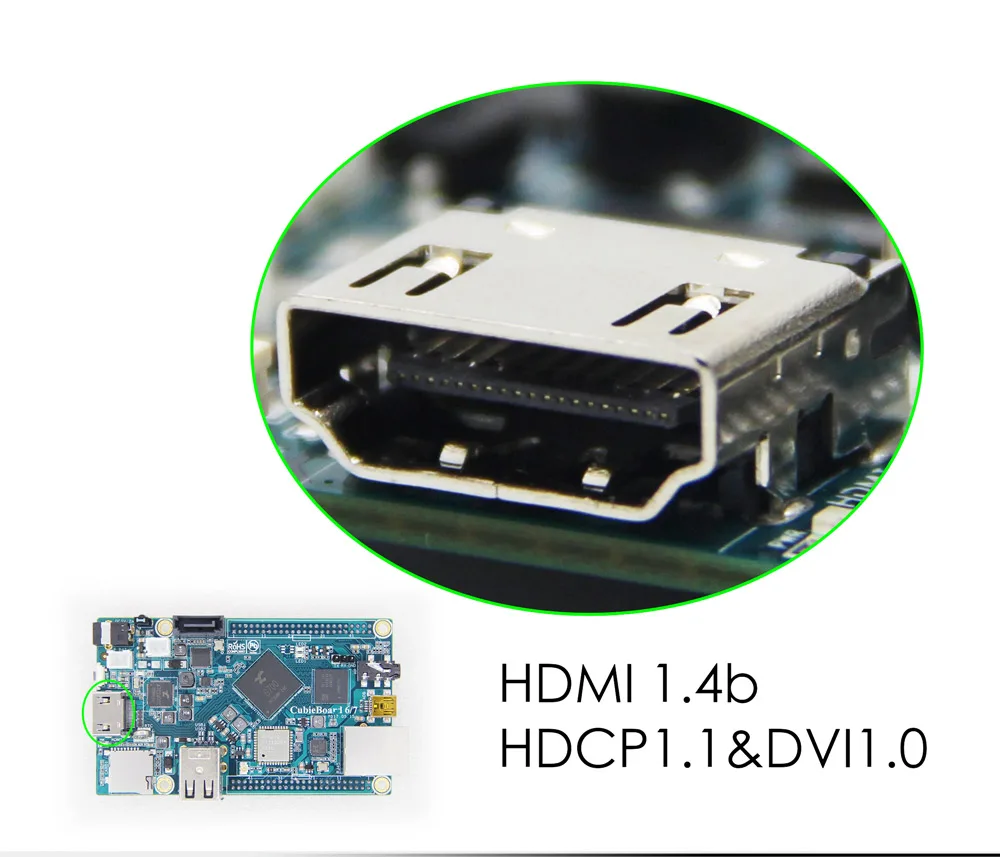

7. Display: HDMI Port A, HDMI V1.4a, support 1080P@60Hz resolution
8. Ethernet: 10M/100M RJ45

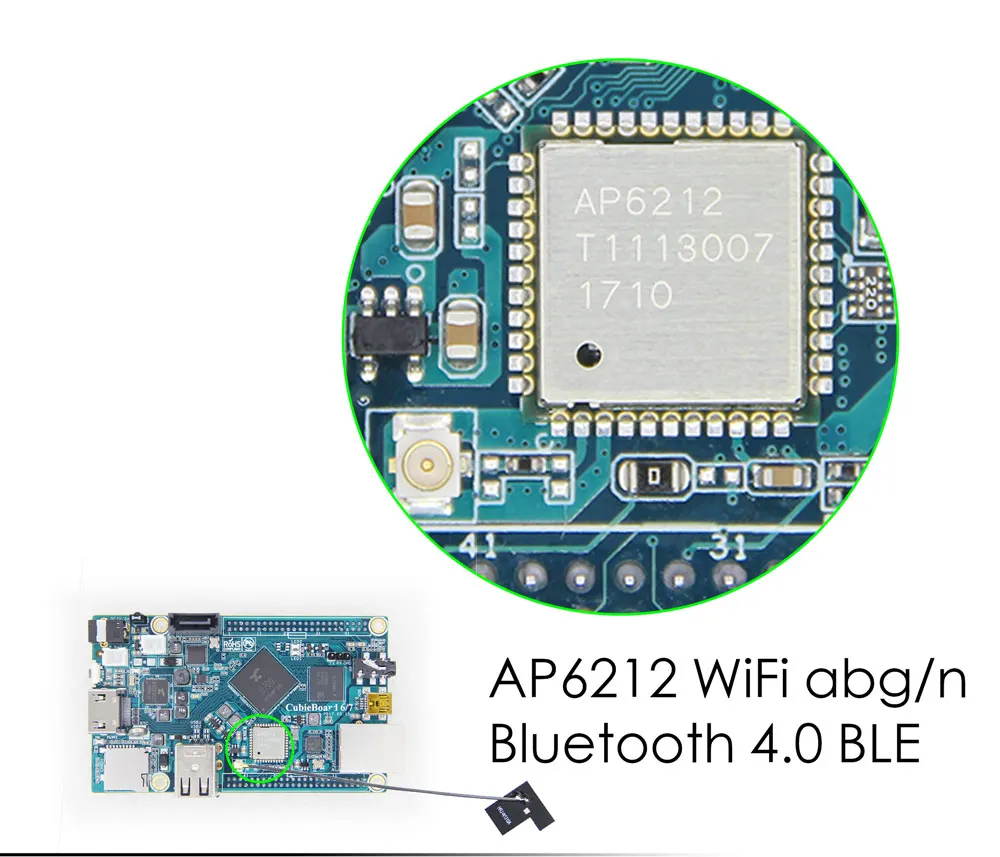

9. Wireless: Wifi 2.4GHz 802.11 b/g/n, Bluetooth 4.0(HS) BLE
10. IR: Infrared remote receiver NEC standard
11. Audio: Support 3.5 headphone jack for Audio output, Support 3.5 jack for Line-In
12. Power: DCIN 5V_2.5A power, Support USB power input
13. Battery: Support 3.7V Li-Po battery power the board
14. RTC: Support RTC circuit and RTC rechargeable battery 3.0V
15. Keys: Power key, ADFU key for reflashing the ROM/Image
16. LEDs: Power Led x 1, User Led x 2

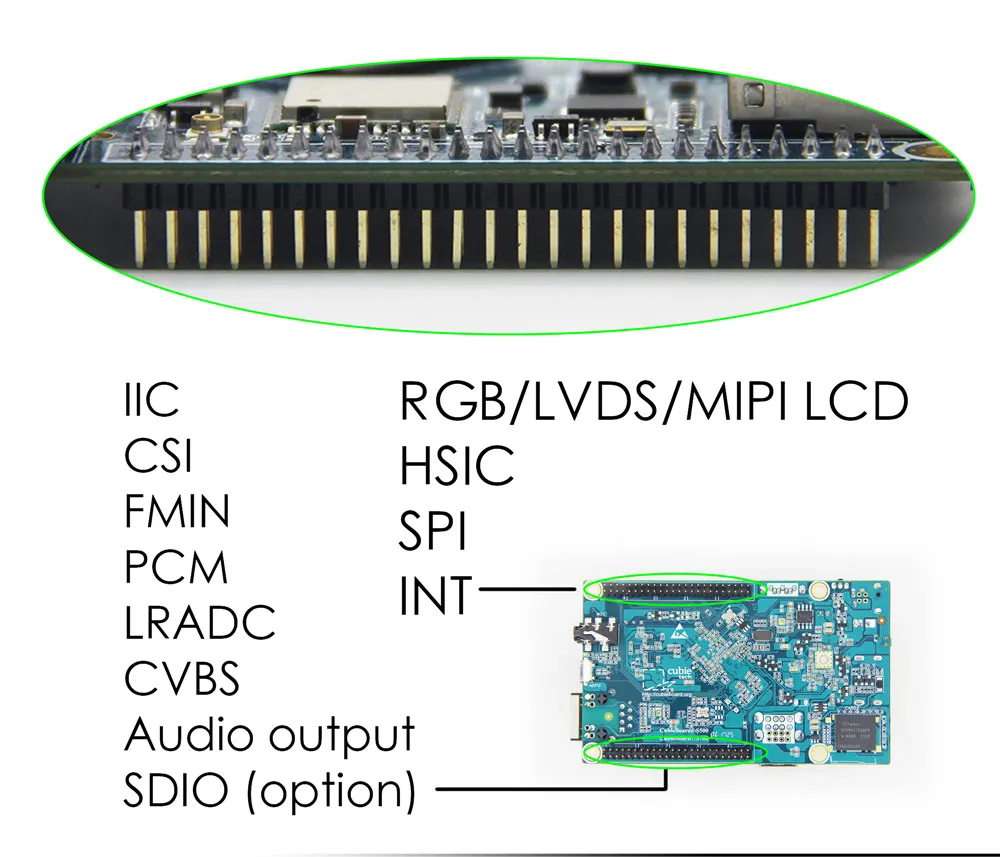

17. Expansion Pins: I2C, FM-IN, ADC, CVBS output, Audio output, RGB, LVDS, Mipi DSI, DVP, MIPI-CSI, SPI, HSIC, INT GPIO...
