FriendlyElec NanoPi R2C Mini Router Rockchip RK3328 1GB DDR4 RAM Dual Gigabit Ethernet Port

SKU: YS00130

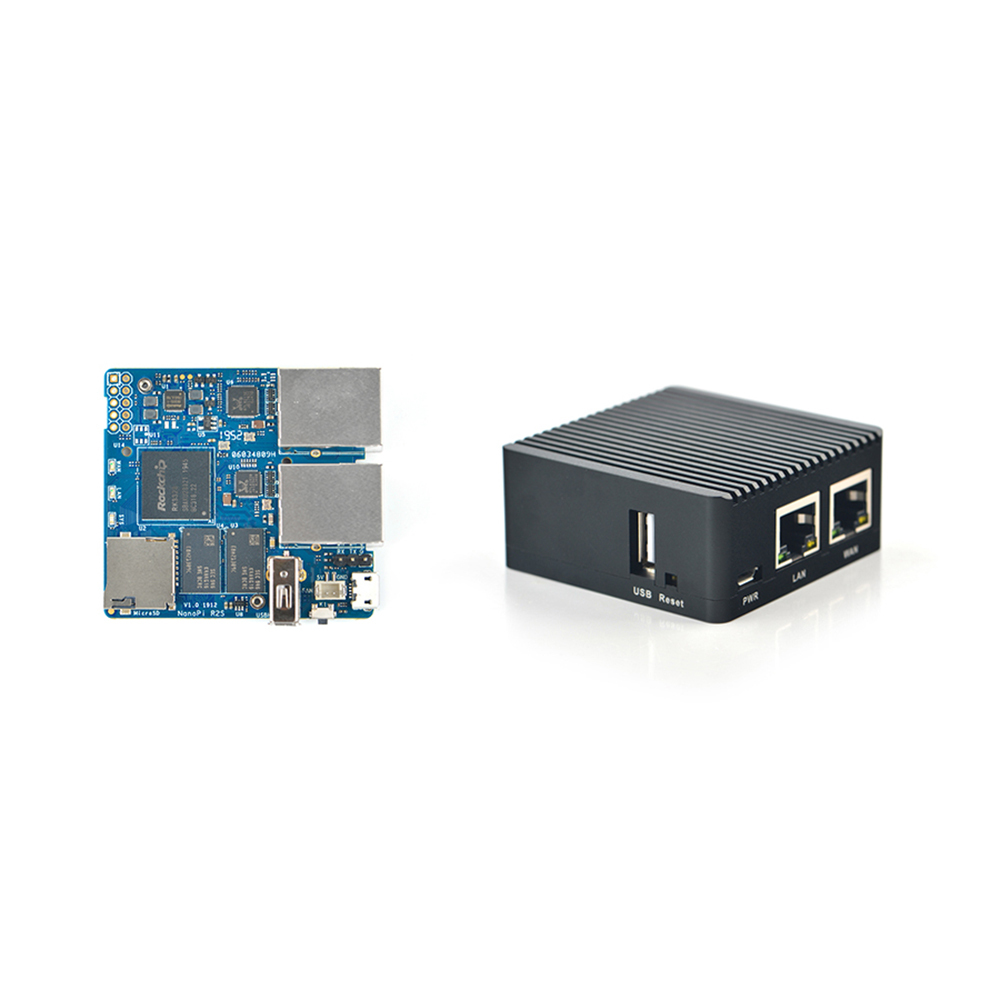

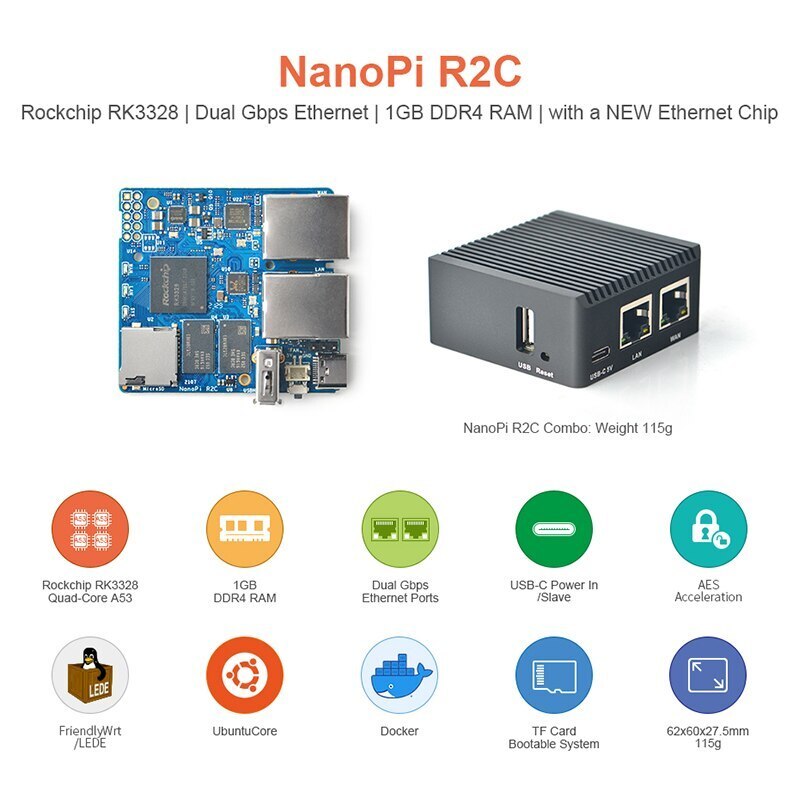

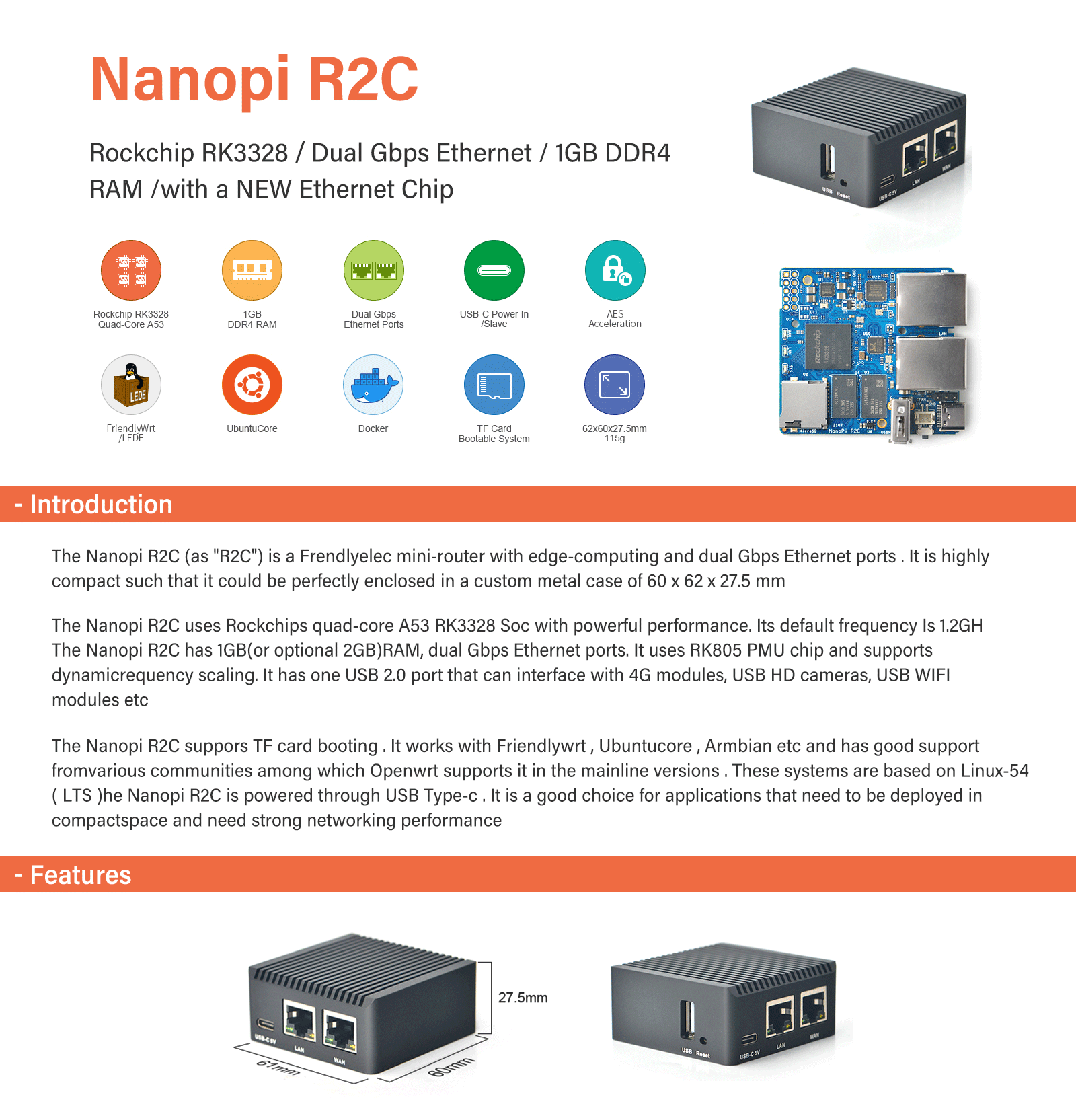

The NanoPi R2C (as "R2C") is FriendlyElec mini-router with edge-computing and dual Gbps Ethernet ports. It is compact and could be enclosed in a custom metal case of 60 x 62 x 27.5 mm. The NanoPi R2C uses Rockchip's quad-core A53 RK3328 with powerful performance. NanoPi R2S has 1 GB of RAM memory and default CPU frequency is 1.2 GHz.
5 (5 Reviews)
$38.45 $15.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    R2C with case
    Please select the information you wantX
Quantity
-
+
  • FriendlyElec NanoPi R2C Mini Router Rockchip RK3328 1GB DDR4 RAM Dual Gigabit Ethernet Port
  • FriendlyElec NanoPi R2C Mini Router Rockchip RK3328 1GB DDR4 RAM Dual Gigabit Ethernet Port With a New Ethernet Chip
  • FriendlyElec NanoPi R2C Mini Router Rockchip RK3328 1GB DDR4 RAM Dual Gigabit Ethernet Port With a New Ethernet Chip
  • FriendlyElec NanoPi R2C Mini Router Rockchip RK3328 1GB DDR4 RAM Dual Gigabit Ethernet Port With a New Ethernet Chip
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

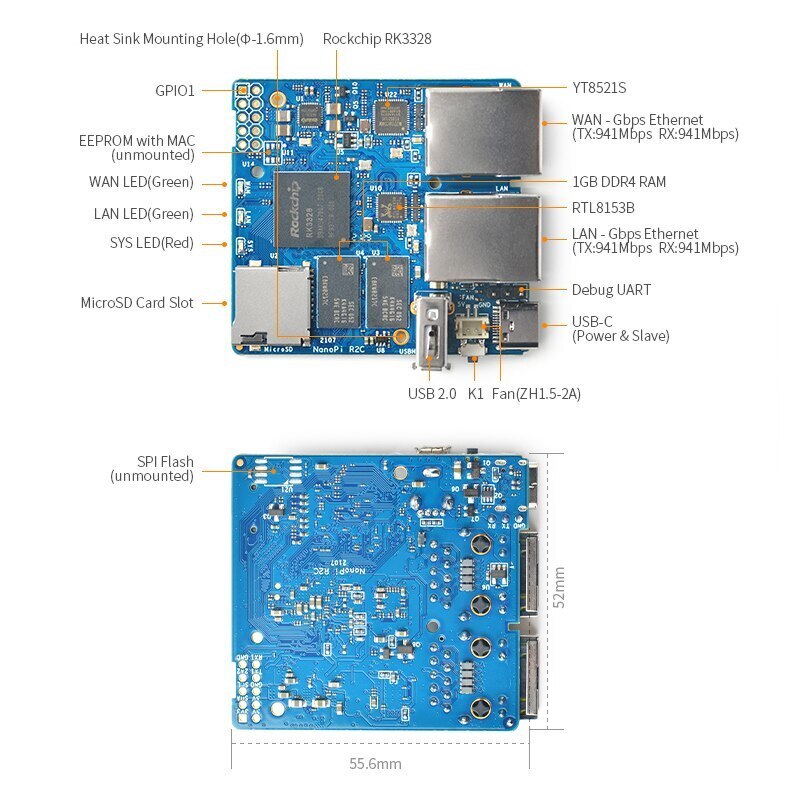

Nanopi R2C

open source development board with dual-Gbps Ethernet ports




Related Resources


WIKI: https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R2C

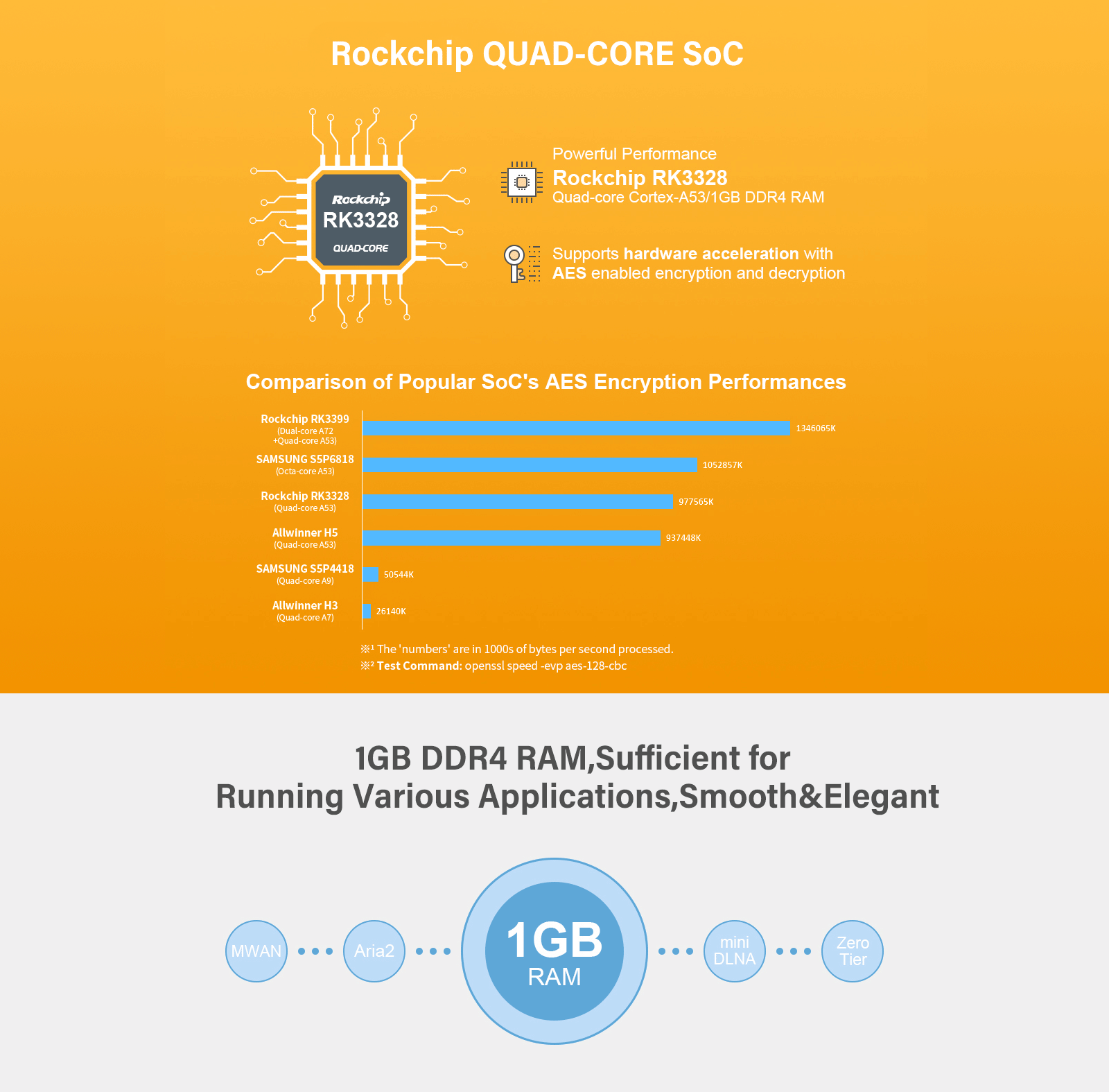

CPU

Model: Rockchip RK3328 ​Number of Cores: Quad-Core Cortex-A53 ​Frequency: 4 x Cortex-A53 Up to 1.4GHz

Memory

RAM: 1GB DDR4

Storage

MicroSD Slot: MicroSD x1 for external storage up to 128GB

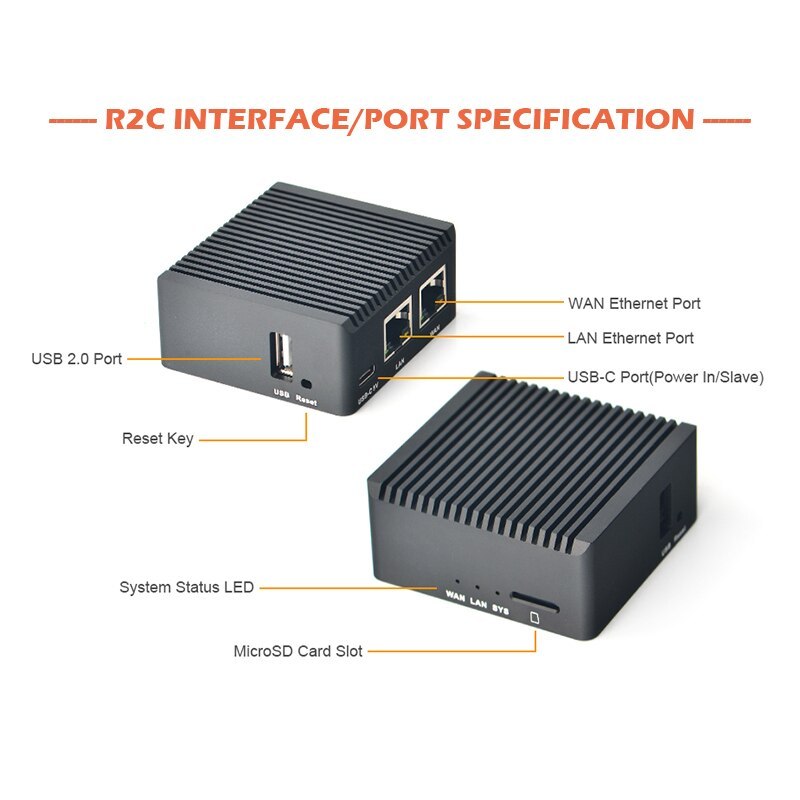

Connectivity

Ethernet: Gbps Ethernet x1,YT8521S chip ​USB 3.0 to Gbps Ethernet x1

USB

USB 2.0 Host x1: USB Type A ​MicroUSB x1: Power input(5V/2A) and Slave

Pin-header

Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)

LED

SYS LED(Red) x1 ​WAN LED(Green) x1 ​LAN LED(Green) x1

Key

User Key x1

Working Temperature

0℃ to 80℃

Power

DC 5V/2A
