LoRa Data Transfer Unit - Wide voltage, Low power consumption, Industrial grade

• Quick Start[CN]: Google Driver
• Tips:

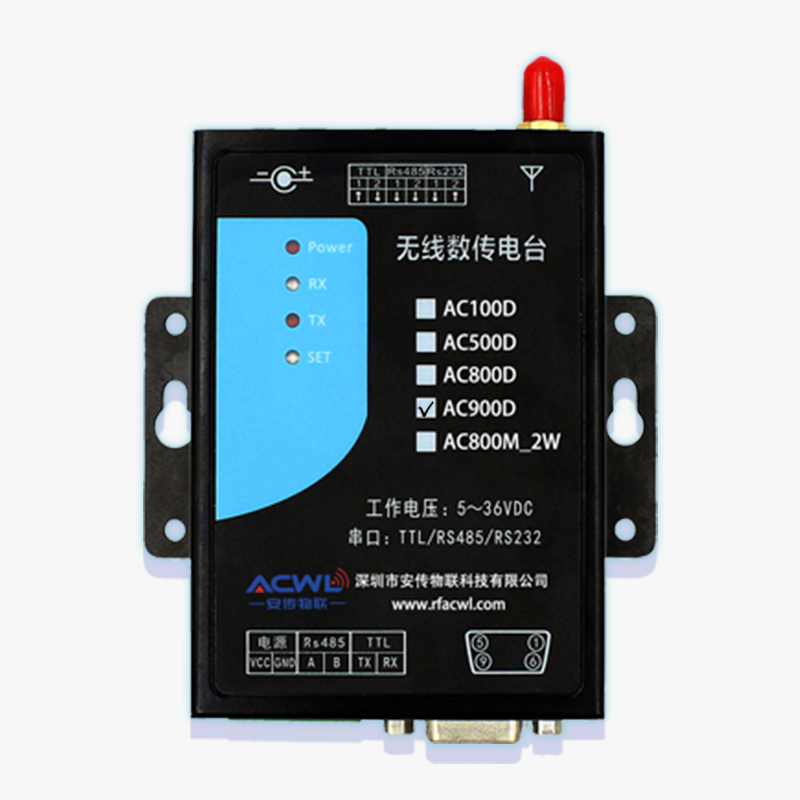

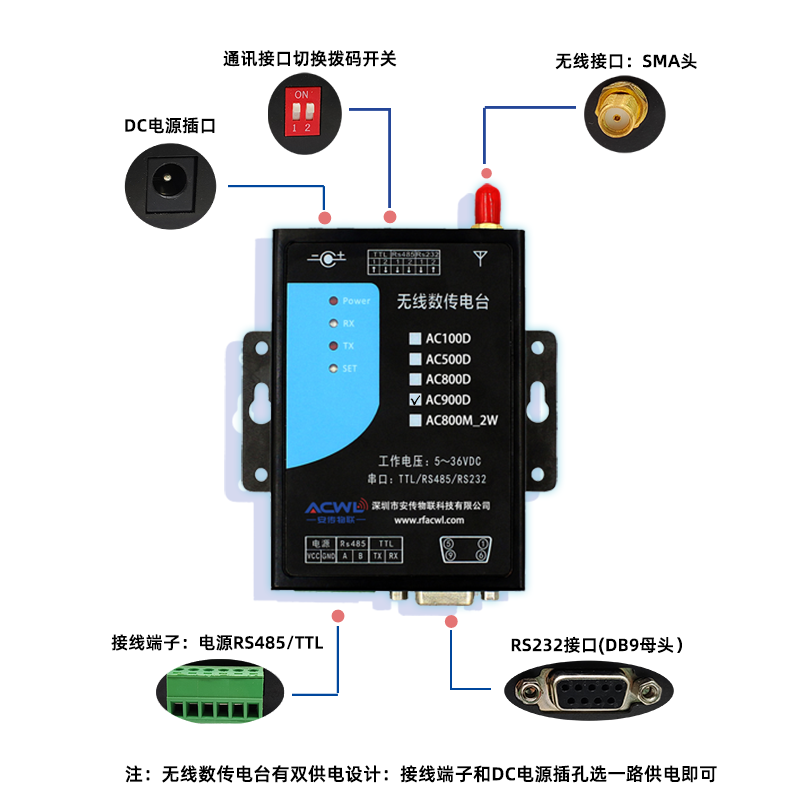

  • Panel LEDs
    POWER Power indicator lights up when power is applied.
    Data send/receive RX, TX indicator: wireless receive data RX blinking, wireless send data TX blinking.
    SET Interface Setting lamps red and blue are on for MAX485 interface, red lamp is on for TTL interface, blue lamp is on for MAX232 interface.
  • LoRaWAN is not supported.

Introduction

 ACXXXD is a low power consumption, high stability, cost-effective serial wireless digital transmission radio, the digital transmission radio using GFSK modulation, on the basis of the original increase in the stability of the wireless data in the absence of packet loss will be any customer data and protocols to complete the wireless transmission.
Their stability in various types of software have done a lot of check measures, and high communication rate, the internal automatic completion of the data send and receive control and communication protocol conversion and other advantages, the use of our products can be configured through our host computer software, according to their own needs to flexibly configure the module's operating channel, transmit power, communication rate, serial rate and other parameters.

Features

• Medium power transmitter, standard 100mW, adjustable in 7 levels, low cost, high performance, high reliability.
• GFSK modulation, half-duplex communication, over-the-air transmit/receive conversion, connection, and control are done automatically.
• Working band: 433 MHz Other channels can be customised.
• Receiving sensitivity up to -121dBm, transmission distance of more than 1000 metres, such as open space without interference up to 1.5Km.
• Transmit current less than 120mA, transmit power up to 20dB.
• The receiving current is less than 30mA.
• The standard configuration provides 32 channels.
• To meet the needs of users of a variety of communication combinations, users can configure their own software, channel expansion capability.
• Communication rate 1.2kbps -57.6kbps, user configurable through software.
• Production without debugging, standard operating voltage 6V-35V.

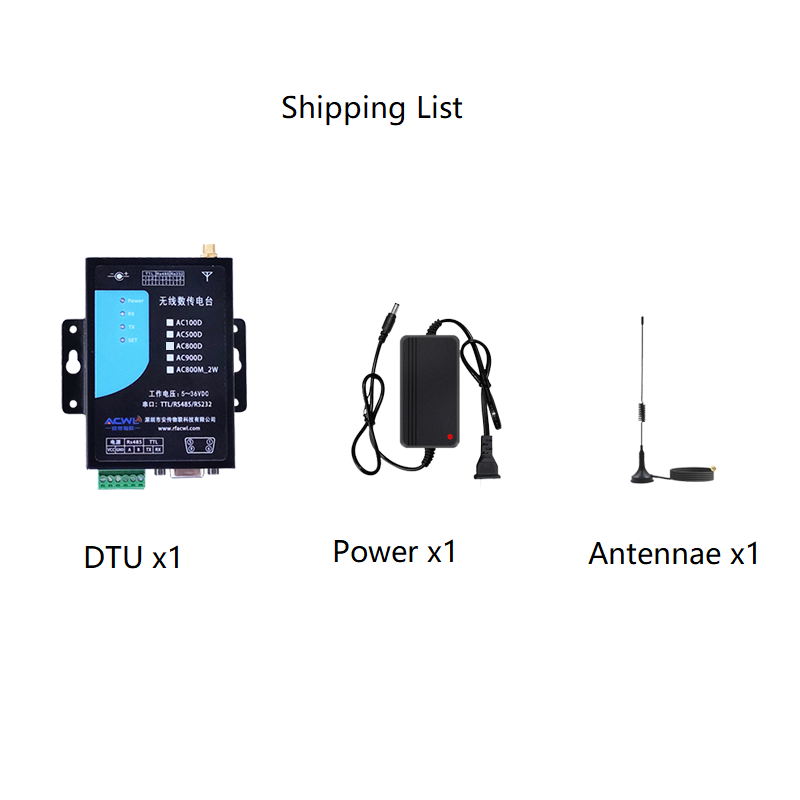

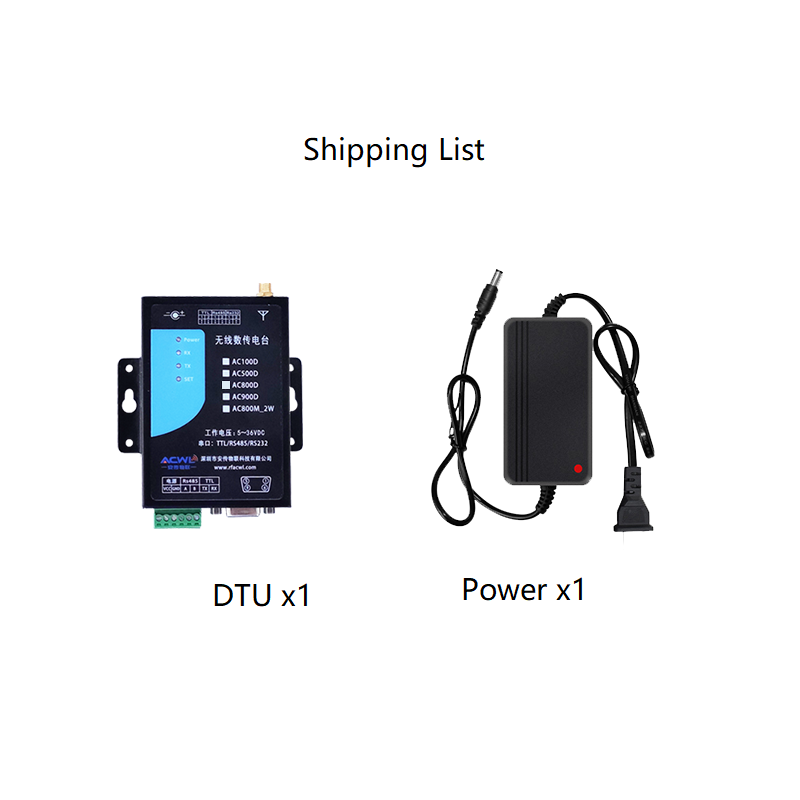

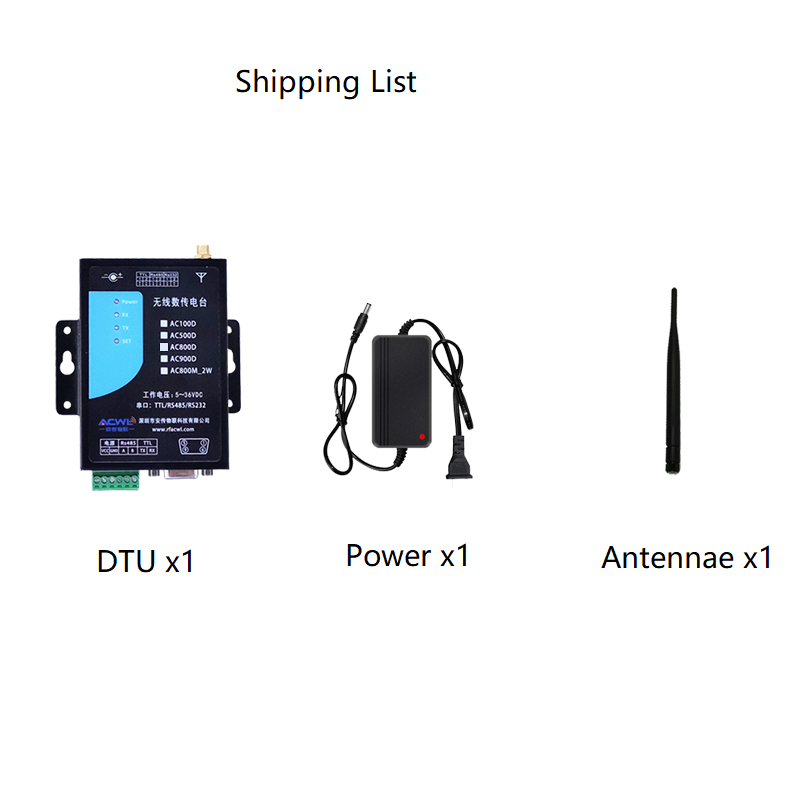

Shipping List

LoRa Data Transfer Unit x1
Power x1

Applications

Hotel electronic door locks, biometric access control systems, medical and electronic instrumentation automation control, intelligent teaching equipment, infant monitoring, ward call systems, intelligent control of home appliances and lighting, anti-theft alarm smart cards, remote detection of railway locomotives, automatic meter reading and charging systems or reactive power compensation and power grid monitoring, wireless conference voting

Specification

Detailed Descriptions
