Introduction

The LoRa Multi-function Message Receiver Watch is a low power wireless two-way industrial watch based on LoRa spread spectrum wireless communication technology. This product not only provides accurate and timely confirmation of message sending and receiving, but also supports message return, customised display content, history viewing, built-in event driver, digitisation, and an all-in-one solution with optimised manufacturing process.

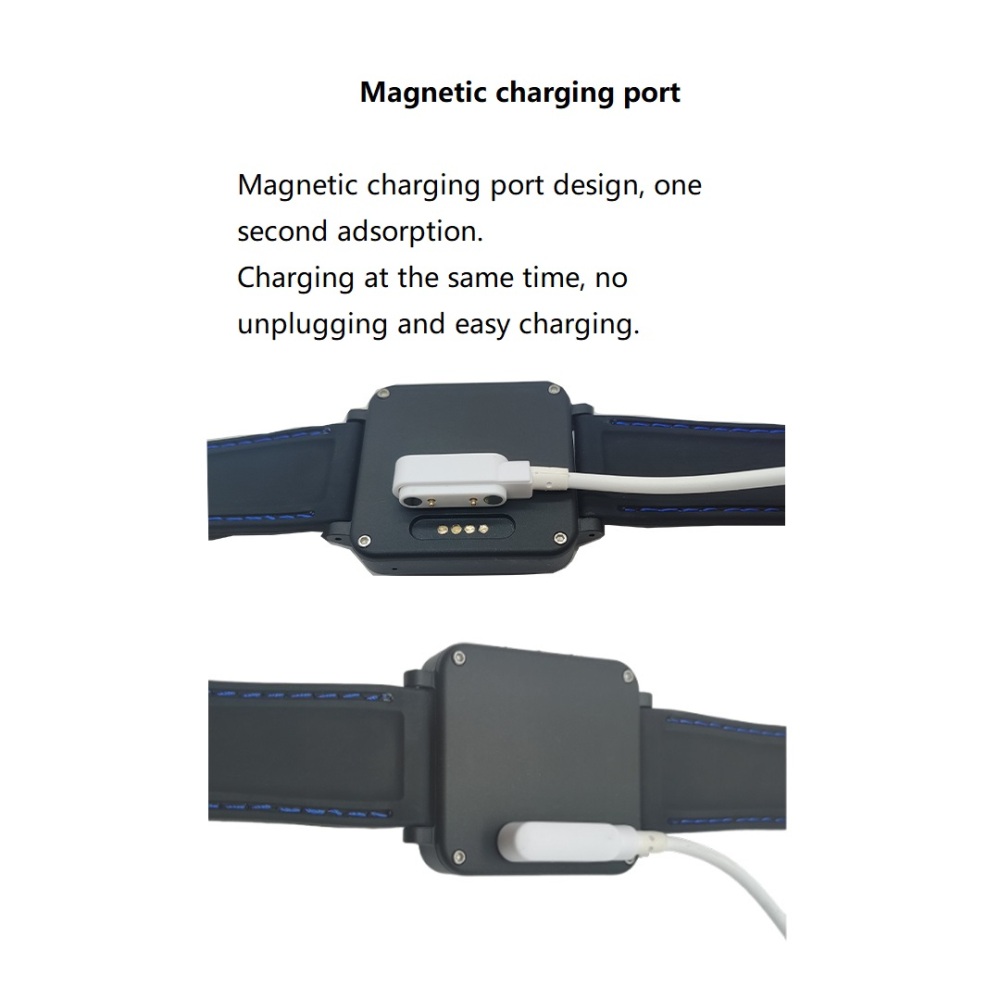

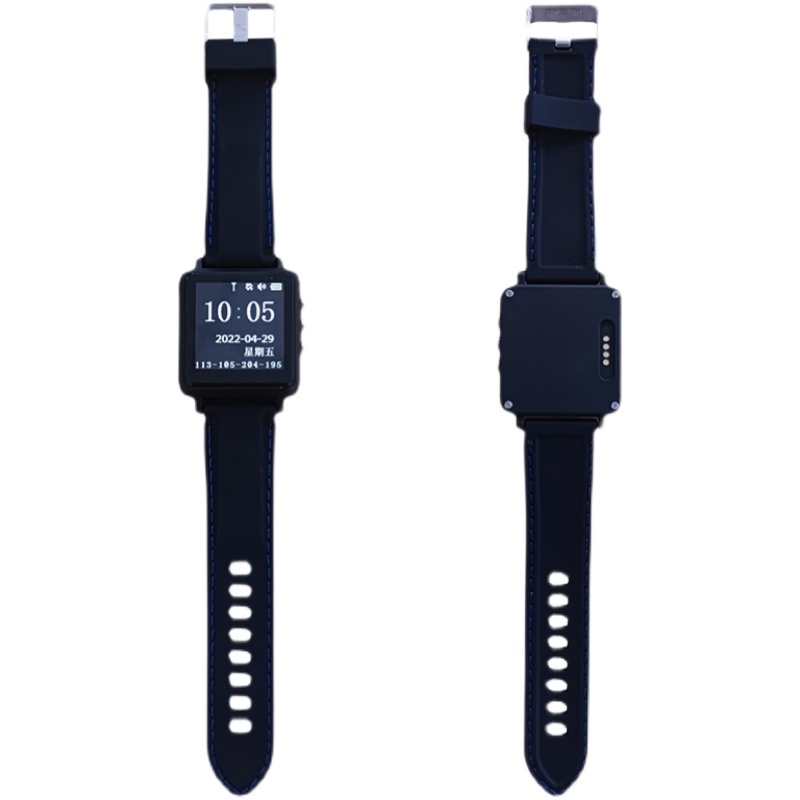

The new generation LoRa multi-functional information watch adds RFID time and attendance clocking function on top of the original functions of alarms, displaying commands and implementing quality control lists, and enhances vibration and sound reminders. The wristband is made of softer material, which can be worn for a long period of time without any sensation, and the screen is made of a 1.54-inch TFT colour LCD, which is clearer even in bright light. The screen uses a 1.54-inch TFT colour LCD screen, which can be seen more clearly even under bright light. Charging from the original Micro USB upgraded to magnetic charging, so that the product in a more humid environment can also work properly.

Features

• Based on LoRaTM spread spectrum modulation technology.
• CAD gap listening reception.
• 420~450MHz application-free frequency band, other bands can be customised.
• Receiving sensitivity up to -135dBm.
• Full Chinese character, English and digital display.
• High-precision perpetual clock.
• Visual operation interface.
• 460maH large-capacity battery with intelligent charging management.
• Can store 128 received messages, FIFO principle.
• Can set up 10 groups of addresses to receive.
• Can receive by single table, group, and broadcast.
• Can select the key to be recognised as the return code.
• Can be used for host acknowledgement tasks.
• Open field reception 1-2 kilometres.

Shipping List

LoRa Smart Watch x1

Applications

• Catering and hotel, meeting notification, task assignment.
• Police security, property security, railway inspection.
• Nurse duty, elderly call, swimming pool lifeguard.
• Building construction, coal mine operation, production management.

Specification

Operating Frequency: 420~460MHz(Customised)
Receiving sensitivity: 135dBm
Receiving Distance: Open 1.5KM & 500mw transmitter
Charging port: Micro USB 5V/1A
Body Size: 41mm*41mm*14mm
Watch weight: 47g
Standby time: one week
Working Environment: Indoor, Temperature -10C~+55C, Relative Humidity 95% (No condensation at 40C 2C)

Detailed Descriptions
