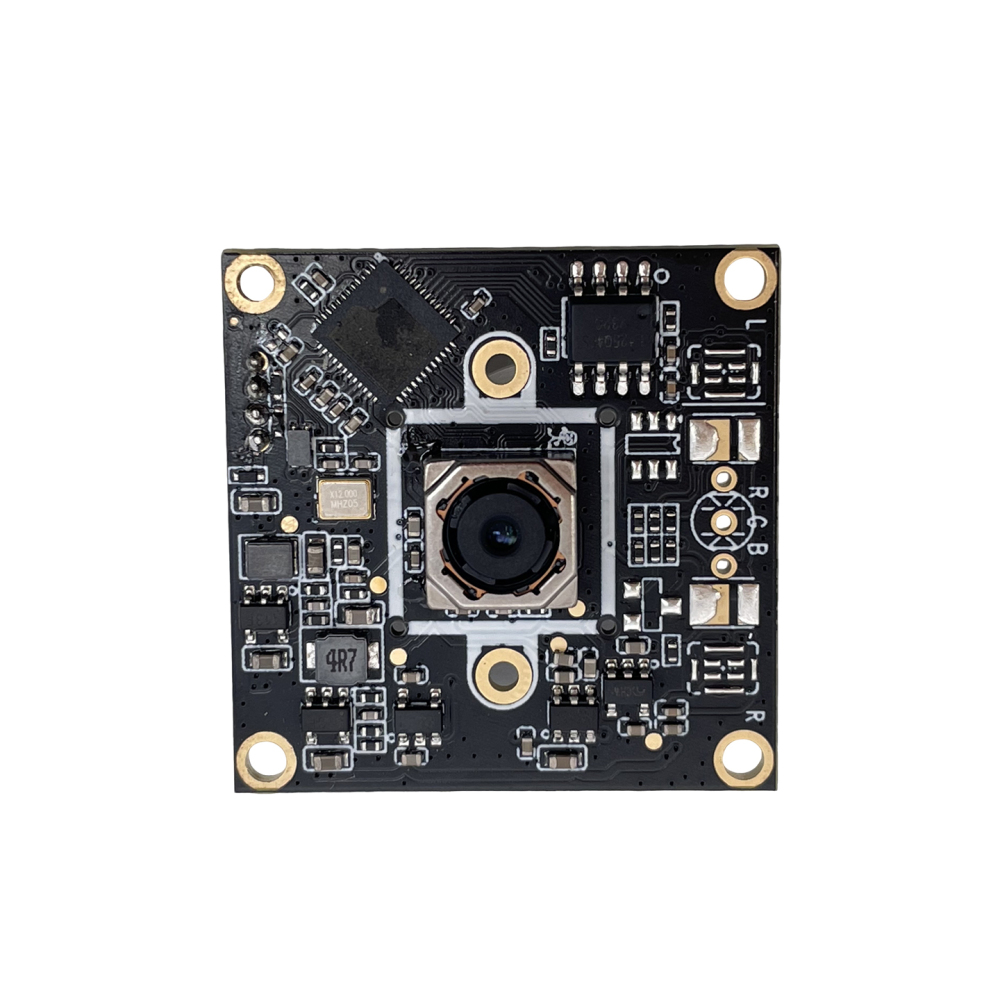

| Parameter | ZV-A016-V2 |
|---|---|
| Module Model | ZV-A016-V2 |
| Resolution | 8 Mega (3264x2448) |
| Sensor Type | 1/3.2inch |
| Max Effective Pixels | 8 Mega pixels |
| Pixel Size | 1.4μm × 1.4μm |
| Max Dynamic Range | Auto |
| Max SNR | / |
| Gain/Exposure/White Balance | Auto |
| Resolution & Max Frame Rate | MJPG: 3264x2448@15fps, 2592x1944@20fps, 1920x1080@30fps, 1280x960@30fps, 1280x720@30fps, 640x480@30fps, 176x144@30fps; YUY2: 3264x2448@2fps, 2592x1944@2fps, 1920x1080@5fps, 1280x960@5fps, 1280x720@10fps, 640x480@30fps, 176x144@30fps |
| Max Working Current | MAX 1.2W, Current 180mA-230mA |
| Interface Type | USB2.0 (A port) +4P 1.25/1.5mm DIP |
| Microphone IIC | Supports Digital IIC |
| Focus Type | - |
| Power Supply Voltage | USB_5V±5% |
| Lens Type | 1/3 inch |
| Lens Structure | 5P |
| Aperture F/NO | 2.4 (varies, consult customer service) |
| EFL Effective Focal Length | 3.5mm |
| Field of View (FOV) | Diagonal D=78°, Horizontal H=66°, Vertical V=52° (consult customer service for others) |
| Distortion | <1.0% |
| Filter | 650 Visible Light, etc. (selected according to buyer's needs) |
| PCB Size | 32.00×32.00×1.6mm |
| Module Size | 32.00mm×32.00mm×6.8mm |
| Operating Temperature | -30~70℃ |
| Stable Imaging Temperature | / |
| Storage Temperature | -10~65℃ |
| Camera Board Assembly Technology | SMT (ROHS) |
| Operating System | WindowsXP/7/8/10/vista/Server/Linux (include UVC)/Android/ raspberry /mac OS/RTOS/Vista/Ubuntu, etc. |
| Application Devices | Smart Home, Computer and Peripherals, New Media Entertainment, Security Monitoring, Medical Health, Internet of Things, Vehicle, Industrial Detection and Automation, Education/Live Broadcasting, AI Vision, Intelligent Transportation Terminals, Robots/Unmanned Aerial Vehicles, Advertising Machines, Self-Service Devices, All-in-One Machines, Driving Recorders, etc. |
| Category | Details |
|---|---|

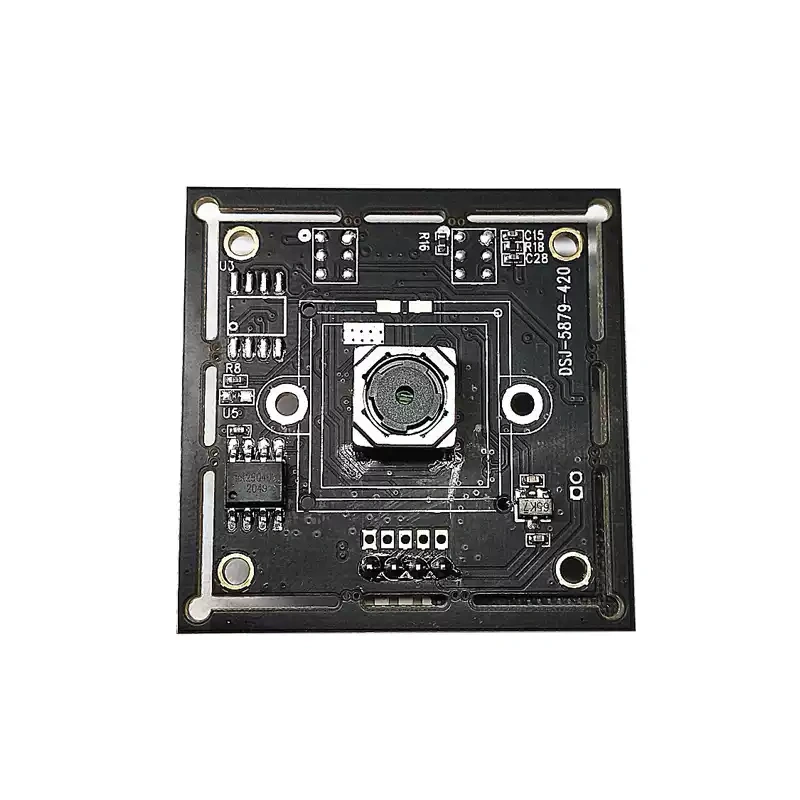

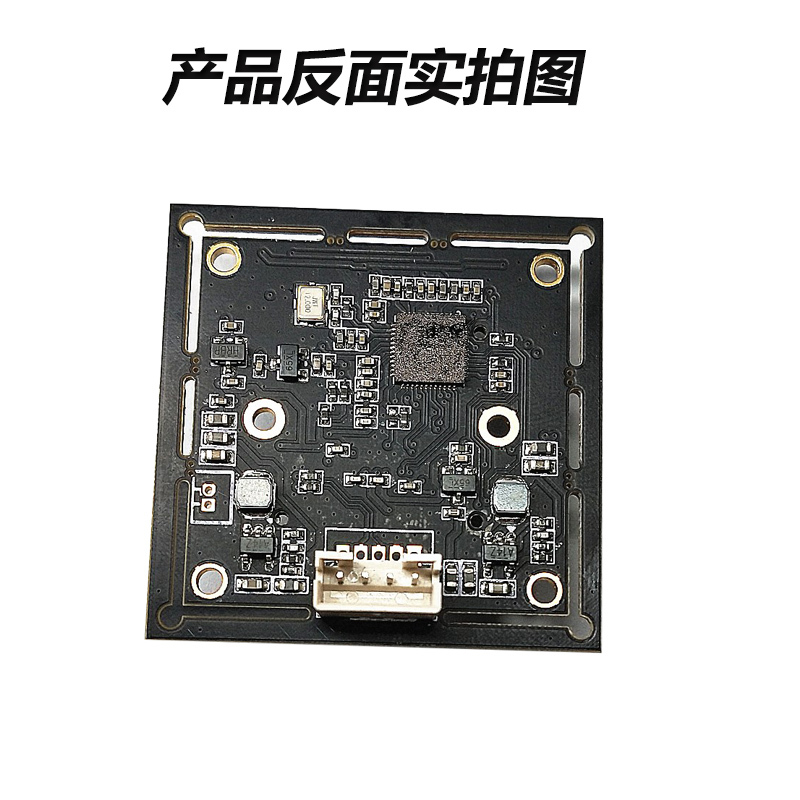

| Product Model | AX-3079-V1.0 (Corresponding to DSJ-3079-HE) |
| Sensor | Sony IMX179 |
| Lens Size | 1/3.2inch |
| Pixel Size | 1.4um |
| Image Area | 6.18mm x 5.85mm |
| Maximum Effective Pixels | 3264(H) X 2448(V) 8MP |
| Output Image Format | MJPEG |
| Supported Resolutions and Frame Rates | 3264X2448 @ 15fps / 2592X1944 @ 15fps 1920x1080 @ 30fps / 1600X1200 @ 30fps 1280x720 @ 30fps / 960X540 @ 30fps 800X600 @ 30fps / 640X480 @ 30fps |
| Signal-to-Noise Ratio (SNR) | 34dB |
| Dynamic Range | 72.5dB |
| Sensitivity | 0.65V/lux-sec@550nm |
| Minimum Illumination | 0.5lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Interface Type | USB2.0 High Speed |
| Supported Driver-Free Protocol | USB Video Class (UVC) |
| Supported OTG Protocol | USB2.0 OTG |
| Automatic Exposure Control (AEC) | Supported |
| Automatic White Balance (AEB) | Supported |
| Automatic Gain Control (AGC) | Supported |
| Button Capture | Supported |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness Gamma, Gain, White Balance, Reverse Contrast, Exposure |
| Lens Parameters | High-Speed Camera Lens, No Distortion, Size 1/3.2 Auto Focus, 75 Degrees |
| Fill Light Electrical Interface | Supported, 4P-2.0 Socket |
| Power Supply Mode | USB BUS POWER, 4P-2.0mm Socket |
| Operating Voltage | DC5V |
| Operating Current | 160mA~260mA |
| Operating Temperature | -10~70℃ |
| Storage Temperature | -20~85℃ |
| Board Size | 38x38mm (Compatible with 32X32mm) |
| Supported Systems | WinXP/Vista/Win7/Win8 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
