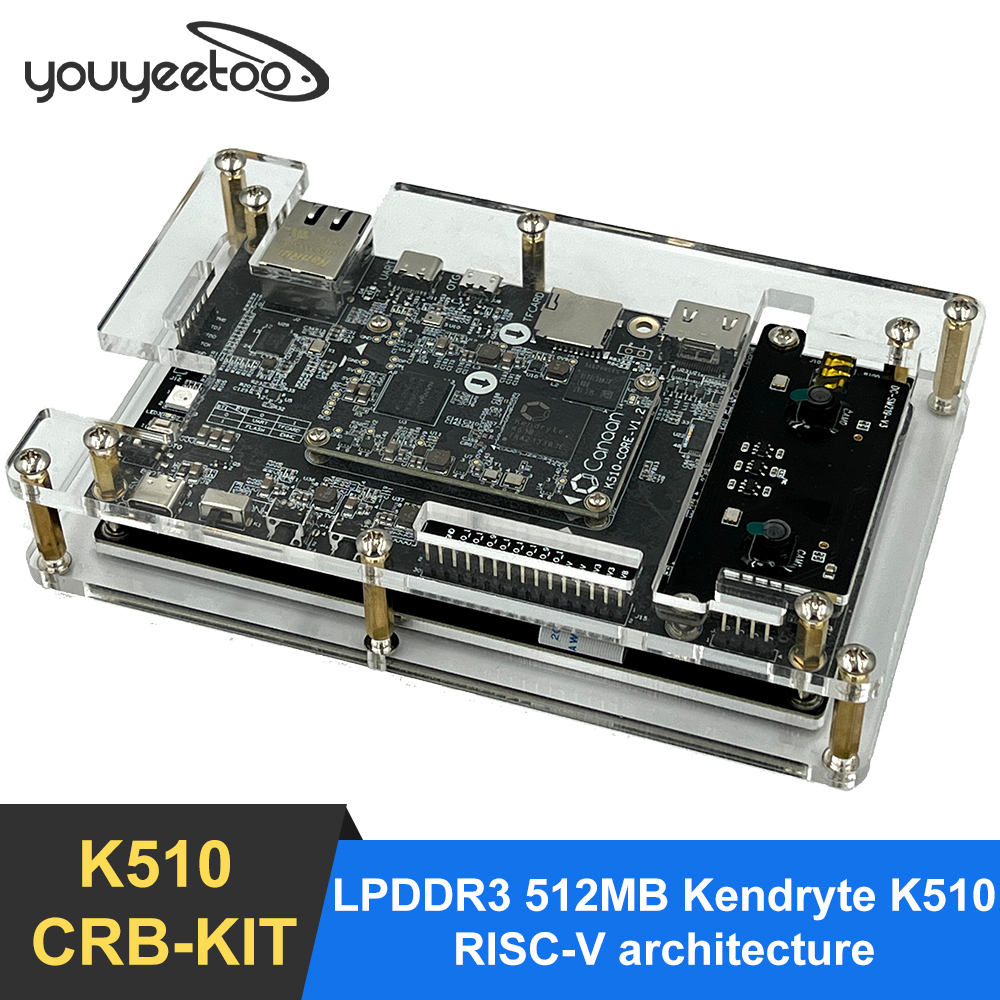

Kendryte K510 CRB-KIT - RISC-V SBC - 2.5 TOPS INT8 Support three Camera Inputs

To download the Tools, Driver and Firmware use the following link:

https://www.canaan.io/product/kendryte-k510-crb-kit-developer-kit

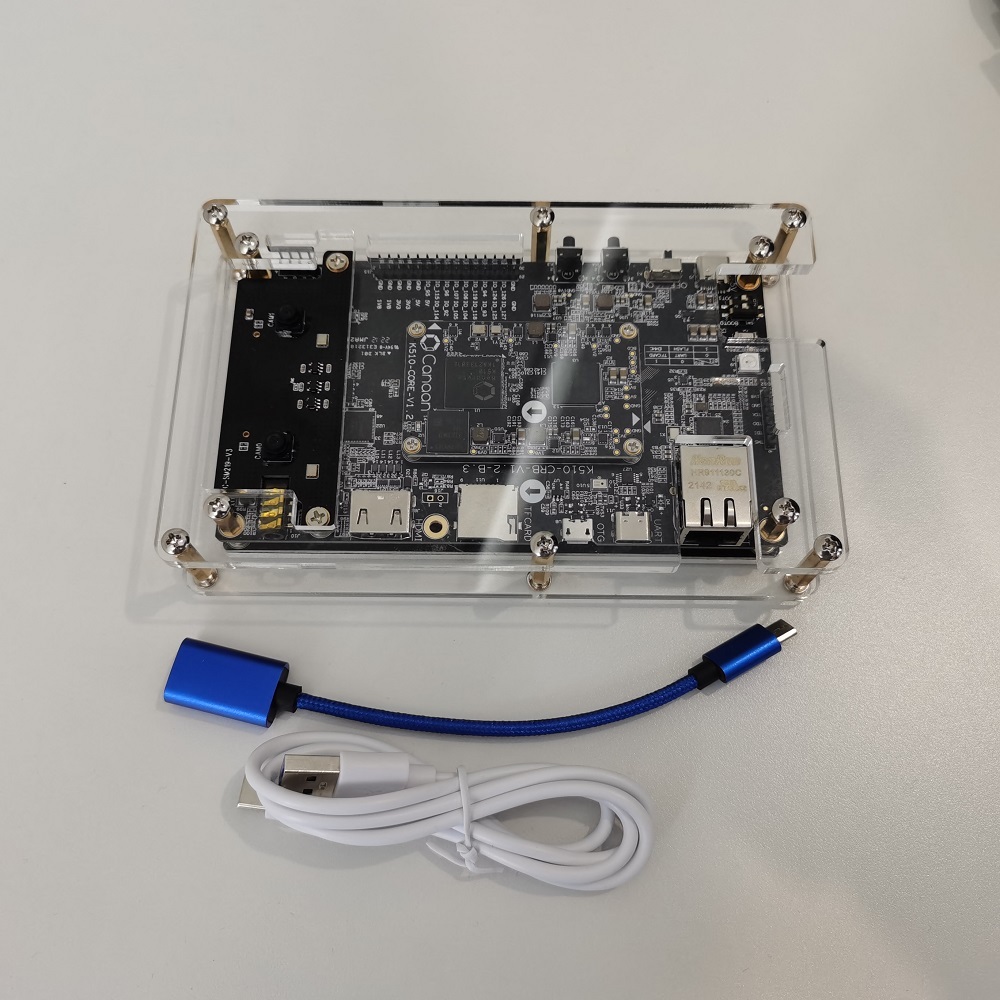

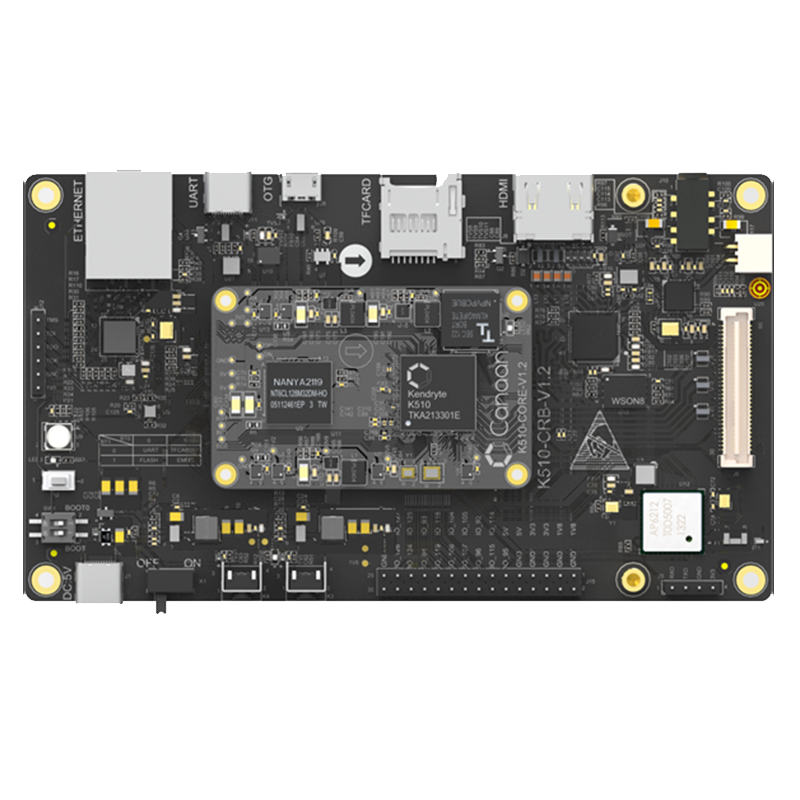

Kendryte K510 CRB-KIT

Kendryte K510 CRB-KIT developer kit is manufactured based on K510-CORE core board module, equipped with high-precision reasoning AI chip and is rich in peripheral interfaces. These features help customers shorten their product design process to accelerate prototyping. Designed for early stage product design software development, AI algorithm testing and verification, as well as the development of educational applications.

​

Product Highlights

• RISC-V architecture and full-featured AI SoC chip, coupled with onboard dual-core 64-bit RISC-V CPU provides strong computing power.

• Second-generation high-performance KPU that can support BF16 high-precision reasoning

• TOF 3D visual development that can support up to three camera inputs.

• Ability to perform a variety of audio analysis and processing with the built-in 64-bit audio DSP

• Rich peripheral interfaces to meet the needs of different products.

• Developed ecosystem and open source data that provides a variety of AI applications with regular updates.

Scenarios

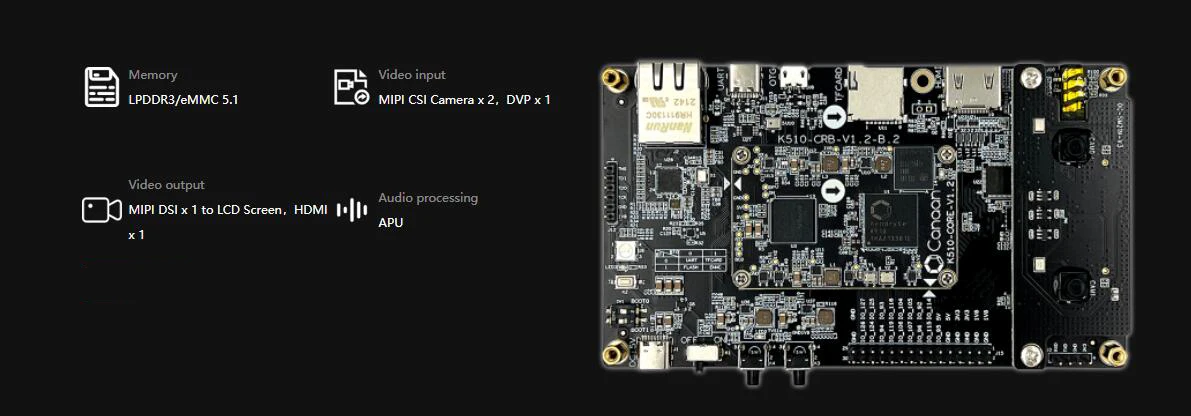

Specifications

• Memory:

LPDDR3 x 32 bit 512MB

eMMC 5.1 16GB

• Video inpu:

MIPI CSI Camera x 2，DVP x 1

• Video output:

MIPI DSI x 1 to LCD Screen，HDMI x 1

• Expand:

1 USB 2.0 OTG (Micro USB Port)

1 Wifi/BT

1 Gigabit Ethernet (100/1000M)

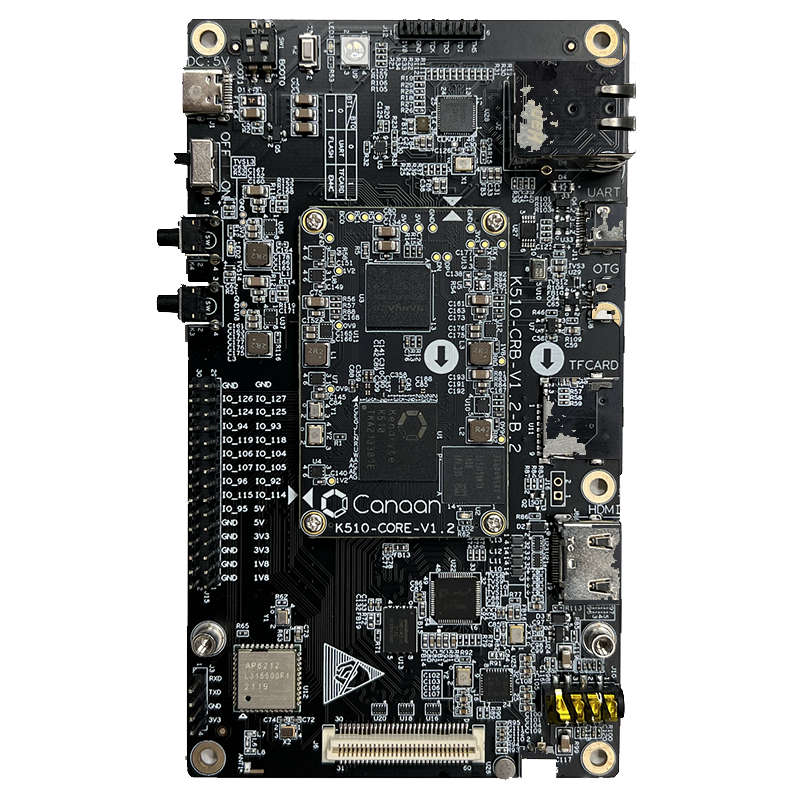

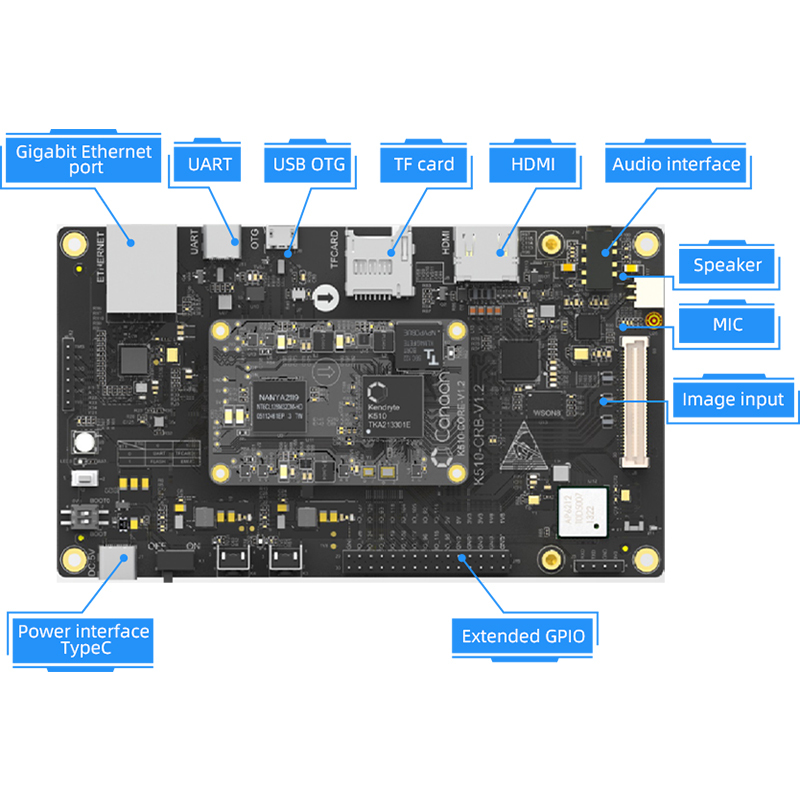

The main functions of the K510 CRB are as follows:

• PMIC: Power Management.

• 32 bit LPDDR3EE, total capacity 512MByte.

• 8bit eMMC, total capacity 4GByte.

• QSPI NAND, total capacity 128MByte.

• TF Card: Support external expansion of TF card storage.

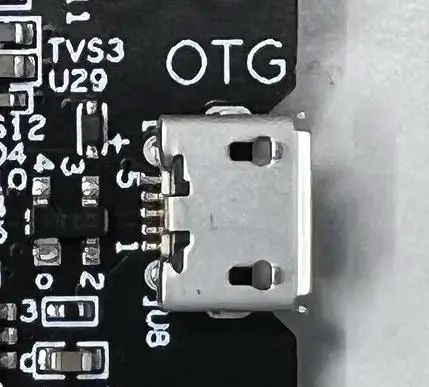

• USB OTG: used for system upgrade, supports Host/Device switching.

• SDIO WIFI: Support wireless Internet access and Bluetooth connection.

• Audio: Support voice input and output.

• PDM MIC: VAD wake-up function.

• Uart &JTAG Debug: Development board Debug use.

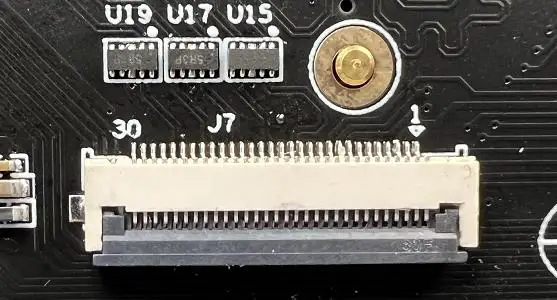

• Video Input: Dual MIPI CSI 2lane camera input.

• Video Output: MIPI DSI 4lane, 1080P display.

• RGMII: Gigabit Ethernet connection.

• HDMI: High Definition Multimedia Interface.

• Expansion interface: power supply, GPIO, I2C, SPI.

• Buttons, Indicators.

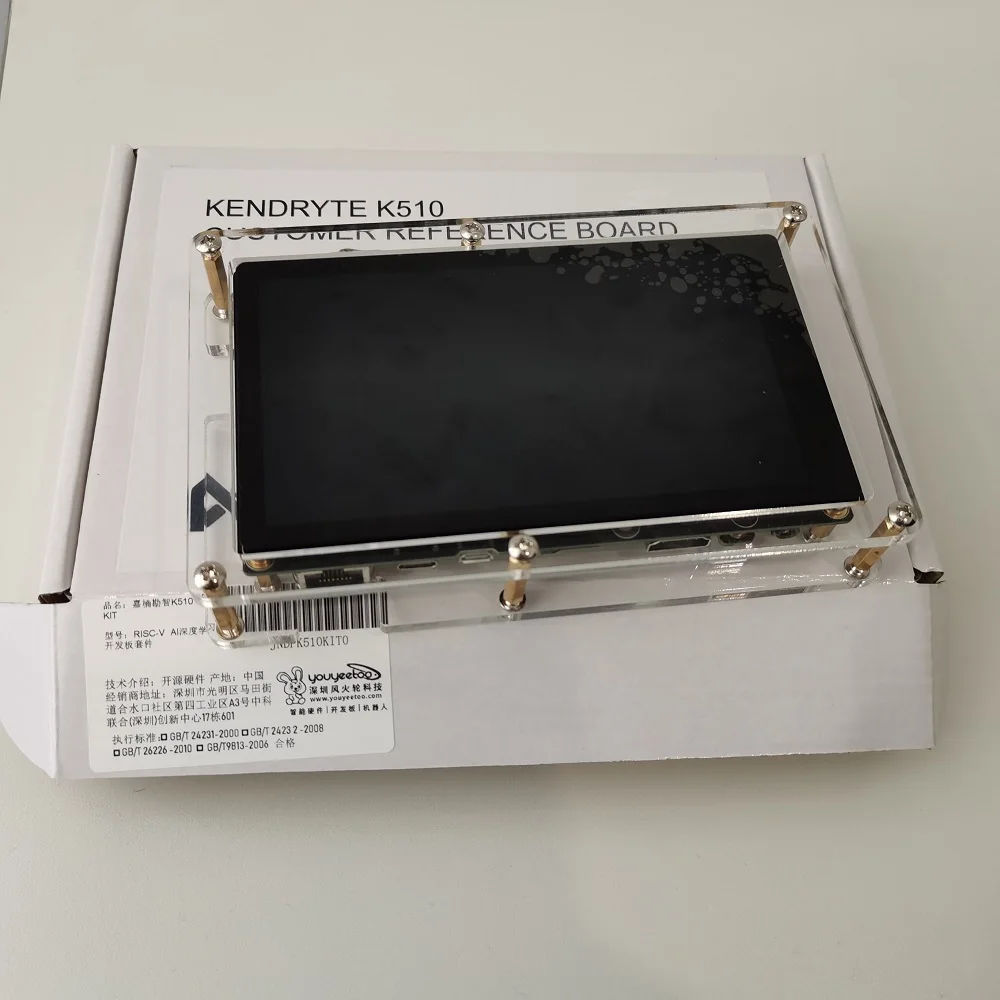

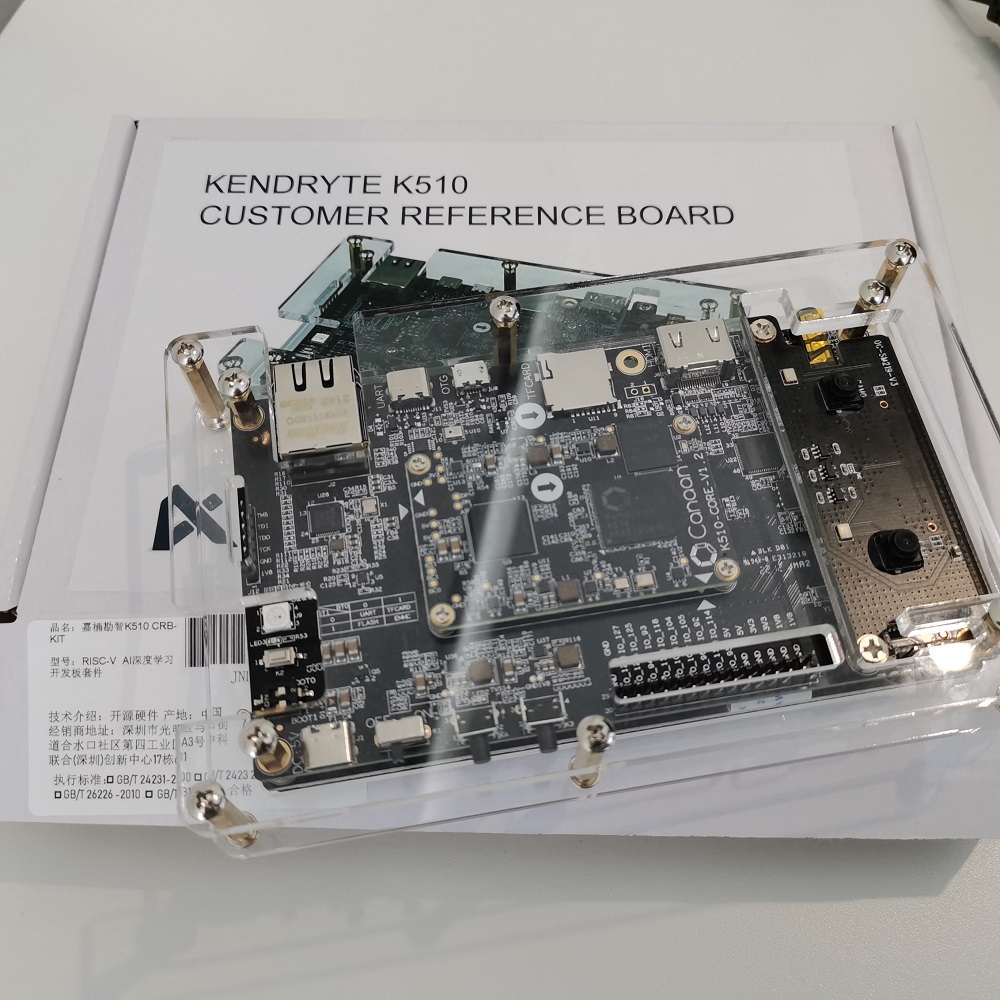

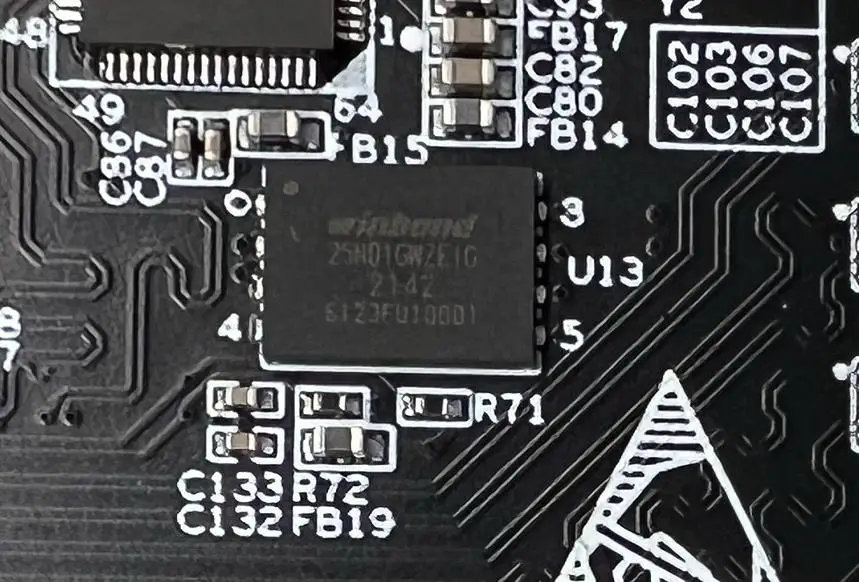

Real shot details
