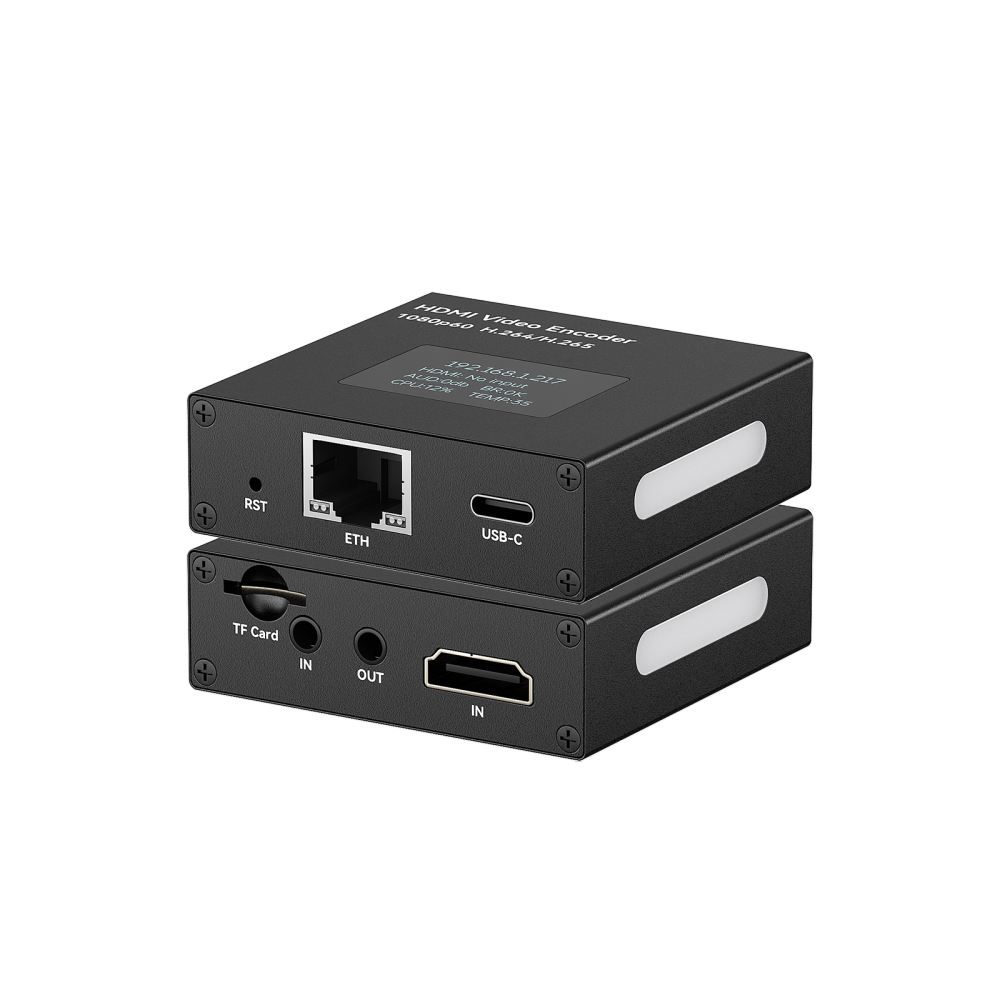

Linkpi MINIENC1 - 1080P60Hz HDMI Capture Card

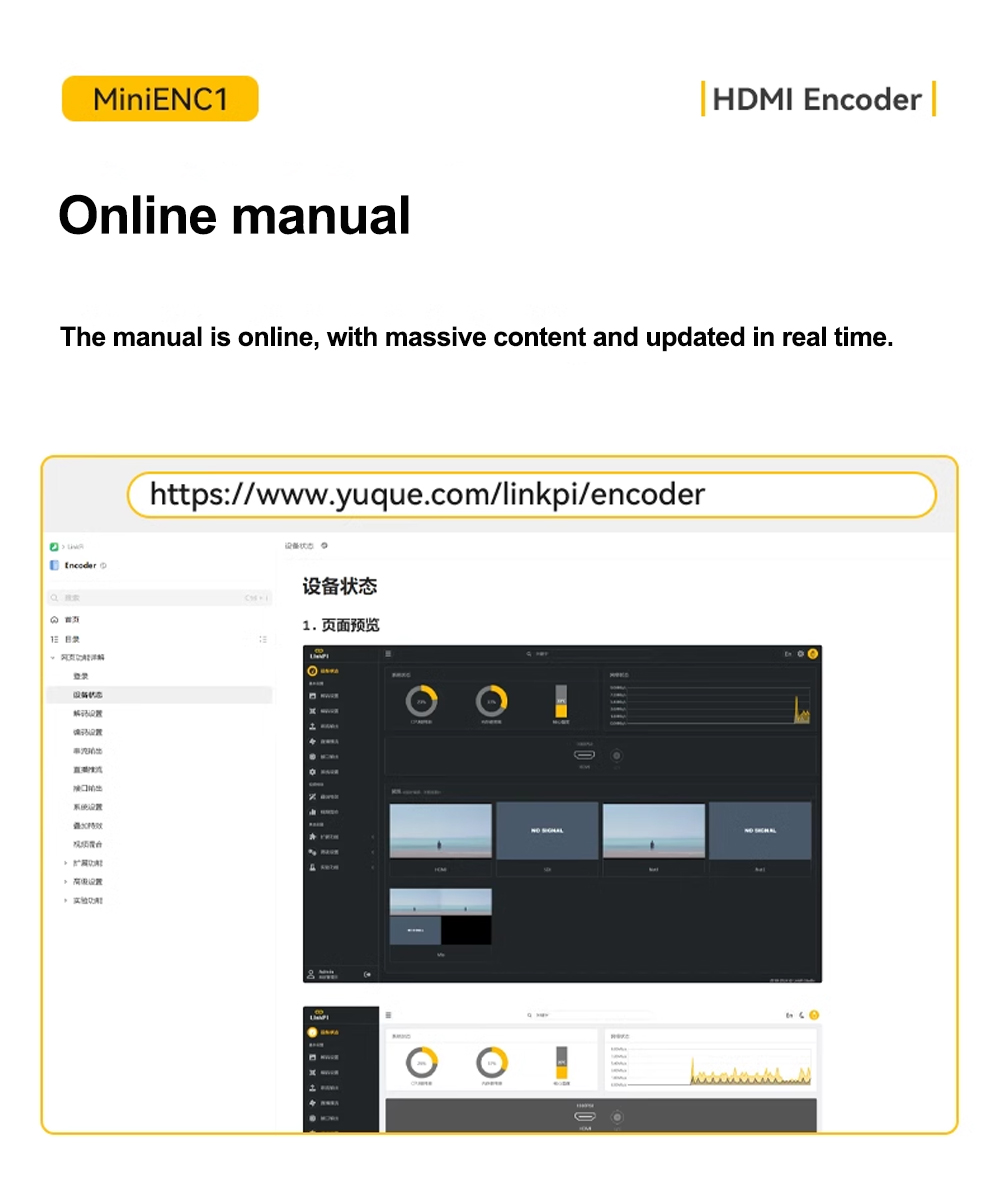

• Quick Start: wiki.youyeetoo.com/en/LinkPi

• Tips

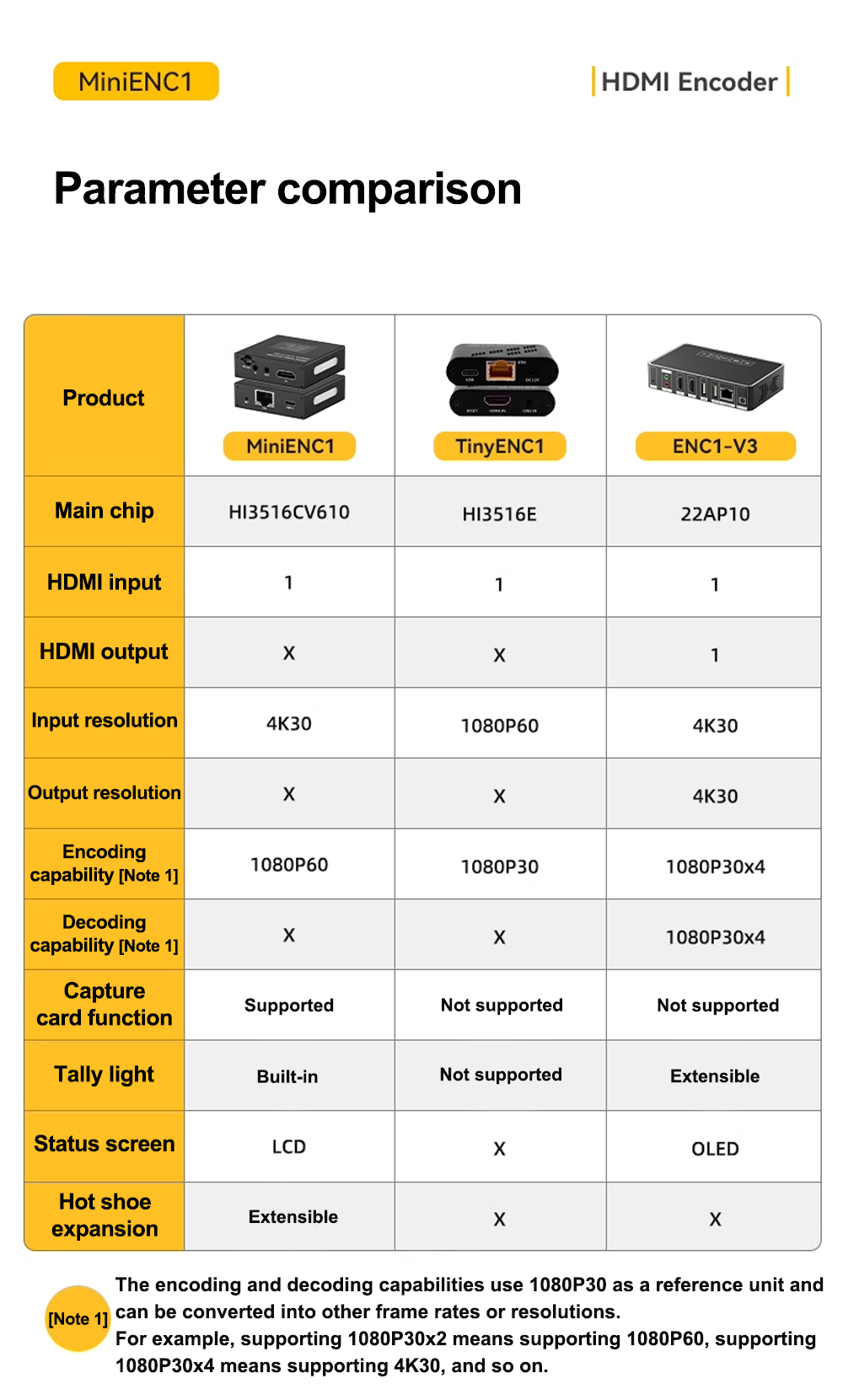

• The performance of MINIENC1 does not support NDI function, if you need a device that supports NDI, you can choose ENC1-V3.https://www.youyeetoo.com/products/linkpi-enc1-v3-ndi-encoder

Introduction

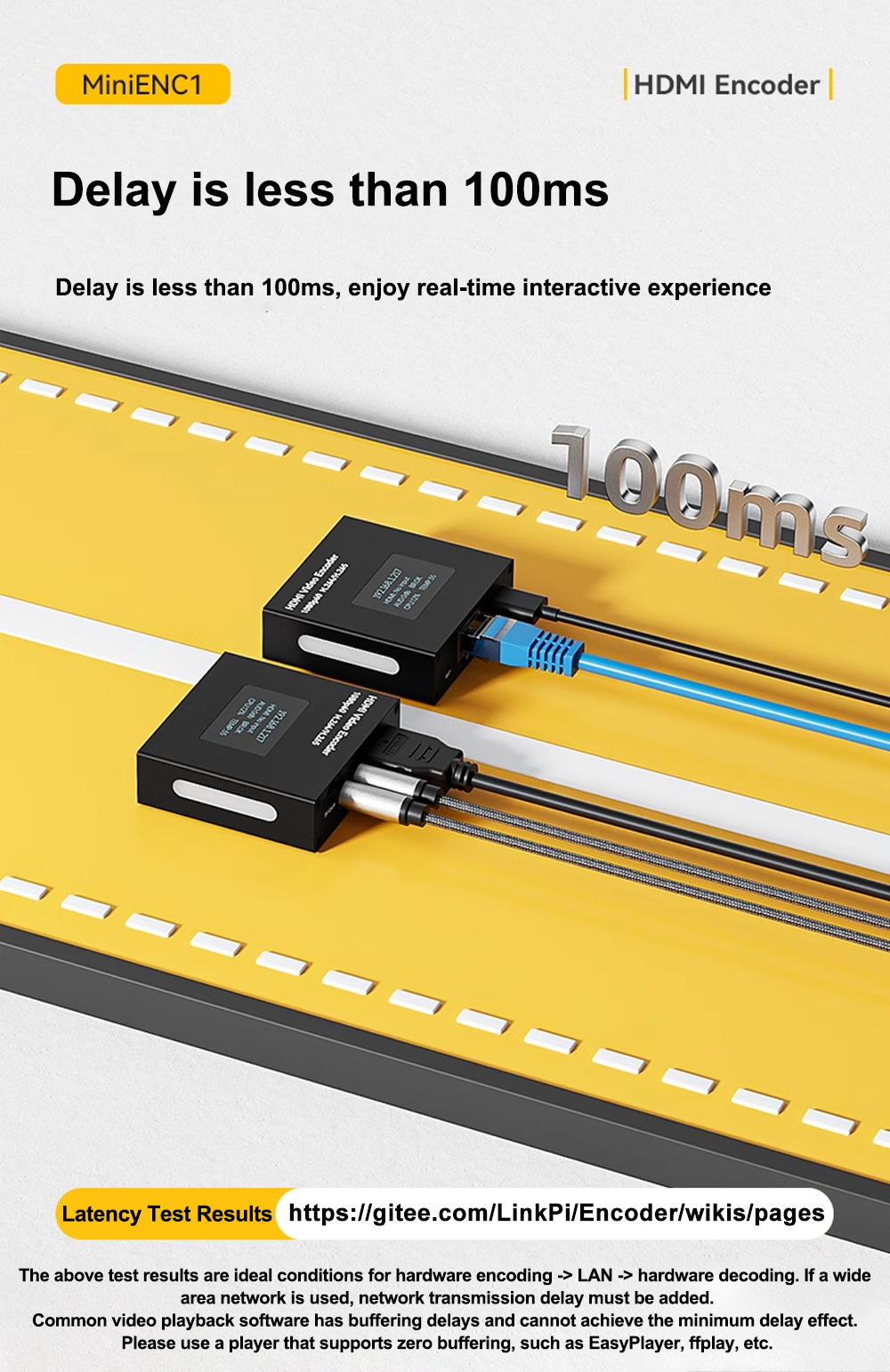

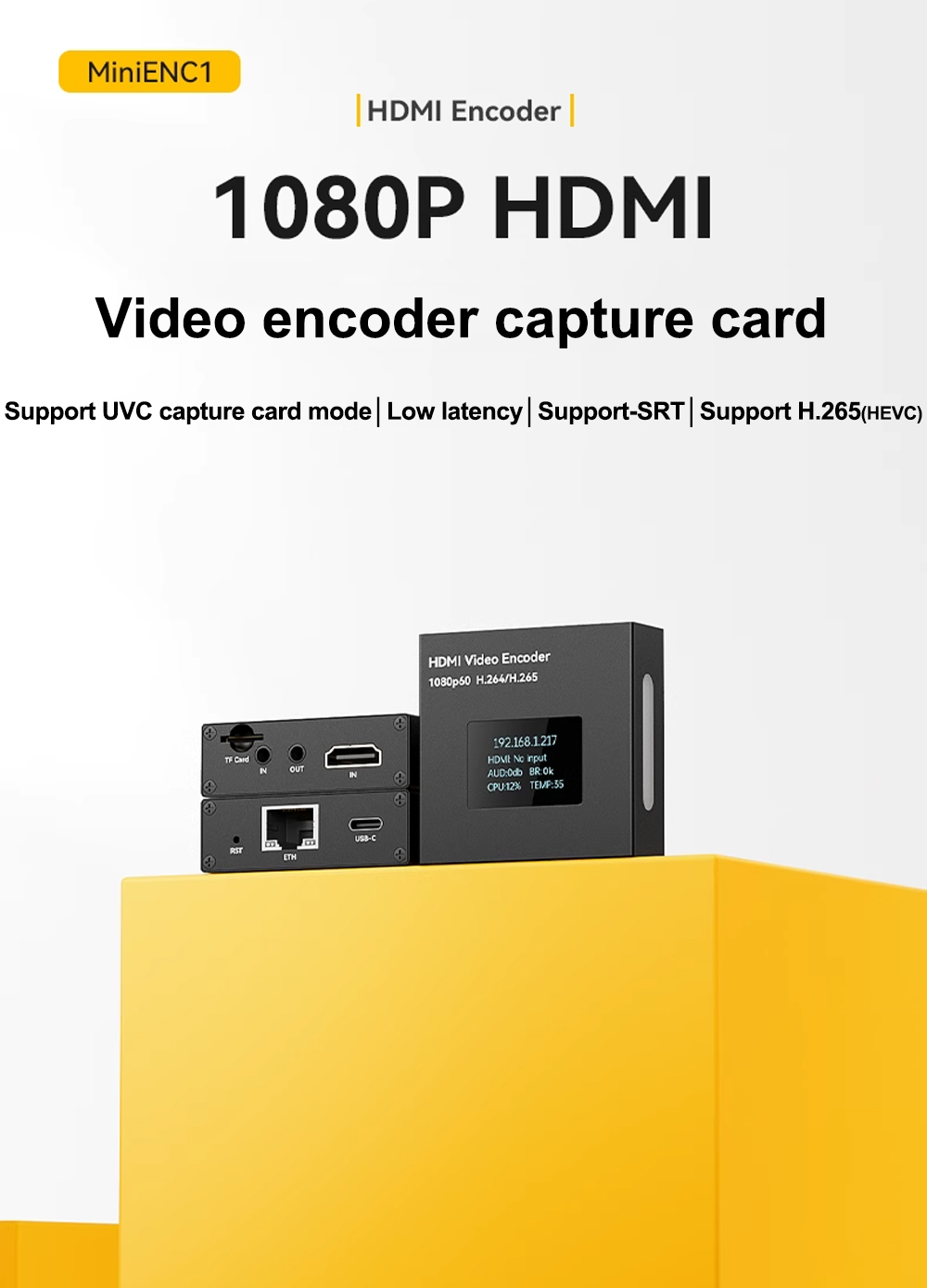

MINIENC1 is a 1080P HDMI video encoder capture card with a small form factor, supporting UVC capture card mode, SRT, H.265, and low latency. It is equipped with an Ethernet port supporting Tally lights. Therefore, it is not only a capture card but also a portable live broadcasting device. It is well-suited for video capture, live streaming, recording, and outdoor broadcasting scenarios.

Features

• HD Input: Supports HDMI 1.4, and can receive up to 1080P@60fps video signal.

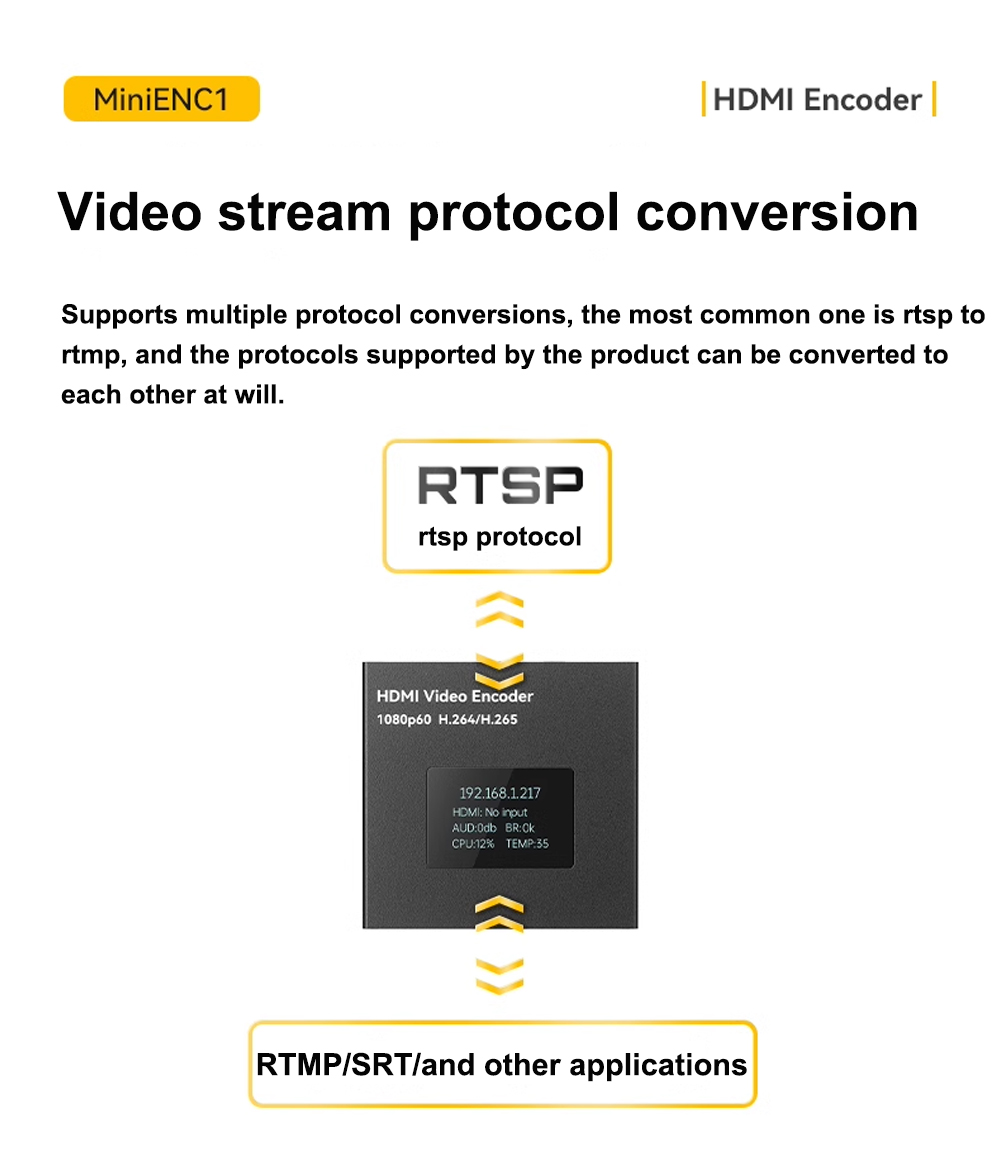

• Multi-protocol live streaming: Support RTSP, RTMP, HTTP, HLS, and other streaming media transmission protocols.
• Multi-platform live broadcast: able to realize multiple concurrent push streams.
• High compression rate: using H.265 encoding, combined with smartP technology, it can provide efficient video compression.

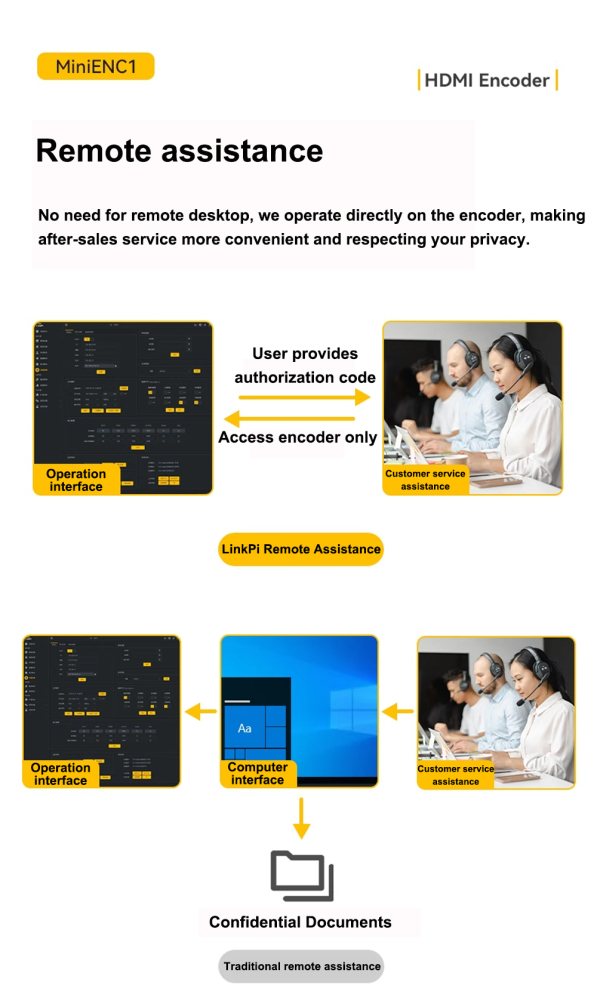

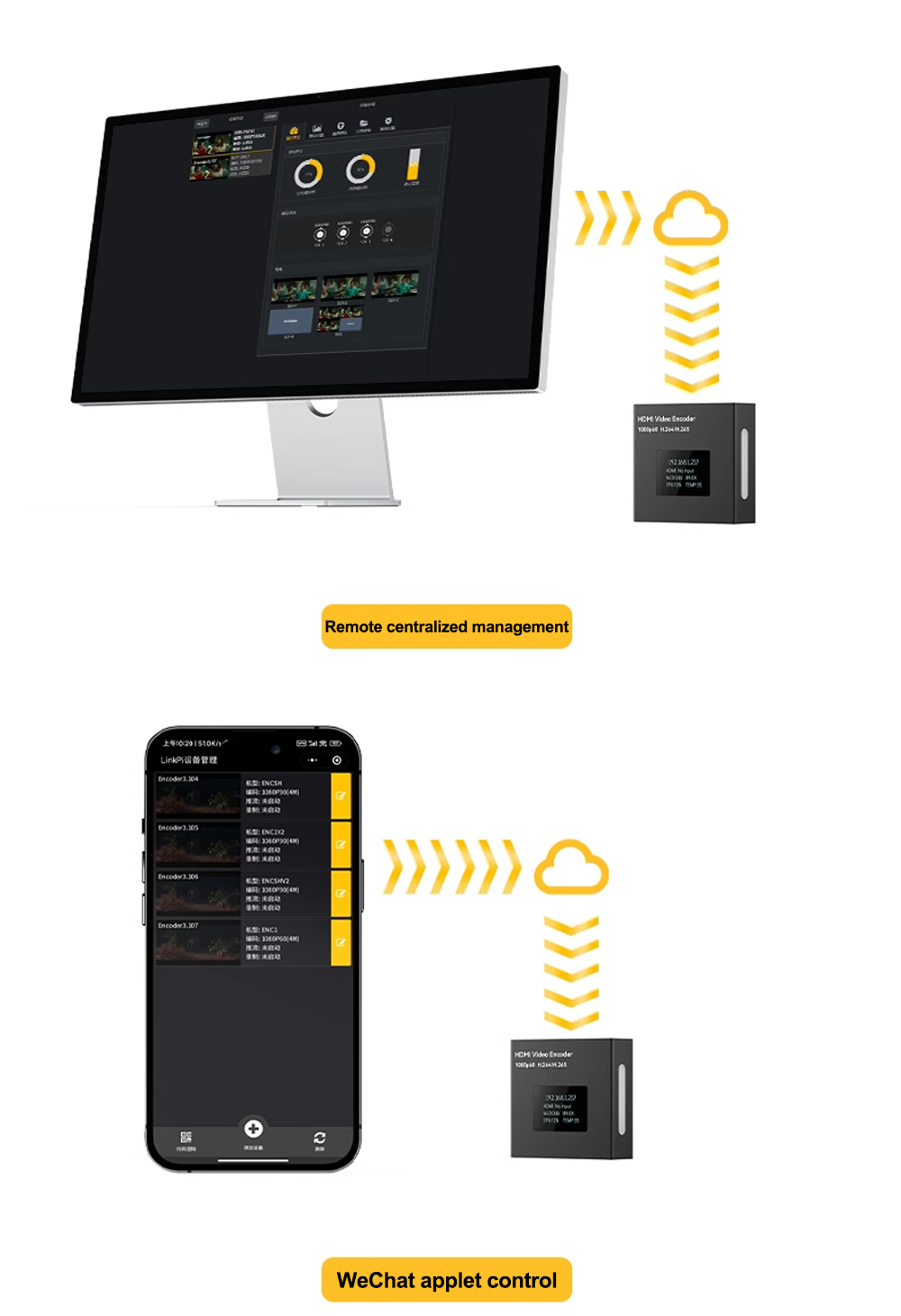

• Advanced features: support system update, group management, and other advanced features.

Shipping List

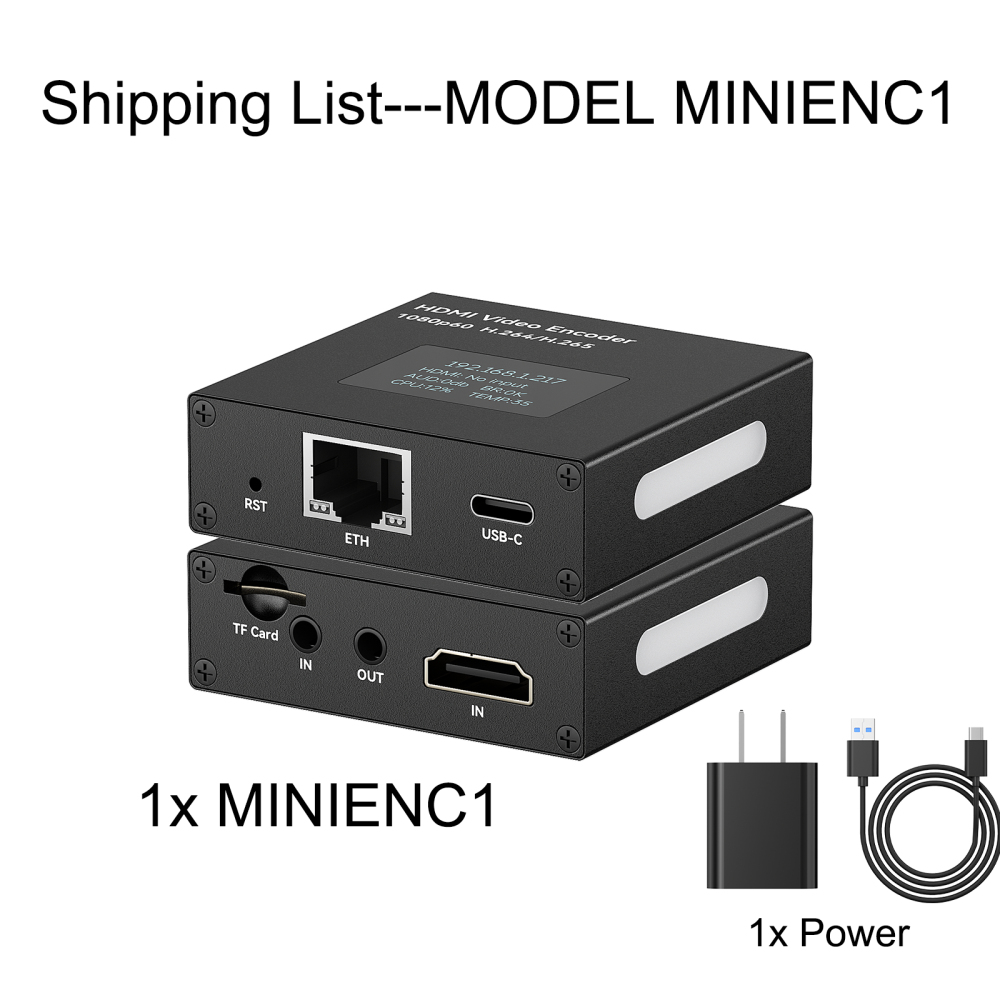

Model: MINIENC1---MINIENC1 x1, Power x1

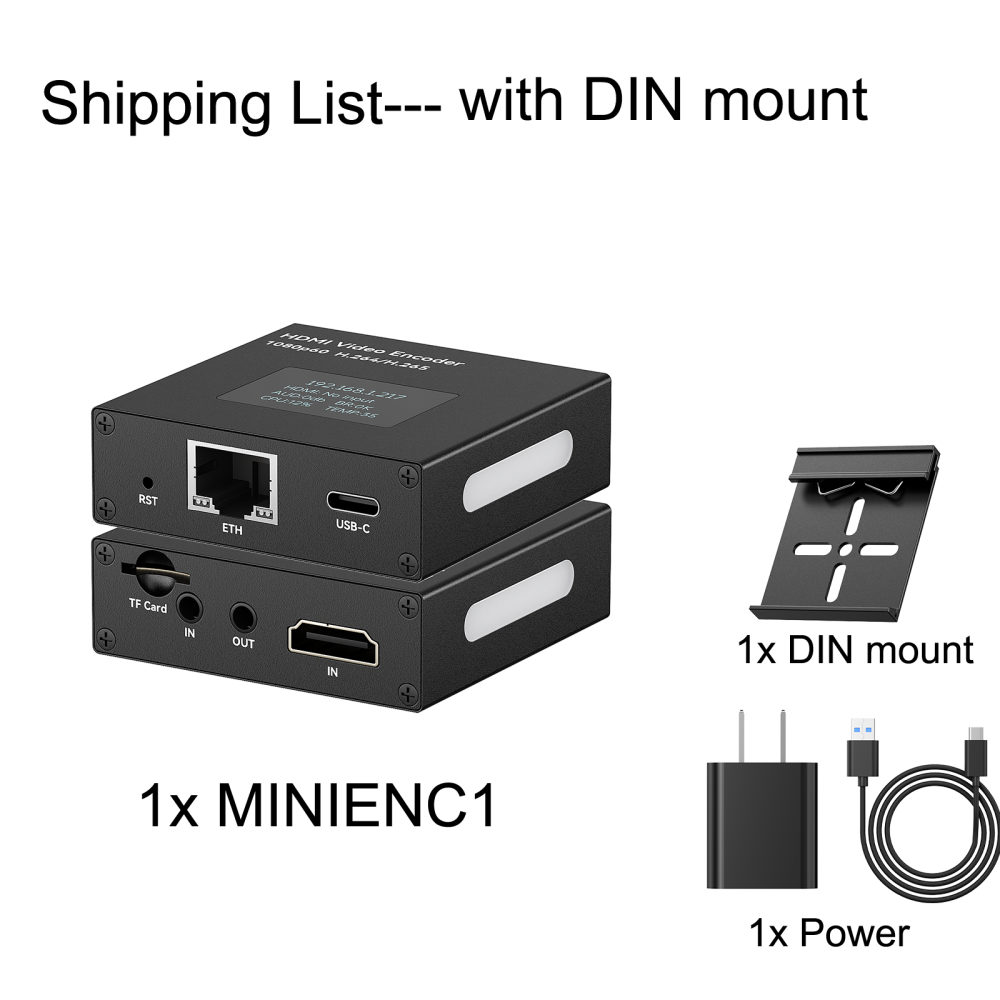

Model: with DIN mount---MINIENC1 x1, Power x1, DIN mount x1

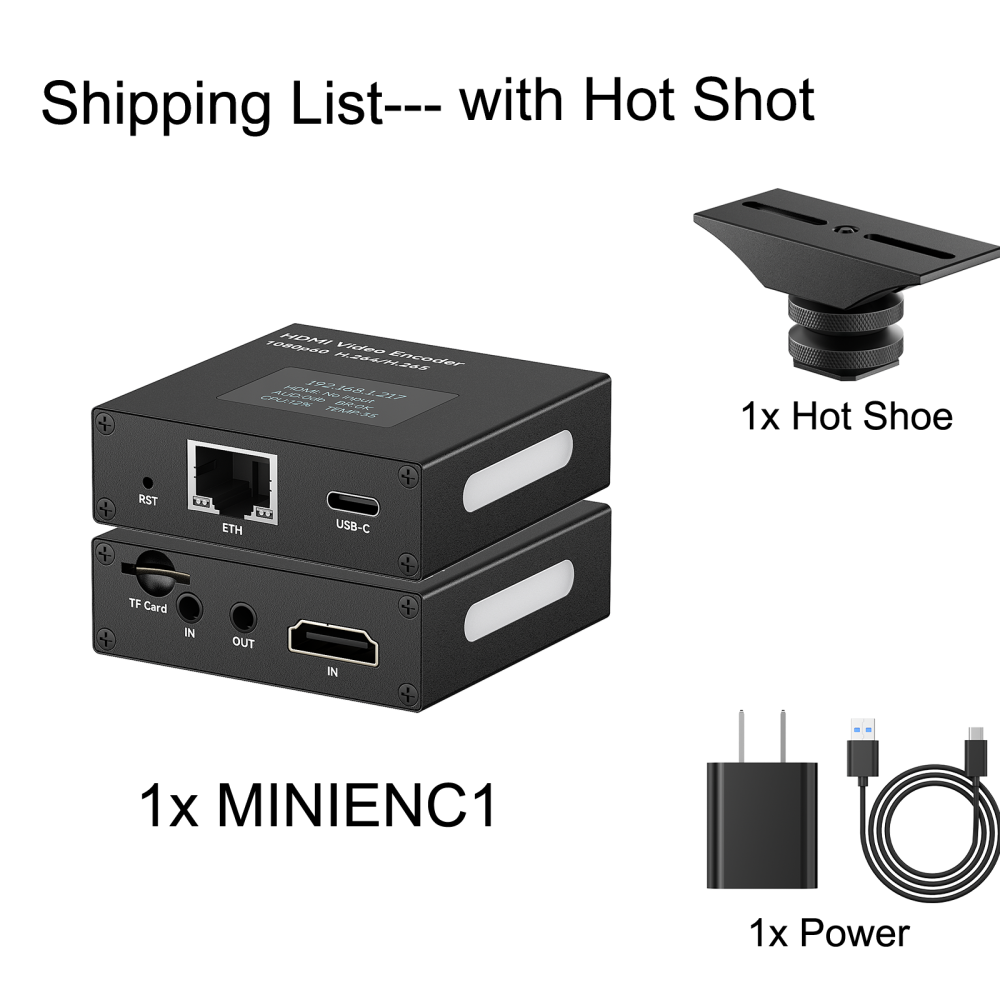

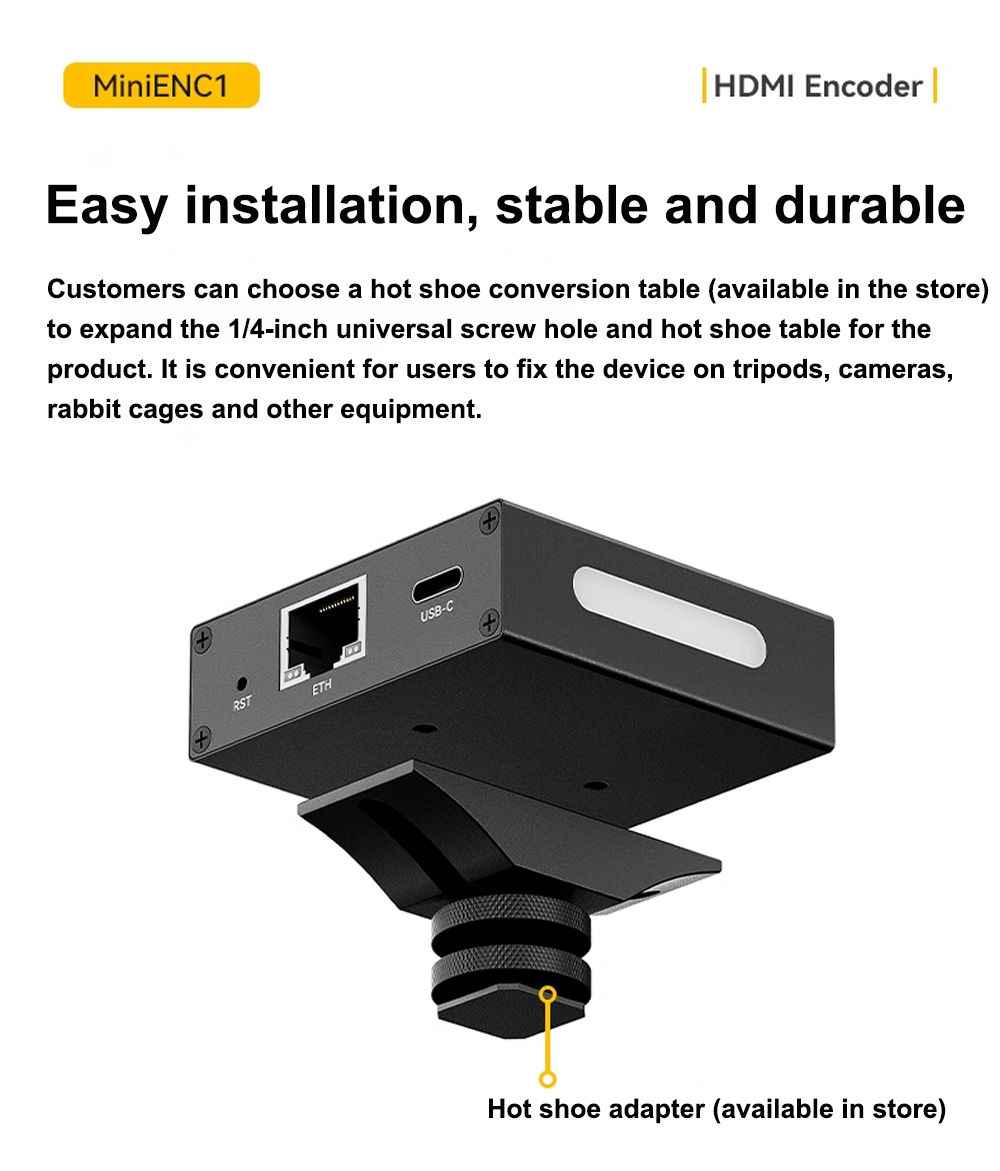

Model: with Hot Shot---MINIENC1 x1, Power x1, Hot shoe mount x1

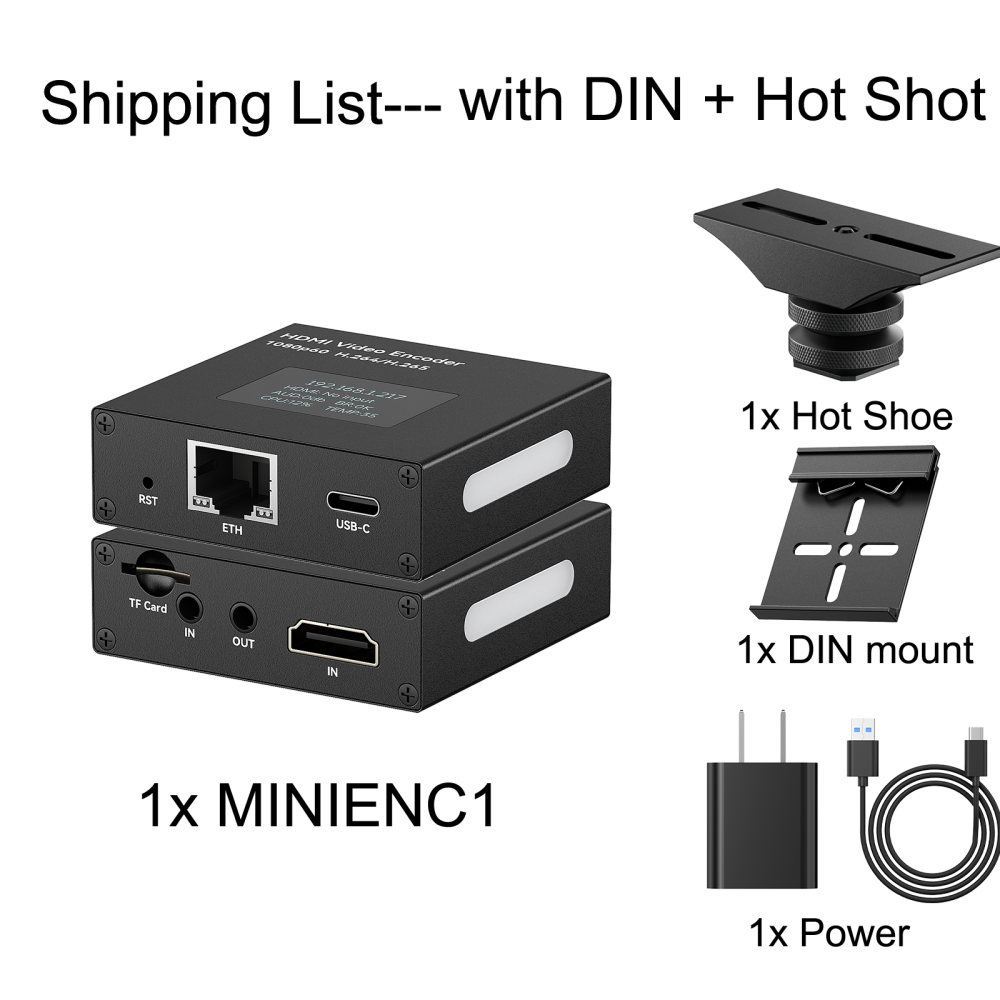

Model: with DIN + Hot Shot---MINIENC1 x1, Power x1, DIN mount x1, Hot shoe mount x1

Applications

Video Capture Applicable for Live Game Streaming, Screen Sharing

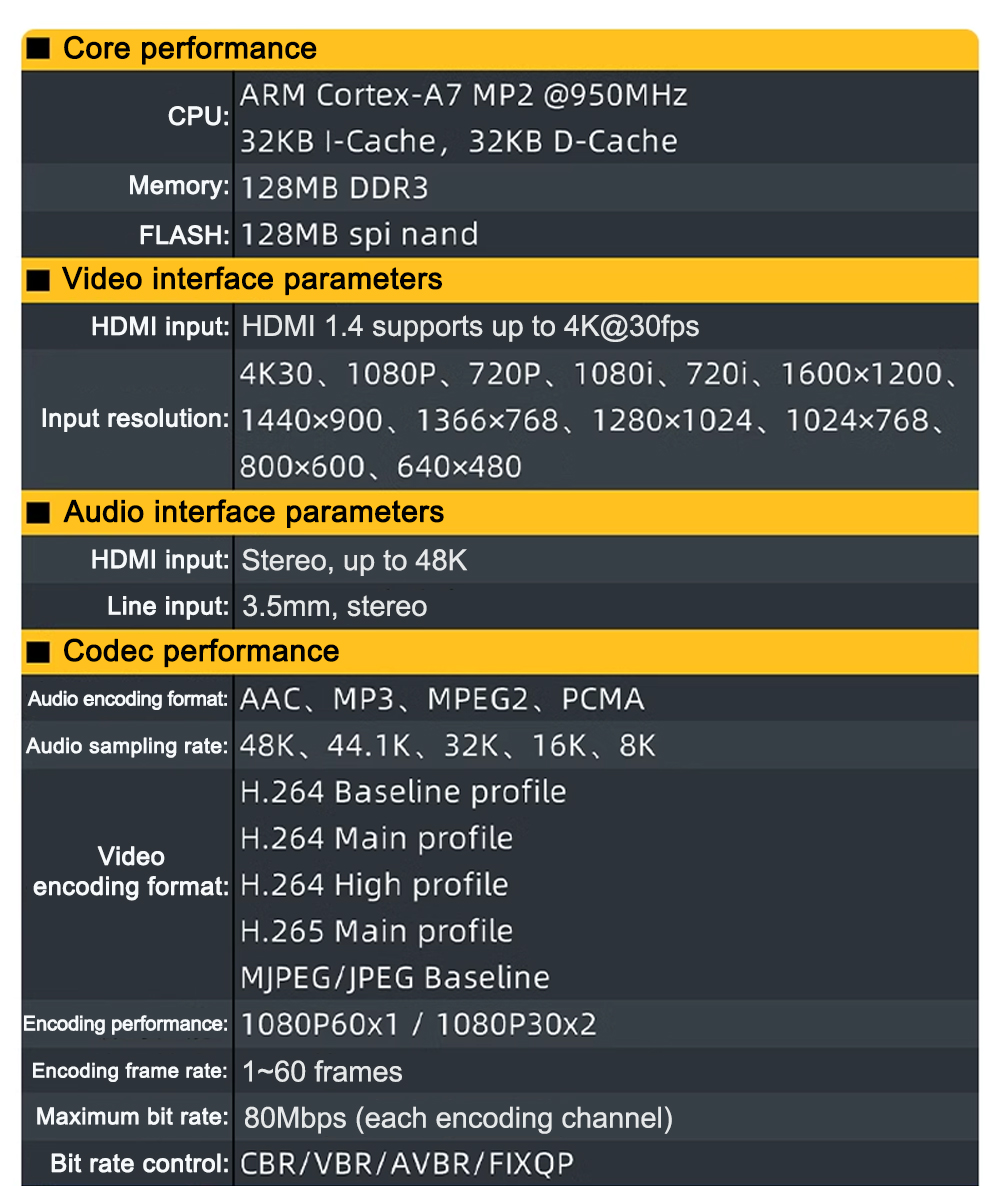

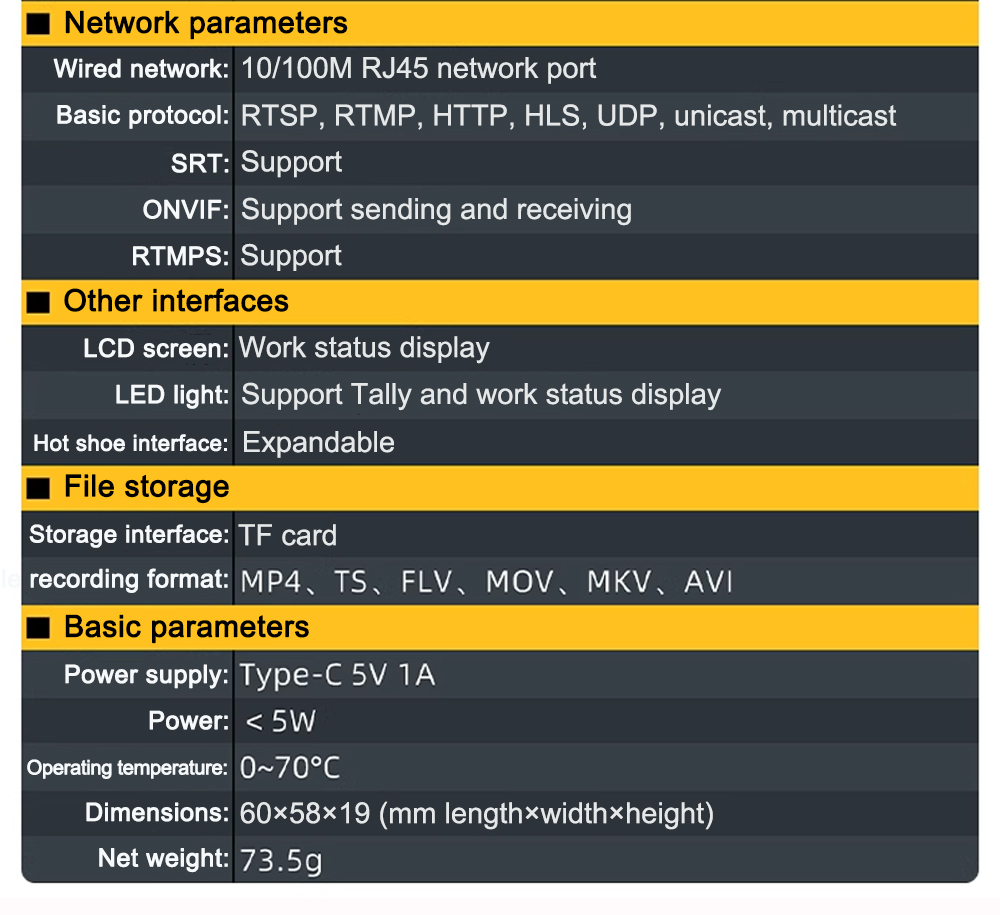

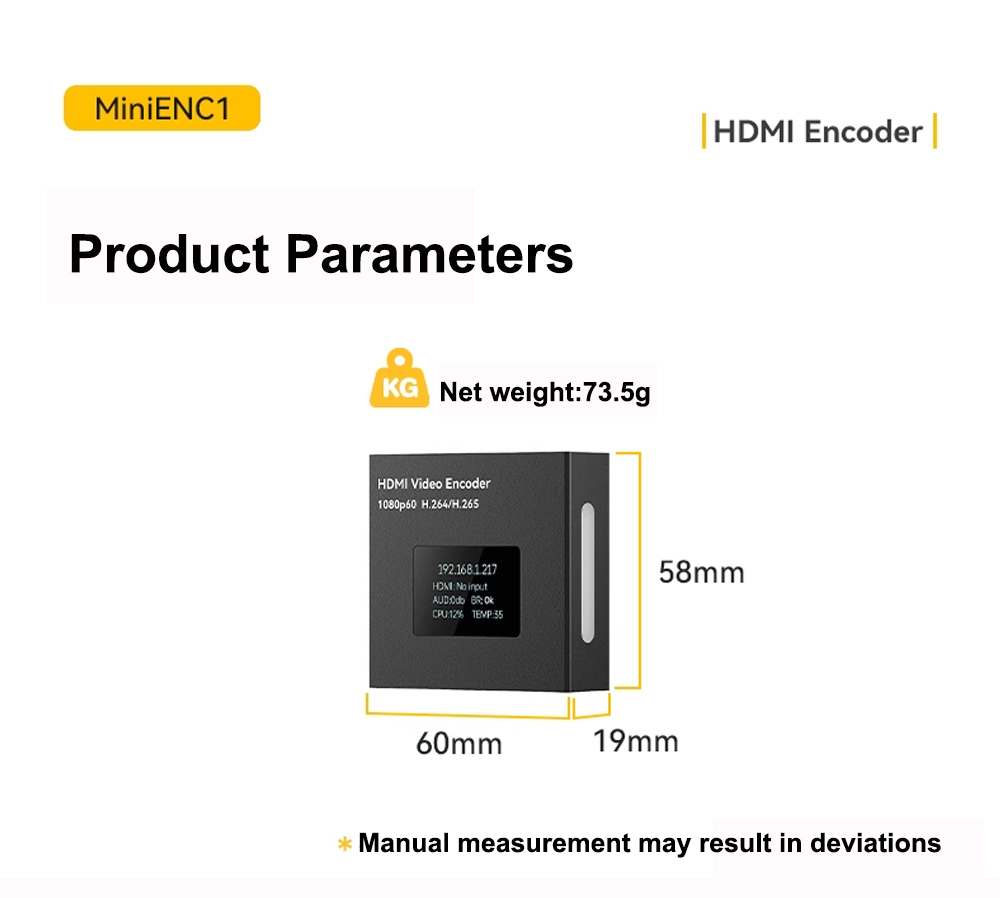

Specification

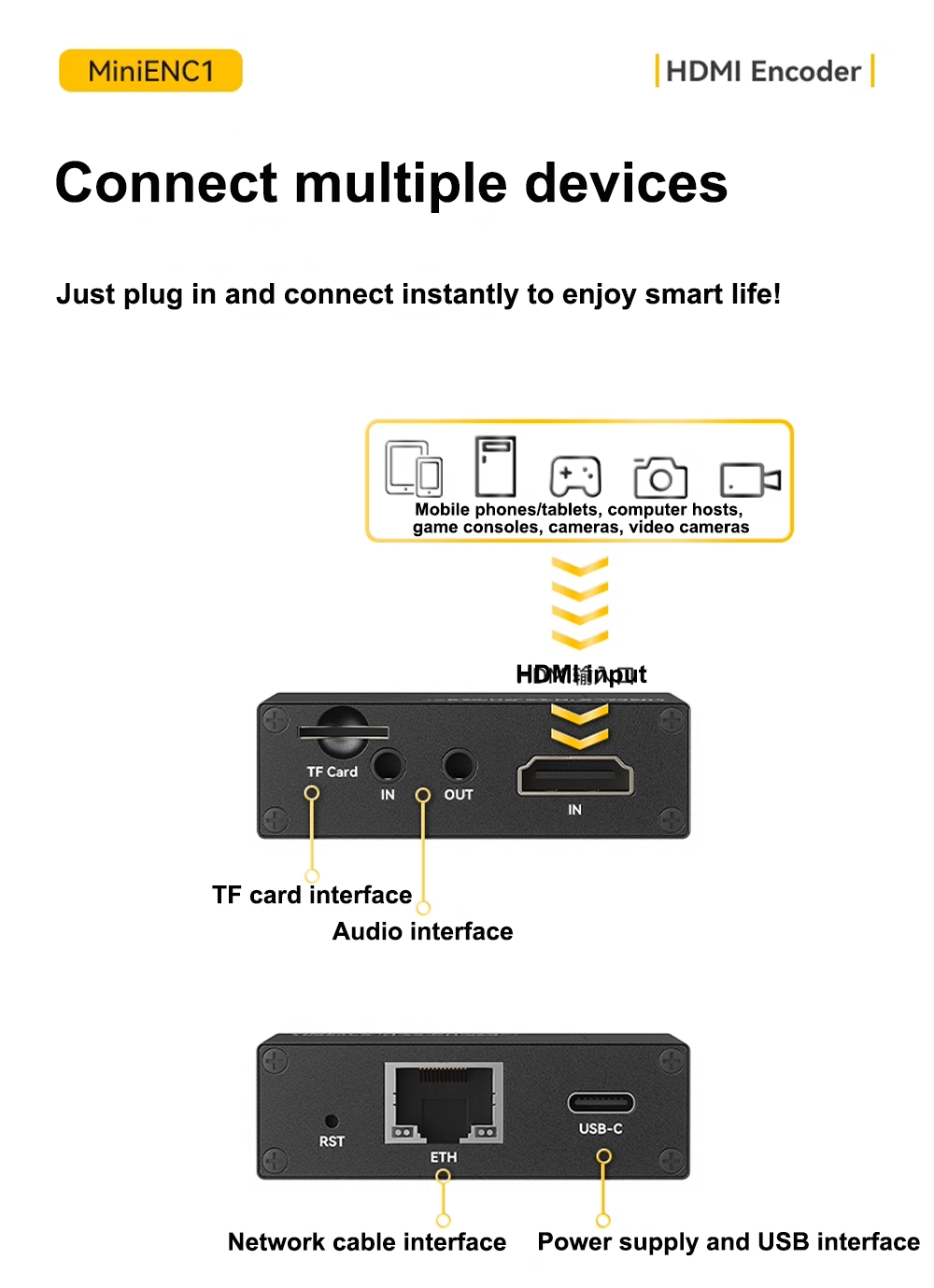

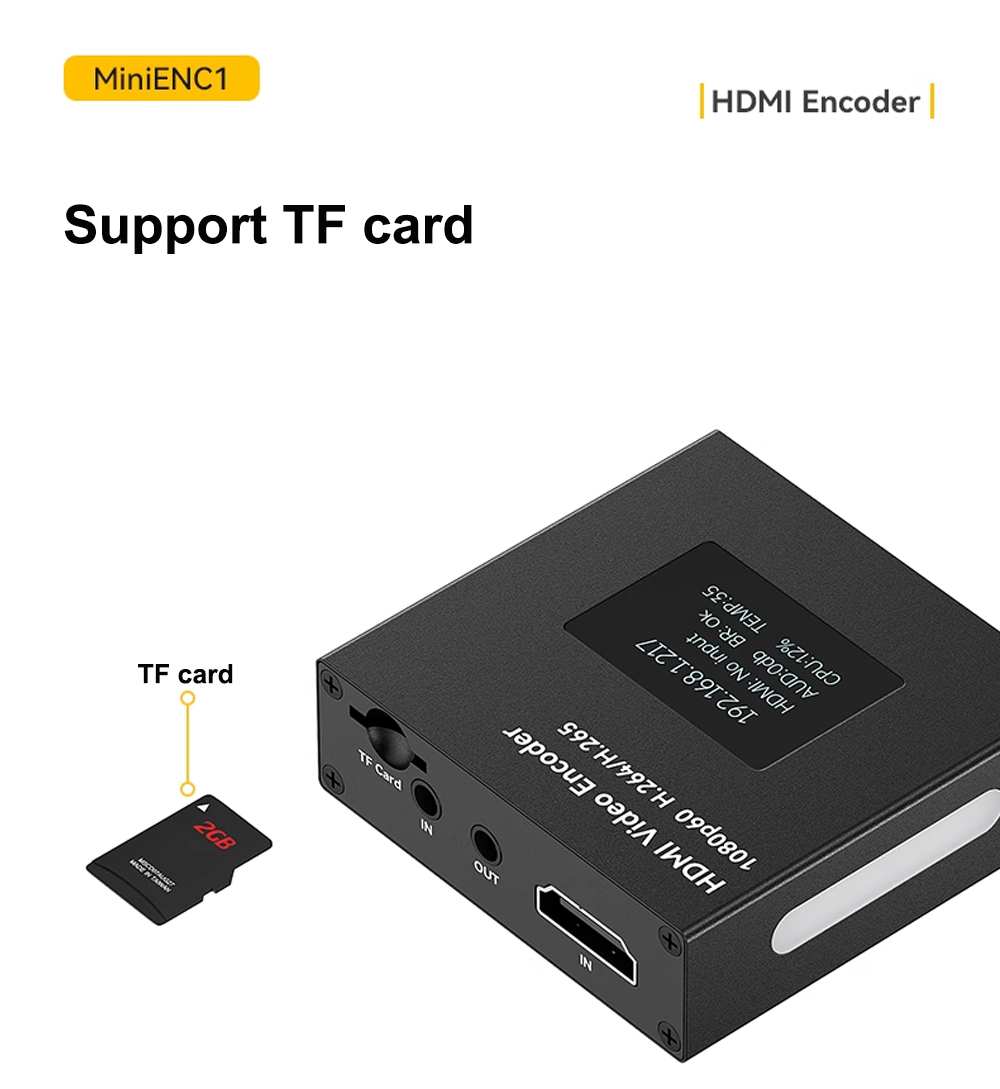

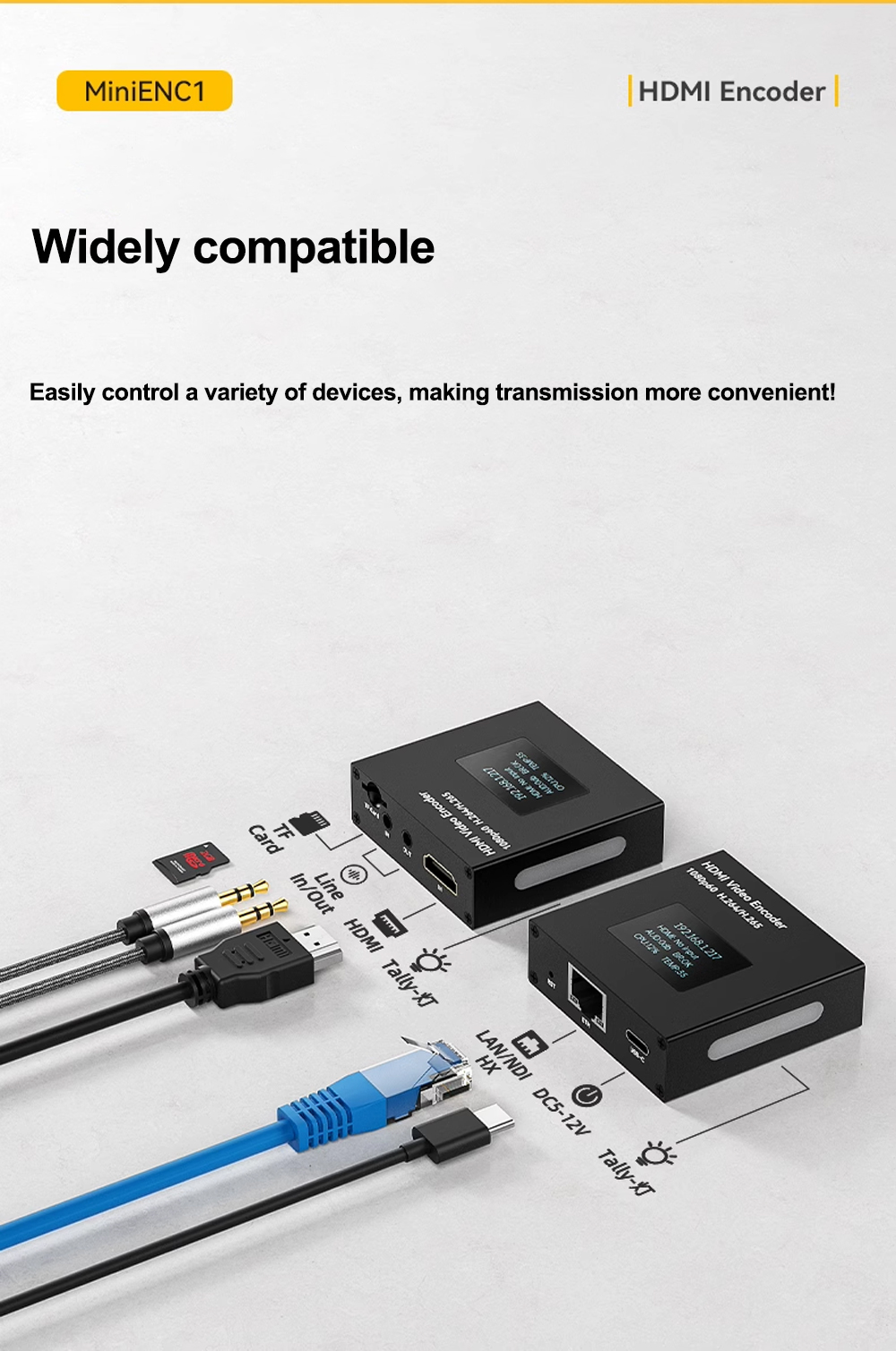

Hardware Interface: HDMI (4K@30), TF Card Slot, Tally Light, 100M RJ45, Line In/Out. Support Hot Shoe, DIN mount.

Detailed Descriptions
