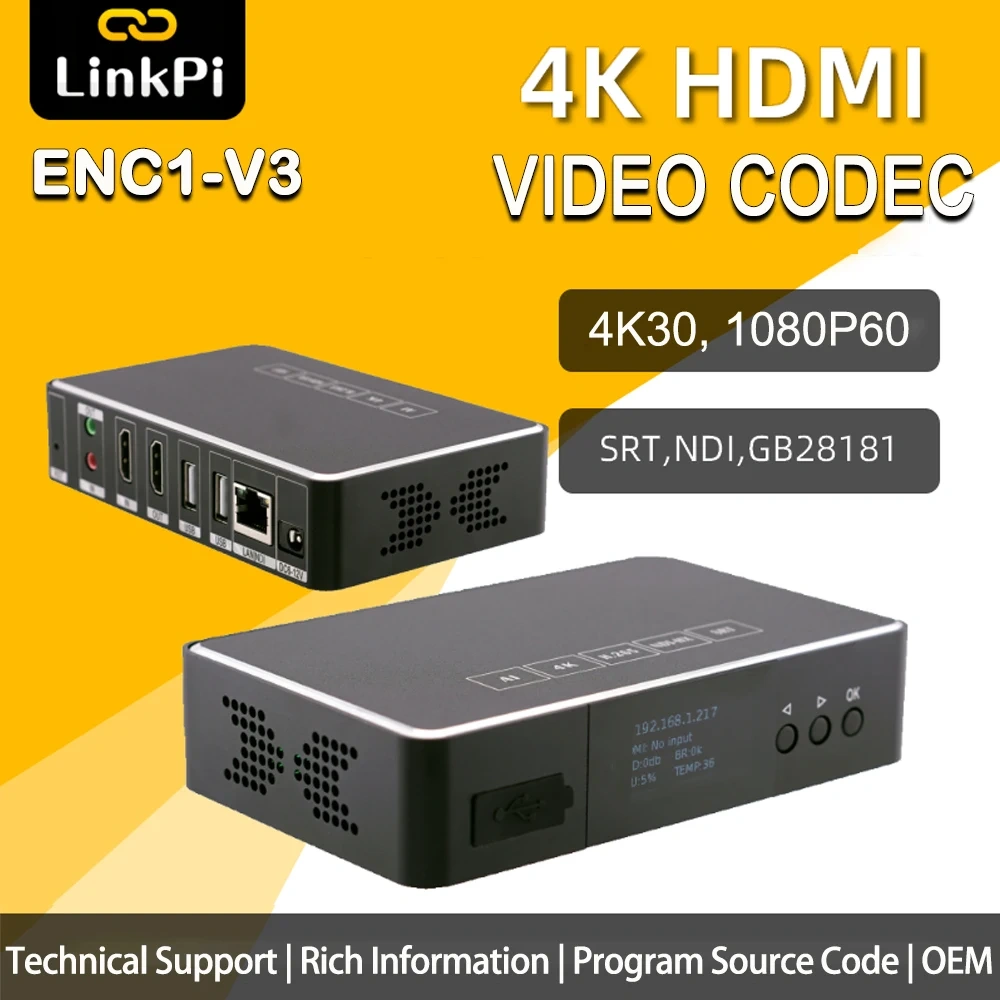

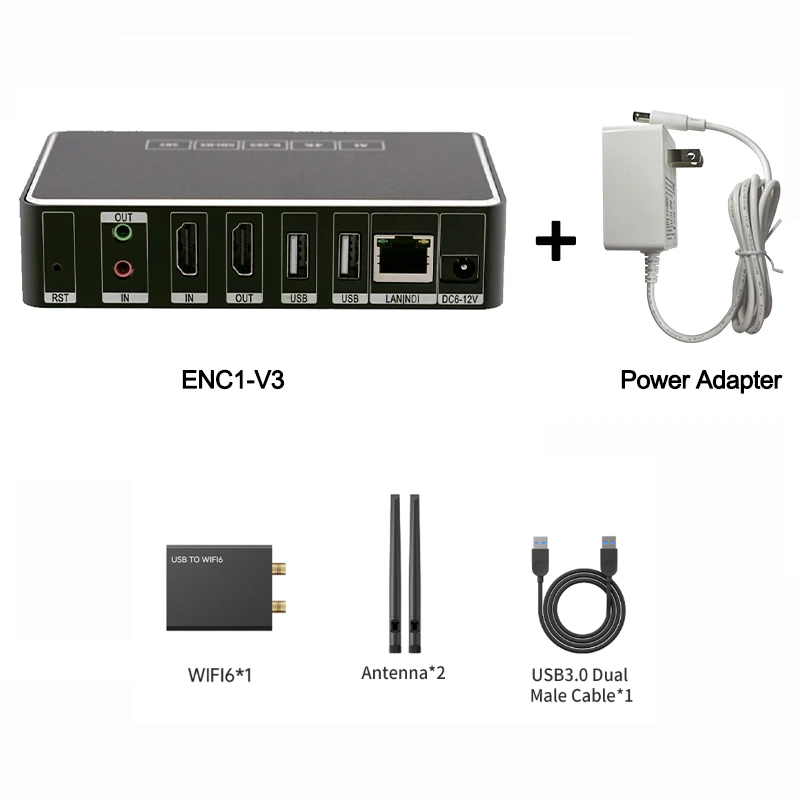

LinkPi ENC1-V3 NDI Encoder - ENC1 V2 upgraded version, RTSP/RTMP/HTTP/HLS

Name: LinkPi ENC1-V3 NDI Encoder - ENC1 V2 upgraded version, RTSP/RTMP/HTTP/HLS
Brand: youyeetoo geeker shop
SKU: LPDP0ENC1V3
Price: 110 USD
Availability: InStock

SKU: LPDP0ENC1V3

Features:
- CPU:ARM Cortex A7 quad-core @1.2GHz32KB I-Cache, 32KB D-Cache Memory: 2GB DDR4 Flash:8GB eMMC
- 4KP30 RTSP/RTMP/HTTP/HLS
- Ultra HD input/multi-protocol live streaming
- Support NDI, SRT High compression rate
- Advanced Features Works with vMix and other software H.265+smartP Watermark Subtitle/Video Mixing/Interface Definition

0.0 (0 Reviews)

~~$120.00~~ $110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
Reviews

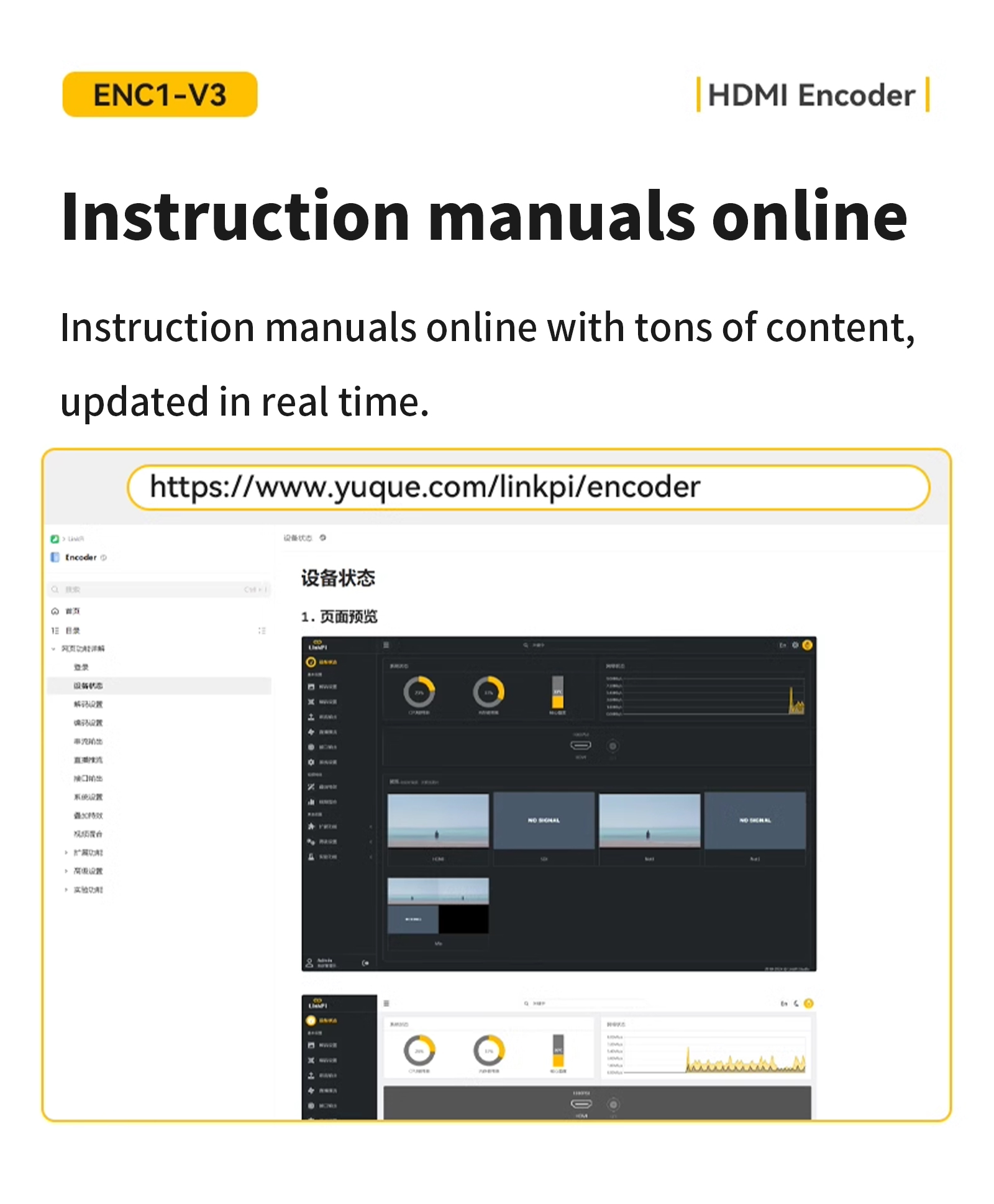

WIKI: https://wiki.youyeetoo.com/en/LinkPi
FAQ How to activate an NDI licence

NDI Licensing: https://www.youyeetoo.com/products/ndi-full-function-authorization-for-link-pi-products

Tips:

After purchasing, please back up the NDI authorization code, one code per machine to avoid loss.
You can also use NDI DEMO without purchasing an NDI license. It can be used for 30 minutes after startup, and the screen will be black after 30 minutes, and it can be used again for 30 minutes after restarting. But this only affects NDI, not other protocols (such as SRT, RTMP, RTSP, HTTP, UDP, etc.).

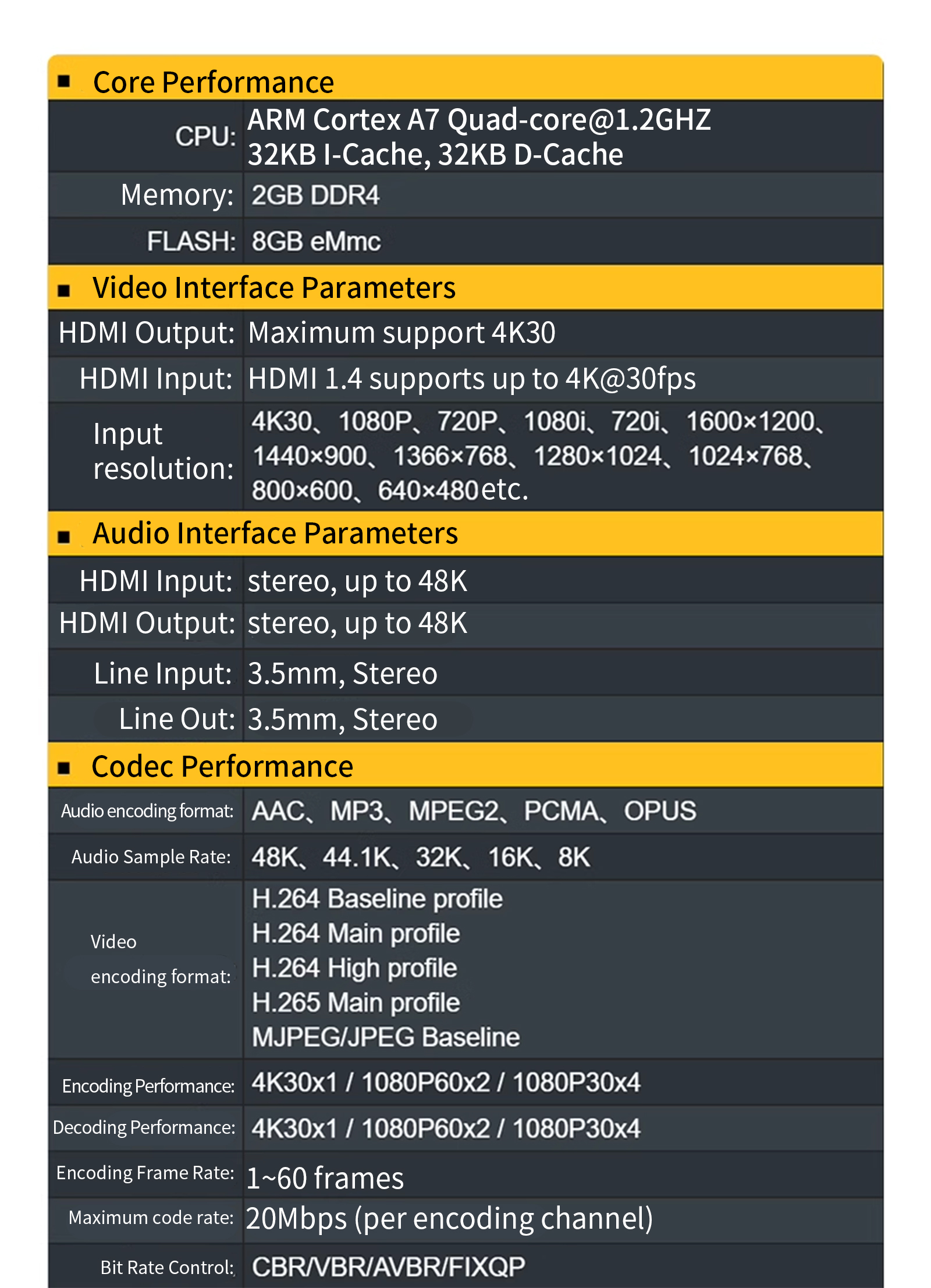

Core performance
CPU	ARM Cortex A7 [email protected] 32KB l-Cache, 32KB D-Cache
RAM	2GB DDR4
FLASH	8GB eMMC

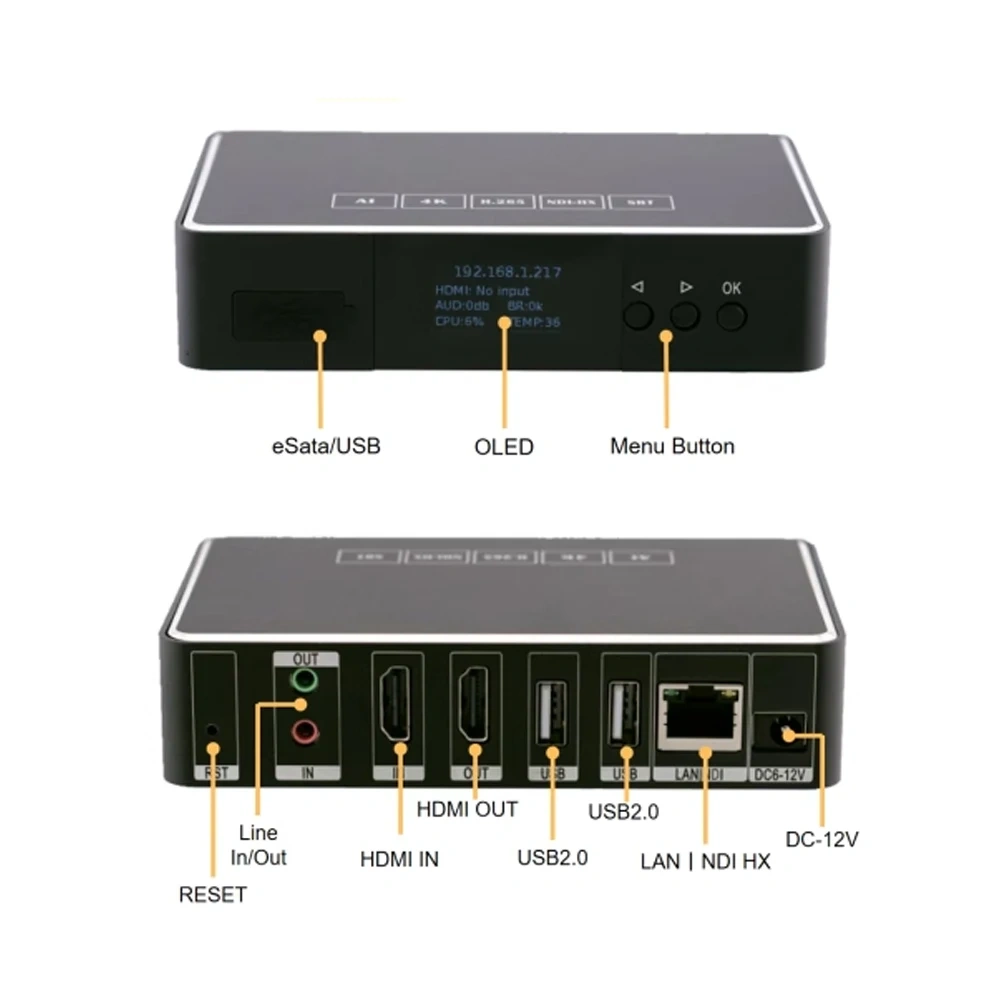

Video parameters
HDMI IN	HDMI 1.4 supports up to 4K@30fps
HDMI OUT	upports up to 4K60
Resolution	4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768, 1280×1024, 1024×768, 800×600, 640x480
Encode	H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile MJPEG/JPEG Baseline
Decode	H264, H264, MJPEG
Encode Main	4K, 1080P, 720P, 360P
Resolution	Sub: 720P, 360P
Framerate	1~60 adjustable
Multiple reference frames	Support SmartP, DualP
Max Bitrate	20Mbps
Bit rate control	CBR/VBR/AVBR/FIXQP/QPMAP

Audio parameters
lnput	HDMI, 3.5mm Line-In, audio can be used at the same time
Output	HDMI, 3.5mm Line-Out, audio can be used at the same time
Sampling rate	48K, 44.1K, 32K, 16K, 8K
Encoding format	AAC, MP3, MPEG2, PMCA, PMCU

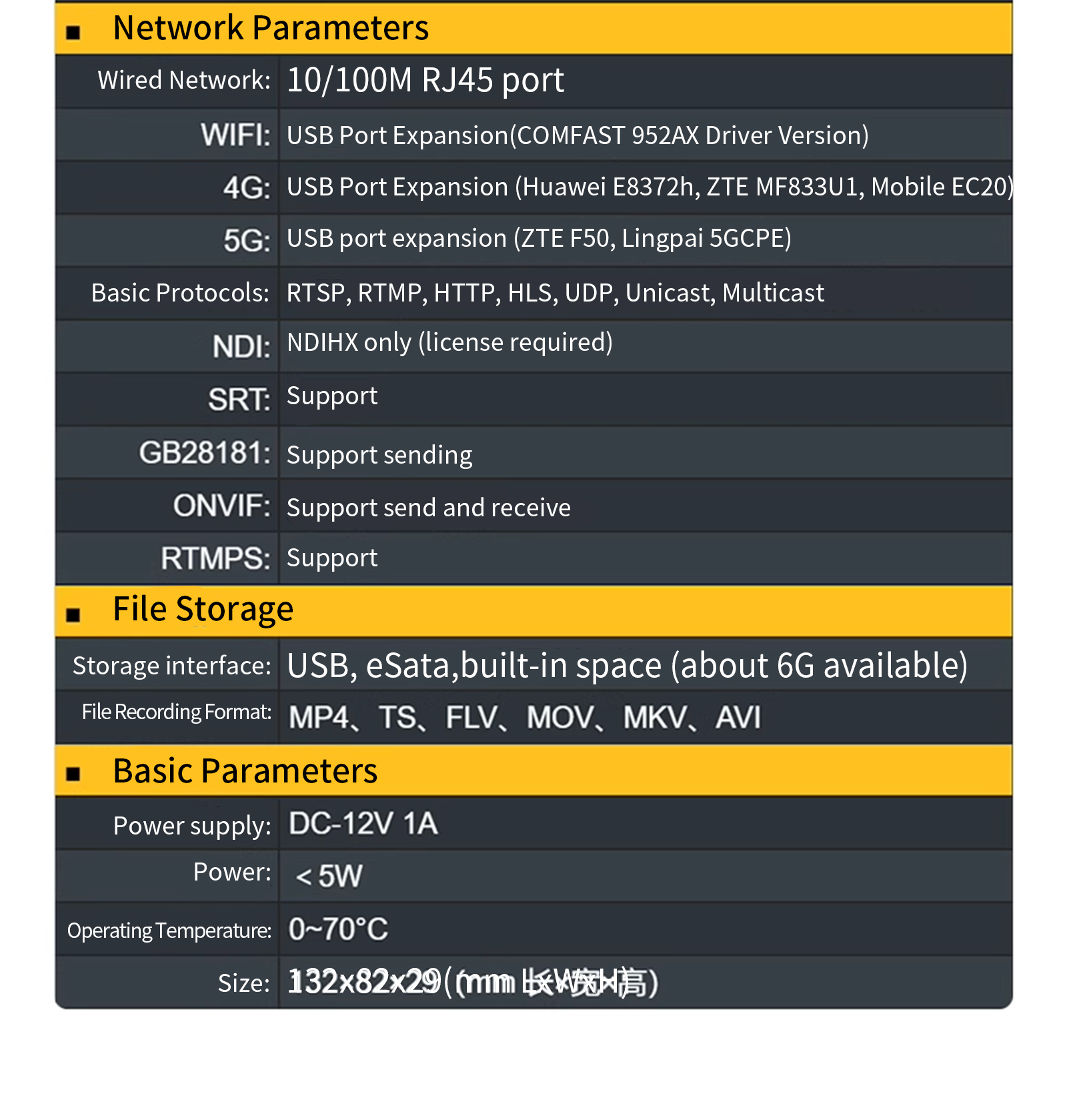

Network parameters
Wired interface	10/100MRJ45 network port

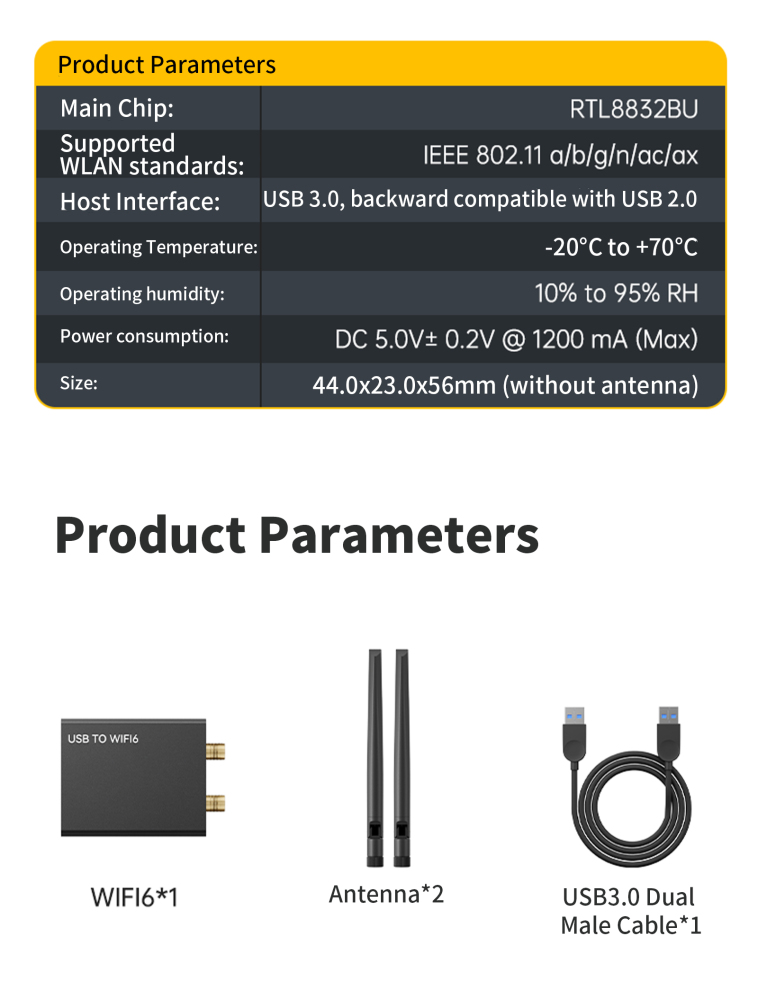

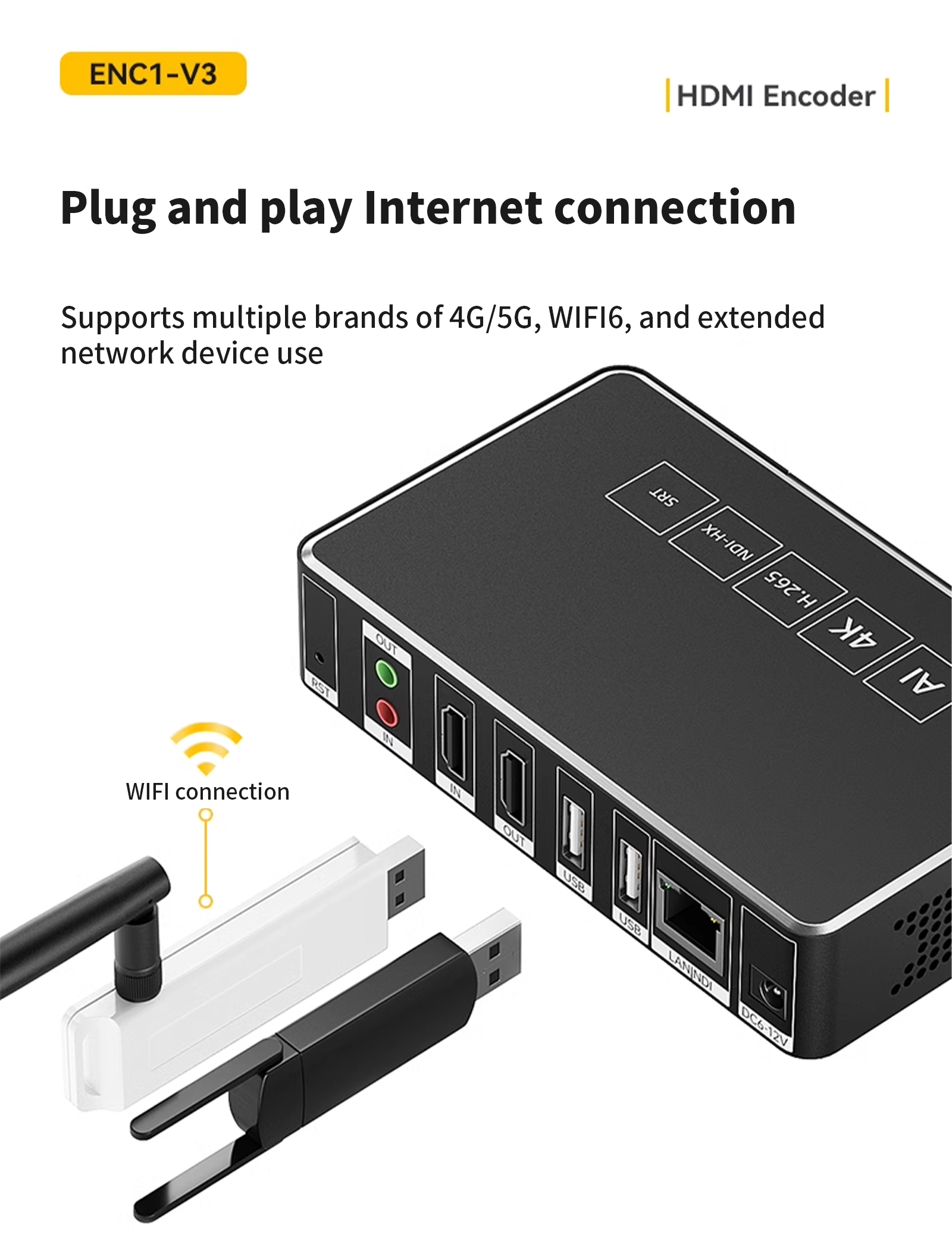

WIFI	Optional external wifi module

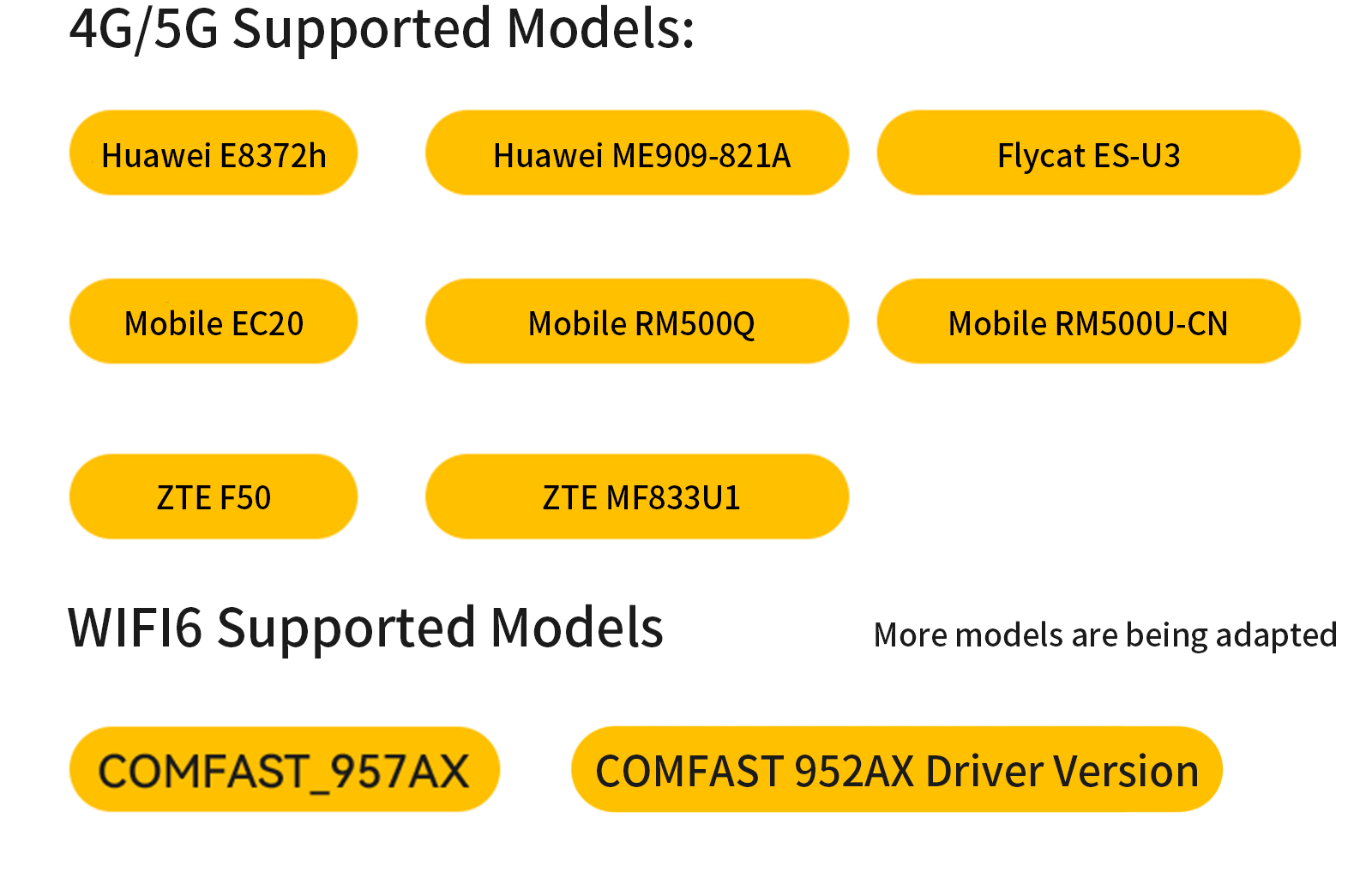

4G/5G	Support (Huawei E8372, LinkPi 5GCPE)

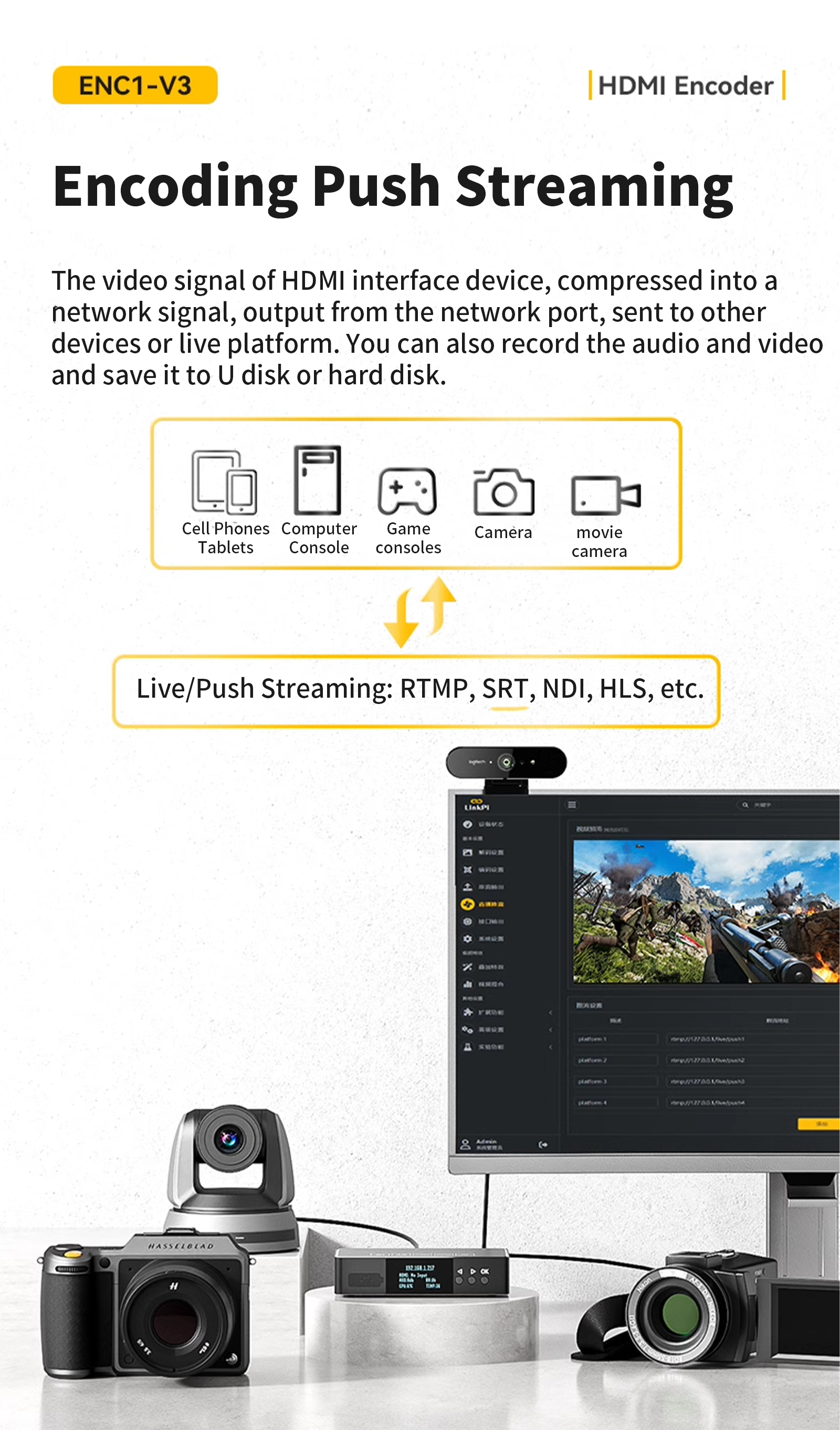

Protocols	RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast
ONVIF	Support
SRT	Support
NDI	Support
GB28181	Support
File storage
Storage	U disk
Record format	MP4, TS, FLV, MOV, MKV, AVI
Basic parameters
Adapter	DC-12V 1A
Power	<5w

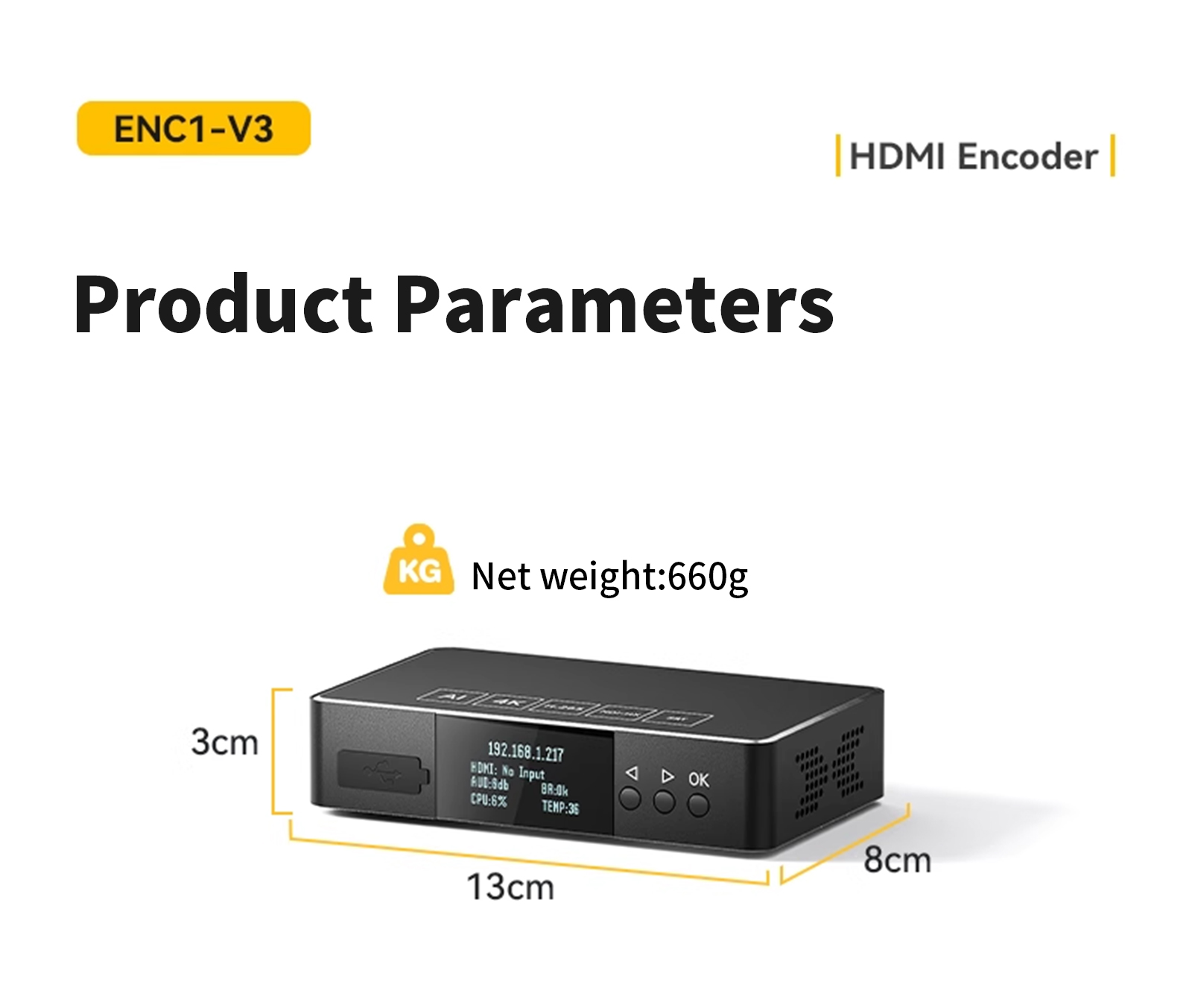

Size	132×82x29 ( mm L×W×H)
Working temperature	0~70°C
Software features

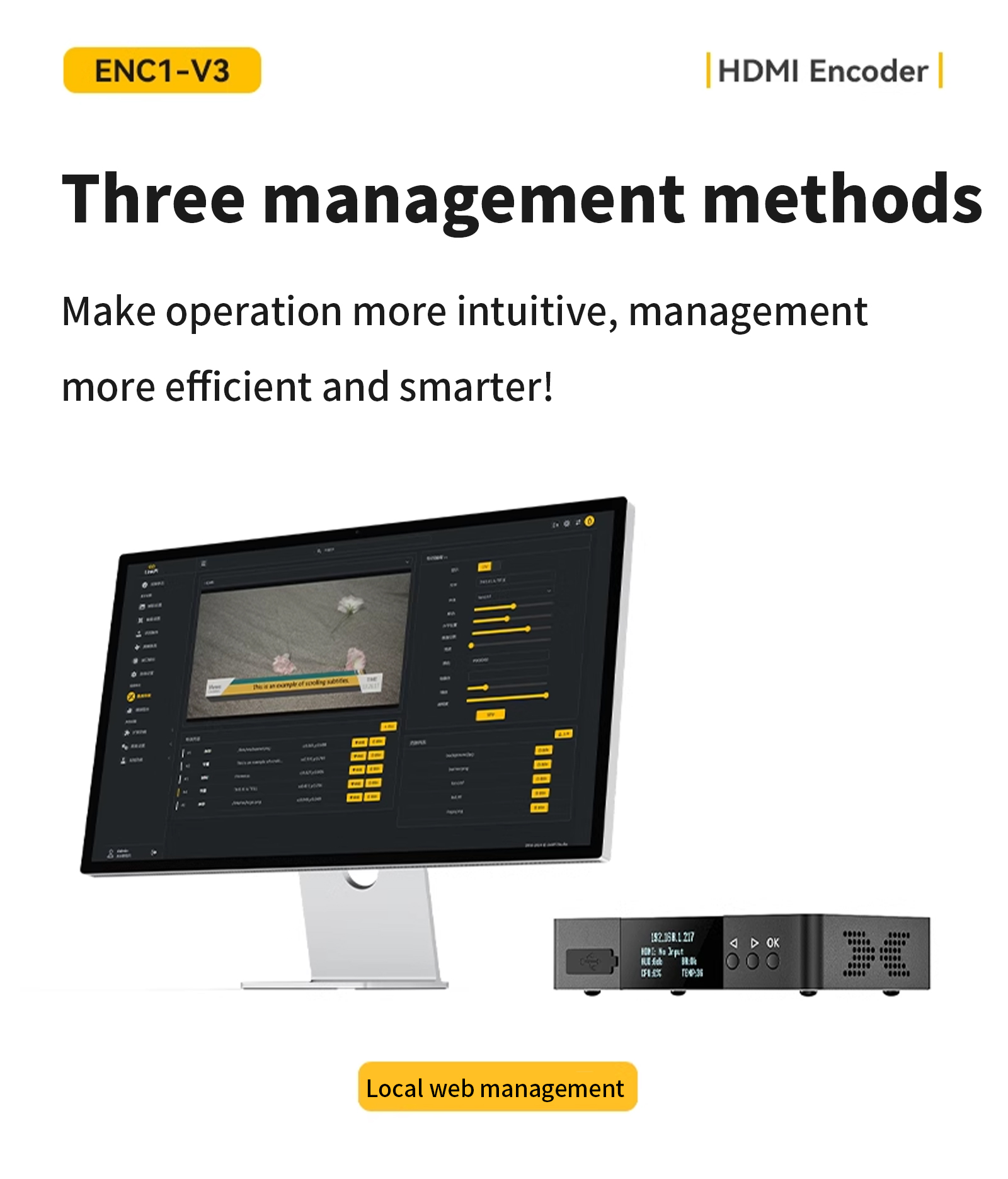

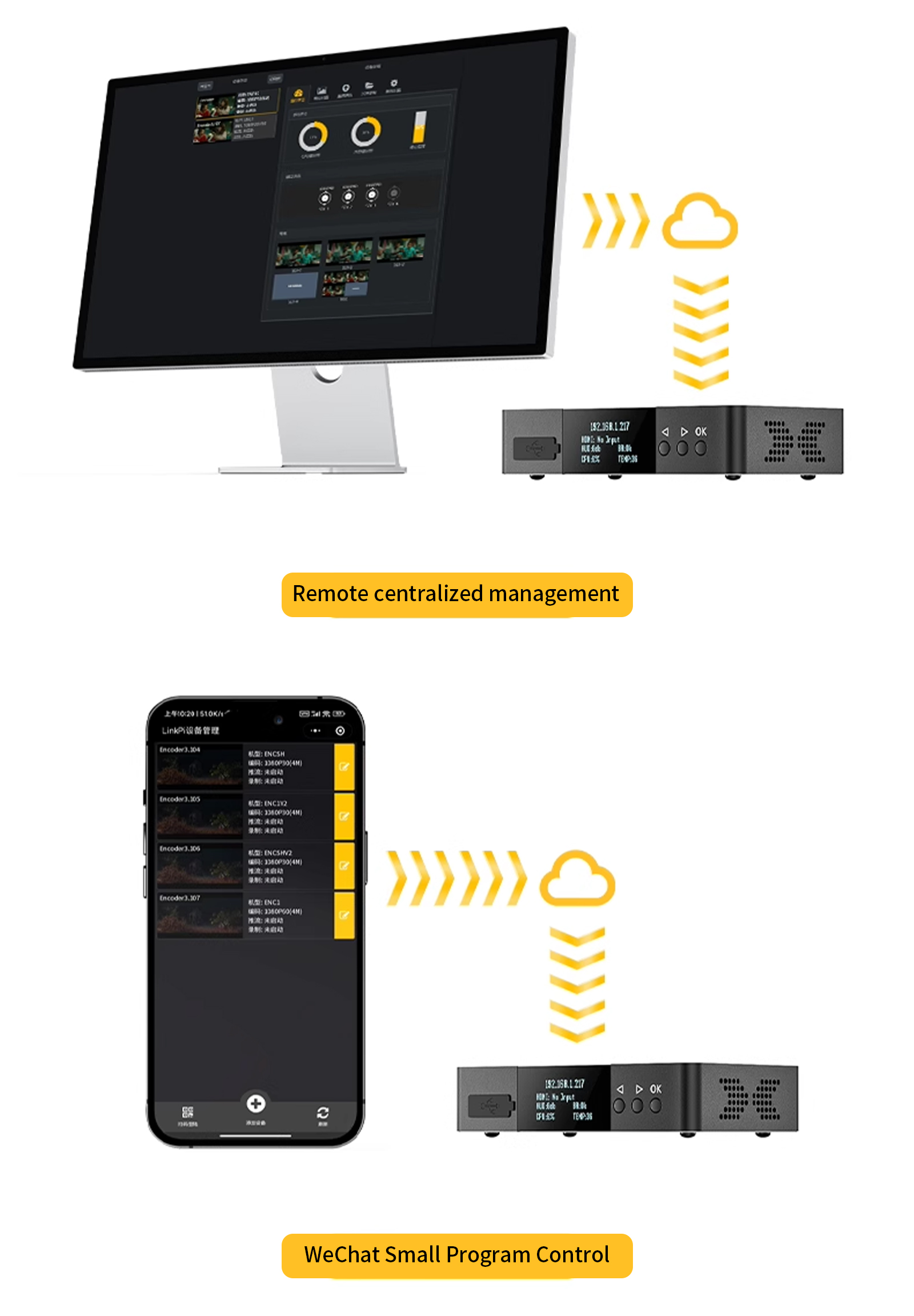

Basic functions	WEB configuration, parameter hot update, firmware upgrade, network setting, password management

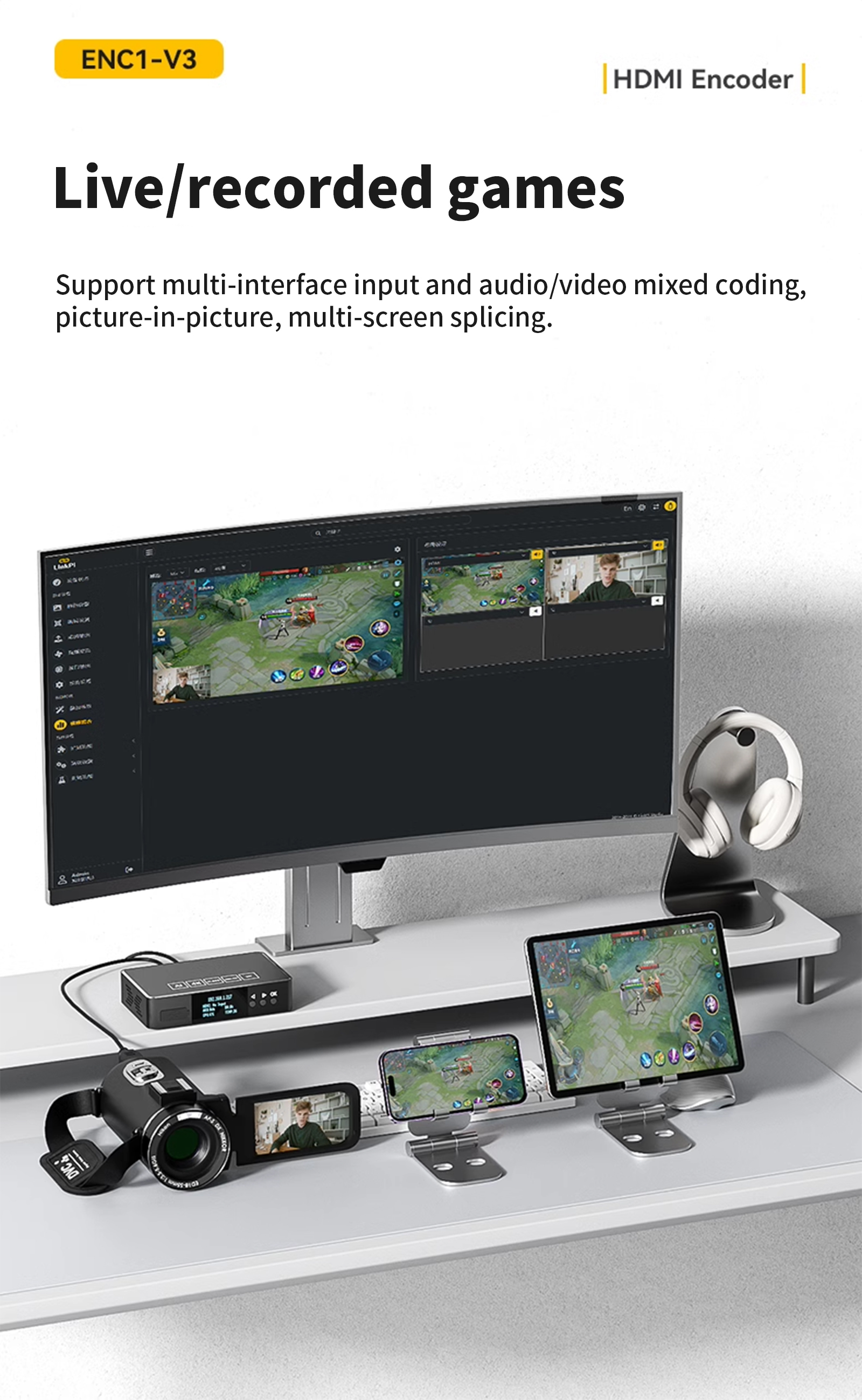

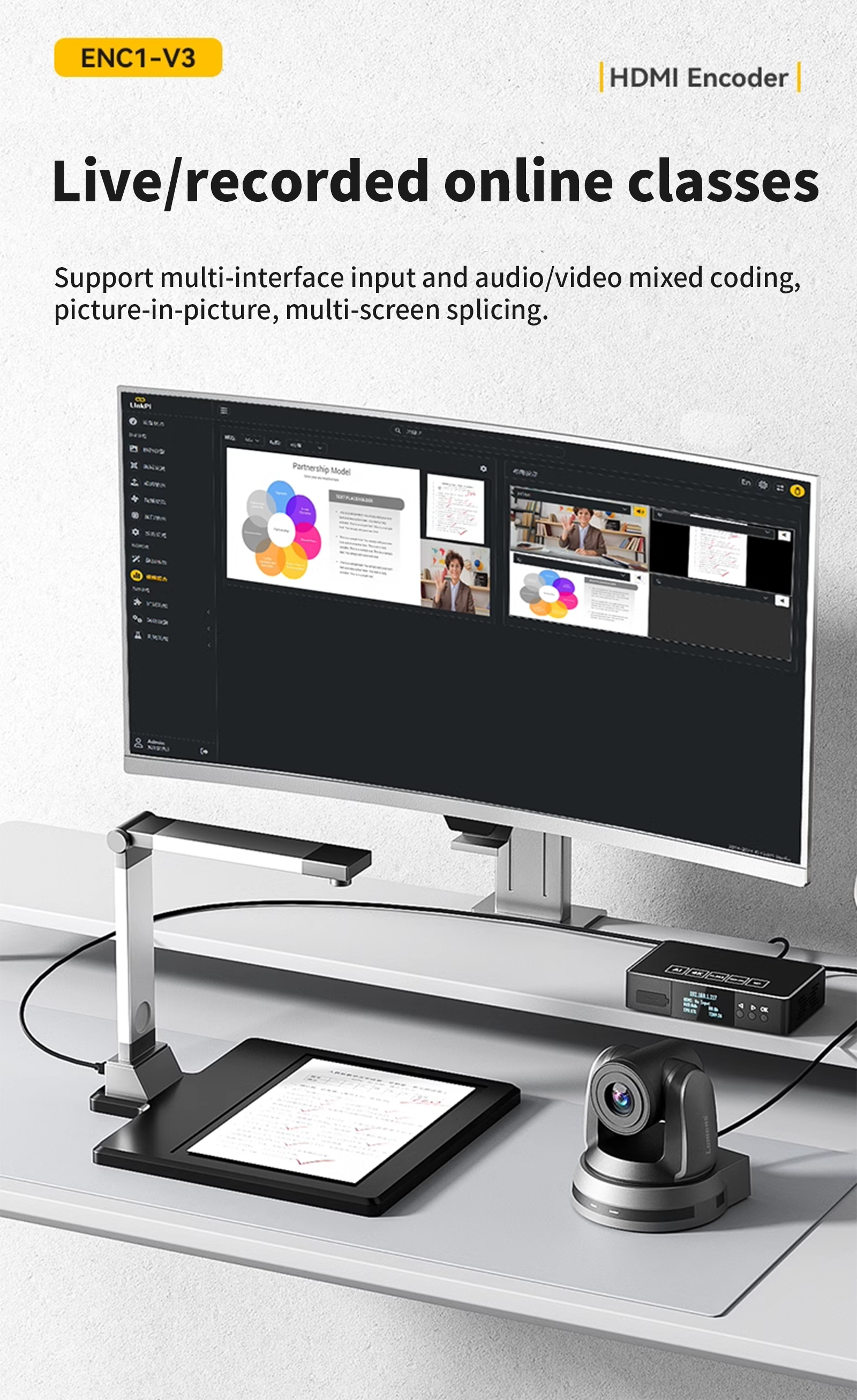

Video mixing	Picture-in-picture, 4-split screen, 9-split screen, custom
Special effect overlay	Logo, watermark, subtitle, scrolling subtitle, mosaic, time stamp
Resource management	Custom fonts, upload watermark Logo pictures
