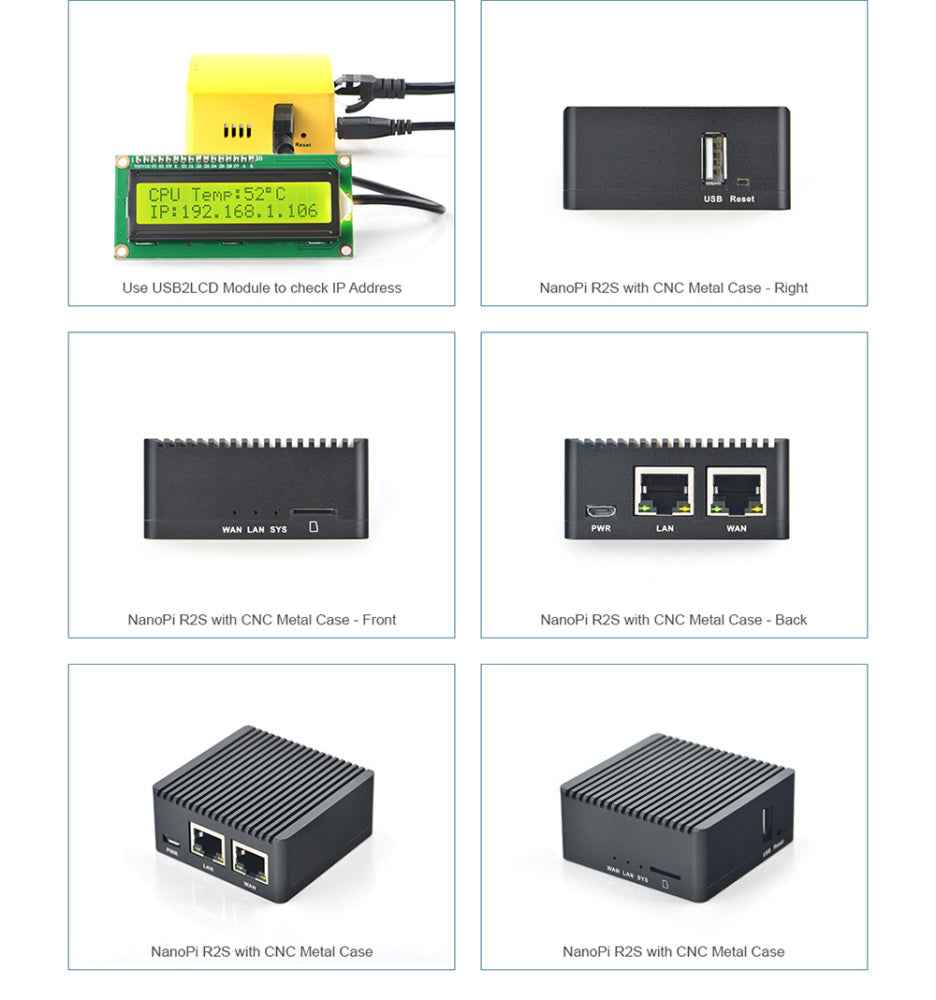

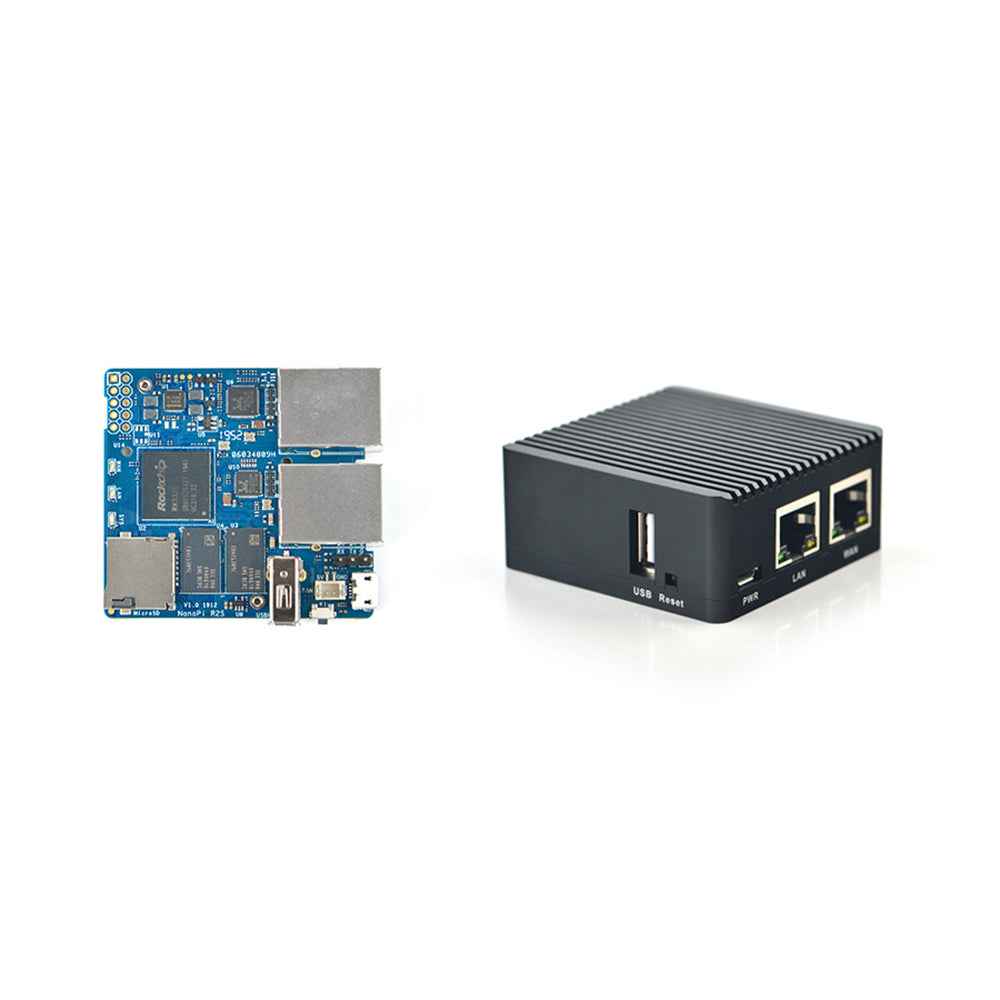

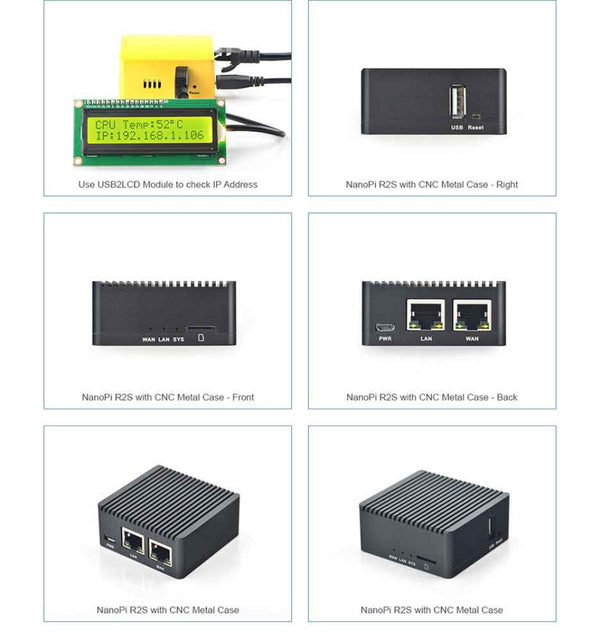

youyeetoo NanoPi R2S Mini Router, Support OpenWrt Linux With CNC Metal Case, Dual Gigabit Port

Note: The R2S is a new verson that uses a USB-C connecto

WIKI:http://wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S#Introduction

Introduction

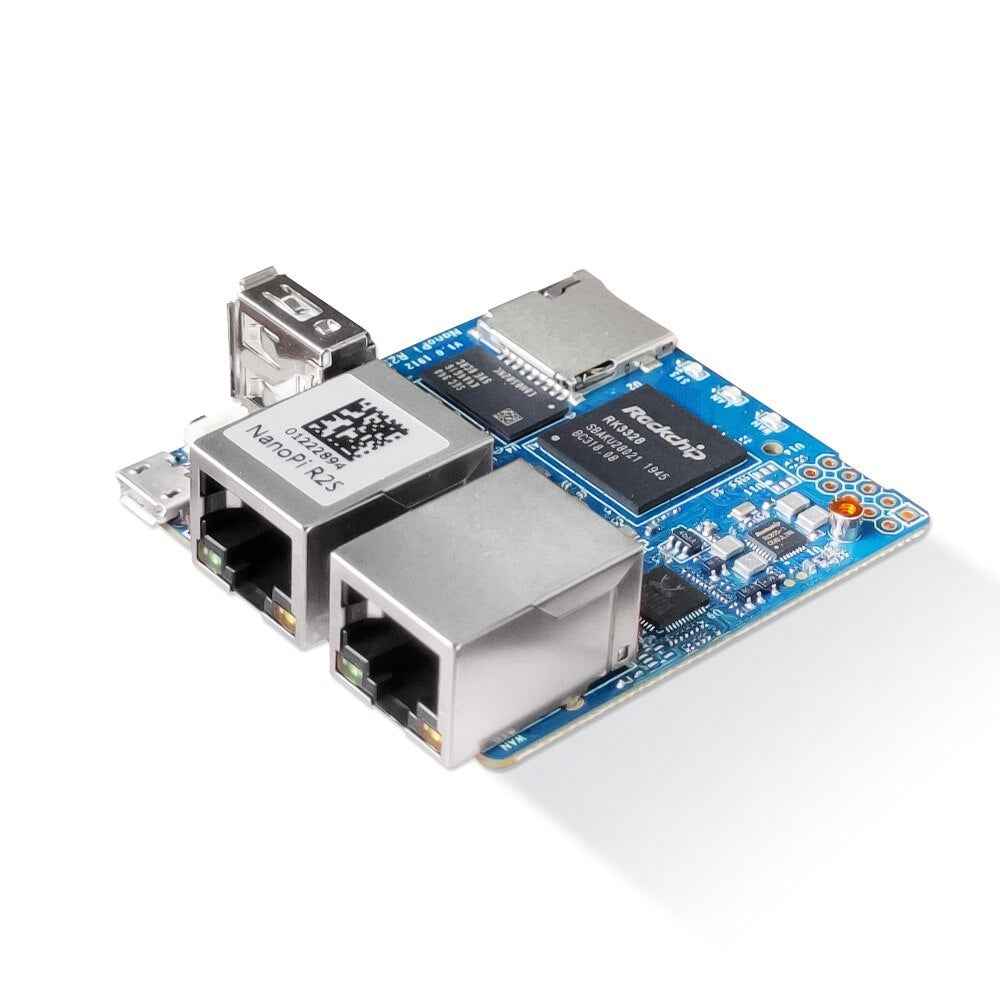

• The NanoPi R2S(as "R2S") is an open-source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.

• The NanoPi R2S uses the RK3328 SoC. It has two Gbps Ethernet ports and 1G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gate ways, etc.

Hardware Spec

• CPU: Rockchip RK3328, Quad-core Cortex-A53

• DDR4 RAM: 1GB

• Network:

  • Internal 10/100/1000M Ethernet Port x 1

  • USB3.0 converted 10/100/1000M Ethernet Port x 1

• USB2.0 Host: Type-A x1

• MicroSD Slot x 1

• MicroUSB: power input and USB Slave

• Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector

• LED: LED x 3

• KEY: KEY x 1 programmable

• PC Size: 55.6 x 52mm

• Power Supply: DC 5V/2A

• Temperature measuring range: 0℃ to 80℃

• OS/Software: U-boot,Ubuntu-Core,OpenWrt

• Network Transmission Rates

	TX	RX
WAN	941 Mbps	941 Mbps
LAN	941 Mbps	941 Mbps
Notes：	​ 1. test utility: iperf  ​2. use indepedent IP address section and test with a PC in simplex communication mode

​

CPU	Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.3GHz
Memory	RAM: 1GB DDR4
Storage	MicroSD Slot: MicroSD x1 for external storage up to 128GB
Connectivity	Ethernet: Gbps Ethernet x1 USB 3.0 to Gbps Ethernet x1
USB	USB 2.0 Host x1: USB Type A USB-C x1: Power input(5V/2A) and Slave
Pin-header	Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
LED	SYS LED(Red) x1 WAN LED(Green) x1 LAN LED(Green) x1
Button	User button x1
Working Temperature	0℃ to 80℃
Power	DC 5V/2A

OS Support

FriendlyWrt 21.02.1 (64-bit) FriendlyCore Focal Lite (Base on Ubuntu 20.04)

PCB	6 Layer
Weight	150g（With Case)
Dimension	55.6x52 mm
