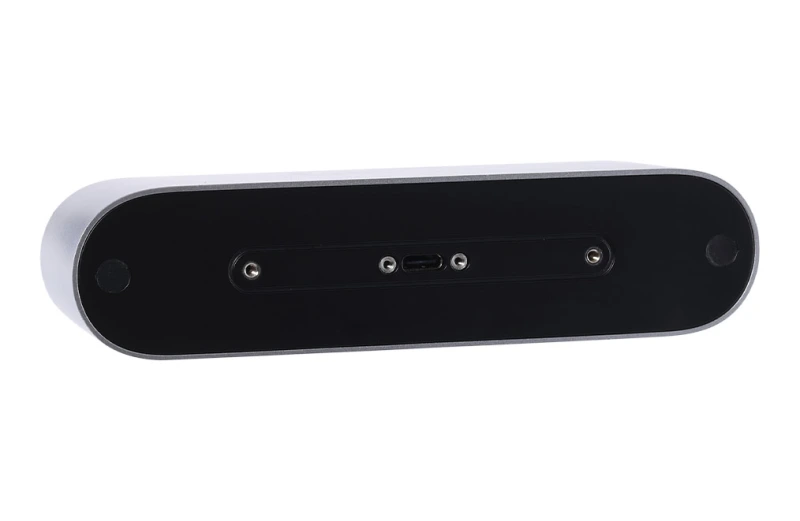

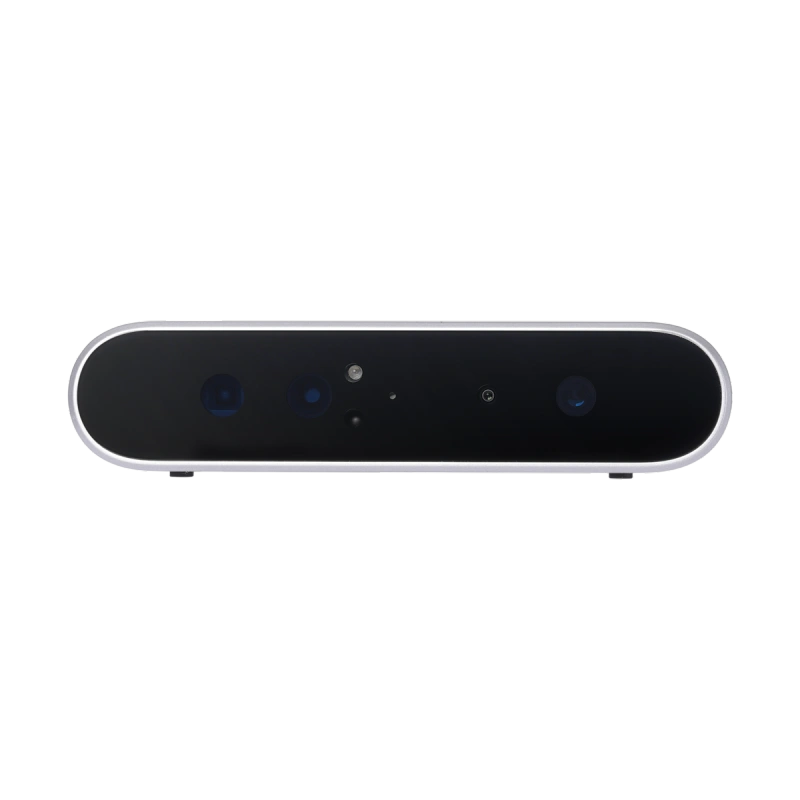

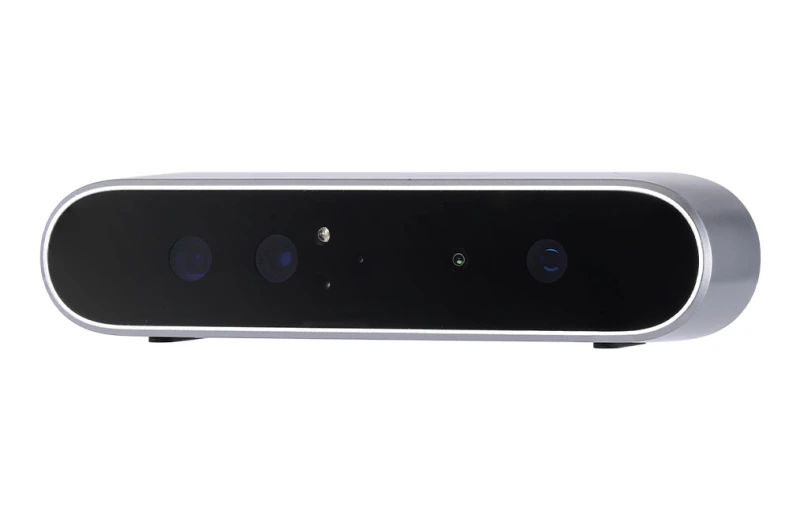

ORBBEC ASTRA 2 Depth Camera

• Quick Start:https://www.orbbec.com/developers/orbbec-sdk/
• Tips

Introduction

The upgraded Astra 2 3D camera, released in 2023, is the successor to the widely used Astra series products. The camera is based on structured light technology and has been upgraded with the latest Orbbec’s custom ASIC for high quality depth processing, IMU and multi-camera sync. The Orbbec SDK makes it easy to set up and deliver extremely accurate and reliable data for in-door operation.

Features

• Depth data output: 0.6m to 8m
• Up to 30 frames/s at 1600x1200 depth resolution
• Up to 30fps at 1920x1080 depth resolution
• Multi-camera synchronization
• IMU support

Shipping List

ASTRA 2 x1

Applications

Specification

Product Name

Astra 2

Depth Range

0.6m – 8m

Depth FOV

58.2°H x 45.2°V

Depth Resolution/FPS

Up to 1600 x 1200 @30fps

RGB FOV

74.7°H x 46.2°V

RGB Resolution/FPS

Up to 1920 x 1080 @30fps

Dimensions (W*H*D)

144.5mm x 45.3mm x 38.6mm

Temperature

0 – 35°C；10%-95%RH (non-condensing)

Power Input

USB 3.0 Type-C

Power Consumption

Average < 3 W

Data Output

Point Cloud，Depth Map, IR & RGB

SDK

Orbbec SDK

Weight

241g
