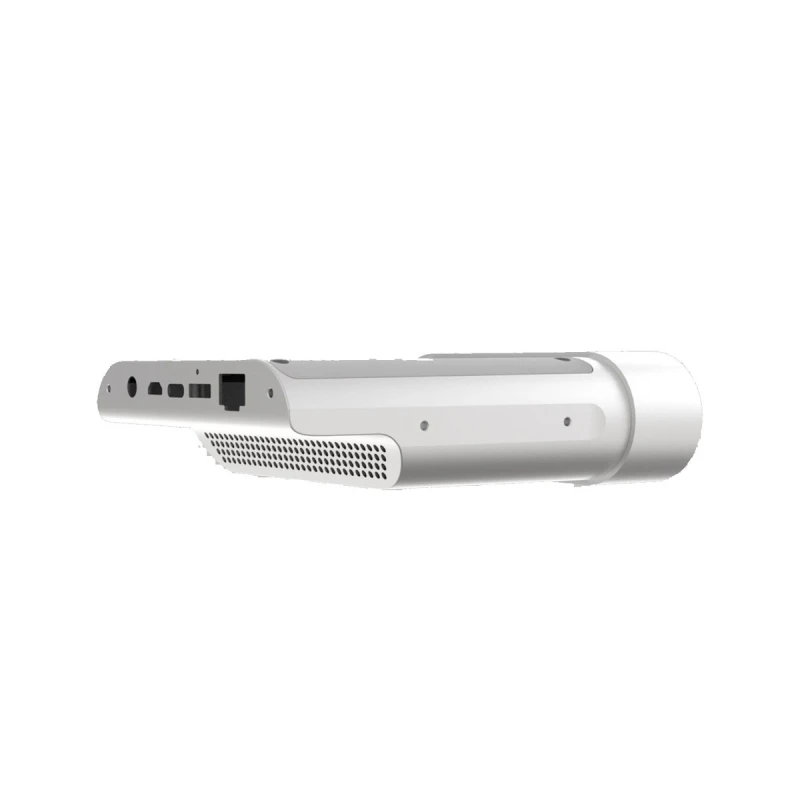

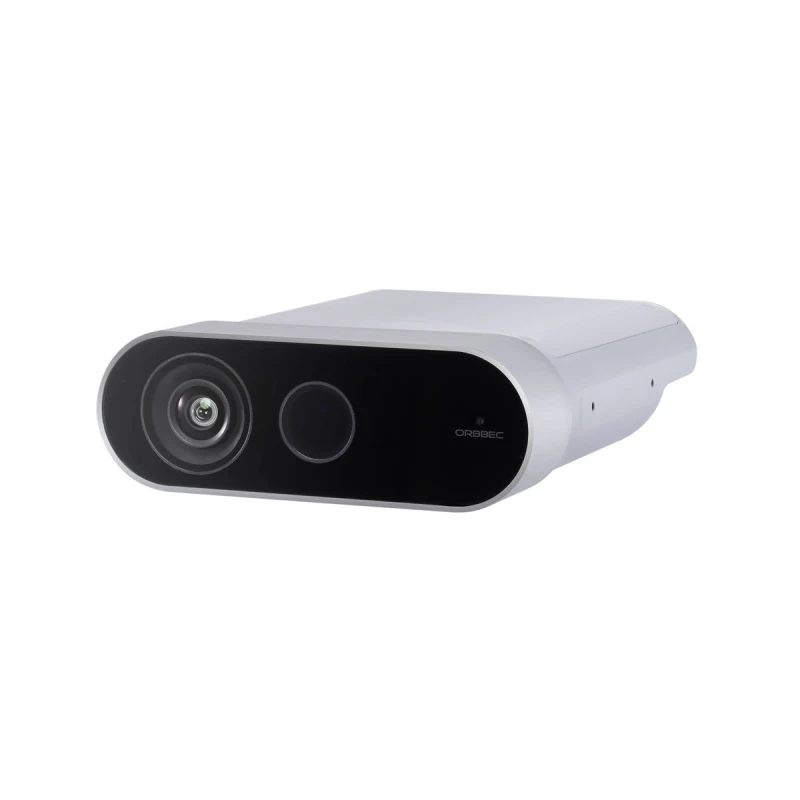

Femto Mega

Femto Mega is a programmable multi-mode Depth and RGB camera with real-time streaming of processed images over Ethernet or USB connections. The camera uses Microsoft’s industry-proven ToF technology and the NVIDIA  Jetson platform to deliver a software-defined Depth and RGB vision platform for computer vision and AI developers.

Performance

High-resolution sensor provides detailed scene understanding.
A Wide Field of View covers a large area.
Various operating modes for different applications.

Programmability

In-camera processing of advanced depth vision algorithms.
Integrated NVIDIA Jetson Nano system-on-module for AI processing can remove need for dedicated compute.
Orbbec SDK enables easy setup and has a rich set of APIs for integration with various applications.

Packaging

1. Depth and RGB cameras in a single device.
2. Combined data and power with Power over Ethernet (PoE) or USB-C 3.1 connections eliminate the need for multiple cables.
3. Can be directly connected to servers or the cloud as an IoT device. Precise synchronization control uses standard ethernet cables

Technical Specs

Product Name

Femto Mega

Certifications

Class 1, FCC, RoHS 2.0, CE

Accuracy

< 11 mm + 0.1% distance

Depth FOV

NFoV unbinned & binned: H 75° V 65°
WFoV unbinned & binned: H 120° V 120°

RGB FOV

H 80° V 51° D 89°

RGB Resolution Framerate

3840x2160 @Up to 25 FPS
1920x1080 @Up to 30 FPS

Depth Resolution Framerate

WFOV unbinned 1024x1024 @Up to 15 FPS
WFOV 2x2 binned 512x512 @Up to 30 FPS
NFOV unbinned 640x576 @Up to 30 FPS
NFOV 2x2 binned 320x288 @Up to 30 FPS

Range

WFOV unbinned 0.5-3.86m
WFOV 2x2 binned 0.5-5.46m
NFOV unbinned 0.25-2.88m
NFOV 2x2 binned 0.25-2.21m

Processor

Nvidia Jetson Nano

Operating Systems

Windows/ Linux

SDK

Orbbec SDK

Temperature

10-25°C

Data Transfer

USB 3.0 Ethernet

Average Power Consumption

DC: 11W
POE: 13W

IMU

6DoF

Sync

8-Pin Connector

Power Supply

USB Type C;
Power Adapter 5V/3A;
PoE
