Orbbec Gemini 2L Depth Camera - 101° FoV, USB 3.0, IR?



Introduction

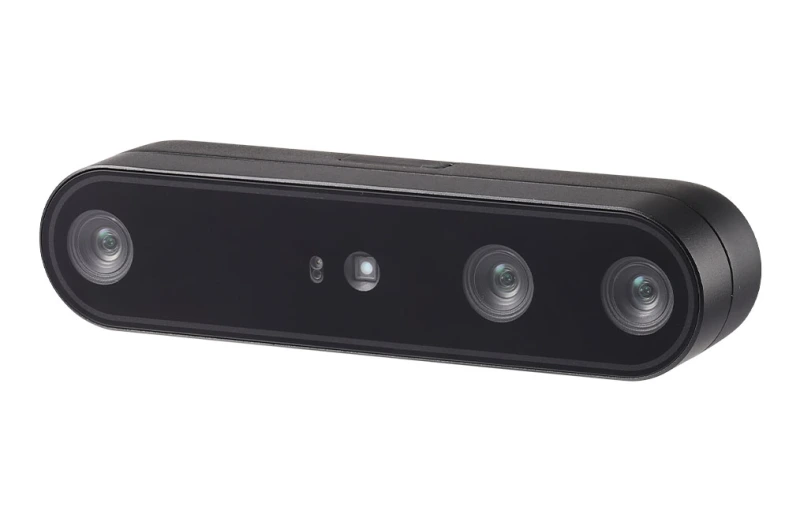

The Orbbec Gemini 2L is based on active stereo IR technology with a baseline of 100mm and is equipped with Orbbec’s latest custom ASIC for high-quality depth processing. It has a depth Field of View (FoV) of up to 101° diagonally and operates with single cable USB 3.0 for power and connectivity. The camera also has a proximity sensor for close distance single point ranging, which eliminates any blind spot in-depth measurements within the entire 0-10m range. An internal IMU enables motion and position tracking.?

Gemini 2 is easy to set up and operate with the Orbbec SDK, and the camera delivers extremely accurate and reliable data in various lighting conditions from pitch black to semi-outdoor.?


Features


  • Global shutter for RGB and lR cameras
  • Wide Field of View at 9l° Horizontal and 66° Vertical
  • High quality depth data output from 0.25m to 10m
  • Up to 30 fps at 1280x800 depth resolution
  • USB Type-C for power and data connectivity
  • IMU supported
  • Multi-camera synchronization

Shipping List


Orbbec Gemini 2L Depth Camera x1

Applications




Specification



Product Name Gemini 2 L
Technology Active Stereo IR
Wavelength 850nm
Depth Range 0.2 - 10m
Depth Resolution/FPS Up to 1280x800@60FPS
Depth FOV ?H91° x V66°
RGB Resolution/FPS Up to 1280x800@60FPS
RGB FOV ?H94° x V68°
Precision ≤ 2% @4m
Power Input USB Type-C
Operating Systems Windows/Linux/Android
Power Consumption Average < 3W (Peak 10.0W)
SDK Orbbec SDK
Data Transfer USB3.0/USB2.0
Temperature 0℃-40℃
