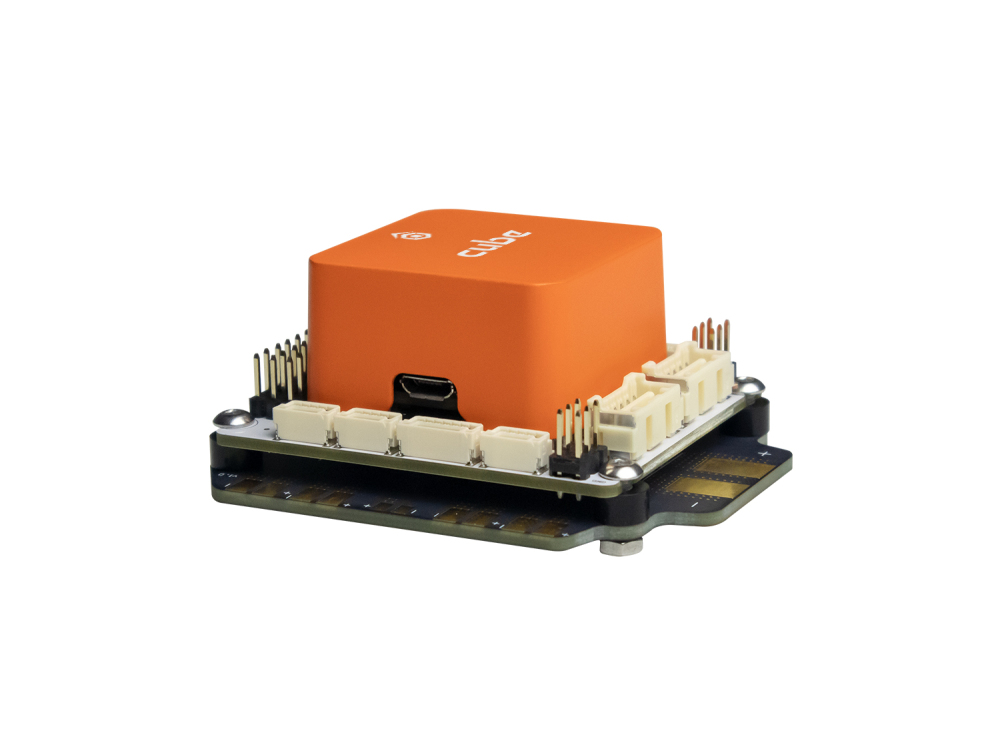

Hex Airbot Mini carrier board – PDB Combo

• Quick Start:
  • For more information, please visit:https://airbot-systems.gitbook.io/airbot-public-wiki/mini-carrier-board
  • Product 3D file:https://www.airbot-systems.com/free-downloads/?lang=en
• Tips
  • Cube Not Included.

Introduction

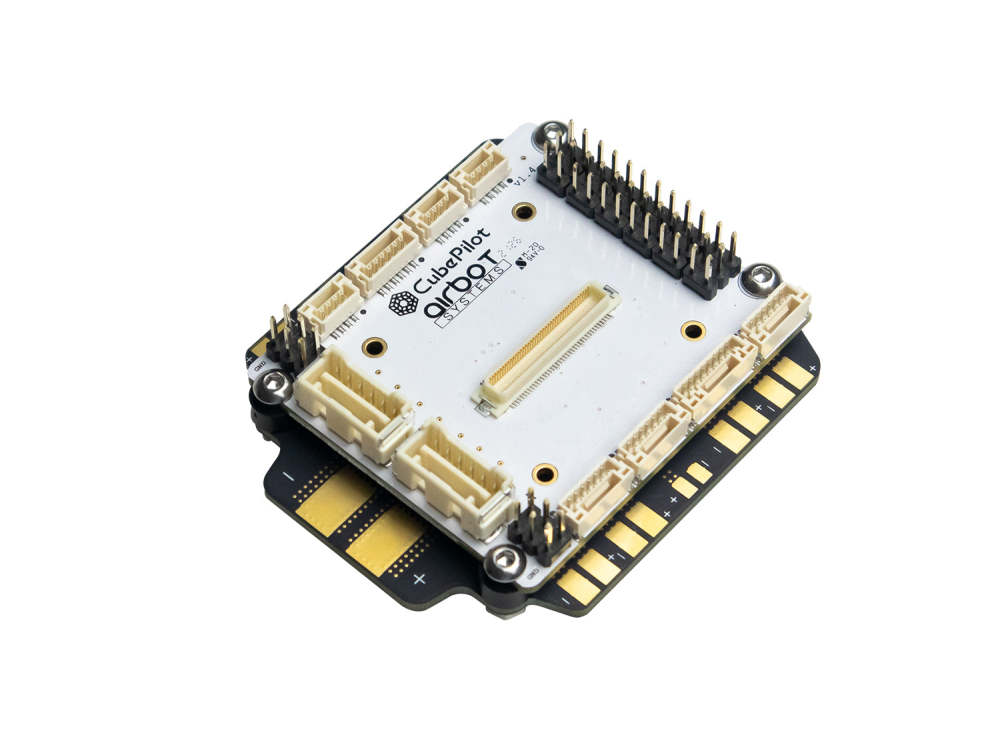

• The Airbot Power Distribution Board Set can be installed directly under Airbot Mini carrier board set. The PDB allows up to 180A through ESC interface and four pairs of low power pads (2 on top/ 2 on bottom). The mounting holes are aligned with Airbot carrier board, so the board can be stacked together while separated by small nylon spacers.

• This carrier board is compatible with all Cube autopilots.
• The Mini Carrier Board is one of the best ways to integrate a Pixhawk 2.1 cube into a drone. It provides maximum connectivity in a small size.

• Actual version V1.4

Features

The mini carrier Board Airbot has been specially designed to allow the installation of a Pixhawk 2.1 cube on any drone. It offers complete connectivity in a reduced format:
-2 power ports
-RC input (PPM/S. BUS + 5V)
-Spectrum input + 3.3 v
-Serial ports: 1/2/3/4/5
– I2C + CAN
– GPS1 + GPS2
-PWM signal distribution for motors (up to 8)
-ect… (see user manual)

Shipping List

Hex Mini carrier board – PDB Combo
1x HX4-06203 Mini Power Distribution Board
1x HX4-06202 Airbot Mini Carrier Board
4x - M3x8mm nylon spacer
4x - Nylon spacer M3*4mm

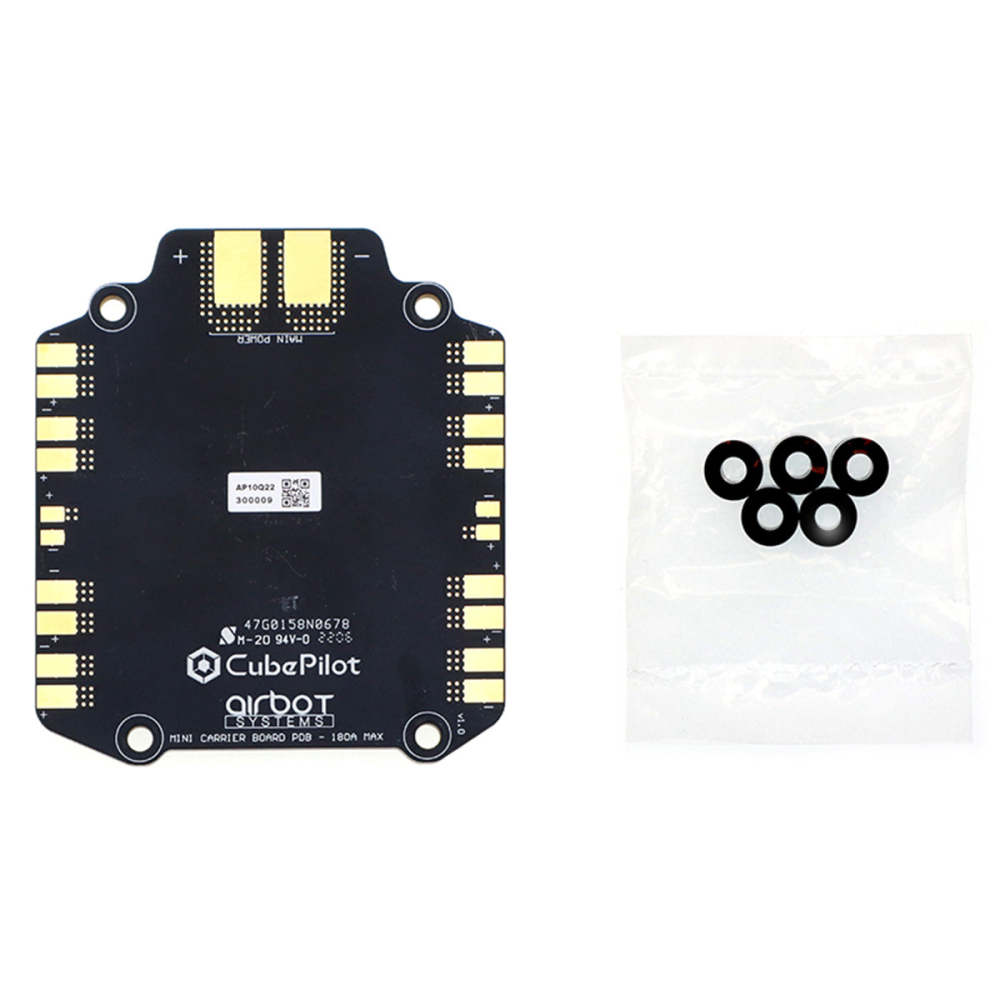

HX4-06203 Mini Power Distribution Board Set
1x Airbot Mini Power Distribution Board
4x - M3x8mm nylon spacer

HX4-06202 Airbot Mini Carrier Board Set
1x Airbot Mini Carrier Board
4x - Nylon spacer M3*4mm

Specification

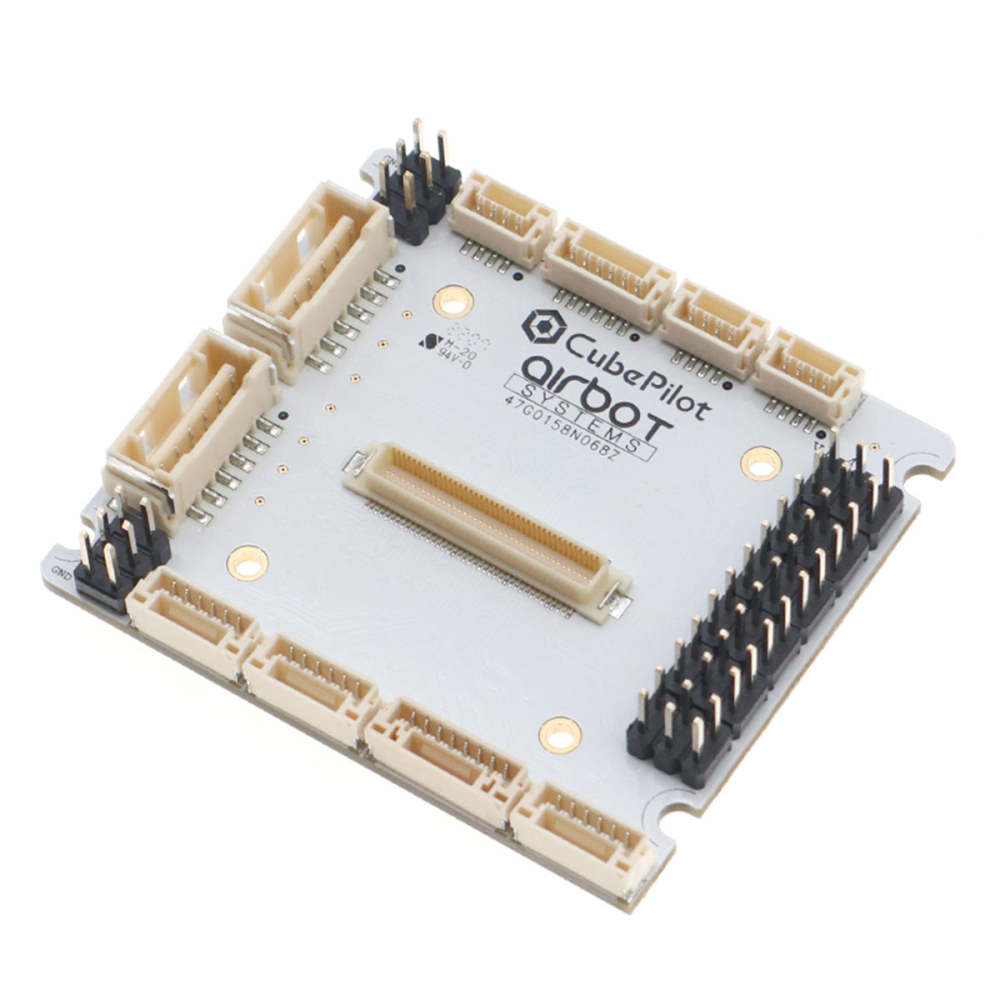

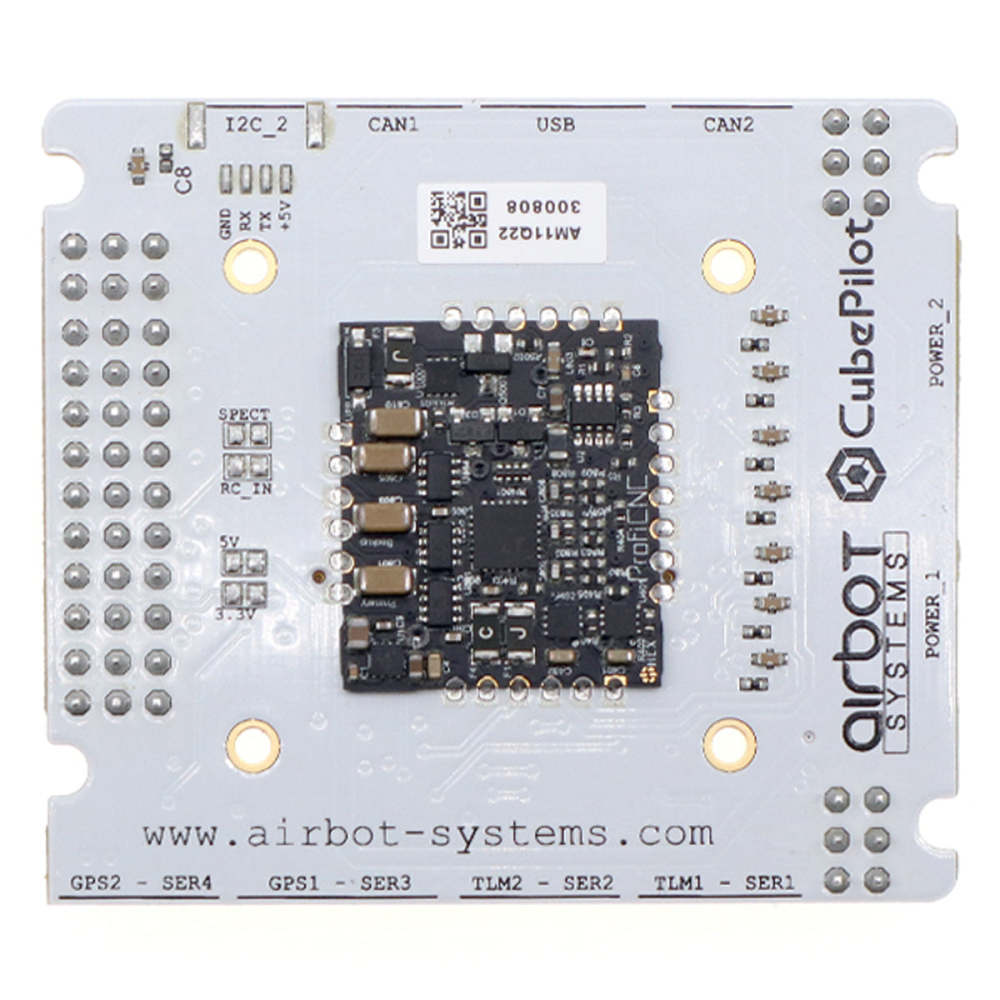

MINI CARRIER BOARD :
Dimensions : 50.5*57.5mm (1.98*2.26 inch)
Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19gr (0.041 lb) (incl. connectors and PSM)

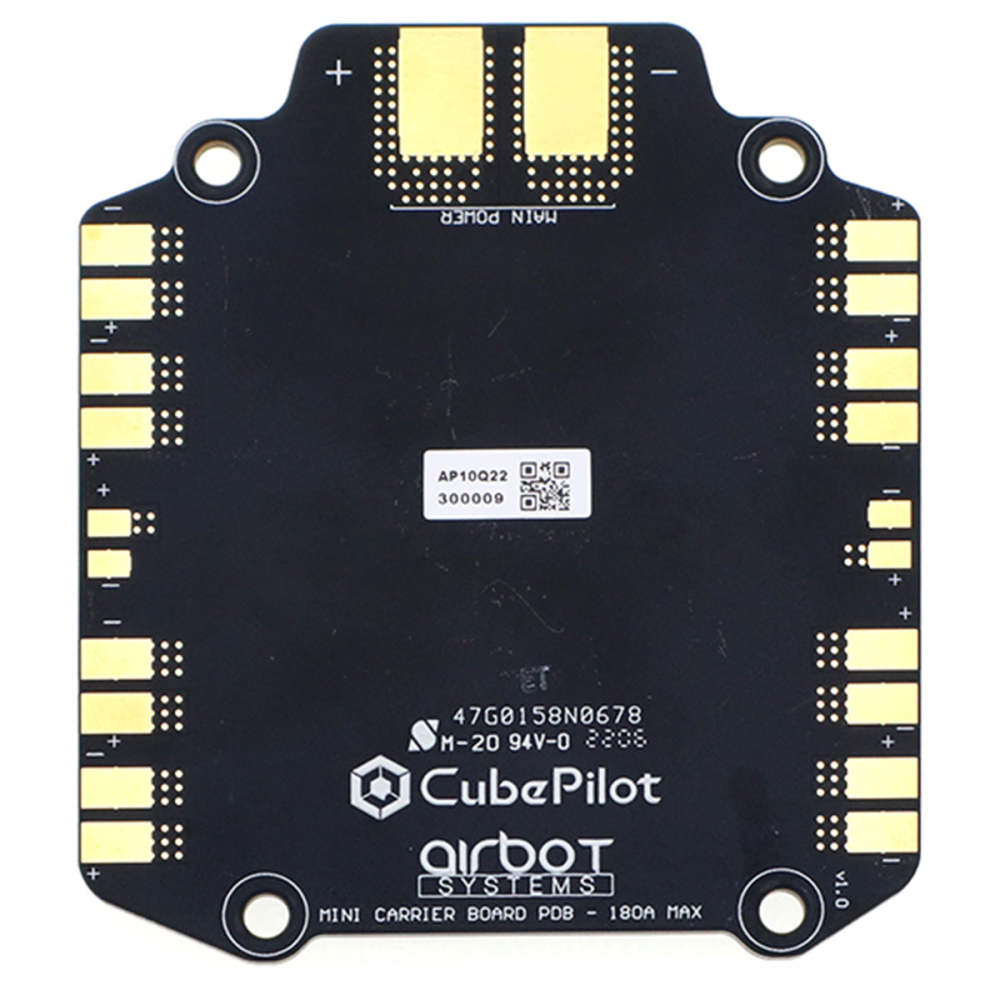

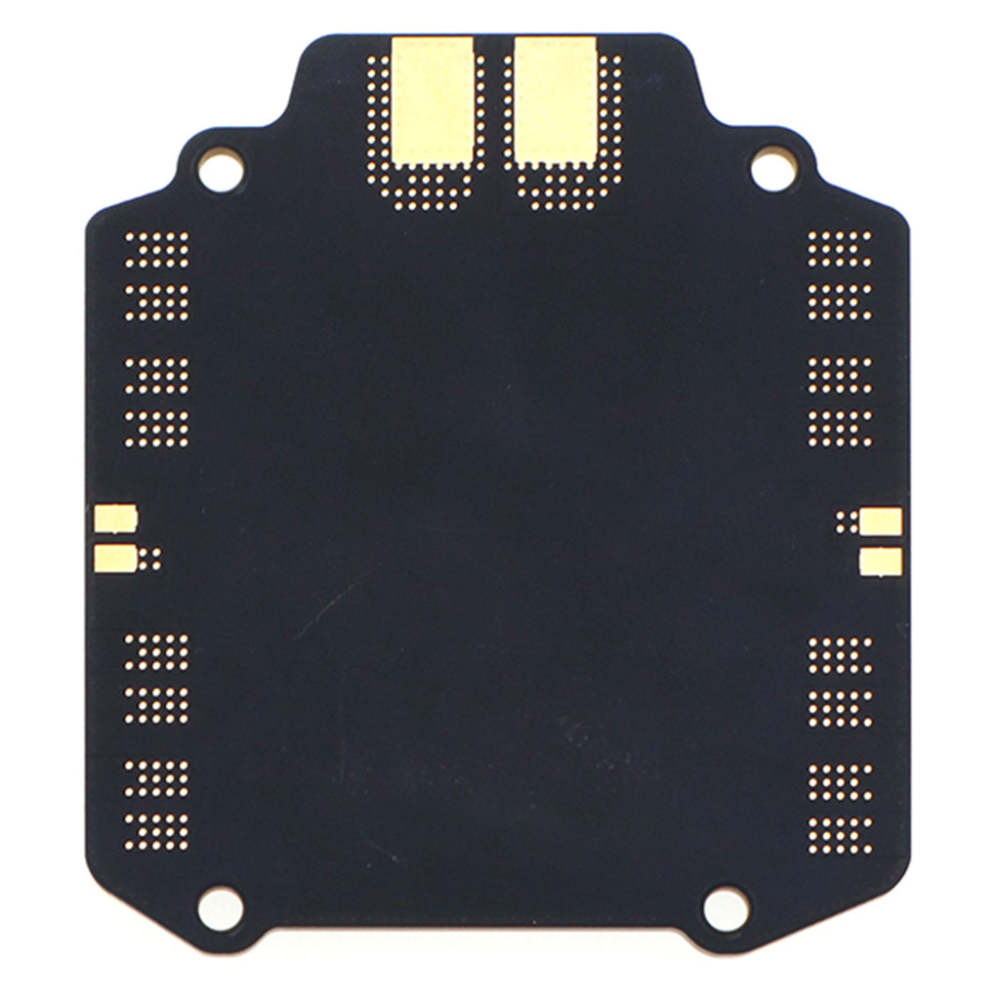

MINI POWER DISTRIBUTION BOARD :
Dimensions : 60.5*69mm (2.36*2.71 inch)
Weight: 21gr (0.046 lb)
