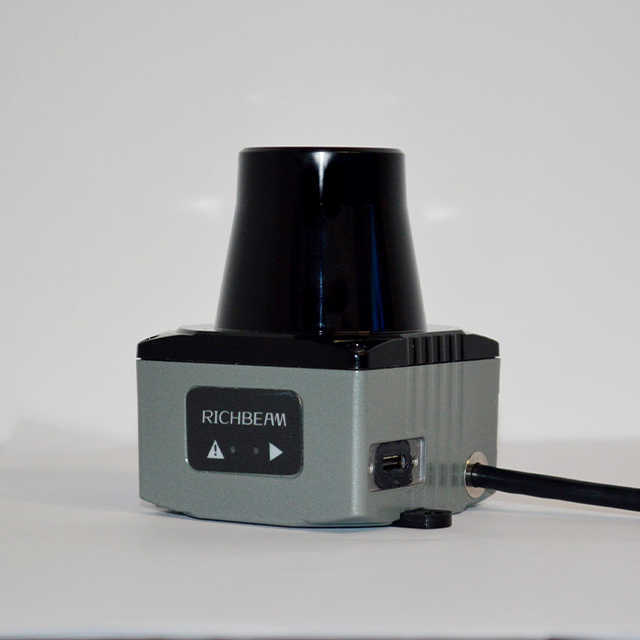

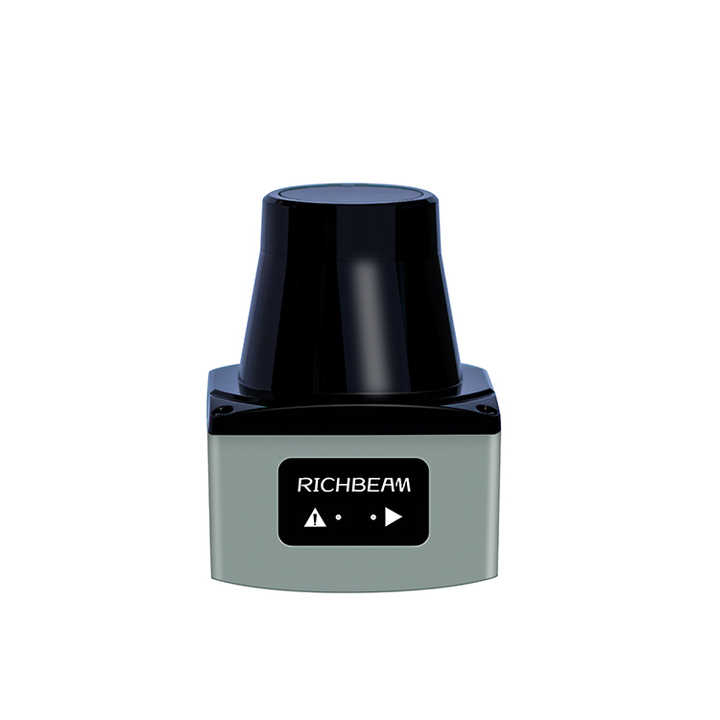

RichBeam LakiBeam 1L: 270° FOV 40m Range Single-Line Laser Radar for Industrial Automation

• Quick Start
• Tips

Introduction

The RichBeam LakiBeam 1L is a high-precision industrial-grade single-line LiDAR designed for medium and low-speed scenarios. It features a 270° field of view and a 40m detection range (≥40m at 70% reflectivity, ≥20m at 10% reflectivity), making it ideal for industrial automation, port automation, and AGV obstacle avoidance applications. With a data sampling rate of 43.2kHz and angular resolutions of 0.1°/0.25°, it provides high-precision distance measurement with ±2cm accuracy.

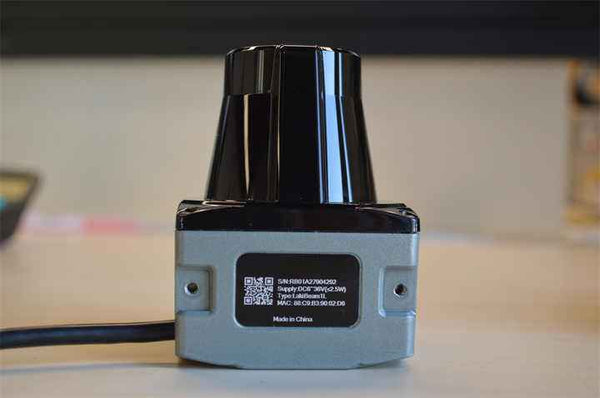

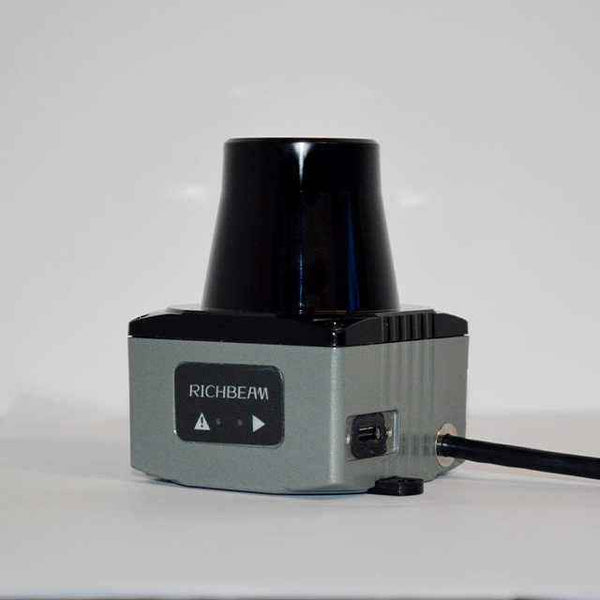

The LiDAR is compact in size (60mm×60mm×80mm) and lightweight (160g), ensuring easy integration into various systems. It also supports Ethernet UDP/USB data transmission and is IP65 protected for reliable performance in harsh environments. This LiDAR is perfect for industrial automation tasks such as material handling and automated storage. It can also be used as the main LiDAR for indoor AGVs and the oblique LiDAR for outdoor robots, aiding in mapping and obstacle avoidance. Its compact and lightweight design allows easy installation and integration.

Features

1. [High Precision Measurement]
   • The RichBeam LakiBeam 1L LiDAR features a 270° field of view and a 40m detection range (≥40m at 70% reflectivity, ≥20m at 10% reflectivity). It provides high-precision distance measurement with ±2cm accuracy and a data sampling rate of 43.2kHz, ensuring reliable and accurate detection in various industrial applications.
2. [Compact and Durable Design]
   • With a compact size of 60mm×60mm×80mm and a lightweight of 160g, it is easy to integrate into various systems. The LiDAR is also durable, with IP65 protection to ensure reliable performance in harsh environments, making it suitable for both indoor and outdoor applications.
3. [Zero Blind Spot and High Angular Resolution]
   • It offers zero blind spots within its detection range and high angular resolution of 0.1°/0.25°, providing comprehensive and detailed environment perception for equipment.
4. [Versatile Connectivity Options]

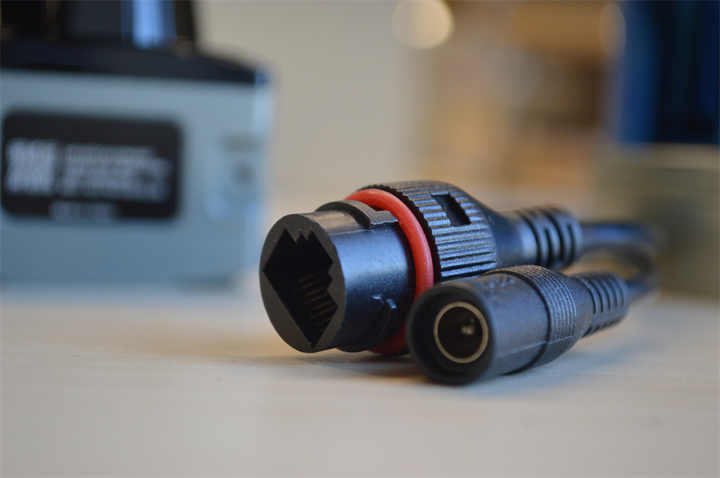

   • The LiDAR supports Ethernet UDP/USB data transmission, offering flexible connectivity options to meet different system requirements and ensuring smooth data transfer.
5. [Wide Range of Applications]
   • It is ideal for industrial automation tasks such as material handling and automated storage. It can also be used as the main LiDAR for indoor AGVs and the oblique LiDAR for outdoor robots, aiding in mapping and obstacle avoidance.
6. [High Data Sampling Rate]
   • With a data sampling rate of up to 43.2kHz, it can quickly capture environmental information and provide real-time distance measurement data, enabling equipment to respond promptly to changes in the environment.
7. [Long Detection Range]
   • The LiDAR can detect objects up to 40m away, making it suitable for long-distance detection and monitoring in industrial environments. This long detection range helps equipment detect obstacles and targets early and take appropriate actions.

Shipping List

1x LakiBeam 1L

Applications

The RichBeam LakiBeam 1L LiDAR is widely used in industrial automation, port automation, AGV obstacle avoidance, robotics, drone mapping, industrial process monitoring, and security applications.
