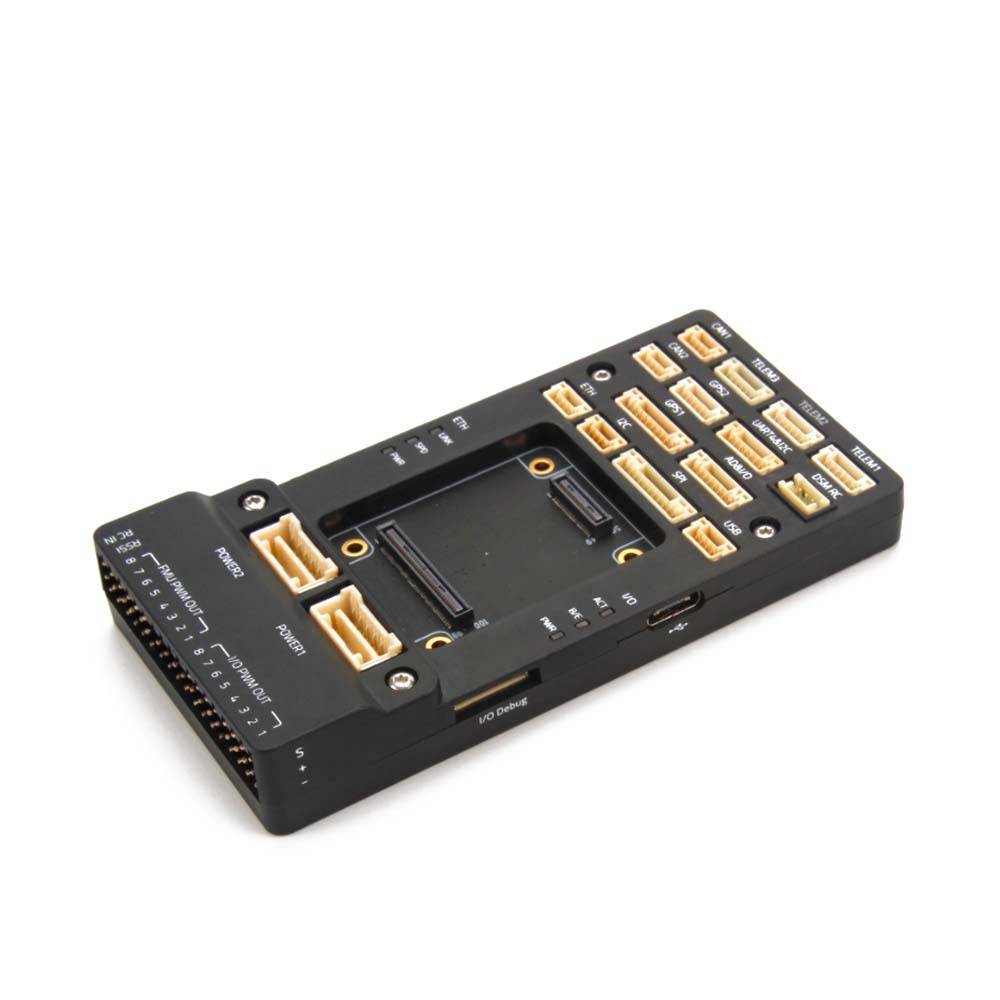

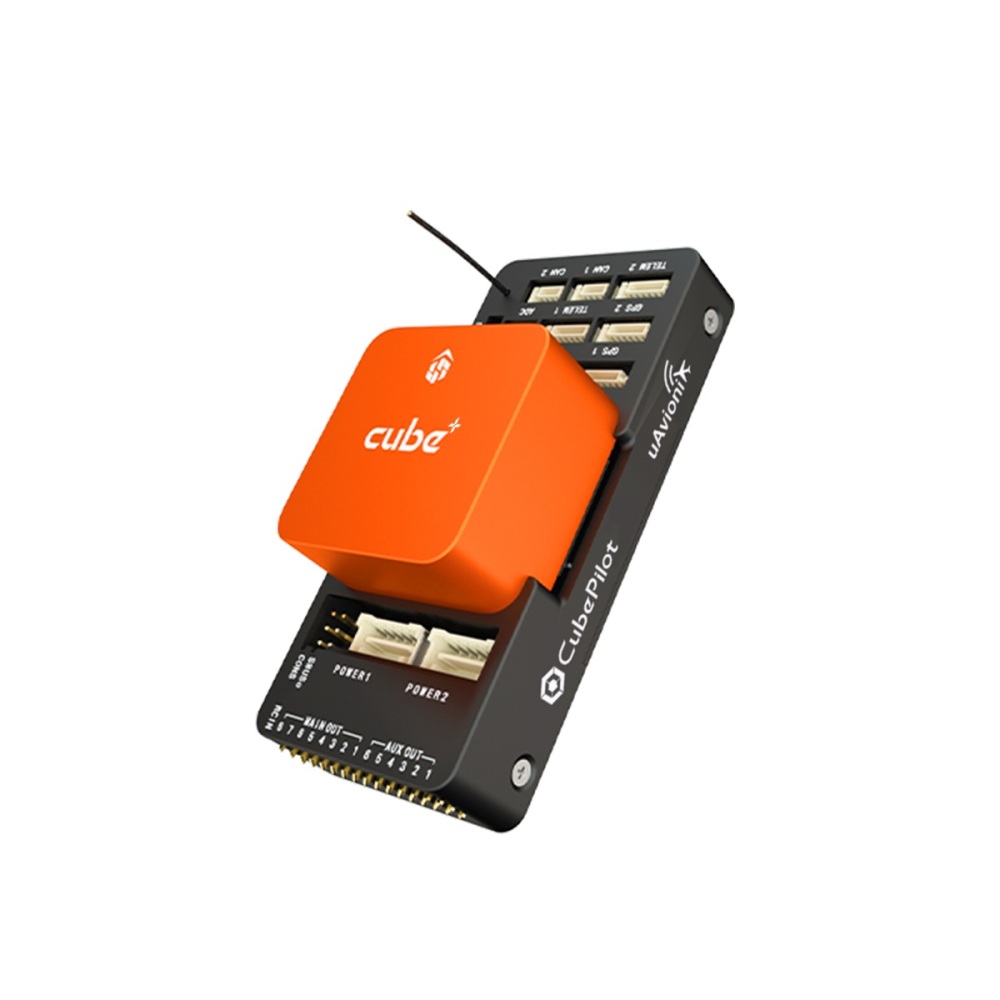

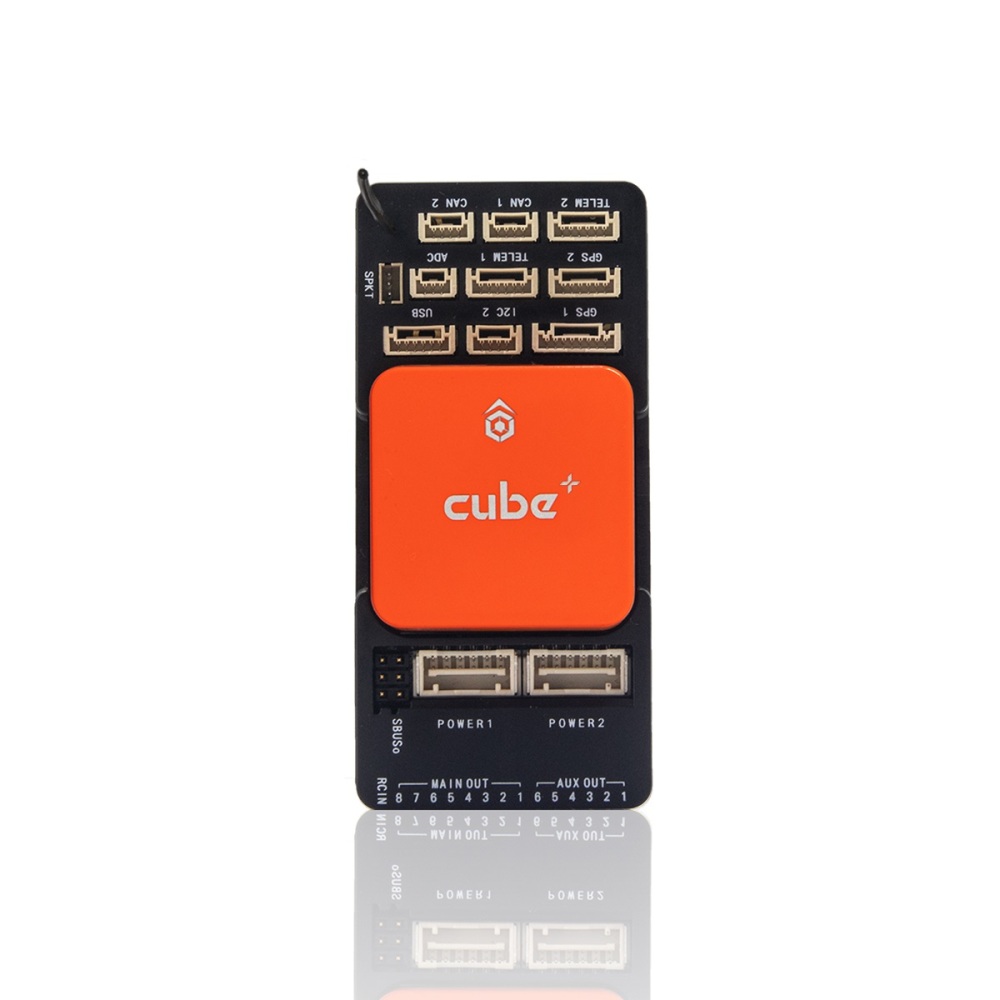

The Cube Orange Autopilot is mainly used for robot (such as intelligent car robot, octopus robot, robot dog, etc.) autopilot control and navigation, based on this controller, the user can easily DIY and program their own robots.
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
Power-rated output/input power: 14 W
USB port input voltage/rated input current: 4-5.7 V / 250 mA
Servo rail input voltage: 3.3 V / 5 V
Not waterproof. External waterproof protection is needed
Operation Temperature: -10 °C / 55 °C

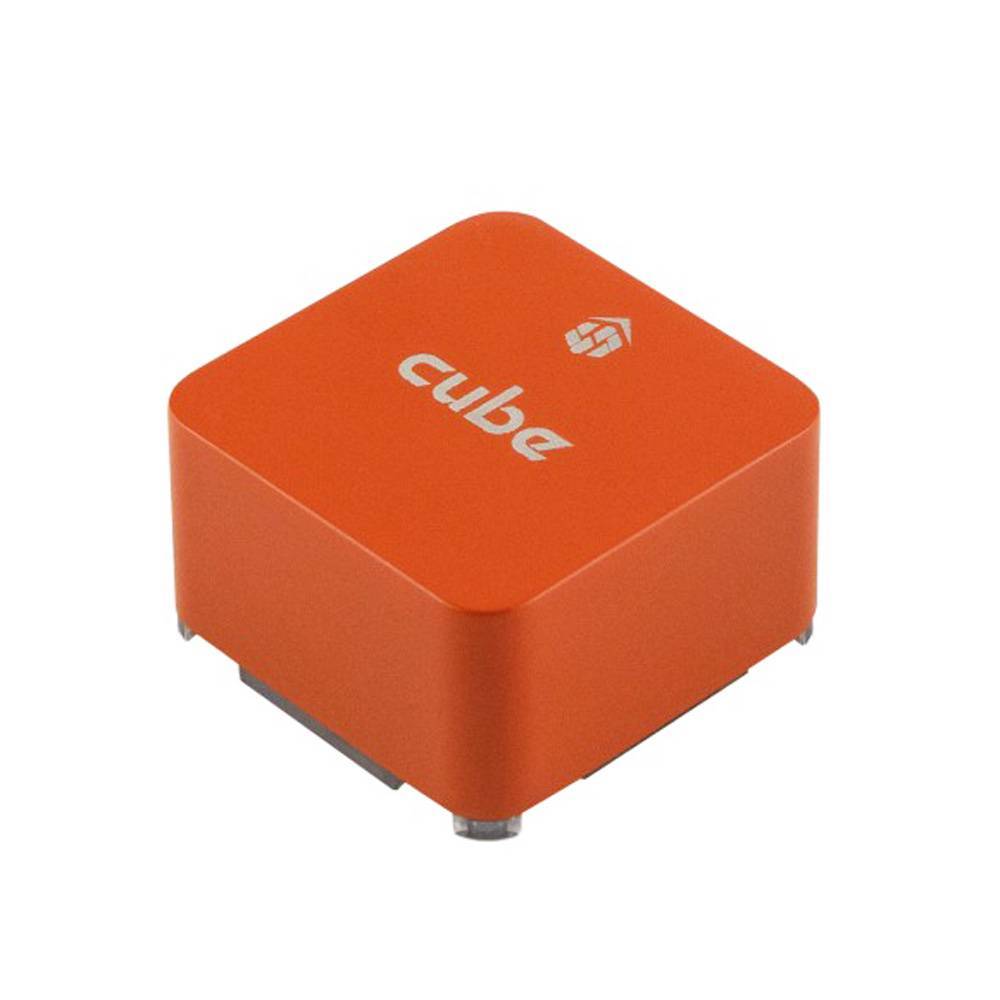

Cube Orange+ Housing Material: CNC Aluminum Alloy
ADSB Carrier Board Housing Material: ABS Molding
1x The Cube Orange Autopilot
Robots (e.g. smart car robots, octopus robots, robotic dogs)
Chassis Material: CNC Aluminum Alloy (cube) + ABS Molding (Carrier Board)

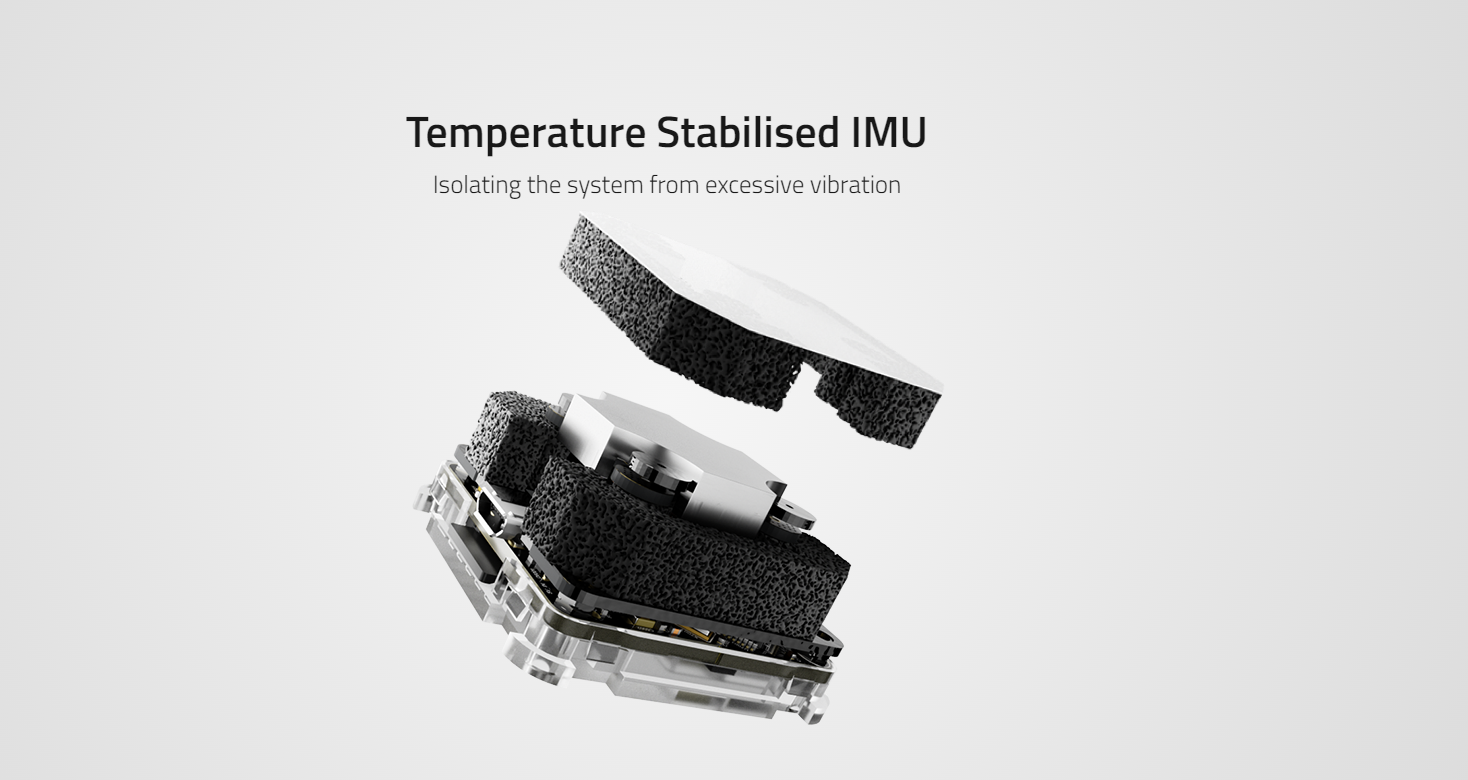

Operating Temperature: 10~ +55° IMU with temperature control

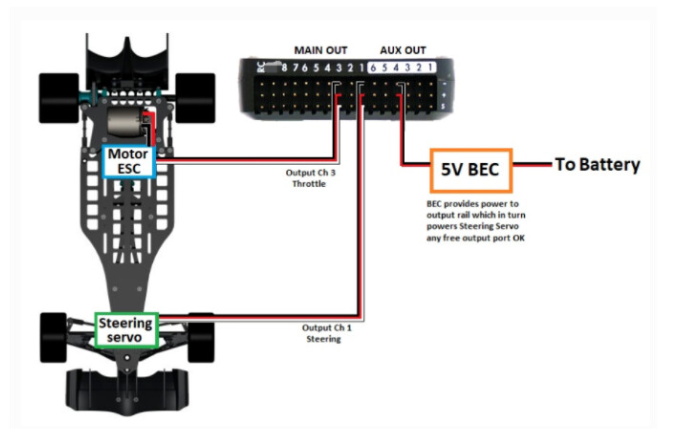

PWM I/Os: 14
Mavlink serial Interface: 2
Number of GPS supported: 2
Debug Interface: 1
I2C Interface: 1
CAN FD Interface: 2
Protection Function
Smart RTL
Battery low protection
Geo-Fencing
RC signal protection
Hardware

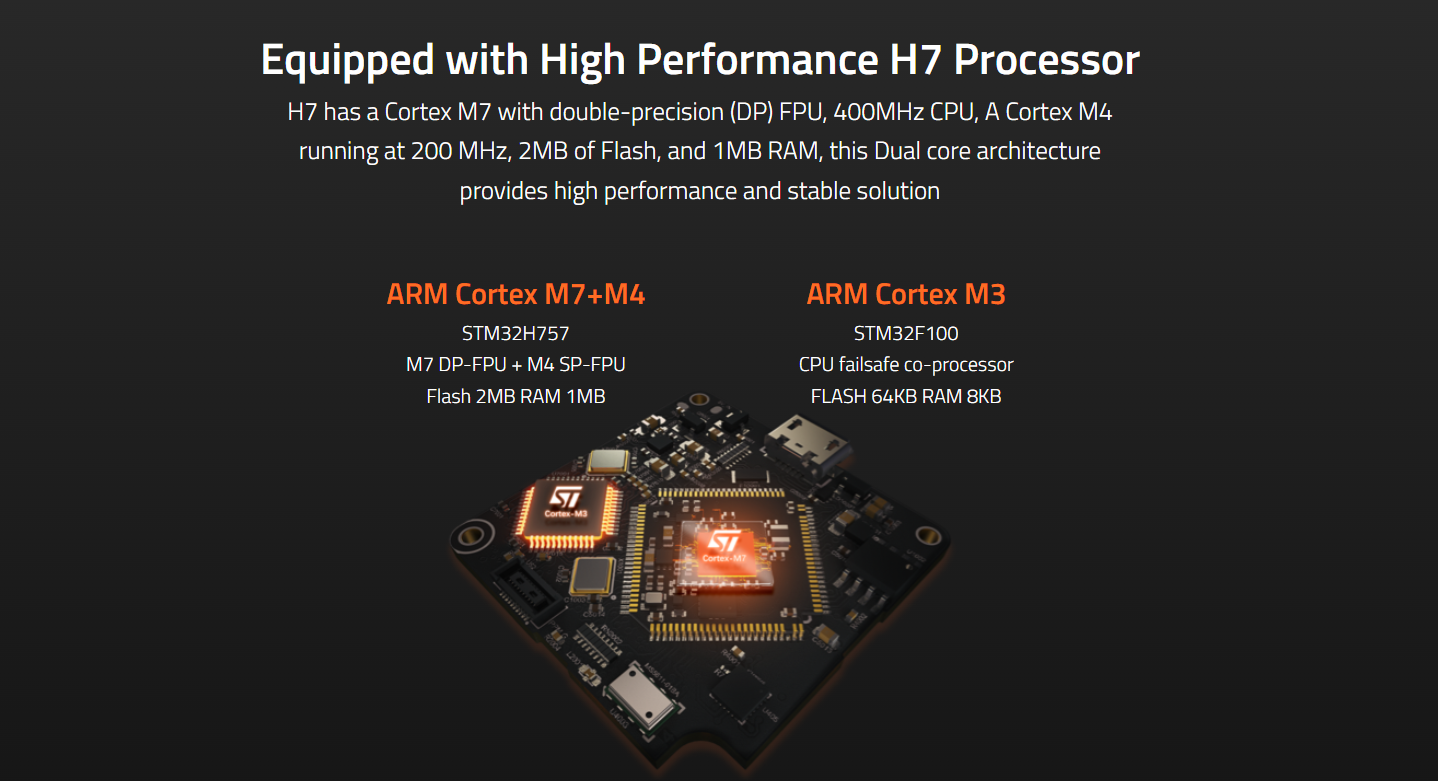

Main Processor: STM32H753VIT6
Coprocessor: STM32F100
Supported RC signals: PPM / SBUS / DSM
Power redundancy: Triple redundancy

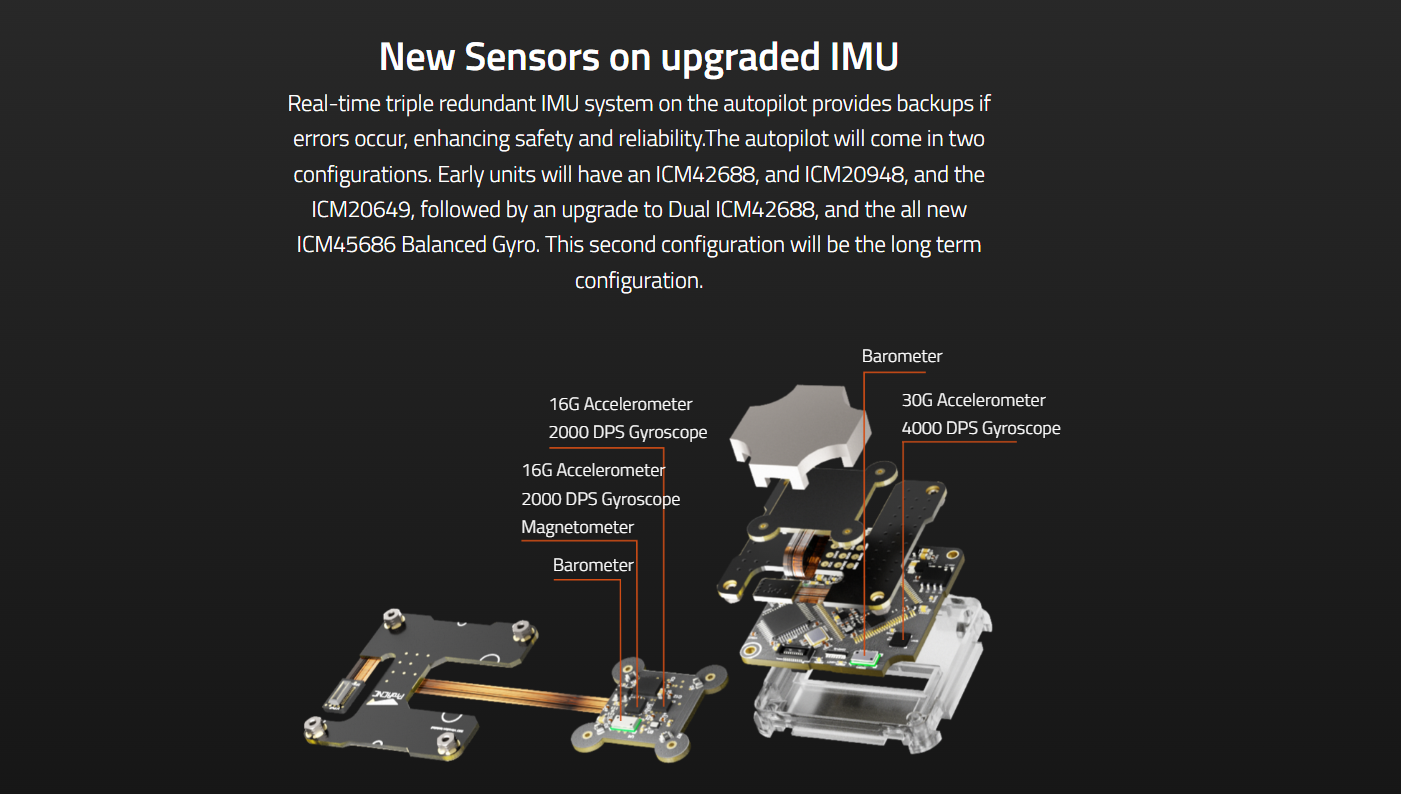

Sensors: Triple IMU System
Supported vehicle type: Rovers/boats/submarines
Weight: 73 g
