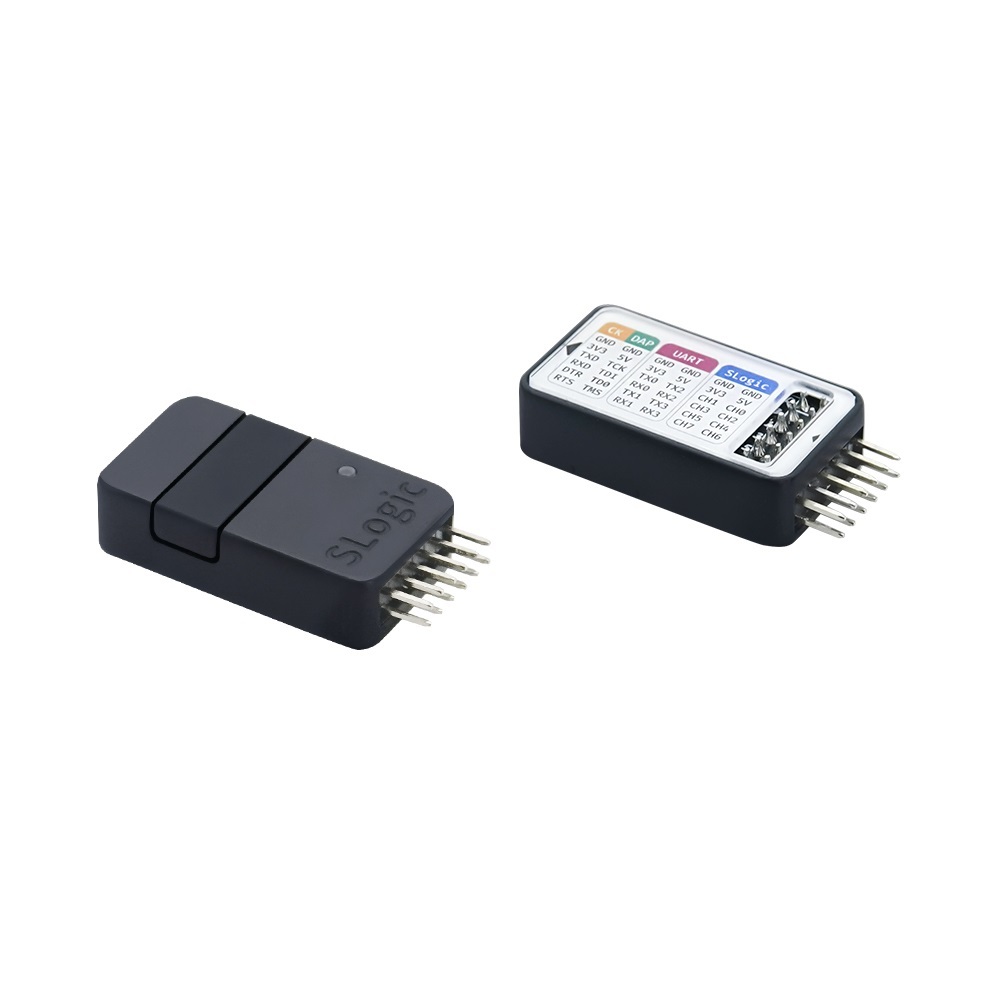

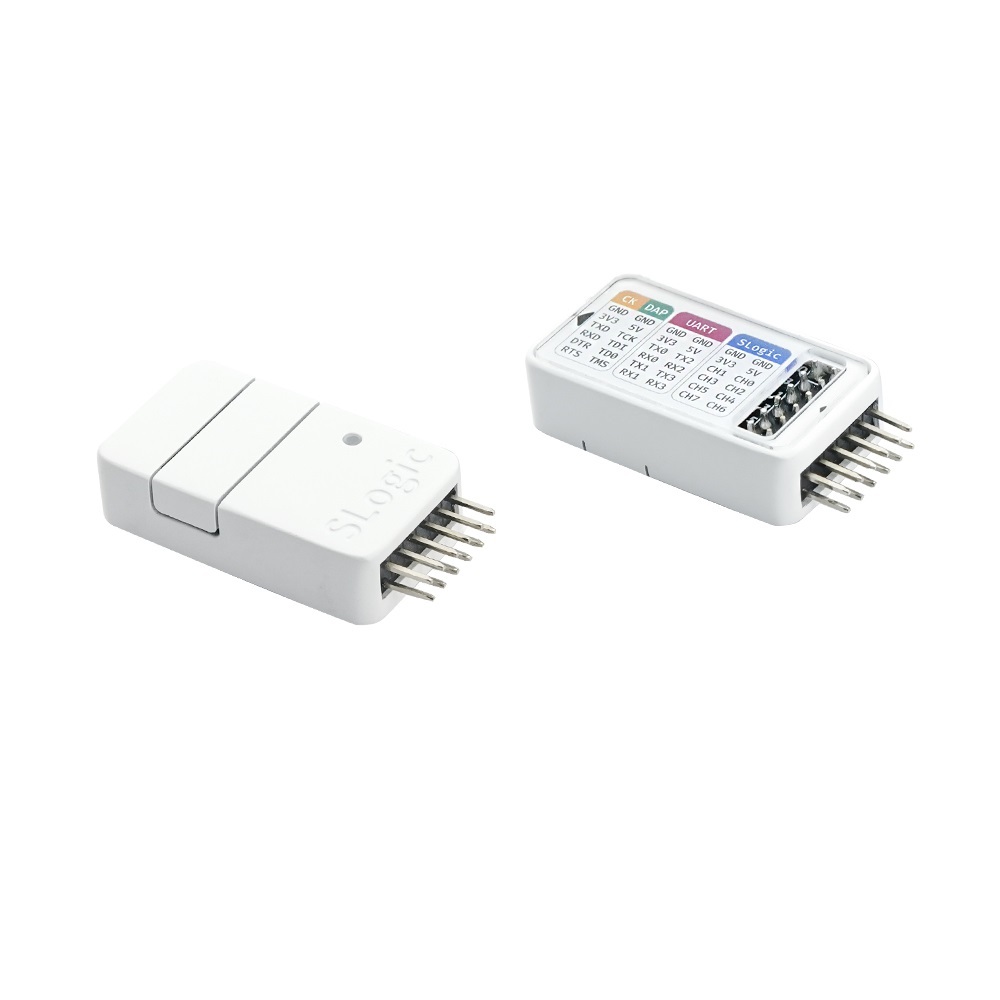

4 in 1 USB logic analyser - SLogic Combo 8 - RISC-V logic analyser - logic analyzer, CKLink debugger, DAP-Link debugger ,USB2UART
SKU: SPDPCOMBO803
SLogic Combo 8 is a development tool with functions of logic analyzer, CKLink debugger, DAP-Link debugger and USB2UART, which can be switched arbitrarily by buttons.

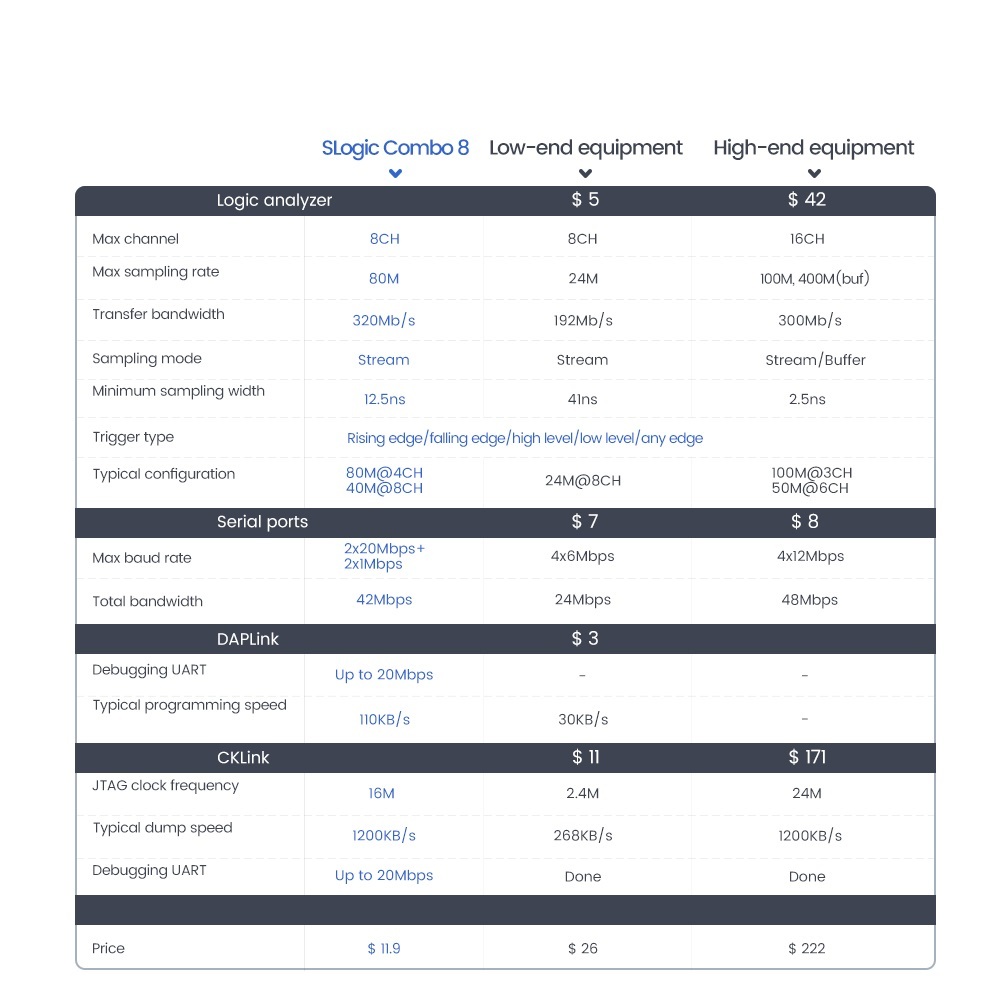

Maximum Channel Number 8CH
Maximum Sampling Rate 80M
Transmission Bandwidth 320Mb/s
Sampling Mode Stream
Typical Configuration 80M@4CH 40M@8CH
Signal Input Range 0~3.6V
High and Low Level Thresholds VIH>2V VIL<0.8V
Maximum Channel Number 8CH
Maximum Sampling Rate 80M
Transmission Bandwidth 320Mb/s
Sampling Mode Stream
Typical Configuration 80M@4CH 40M@8CH
Signal Input Range 0~3.6V
High and Low Level Thresholds VIH>2V VIL<0.8V
