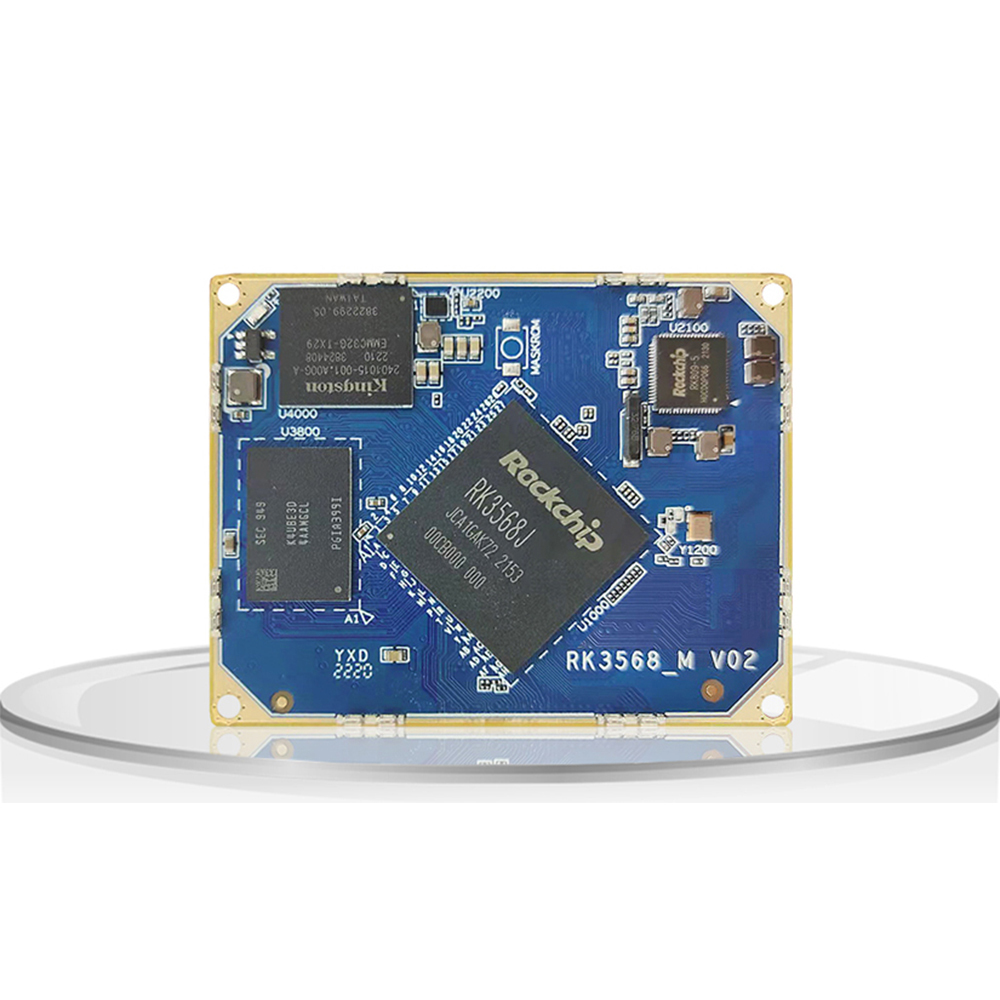

RK3568 Industrial core board
Rockchip's new generation 64 bit quad core processorRK3568J is adopted, which integrates dual core archi-tecture GPU and efficient NPU， and supports 8G of la-rge memory;
Support WiFi 5.8/ 2.4 dual band , 5G / 4G module andother wireless network communication; There are manyexternal interfaces , which can meet a variety of videoinput and output;
It can also operate reliably at -40 ° C to 85 ° C, and canbe applied to flat panel, edge computing intelligentseat，AR/VR and other fields;

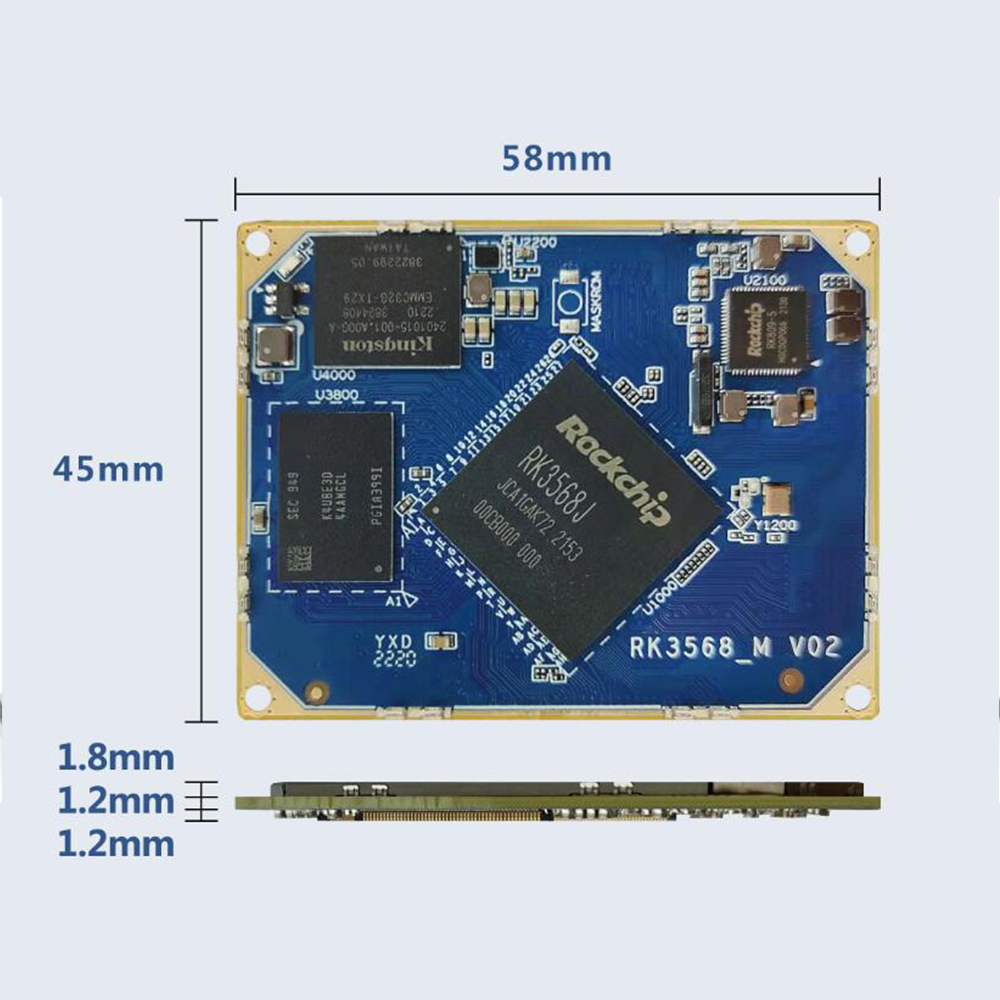

SMALL SIZE AND THIN THICKNESS
The core plate is thin with a thickness of < 4.2mm, which is applicable to all kinds of flat plates.
QUAD CORE 64 BIT PROCESSOR
lt adopts RK3568 quad core 64 bit cortex-a55 processor, 22nm advanced technologythe main frequency is up to 2.0GHz , and the CPU performance is stable and reliable.
PIN-TO-PIN CONNECT
The core board adopts mxm3.0 314p interface, which can be combined with the backplane to form a complete high-performance industri.al application motherboard, with richer expansion interfaces, and can be directly applied to various intelligent products to accelerate the product landing.Board-to-board connector axt300124 is used for connection, and locking screws are added, which is firm and reliable
WIDE TEMPERATURE ENVIRONMENT, MORE STABLE OPERATION
lt can operate stably for a long time under the temperature of -40°C to 85 ° C and has strong environmental adaptability.
STRONG NETWORK COMMUNICATION CAPABILITY
It has a Gigabit adaptive RJ45 Ethernet port and supports WiFi 5.8/2.4 dual band wireless network communication.
lt can also be connected to an external module to expand 5G/4G to improve the product's communication capability.
RICH EXTERNAL INTERFACES
RS232、CAN、MIPI CSI、NVME、PCIE3.0、HDML、Type-C、EDP、MIPI DSI、USB3.0、US32.0.Phone、 MLC and other interfaces are vilablefo easy us.
SUPPORTS MULTIPLE OPERATING SYSTEMS
Support Android、 Ubuntu、 Debian11、Openharmony and other operating systems, with stable and reliable performance.

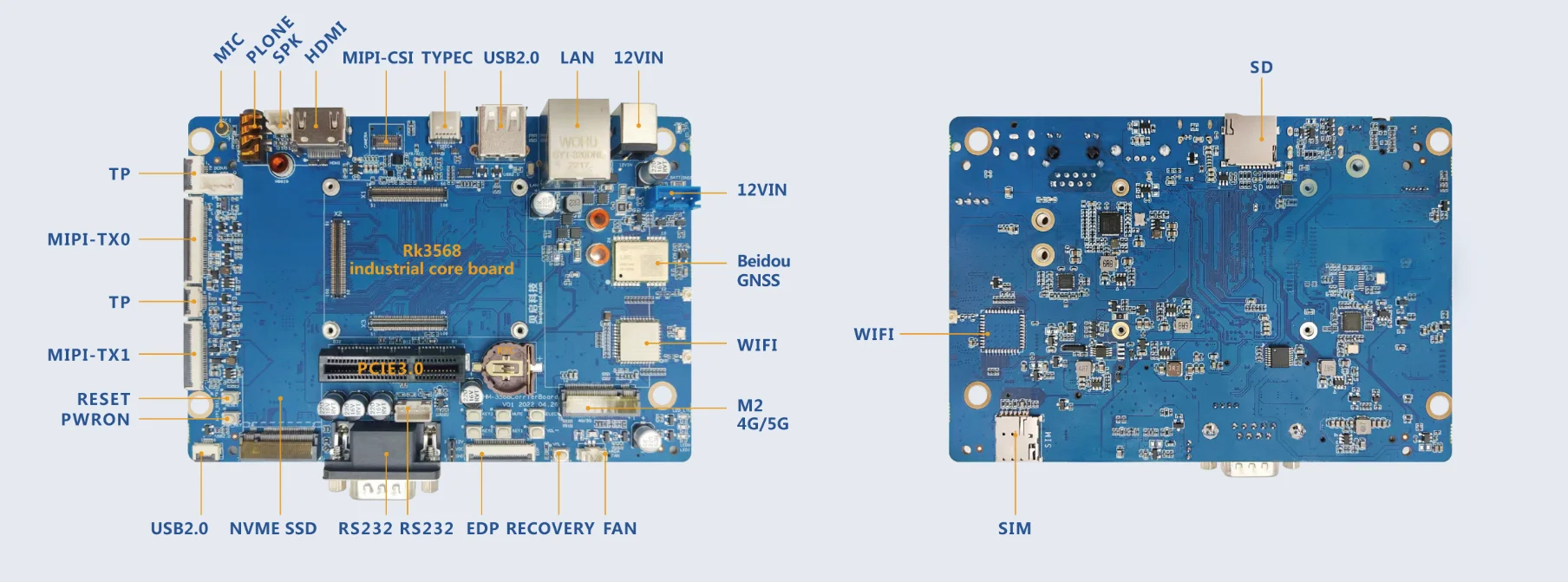

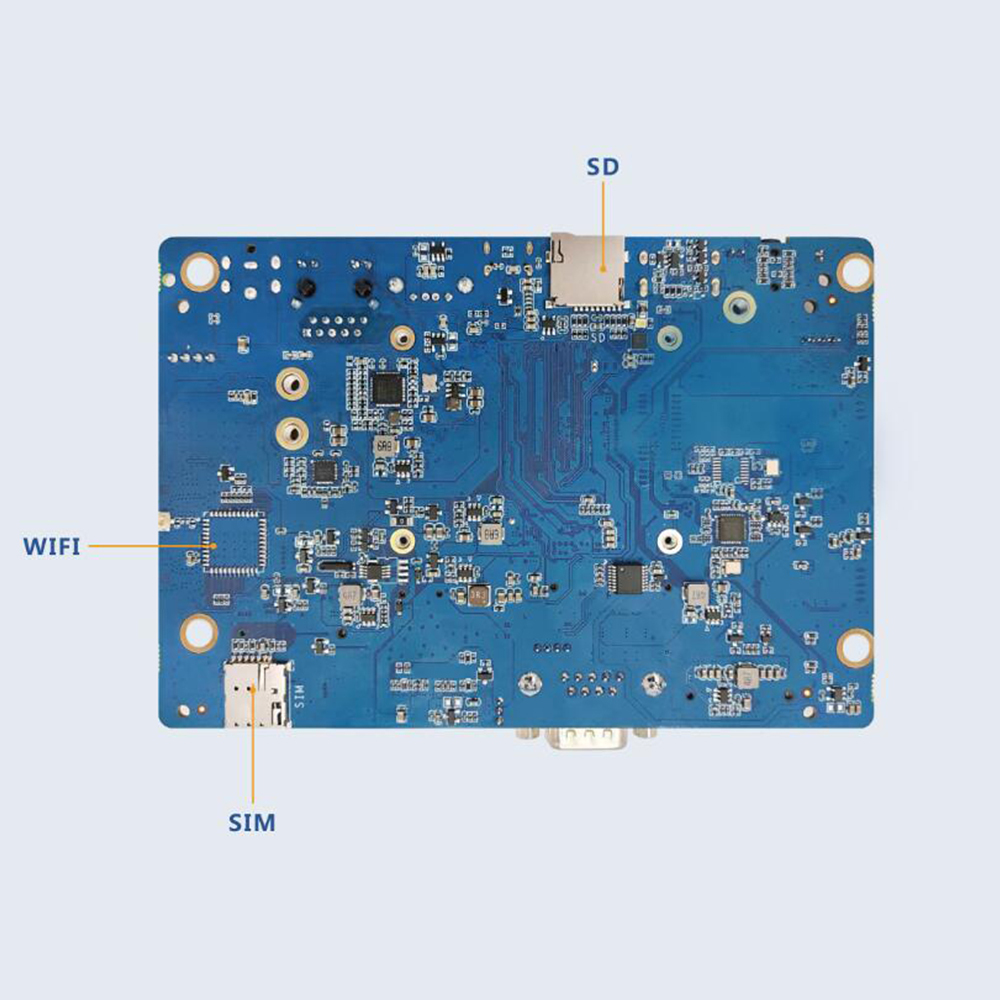

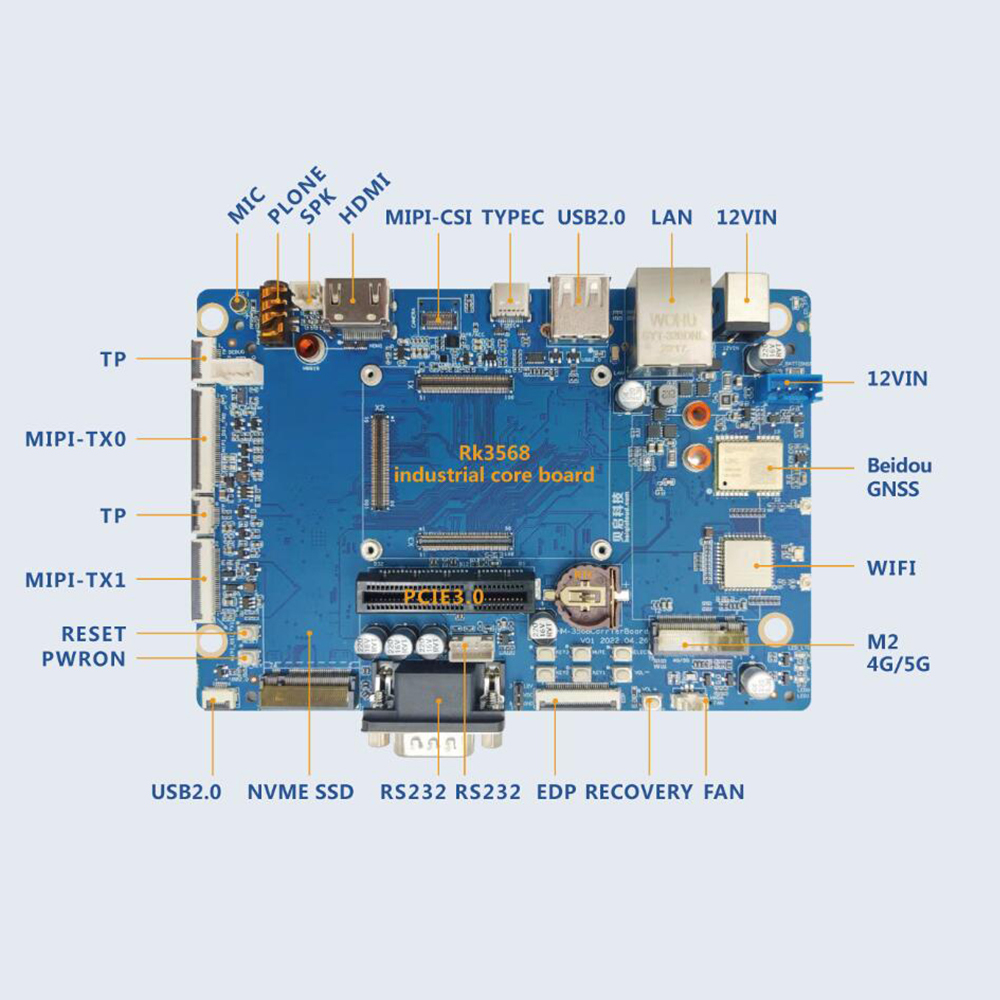

BACKPLANE INTERFACE INFORMATION
BEIDOU POSITIONING
The onboard Beidou module supports the domestic Beidou satellite positioning system.
CHARGING MANAGEMENT
Support external battery power supply, intelligent charging management, and can still 都un normally in case of external power failure.
DIVERSIFIED RESOURCES AND WIDE APPLICATION
Provide supporting tutorials, schematic diagrams, source code, technical data, Application Demo and SDK. lt is widely used in thecustomized markets of Internet of things gate way,NVR storage , industrial control panel, industrial detection, industrial controlbox, karaoke, cloud terminal, on-board central control and other industries
