youyeetoo BY52 MINI PC - Intel 12th N100  TDP 6W

• Quick Start: https://wiki.youyeetoo.com/minipc
• Tips:
  • The power supply in the standard shipping list doesn't support PD protocol, and the default output is 12V, please don't use it on other devices to avoid damage to other devices.

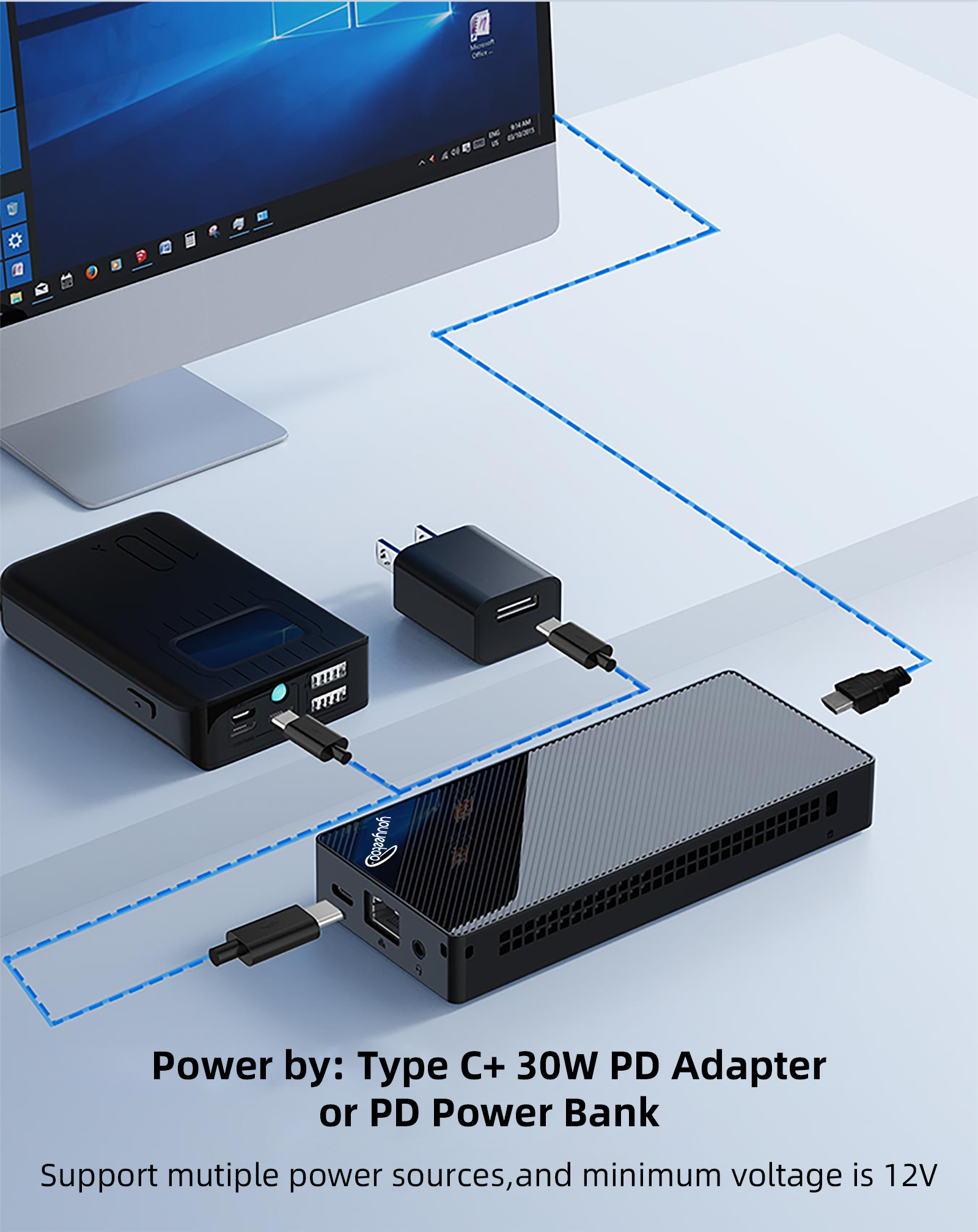

  • youyeetoo BY52 MINI PC supports PD protocol power supplies, but since every PD power supply outputs different power at 12V, If the power is not sufficient, it may cause the MINI PC to become unstable. please choose a 12V3A PD power supply if possible. Details can be found by checking your power supply or supplier.
  • If you need other systems, please contact [email protected]

Introduction

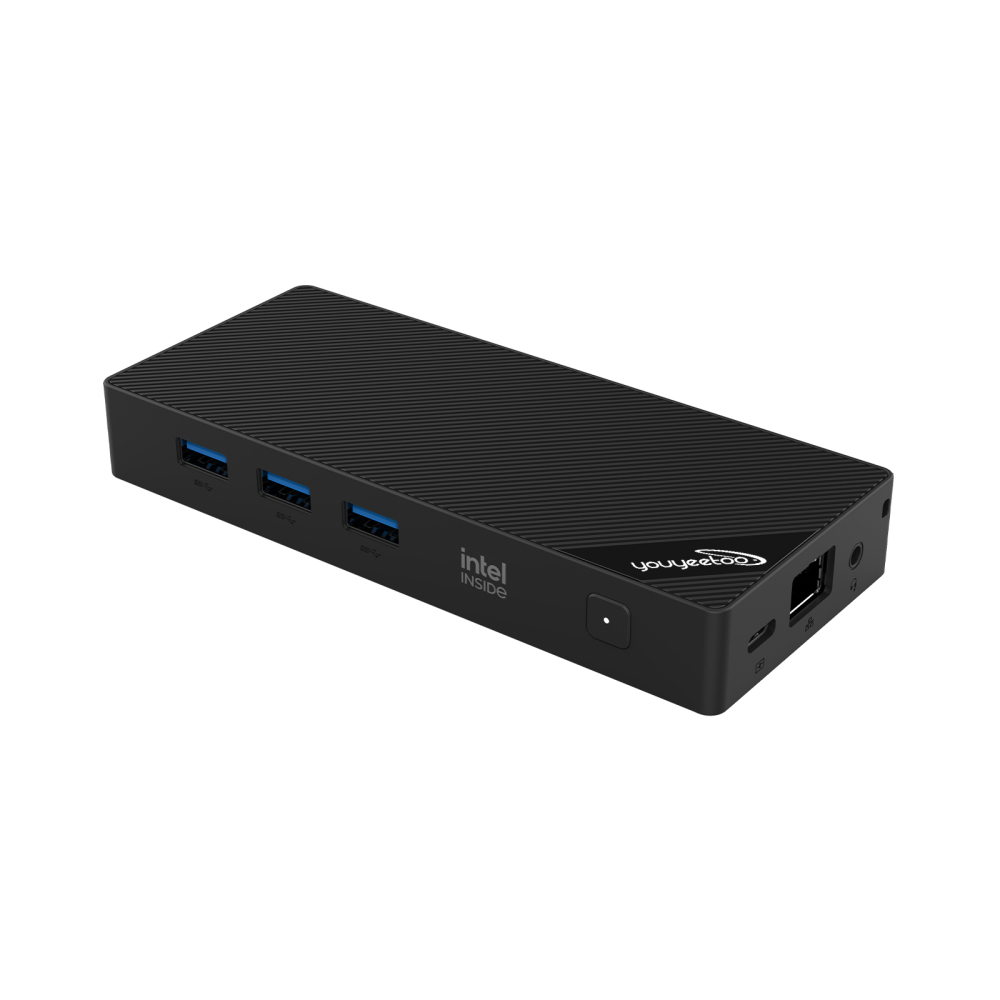

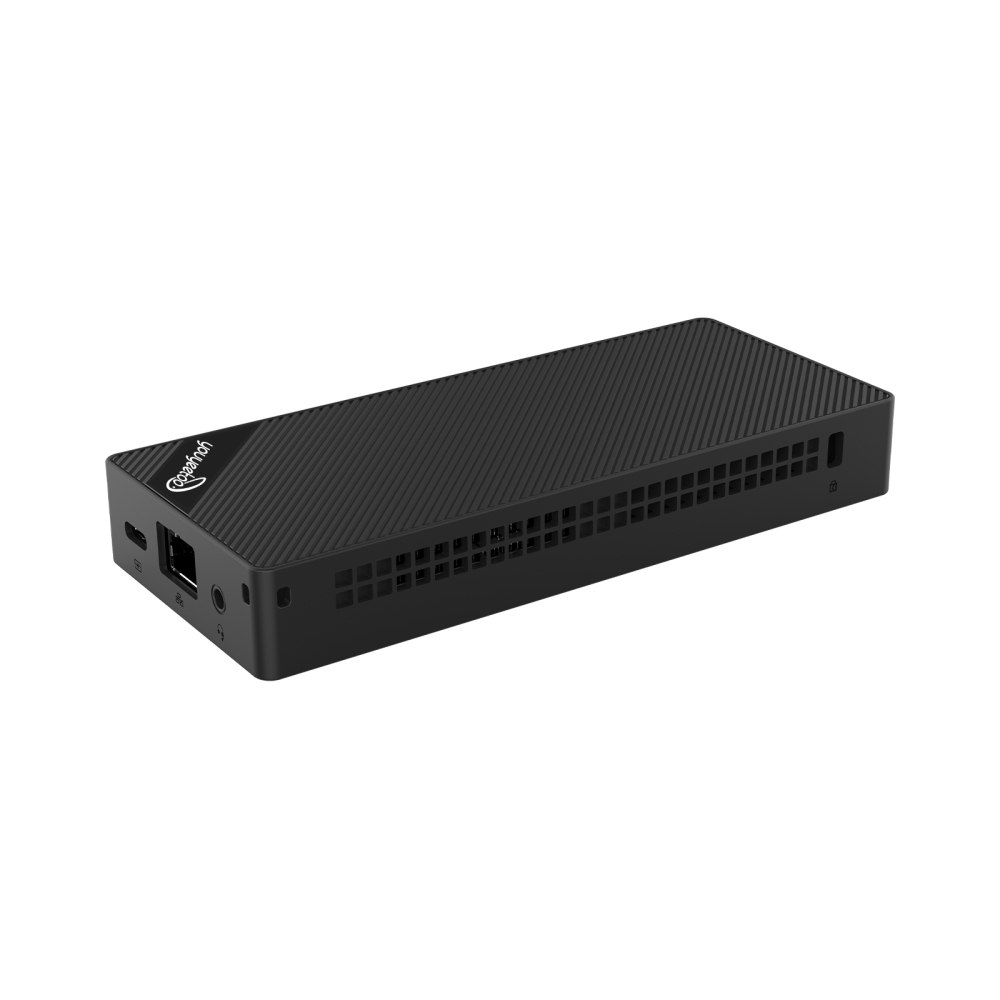

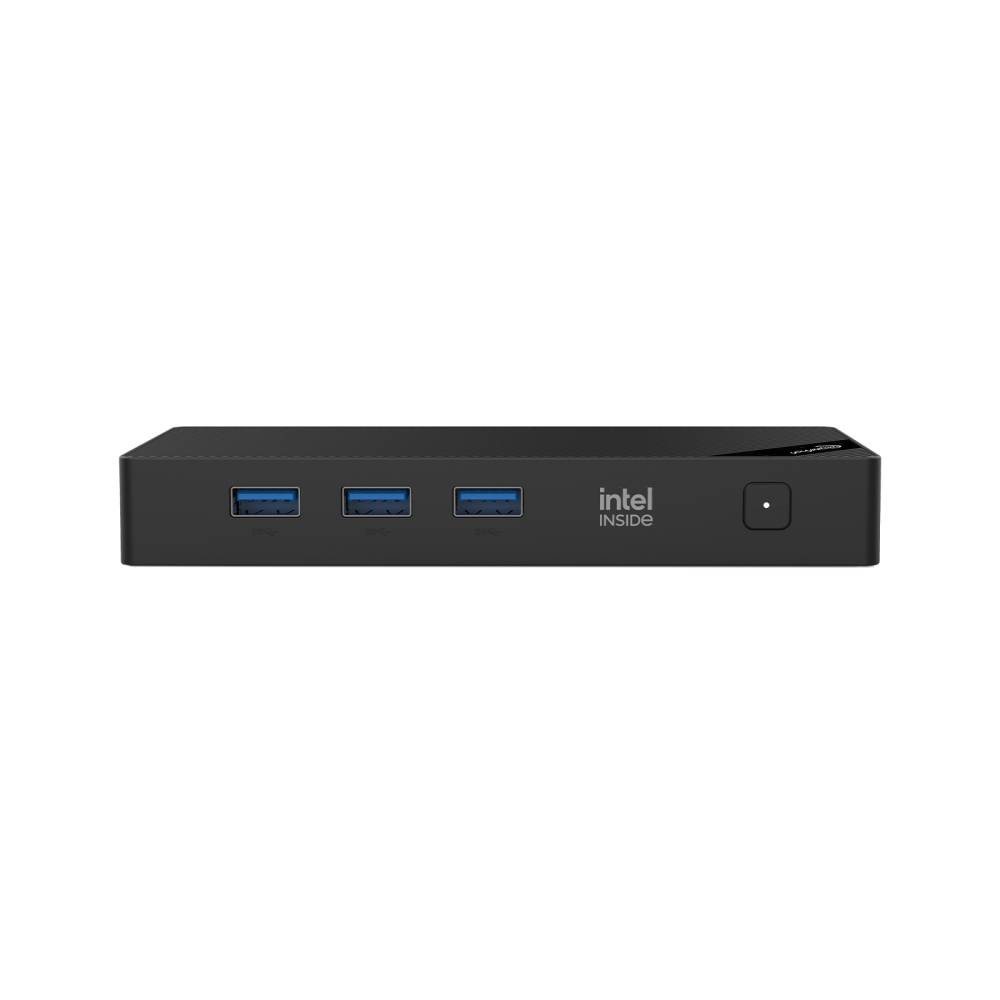

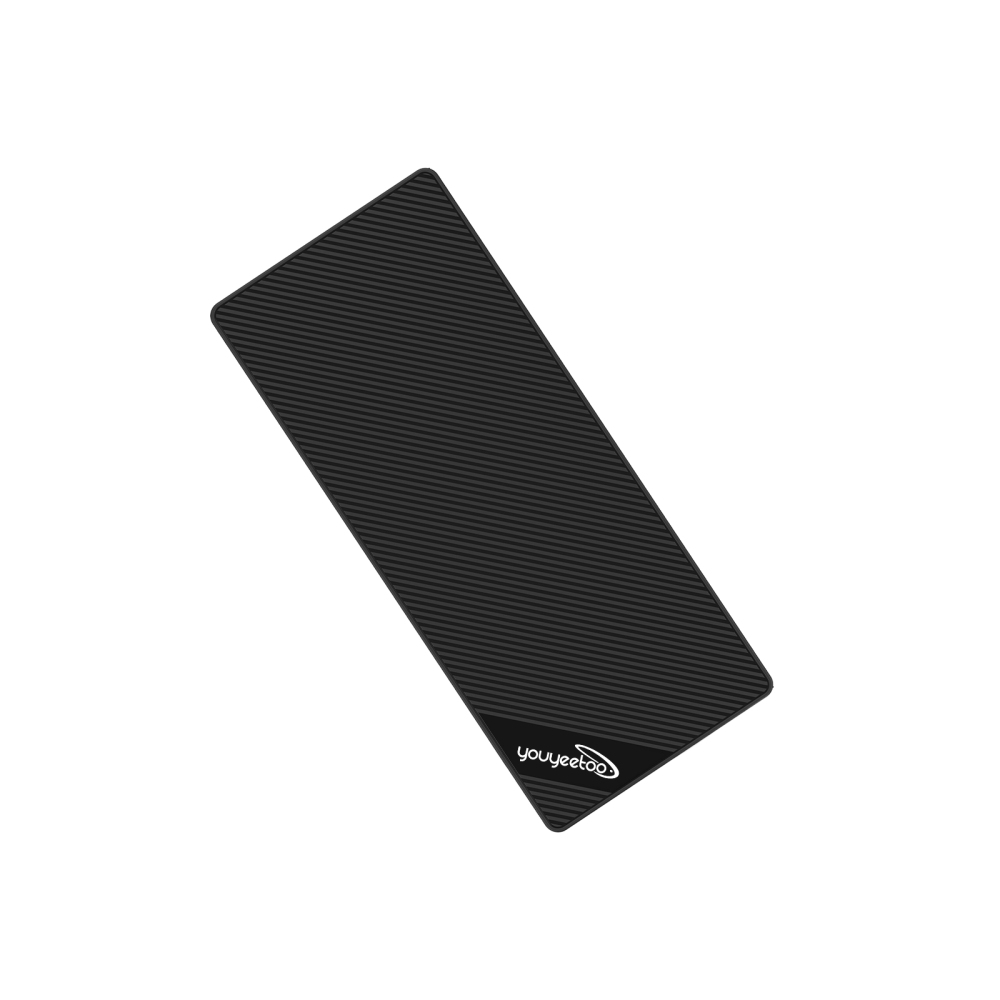

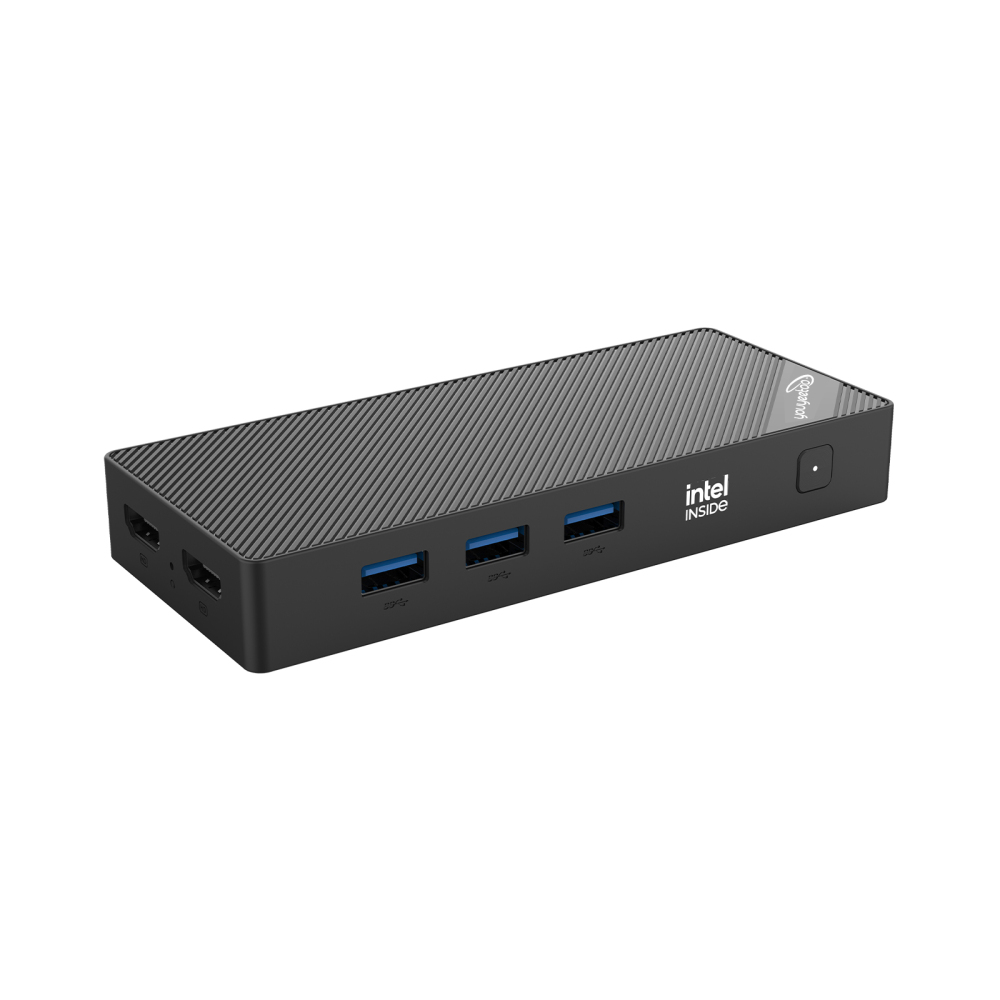

youyeetoo BY52 MINI PC - Intel 12th N100, TDP 6W, Up to 16GB RAM
Perfect for light working, digital signage, online movies, software routers, servers, monitoring, etc.

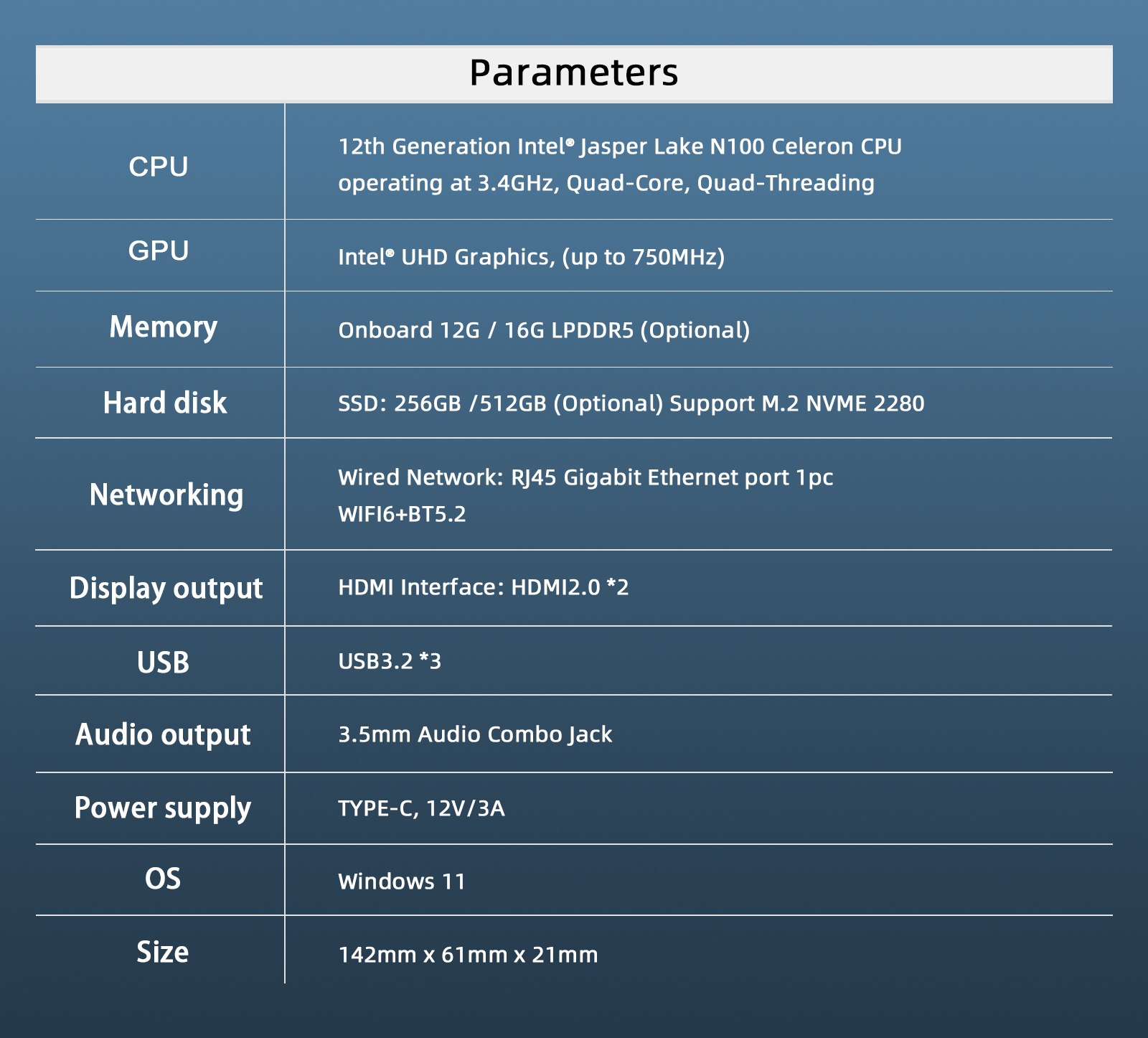

Features

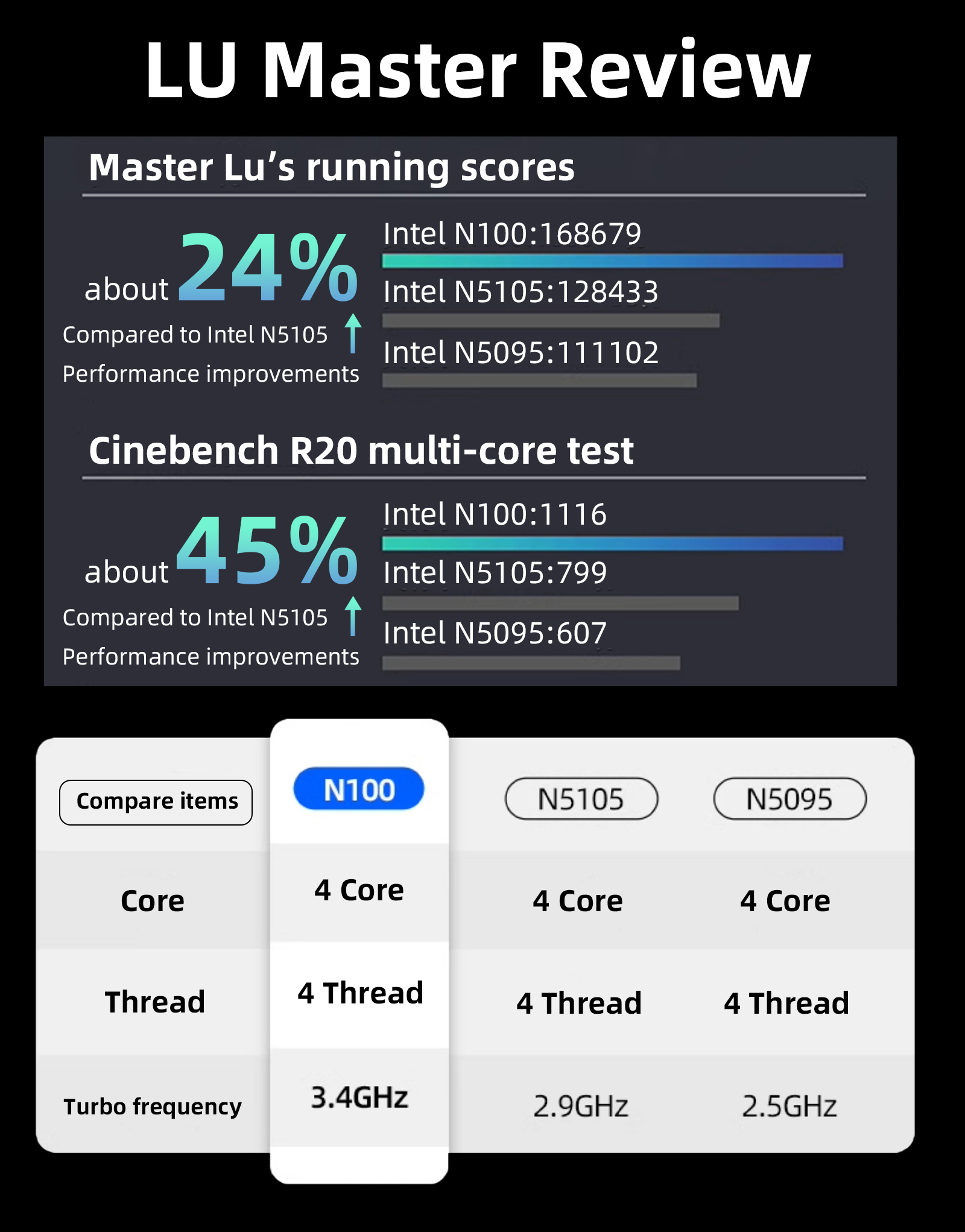

Intel 12th Alder Lake- N100, 4C/4T, 7nm, MAX3.4G, 6 MB Cache, TDP 6W
Intel UHD Graphics (Up to 750MHz) 24 execution units
12/16GB RAM on board， LPDDR5 4800 MT/s
256GB/512GB/1TB shipped, M.2 2280 NVME, max 2TB

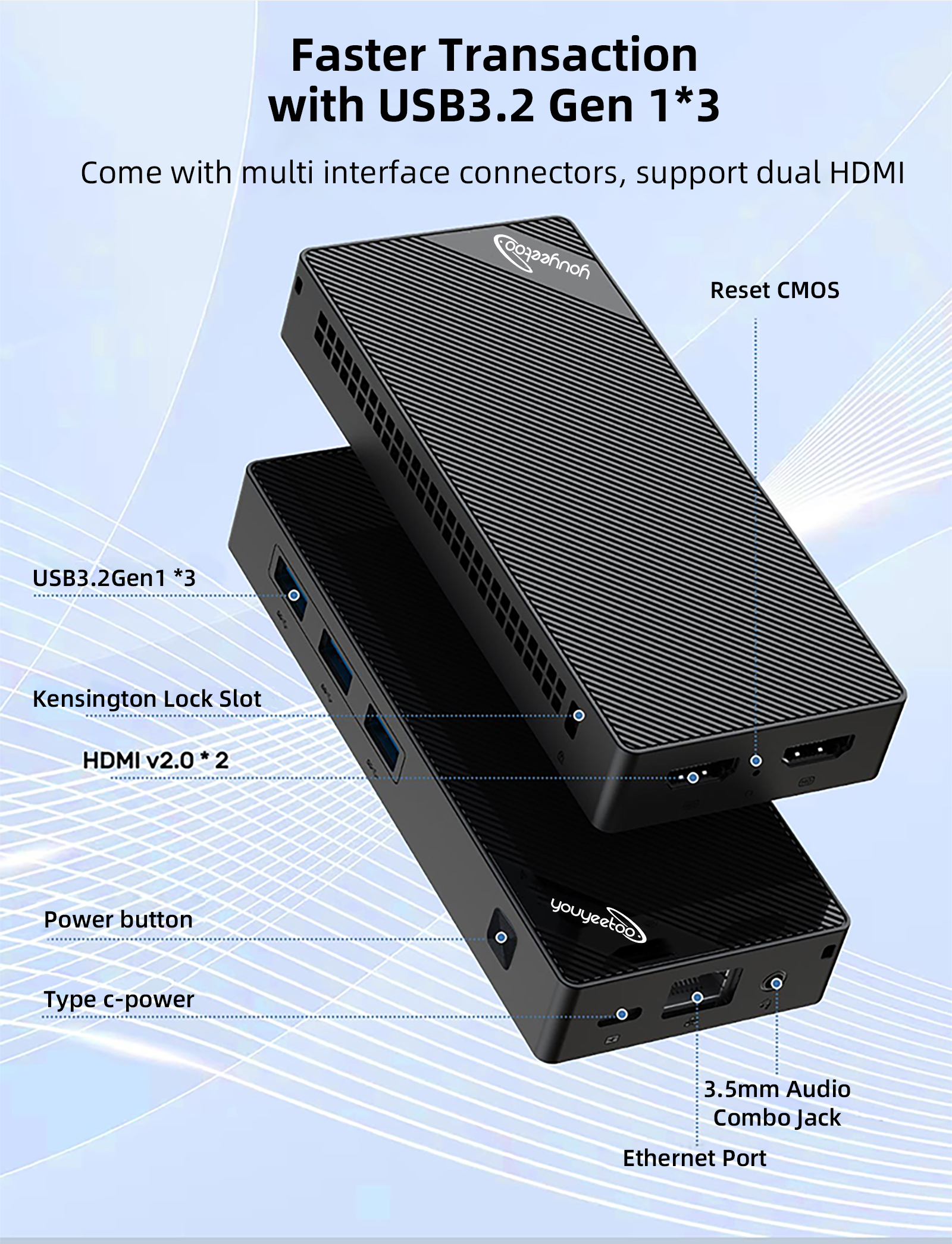

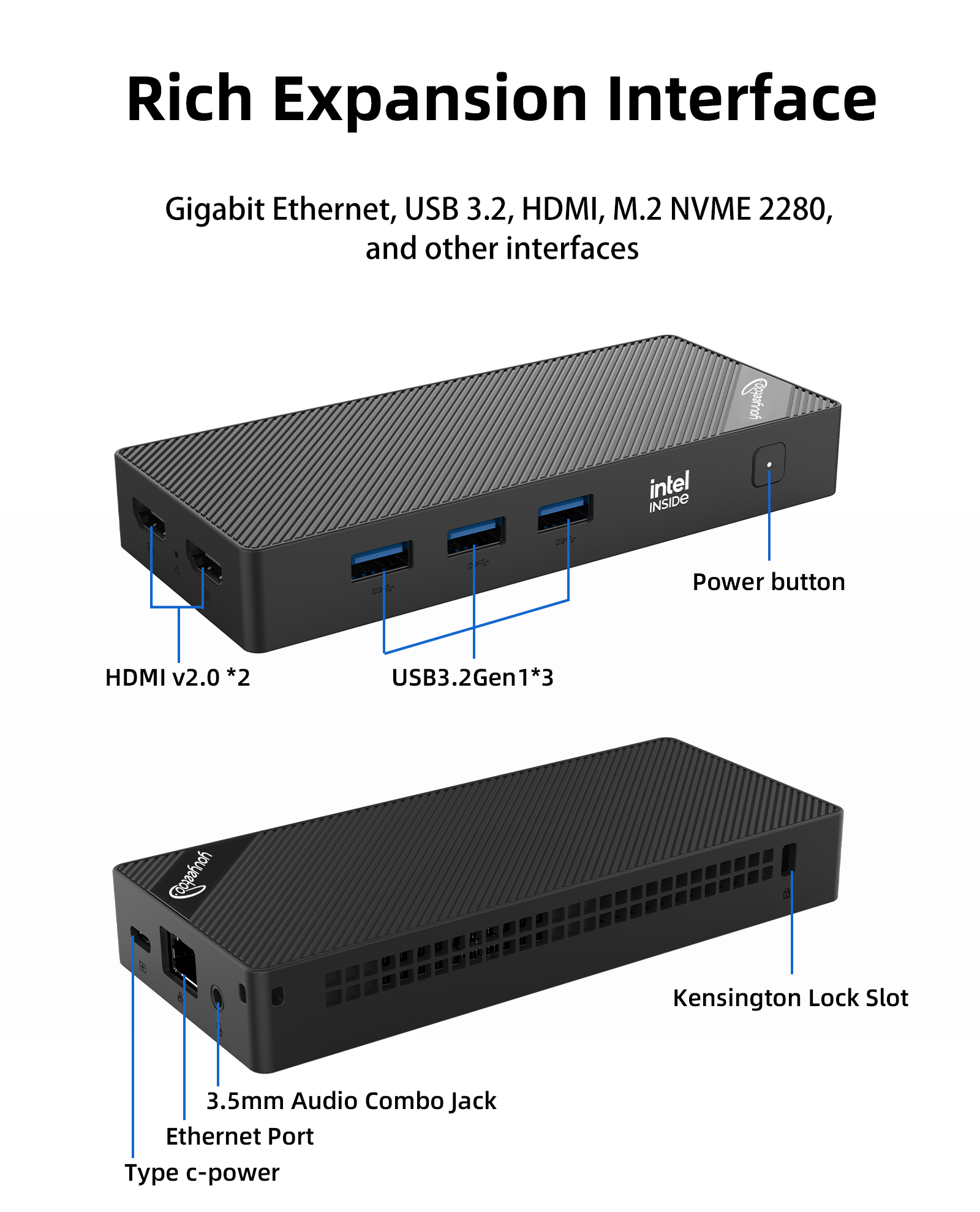

WiFi 6/BT5.2 /2 displays--HDMI2.0 (4K@60Hz)*2/USB3.2（Gen1*1 5Gbps/S）*3/ HDMI*2 4096 x 2160@60Hz/ 1*3.5 mm headphone jack / Giga LAN (RJ45)*1 1000M
Window 11 Pro (installed), supports Linux

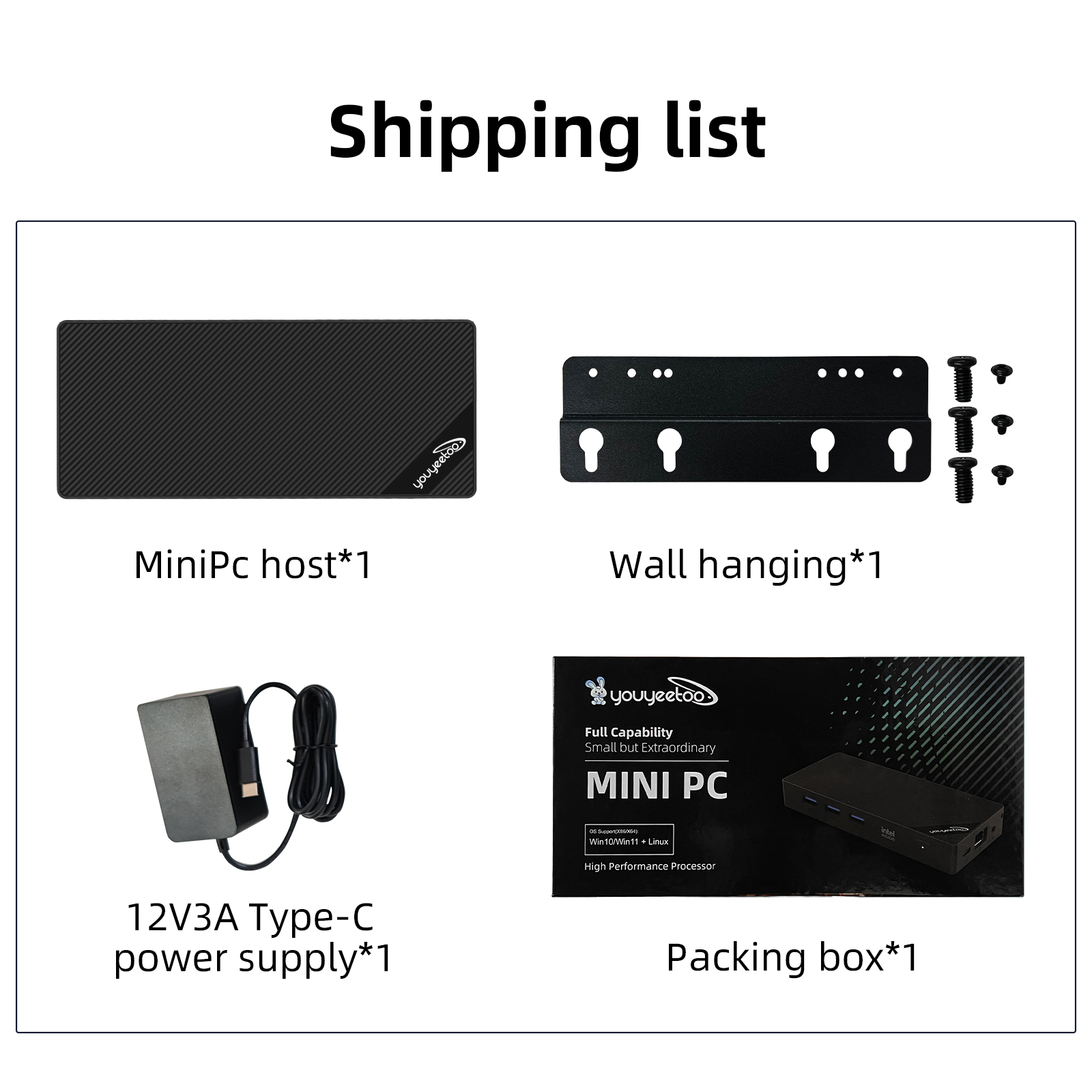

Shipping List

1x BY52 MINI PC
1x 12V3A Type-C Power

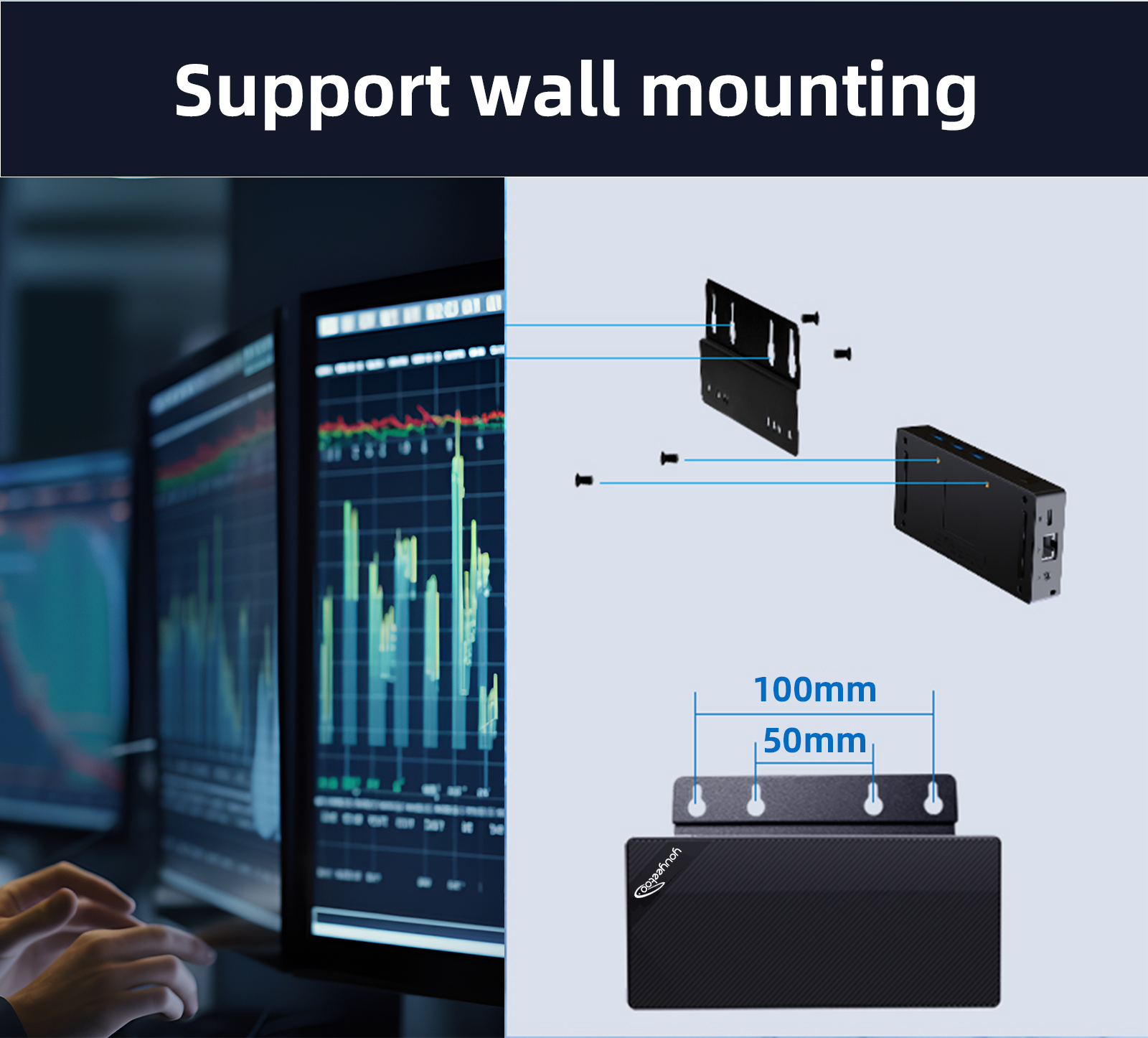

1x Wall Mount


Detailed Descriptions
