• Quick Start: https://wiki.youyeetoo.com/en/youyeetooK1
• Tips

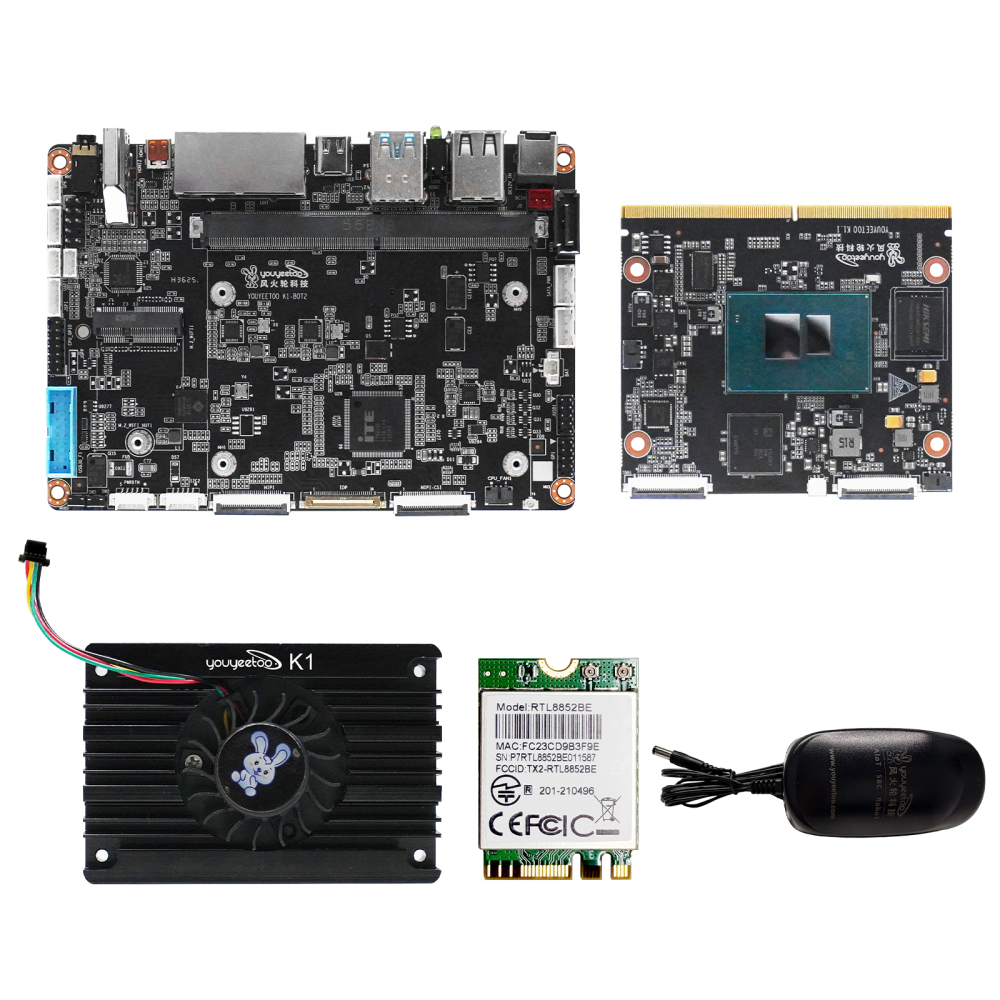

  • The SoM in the Dev Kit cannot be used independently.
    SOM A | Cannot be used independently
    SOM B | Can be used independently

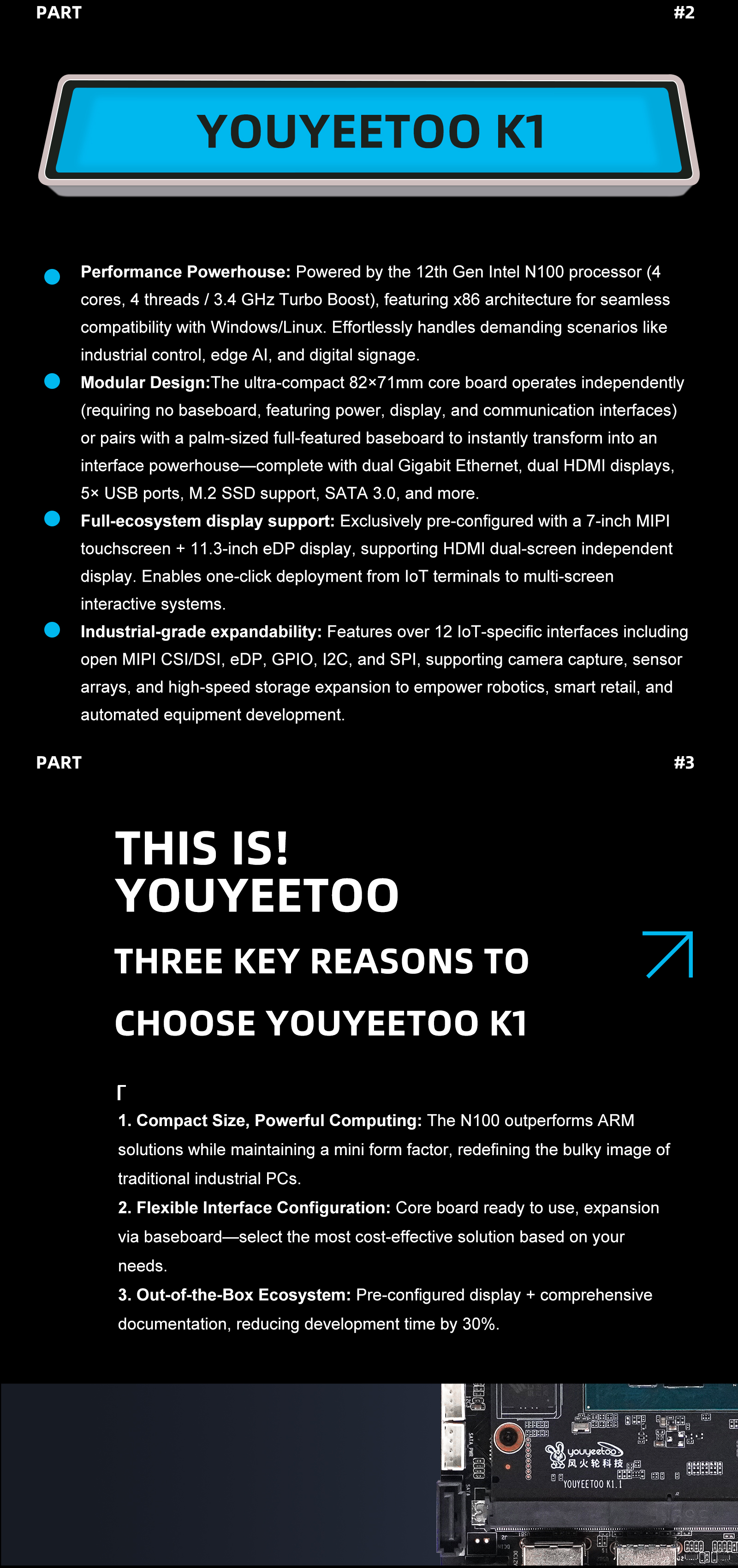

Introduction

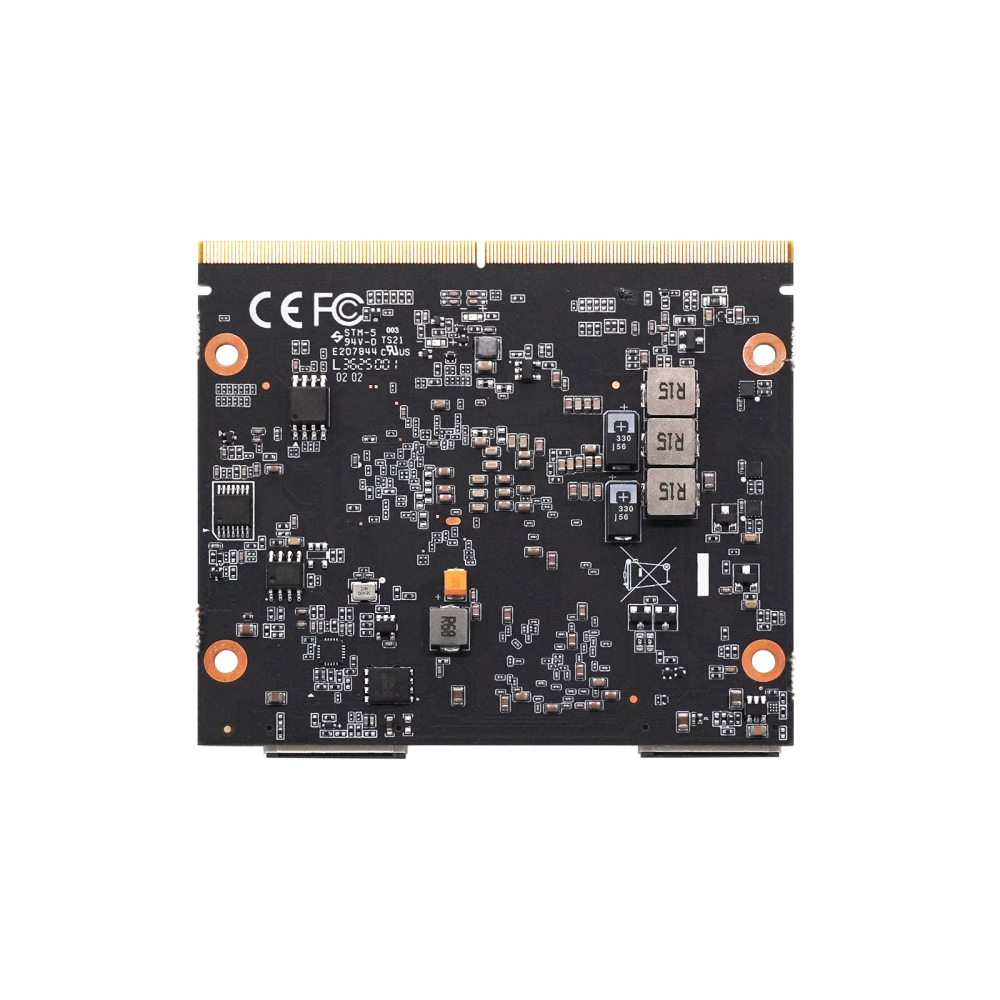

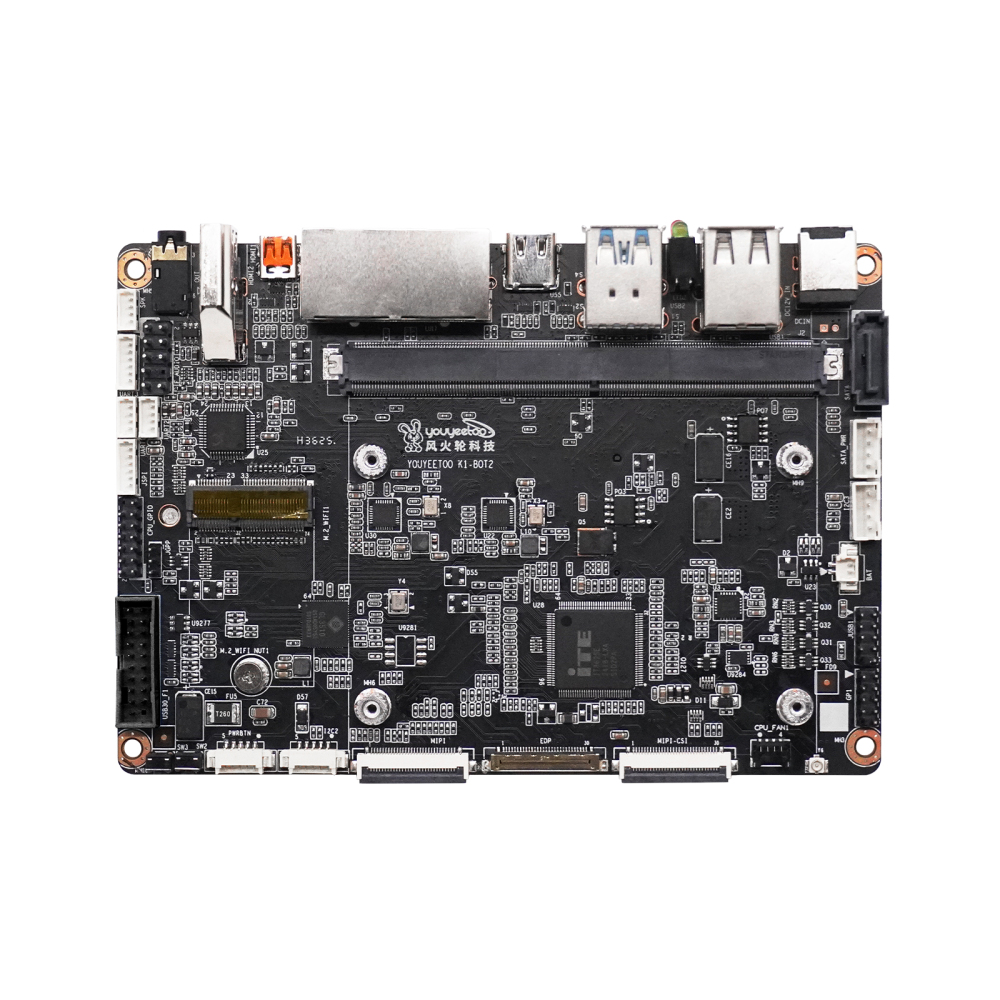

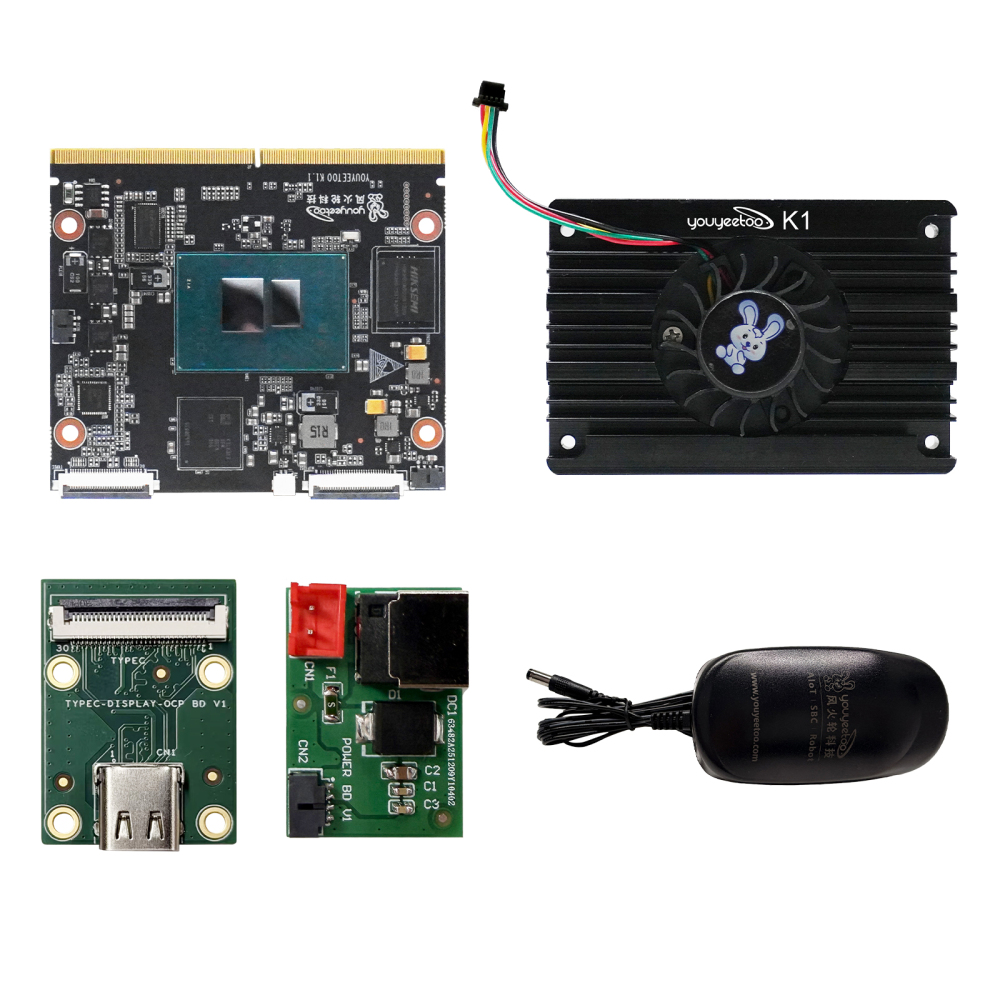

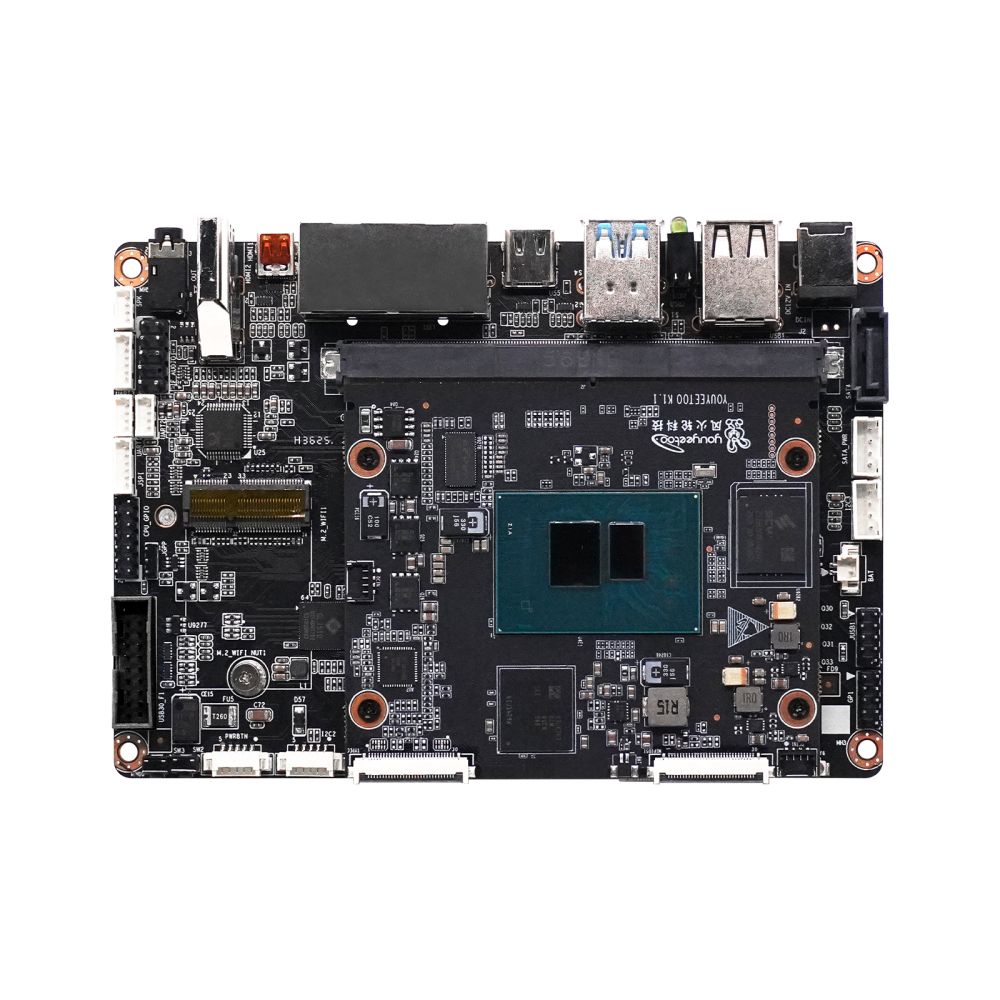

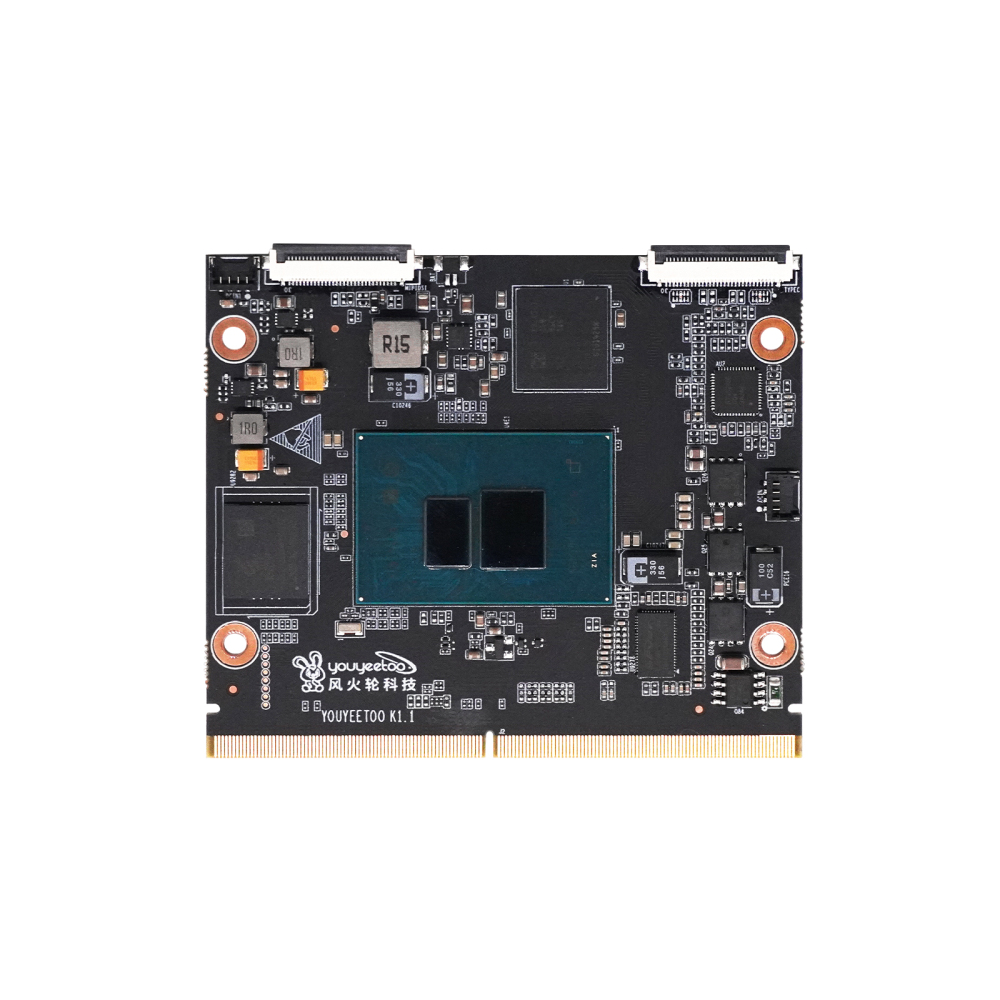

youyeetoo K1 redefines “small” for x86 edge computing. The stamp-sized 82 × 71 mm core board carries an Intel Alder Lake-N N100 processor, LPDDR5 memory and eMMC yet still leaves room for M.2 NVMe/SATA and MIPI displays. Snap it onto the palm-sized carrier and you instantly gain dual 4K HDMI, dual Gigabit LAN, SATA 3.0, four UART, 27 GPIO and wide-range 12 V power—everything needed for industrial HMI, digital signage, OpenWrt gateways or AI vision nodes without custom spin-up. Run Windows 10/11, Ubuntu or Debian with full driver support, watchdog and NFC APIs; deploy vertically or mount behind a monitor—the fanless 6 W design operates silently 24/7. From lab prototype to field rollout, K1 scales with your schedule and your BOM.

Features

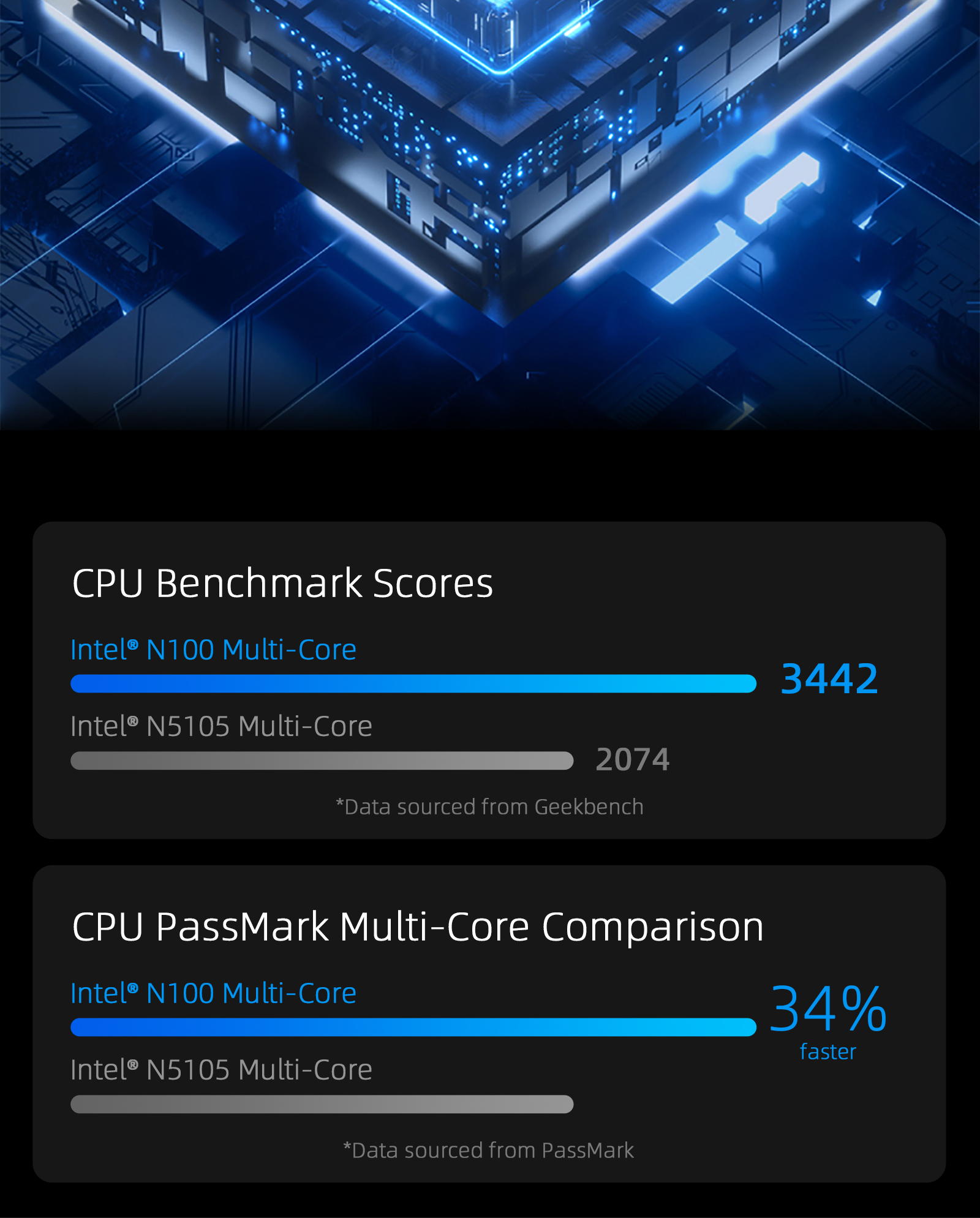

• [Ultra-Compact x86] Intel 12th-gen N100 4C/4T up to 3.4 GHz in an 82 × 71 mm core board—slide it into a robot, kiosk or DIN-rail box and run full Windows/Linux with zero throttling

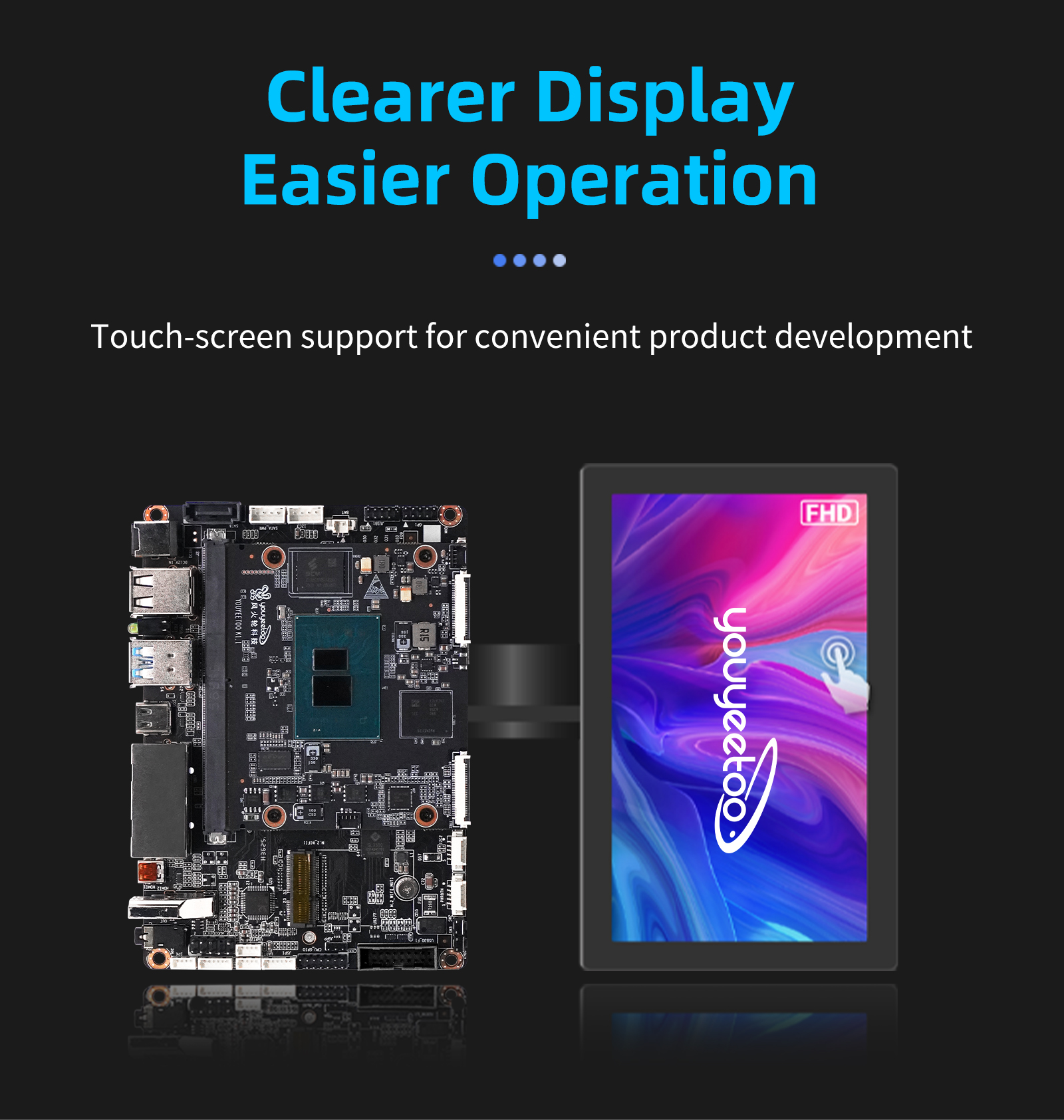

• [Dual 4K Displays] Two HDMI 2.0 ports (4K@60 Hz) plus tested MIPI & eDP touch screens drive digital-signage, HMI or workstation setups straight out of the box

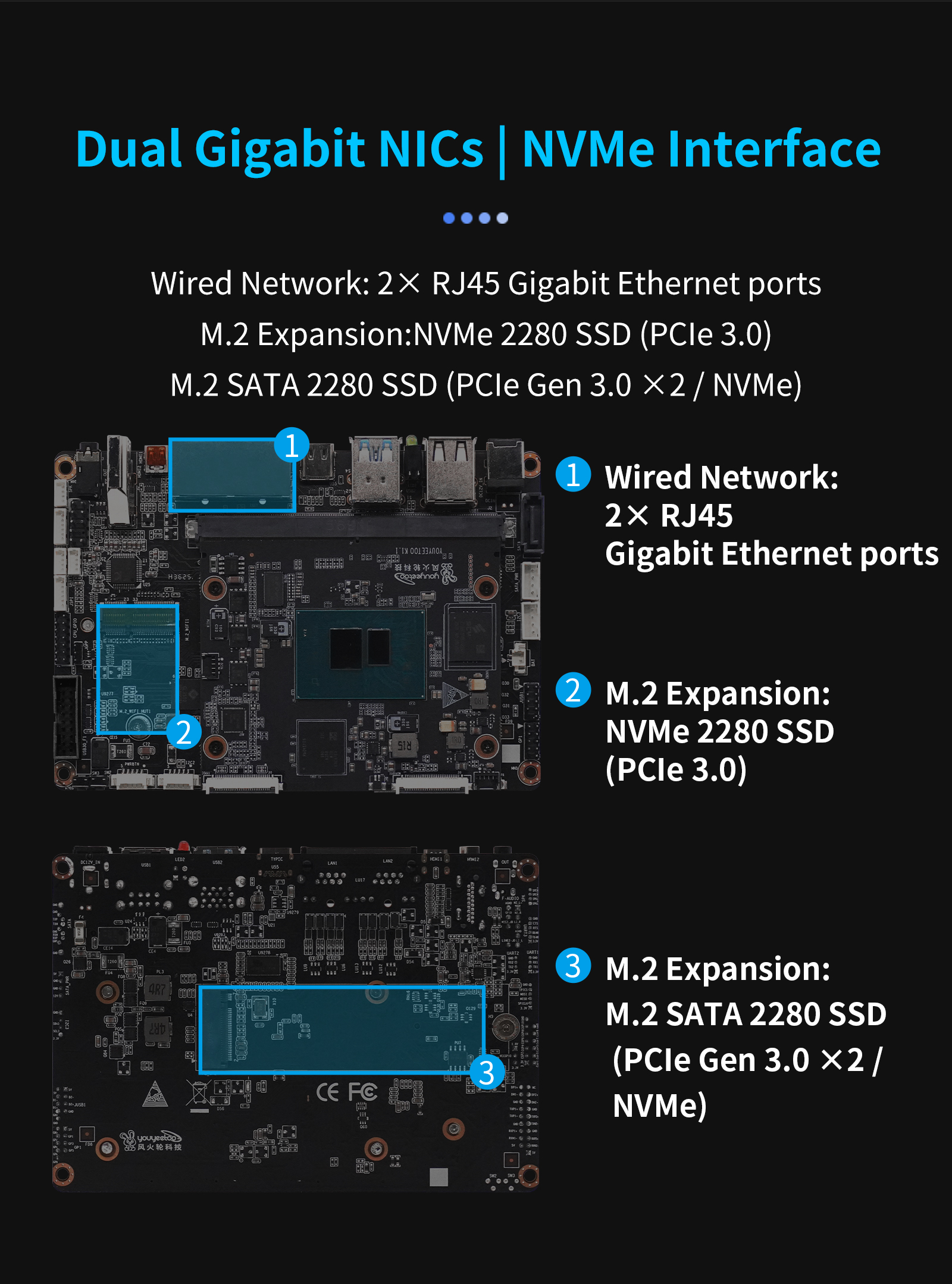

• [Dual Gigabit LAN] On-board 2× RJ45 GbE + optional Wi-Fi 6/BT 5.2 or 4G LTE (M.2) let the K1 act as OpenWrt gateway, firewall or secure edge router

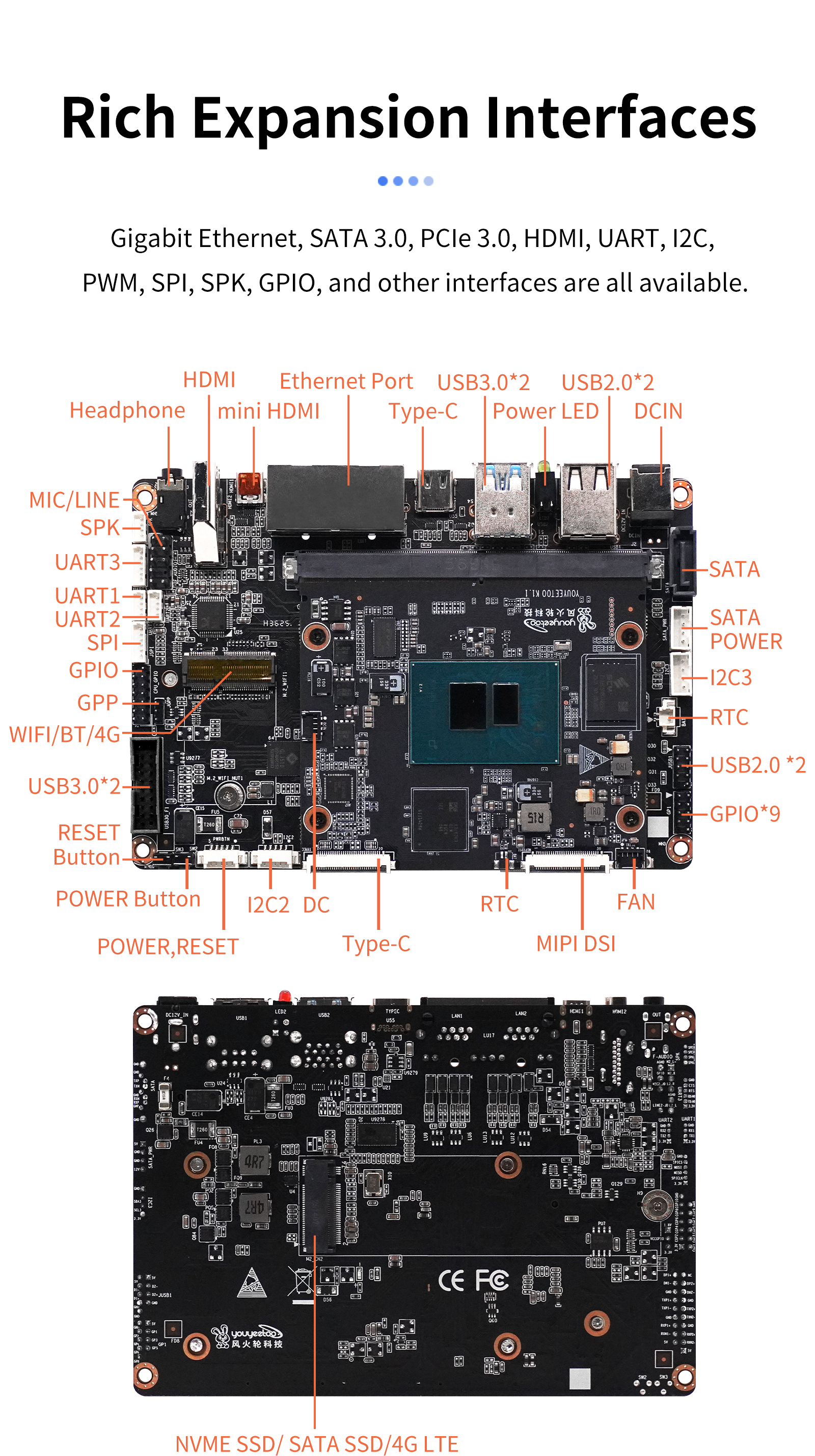

• [Industrial I/O] 4× UART (RS-232/485 ready), 3× I²C, SPI, 27× GPIO, SATA 3.0 & M.2 2280 NVMe/SATA give you real-time control, sensor fusion and fast logging
• [Memory & Storage Freedom] 4–16 GB LPDDR5 and up to 256 GB eMMC on board; add an M.2 2280 SSD and a 2.5" SATA drive for mirrored or tiered storage
• [24/7 Reliability] Fan-less 6 W TDP, 12 V wide-range input, auto power-on, hardware watchdog and -20-60 °C operation keep your service online without maintenance

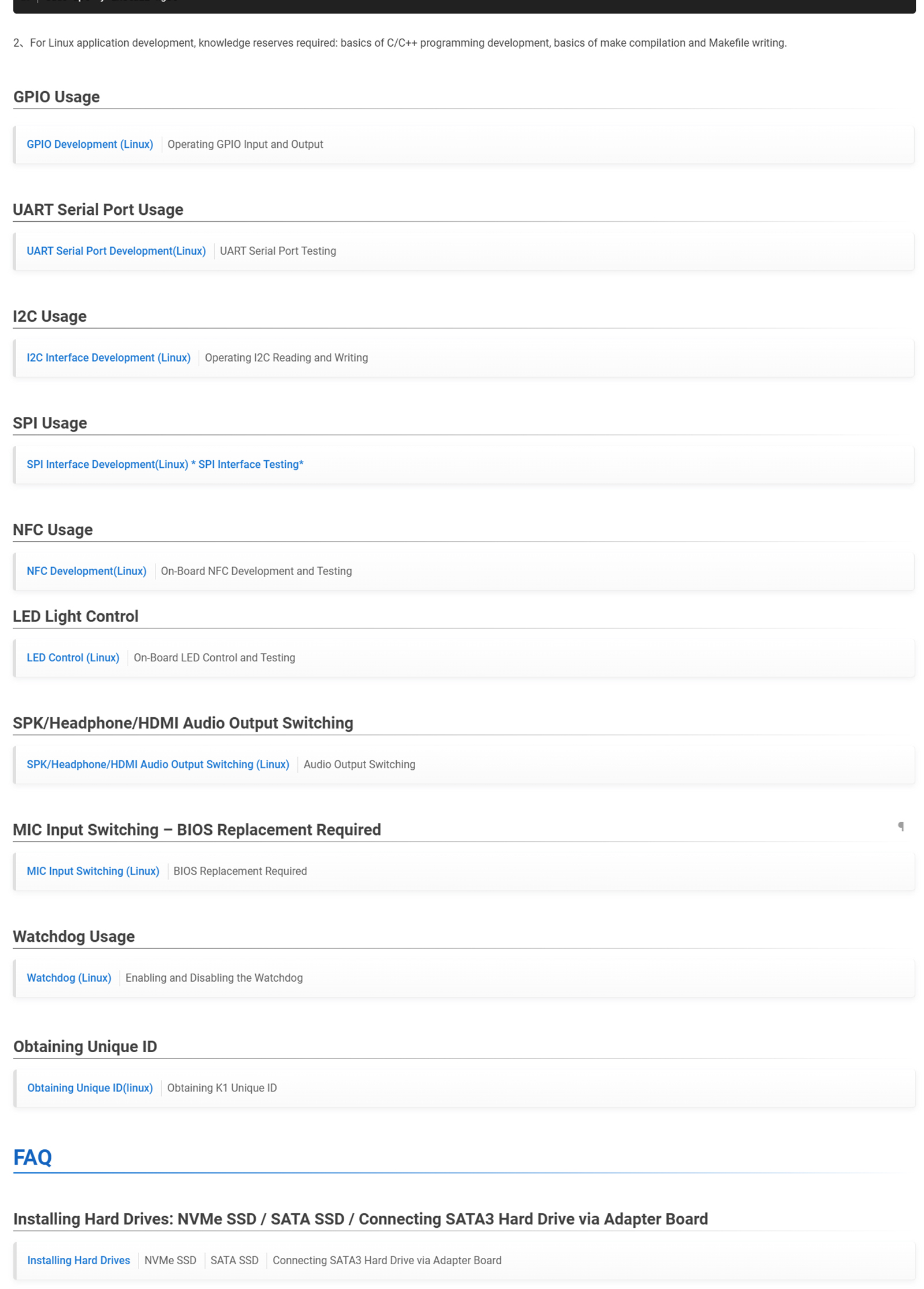

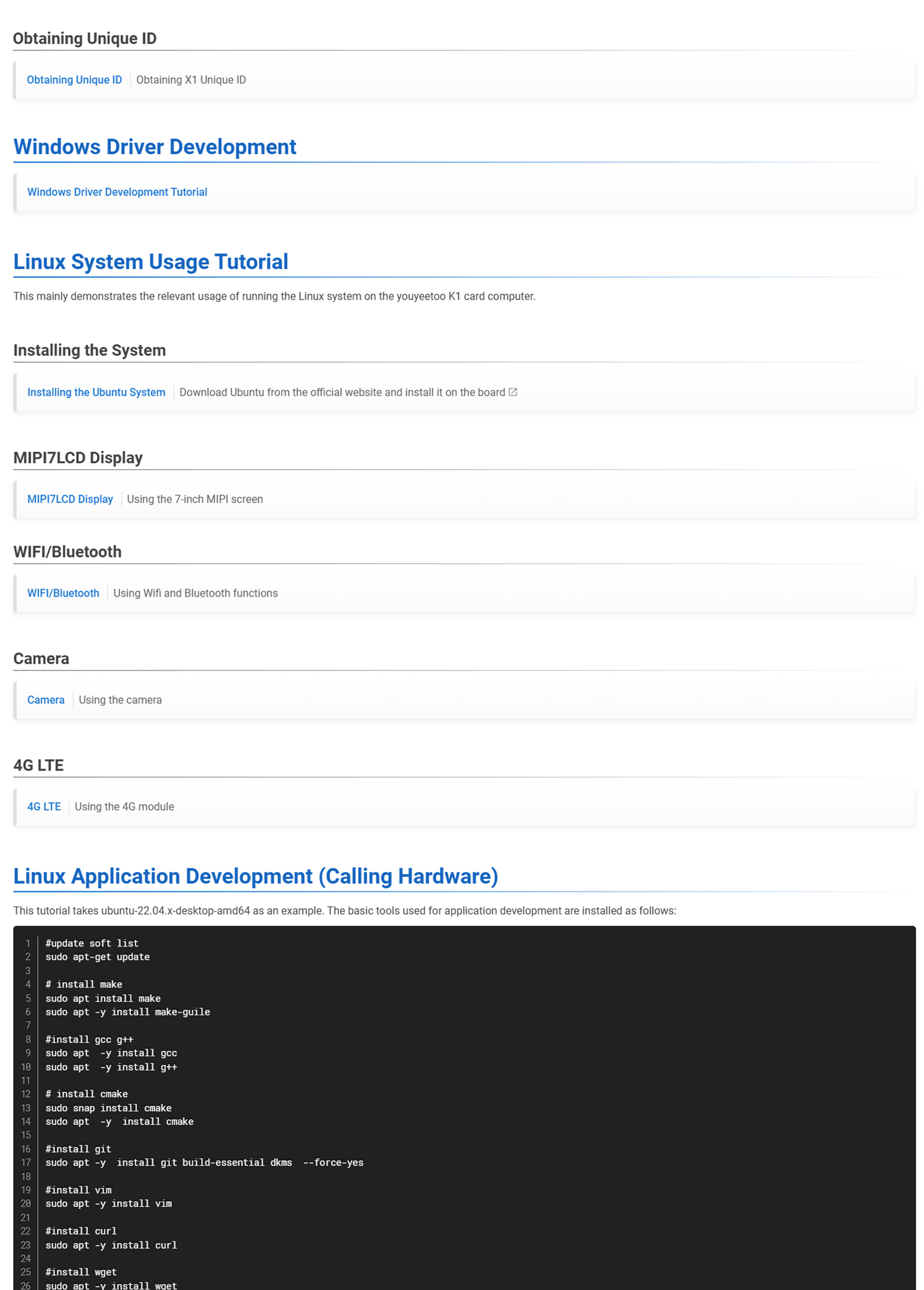

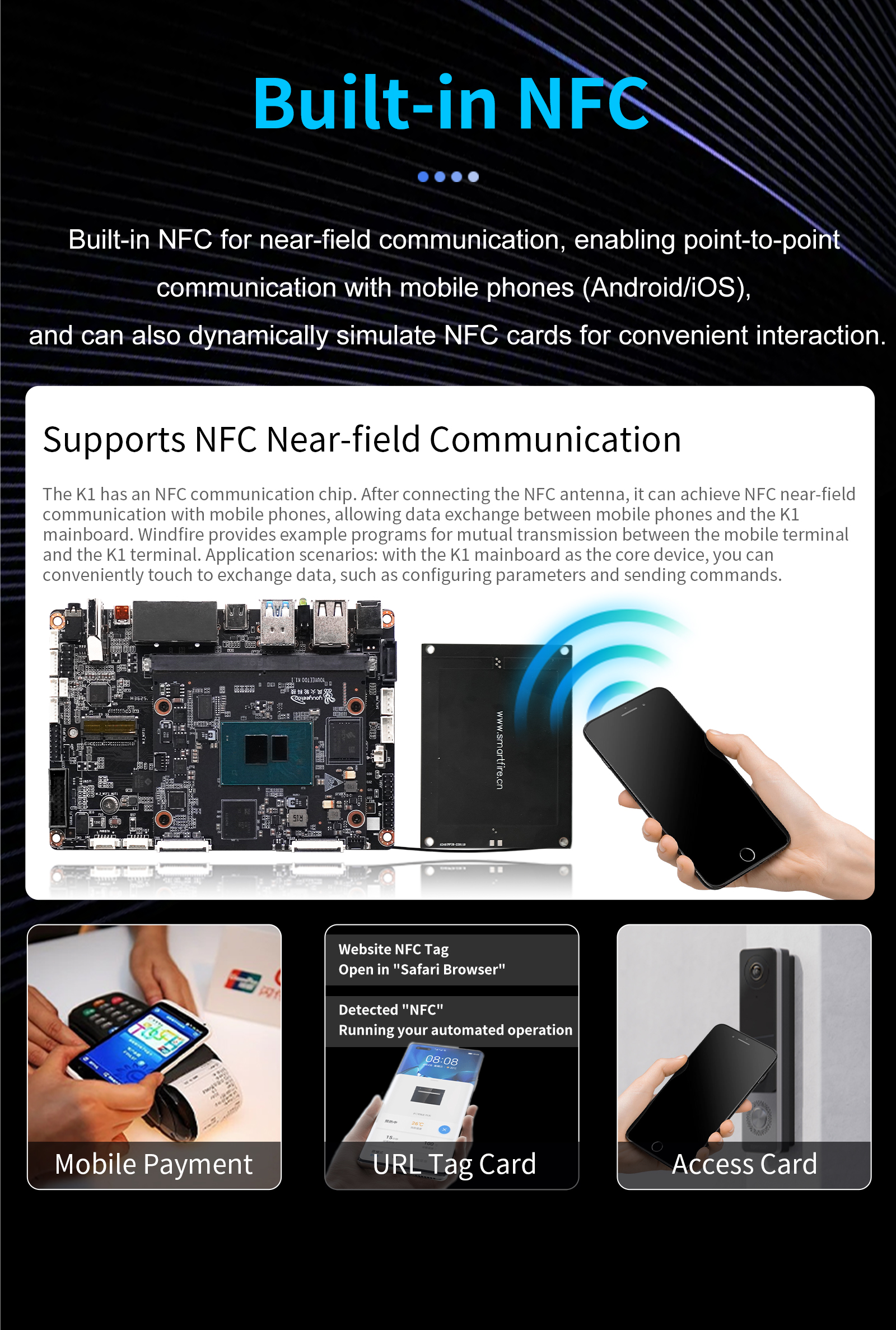

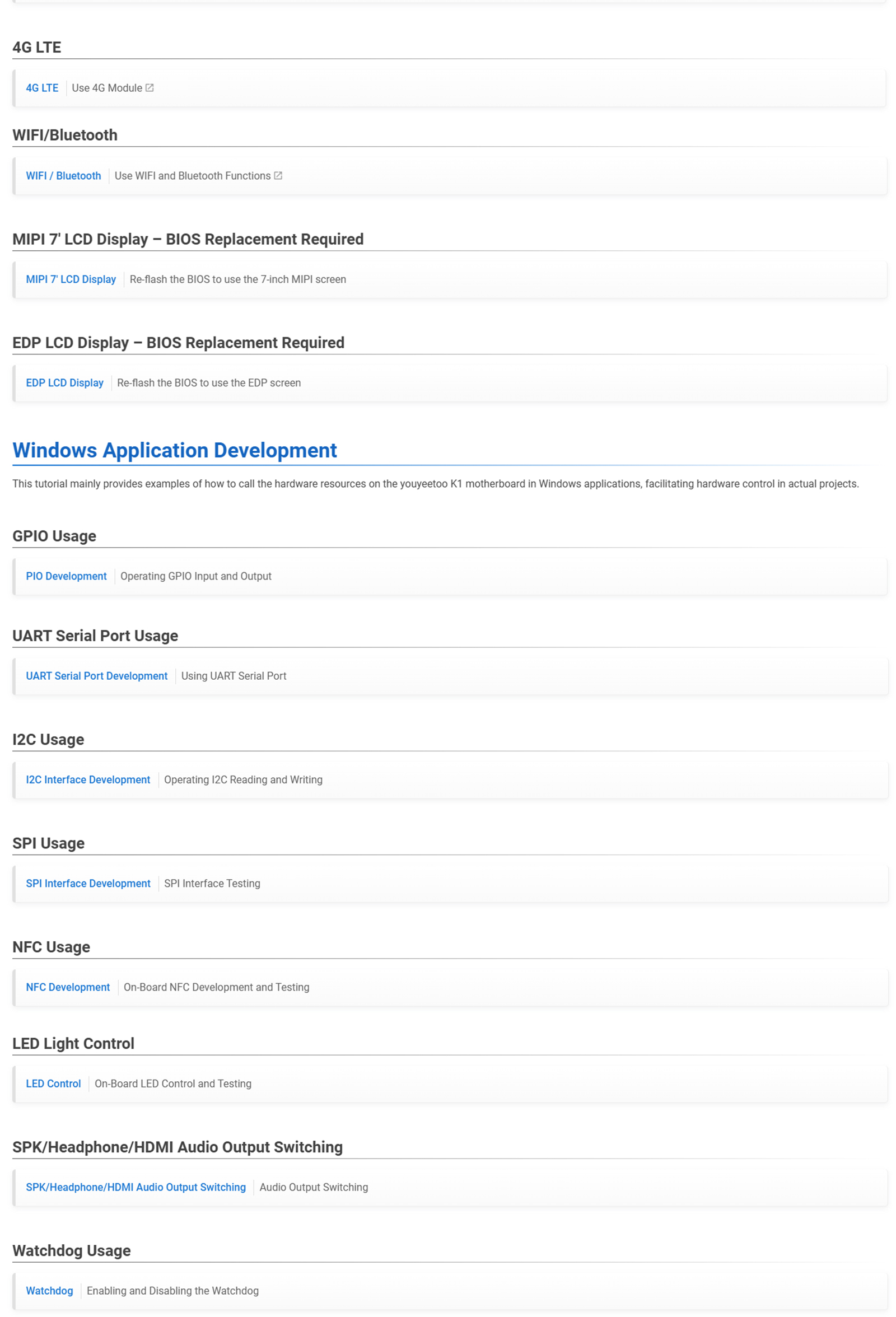

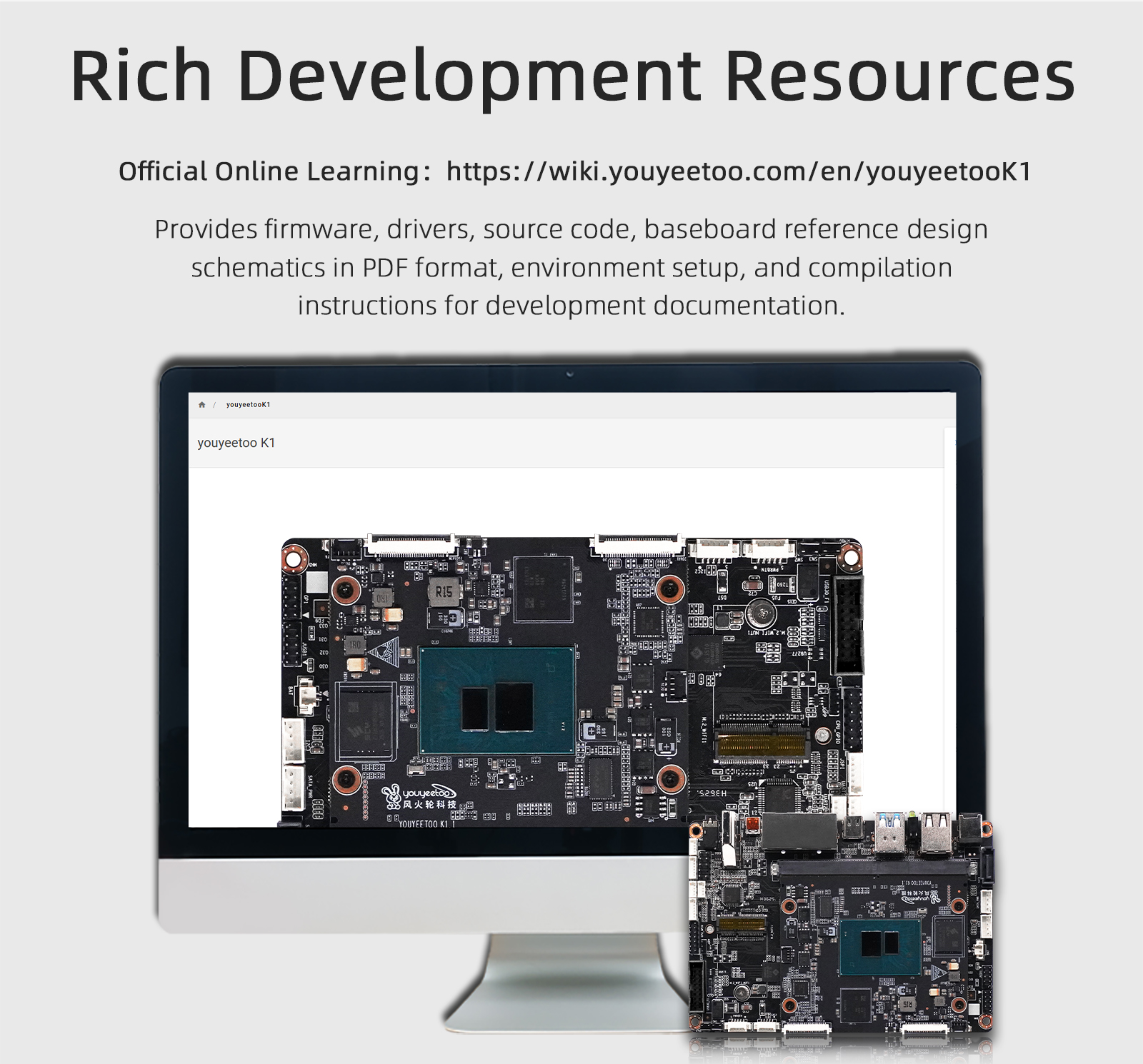

• [Dev-Ready Ecosystem] Open-source wiki, Ubuntu/Debian & Windows images, pre-configured drivers and NFC API cut 30 % development time—perfect for PoC to production

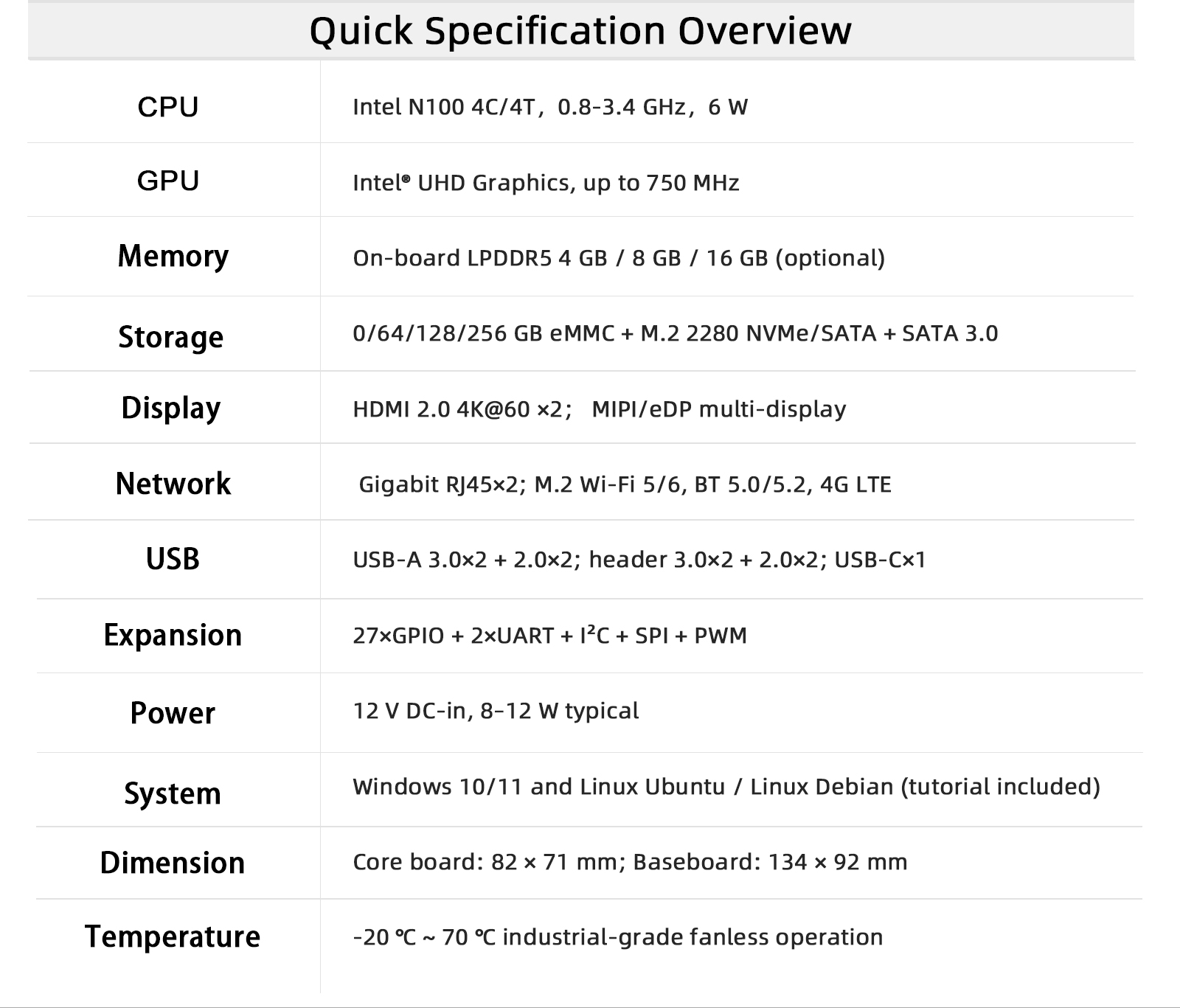

Specification

CPU: 12th-gen Intel N100 4C/4T, 0.8-3.4 GHz, 6 W
GPU: Intel UHD 24 EU, 750 MHz
RAM: 4/8/16 GB LPDDR5 (on-board)
Storage: 0-256 GB eMMC + M.2 2280 NVMe/SATA + SATA 3.0
Display: 2× HDMI 2.0 (4K@60), MIPI DSI, eDP
Network: 2× GbE; M.2 E-key for Wi-Fi 6/BT 5.2 or 4G LTE

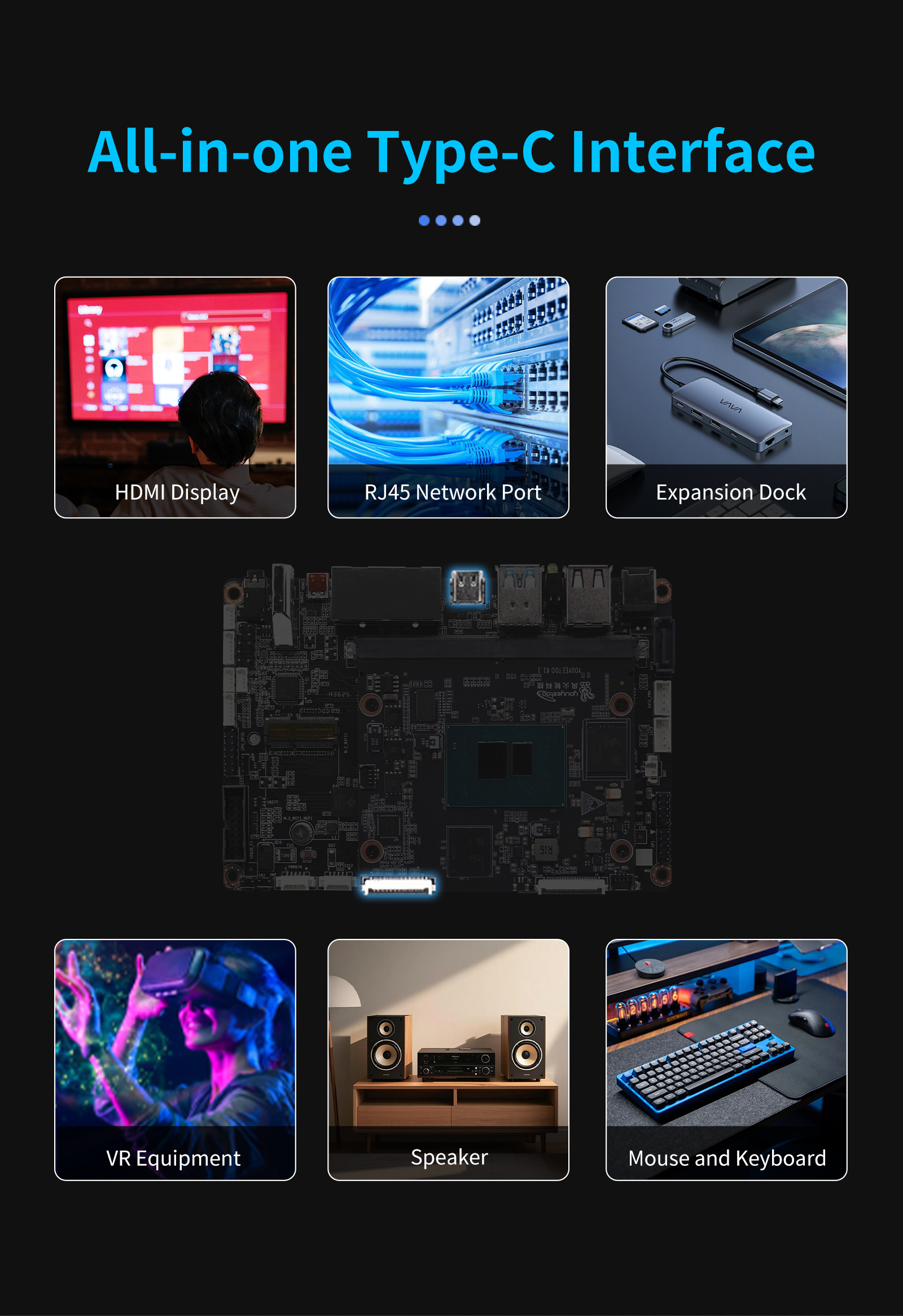

USB: 2× USB 3.0, 2× USB 2.0, 1× USB-C (OTG & power)

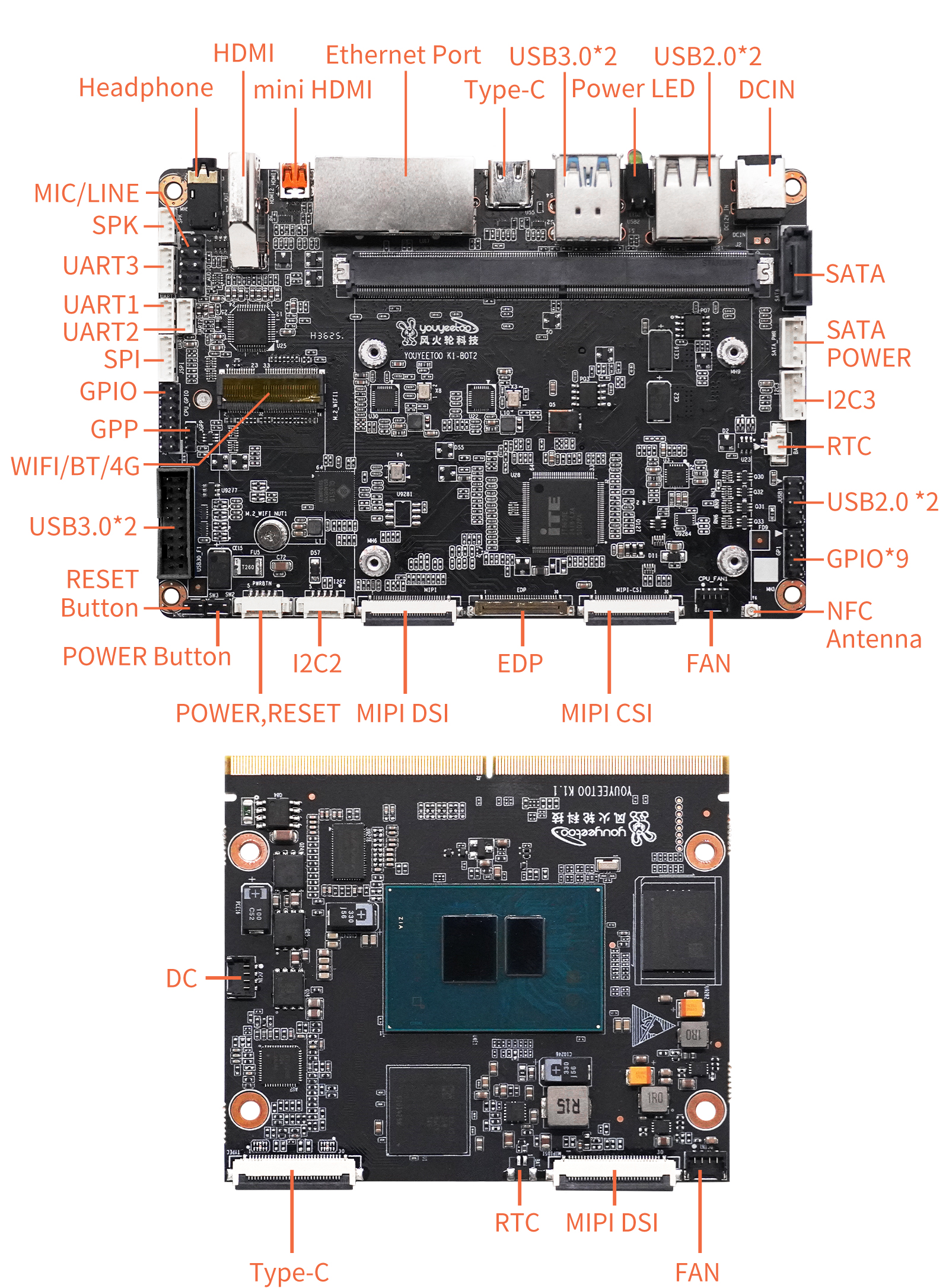

I/O: 4× UART, 3× I²C, SPI, 27× GPIO, I²S, MIPI CSI
Power: 12 V DC (5.5 × 2.5 mm & XH-2A), auto power-on

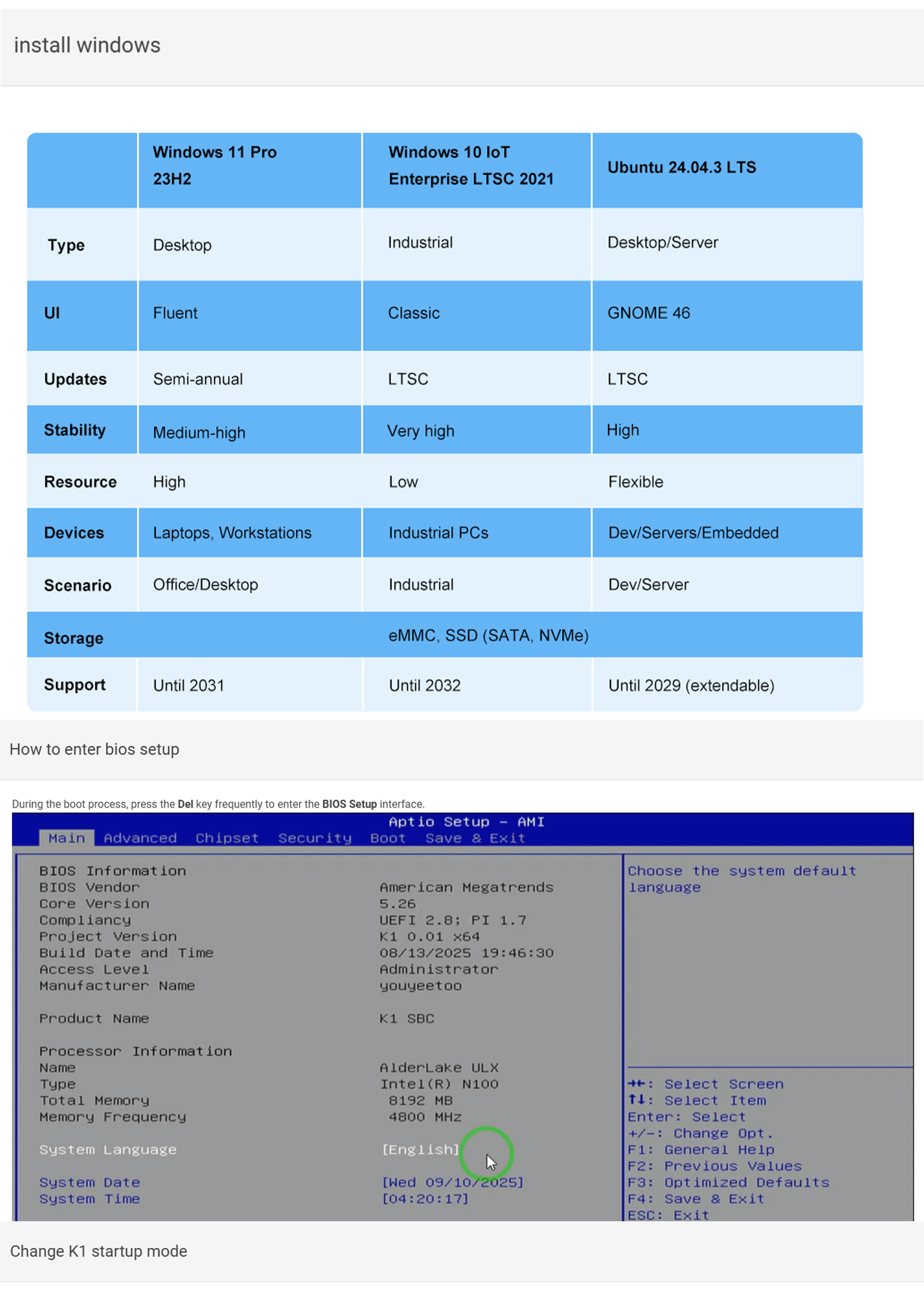

OS: Windows 10/11, Ubuntu, Debian, OpenWrt
Temp: -20-60 °C operating, fan-less

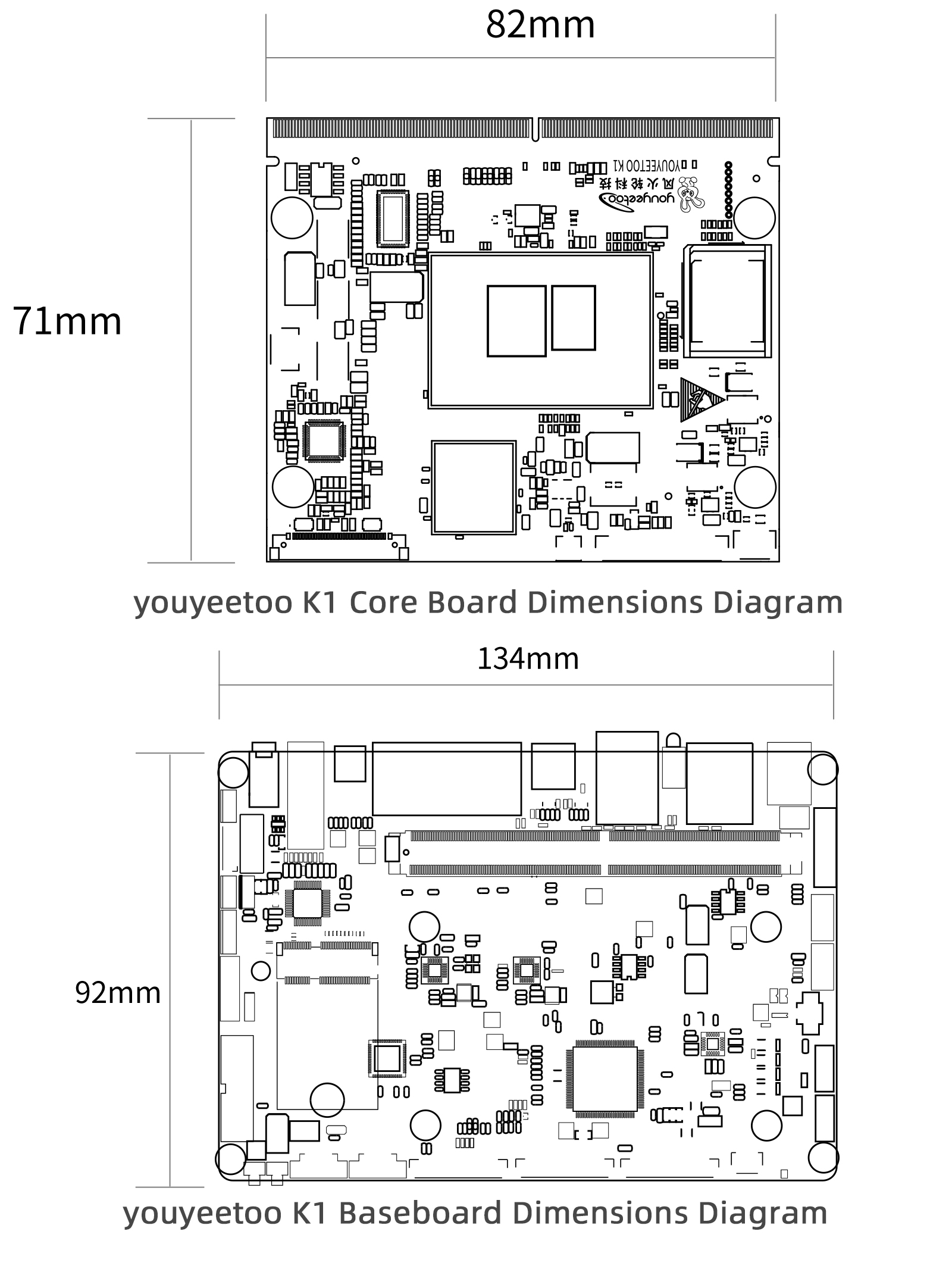

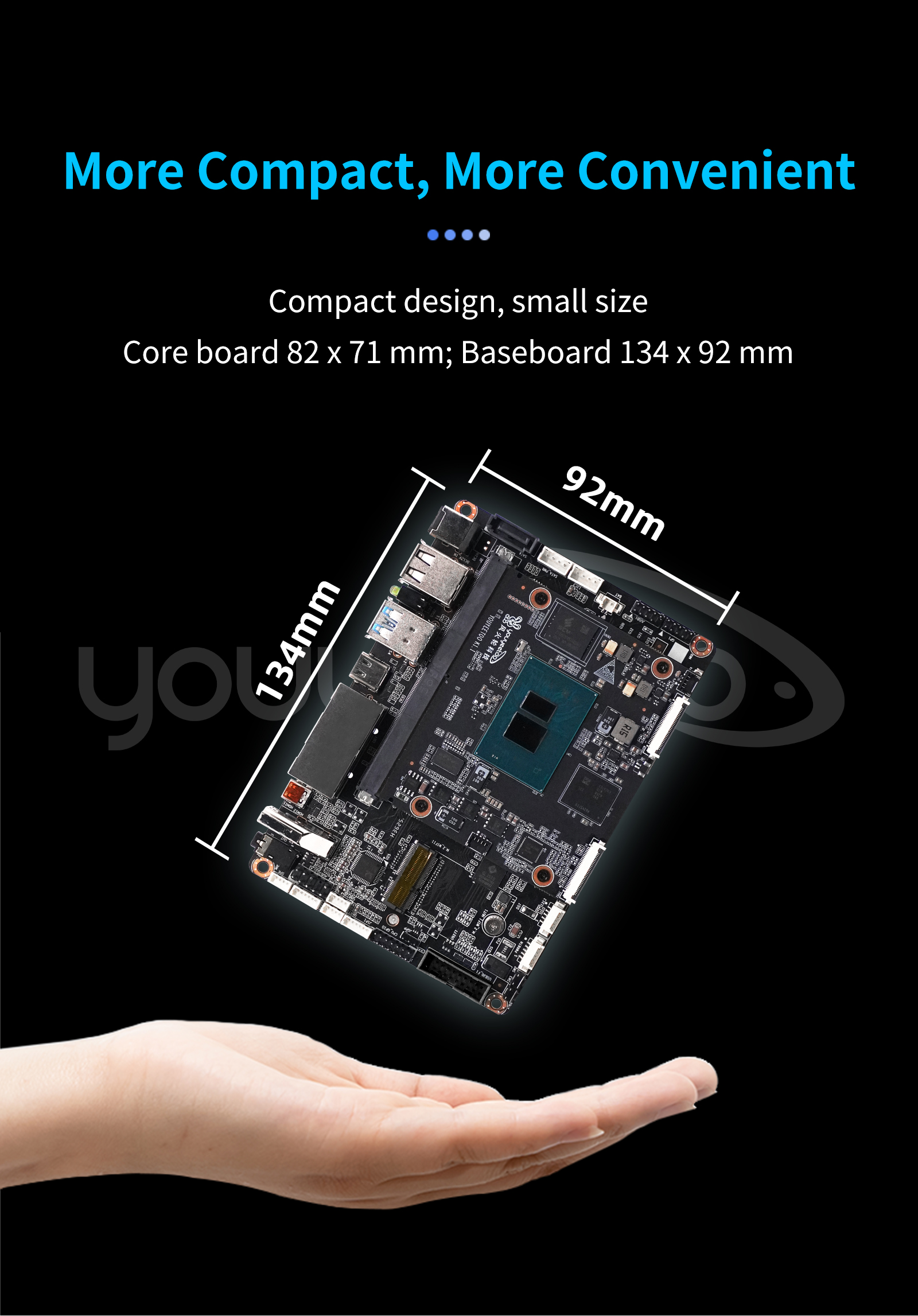

Size：Core 82 × 71 mm；Carrier 134 × 92 mm

Detailed Descriptions
