Sipeed Nezha D1 64bit RISC-V Linux SBC Board Allwinner D1 Support Ubuntu/Tina/Debian System

SKU:
Nezha is a AIoT development board customized by AWOL based on Allwinner's D1-H chip. It is the world's first mass-produced development board that supports 64bit RISC-V instruction set and Linux system.
0.0 (0 Reviews)
$128.77 $98.82
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • RAM:
    1GB
    2GB
  • Other:
    No
    Standard Development kit
    8 inch MIPI LCD Development kit
    Please select the information you wantX
Quantity
-
+
  • youyeetoo Sipeed Nezha D1 64bit RISC-V Linux SBC Board Allwinner D1 Support Ubuntu/Tina/Debian System
  • youyeetoo Sipeed Nezha D1 64bit RISC-V Linux SBC Board Allwinner D1 Support Ubuntu/Tina/Debian System
  • youyeetoo Sipeed Nezha D1 64bit RISC-V Linux SBC Board Allwinner D1 Support Ubuntu/Tina/Debian System
  • youyeetoo Sipeed Nezha D1 64bit RISC-V Linux SBC Board Allwinner D1 Support Ubuntu/Tina/Debian System
  • youyeetoo Sipeed Nezha D1 64bit RISC-V Linux SBC Board Allwinner D1 Support Ubuntu/Tina/Debian System
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

image-20210508170654008

image-20210508170547006

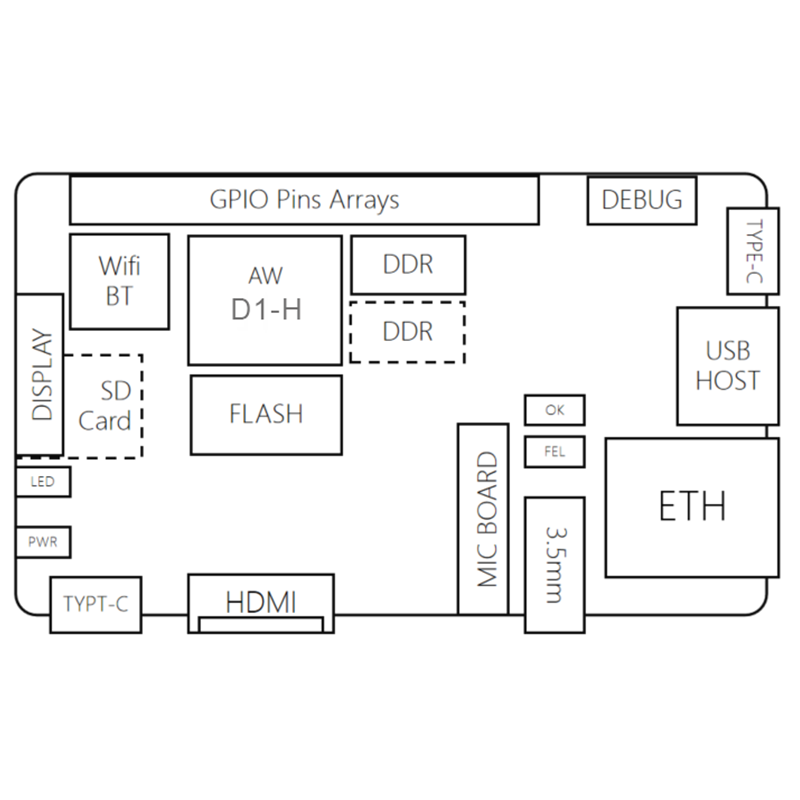

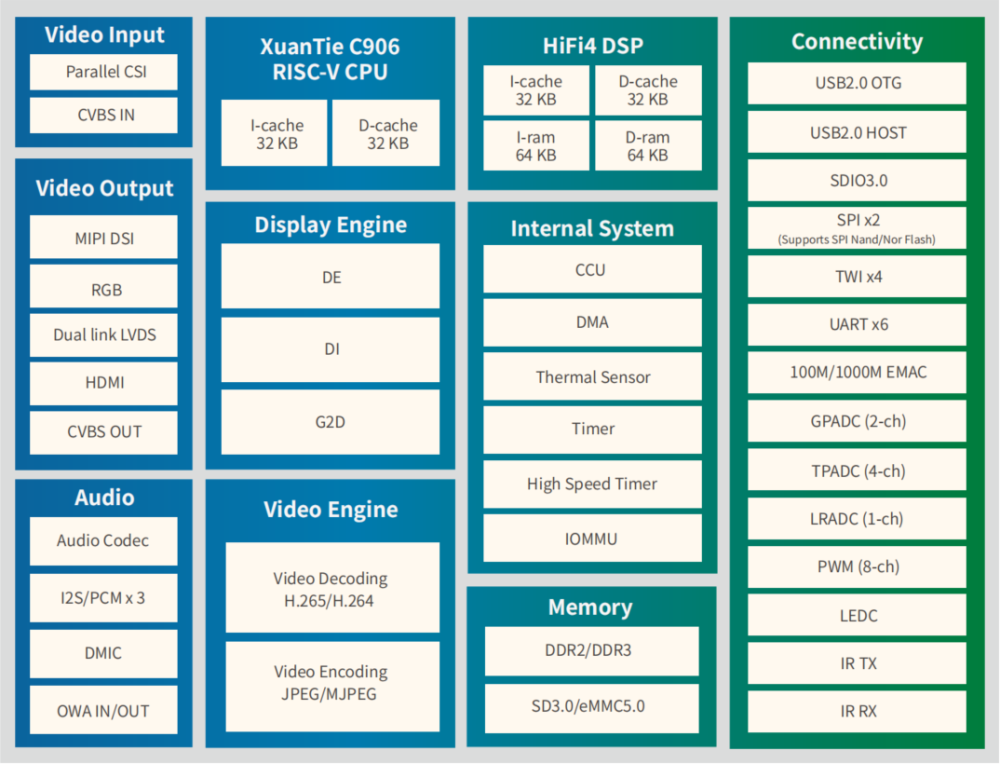

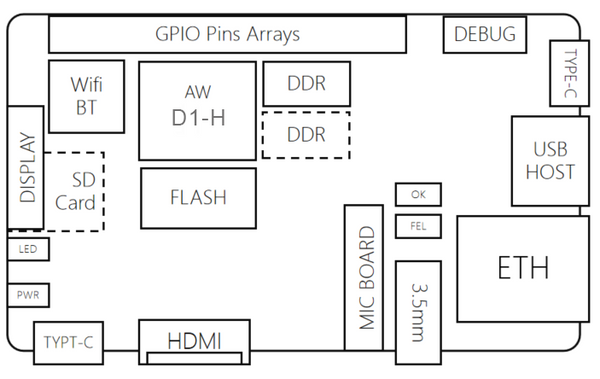

Development Board block diagram

D1-H开发板框图

Specifications

  • Main control: Allwinner D1-H C906 RISC-V 1GHz
  • DRAM: DDR3 1GB/2GB
  • Storage: Onboard 256MB spi-nand, support USB external U disk and SD card to expand storage
  • Network: Support Gigabit Ethernet, support 2.4G WiFi and Bluetooth, onboard antenna
  • Display: Support MIPI-DSI+TP screen interface, support HDMI output, support SPI screen
  • Audio: Microphone daughter board interface * 1, 3.5mm headphone jack * 1 (CTIA)
  • Board size: length 85mm?width 56mm?thickness 1.7mm
  • PCB layer: 6 layers
  • Support Tina Linux, based on the Linux 5.4 kernel


System

Official support Tina Linux System, which is based Linux 5.4 & uboot-2018

Tina Linux introduces: Tina Linux introduce
