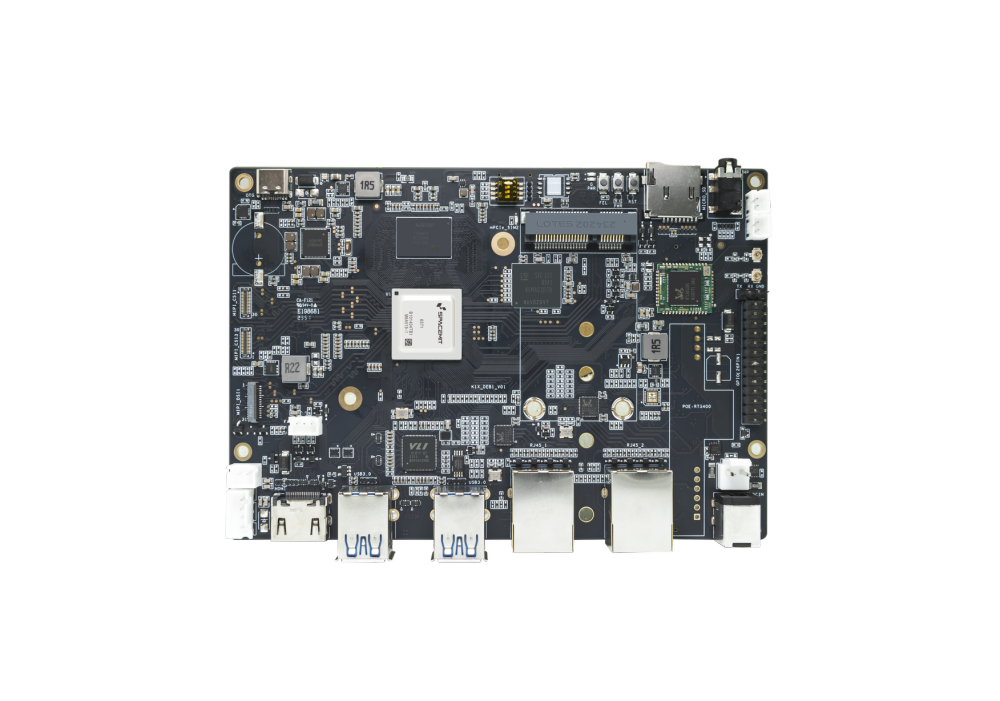

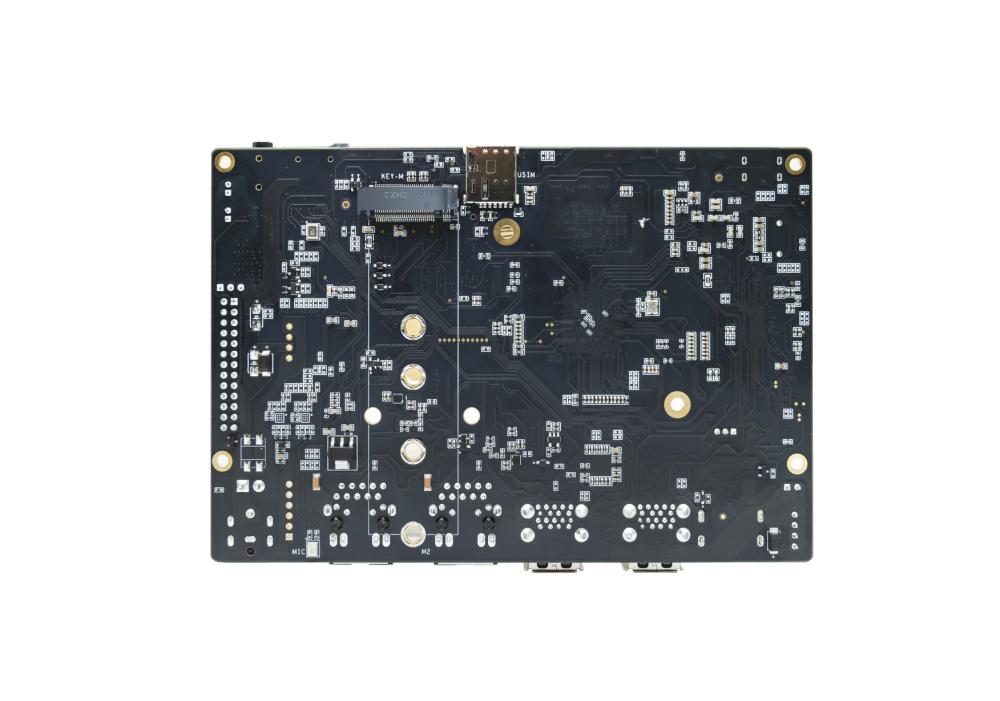

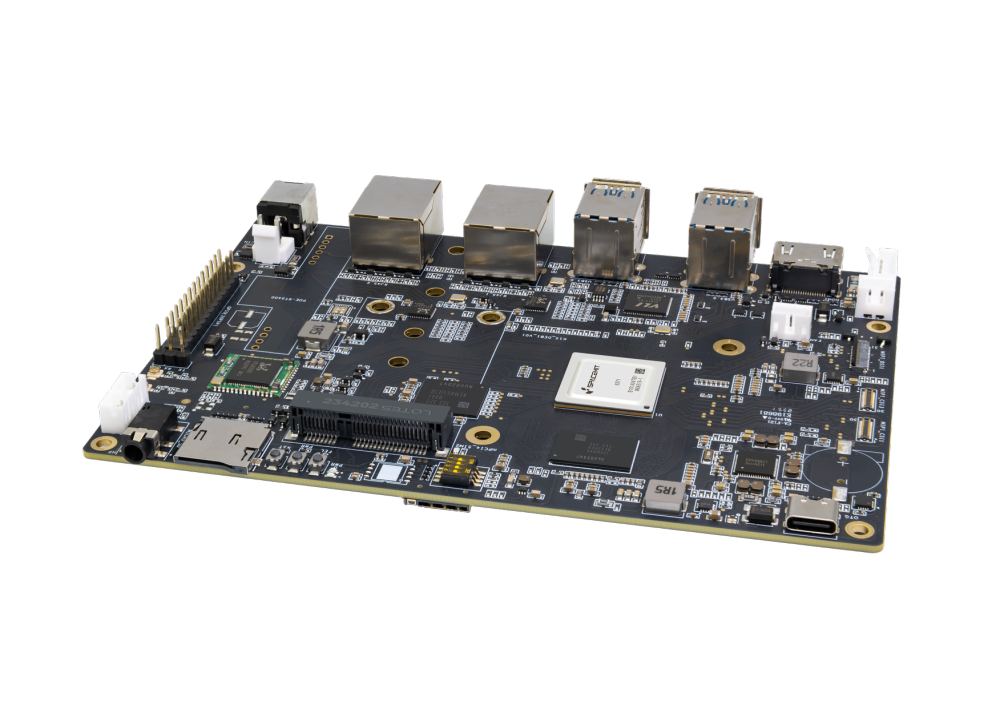

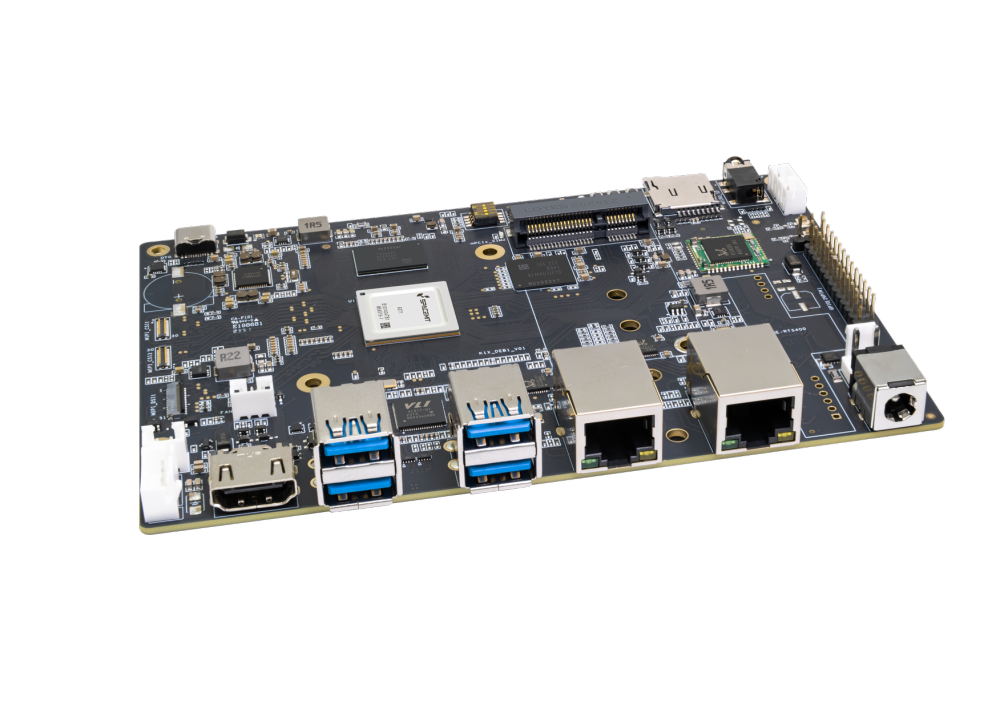

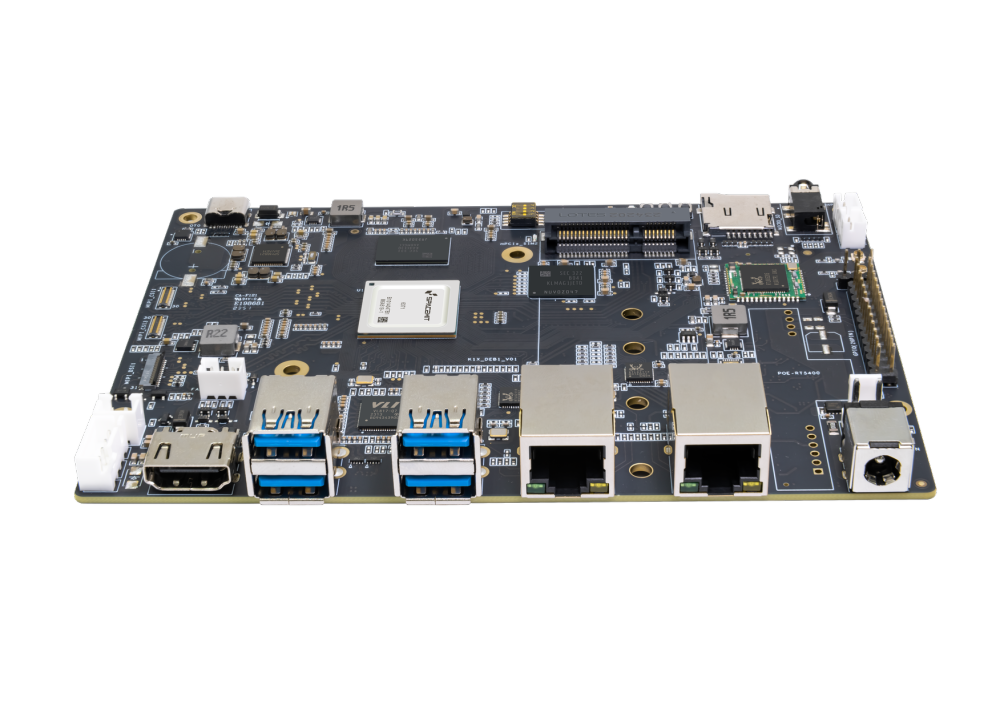

Banana Pi BPI-F3 is an industrial-grade RISC-V development board, it is designed with a SpacemiT K1 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 8G DDR and 16G eMMC onboard.2x GbE Ethernet port, 4x USB 3.0 and PCIe for M.2 interface, support HDMI and Dual MIPI-CSI Camera.
8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power
Single-core general computing power equivalent to 1.3 times Cortex-A55
Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory
4K decoding and encoding
5-lane PCIE2.1 expansion capability
1x USB 3.0 + 2x USB 2.0 interfaces
12x UART serial ports
Operating temperature range: -40°C to 85°C
1x Banana Pi BPI-F3
NAS
Laptop
Intelligent robotics
Industrial control
AI edge computing
CPU |
SpacemiT K1 8-core RISC-V chip |
AI |
2.0Tops from RlSC-V Core |
Memory |
4 GB LPDDR4 (Supports up to 8G LPDDR4) |
Storage |
16G eMMC flash,4M SPI NOR,32M SPI NAD |
SD card |
MicroSD card slot (Greater than 256MB) |
Wireless |
2.4G/5G WiFi and Bluetooth 4.2 |
Ethernet |
2x GbE Ethernet port(supports PoE with add-on PoE HAT) |
HDMI |
1x full-size HDMI digital Audio output(HDMI1.4,up to 1080p@60fps ) |
Audio |
Speaker, Mic, Earphone |
Camera |
MIPI-CSI, Dual-shot support |
USB |
4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG |
PCIe |
PCIE2.1 2lane * 2. |
GPIO |
26-pin header |
Buttons |
Reset, Power, and Burn |
LED |
Power Status |
Power |
12V3A 5521 DC and TYPE-C in |
Size |
148x100 mm |
Weight |
200g |
