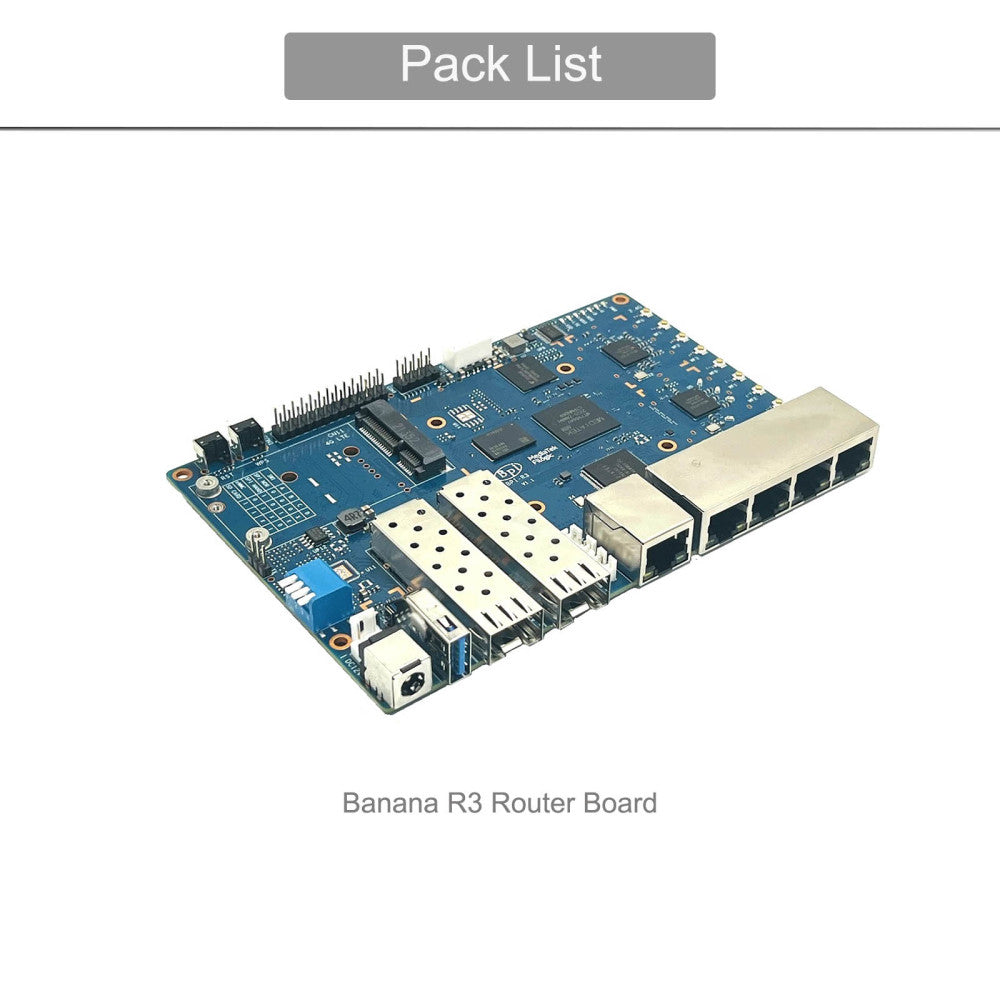

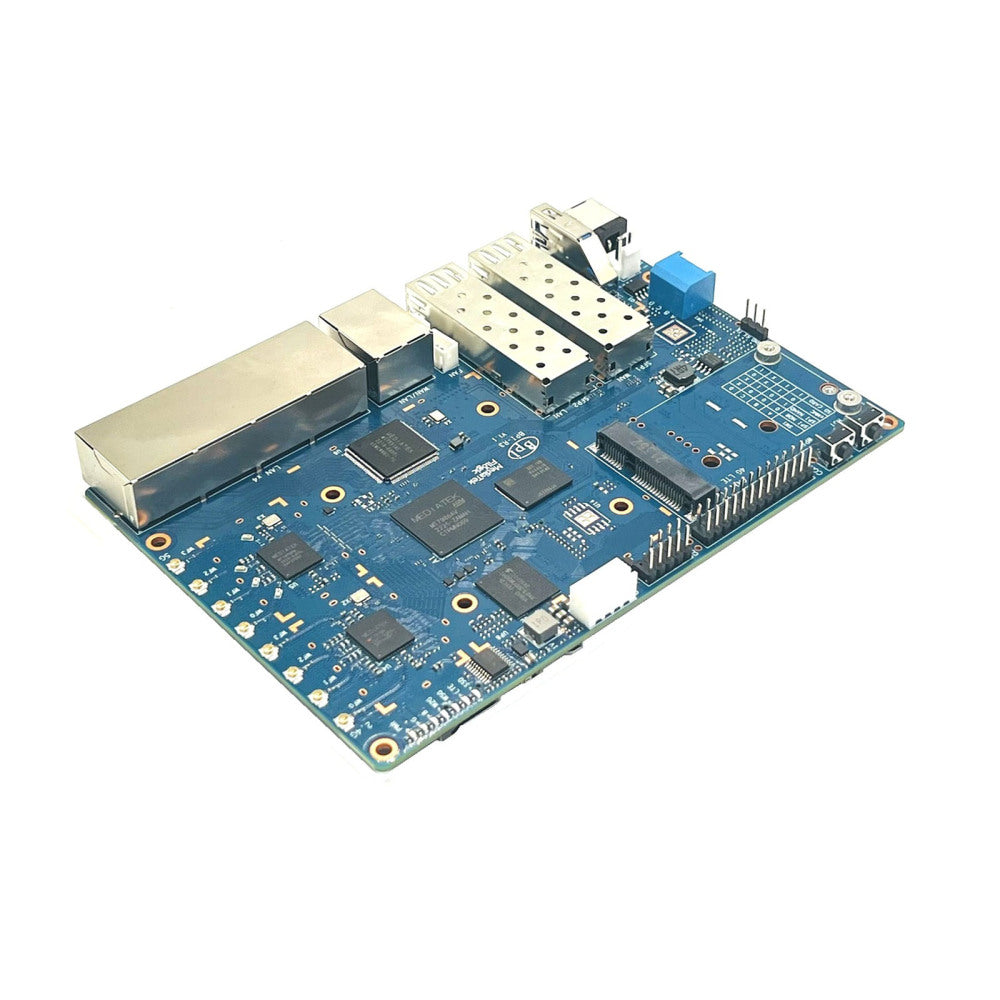

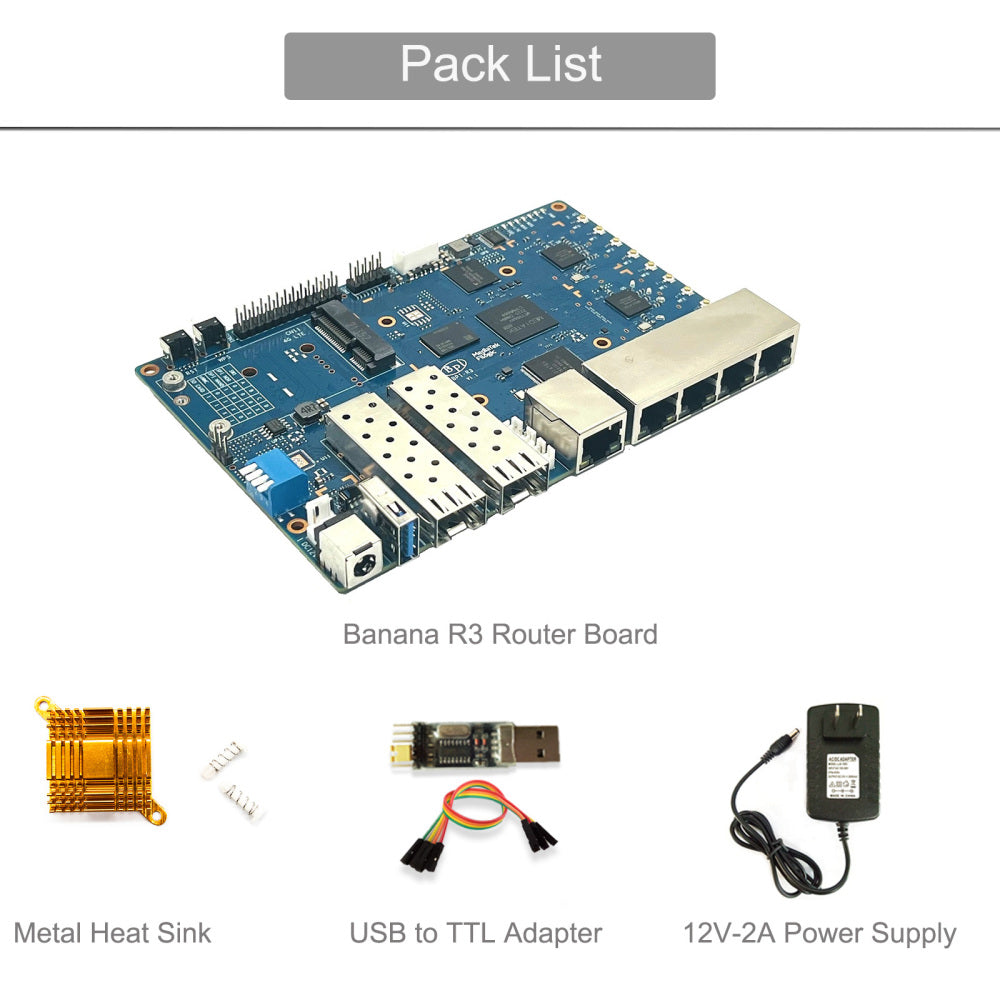

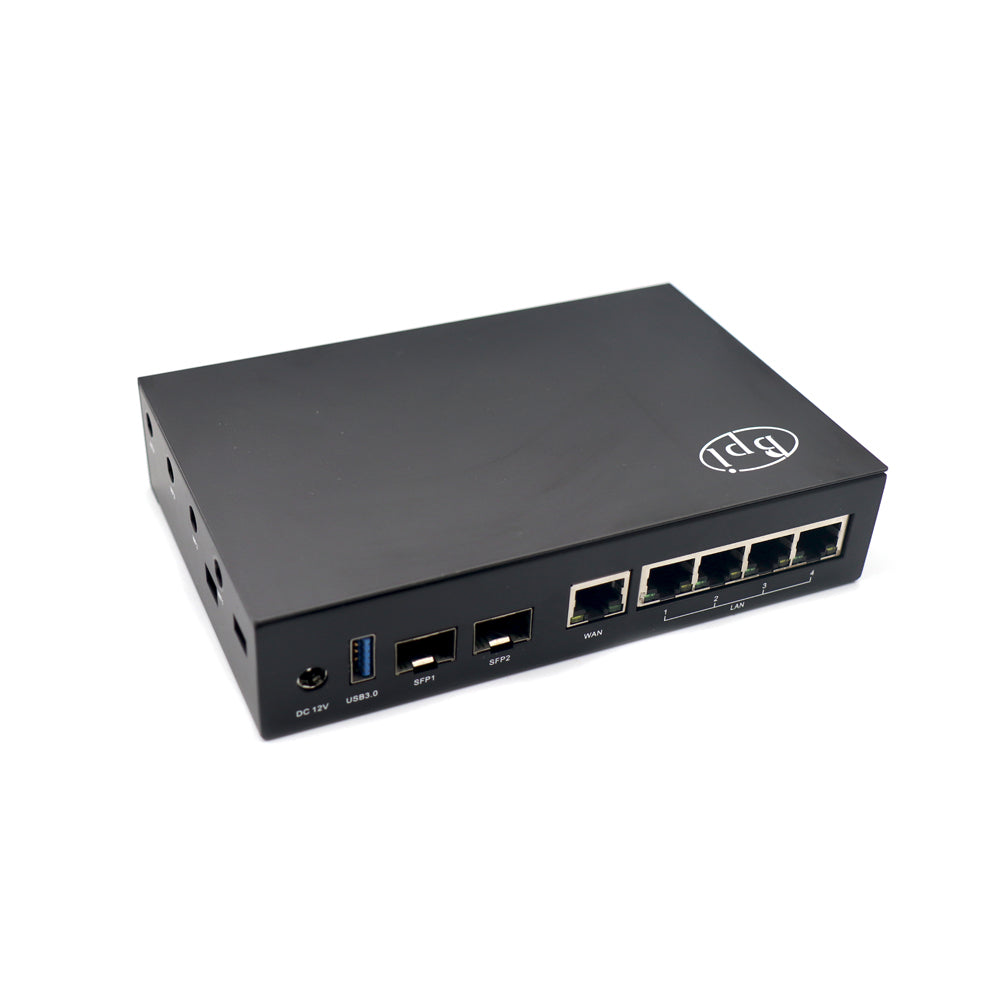

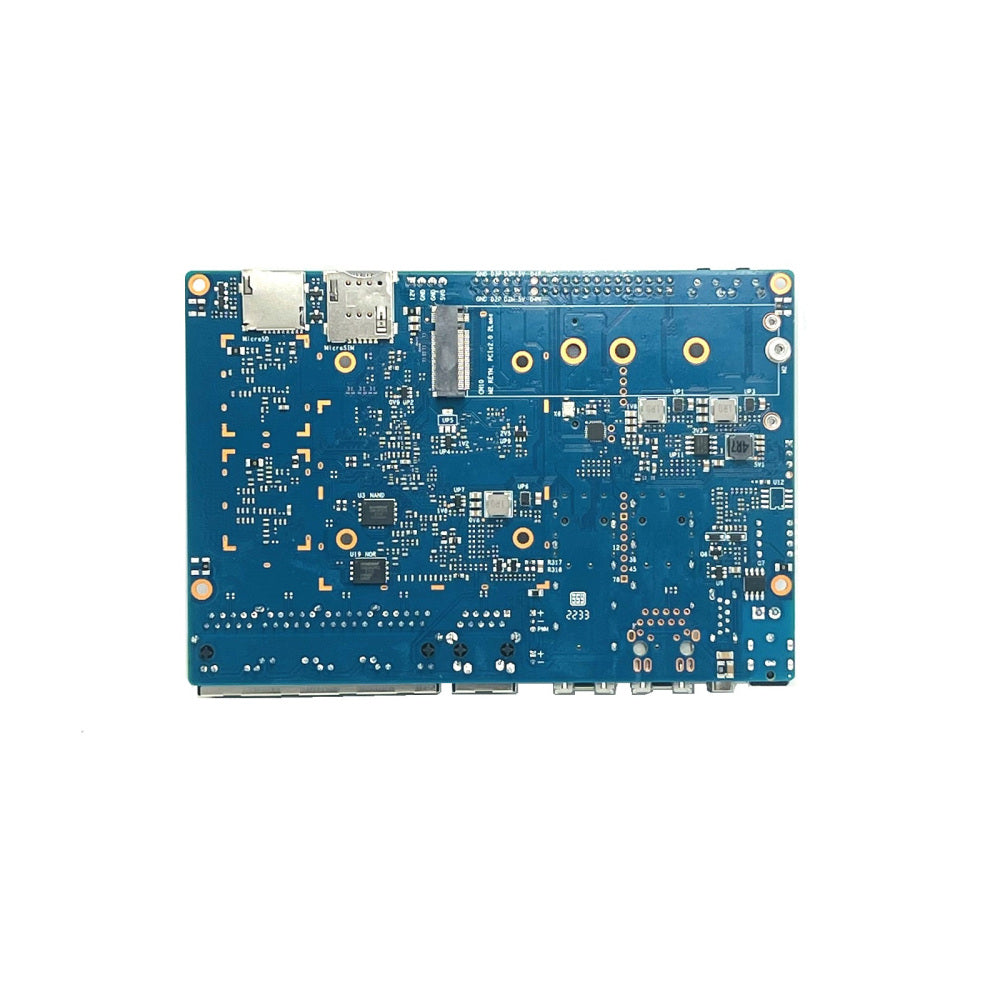

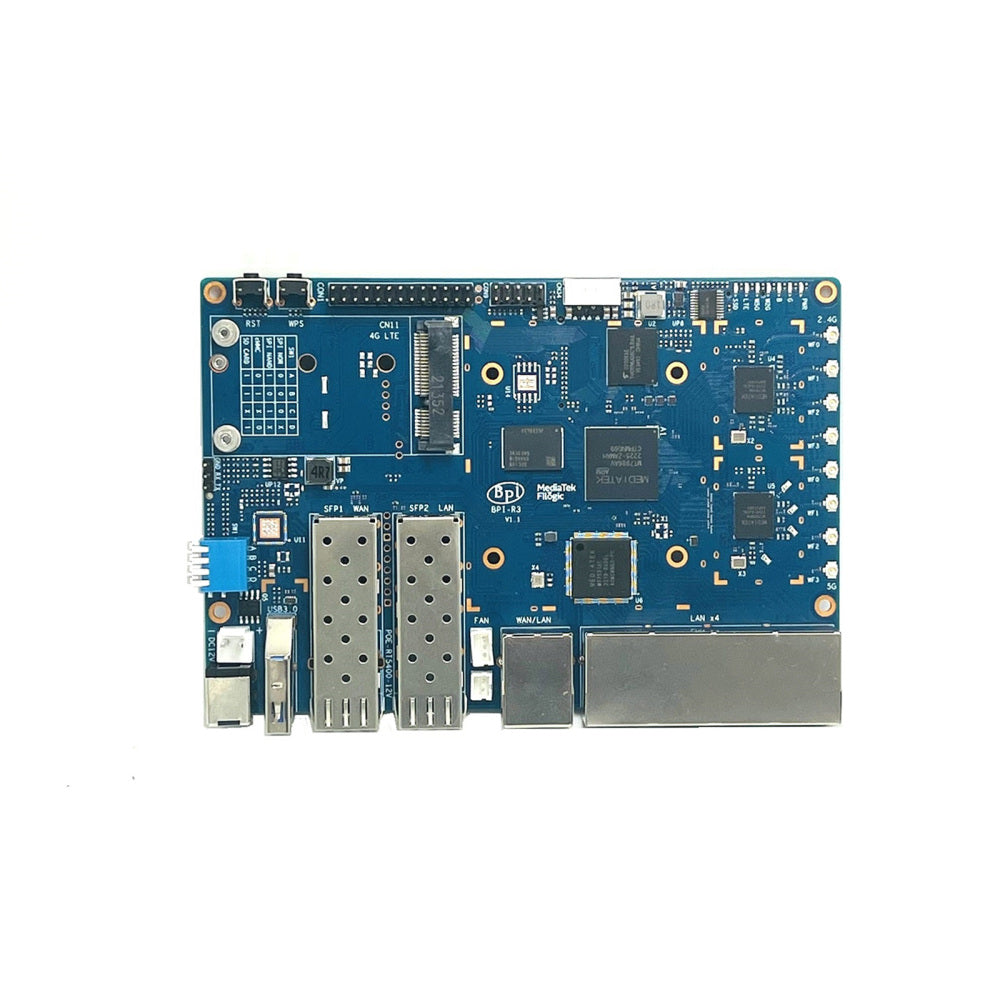

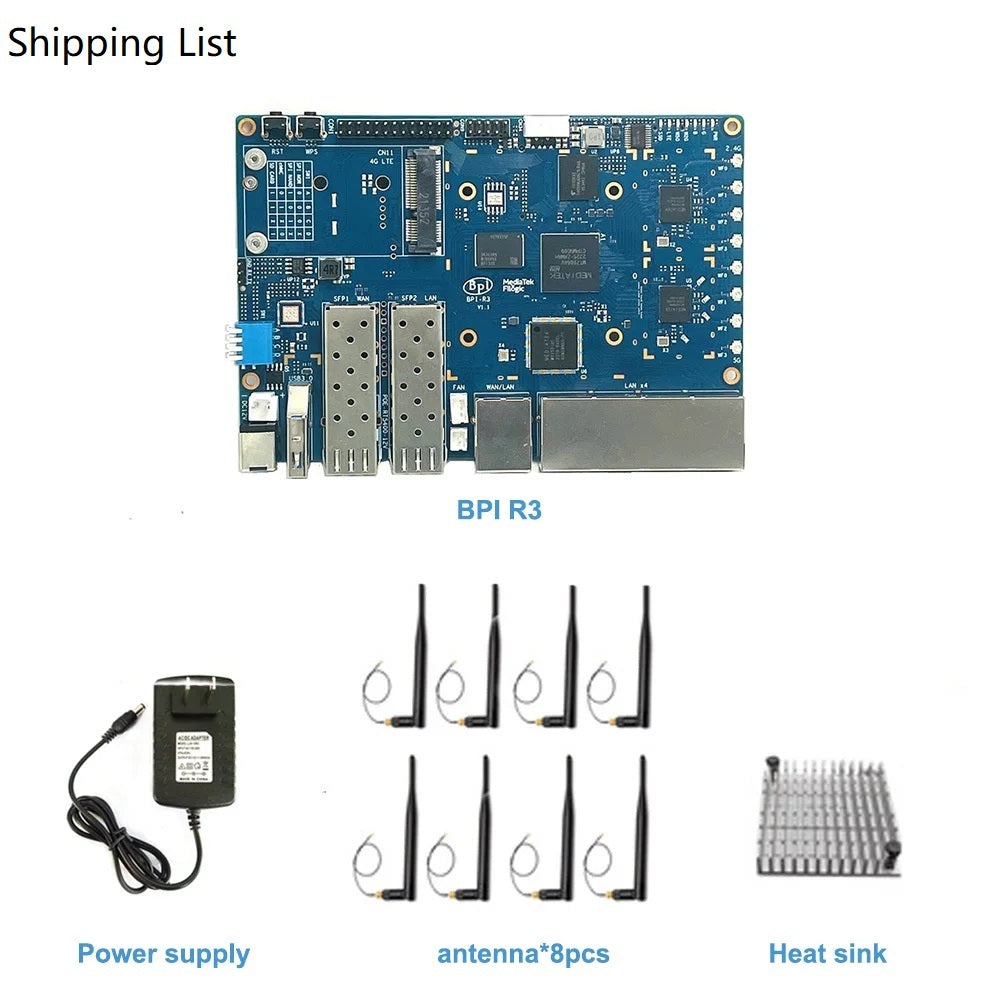

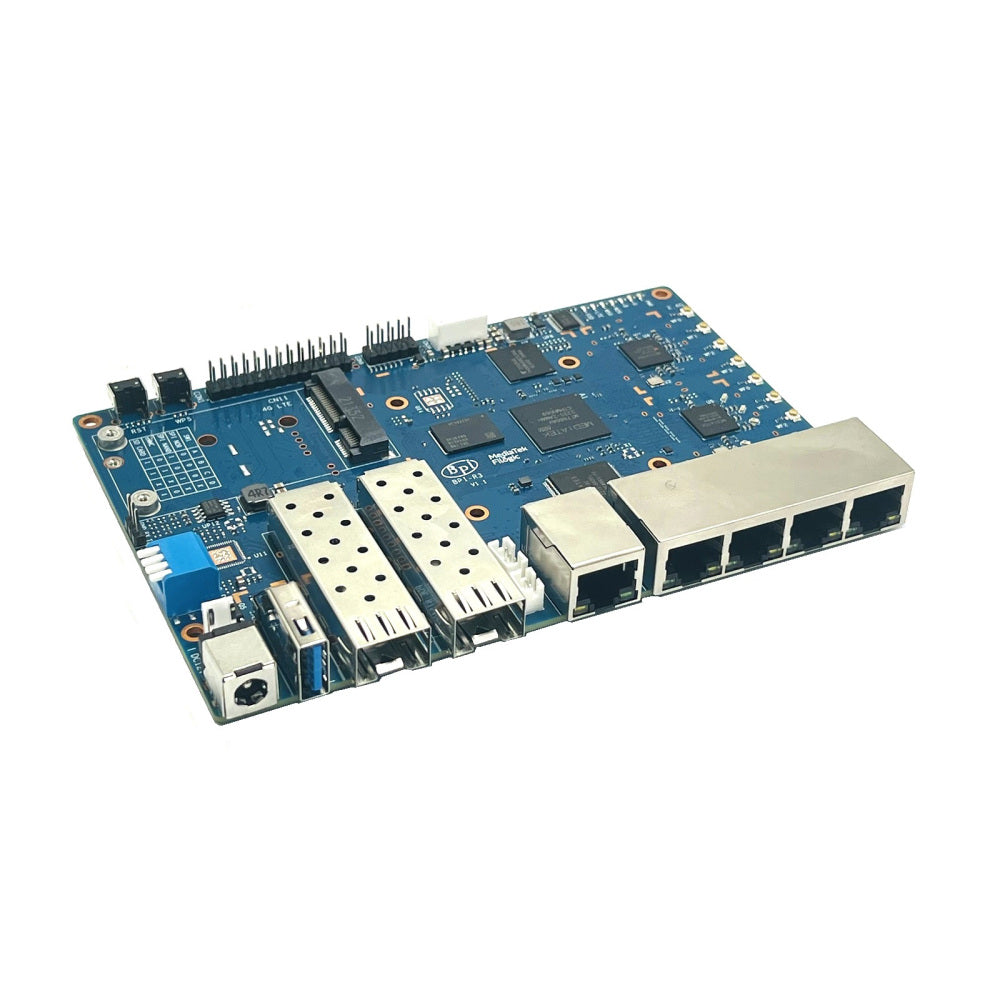

Banana Pi BPI R3 OpenWRT Router - 2G DDR RAM 8G eMMC MediaTek MT7986 Support Wi-Fi6 5 GbE network port

For downloading the Tools, Driver and Firmware use the following link:

https://youyeetoo.com/blog/banana-pi-bpi-r3-bpdpr3main01-211

Introduction

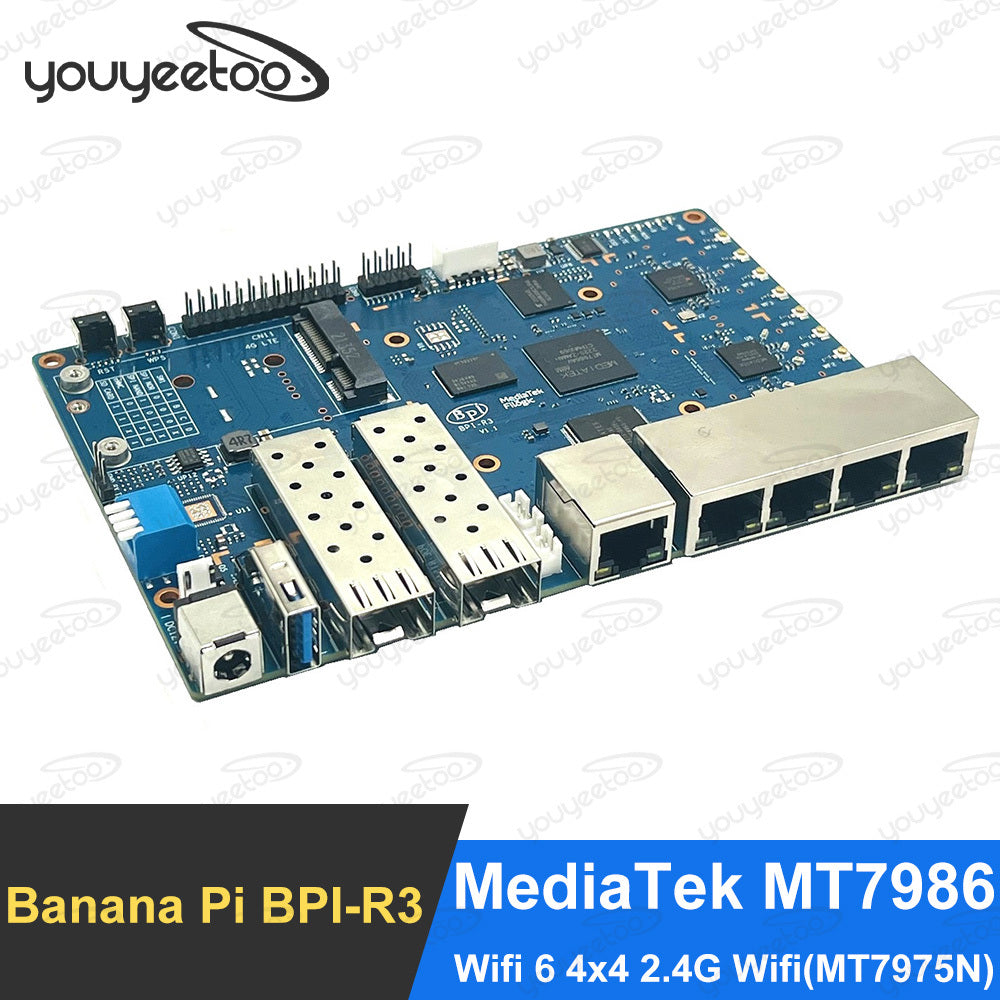

Banana Pi BPI-R3 Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 + MT7531A chip design ,2G DDR RAM ,8G eMMC flash onboard,It is a very high performance open source router development board,support Wi-Fi6 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 SFP 2.5GbE port, and 5 GbE network port.

MediaTek MT7986(Filogic 830)

The MT7986(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi6 connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications.

Wi-fi 6 has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission rates. Wireless network devices supporting the 6GHz band mainly use 160MHz wide channel and 6GHz uncongested bandwidth to provide multigigabit transmission and low-latency wi-fi connection, providing reliable wireless network for streaming media, games, AR/VR and other applications.

Application direction

• . Internet service Router

• . Wireless Router

• . Wireless Repeater

• . Home security Gateyway

• . Home Automation

• . Nas device

• . Network and communication applications

Key Features

• . MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design

• . Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)

• . 2G DDR RAM

• . 8G eMMC flash

• . 2 SFP 2.5GbE

• . 5 GbE network port

• . Mini PCIe via USB

• . M.2 KEY-E PCIe inerface

• . Mciro SD card interfact

• . 26 PIN GPIO
