Home > Banana pi BPI W2

1/1

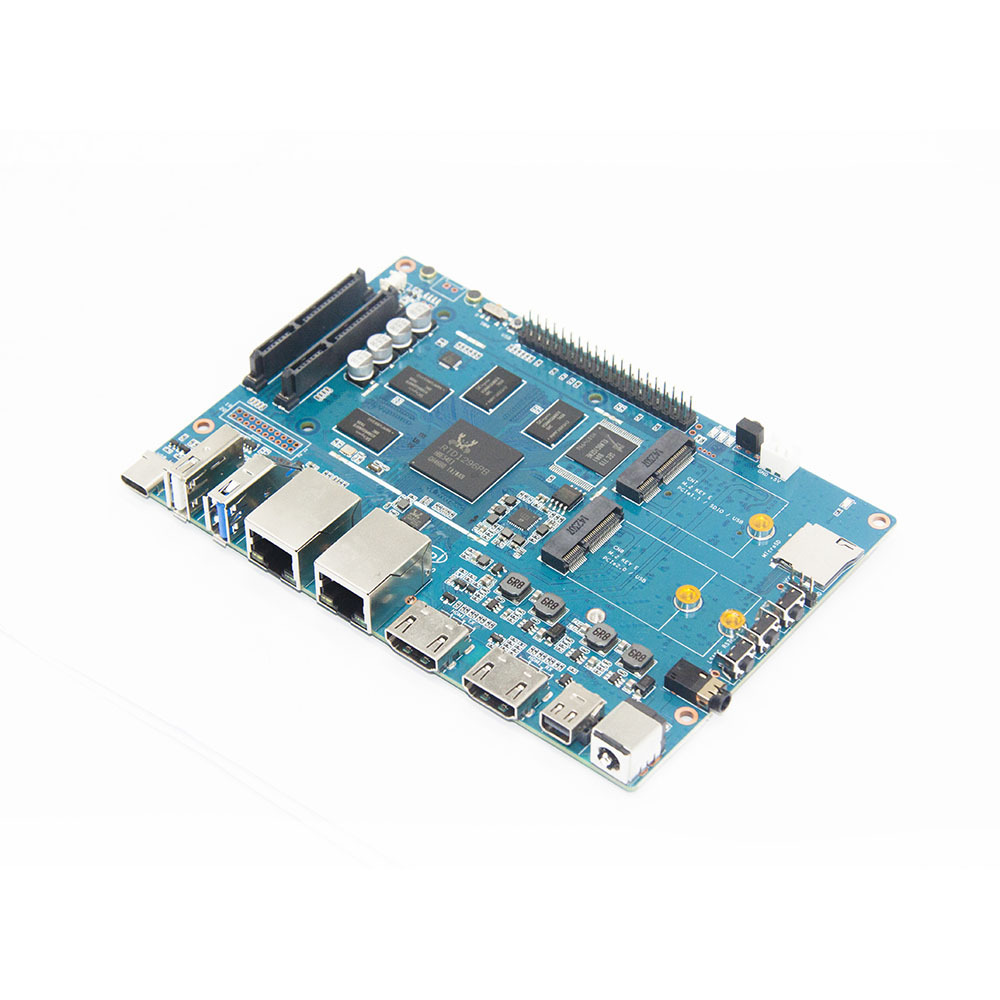

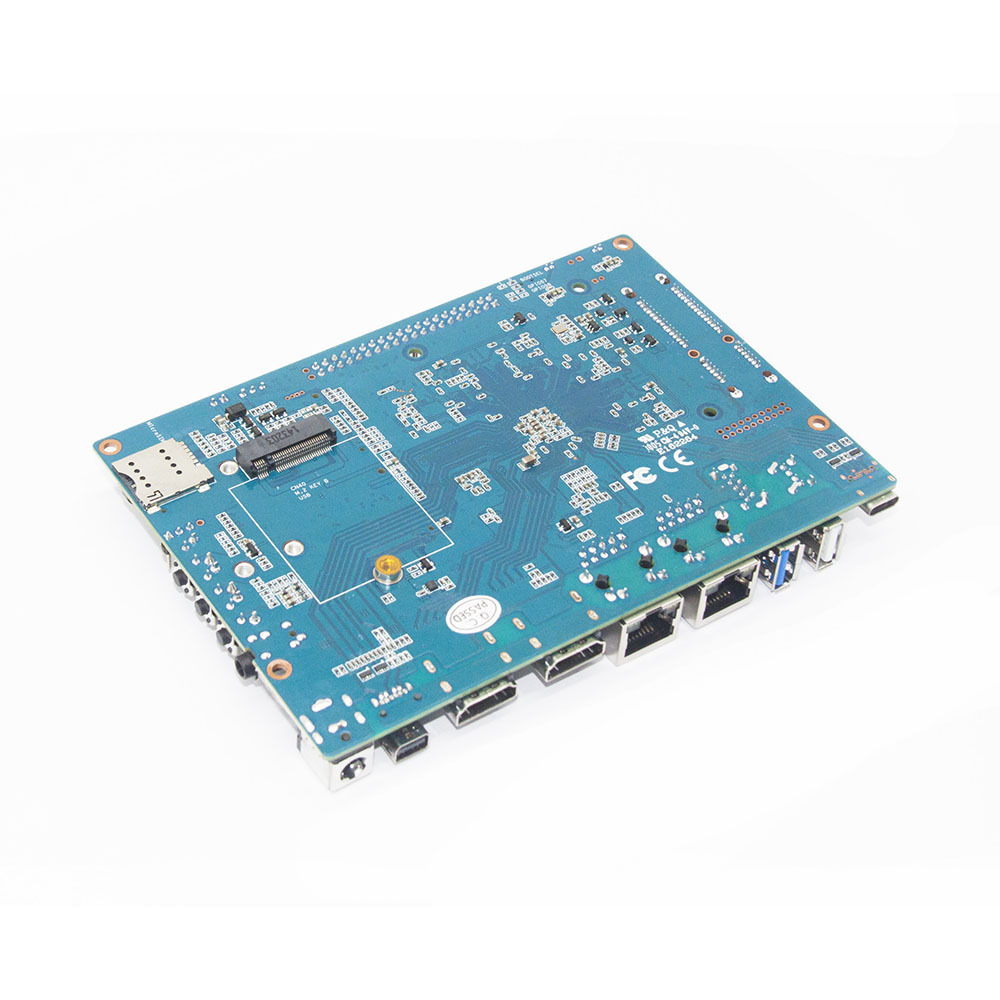

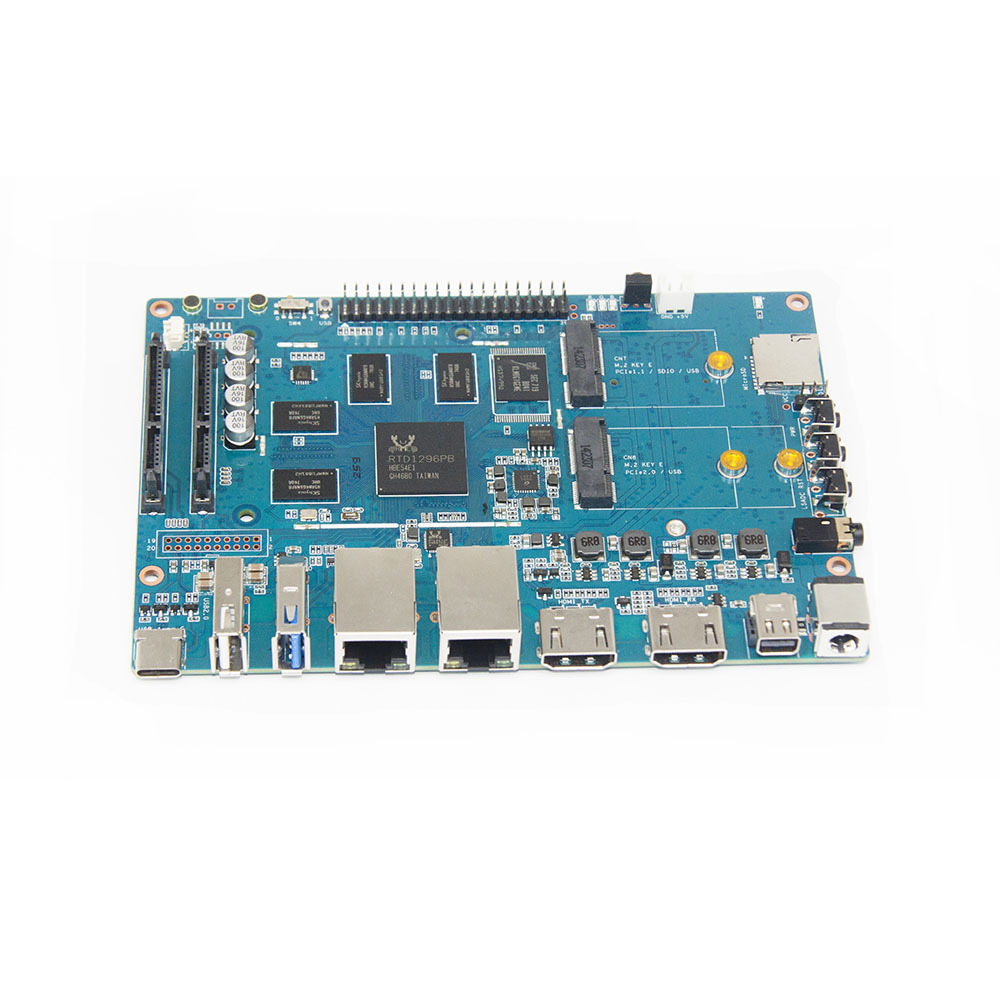

Banana pi BPI W2

SKU: BP0016

Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all

0.0 (0 Reviews)

$702.83

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

1/1

Description
Reviews

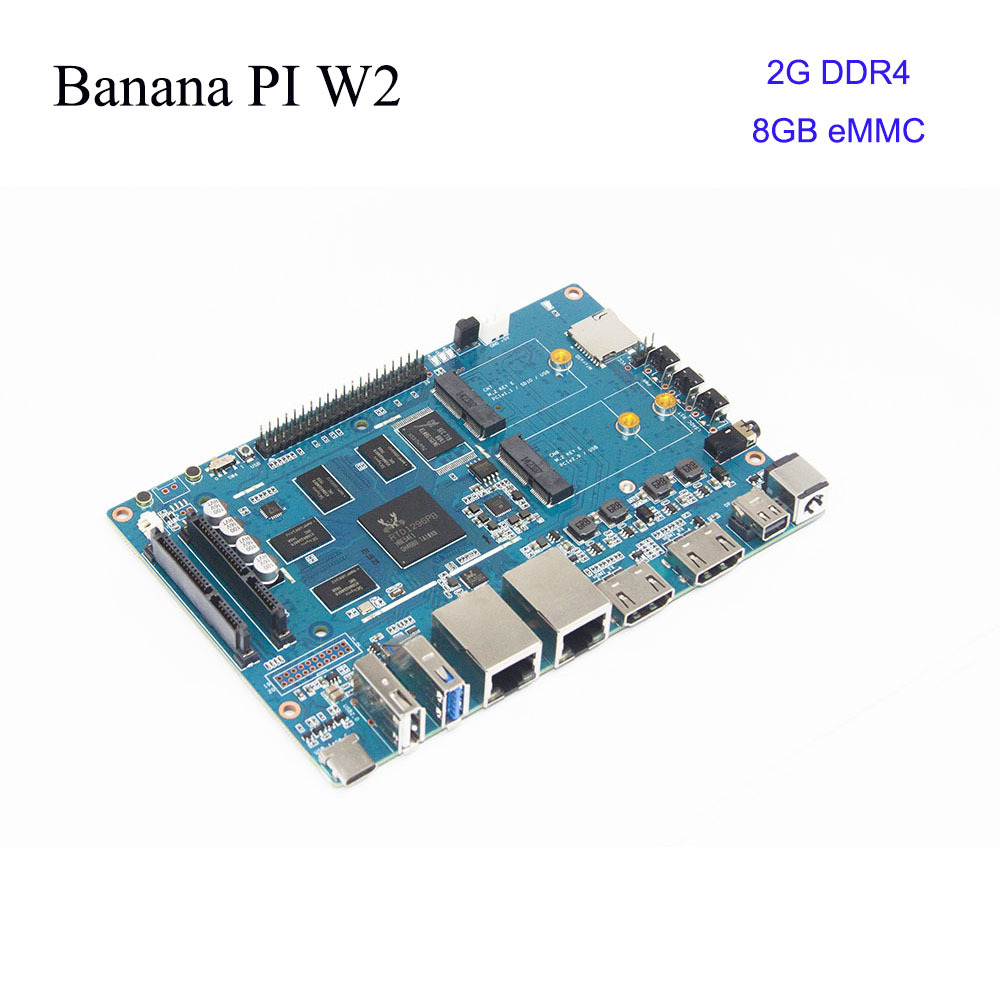

Bundle 1： BPI W2 Board

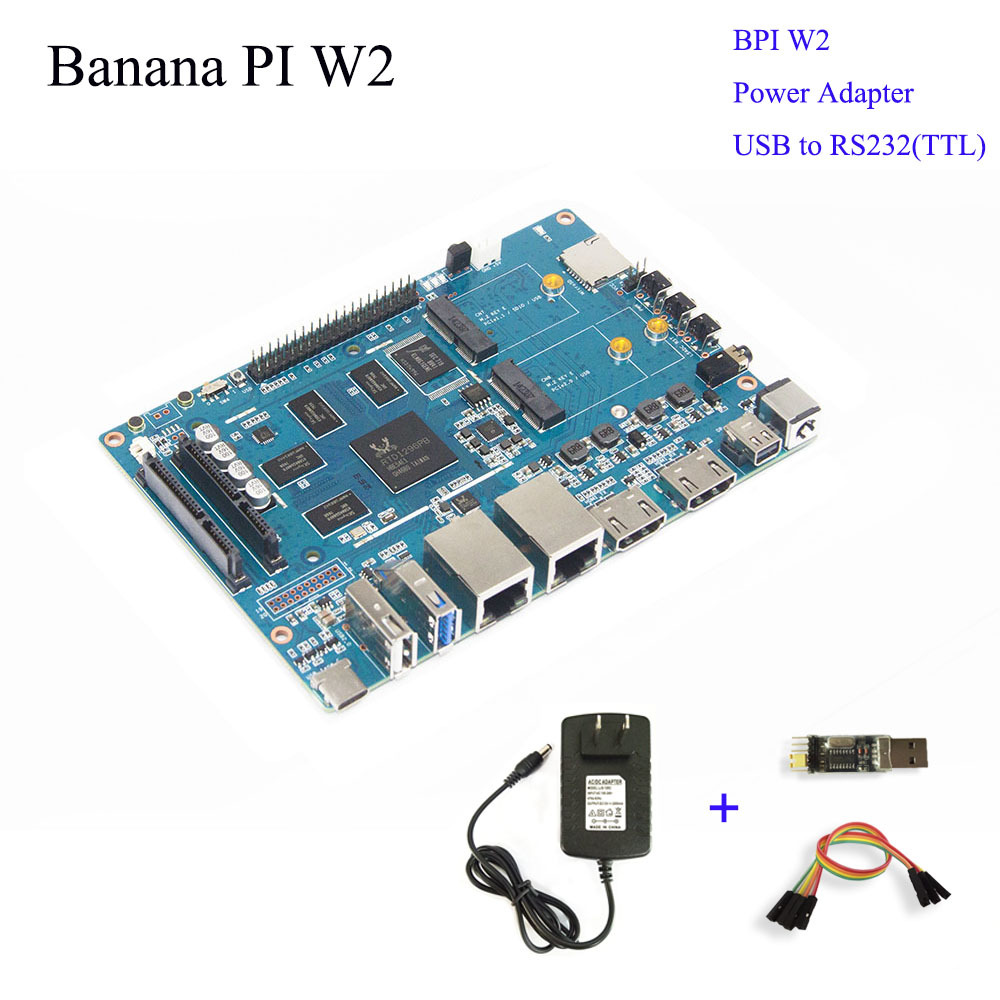

Bundle 2： BPI W2 Board+Power Supply+USB to RS232(TTL)

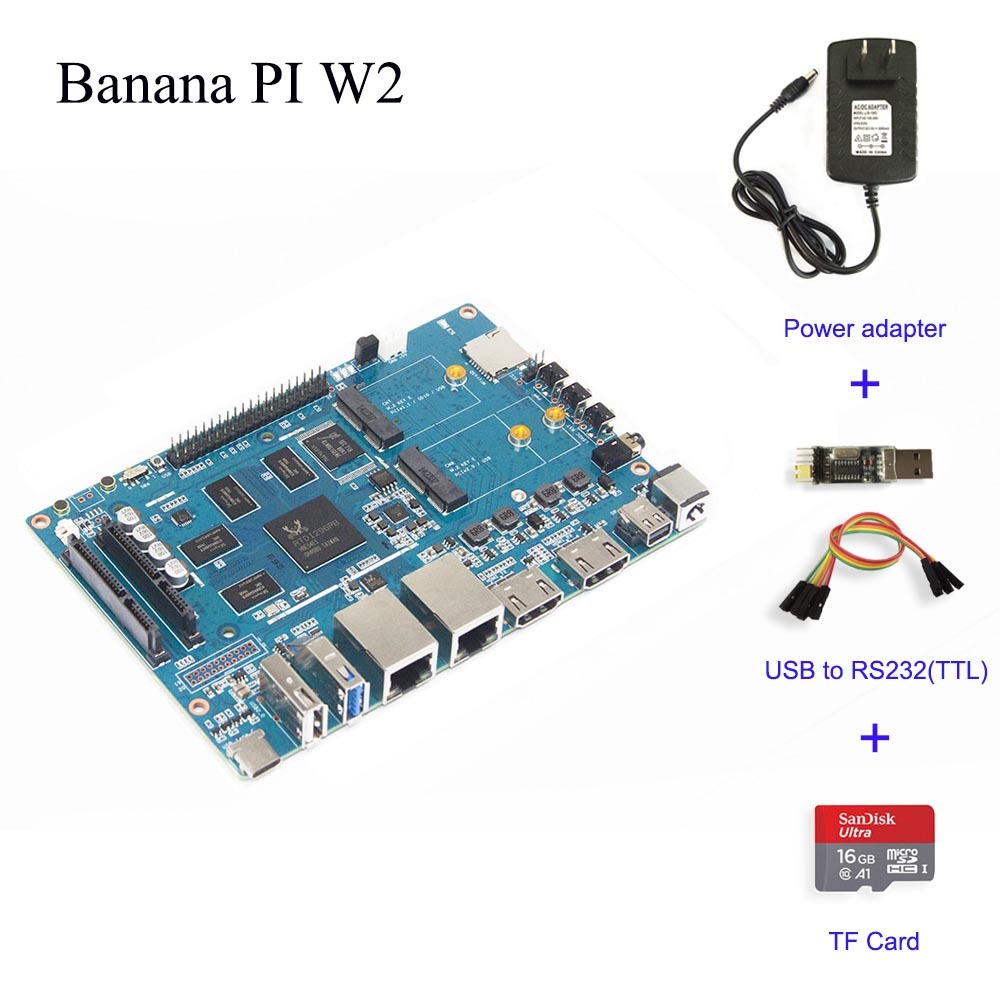

Bundle 3： BPI W2 Board+P ower Supply+USB to RS232(TTL)+TF Card

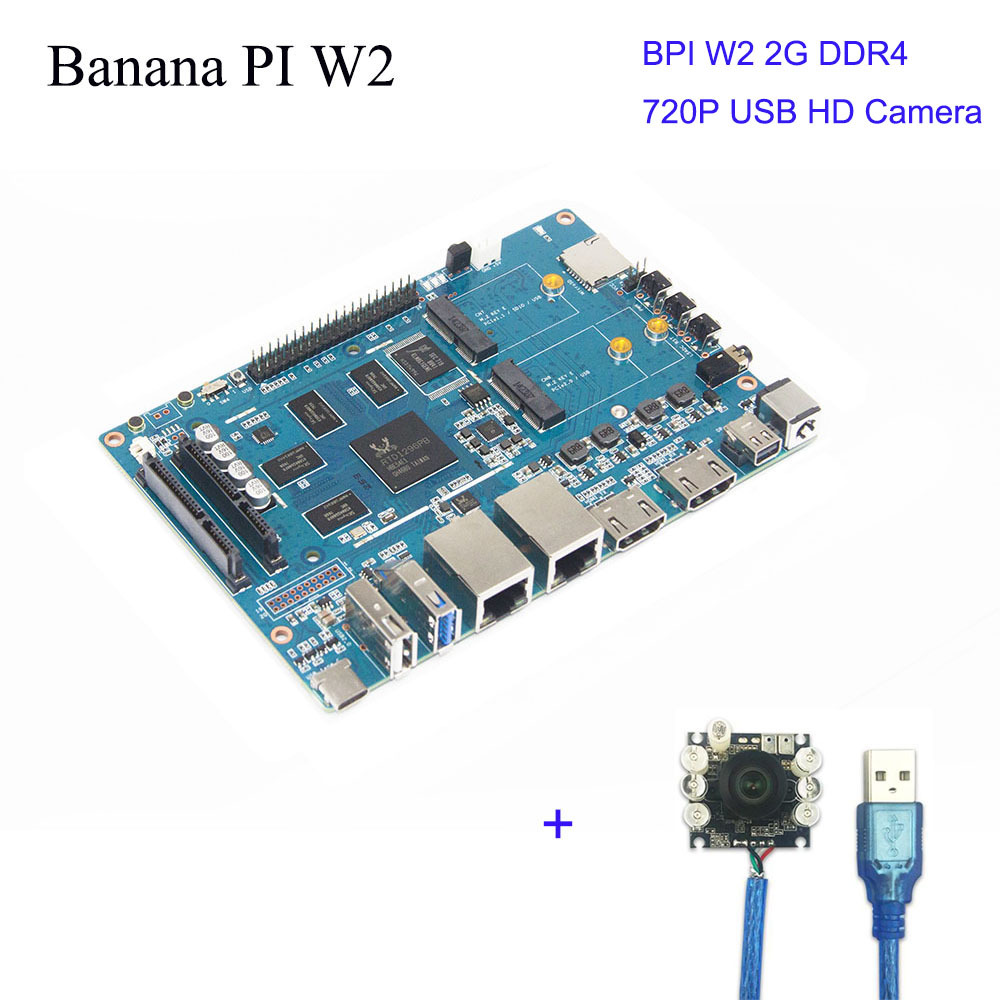

Bundle 4： BPI W2 Board+720P USB HD Camera(Black cable)

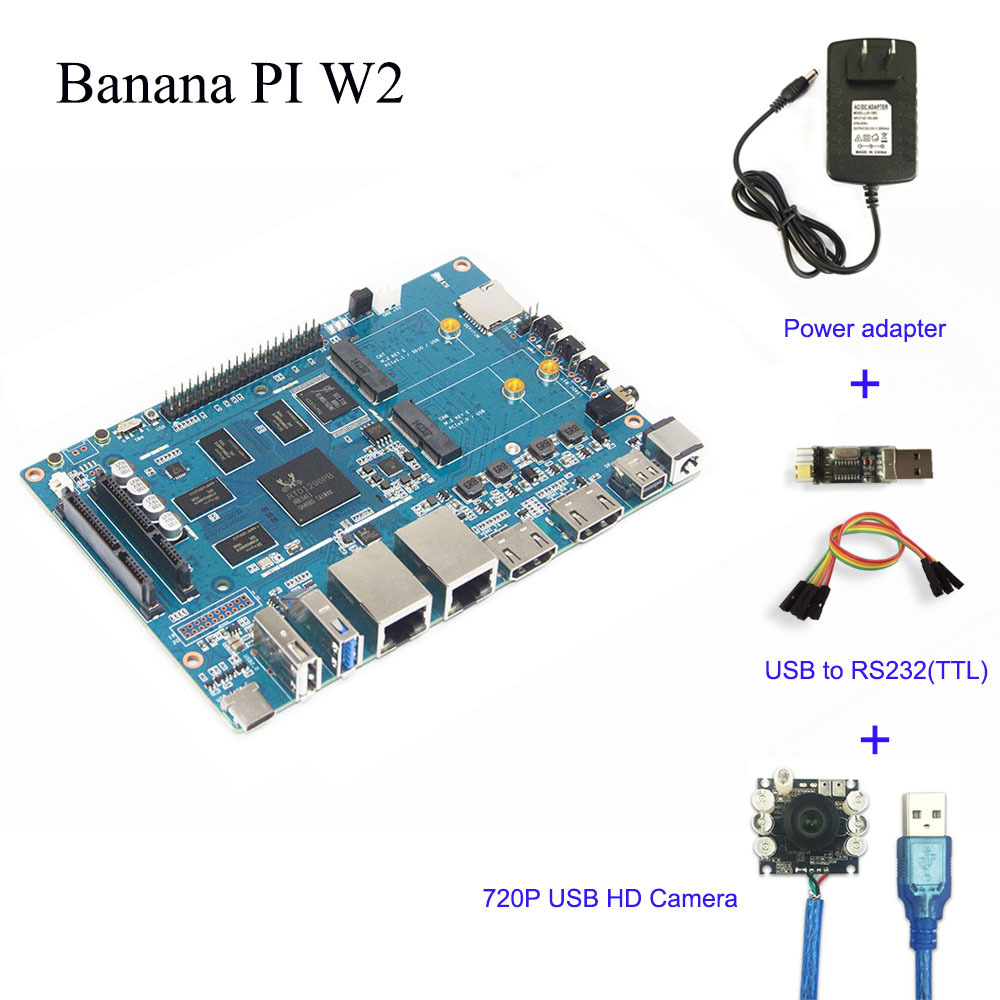

Bundle 5： BPI W2 Board+Power Supply+USB to RS232(TTL)+720P USB HD Camera(Black cable)

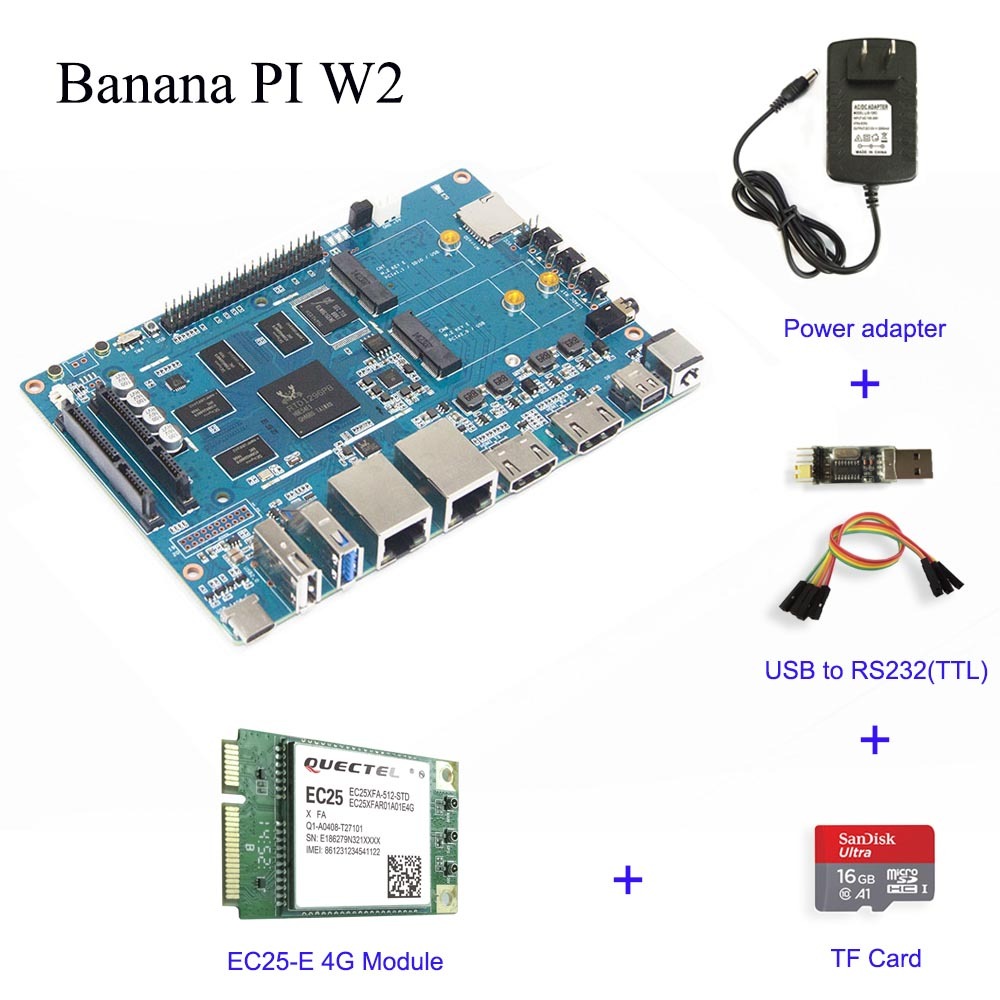

Bundle 6： BPI W2 Board+Power Supply+USB to RS232(TTL)+PCIE to USB Adapter+EC25-E Module(Default)

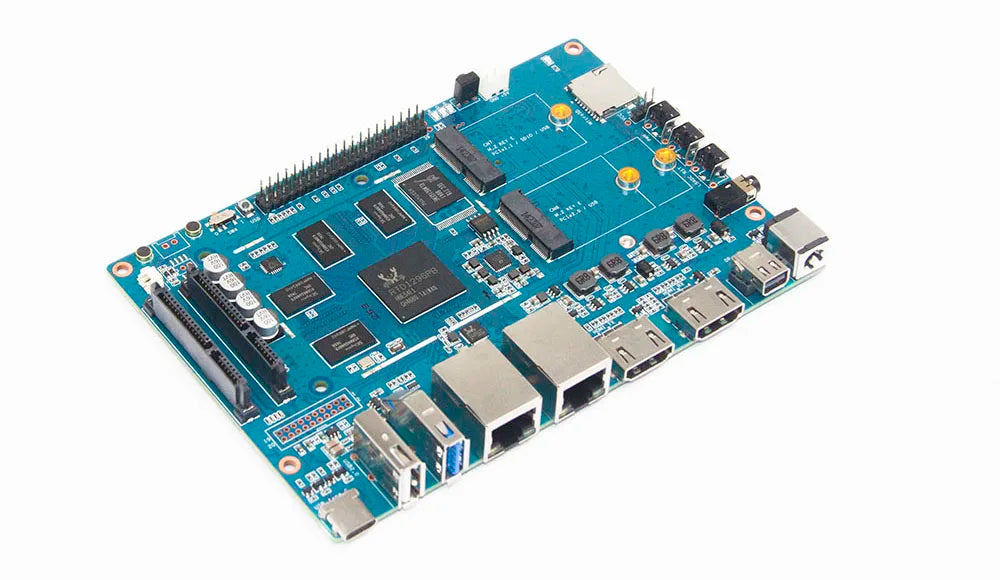

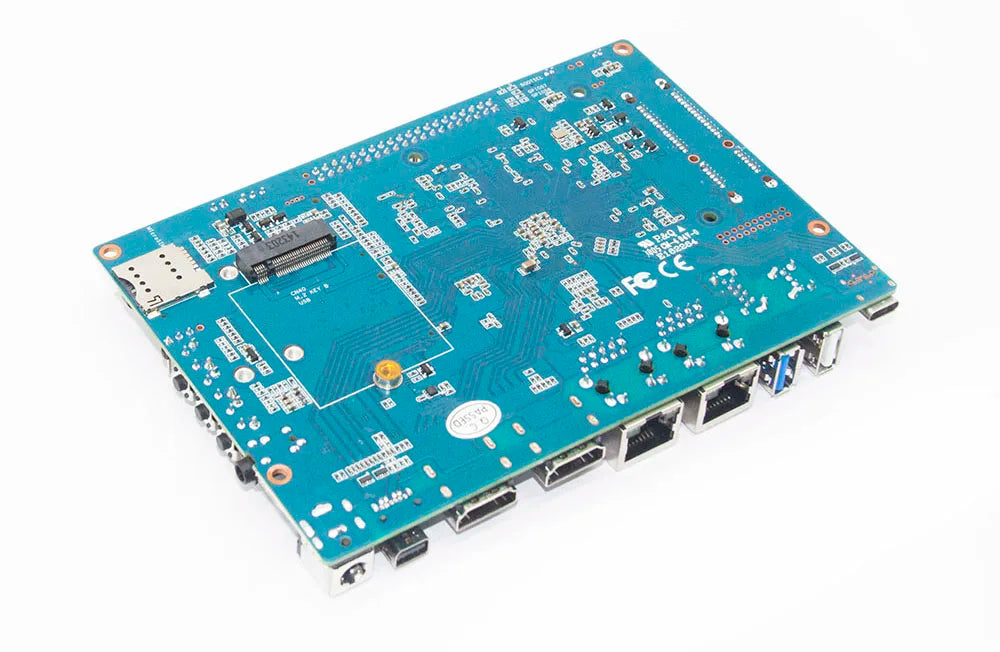

What is Banana Pi W2?
Banana PI BPI-W2 is a powerful and versatile SBC with Realtek RTD1296 processor, it is very good for multimedia network router application like home entertainment,home automation, game center ....
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

Key Features
Realtek RTD1296, Quad-core ARM Cortex-A53
Mali T820 MP3 GPU
2G DDR4 SDRAM
PCIE 2.0 interface.PCEe 1.1&SDIO
2 SATA interface
Mini DP
HDMI In/Out

Introdution

Banana PI BPI-W2 is a highly integrated multimedia network router;it can be used for high wireless performance, homeentertainment,home automation and so on...

BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GHz, The Router also includes a variety of peripherals, including HDMI RX/TX, Mini DP, PCIe2.0,PCIe1.1&SDIO,M.2 interface, USB2.0 , USB3.0 Port, SATA port，2 Gbps Port Gigabit Ethernet port, also support 802.11ac/n WLAN connection thru PCI-e port

BPI-W2 can run with Android6.0 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-W2 same as BPI-R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3

card emulation

W2 Spec

BPI-W2 hardware interface

spec

Software

Android 6.0 system support

android 6.0 (2) BPI-W2 09 BPI-W2 system

BPI-W2 GPIO Pin define

Banana Pi BPI-W2 has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:

gpio define

BPI-W2 SATA interface

BPI-W2 also support 2 SATA III interface same as BPI-R2

BPI-W2 have 1 micro SD slot on board , so you can use SD card boot system .also can burn image to EMMC flash , boot frome EMMC flash .

Banana Pi BPI-W2 eMMC flash

?BPI-W2 have support 8G eMMC flash on board by defaults.for customization user , we can add 4-64G emmc on board.

So, you can burn your image to eMMC flash and boot from eMMC flash.

BPI-R2 USB 3.0 interface

BPI-R2 have two USB 3.0 interface on board.so you can connect Keyboard,mouse, USB camera and ... on BPI-R2

USB 3.0 Port also can used be PCIE interface , PCIE 2 PIN define.

BPI-W2 PCIe interface
BPI-W2 have 1 M.2 KEY E: PCIe 1.1/USB 2.0 interface and M.2 KEY E PCIe 2.1/SDIO/USB 2.0 interface, so you can use this interface to add more expanding application on this board.

pcie

Add 4G module on BPI-RW :(If you want to buy 4G module, click here)

Pack list

1x Banana Pi W2 Board

1x 720P USB HD Camera (Depend on your order, if you need 1080P, contact us)

1x EC 25-E 4G Module (Depend on your order)

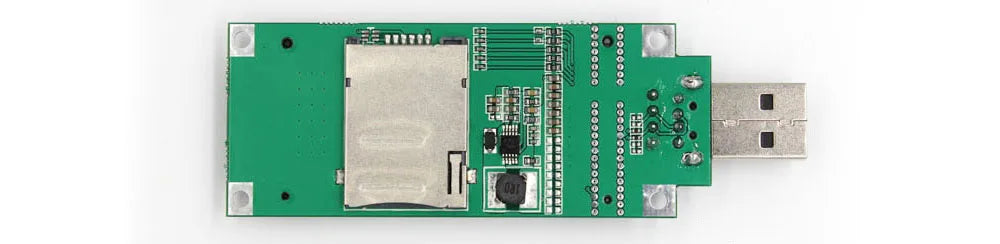

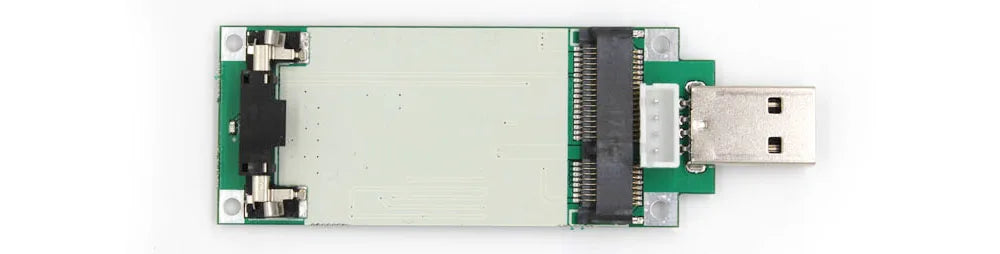

1x Mini PCIE to USB Adapter (Depend on your order)

1x USB to RS232(TTL) (Depend on your order)

1x Power Adapter(Depend on your order)

1x TF Card (Depend on your order)
