BPI-M2S Amlogic A311D And S922X Hexa-core 4GB LPDDR4 RAM 16GB eMMC Video HDMI 2.1 4Kp60 OS Ubuntu Debian Android

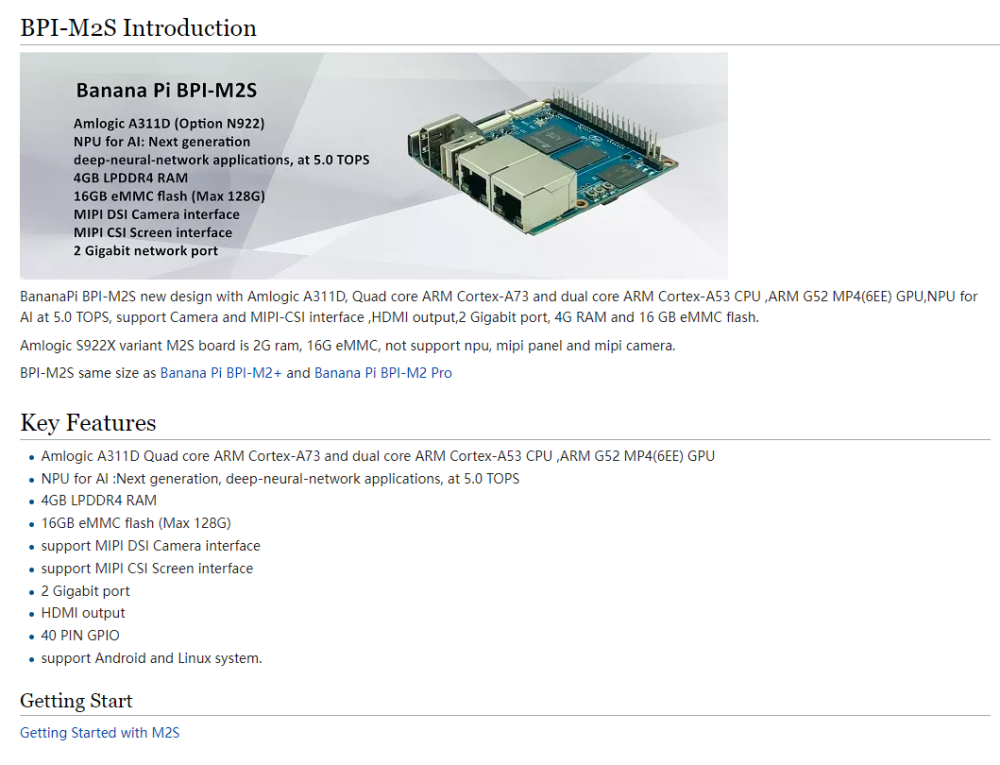

- BPI-M2S new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash.

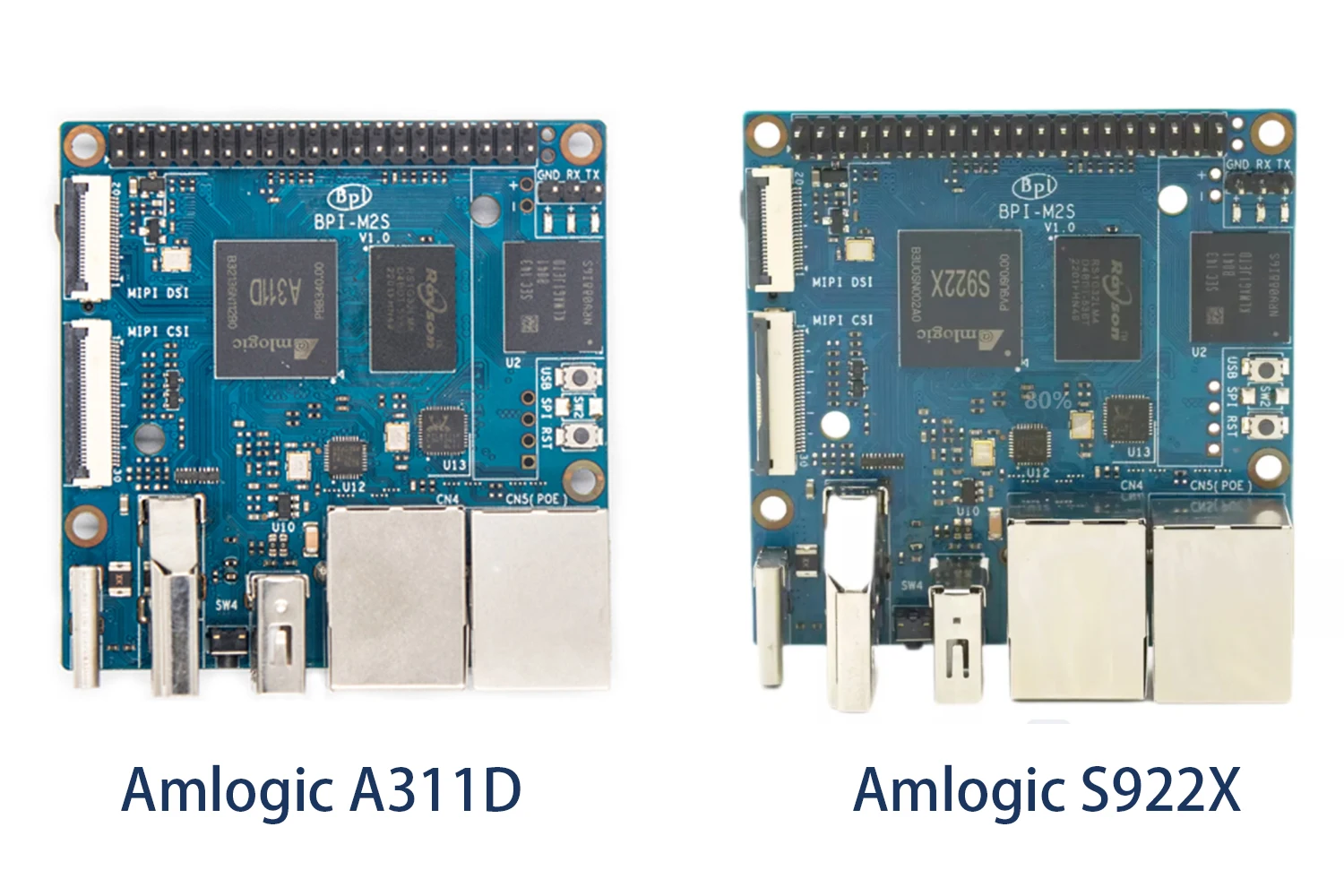

- Amlogic S922X variant M2S board is not support npu, mipi panel and mipi camera.

- BPI-M2S same size as?Banana Pi BPI-M2+?and?Banana Pi BPI-M2 Pro.

Key Features

• Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU

• NPU for AI?:Next generation, deep-neural-network applications, at 5.0 TOPS

• 4GB LPDDR4 RAM

• 16GB eMMC flash (Max 128G)

• support MIPI DSI Camera interface

• support MIPI CSI Screen interface

• 2 Gigabit port

• HDMI output

• 40 PIN GPIO

• support Android and Linux system.

  ?

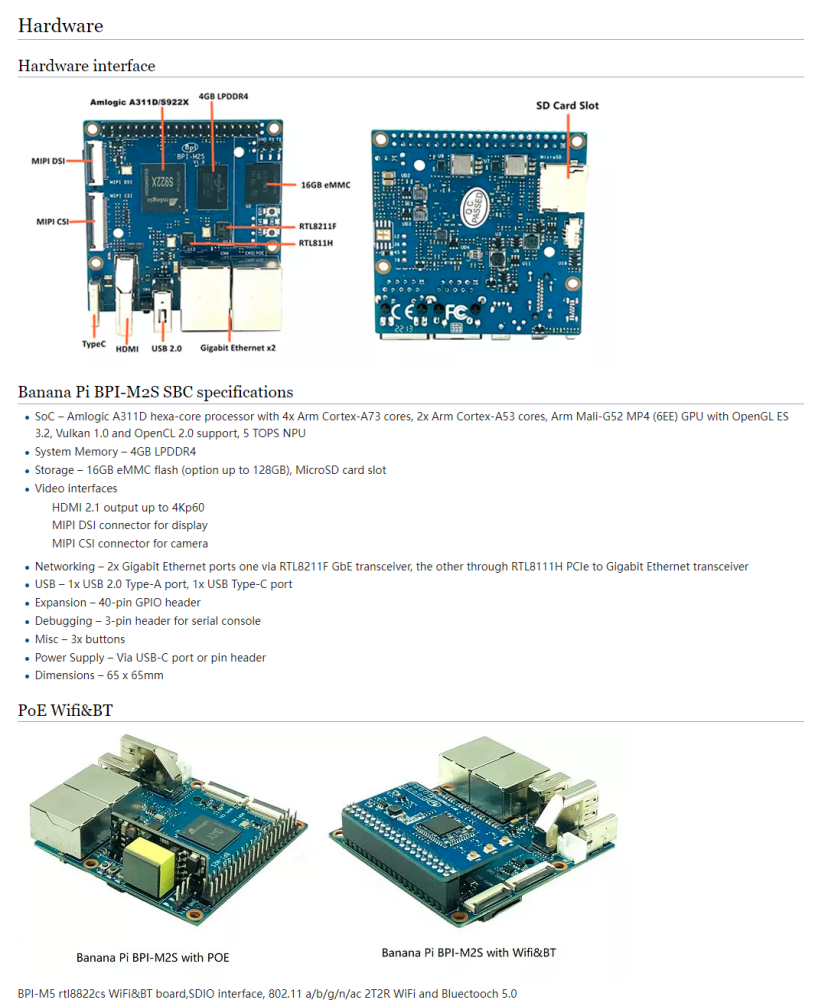

Hardware interface

BPI-M2S SBC specifications

• SoC – Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU

• System Memory – 4GB LPDDR4

• Storage – 16GB eMMC flash (option up to 128GB), MicroSD card slot

• Video interfaces

HDMI 2.1 output up to 4Kp60MIPI DSI connector for displayMIPI CSI connector for camera

• Networking – 2x Gigabit Ethernet ports one via RTL8211F GbE transceiver, the other through RTL8111H PCIe to Gigabit Ethernet transceiver

• USB – 1x USB 2.0 Type-A port, 1x USB Type-C port

• Expansion – 40-pin GPIO header

• Debugging – 3-pin header for serial console

• Misc – 3x buttons

• Power Supply – Via USB-C port or pin header

• Dimensions – 65 x 65mm

PoE Wifi&BT

BPI-M5 rtl8822cs WiFi&BT board,SDIO interface, 802.11 a/b/g/n/ac 2T2R WiFi and Bluectooch 5.0
