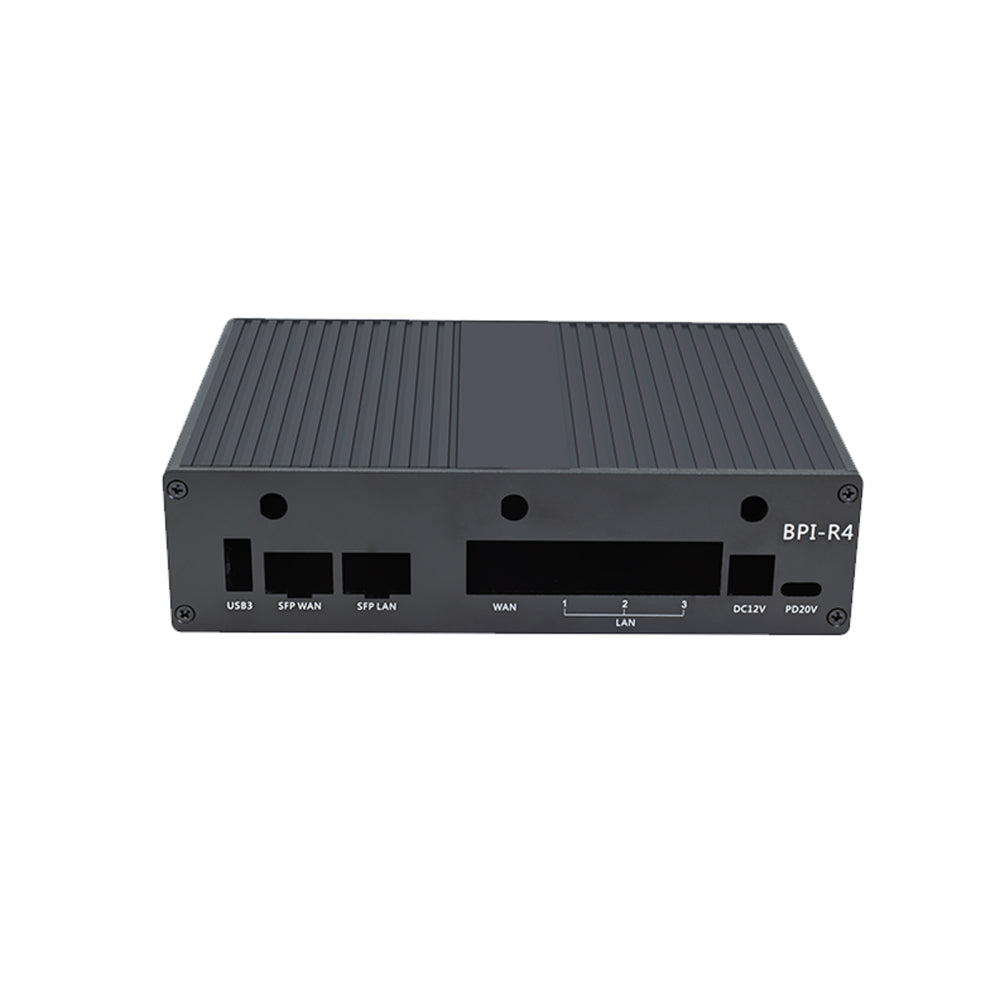

BPI-R4 Router board - MediaTek MT7988A Support WIFI6 WIFI7 10G SFP 4 GbE Port

SKU: BPDPR4MAIN01
MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
4GB DDR4,8GB eMMC flash, 128MB SPI-NAND Flash
Micro SD card slot
2x 10Gbe SFP slot (option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)
4x GbE network port
1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G
1x M.2 KEY-M slot ,PCIe3.0 1lane , for NVME SSD
2x miniPCIe slots ,PCIe3.0 2lane ,for Wi-Fi 7 NIC (Network Interface Card)
26 PIN GPIO Header1x USB3.
0.0 (0 Reviews)
$0.00 $99.85
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    Only Board
    Power kit(12V3A)
    WIFI 7 module
    12V5A Power
    Please select the information you wantX
Quantity
-
+
  • BPI-R4 Router board - MediaTek MT7988A Support WIFI6 WIFI7 10G SFP 4 GbE Port
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

BPI-R4 Router board  - Support WIFI 7 Model


  • Quick Start: BananaPi BPI-R4 wiki
  • Tips
    • The WIFI 7 module is still being commissioned. You can submit your information below at notify me to be notified when the stock is available.
    • Just choose a 12V3A power supply for regular use. If you need to use WIFI 7 or 5G module, choose a 12V5A power supply.


Introduction

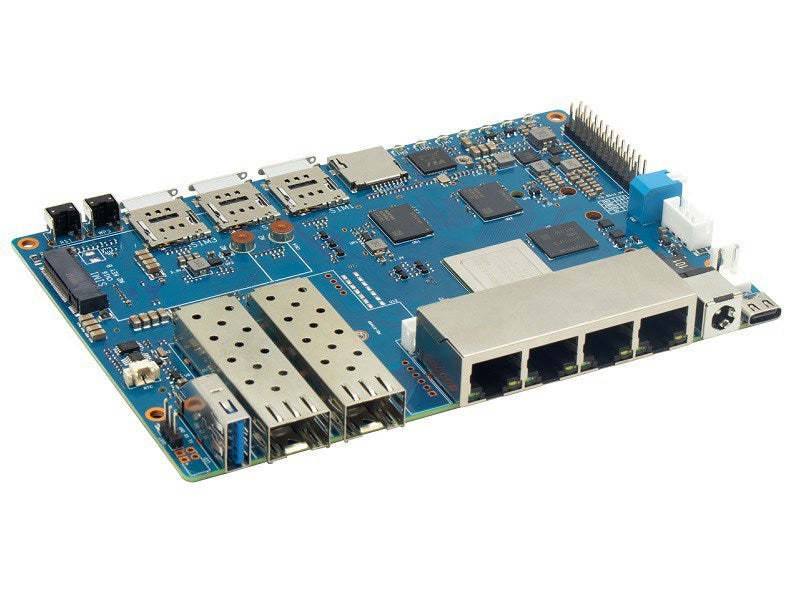

Banana Pi BPI-R4 Banner 2.jpg

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port, with USB3.2 port, M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). It is a very high-performance open-source router development board.

MediaTek MT7988(Filogic 880)

Mediatek Filogic 880. the 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience

The MediaTek MT7988A is a world-leading network processing platform for high-performance and reliable networking experiences, both in wired and wireless applications. The MT7988A comprises a rich connection interface set including 4 Gigabit Ethernet ports. 2 US下GMII interfaces. 4 PCIe Interfaces, and 2 USB 3.2 en1 Ports

the MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz.5 GHz and 6 GHz, connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAMLO, MCU,and  FC.

To answer the need of first-evolving tunneling applications, the  MT7988A comes with MediaTek Tunnel offload processor System(TOPS), which facilitates the processing of a wide range of tunneling protocols. The MT7988A optimizes networking performance with the exquisitely tuned ISA of MediaTek TOPS and is dedicated to lifting networking offloading performance to premium level.


Features


  • MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
  • 4GB DDR4
  • 8GB eMMC flash
  • 128MB SPI-NAND Flash
  • Micro SD card slot
  • 2x 10Gbe SFP slot (option 1x 10GbE SFP and 1x SOC embedded 2.5GbE PHY. NOTE: Need to modify hardware)
  • 4x Gbe network port
  • 1x USB3.2 slot
  • 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G
  • 1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
  • 2x mini PCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
  • 26 PIN GPIO Header for expanding application


Shipping List

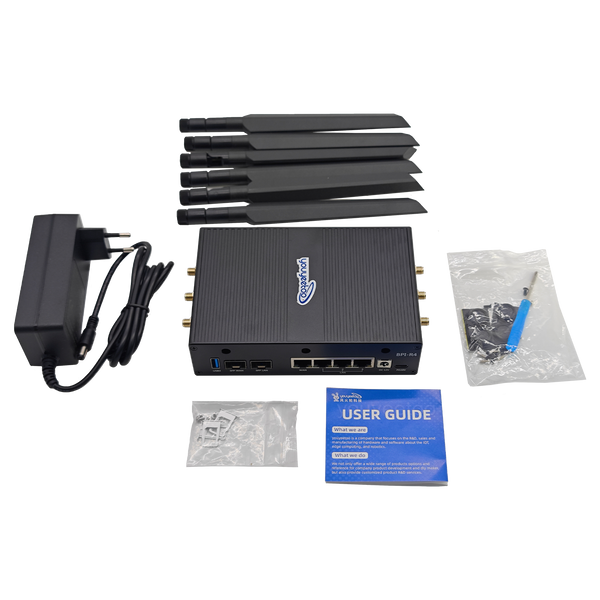

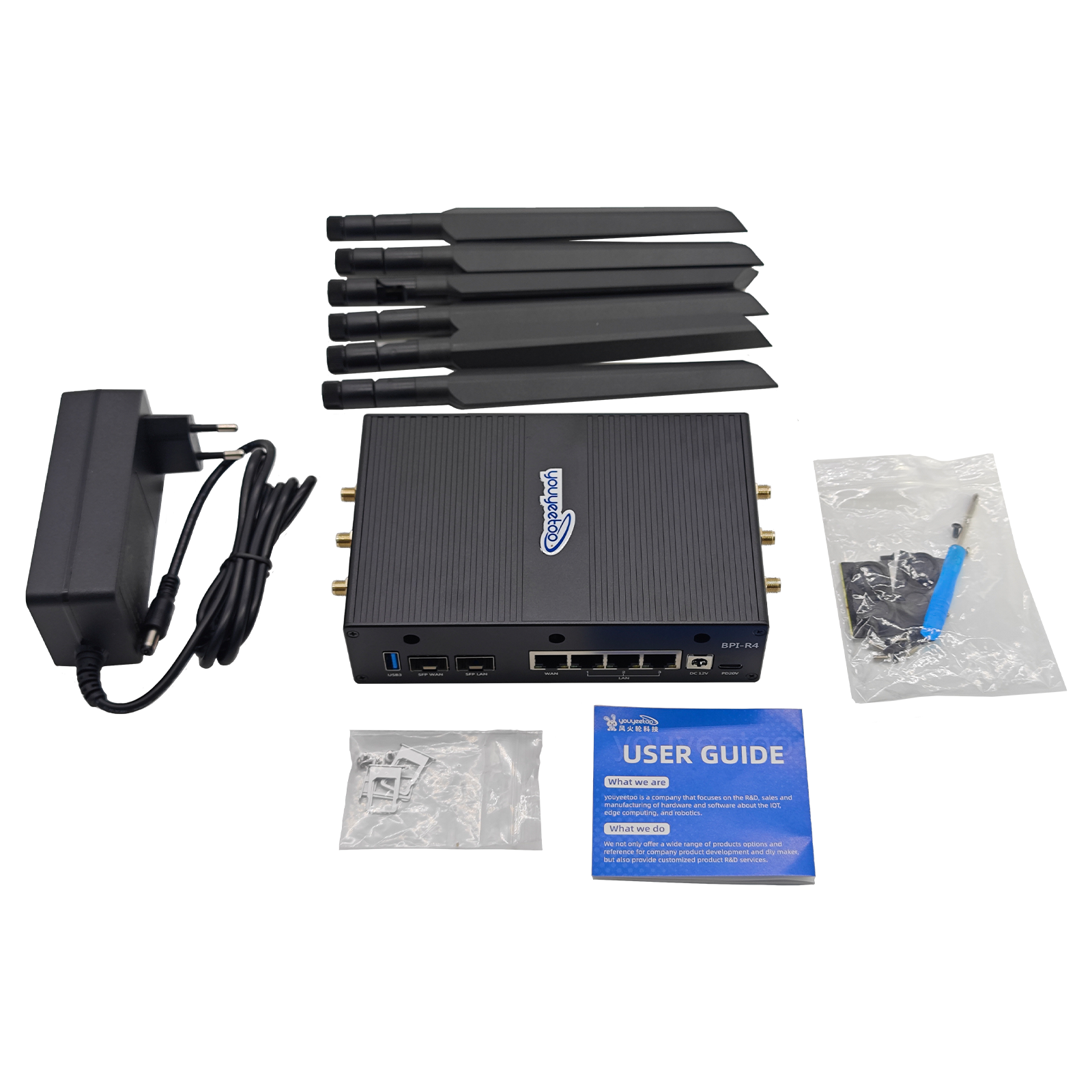

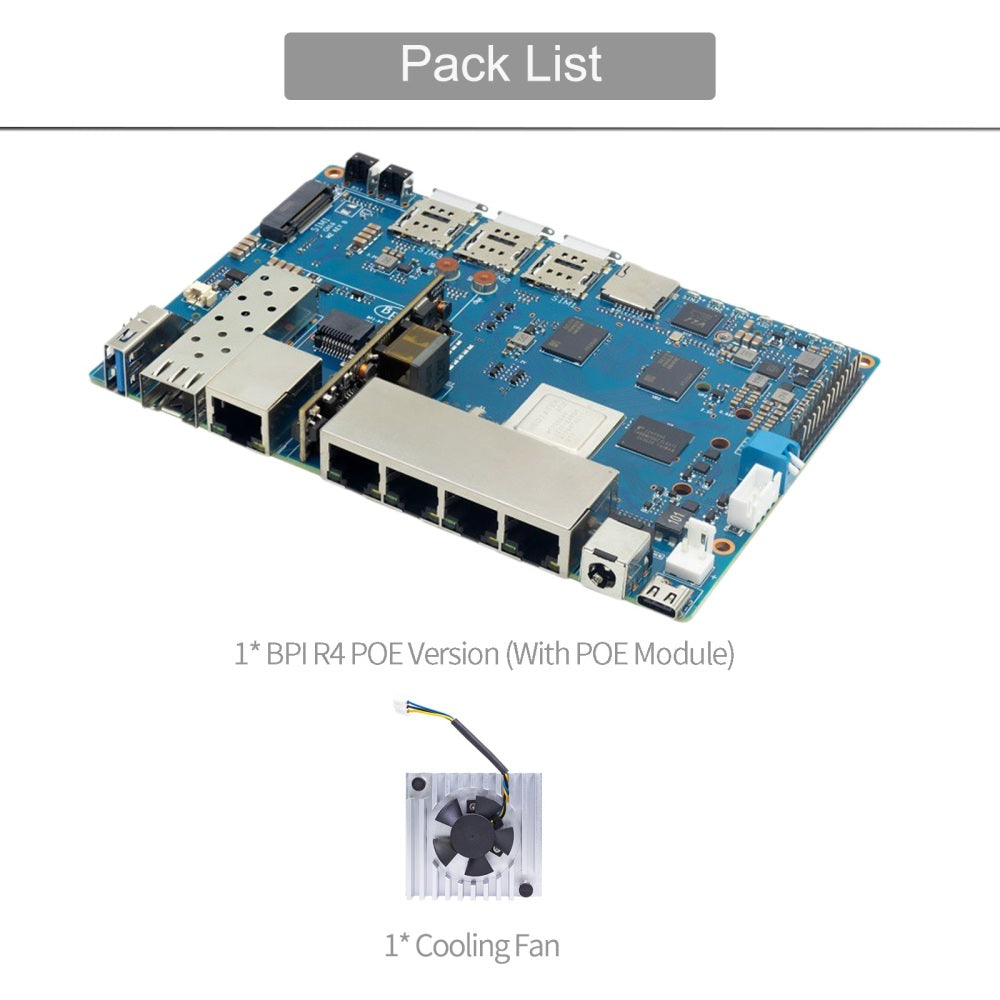

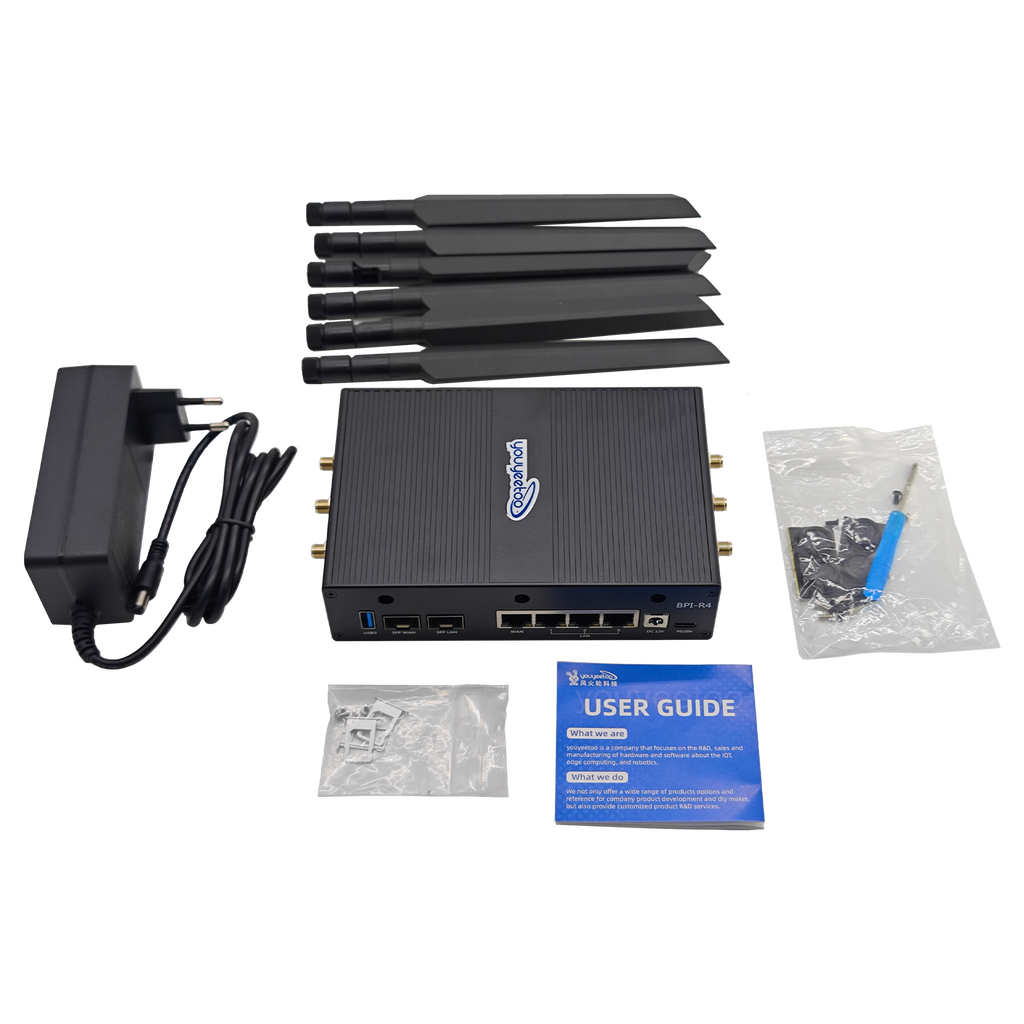

Only Board: BPI-R4 Router board X1
Power Kit: BPI-R4 Router board X1, 12V3A DC Power x1, Debug module x1
WIFI 7: Only WIFI 7 module x1
12V5A : Only 12V5A DC Power x1


Applications


  • Internet service Router
  • Wifi 7 Wireless Router
  • 4G/5G Wireless Router
  • Wireless Repeater
  • Home security Gateway
  • Home Automation
  • Nas device
  • Network and communication applications

Detailed Descriptions



Hardware interface

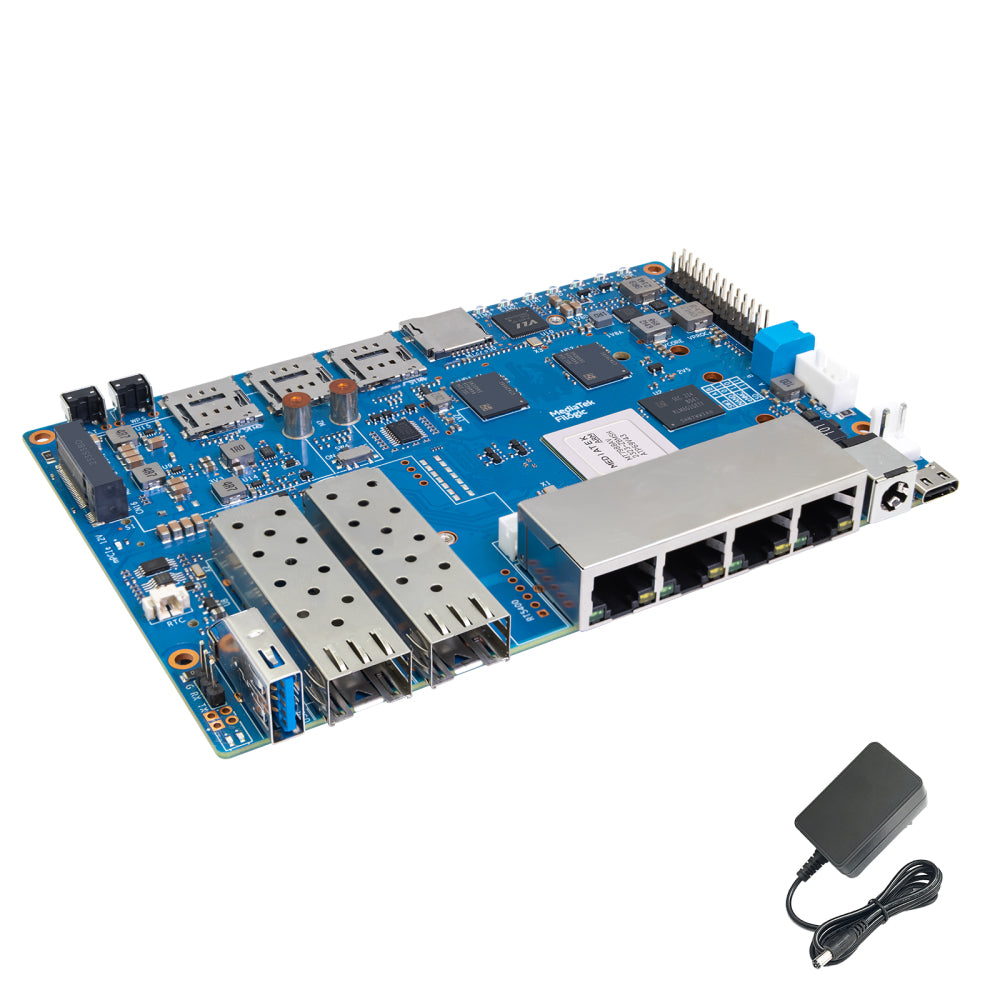

Banana Pi BPI-R4 interface.jpg

WiFi7 iPA NIC Module support

BPI-R4 wifi 7 modue use MediaTek MT7996+MT7995+MT7977A+MT7977B chip design

Banana Pi BPI-R4 wifi7 1.jpg

Hardware spec

Hardware Specification of Banana pi BPI-R4
CPU MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
SDRAM 4 GB DDR4
On board Storage MicroSD \(TF\) card,8GB eMMC onboard
GPIO 26 Pin GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, and I2S.
On board Network 4 Port 10/100/1000Mbps Ethernet
SFP 2x10G SFP or 1x10G SFP and 1x 2.5GbE
Wifi Wifi6/Wifi 7
mini PCIE 2x mini PCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
M.2 interface 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
USB 1xUSB 3.2 slot
Buttons Reset button, WPS button, boot switch
Leads Power status Led and RJ45 Led
DC Power 12V/5.2A or 19V 3.2A (5521)
Sizes 100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
Weight 250g


BPI-R4 Accessories

WiFi7 iPA NIC

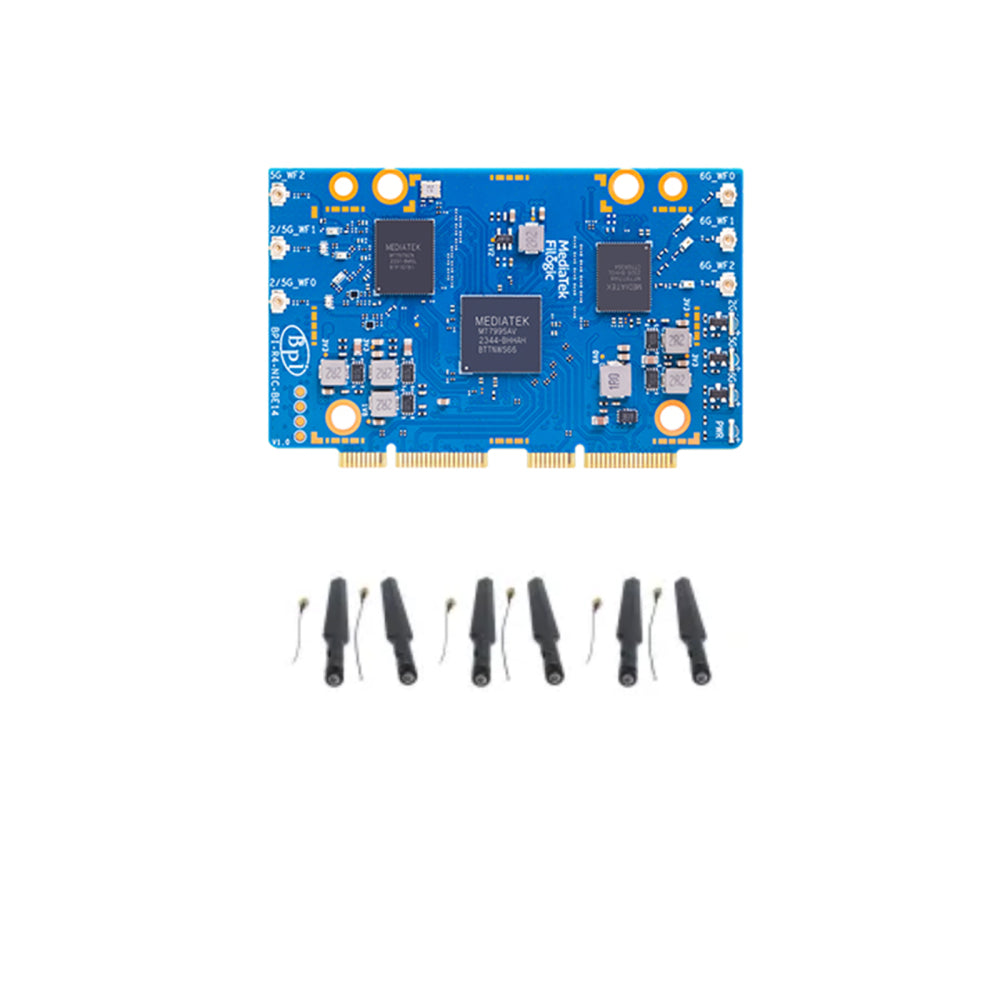

Banana Pi BPI-R4 wifi7 module uses MediaTek MT7996+MT7995+MT7977A+MT7977B chip design.

Wifi 7 module interface

Banana Pi BPI-R4 Wifi 7 interface.jpg
