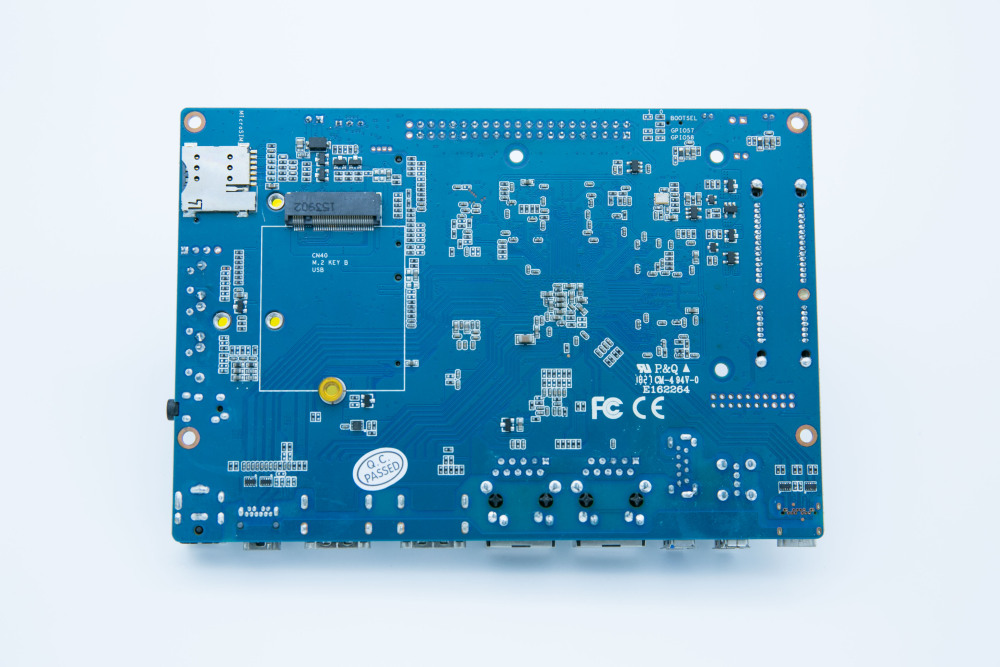

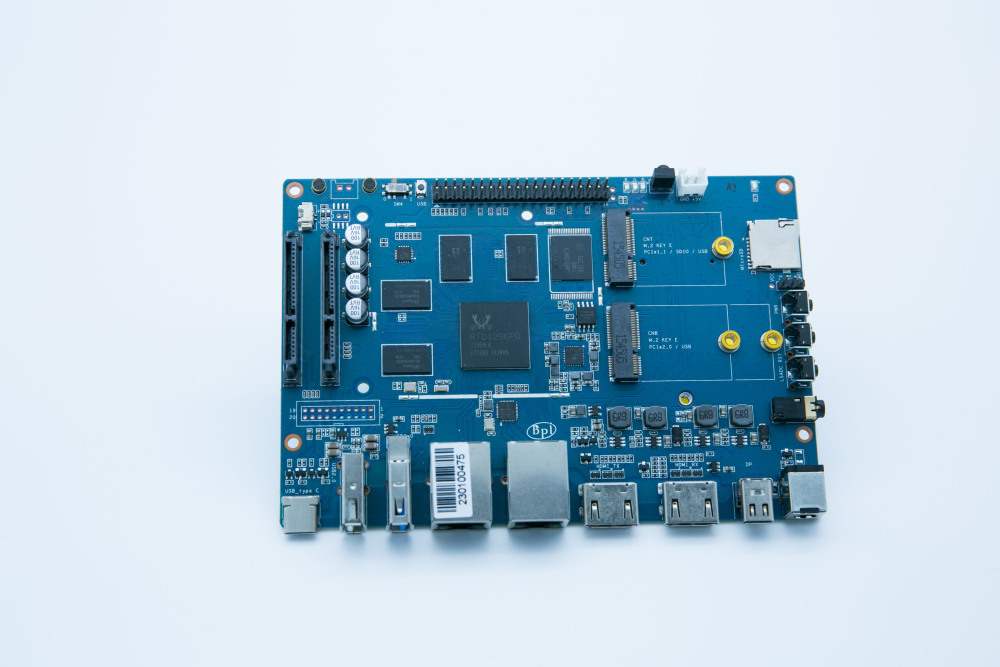

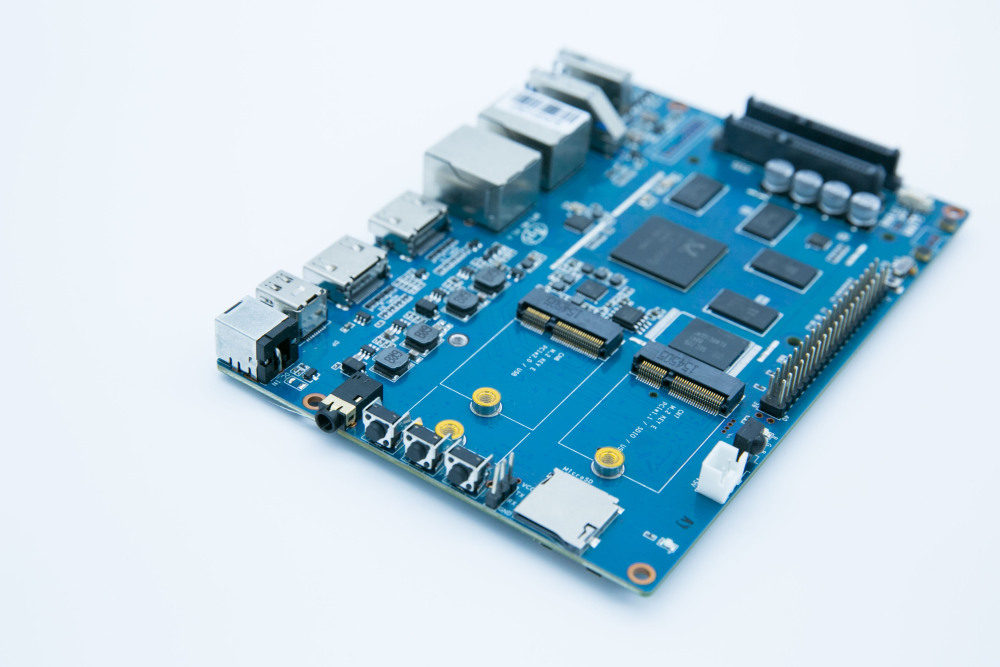

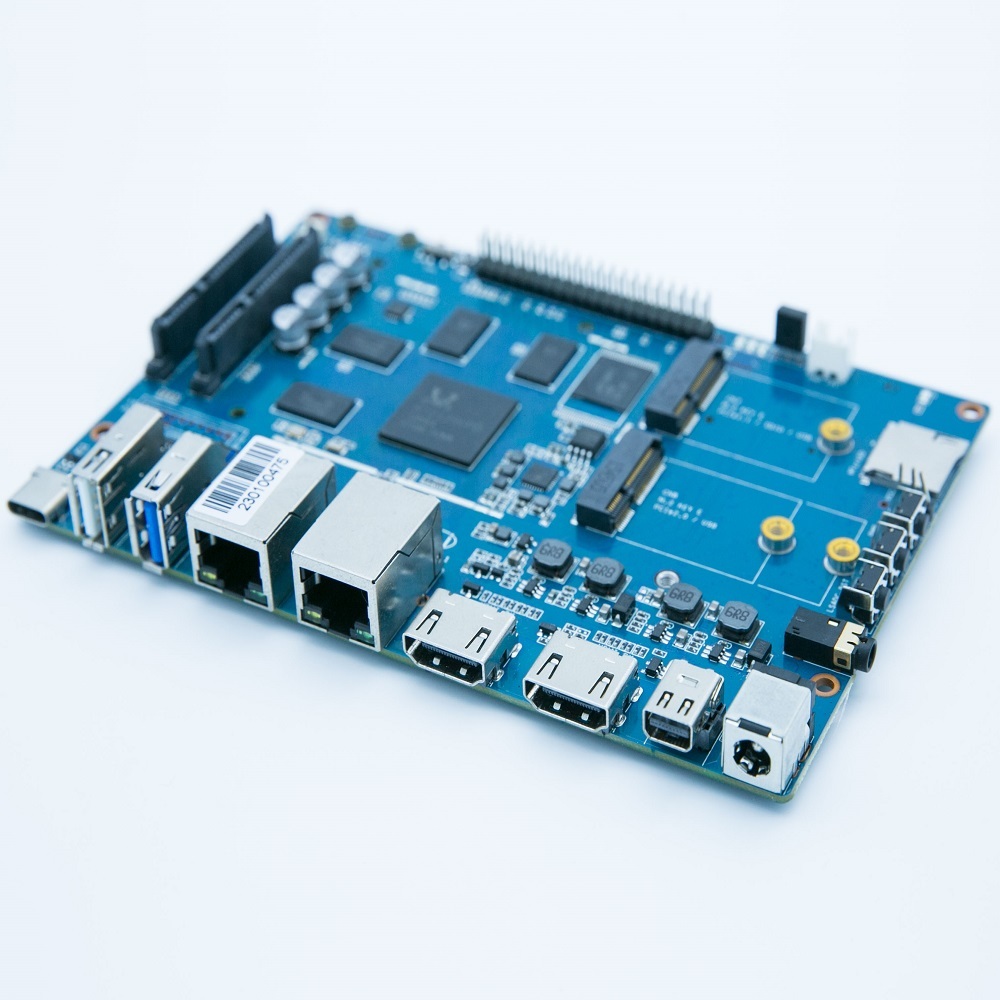

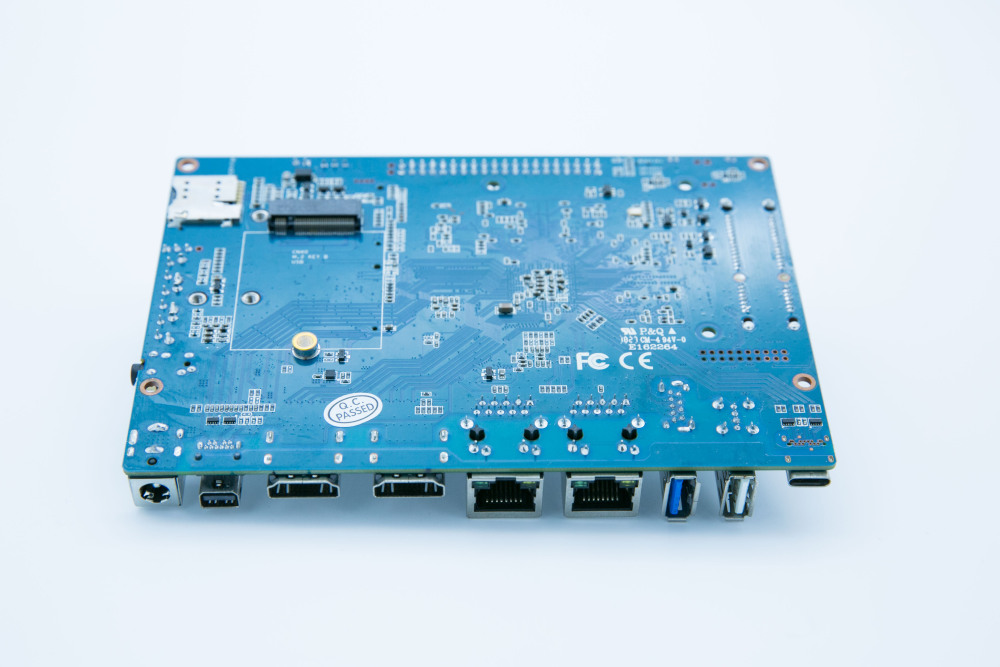

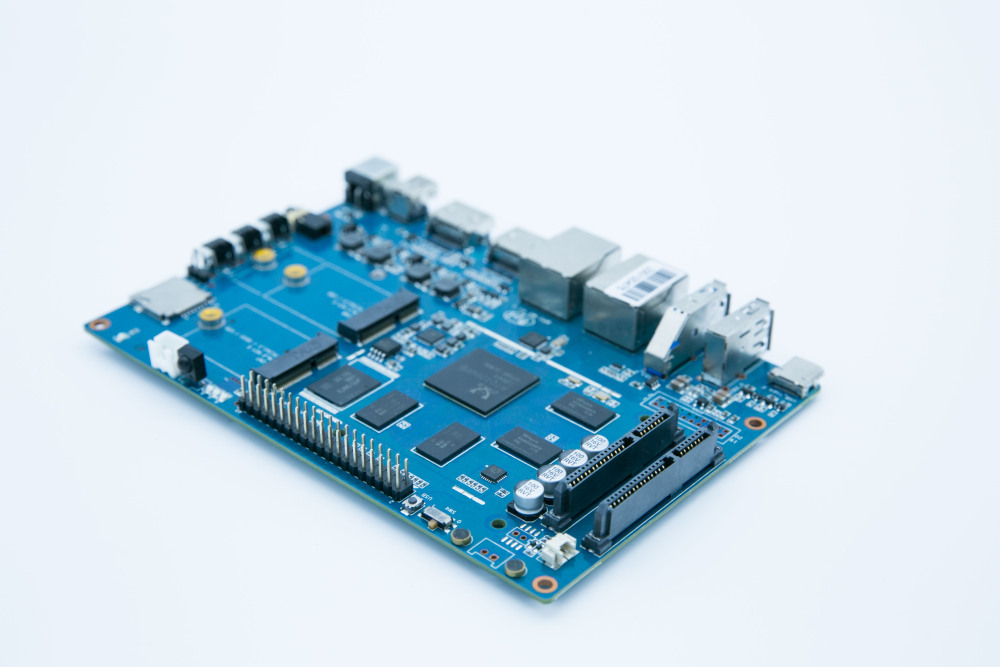

BPI-W2 Nas Router board with Realtek RTD1296

SKU: BP0016
Realtek RTD1296, Quad-core ARM Cortex-A53
Mali T820 MP3 GPU
2G DDR4 SDRAM
8G eMMC flash
Mini PCIE 2.0 , 1.1 interface ,SDIO,M.2 intereface
MicroSD slot supports up to 256GB expansion
2xMIC int/Audio out
2 SATA interface
1XGigabit LAN 1x Gigabit WAN
1xUSB 3.0 2xUSB 2.0
HDMI in & HDMI out
Mini DP
TYPE C
0.0 (0 Reviews)
$0.00 $101.89
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • BPI-W2 Nas Router board with Realtek RTD1296
  • BPI-W2 Nas Router board with Realtek RTD1296
  • BPI-W2 Nas Router board with Realtek RTD1296
  • BPI-W2 Nas Router board with Realtek RTD1296
  • BPI-W2 Nas Router board with Realtek RTD1296
  • BPI-W2 Nas Router board with Realtek RTD1296
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

shopping list : 1 * BPI - W2


The Banana Pi BPI-W2 is a router based development board, which can run on a variety of open source operating systems including OpenWrt, Android, and linux. It has 1 Gigabit LAN ports, 1 Gigabit WAN. it design with Realtek RTD1296, Quad-core ARM Cortex-A53. with 2G DDR4 and 8G eMMC flash onboard.
BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GHz, The Router also includes a variety of peripherals, including HDMI RX/TX, Mini DP, PCIe2.0,PCIe1.1&SDIO,M.2 interface, USB 2.0 , USB3.0 Port,TYPE C, SATA port,2 Gbps Port Gigabit Ethernet port, also support 802.11ac/n WLAN connection thru PCI-e port
BPI-W2 can run with Android6.0 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-W2 same asBPI-R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3

Hardware interface:

Hardware spec:
HardWare Specification of Banana pi BPI-W2
Soc Realtek RTD1296 quad-core ARM A53
GPU Mali T820 MP3 GPU
SDRAM 2GB DDR4 (shared with GPU)
Power 12V @ 2A via DC power 5.0mmx2.0mm jack
Low-level peripherals 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
Onboard Network 2x 10/100/1000Mbps Ethernet
Wifi/Bluetooth **Option** ,not support onboard WIFI & BT
RGMII 1 RGMII interface with PIN
On board Storage MicroSD (TF) card; 2 native SATA 3 6Gbps ;eMMC;SIM card slot
Display HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200; MIPI DP
Video decoder/encode The Video DSP of RTD1296 is dedicated to manipulating,decoding and encoding of video streams in various formats, e.g. decoding 4K2K H.265,Full HD MPEG1/2/4/H.264/H.264 MVC,AVC/VC-1,VP8,AVS,AVS Plus,HD jpeg,etc.Video decoding and encoding can run simultaneously. support 3D de-intrlacing,video scaling up to 4K2K and so on.
Aideo decoding Audio decoding is carried out by an Audio DSP that is capable of decoding a set of audio formats,e.g. DTS HD,Dolby Digital Plus,TrueHD,and other popular formats.the Audio DSP also performs audio post processing
Audio support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 2 MIC in
HDMI Out/In 1* HDMI 2.0a out port and 1* HDMI 2.0a In port
Audio outputs/Inputs HDMI, I2S audio,Audio micro out, Audio out/in with PIN define
M.2 KEY E:PCIE 2.0/USB 2.0 1 pcie 2.0 interface
M.2 KEY E:PCIe 1.1 / SDIO / USB 2.0 1 pcie 1.1 and SDIO interface
USB 3.0 1x USB 3.0 host
USB 2.0 2x USB 2.0 OTG, 1 with standard USB port , 1 define with PIN
M.2 KEY B 1 * M.2 interface USB 2.0 for 4G with Micro SIM card slot
Mini DP 1* Mini DP
TYPE C 1 type C interface
RTC battery RTC battery power interface
Buttons Reset button, Power button, U-boot button
Leds Red, Green, Blue
Other IR reciever
Sizes 148 mm × 100.5mm
Weight 100g
