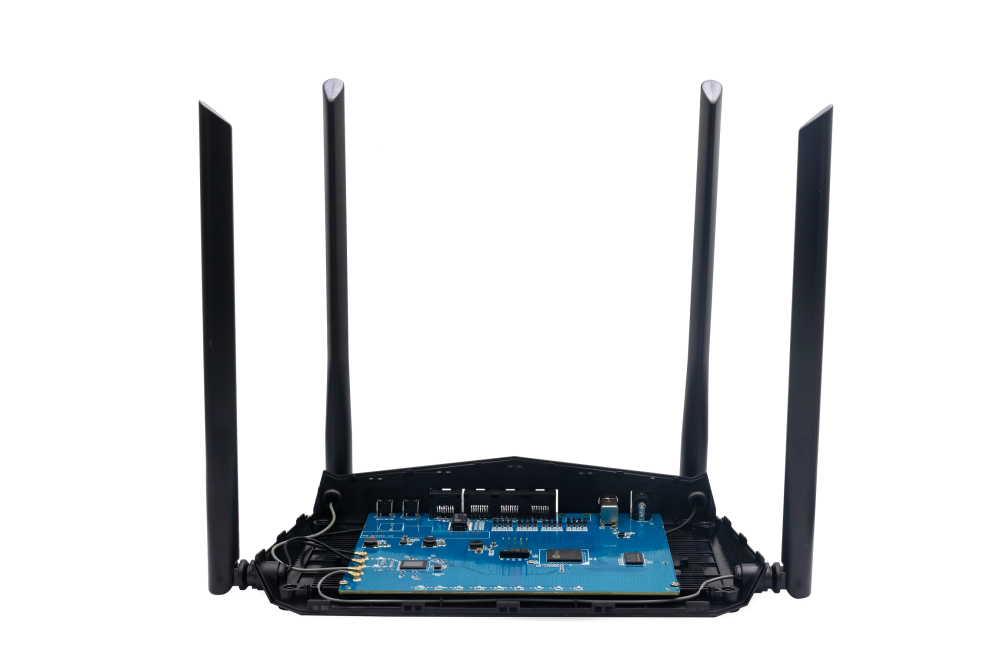

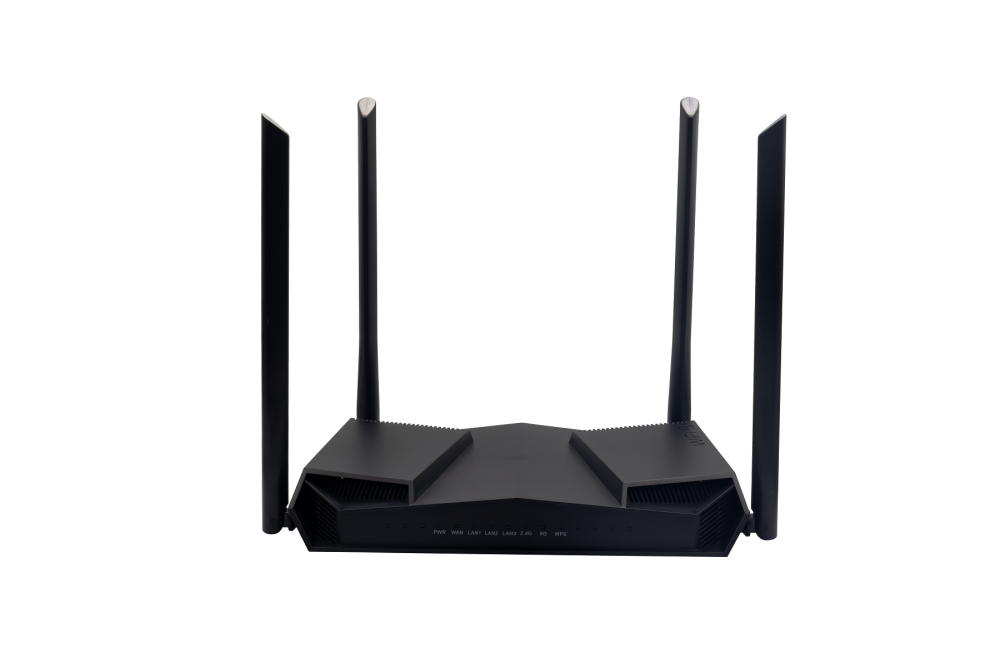

BPI-WIFI 6 Router - Openwrt - GbE WAN RGMII 2x2 5G 2x2 2.4G

• Quick Start:https://docs.banana-pi.org/en/BPI-WiFi6_Router/BananaPi_BPI-WiFi6_Router
• Tips:
  • The Router product just supports 1Wan + 3 LAN port , not 4 LAN port

Introduction

Banana Pi BPI-Wifi6 Router design with Triductor TR6560 + TR5220 wifi SOC, it is a standard wifi6 router solution. Built-in high-performance dual-core ARM Cortec A9 processor for WIFI message forwarding or intelligent business processing, built-in high-performance LSW and hardware NAT, supporting up to 5Gbps message forwarding, Integrated 5GE PHY, one RGMII, Supports one RGMII expansion port, provides 1000Mbps network access capability, and supports two WAN ports. Support hardware intelligent QoS. Support dual-band 2.4G 40M 2*2 +5G160M2.2 DBDC WIFI, Wifi protocol version support to IEEE 802.11ax, backward compatible 802.11a /b/g/n/ac, can support the highest rate of 3Gbps, 2G will reach 573.5Mbps, while 5G will reach 2401.9Mbps， support PoE interface, add PoE module to support PoE function.

Features

• Dual core ARM cortec A9 1.2G Hz
• Integrated 5GE PHY, one RGMII
• Supports 6 GE MACs,10M/100M/1000M rate mode and standard MIB statistics
• Supports IEEE802.11a/b/g/n/ac/ax wireless LAN communication protocol
• Support Wifi AP mode and STA mode
• Support WPA,WPA2, WPA3 encryption and decryption
• The PoE function can be customized

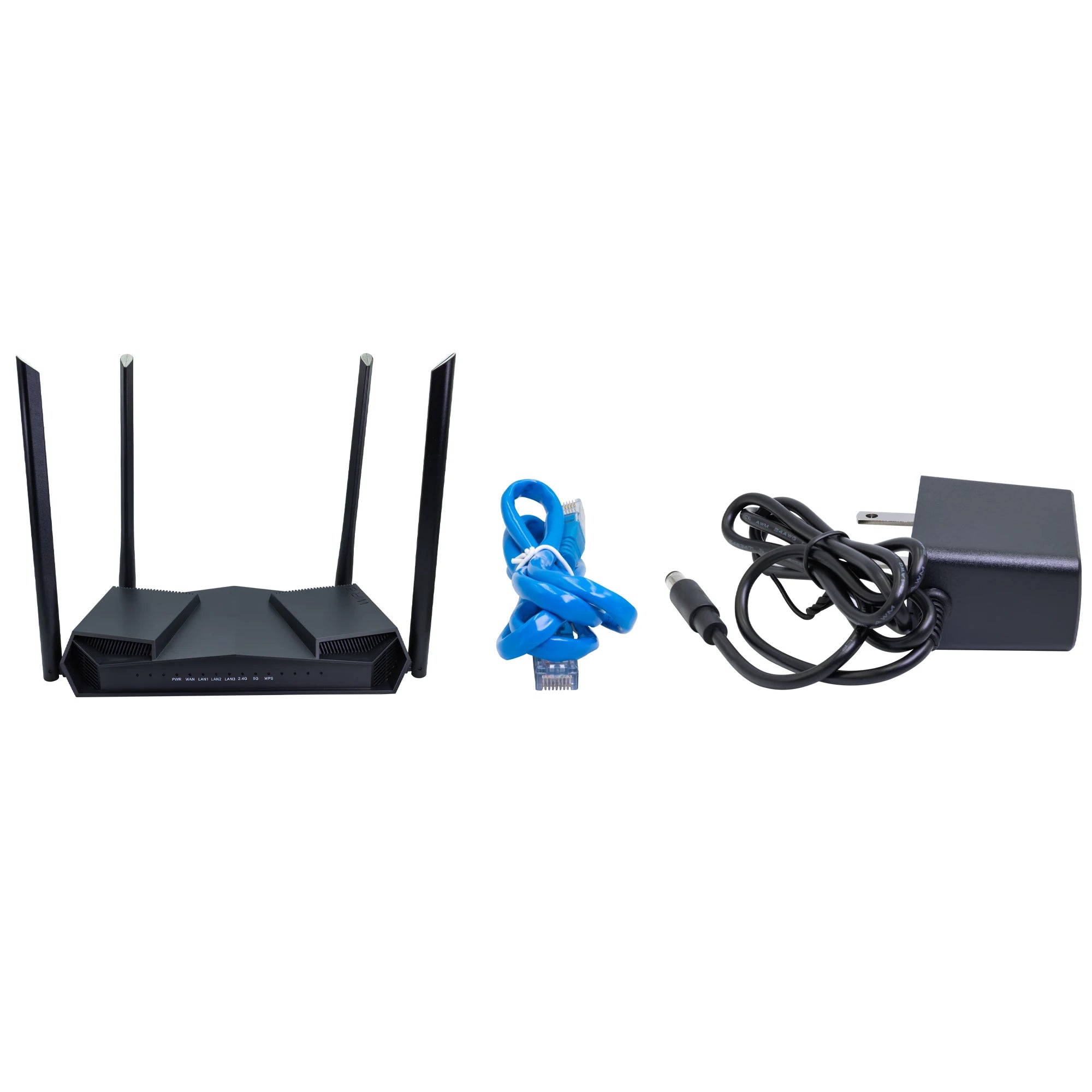

Shipping List

Specification

SoC – Triductor TR6560 dual-core Arm Cortex-A9 processor @ 1.2 GHz with LSW (Line-Card Switching) and hardware NAT up to 5 Gbps
WiFi chipset – Triductor TR5220 WiFi 6 chipset
System Memory – 512 MB DDR3
Storage – 128MB SPI NAND flash

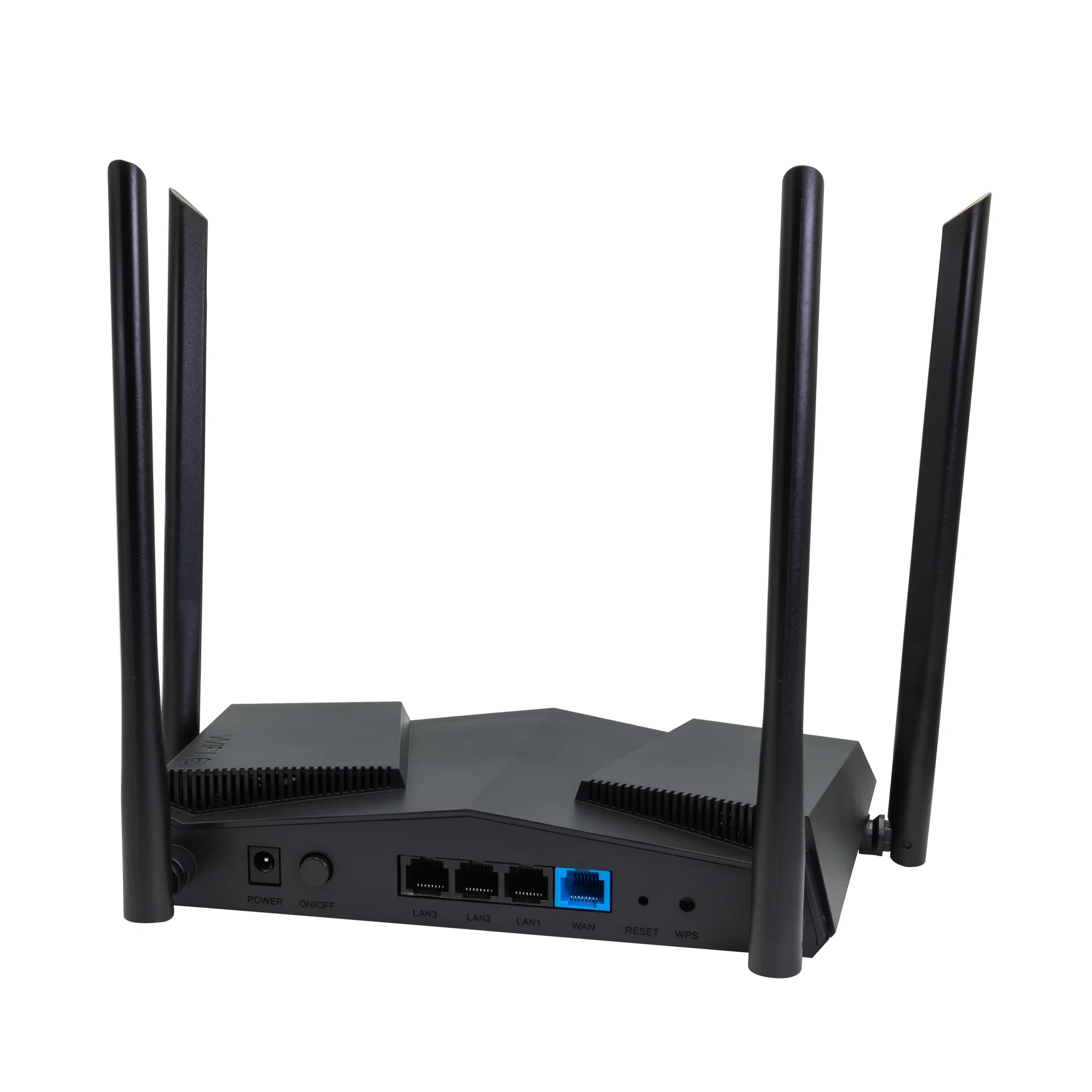

Networking1x Gigabit Ethernet WAN port with optional PoE support
3x Gigabit Ethernet LAN ports
2.4 GHz WiFi 6 (802.11ax) 2×2 MIMO up to 573.5 Mbps
5 GHz WiFi 6 (802.11ax) 2×2 MIMO up to 2401.9 Mbps
4x external antennas
WiFi supports AP and STA modules, WPA, WPA2, WPA3 security
Debugging – 6-pin debug UART header
Misc – Power button, Reset button, WPS button, 9x LEDs
Power Supply – 12V DC via power barrel jack
Dimensions – SBC: 137 x 107 mm;

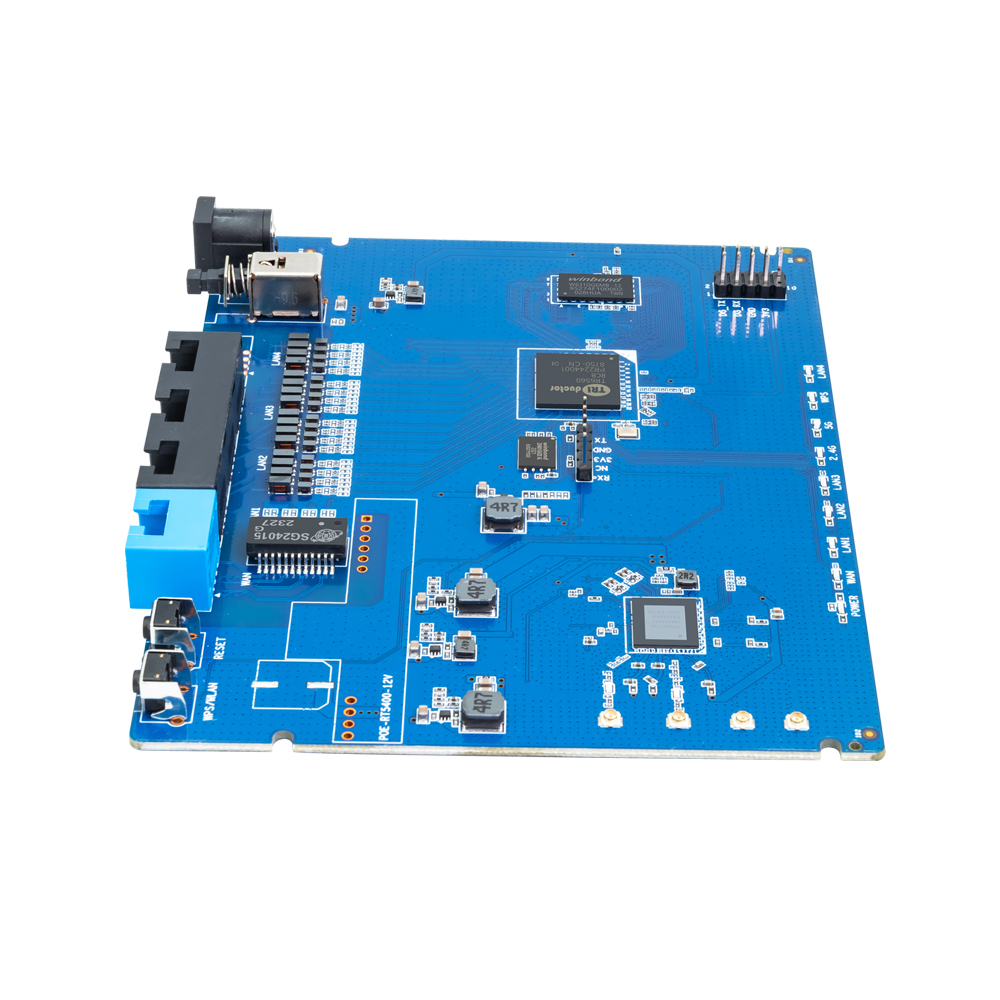

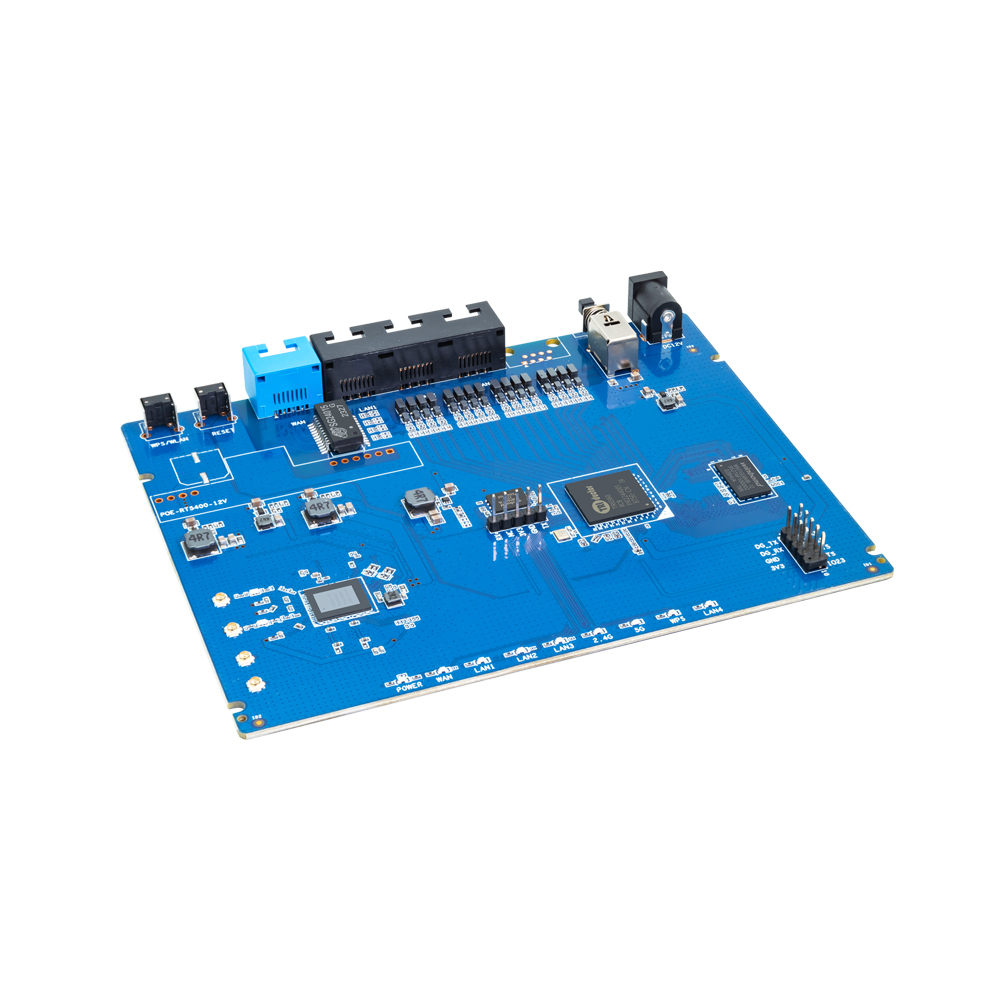

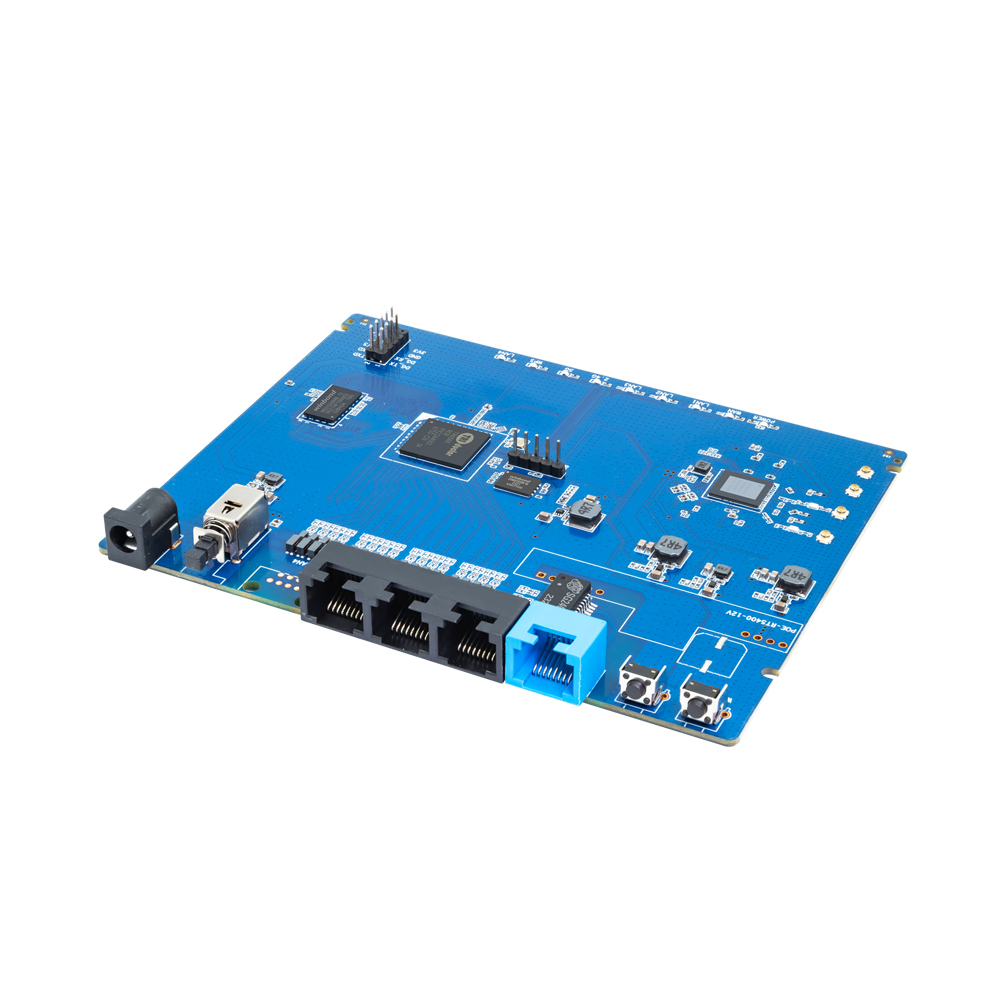

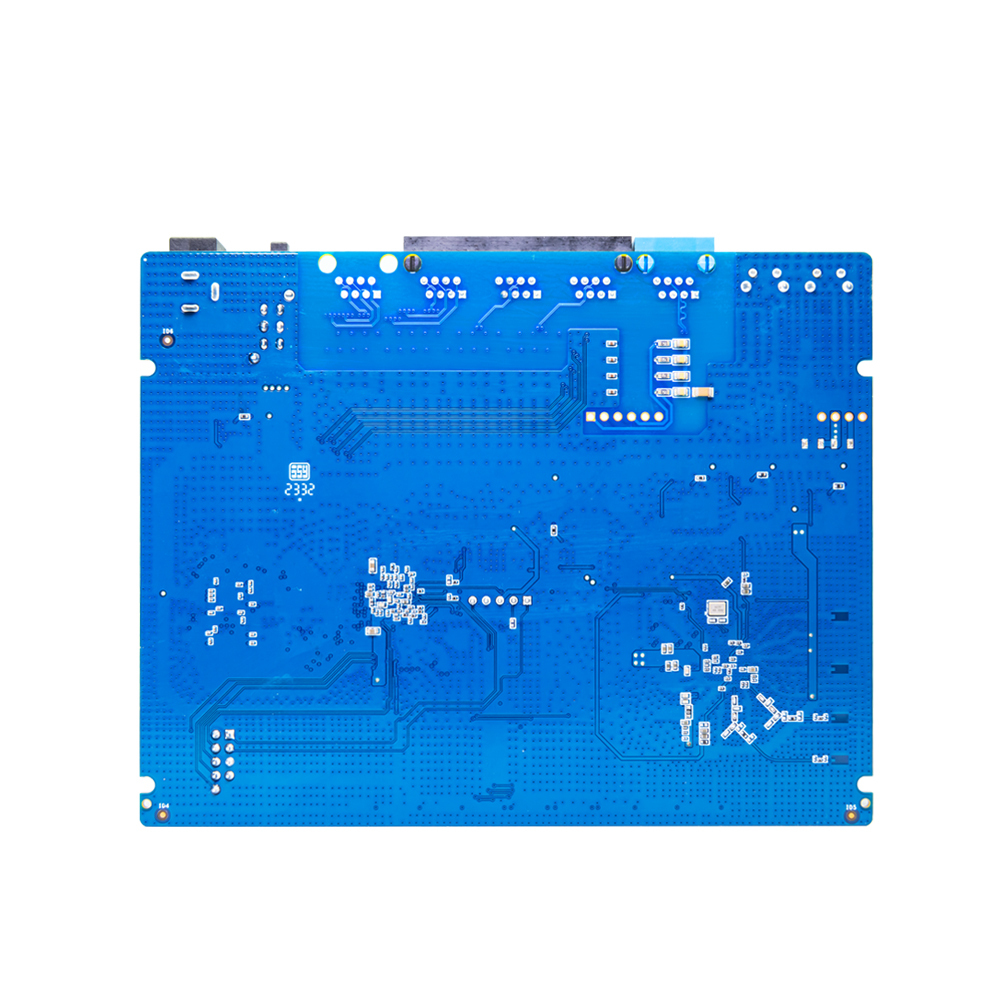

Detailed Descriptions

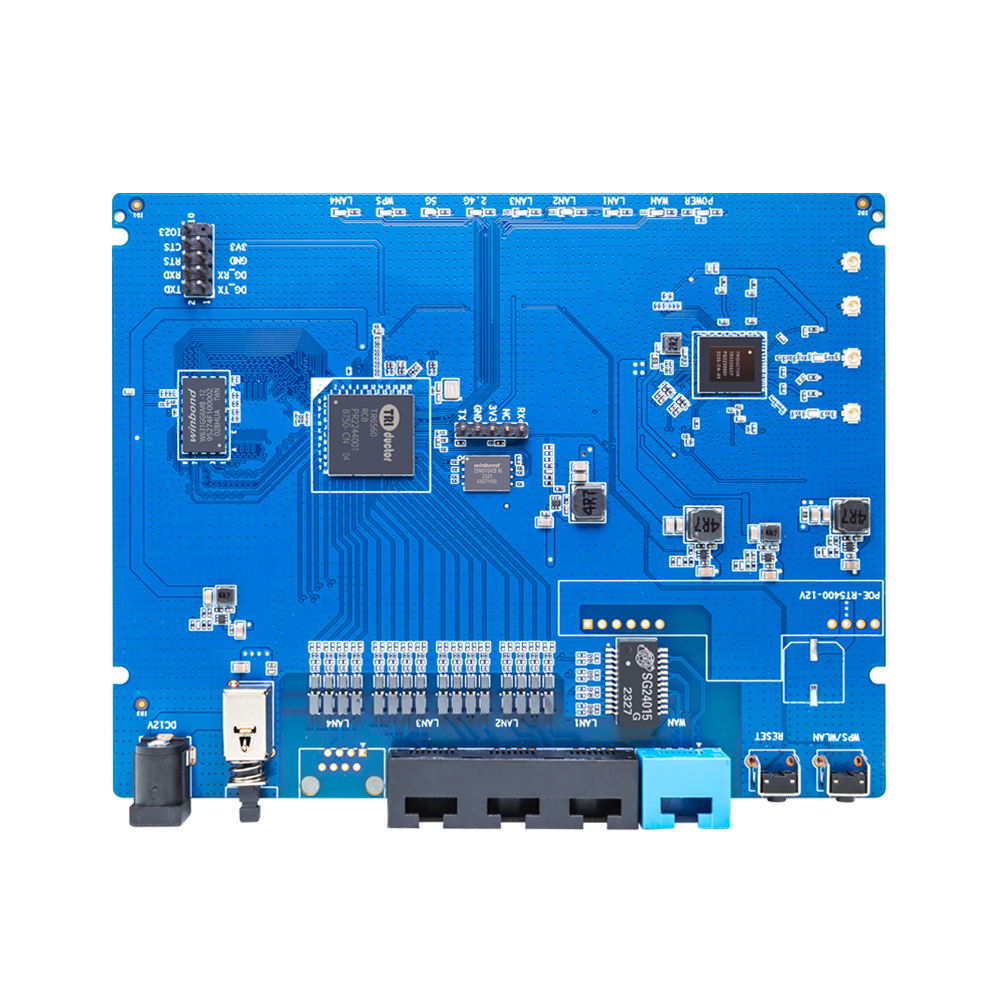

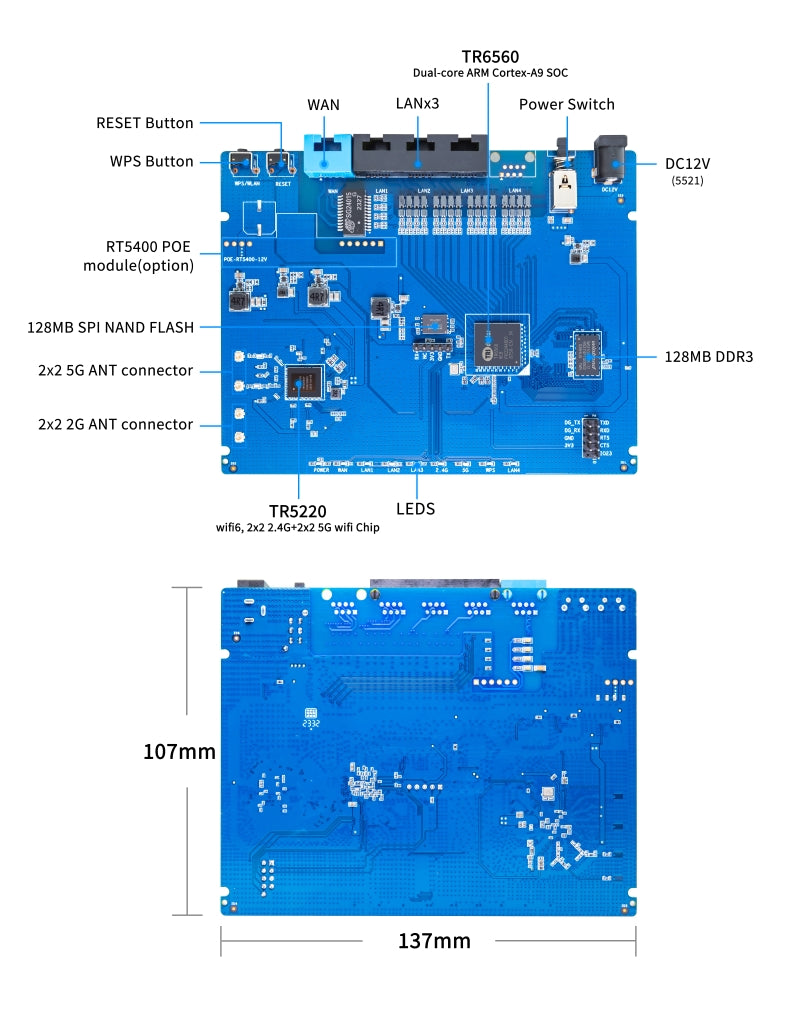

BPI-Wifi6 Router PIN Out define

Banana Pi BPI-Wifi6 Router specifications

PoE support

Easy to add PoE function support on the BPI-Wifi6 router, The PoE module port is reserved on the board. If the PoE module is welded to the board, the PoE network cable power supply function is supported

• Note : use BPI-RT5400-12V PoE module.
