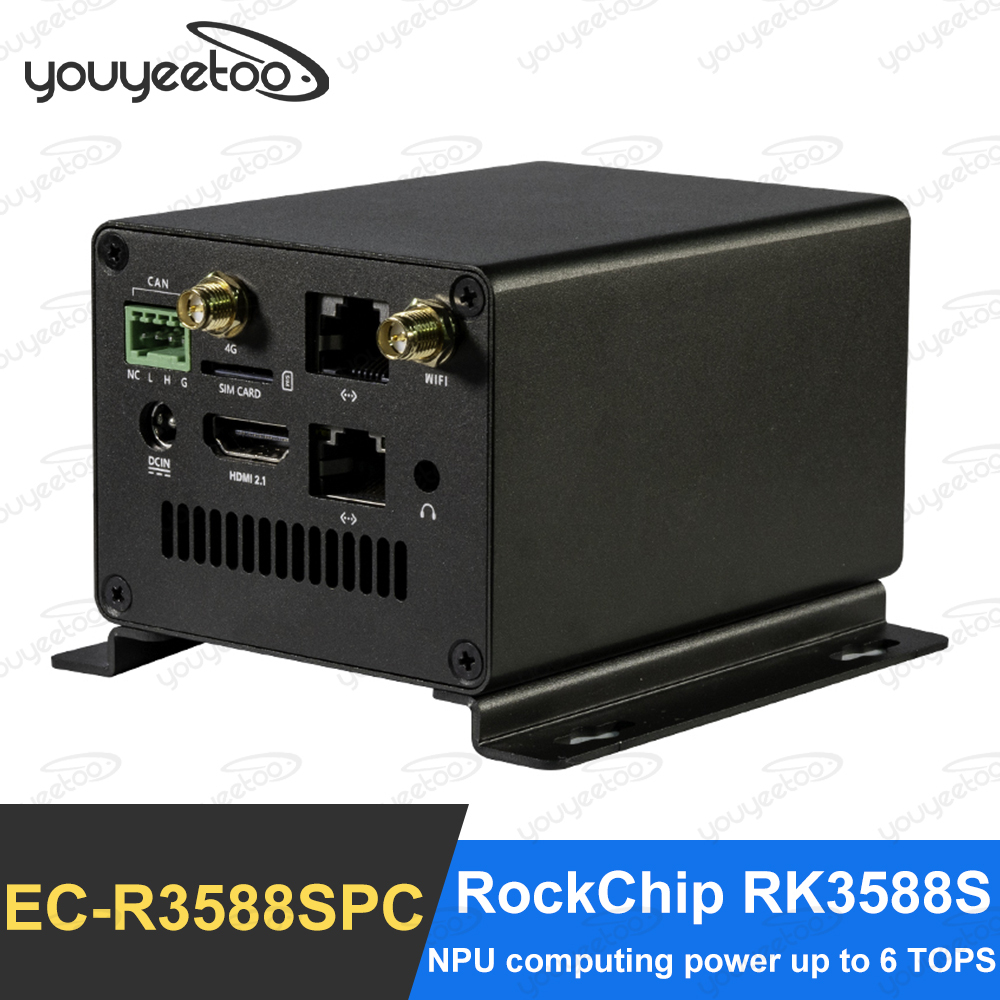

EC-R3588SPC - Octa-Core AI Industrial Computer

• Quick Start: WIKI
• Tips

Introduction

The EC-R3588SPC is an Octa-Core AI Industrial Computer by Firefly Electronics. This powerhouse is driven by the Rockchip RK3588S processor, featuring 8nm lithography and an octa-core 64-bit CPU with speeds up to 2.4GHz. It's equipped for advanced AI applications with a built-in AI accelerator NPU, offering 6Tops computing power and support for mainstream deep learning frameworks.

The EC-R3588SPC excels in video capabilities, supporting 8K@60fps H.265/VP9 decoding and 8K@30fps H.265/H.264 encoding, along with simultaneous multi-channel processing. It can be configured with up to 32GB of RAM, enhancing its ability to handle large-scale applications.

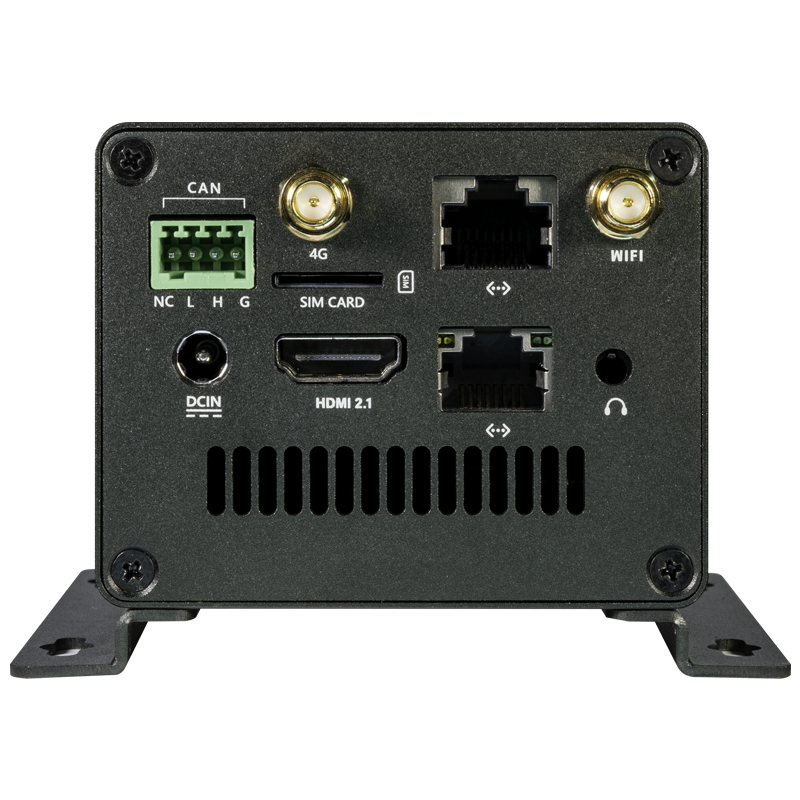

With a strong suite of connectivity options including Gigabit Ethernet, dual-band WiFi, Bluetooth 4.2, and 4G LTE, this computer ensures stable and fast data transmission. It also supports NVMe SSD for massive storage expansion and boasts a variety of interfaces like HDMI2.1, USB3.0, USB2.0, USB-C, RS232, RS485, and CAN.

The EC-R3588SPC is compatible with Android 12.0 and Ubuntu, providing a reliable operating environment. It's an ideal choice for edge computing, AI, smart home, intelligent retail, and smart industry applications, offering abundant resources for customization to meet specific industry needs.

Features

• Processor: Powered by Rockchip RK3588S, a new-generation octa-core 64-bit processor with 8nm lithography process.
• RAM: Configurable up to 32GB, providing enhanced capabilities for applications requiring large memory.
• Video Capability: Supports 8K video encoding and decoding, including 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding.
• Multi-Channel Video: Capable of 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding simultaneously.
• Display: Supports 8K HDMI 2.1 and DP1.4 video output, allowing for dual-screen output with different displays.
• Networking: Features 1000Mbps Ethernet, 100Mbps Ethernet, dual-band WiFi, Bluetooth 4.2, and 4G LTE for robust network communication.
• Storage: Equipped with an M.2 PCIe2.0 (1Lane) interface for connection with NVMe SSD, supporting massive storage expansion.
• Interfaces: Comes with a variety of interfaces including HDMI2.1, Gigabit Ethernet, USB3.0, USB2.0, USB-C, RS232, RS485, CAN, and more.
• Operating Systems: Supports Android 12.0, Ubuntu Desktop, and Server versions, offering a safe and stable system environment.
• Customization: Offers abundant resources for customization, including a complete SDK, development documents, examples, and tutorials.
• Applications: Suitable for a wide range of applications such as edge computing, artificial intelligence, smart home, intelligent retail, and smart industry.

Shipping List

Bundle 1:4GB LPDDR4+32GB eMMC

Bundle 2:8GB LPDDR4+64GB eMMC

Specification

Detailed Descriptions

Powered by Rockchip RK3588S new-gen octa-core 64-bit processor, the computer can be configured with up to 32GB RAM. Capable of 8K video encoding and decoding, it supports Gigabit Ethernet, dual-band WiFi, and 4G LTE. With RS485, RS232, CAN, and more interfaces, it can be used in edge computing, Artificial Intelligence, smart home, intelligent retail, and smart industry.

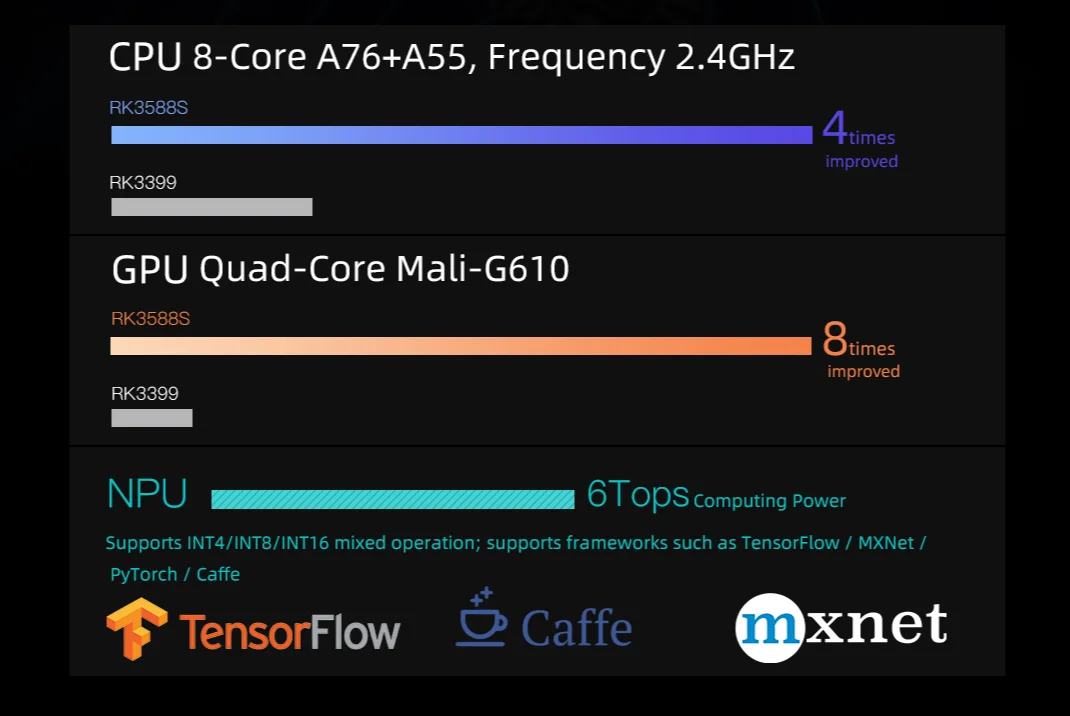

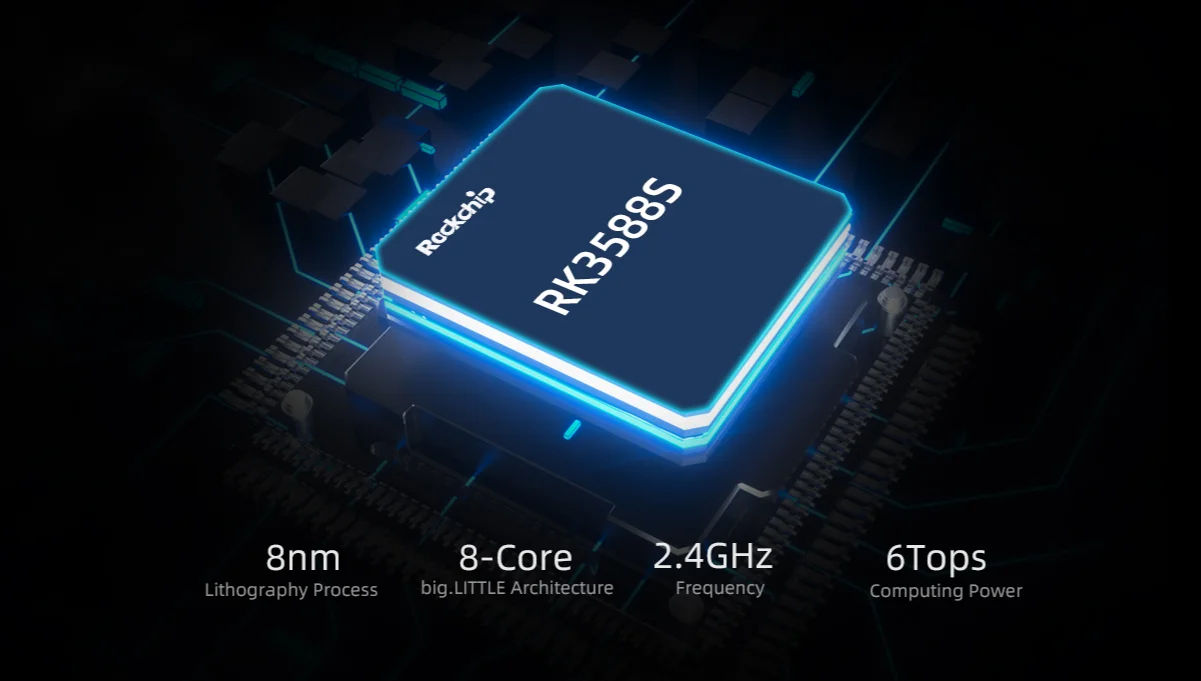

RK3588S is a new generation of high-end processor

RK3588S is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. Equipped with an octa-core 64-bit CPU, its frequency is up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance in various AI application scenarios.

8K video encoding and decoding

The computer supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding. It also supports encoding and decoding simultaneously — up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding can be achieved. The strong video encoding and decoding capability makes 8K HD display and delicate picture quality available.

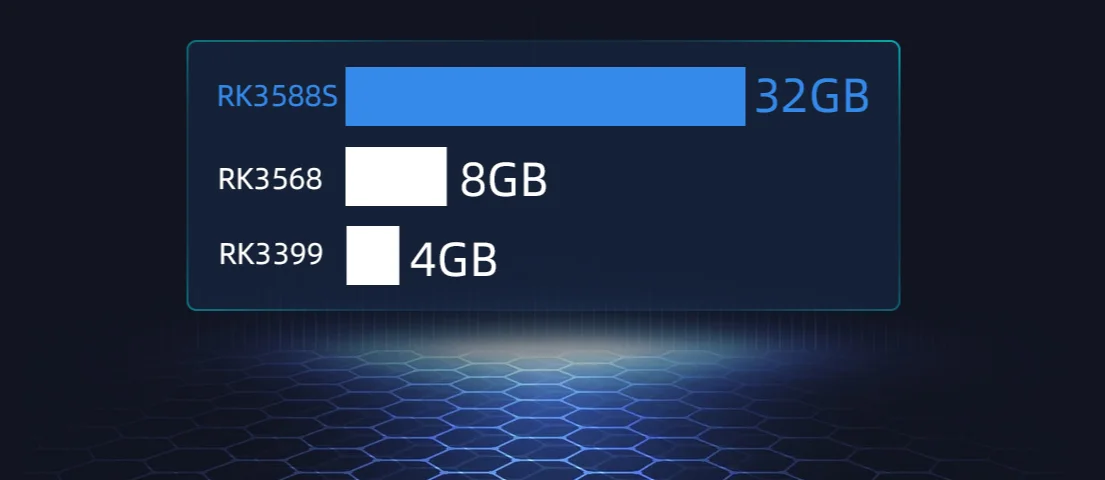

Super-large 32GB RAM

Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and speeds up response time. It can meet the application requirements of products with large RAM and large storage.

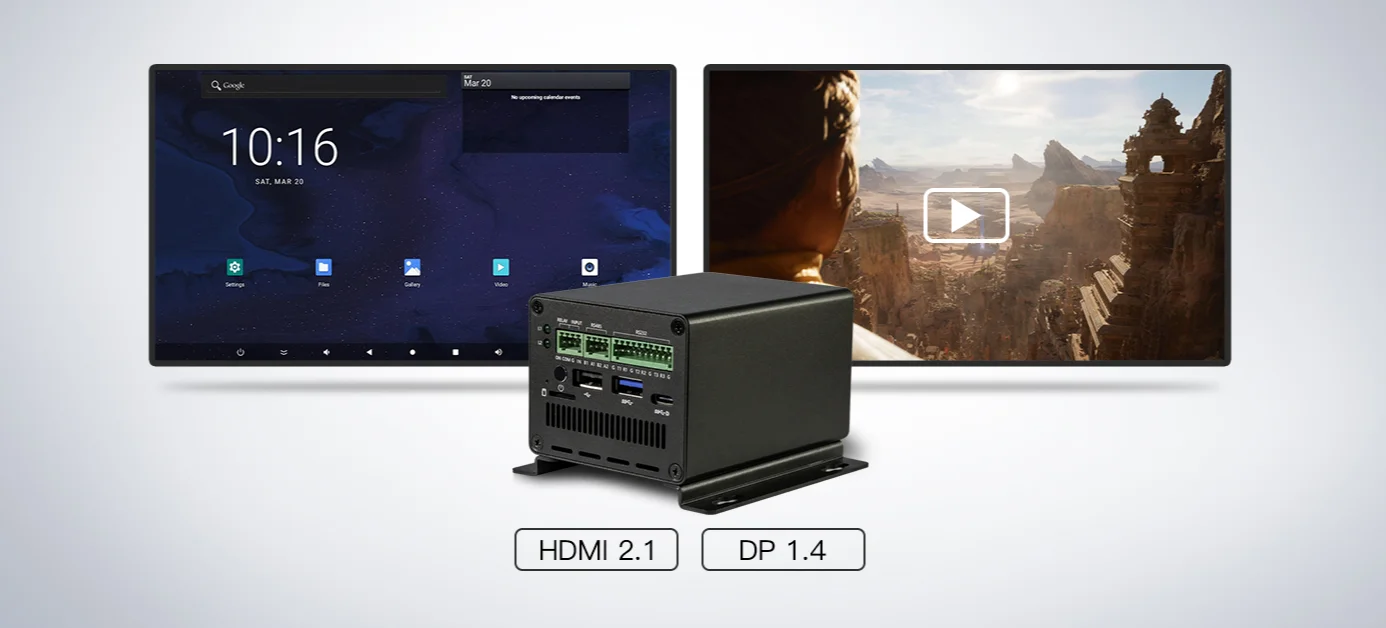

Multi-channel video output

It supports 8K HDMI 2.1 and DP1.4 video output. Dual-screen output with different displays can be achieved, which can be used in various scenarios of dual-screen interactive display.

Strong network communication capability

1000Mbps Ethernet (1 channel), 100Mbps Ethernet (1 channel), 2.4GHz/5GHz dual-band WiFi, Bluetooth 4.2, and 4G LTE are provided. This powerful network communication capability makes data transmission more stable and faster.

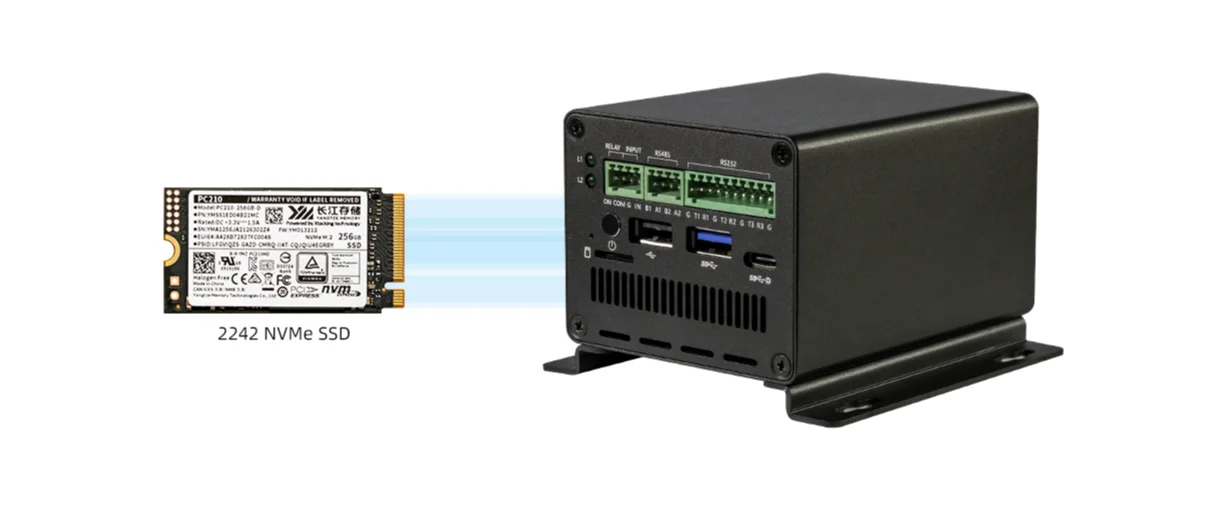

NVMe SSD, massive capacity

The on-board M.2 PCIe2.0 (1Lane) interface can be connected with 2242 NVMe SSD mass storage devices, which makes it a reality that the device can be easily expanded with TB storage capacity.

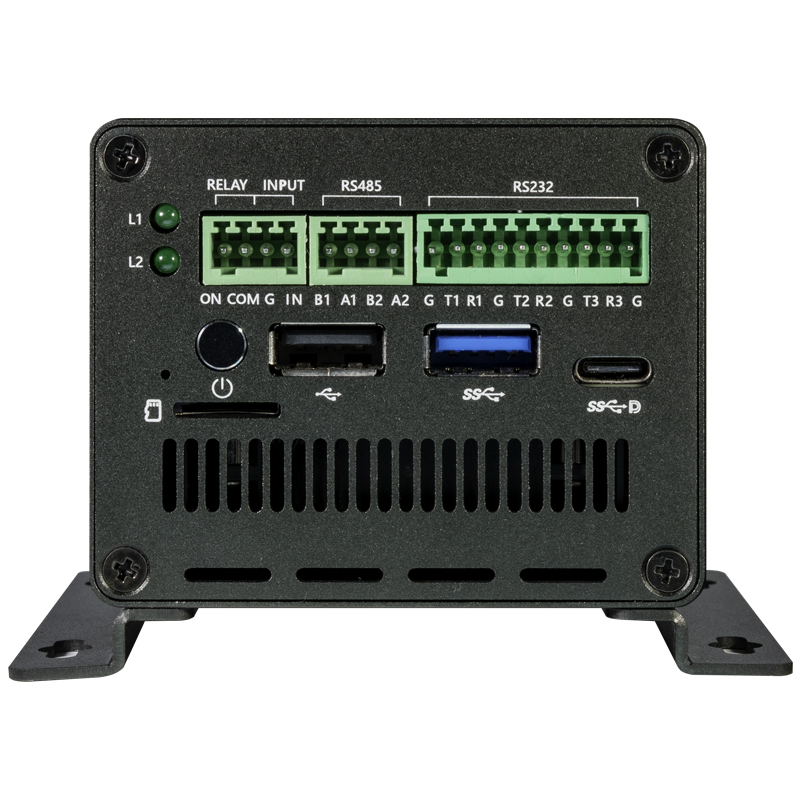

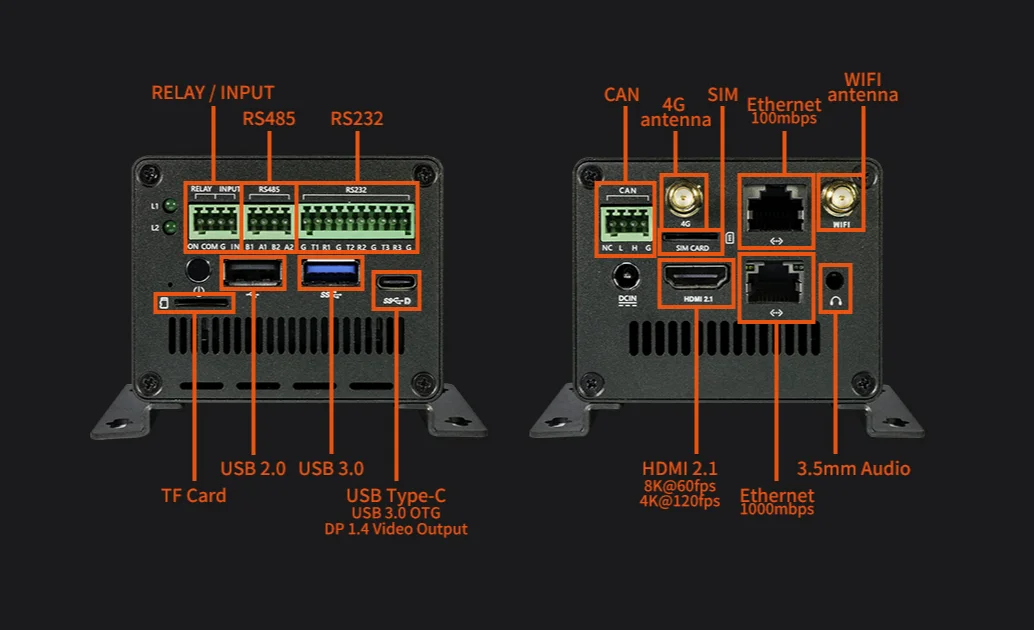

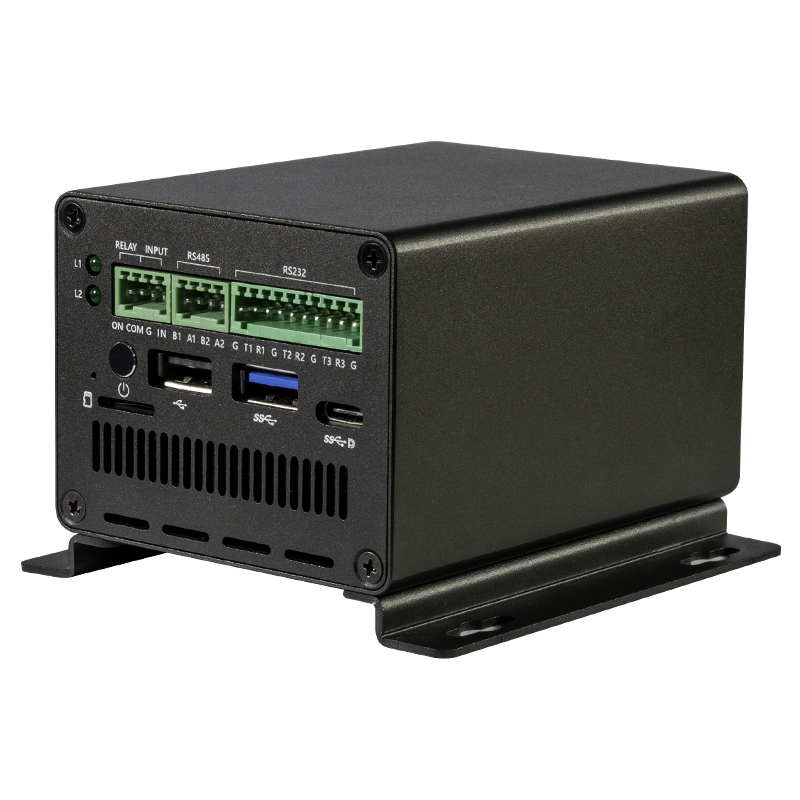

A variety of interfaces

HDMI2.1, Gigabit Ethernet, USB3.0, USB2.0, USB-C, RS232, RS485, CAN, relay and more interfaces are configured.

Support various operating systems

Android 12.0, Ubuntu Desktop version, and Server version are supported. The reliable operation provides a safe and stable system environment for product research and production.

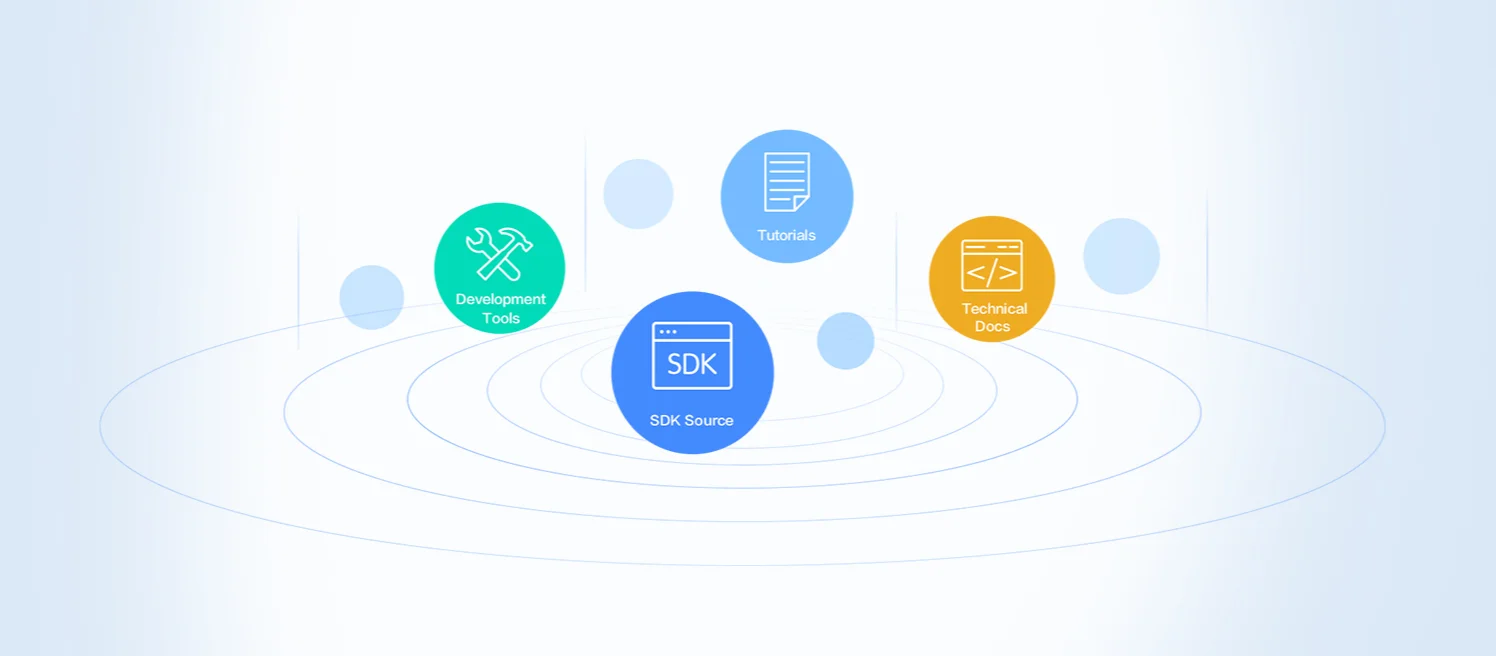

Abundant resources for customization

A complete SDK, development documents, examples, technology documents, tutorials and other resources are provided for the users to make a further customization.

A wide range of applications

The computer can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain,smart security, smart home, intelligent retail and smart industry.
