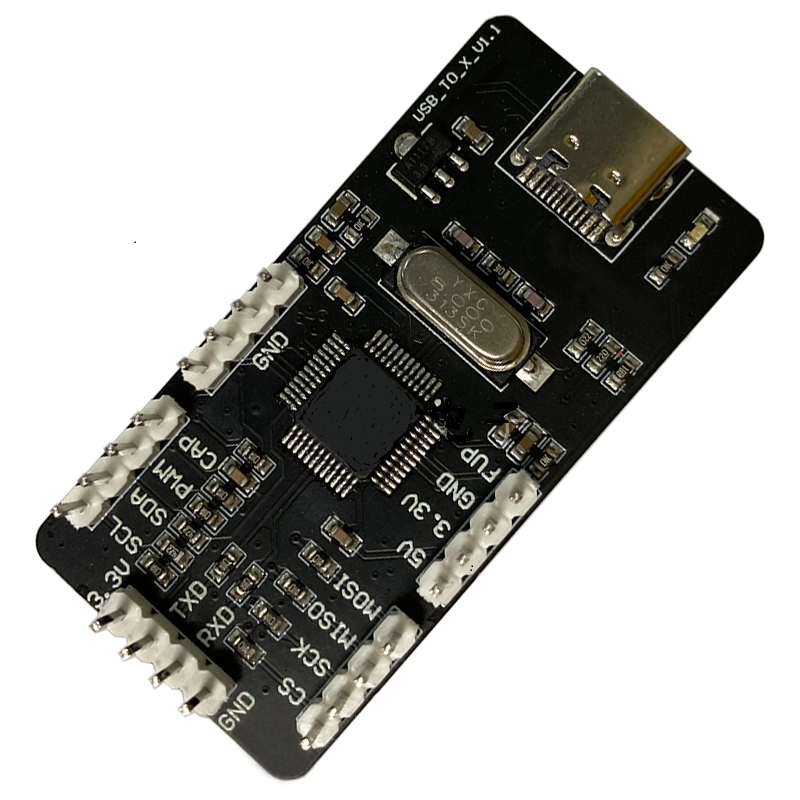

6 in 1 USB Adapter Module - USB to UART SPI IIC Master Slave PWM IN/OUT for Interface Extensions, Debugging

SKU: FHLDPX1PJMODE
Features:
6 in 1
Win7, Win8, Win10 and Win11
USB to UART SPI IIC PWM
0.0 (0 Reviews)
$13.99 $13.59
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • 6 in 1 USB Adapter Module - USB to UART SPI IIC Master Slave PWM IN/OUT for Interface Extensions, Debugging
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

USB_TO_X debugger - 6 in 1 USB Adapter Module


Introduction:

The USB_TO_X debugger uses a Type C standard interface to connect to a USB port on the computer. Connects to the USB port of the PC software. can be to set the USB_TO_X debugger as a master or a slave, which is convenient for users to debug the serial port, SPI Master, SPI slave, I 2C Master, I2C Slave, PWM Outputs and PWM input capture, etc.

Features:

  • Support Win7, Win8, Win10 and Win11.
  • No driver installation (Win8 and above computer systems).
  • Serial port support 1200---500000 and other common baud rate.
  • SPI host/slave, data rate support up to 18M, support for four modes of operation.
  • I2C host/slave, support for 7-bit address and 10-bit address, clock frequency support for the lowest 1K, the highest support for 400K
  • PWM output frequency support up to 100K, duty cycle 1% - 99% stepless adjustable PWM input capture frequency support up to 100K

USB TO I2C Master :



USB TO I2C Slave:


SPI:


USB TO PWM IN:


USB TO PWM IN:
