LubanCat Zero single board computer,Raspberry Pi Zero Form Factors, Provide Andriod Debian Ubuntu, Complete R&D resources.

Name: LubanCat Zero single board computer,Raspberry Pi Zero Form Factors, Provide Andriod Debian Ubuntu, Complete R&D resources.
Brand: youyeetoo geeker shop
SKU: YHDPLBMZERON1
Price: 32.99 USD
Availability: OutOfStock

SKU: YHDPLBMZERON1

LubanCat single board computers based on Rockchip RK3566 or RK3568 processors, some of which partially follow Raspberry Pi Zero or Raspberry Pi 3/4 Model B form factors, while others come with custom designs.

0.0 (0 Reviews)

$32.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity

Add to Favorites (0)

Description
Reviews

LubanCat Zero single board computer

EmbedFire is a company that insists on open source sharing and progress together, and the products they produce are widely studied and used in real projects in China. Thanks to the experience they have gained in writing tutorials, even beginners can follow their tutorials step by step to understand and learn embedded programming.

WIKI
https://wiki.youyeetoo.com/e/en/Luban-Cat/Luban-Cat0

Circuitpython blinka Support
https://circuitpython.org/blinka/lubancat_zero_w/
https://circuitpython.org/blinka/lubancat_zero_n/

Information:

- Rockchip RK3566 as the main chip, 22nm process, 1.8GHz main frequency, integrated quad-core 64-bit Cortex-A55 processor, Mali G52 2EE graphics processor and a separate NPU;
- With 1TOPS of arithmetic power for lightweight artificial intelligence applications;
- Support for one 4K60 fps decoded video output and 1080P encoding;

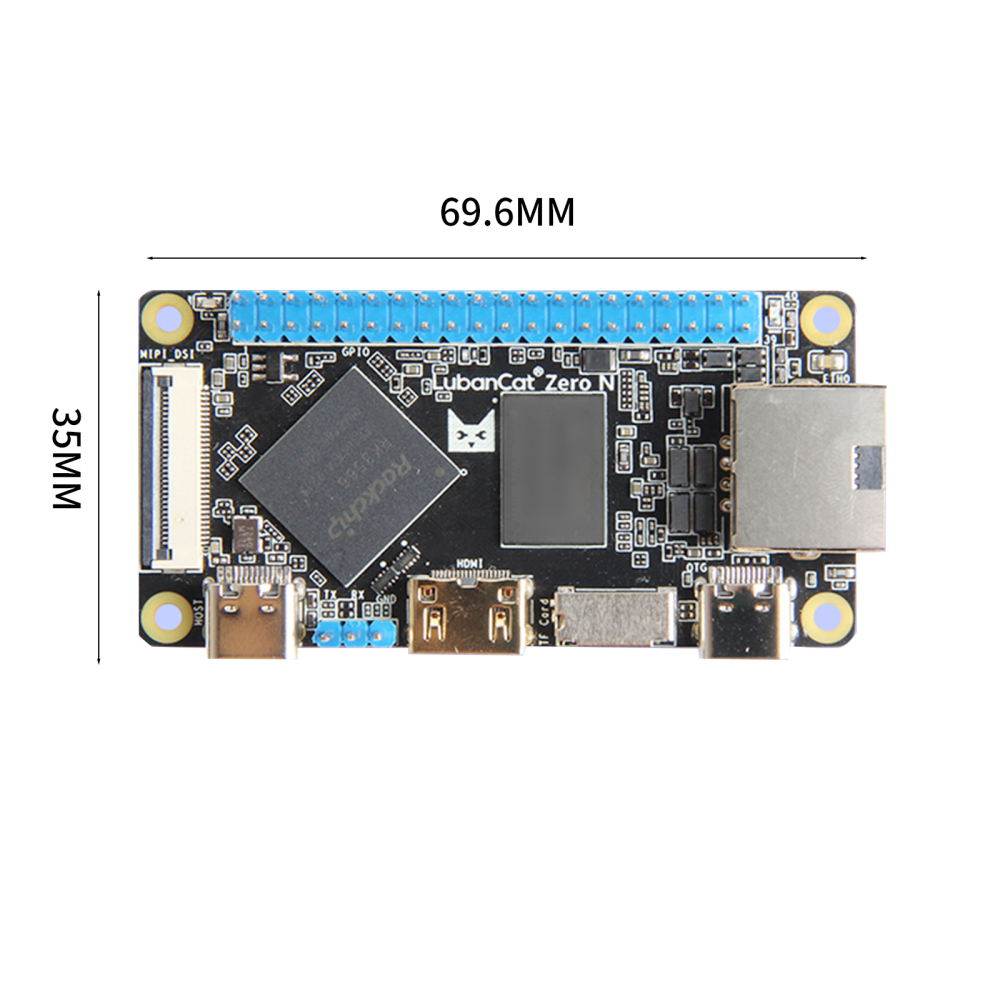

- The board offers multiple memory configurations to choose from, is small and delicate at only 70*35mm, has low power consumption and high performance and can easily run Linux or Android systems;
- Extensive peripheral interfaces with USB2.0 Type-C, Mini HDMI peripherals such as MIPI screen interface and MIPI camera interface, with 40Pin unused pins reserved, compatible with Raspberry Pi interface;
- Can be used as a mobile single board computer and embedded motherboard with office, education, programming and development, embedded development and other functions;
- Providing Andriod, Debain, Ubuntu operating system images, which can be applied to a variety of different application environments;
- Provide complete SDK driver development kit, design schematics and other resources for user-friendly use and secondary development.

Features:

- 40Pin GPIO, compatible with Raspberry Pi interface.
- MINI-CSI,MINI-DSI Interface, The adapter board allows compatibility with the Raspberry Pi's camera and display.
- Tutorials; several sets of teaching materials are available, covering pure application level users as well as system development users, and can be used by step-by-step learners with no basic knowledge.

SKU:

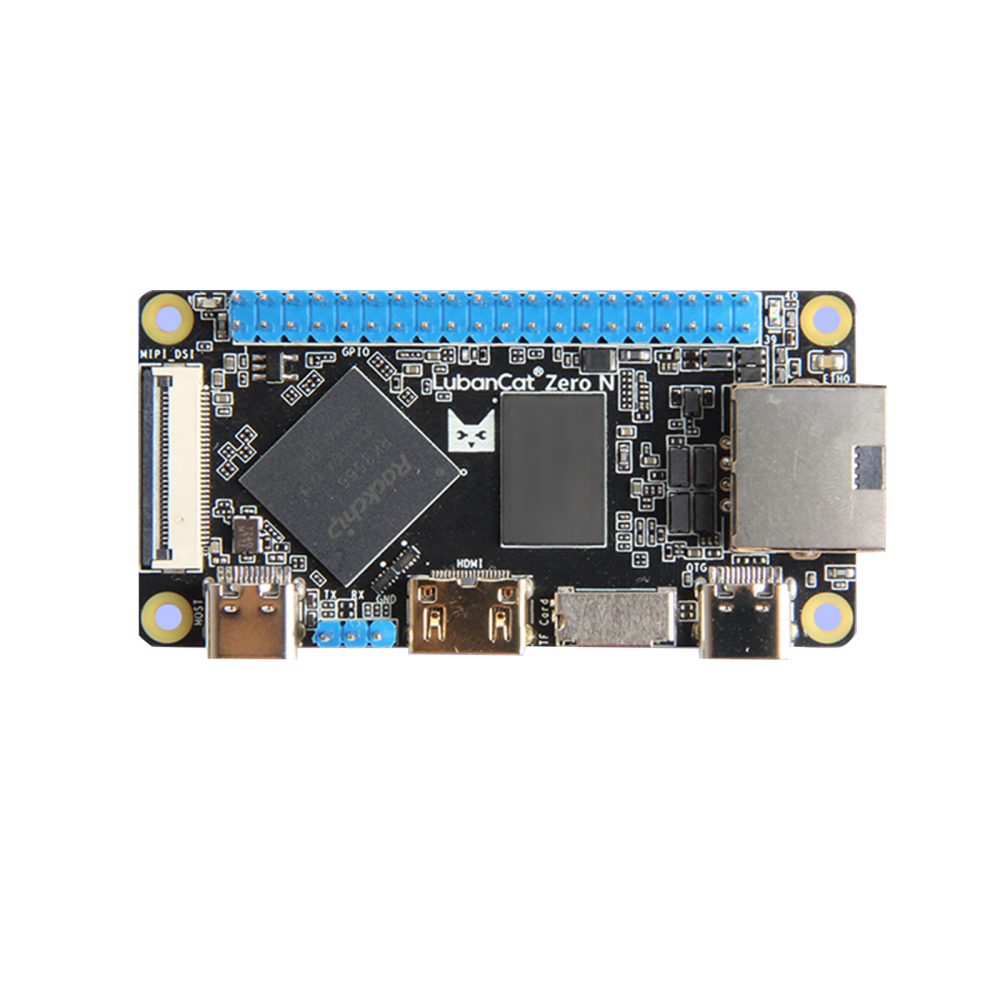

LubanCat Zero N : Integrated Gigabit Ethernet

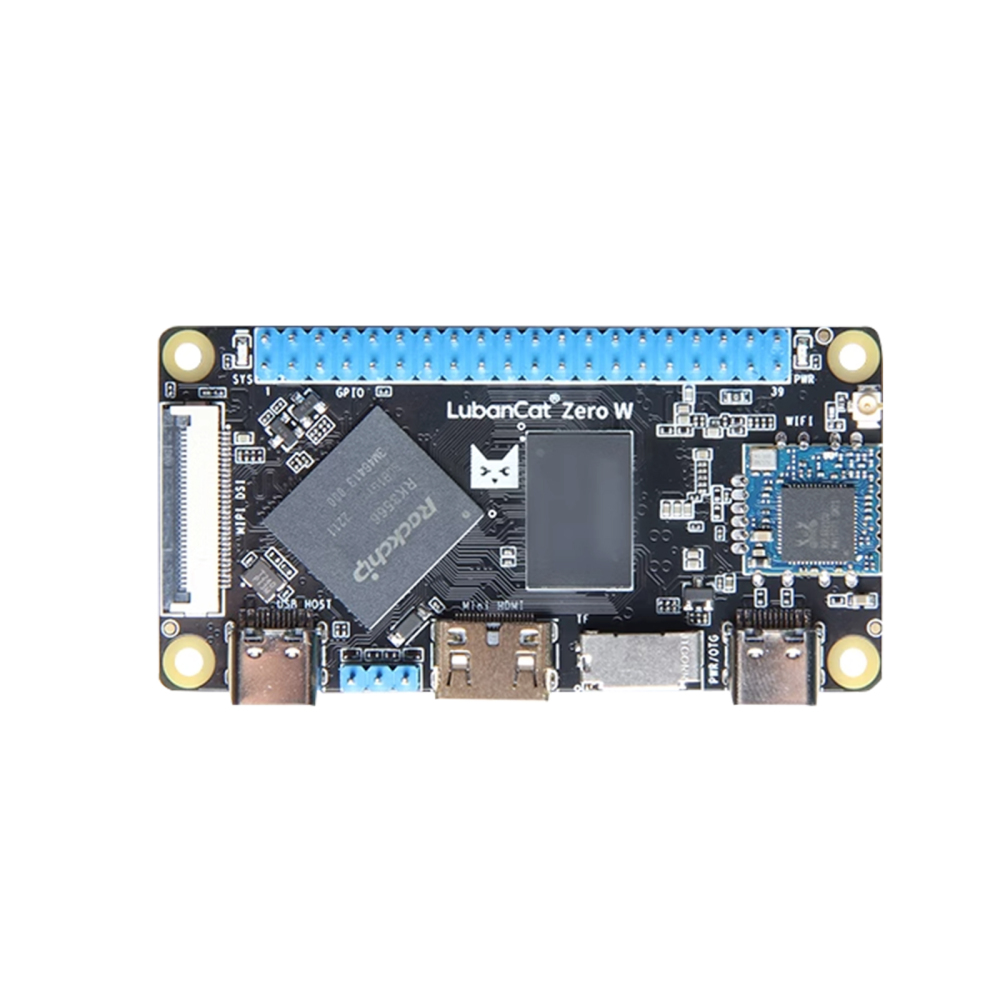

LubanCat Zero W : Integrated dual-band WiFi + BT4.2 wireless module

RAM Optional : 1/2/4/8GB，LPDDR4/4x，1056MHz

Hardware Spec

LubanCat Zero W

5V@3A DC input, Type-C interface
RK3566 (quad-core Cortex-A55, 1.8GHz, Mali-G52)
1/2/4/8GB, LPDDR4/4x, 1056MHz
802.11ac dual-band wireless network card, up to 433Mbps; Bluetooth supports BT4.2 protocol
Mini-HDMI2.0 display interface
MIPI screen interface, can be plugged into Wildfire MIPI screen
Camera interface, can plug wildfire OV5648 camera
Compatible with Raspberry Pi 40Pin interface, supports PWM, GPIO, I²C, SPI, UART functions
Default parameter 1500000-8-N-1
Support Micro SD (TF) card boot system, up to 128GB
Type-C interface*1 (OTG), shared with the power interface;
Type-C interface*1 (HOST), not for power supply

LubanCat Zero N

5V@3A DC input, Type-C interface
RK3566 (quad-core Cortex-A55, 1.8GHz, Mali-G52)
1/2/4/8GB, LPDDR4/4x, 1056MHz
10/100/1000M adaptive Ethernet port*1
Mini-HDMI2.0 display interface
MIPI screen interface, can be plugged into Wildfire MIPI screen
Camera interface, can plug wildfire OV5648 camera
Compatible with Raspberry Pi 40Pin interface, supports PWM, GPIO, I²C, SPI, UART functions
Default parameter 1500000-8-N-1
Support Micro SD (TF) card boot system, up to 128GB
Type-C interface*1 (OTG), shared with the power interface;
Type-C interface*1 (HOST), not for power supply
