M.2 M-Key PCI Express To SATA 3.0 SSD Adapter Card

• Quick Start:
• Tips

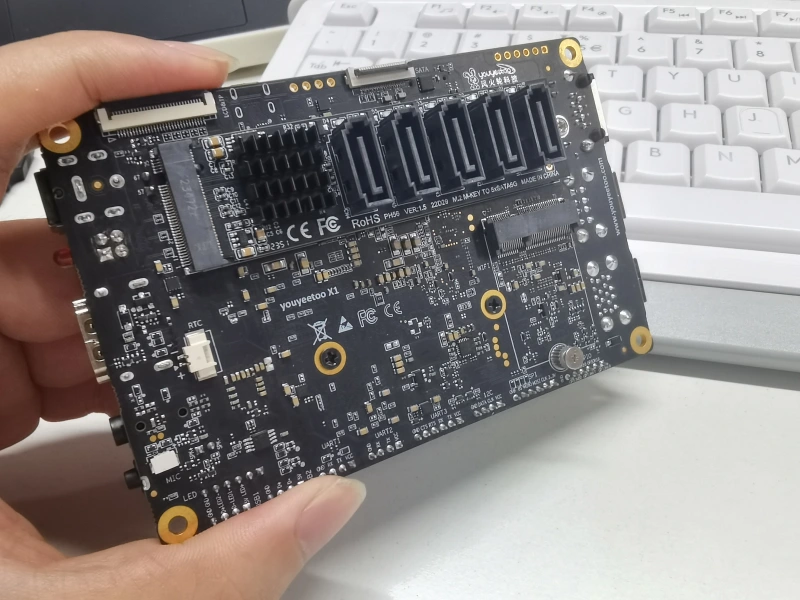

  • The youyeetoo X1 requires a bios update to May 2024 to use this adapter.
  • The product tested well shipped. Compatible with most motherboards, but not guaranteed to be compatible with all products.

Introduction

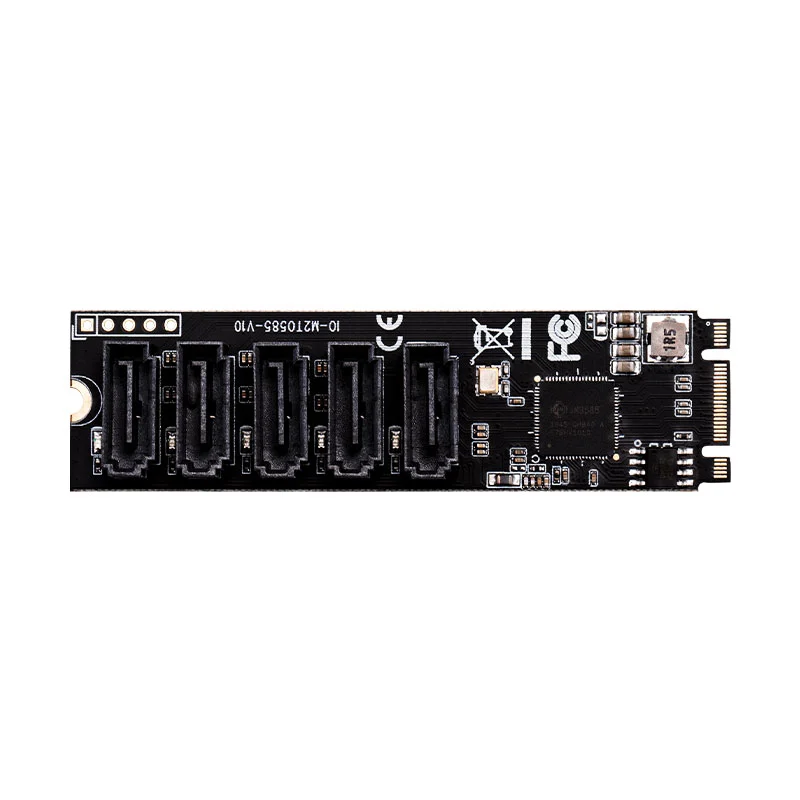

NGFF NVME M-Key PCI Express to SATA 3.0 6Gbps 5 Ports Adapter Converter Hard Drive Extension Card JMB585 2280
It has 5 SATA3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0Gbps, 3.0Gbps, and 1.5Gbps.
With hot-swap and hot-plug capabilities, and power management functions;
Support error reporting, recovery and correction;Supports partial and sleep power management states;Support Gen1i, Gen1x, Gen2i, Gen2m, Gen2x and Gen3i;
Supports native command queue (NEQ). Under high load, NCQ technology can guarantee the performance and stability of the hard disk.
Main control chip: JMB585
Interface: 5 * SATA3.0 interface
Applicable slot: NGFF Key-M PCI Express

Shipping List

1x Adapter

Detailed Descriptions
