NanoPC-T6 - Power by Rockchip RK3588

Shipping List；
NanoPC - T6 Bare Board x1 (No wifi antenna)

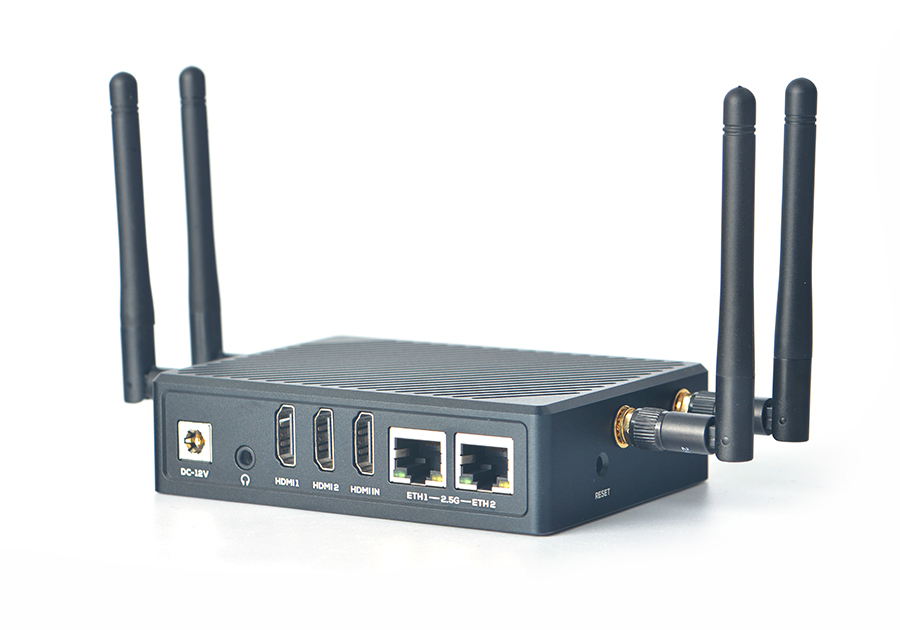

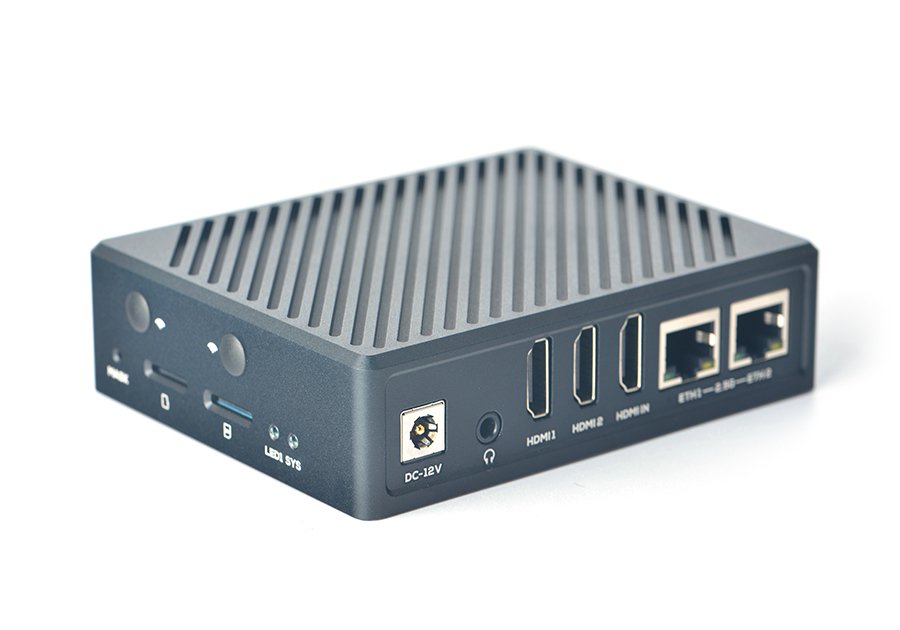

NanoPC-T6 with CNC metal case link:
https://www.youyeetoo.com/products/youyeetoo-nanopc-t6

Quick Start
Tips:
The 4/32 and 8/64 models (version 2301) are still in stock in small quantities, so choose the version you need: version 2301 or version 2310-LTS.

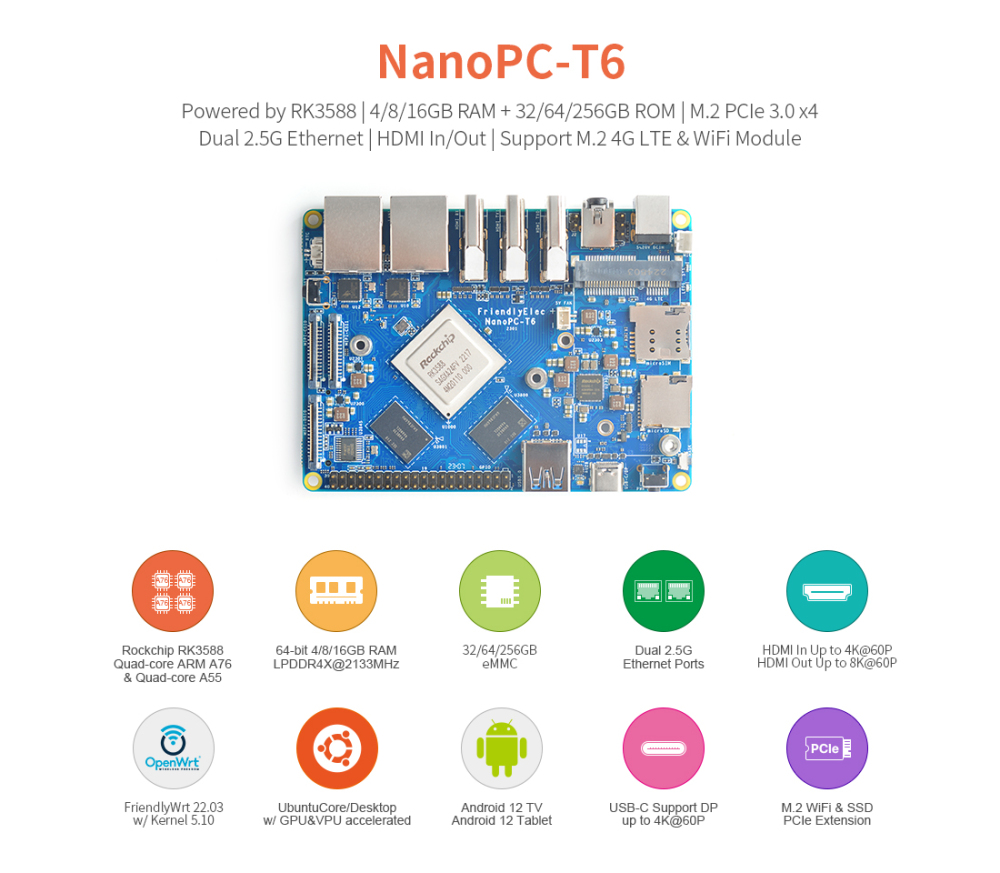

NanoPC-T6 - Power by Rockchip RK3588

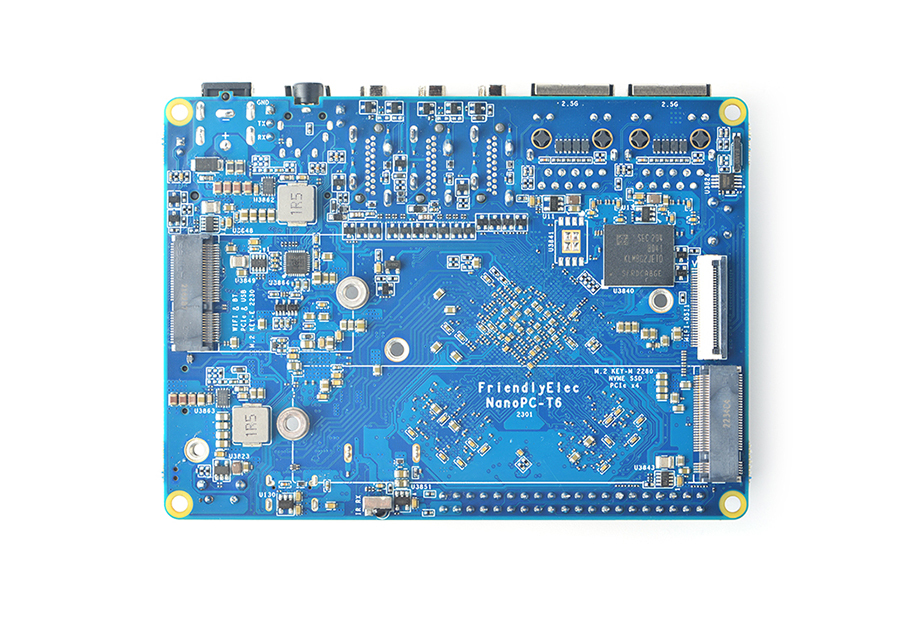

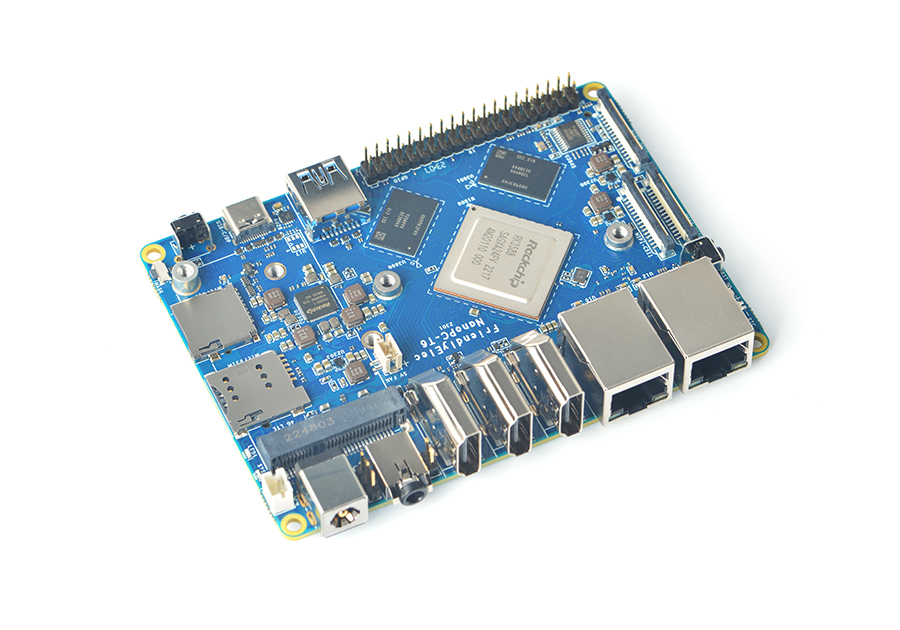

Introduction

The NanoPC-T6 (as “T6”) is an open-sourced mini IoT gateway device with two 2.5G and one Gbps Ethernet ports, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3588 CPU, 4GB/8GB/16GB LPDDR4x RAM and 32GB/64GB/256GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

The NanoPC-T6 has rich hardware resources with a compact PCB size of 110*80mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has two HDMI-Out port and one HDMI-In port. It works with Android, Debian Desktop and Ubuntu etc and works with headless systems as well. It supports decoding 8K60 H.265/VP9 formatted videos.

The NanoPC-T6 has one USB3.0 port and one USB C port.

All in all, the NanoPC-T6 is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.

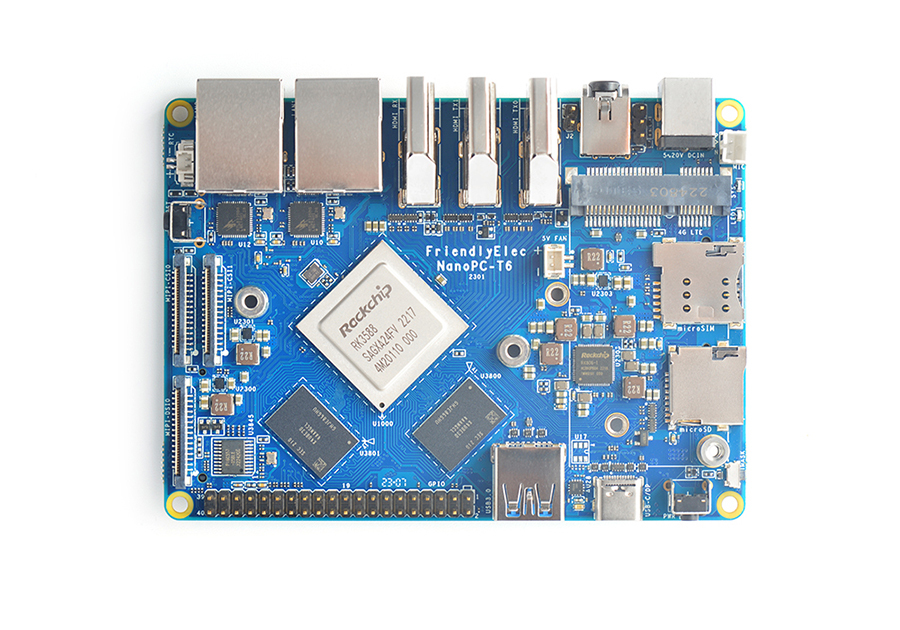

Hardware Spec

• SoC: Rockchip RK3588
  • CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
  • GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
  • VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
  • NPU: 6TOPs, supports INT4/INT8/INT16/FP16
• RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz
• Flash: 32GB/64GB/256GB eMMC, at HS400 mode
• microSD: support up to SDR104 mode
• Ethernet: 2x PCIe 2.5G Ethernet
• 4G LTE: one mimiPCIe connector and one microSIM slot
• USB-A: 1x USB 3.0 Type-A
• USB-C: 1x Full function USB Type?C? port, support DP display up to 4Kp60, USB 3.0
• Video input:
  • 1x Standard HDMI input port, up to 4Kp60
  • 2x 4-lane MIPI-CSI, compatible with MIPI V1.2
• Video output:
  • 2x Standard HDMI output ports
    • compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
    • one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
    • Support RGB/YUV(up to 10bit) format
  • 2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
• Audio:
  • 3.5mm jack for stereo headphone output
  • 2.0mm PH-2A connector for analog microphone input
• GPIO:
  • 40-pin 2.54mm header connector
  • up to 2x SPIs, 6x UARTs, 1x I2Cs, 8x PWMs, 2x I2Ss, 28x GPIOs
• M.2 Connectors
  • one M.2 M-Key connector with PCIe 3.0 x4 for NVMe SSDs up to 2,500 MB/s
  • one M.2 E-key connector with PCIe 2.1 x1 and USB2.0 Host
• others:
  • 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
  • one 38Khz IR receiver
  • MASK button for eMMC update, reset button, and Power button
  • one 5V Fan connector
  • Debug UART, 3-Pin 2.54mm header, 3.3V level, 1500000bps
  • 2 x GPIO Controlled LED (SYS, LED1)
• Power supply: 5.5*2.1mm DC Jack, 12VDC input.
• PCB: 8 Layer, 110x80x1.6mm
• Ambient Operating Temperature: 0℃ to 70℃
