一、规格概述?Specification |
||||||
|

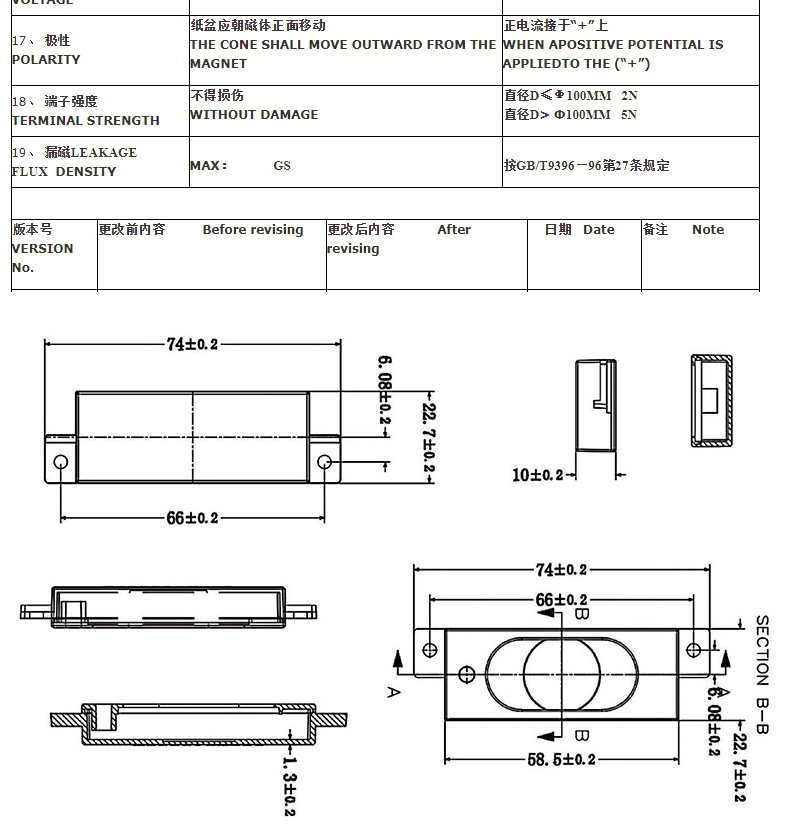

口径 Size |
58×23 ± 0.5 mm |
全 ???高 Overall height |
10± 1 mm |
|||
|
环 ??保 RoHS |
ROHS |
重 ???量 Total weight |
15.5± 5 %g |
|||
|

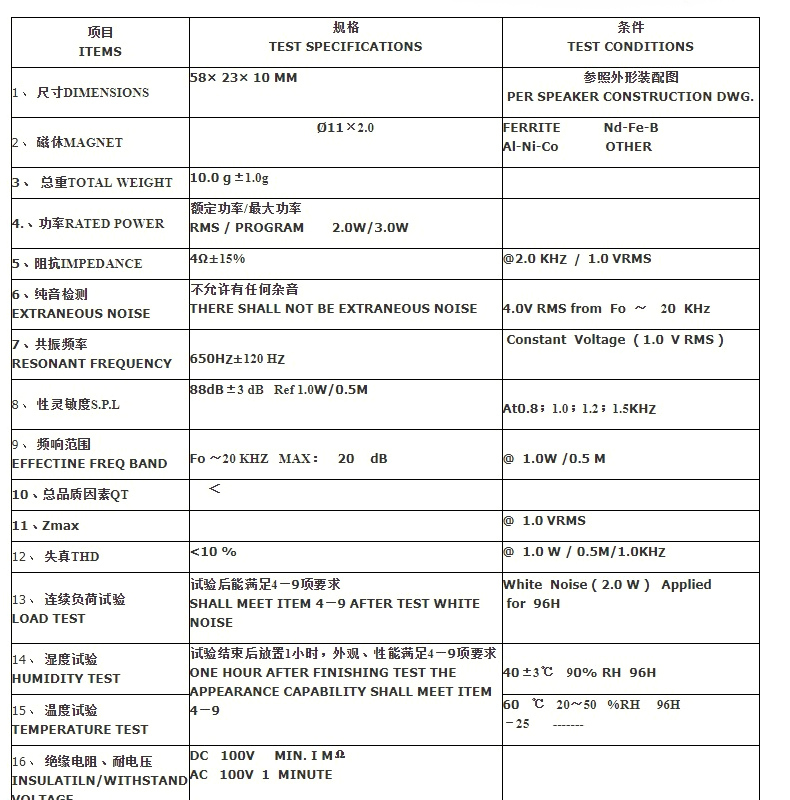

二、特 ???性characteristics? |
||||||
|
No. |
项目 ITEMS |
规格SPECIFICATION |
测试条件TESTINGCONDITIONS |
|||
|
1 |
额定阻抗 Rated impedance |
?8? ± 15 % Ω |
GB/T9396 Without?a baffle At 1000Hz. |
|||
|
2 |
额定共振频率（fo） Rated resonance frequency |
650±20 % Hz |
WITHOUT ?BAFFLE |
|||
|
3 |
额定特性灵敏度 Rated sound pressure level |
?88 ?±3dB |
0.5M/1W |
|||
|
4 |
额定频率范围 Rated frequency range |
fo??～??20?kHz |
Refer to GB/T9396 ?SPL -10dB?or less |
|||
|
5 |
额定噪声功率 Rated noise power |
2W |
Pink noice 170Hz~ 15K Hz |
|||
|
6 |
额定长期最大功率 Rated long?term maximum power |
3W |
GB/T9396-1996 |
|||
|
7? |
纯音检听 Buzz?and Rattles?check |
Fo?～ 20K?Hz, Must be normal |
正弦信号 SINE SINGLE 4．0V， fo ～20 kHz |
|||
|
8? |
总谐波失真系数 Rated total ?harmonic distortion |
≤5% MAX |
GB/T9396 |
|||
|
9? |
极 ???性 Polarity |
If the cone paper of speaker is?obverse, terminal is in the lower, Positive in the right side. |
GB/T9396-1996 |
|||
|
10 |
绝缘电阻 Insulation resistance ? |
≥?1?MΩ |
GB/T9397????100±10%V DC for?1 minute,Between the terminal and the exposed metallic part. |
|||
|
11 |
高温贮存试验 High-Temperature preservation?test ? |
After test Accord seventh |
GB/T9396 ? Pink noise 3W, ?16H |
|||
|
12 |
低温贮存试验 Low-Temperature? Preservation test |
After test Accord seventh |
GB/T9397??-10±3 OC?operatingfor 1h then depositing -25±3 OC?for 2h,?then resuming for 4h at normal atmosphere conditions. |
|||
|
13 |
稳态湿热试验 Static?Humidity/temperature test ? |
After test Accord seventh |
GB/T9397 ?At 40±2?OC?and 93%R.H depositing for 96h, then resuming for 24h at normal atmosphere conditions. |
|||
|
14 |
滑落冲击试验 Sliding shock test |
After test Accord seventh |
GB/T9397 ?The load speaker shall be dropped 1times from in length of 1M in a angle of 75 inclination. |
|||
