youyeetoo BPI-R4 WIFI 7 Router Kit - Dual 10Gbe SFP Ports, and Triple-Band Wi-Fi 7 Support

• Quick Start: BananaPi BPI-R4 wiki
• Tips

  • Please do not insert the card tray into the slot when the SIM card is not installed, otherwise, it will easily damage the slot.

  • Only EMMC's firmware boot supports the WIFI7 function. Please pay attention to the startup logic.

  • Default IP address for LAN port: 192.168.1.1

  • User name/password: pi/bananapi, root/bananapi.Or the user is root without a password.

  • WIFI: AP_MTK_MT7990_2G/AP_MTK_MT7990_5G/AP_MTK_MT7990_6G



    BPI-R4 bootstrap

    SW3	A	B
    NAND	0	1
    EMMC	1	0
    SD	1	1

Note: Toggle down for “1”



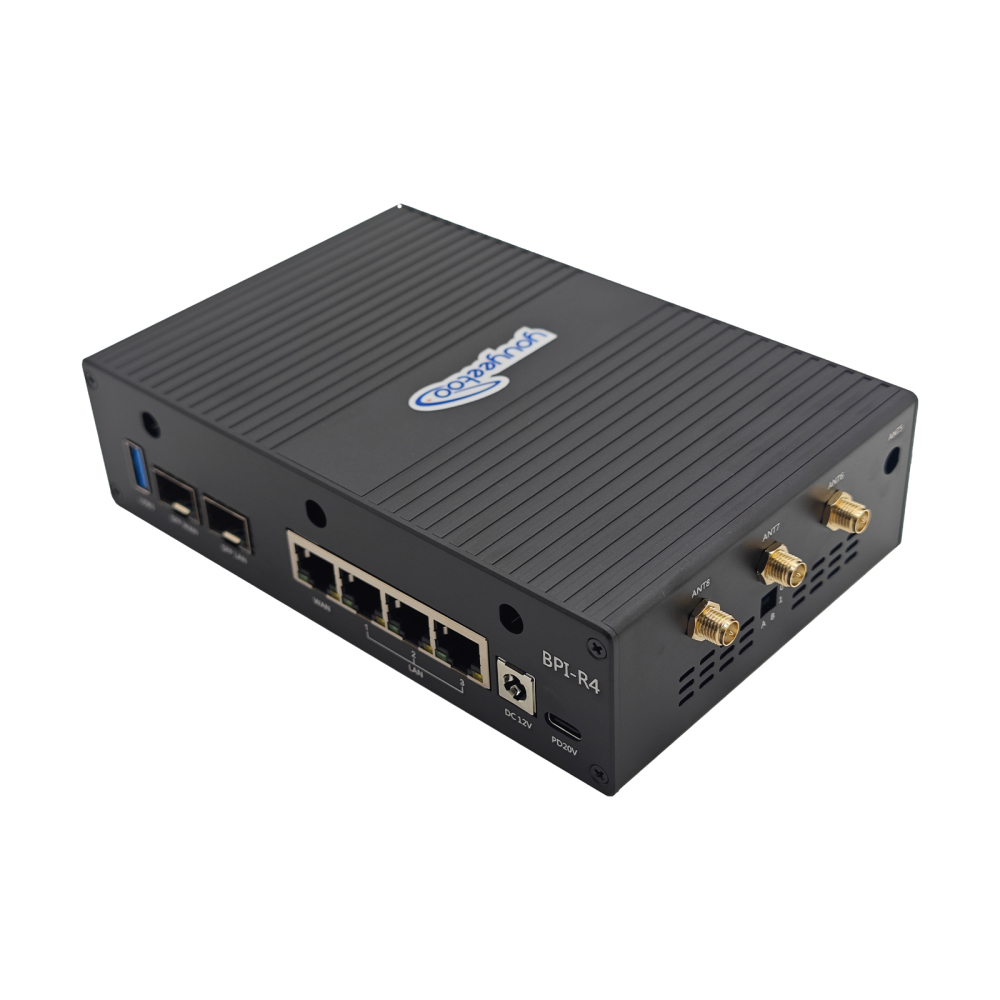

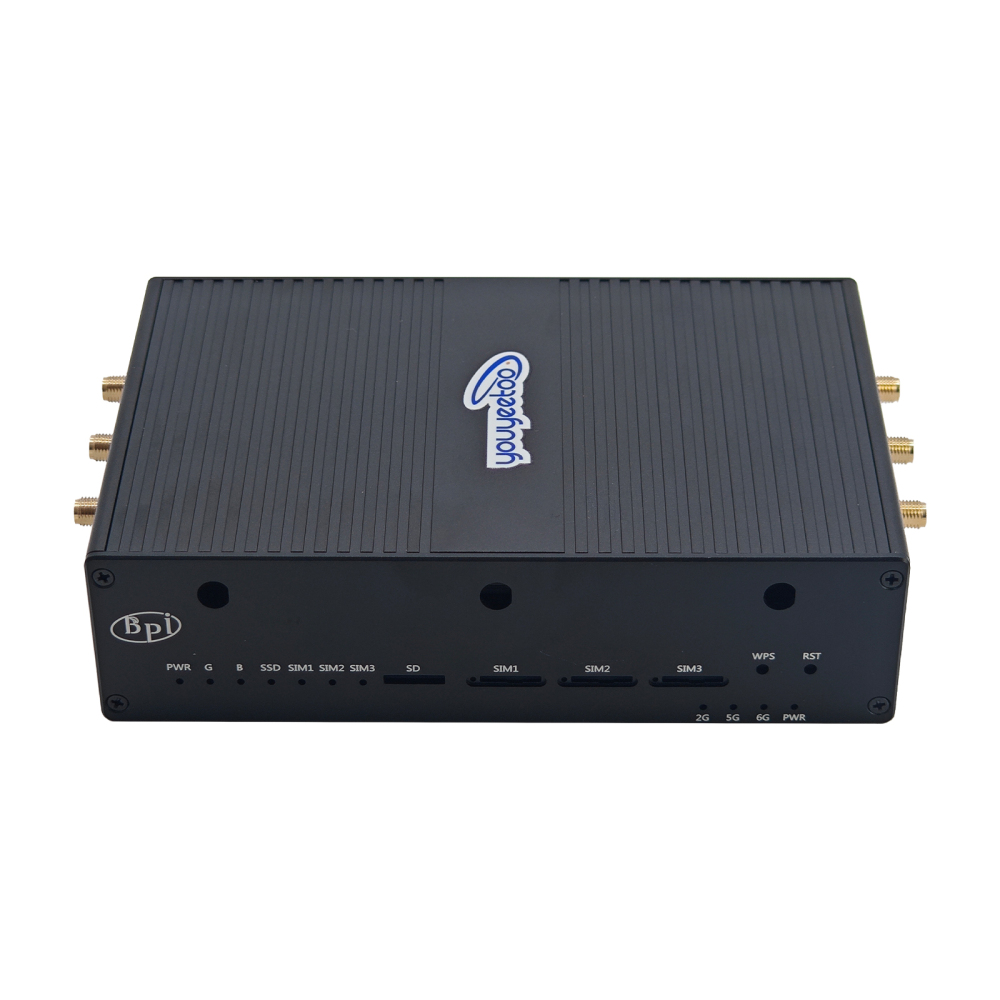

Introduction

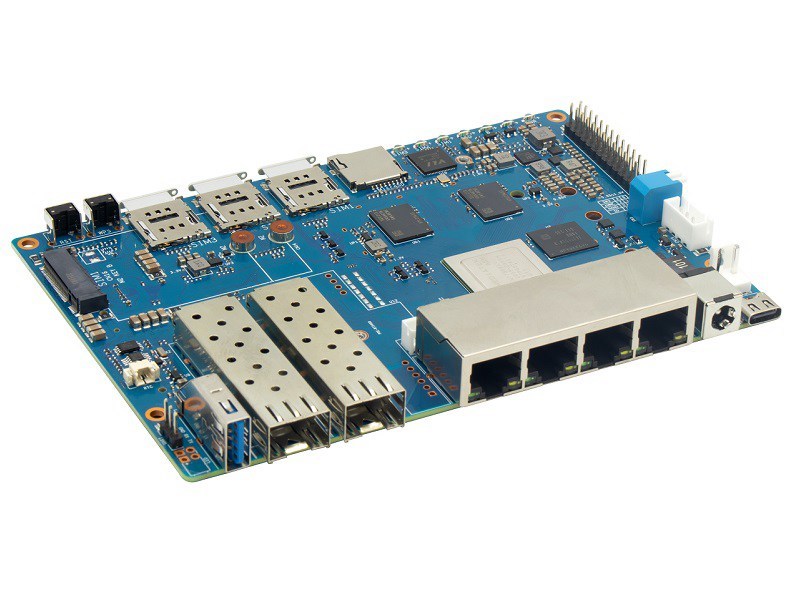

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port, with USB3.2 port, M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). It is a very high-performance open-source router development board.

MediaTek MT7988(Filogic 880)

Mediatek Filogic 880. The 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience

The MediaTek MT7988A is a world-leading network processing platform for high-performance and reliable networking experiences in both wired and wireless applications. The MT7988A comprises a rich connection interface set including 4 Gigabit Ethernet ports. 2 US下GMII interfaces. 4 PCIe Interfaces, and 2 USB 3.2 en1 Ports

the MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz.5 GHz and 6 GHz, connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAMLO, MCU, and FC.

To answer the need of first-evolving tunneling applications, the MT7988A comes with MediaTek Tunnel offload processor System(TOPS), which facilitates the processing of a wide range of tunneling protocols. The MT7988A optimizes networking performance with the exquisitely tuned ISA of MediaTek TOPS and is dedicated to lifting networking offloading performance to premium level.

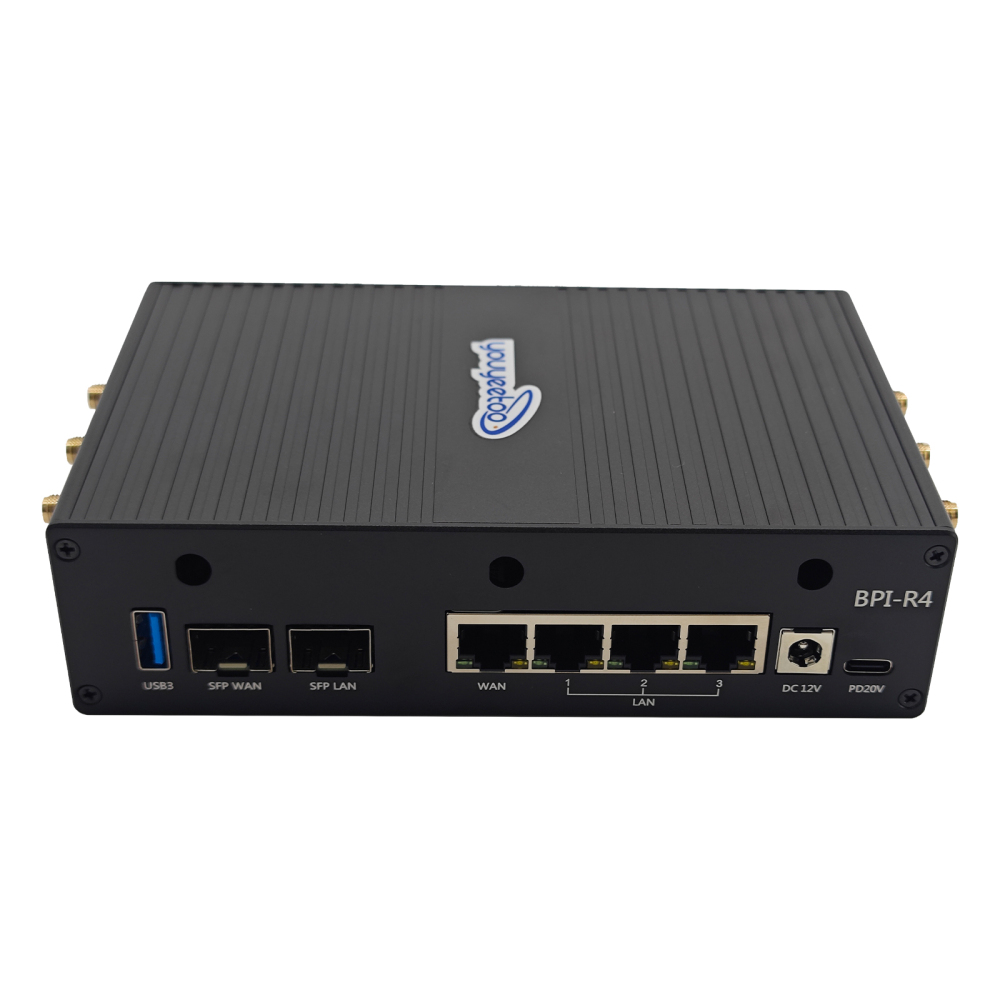

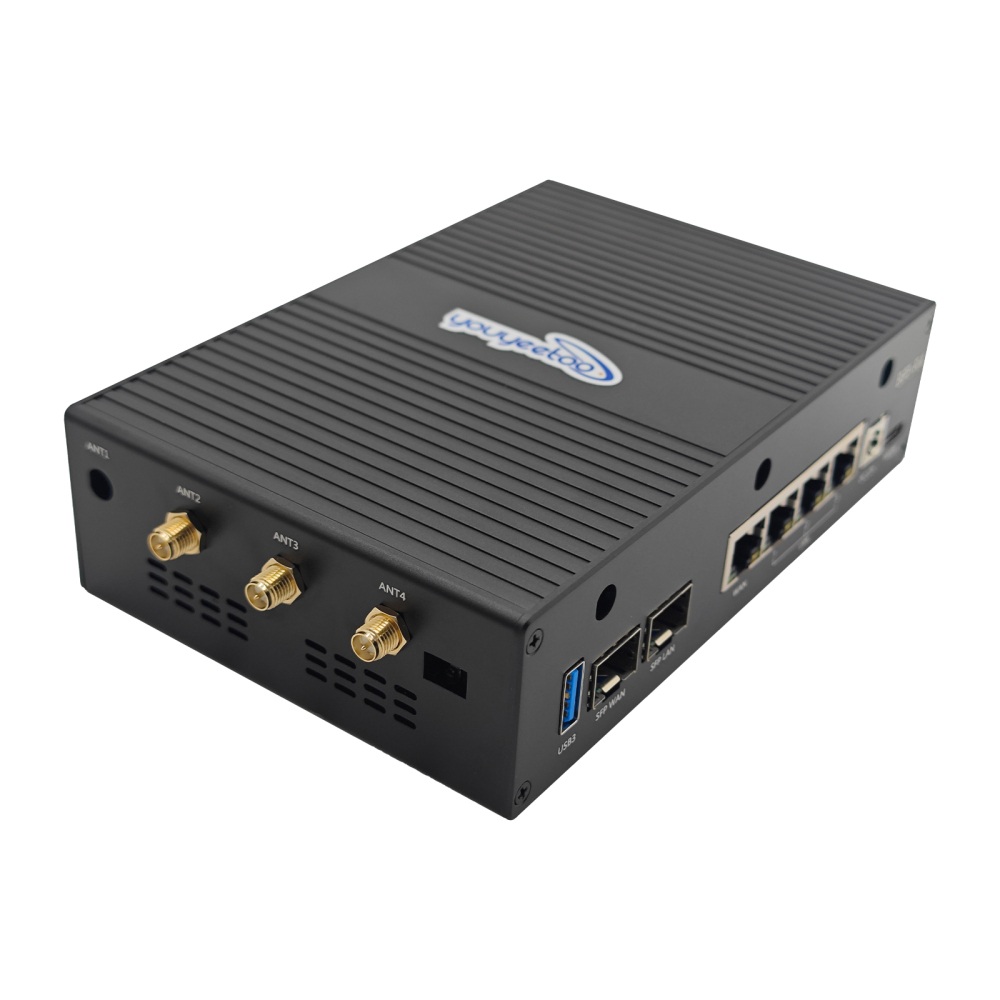

Features

• MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
• 4GB/8GB DDR4
• 8GB eMMC flash
• 128MB SPI-NAND Flash
• Micro SD card slot
• 2x 10Gbe SFP slot (option 1x 10GbE SFP and 1x SOC embedded 2.5GbE PHY. NOTE: Need to modify hardware)
• 4x Gbe network port
• 1x USB3.2 slot
• 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G
• 1x M.2 KEY-M slot with PCIe3.0 1-lane interface for NVME SSD
• 2x mini PCIe slots with PCIe3.0 2-lane interface for Wi-Fi 7 NIC (Network Interface Card)
• 26 PIN GPIO Header for expanding application

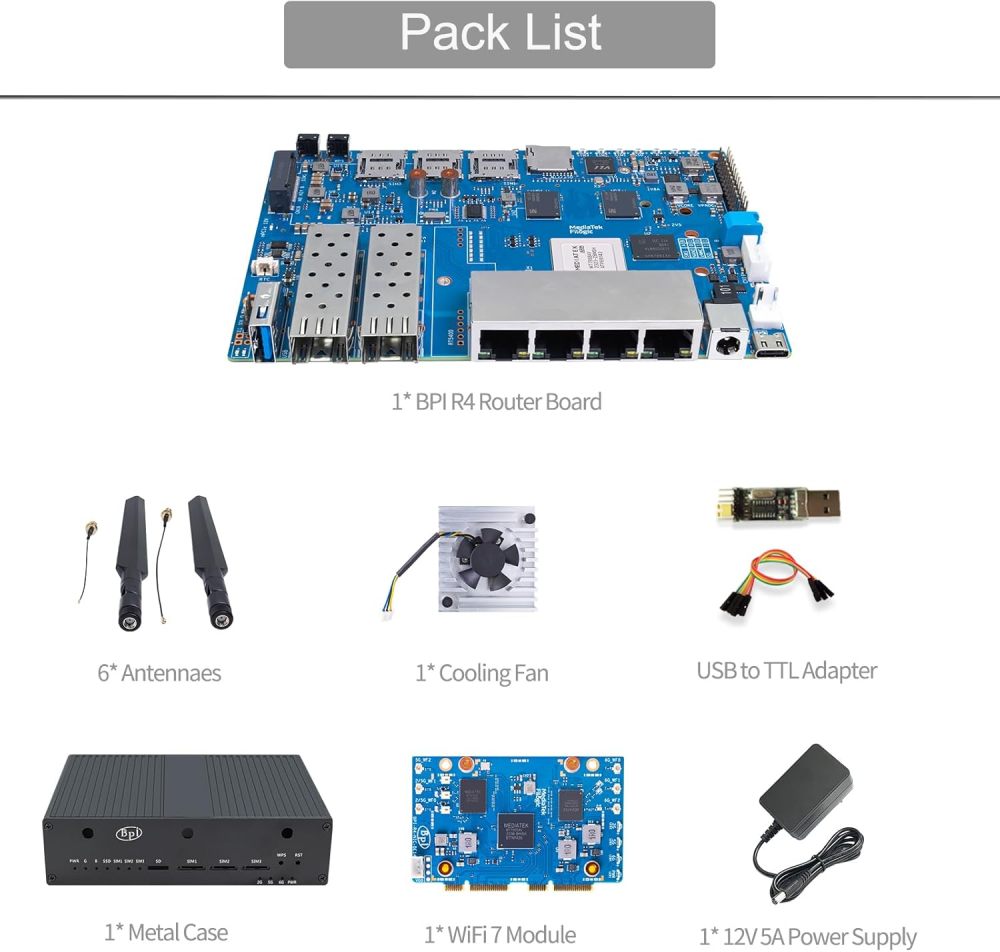

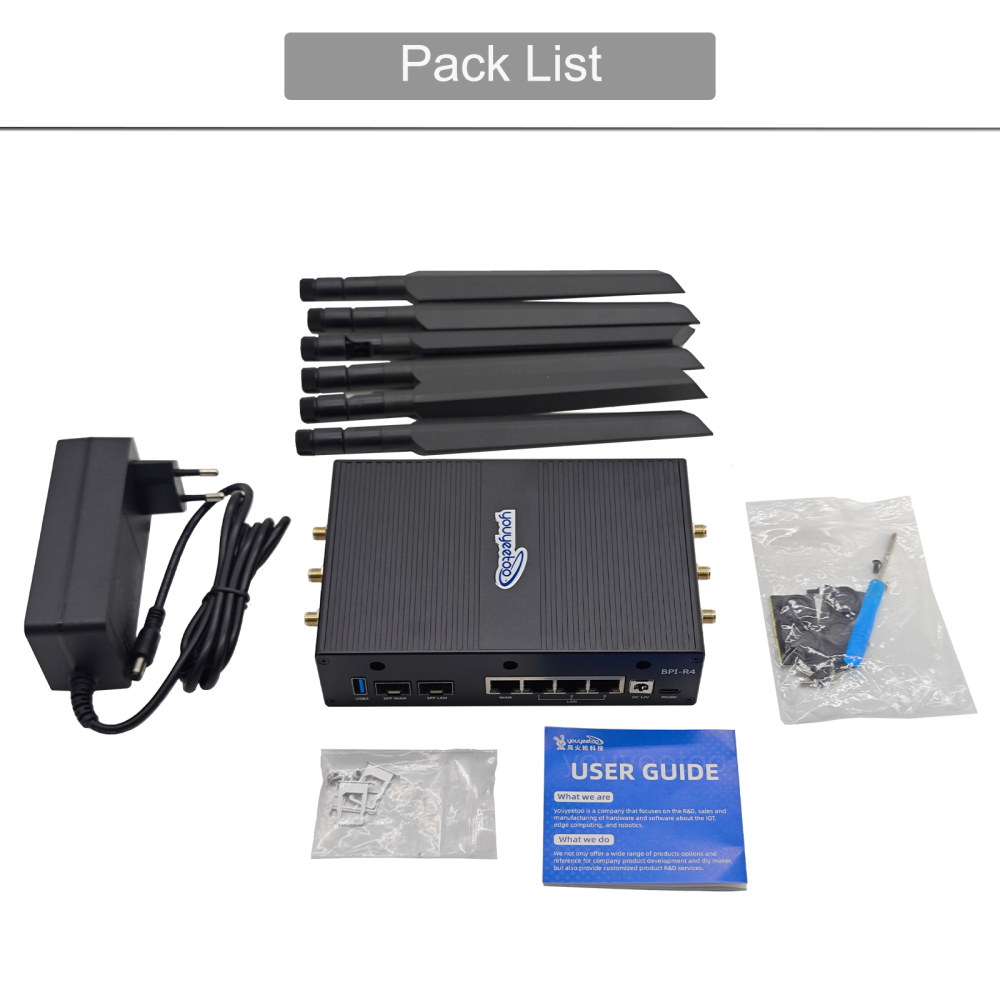

Shipping List

Applications

• Internet Service Router
• Wifi 7 Wireless Router
• 4G/5G Wireless Router
• Wireless Repeater
• Home security Gateway
• Home Automation
• Nas device
• Network and communication applications

Detailed Descriptions

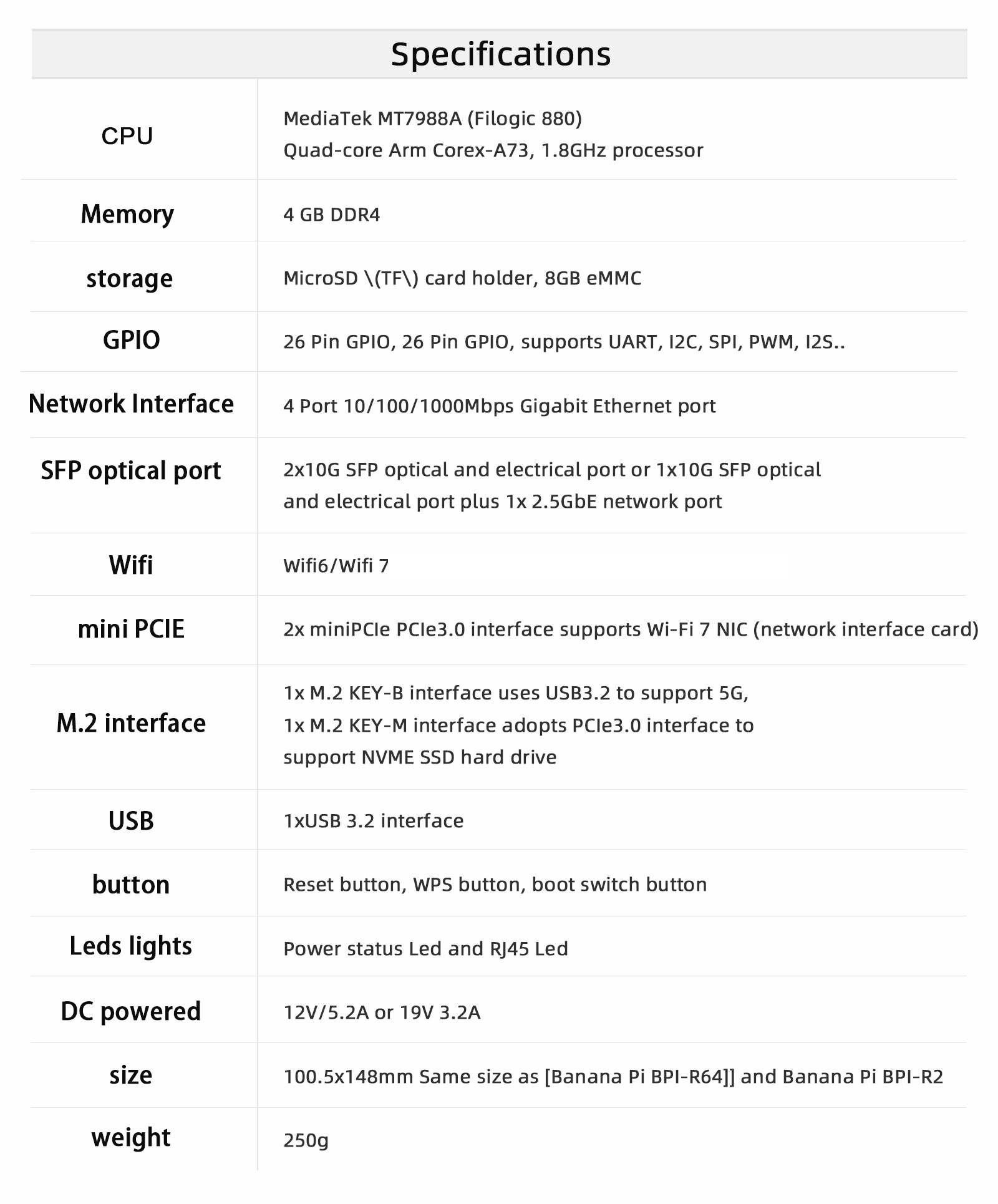

Hardware spec
