To download the Tools, Driver and Firmware use the following link:
https://youyeetoo.com/blog/core-3588j-tqdp35880005-123
Note: Please note the type that you want：
Bundle 1: 4GB LPDDR4+32GB eMMC
Bundle 2: 8GB LPDDR4+64GB eMMC
Bundle 3: 16GB LPDDR4+128GB eMMC
Multi-channel input and output
With HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DVP video input interfaces, it supports multi-channel 8K video output and 4K video input - up to seven-screen output with different displays can be achieved.The integrated 48MP ISP with HDR&3DNR supports dual MIPI-CSI camera input.
Strong network communication capability
Integrated with PCIe3.0/GMAC/SDIO3.0/USB3.0, it can be extended to multi-channel Gigabit Ethernet, WiFi 6/Bluetooth,5G/4G LTE, enabling network communication have a higher speed.
Multiple hard disks, Massive capacity
It supports expansion of multiple PCIe3.0/SATA3.0 SSD/HDD mass storage devices at the same time, making it a reality that the device can be easily expanded with TB storage capacity.

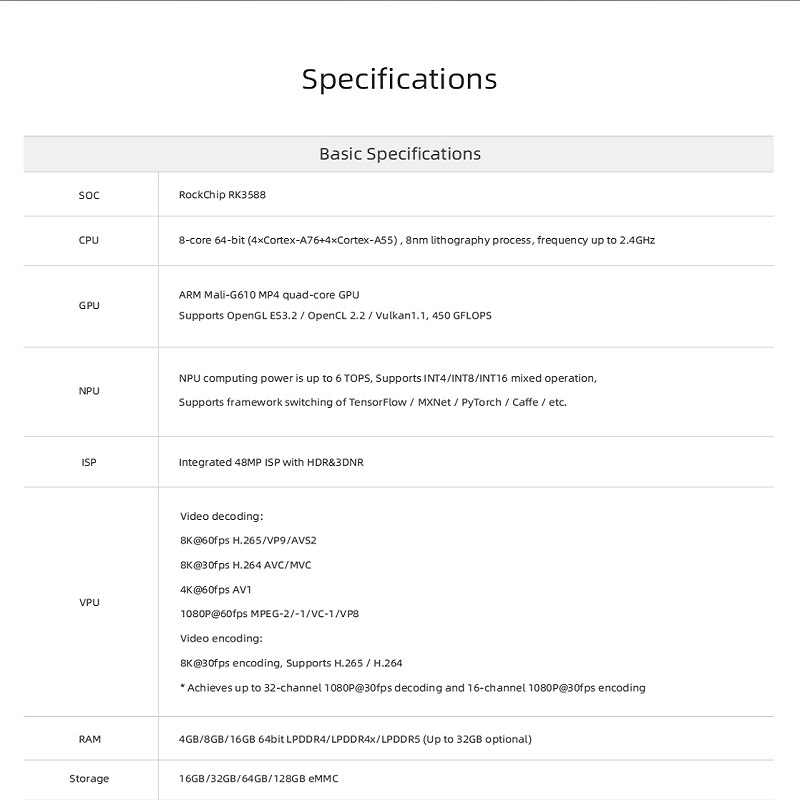

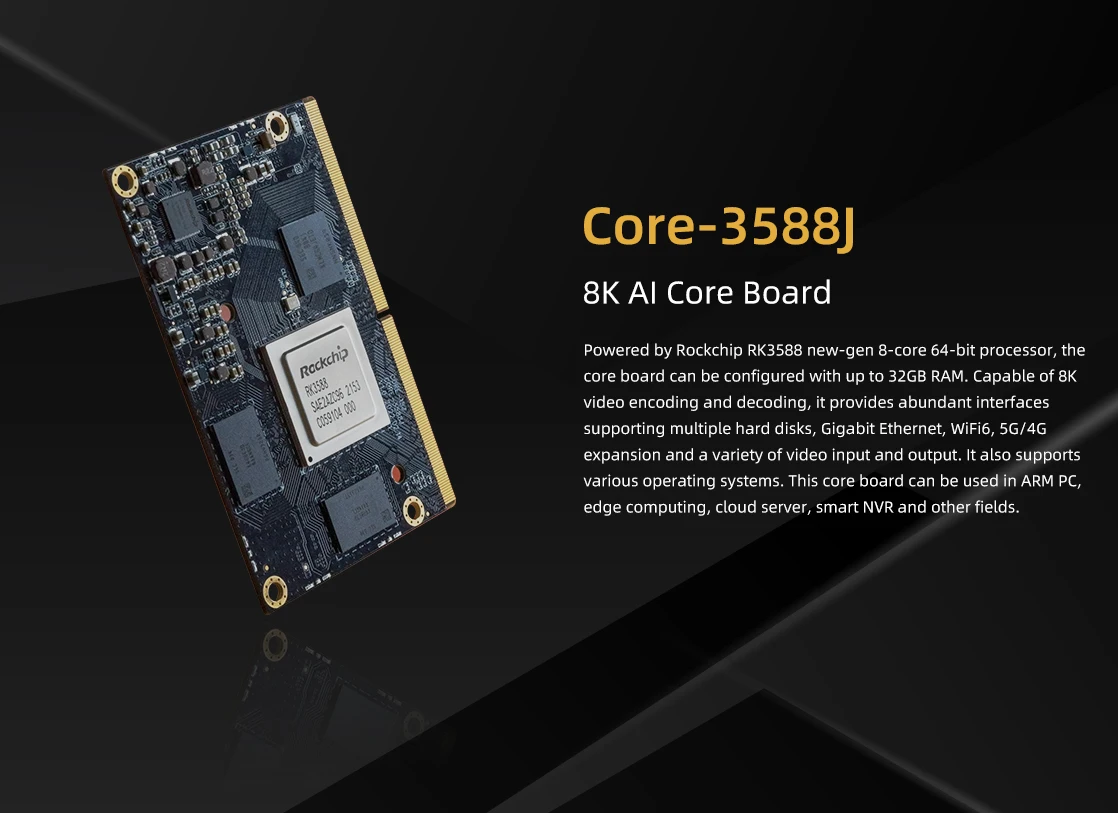

Specifications
|
Basic Specifications |
|
|

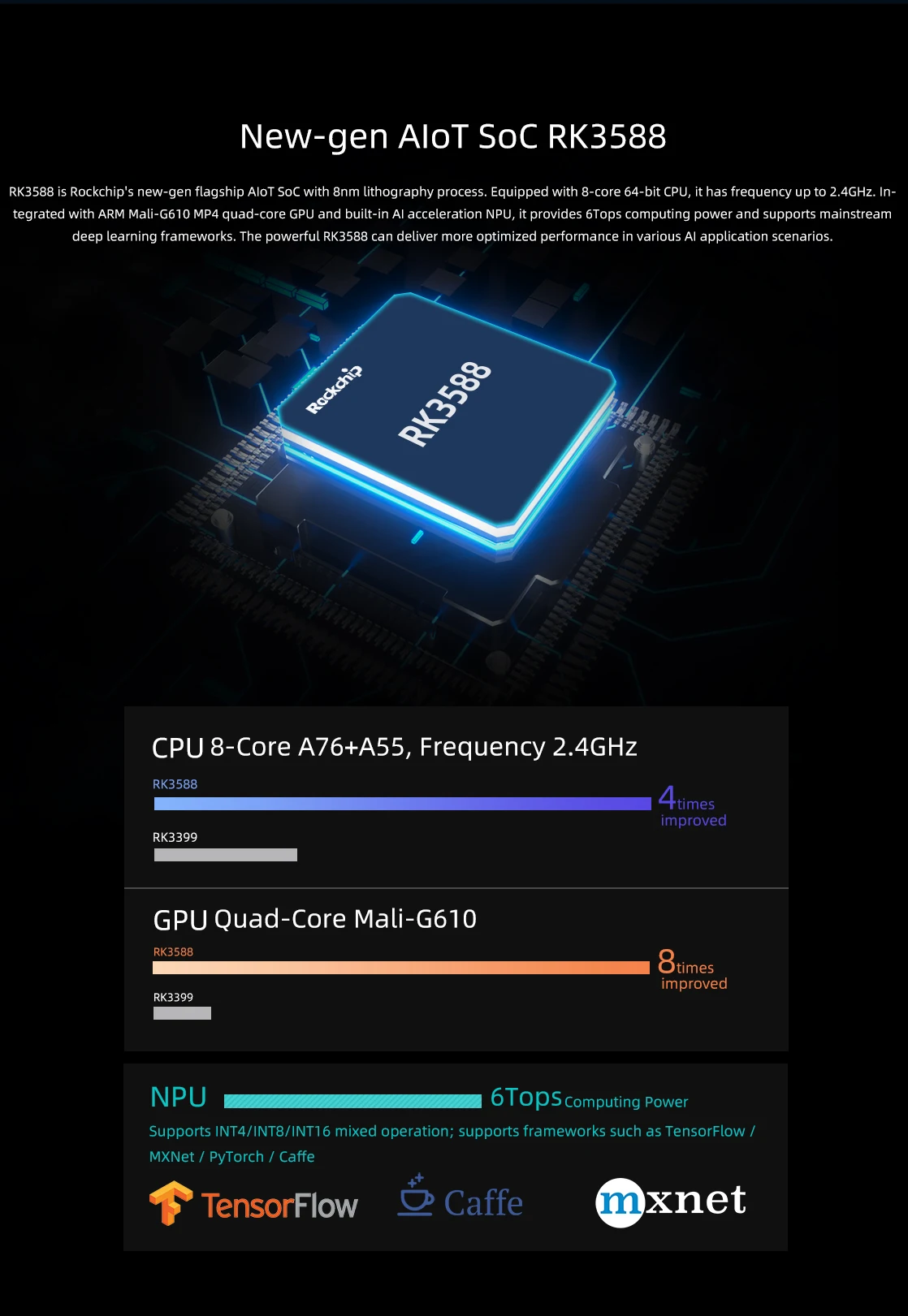

SOC |
RockChip RK3588 |
|
CPU |
8-core 64-bit (4×Cortex-A76+4×Cortex-A55) , 8nm lithography process, frequency up to 2.4GHz |
|
GPU |
ARM Mali-G610 MP4 quad-core GPU Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS |
|
NPU |
NPU computing power is up to 6 TOPS, Supports INT4/INT8/INT16 mixed operation, Supports framework switching of TensorFlow / MXNet / PyTorch / Caffe / etc. |
|
ISP |
Integrated 48MP ISP with HDR&3DNR |
|
VPU |
Video decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps encoding, Supports H.265 / H.264 * Achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding |
|
RAM |

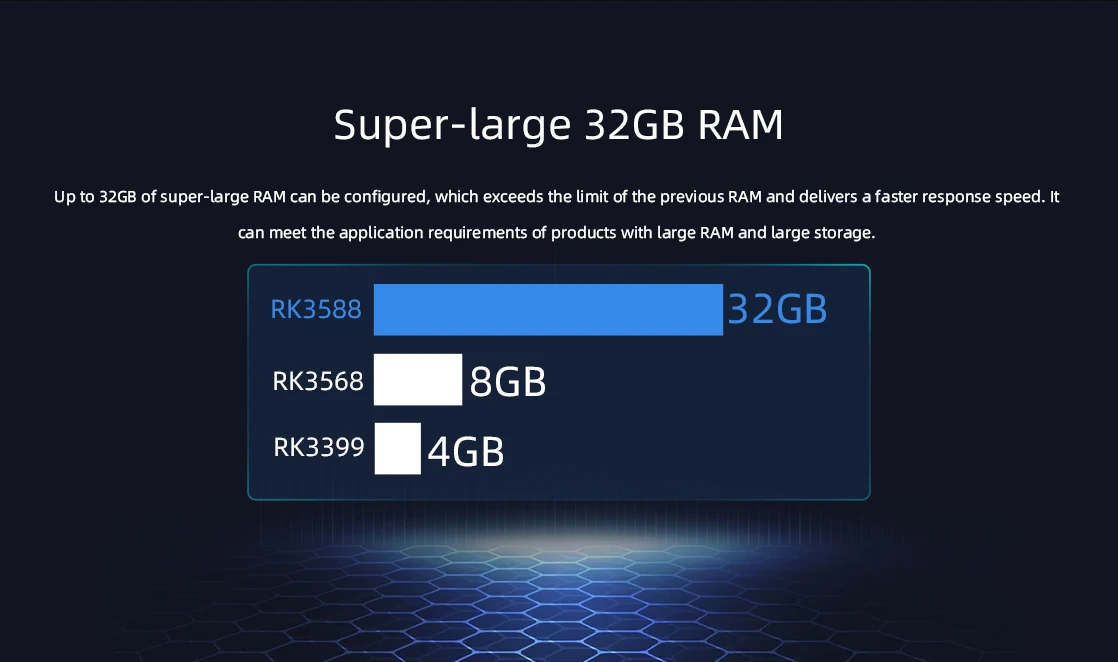

4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional) |
|
Storage |
16GB/32GB/64GB/128GB eMMC |
|

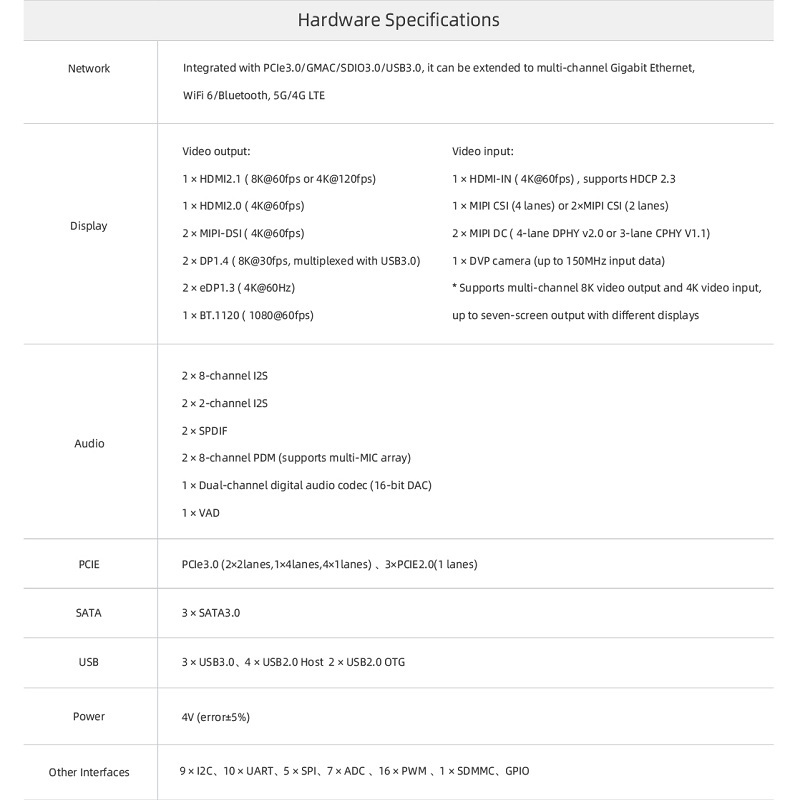

Hardware Specifications |
|
|
Network |
Integrated with PCIe3.0/GMAC/SDIO3.0/USB3.0, it can be extended to multi-channel Gigabit Ethernet, |
|
Display |
Video output: 1 × HDMI2.1 ( 8K@60fps or 4K@120fps) 1 × HDMI2.0 ( 4K@60fps) 2 × MIPI-DSI ( 4K@60fps) 2 × DP1.4 ( 8K@30fps, multiplexed with USB3.0) 2 × eDP1.3 ( 4K@60Hz) 1 × BT.1120 ( 1080@60fps) Video input: 1 × HDMI-IN ( 4K@60fps) , supports HDCP 2.3 1 × MIPI CSI (4 lanes) or 2×MIPI CSI (2 lanes) 2 × MIPI DC ( 4-lane DPHY v2.0 or 3-lane CPHY V1.1) 1 × DVP camera (up to 150MHz input data) * Supports multi-channel 8K video output and 4K video input, up to seven-screen output with different displays |
|
Audio |
2 × 8-channel I2S 2 × 2-channel I2S 2 × SPDIF 2 × 8-channel PDM (supports multi-MIC array) 1 × Dual-channel digital audio codec (16-bit DAC) 1 × VAD |
|
PCIE |
PCIe3.0 (2×2lanes,1×4lanes,4×1lanes) ,3×PCIE2.0(1 lanes) |
|
SATA |
3 × SATA3.0 |
|
USB |
3 × USB3.0,4 × USB2.0 Host 2 × USB2.0 OTG |
|
Power |
4V (error±5%) |
|
Other Interfaces |
9 × I2C,10 × UART,5 × SPI,7 × ADC ,16 × PWM ,1 × SDMMC,GPIO |
|
OS/Software |
|
|
OS |
Android: Android 12.0 Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, Kylin Linux, UOS * Supports UEFI Boot |
|
General |
|
|
Size |
82 mm × 53 mm |
|

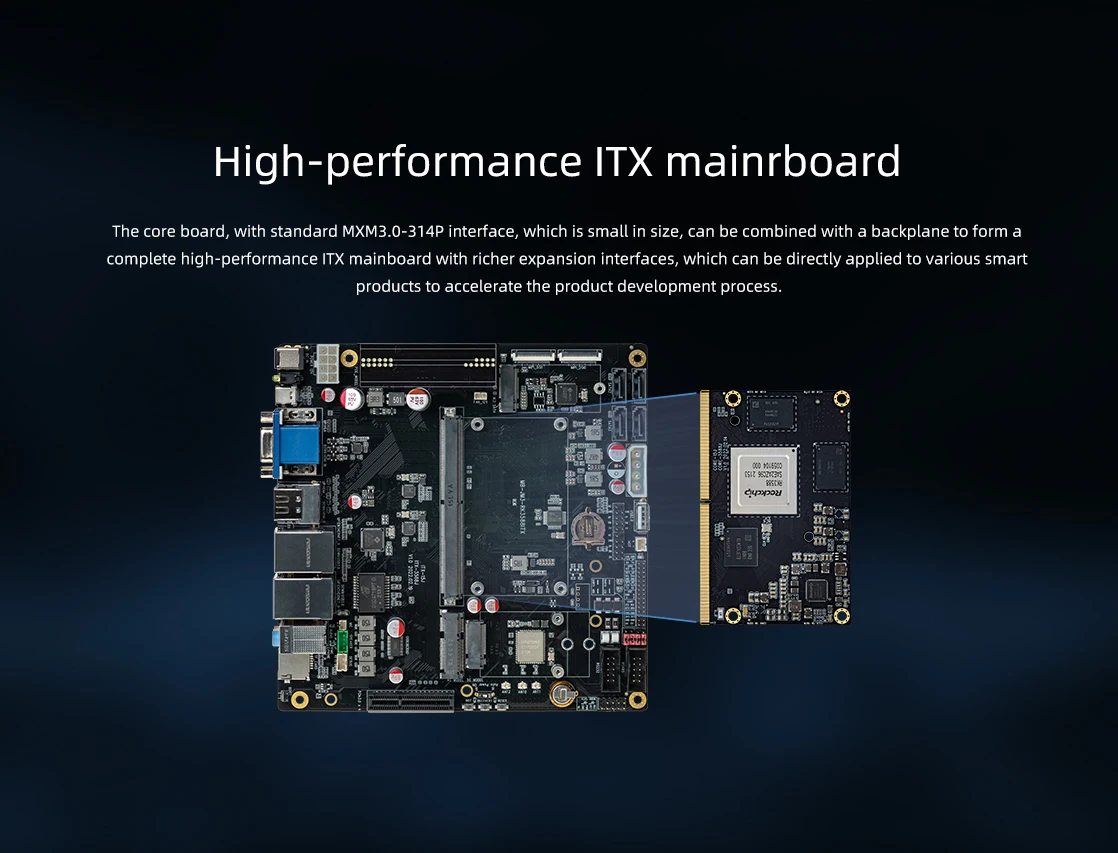

Interface Type |
MXM3.0 ( 314 PIN, 0.5mm pitch) |
|
PCB |
10-layer design, immersion gold technology |
|
Heat Dissipation |
Heat sink installation hole pitch: 45mm |
|
Power Consumption |
Idle: ≈1.35W (12V/110mA) Typical: ≈4.8W (12V/400mA) Max: ≈20W (12V/1700mA) |
|
Environment |
Operating Temperature: -20℃-60℃, Storage Temperature: -20℃-70℃, Storage Humidity: 10%-80% |
