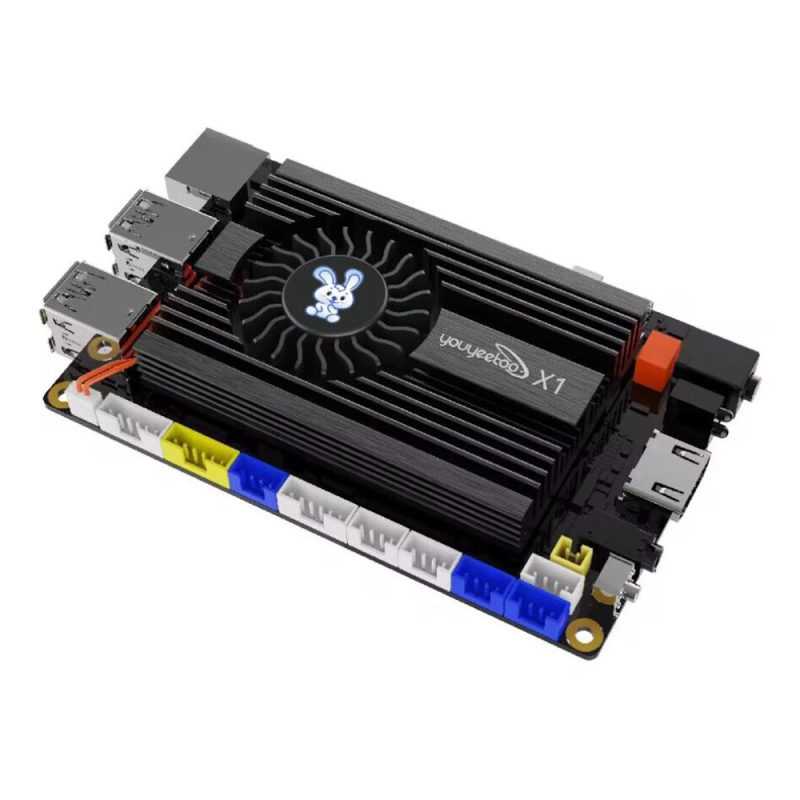

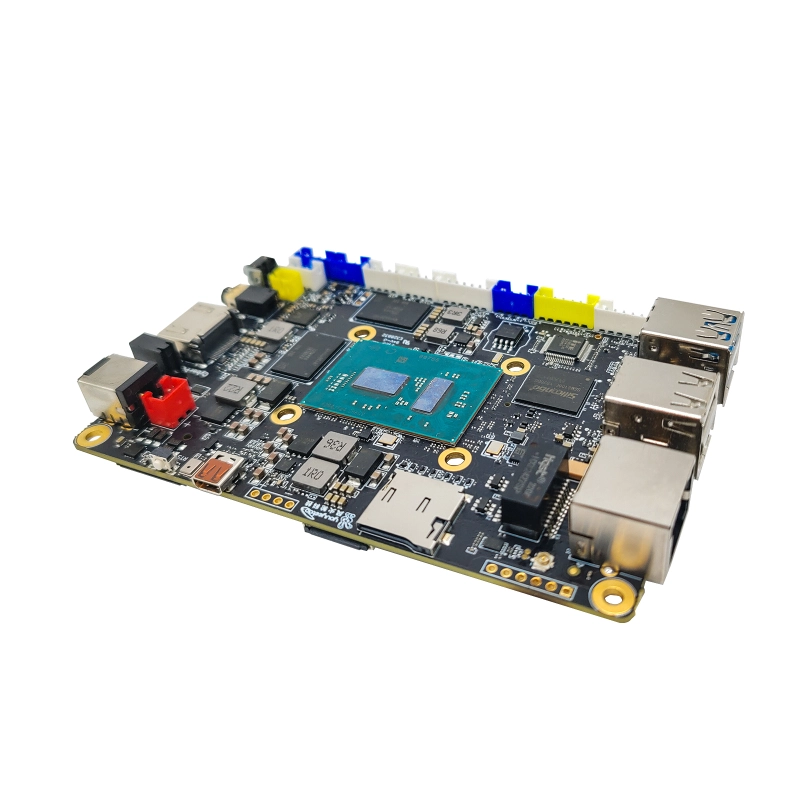

youyeetoo X1

4K X86  Single board computer - N5105 - Windows Linux Server

• Quick Start:https://wiki.youyeetoo.com/en/x1
• Certificate: FCC/CE/RoHS
• FAQ: WIKI#FAQ
• Tech Forum: Feedback

• Social Media:
  • Discord
  • Facebook Group

Introduction

The youyeetoo X1 is a single-board computer with an 11th Gen 4 Core Intel Celeron N5105. The N5105 is a quad-core, quad-threaded SoC from the Jaser Lake family. four Tremont CPU cores are clocked between 2 and 2.9 GHz (single-core Burst). Uses 1.5 MB L2 and 4 MB L3 caches.
Multiple RAM and storage sizes are available, with support for M.2 extended wifi, 4G LTE, and SSD. The right configuration can be matched to your project needs.
Whether you are a DIY manufacturer, IoT developer, system integrator or solution provider, you can always find what you want.
Mainly for industrial, IoT, automation, robotics, and other industries.

Standard MINI PC purchase link:

	SKU	CPU	Link
	BY50	[Intel N5105]	[Click Here]
	BY51	[Intel N100]	[Click Here]
	BY52	[Intel N100]	[Click Here]

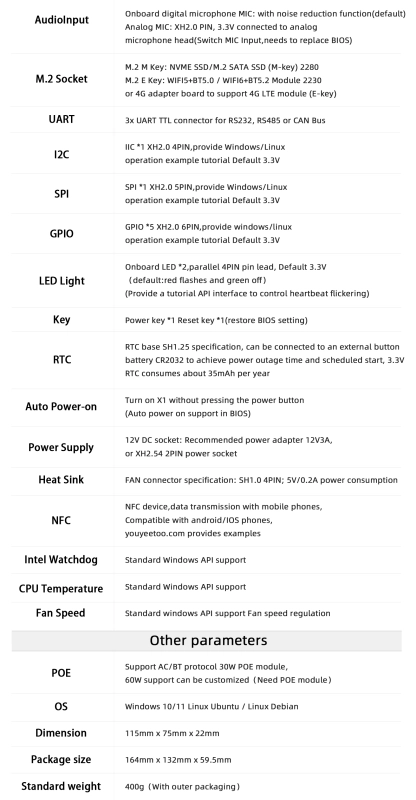

Features

• CPU: 11th Gen 4 Core Intel Celeron N5105(Up to 2.9 GHz), 10nm, 10 TDP
• Graphics： Intel® UHD Graphics
• RAM: Up to 16GB LPDDR4
• Storage: Support EMMC, TF Card, NVME SSD, SATA3.0.
• Video:  Support Dual 4K HDR and 3-Way Video Output.
• Networking: 1 GbE LAN. , WIFI 5 + BT 5.0 / WIFI 6 + BT 5.2 / 4G LTE via  M.2 2230 E key,
• Other: PoE, USB3.0x2, USB2.0x4, UART, GPIO, IIC, SPI, RTC, NFC
• Support Wake On LAN,  Automatically start.
• OS: Linux, Windows 10 Pro / 11 Pro

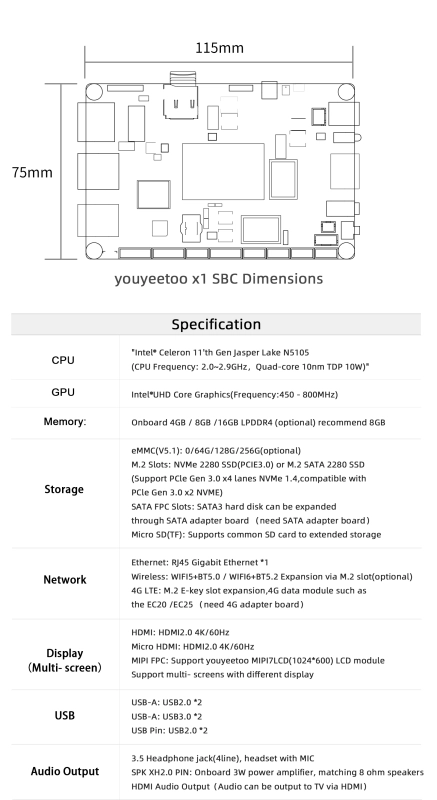

• Size : 115mm x 75mm x 20 mm

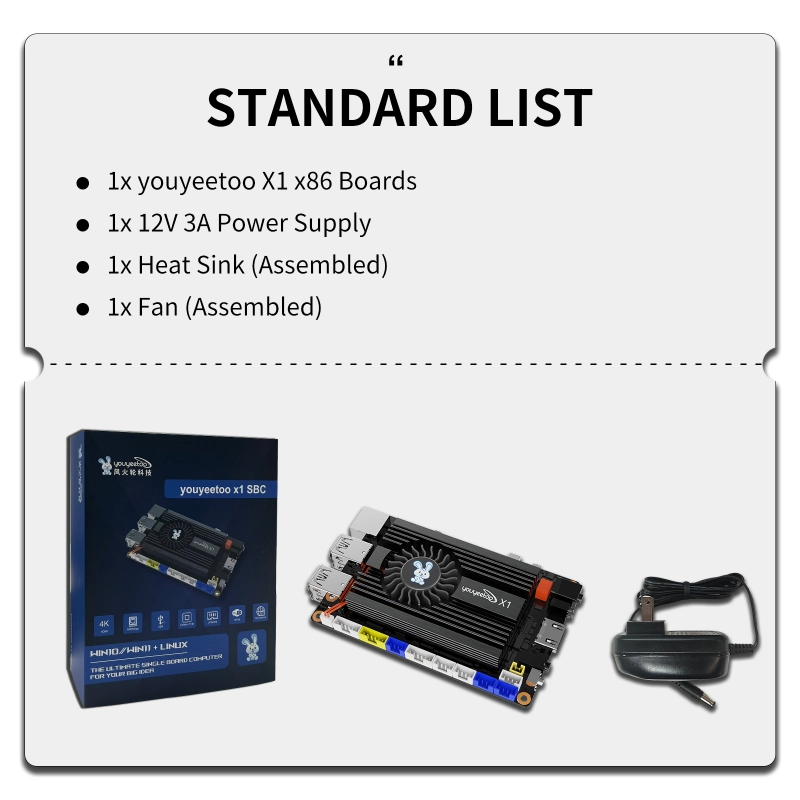

Shipping Listing:

x1 youyeetoo X1 X86 Single board computer
x1 12V 3A DC Power
x1 Active Cooling Fan (Assembled)

Applications

Intel development board
Server
NAS Kit
Home Assistant

Detailed Descriptions

Reviews & Community:

Blog | CNX-SOFTWARE REVIEW | How to use Python to control GPIO/ IIC/ SPI / UART on X1 .
Video | [UglyScale Press] Install Proxmox in youyeetoo x1 | SSD
Video | [Kio Diekin ] YouYeetoo X1: How to Reimage Windows On Your Device with Required Drivers

Video | [youyeetoo ] How to Install Proxmox in youyeetoo x1 emmc storage

[The X1 Is An All New $99 4K X86 SBC That Runs EMUs and OG Games!]

[Youyeetoo X1 4k Single Board x86 PC! The Best Single Board Computer]

[Don't Miss Out On This x86 SBC - YouYeeToo x1]

youyeetoo x1 ecosystems

All Accessories Link:https://www.youyeetoo.com/collections/youyeetoo-ecosystem
Tips: You can find the accessories supported in the wiki here.
If you can't find a tutorial on the wiki, you can feedback:

Forum: https://forum.youyeetoo.com/c/youyeetoo-x1-sbc-x64/32

youyeetoo x1 ecosystems

Categories	Model	Description	Purchase links	How to use
Network	WIFI 6	rtl8852ce, WIFI6+BT5.2		wiki link
	WIFI 5	rtl8822ce, WIFI5+BT5.0		wiki link
	4G LTE module	EC20 (Tips:Requires use with a 4G adapter board.)		wiki link
	NFC antenna	NFC antenna		wiki link
Display	7 inch LCD	Touch Screen, 5point, 1024x600		wiki link
Debug	Debug Module	6 in 1 USB Adapter Module - USB to UART SPI IIC Master Slave PWM IN/OUT		wiki link

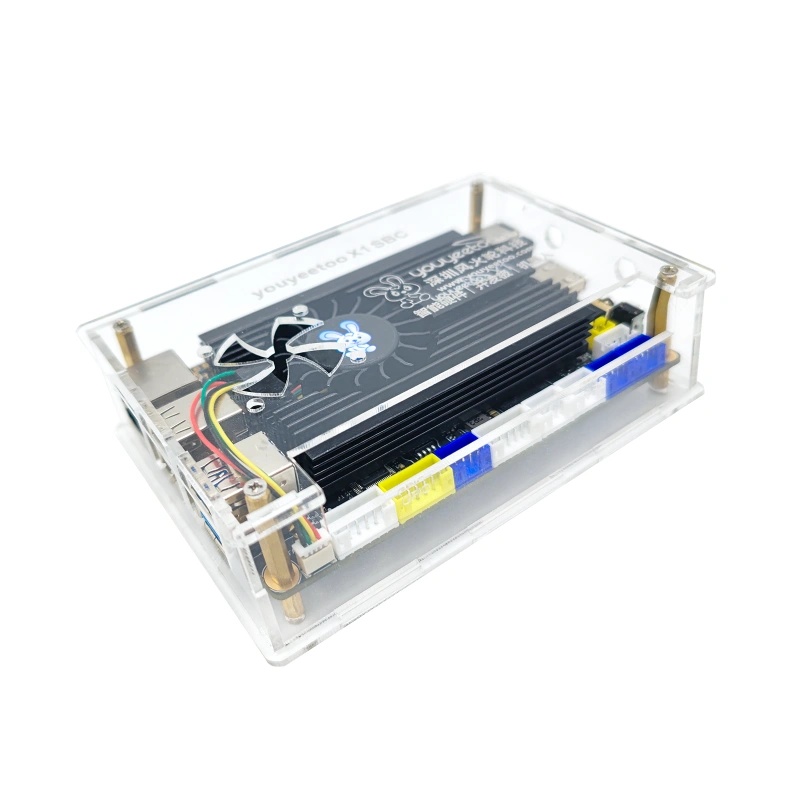

Case	Acrylic shell	Acrylic shell (coming soon)		wiki link

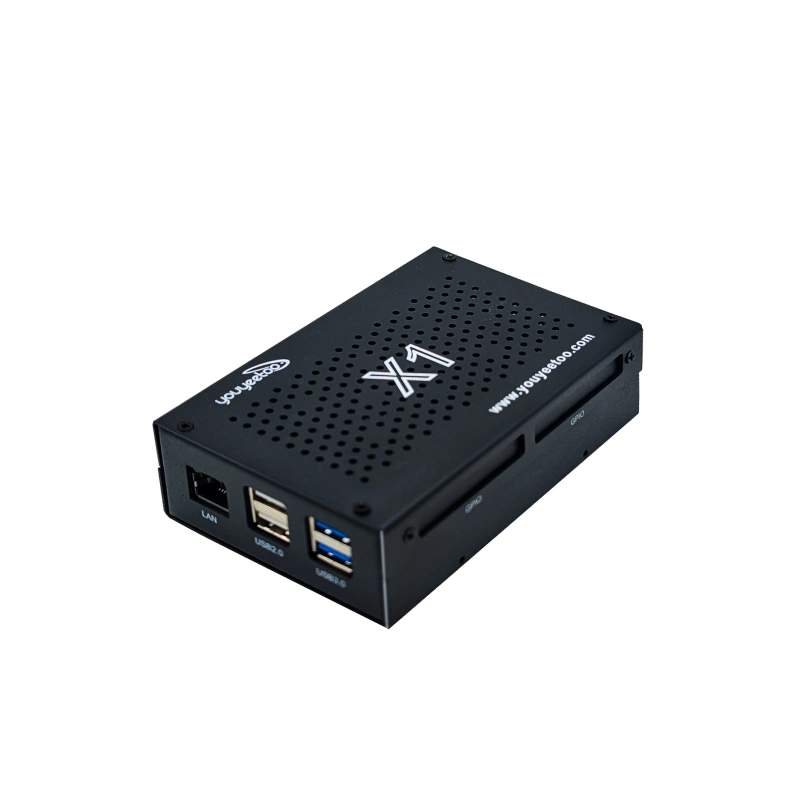

	Metal CNC case	Metal CNC case		Assembly Video Link
Adapter	SATA adapter	SATA3.0 adapter		wiki link
	M.2 to MINI-PCIe	4G module adapter for youyeetoo x1		wiki link
Power	12V3A DC Power	DC jack, 5.5*2.5mm, US/EU/UK Standard		wiki link
	PoE moduel	12V PoE module. Provide 30W, 60W, 72W		wiki link
Storage	SSD	mSATA, NVME, 256GB, 512GB, 1TB, 2TB		wiki link
BAT	RTC BAT	RTC BAT, SH1.0 connector		wiki link
